AMGO® 16,000 lb Alignment Scissor Lift #AX-16A
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | AX-16A |
| Lifting Capacity | 16,000 lbs |
| Lift Type | Alignment Scissor |
| Max Lifting Height | 72-13/16" |
| Lifting Time | 110 s |
| Motor | 2.0 HP |
- 4" (100 mm) minimum thickness, 3,000 psi minimum concrete
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Full-rise scissor; max platform height 72-13/16"
- Minimum platform height 13"
- Confirm overhead clearance for a raised heavy vehicle before install

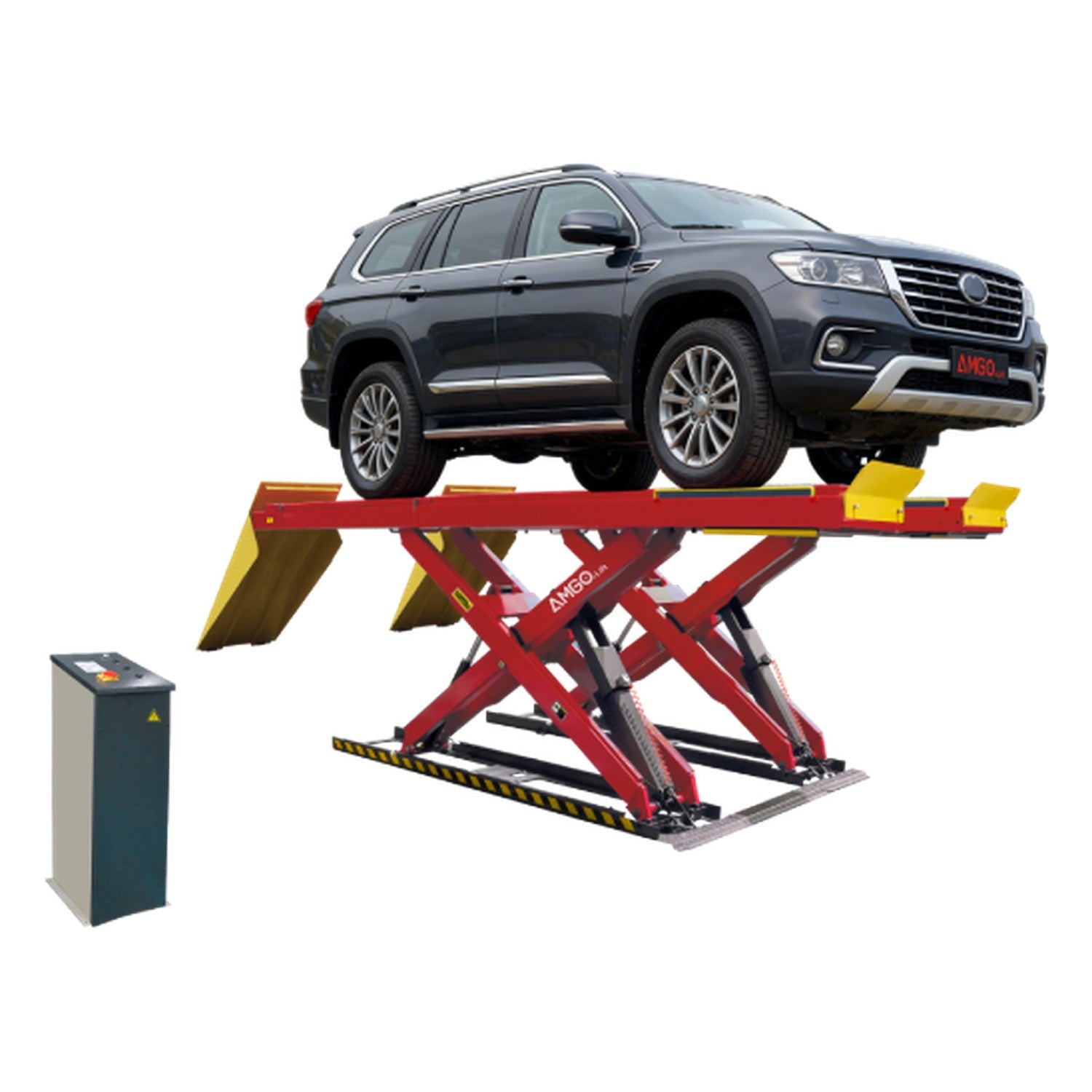

AMGO® AX-16A 16,000 lb Alignment Scissor Lift
The AMGO® AX-16A is a 16,000 lb alignment scissor lift built for heavier fleet and light-commercial work. A control cabinet and dual synchronous cylinders run through an electro-air control system with self-lock safety, a 300 mm stop switch and a descent alarm. Turnplate and slip-plate pockets turn the extra capacity into a full alignment station for larger vehicles.
Full-rise platforms reach 72-13/16" and lock at 71-1/16", dropping to 13", giving techs the working height and stability to align three-quarter-ton and one-ton vehicles up to the 16,000 lb rating.
Who It's Built For
- Fleet and truck-service shops aligning three-quarter- and one-ton vehicles
- Vehicles up to the 16,000 lb rating that outweigh a 12,000 lb scissor
- Alignment bays needing extra runway length and capacity
- Shops that want synchronized dual cylinders on a heavy platform
- Techs handling both alignment and heavy undercarriage service
What It's NOT Built For
- Loads above 16,000 lb — this is the top of the AX scissor line
- Light-duty-only bays where a 12,000 lb scissor is plenty
- Slabs thinner than 4" or of unknown strength — verify first
- Motorcycles and ATVs — use a powersport lift
- Low-ceiling bays that cannot clear a raised heavy vehicle
Key Differentiator: 16,000 lb alignment capacity on a full-rise scissor
The AX-16A carries 4,000 lb more than the AX-12A on a longer, wider full-rise alignment platform, so heavier trucks and vans get a proper alignment without moving to an in-ground rack.
- Heavy alignment work on trucks and vans up to 16,000 lb
- Light-duty-only shops that never exceed 12,000 lb (pick the AX-12A)
AX-16A vs the Lighter AMGO Scissors - Which Alignment Lift Fits?
| Model | Capacity | Type | Max Height | Cycle Time |
|---|---|---|---|---|
| AX-12 | 12,000 lb | Service Scissor | 72-7/8" | 75 s |
| AX-12A | 12,000 lb | Alignment Scissor | 72-7/8" | 75 s |
| AX-16A | 16,000 lb | Alignment Scissor | 72-13/16" | 110 s |
All of these AMGO scissor models are stocked in Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – AX-16A
| Brand | AMGO® Hydraulics |
| Model | AX-16A |
| Part / SKU | ALMAMGAX16A |
| Lifting Capacity | 16,000 lbs |
| Lift Type | Alignment Scissor |
| Max Lifting Height | 72-13/16" |
| Lock Height | 71-1/16" |
| Minimum Height | 13" |
| Overall Length | 274-3/16" |
| Overall Width | 94-1/16" |
| Runway Width | 24-5/8" |
| Distance Between Runways | 44-7/8" |
| Lifting Time | 110 s |
| Motor | 2.0 HP, 220V, 60Hz, single-phase |
| Control | Electro-air, self-lock safety mechanism, 300 mm stop switch + descent alarm |
| Gross Weight | 6,283 lbs |
| Shipping Cartons | 219" x 30" x 40" (crate 1) + 19" x 17" x 49" (cabinet) |
Installation Requirements
- Concrete: Minimum 4" (100 mm) of 3,000 psi concrete, level
- Power: 220V single-phase; confirm your service at order
- Overhead: Clear a full-rise raised heavy vehicle before install
- Air: Shop air required for the electro-air self-lock control
AMGO 5-3-2 Limited Warranty – AX-16A
AMGO Hydraulics backs this scissor lift with a 5-3-2 warranty covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure | Scissor structure, platforms, base frame and steel weldments |
| 3 Years | Hydraulic Parts & Cable | Cylinders, oil seals, hoses, fittings and synchronization cable |
| 2 Years | Electrical & Power Unit | Electrical components and power unit (consumable parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - AX-16A
Why Buy the AX-16A from Alamo Equipment & Service?
- Alamo installs it. We handle delivery, anchoring, leveling and startup.
- Alamo services it. One call reaches a technician for parts or a claim.
- Alamo sizes it. We confirm capacity, runway and ceiling before you commit.
- No upsell games. If a 12,000 lb scissor covers you, we say so.
- Call for Shipping. Heavy freight is quoted per order at (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
