AMGO® 6,000 lb Portable Low-Rise Scissor Lift #LR06
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | LR06 |
| Lifting Capacity | 6,000 lbs |
| Lift Type | Portable Low-Rise Scissor |
| Max Lifting Height | 24 3/16" |
| Minimum Height | 4 1/8" |
| Motor | 1.0 HP |
- Level, load-rated shop floor
- Portable; optional 3/4" x 5-1/2" anchor bolts if fixing to a cement floor (per manual)
- Indoor use
- 1.0 HP power unit
- Supply circuit rated for 2.0 HP, cord 12 AWG or larger, grounded
- Wiring by a licensed electrician
- Portable — moved by forklift
- Drive-in ramps included
- Minimum height 4 1/8"

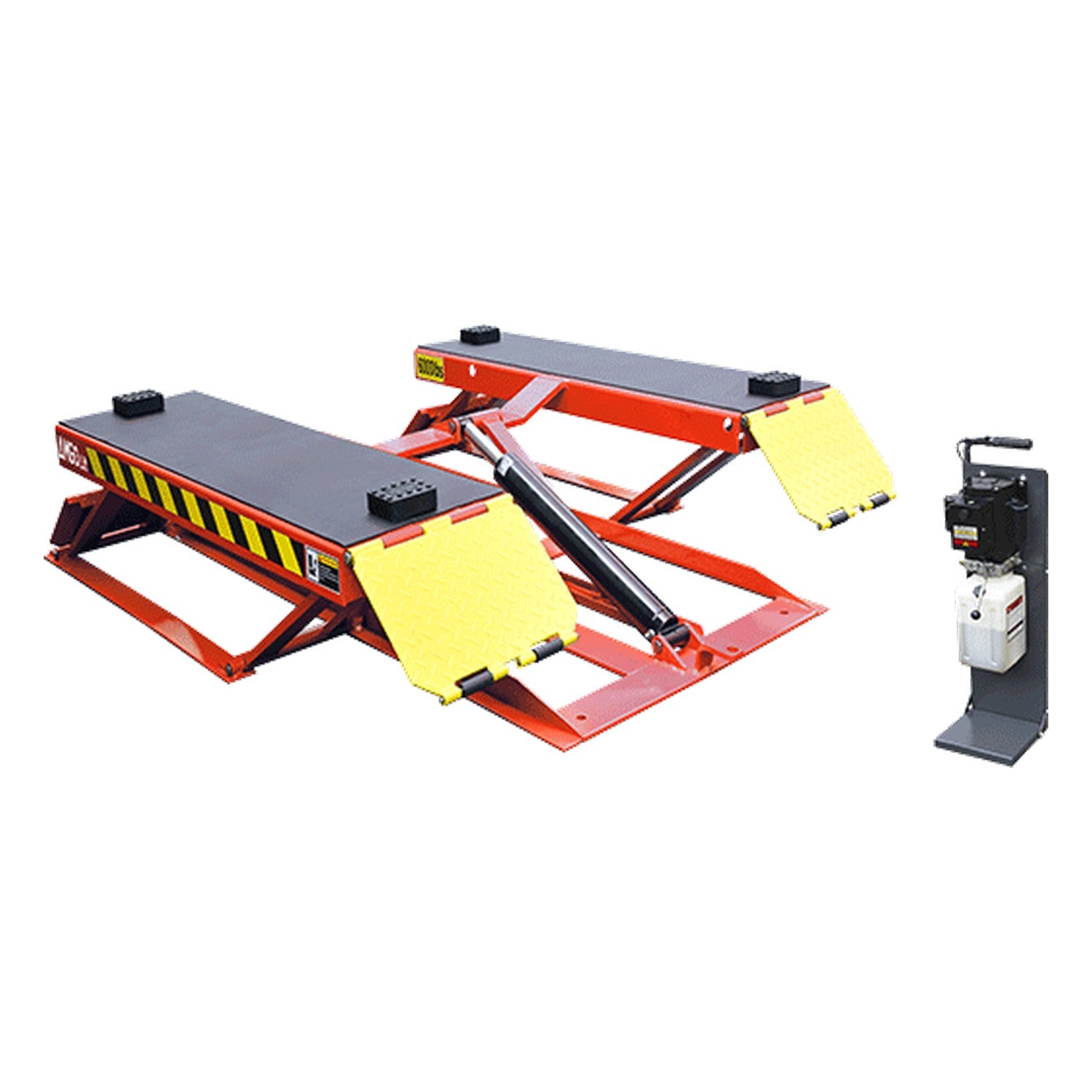

AMGO® LR06 6,000 lb Portable Low-Rise Scissor Lift
The AMGO® LR06 is a portable 6,000 lb low-rise scissor lift with a 24 3/16" maximum lifting height and a low 4 1/8" minimum height. Drive-in ramps make loading simple, and it can be fixed to a cement floor with optional anchor bolts or left portable.
Its low profile suits tire, brake and detail work where full mid-rise height is not needed.
Who It's Built For
- Tire, brake and detail shops
- Vehicles within the 6,000 lb rating
- Bays needing a low-rise lift
- Portable or anchored installs
- Low-clearance loading via ramps
What It's NOT Built For
- Loads above 6,000 lbs
- Full-height under-vehicle work
- Two-wheeled vehicles
- Outdoor installation
- Tasks needing mid-rise height
Key Differentiator: Low-profile portable lifting
A 24 3/16" lift height and 4 1/8" minimum profile make the LR06 ideal for low-rise work that a mid-rise lift over-raises.
- Low-rise tire, brake and detail work
- Full under-vehicle standing-height service
How the LR06 Compares - Which AMGO Low-Rise Lift Fits Your Shop?
| Model | Capacity | Type | Motor |
|---|---|---|---|
| LR06 | 6,000 lb | Portable Low-Rise | 1.0 HP |
| LR10 | 10,000 lb | Portable Low-Rise | 3.0 HP |
| MR06 | 6,000 lb | Portable Mid-Rise | 1.0 HP |
Not sure if 6,000 lbs covers your heaviest vehicle? Call Alamo at (817) 865-3707 before you order.
Full Specifications – LR06
| Brand | AMGO® Hydraulics |
| Model | LR06 |
| Part / SKU | ALMAMGLR06 |
| Lifting Capacity | 6,000 lbs |
| Design | Portable Low-Rise Scissor |
| Lifting Time | 56 s |
| Max Lifting Height | 24 3/16" |
| Minimum Height | 4 1/8" |
| Overall Length (excl. ramps) | 57 3/16" |
| Overall Length (incl. ramps) | 84 1/16" |
| Width Between Runways | 34 3/16" |
| Outside Edge of Runways | 70 1/16" |
| Motor | 1.0 HP (2.0 HP supply circuit) |
| Anchoring | Optional 3/4" x 5-1/2" bolts for cement floor |
| Shipping Carton | 85" x 71" x 9" |
| Shipping Weight | 827 lbs |
Installation & Setup
- Placement: Level, load-rated indoor floor; moved by forklift
- Anchoring: Optional 3/4" x 5-1/2" bolts if fixing to a cement floor
- Power: 1.0 HP on a 2.0 HP-rated circuit, 12 AWG or larger grounded cord
AMGO 5-3-2 Limited Warranty – LR06
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - LR06
Why Buy the LR06 from Alamo Equipment & Service?
- We set it up. Our crew delivers and commissions it in your bay.
- We service it. Parts and warranty run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and space; we confirm the fit.
- Straight answers. We will point you to a better-value model when one exists.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
