AMGO® 10,000 lb Portable Low-Rise Scissor Lift #LR10
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | LR10 |
| Lifting Capacity | 10,000 lbs |
| Lift Type | Portable Low-Rise Scissor |
| Max Lifting Height | 24 3/16" |
| Minimum Height | 4 1/8" |
| Motor | 3.0 HP |
- Level, load-rated shop floor
- Portable; optional 3/4" x 5-1/2" anchor bolts if fixing to a cement floor (per manual)
- Indoor use
- 3.0 HP power unit
- Cord larger than 2.5 mm², properly grounded
- Wiring by a licensed electrician
- Portable — moved by forklift
- Drive-in ramps included
- Minimum height 4 1/8"

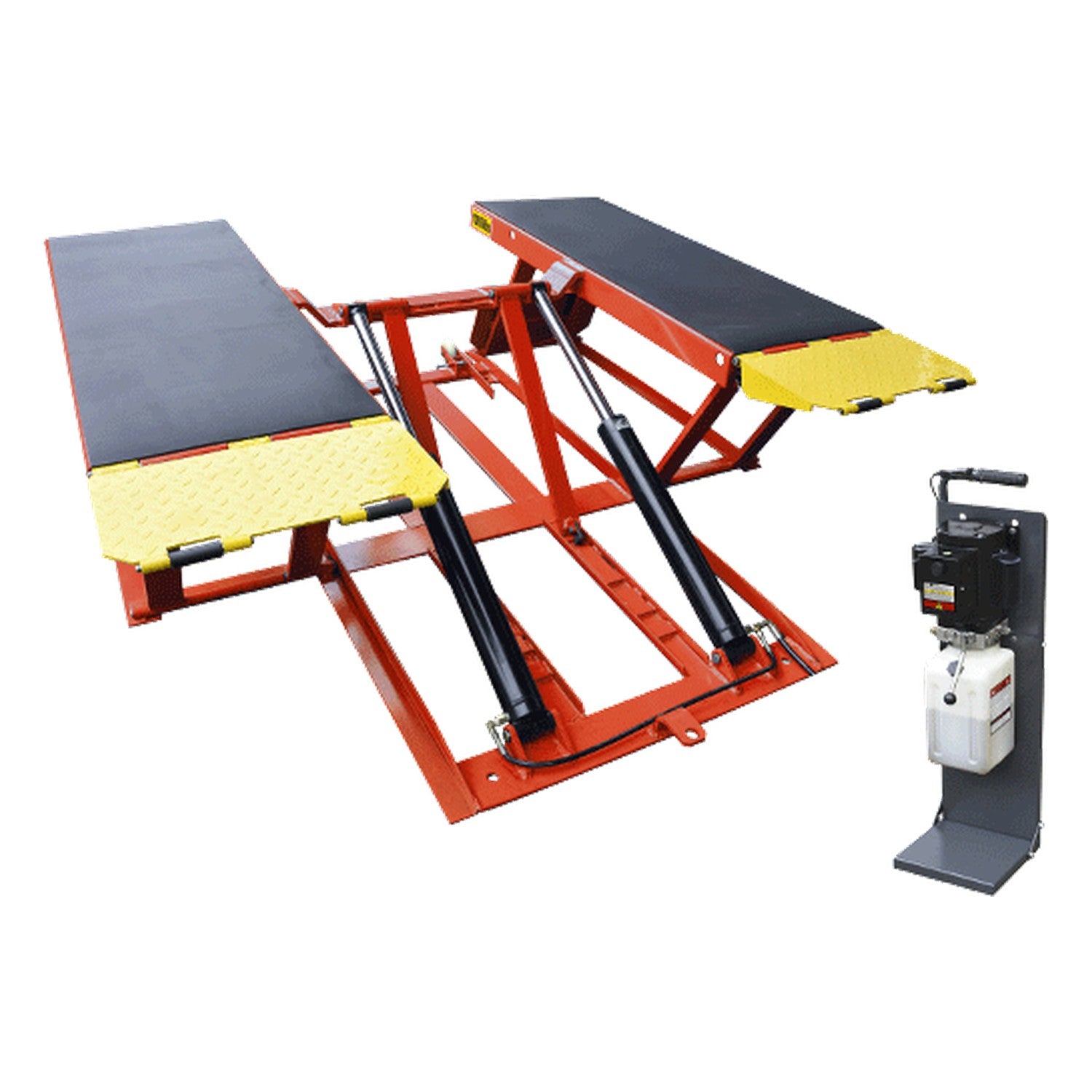

AMGO® LR10 10,000 lb Portable Low-Rise Lift
The AMGO® LR10 is a portable 10,000 lb low-rise scissor lift — the higher-capacity companion to the LR06 — with the same 24 3/16" lift height and 4 1/8" minimum profile. A stronger 3.0 HP power unit handles the heavier load.
Drive-in ramps make loading simple, and it can be fixed to a cement floor with optional anchors or left portable for flexible placement.
Who It's Built For
- Shops lifting heavier vehicles low
- Vehicles within the 10,000 lb rating
- Bays needing a high-capacity low-rise lift
- Portable or anchored installs
- Low-clearance loading via ramps
What It's NOT Built For
- Loads above 10,000 lbs
- Full-height under-vehicle work
- Two-wheeled vehicles
- Outdoor installation
- Tasks needing mid-rise height
Key Differentiator: High-capacity low-rise lifting
A 10,000 lb rating with a 3.0 HP power unit gives the LR10 the muscle for heavier vehicles at low-rise height.
- Heavier vehicles at low-rise height
- Light 110V-only shop power
How the LR10 Compares - Which AMGO Low-Rise Lift Fits Your Shop?
| Model | Capacity | Type | Motor |
|---|---|---|---|
| LR10 | 10,000 lb | Portable Low-Rise | 3.0 HP |
| LR06 | 6,000 lb | Portable Low-Rise | 1.0 HP |
| MRL09 | 9,000 lb | Mid-Rise Scissor | 2.0 HP |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – LR10
| Brand | AMGO® Hydraulics |
| Model | LR10 |
| Part / SKU | ALMAMGLR10 |
| Lifting Capacity | 10,000 lbs |
| Design | Portable Low-Rise Scissor |
| Lifting Time | 56 s |
| Max Lifting Height | 24 3/16" |
| Minimum Height | 4 1/8" |
| Overall Length (excl. ramps) | 57 3/16" |
| Overall Length (incl. ramps) | 84 1/16" |
| Width Between Runways | 34 3/16" |
| Outside Edge of Runways | 77 15/16" |
| Motor | 3.0 HP |
| Power Cord | Larger than 2.5 mm², grounded |
| Anchoring | Optional 3/4" x 5-1/2" bolts for cement floor |
| Shipping Carton | 85" x 79" x 9" |
| Shipping Weight | 1,052 lbs |
Installation & Setup
- Placement: Level, load-rated indoor floor; moved by forklift
- Anchoring: Optional 3/4" x 5-1/2" bolts if fixing to a cement floor
- Power: 3.0 HP with a grounded cord larger than 2.5 mm², wired by a licensed electrician
AMGO 5-3-2 Limited Warranty – LR10
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - LR10
Why Buy the LR10 from Alamo Equipment & Service?
- We set it up. Our crew delivers and commissions it in your bay.
- We service it. Parts and warranty run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and space; we confirm the fit.
- Straight answers. We will point you to a better-value model when one exists.
- Call for Shipping. Freight is quoted per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
