AMGO® 6,000 lb Rolling Bridge Jack #J6H
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | J6H |
| Lifting Capacity | 6,000 lbs |
| Type | Rolling Jack |
| Power | Hand pump |
| Arm Pads Reach | 33 1/16" - 53 7/16" |
| Min. Height | 8 7/16" |
- Used on a lift's runways — no separate concrete anchoring
- Level, load-rated bay floor
- Hand pump — no electrical or air supply required
- Mechanical safety locks
- Arm pads reach 33 1/16" - 53 7/16"
- Minimum height 8 7/16"; max lift 17 3/4" (20 1/4" with adapters)

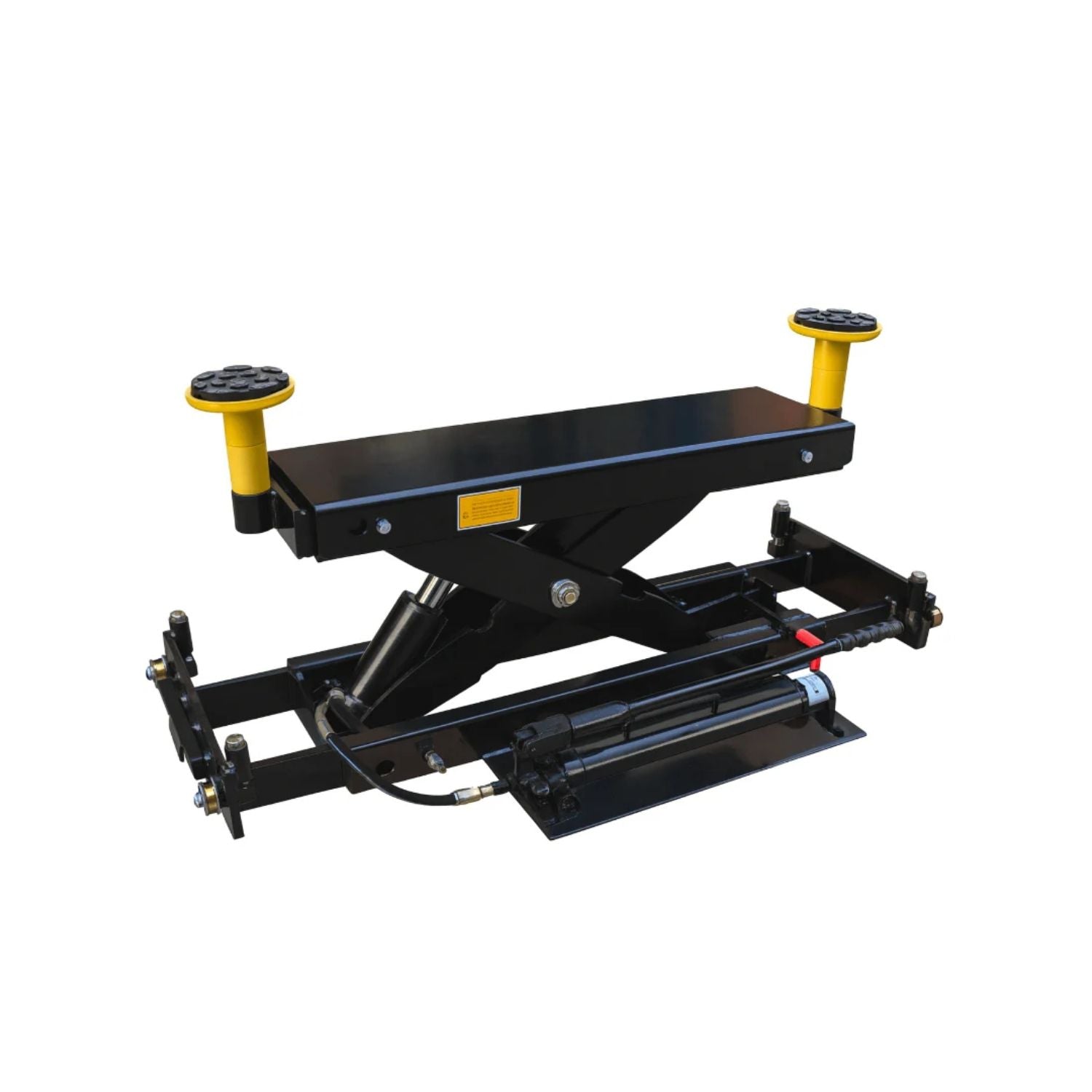

AMGO® J6H 6,000 lb Rolling Bridge Jack
The AMGO® J6H (RJ-6H) is a 6,000 lb hand-pump rolling bridge jack — the no-air version of the J6A. It rides on a lift's runways and raises a vehicle for wheel and brake service using a hand pump, with mechanical safety locks holding the load.
Arm pads reach from 33 1/16" to 53 7/16" to fit a range of runways, and the jack stacks for storage.
Who It's Built For
- Two- and four-post lift bays with no air line
- Wheel, brake and suspension service within 6,000 lbs
- Shops that prefer hand-pump simplicity
- Techs needing adjustable arm reach
- Bays where stackable storage matters
What It's NOT Built For
- Loads above 6,000 lbs
- Fast repeated air-powered lifting
- Standalone floor lifting without a lift
- Vehicles wider than the support base
- Outdoor use
Key Differentiator: Hand-pump 6-ton rolling jack
A hand pump runs the J6H with no air line, giving the same 6,000 lb capacity as the J6A without a compressor.
- No-air shops at 6,000 lb capacity
- Shops wanting the fastest air-powered lifting
How the J6H Compares - Which AMGO Rolling Jack Fits Your Shop?
| Model | Capacity | Power | Overall Width |
|---|---|---|---|
| J6H | 6,000 lb | Hand pump | 20 1/16" |
| J6A | 6,000 lb | Pneumatic | 20 1/16" |
| J5H | 5,000 lb | Hand pump | Contact us |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (817) 865-3707 and we will help you choose before ordering.
Full Specifications – J6H
| Brand | AMGO® Hydraulics |
| Model | J6H |
| Part / SKU | ALMAMGJ6H |
| Lifting Capacity | 6,000 lbs |
| Type | Rolling / Bridge Jack |
| Power | Hand pump |
| Arm Pads Reach | 33 1/16" - 53 7/16" |
| Min. Height | 8 7/16" |
| Operation | Hand pump |
| Shipping Weight | 280 lbs |
Installation & Setup
- Placement: Rides on a lift's runways; no floor anchoring
- Power: Hand pump, no air or electrical supply
- Reach: Arm pads 33 1/16" - 53 7/16", minimum height 8 7/16"
AMGO 5-3-2 Limited Warranty – J6H
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
