AMGO® 6,000 lb Air Rolling Bridge Jack #J6A
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | J6A |
| Lifting Capacity | 6,000 lbs |
| Type | Rolling Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 33 1/16" - 53 7/16" |
| Min. Height | 8 7/16" |
- Used on a lift's runways — no separate concrete anchoring
- Level, load-rated bay floor
- Shop air source of at least 0.8 MPa
- Fit an oil-water separator on the air line
- Arm pads reach 33 1/16" - 53 7/16"
- Minimum height 8 7/16"; max lift 17 3/4" (20 1/4" with adapters)

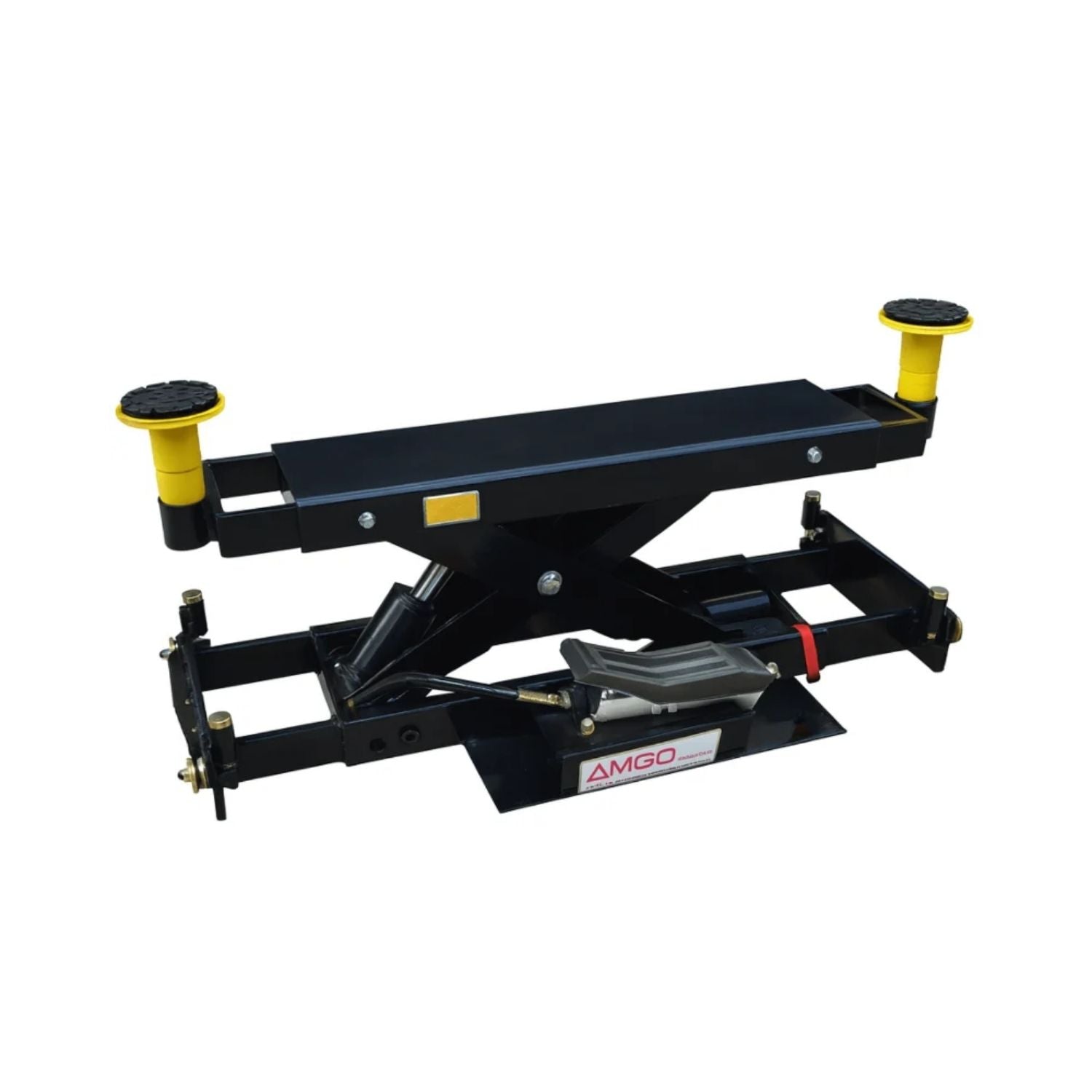

AMGO® J6A 6,000 lb Air Rolling Bridge Jack
The AMGO® J6A (RJ-6A) is a 6,000 lb pneumatic rolling bridge jack. A pneumatic pump raises the jack from a shop air source of at least 0.8 MPa, so it lifts fast with no hand pumping. Mechanical safety locks hold the load at height.
Its arm pads reach from 33 1/16" to 53 7/16" to span a range of lift runways, and it stacks for compact storage.
Who It's Built For
- Air-equipped two- and four-post lift bays
- Wheel, brake and suspension service within 6,000 lbs
- Shops that want fast air-powered lifting
- Techs needing adjustable arm reach
- Bays where stackable storage matters
What It's NOT Built For
- Loads above 6,000 lbs
- Shops with no compressed-air supply
- Standalone floor lifting without a lift
- Vehicles wider than the support base
- Outdoor use
Key Differentiator: Air-powered 6-ton rolling jack
A pneumatic pump raises the J6A from shop air, lifting faster than the hand-pump J6H at the same 6,000 lb rating.
- Air-equipped shops wanting fast lifting
- Shops with no compressed-air supply
How the J6A Compares - Which AMGO Rolling Jack Fits Your Shop?
| Model | Capacity | Power | Overall Width |
|---|---|---|---|
| J6A | 6,000 lb | Pneumatic | 20 1/16" |
| J6H | 6,000 lb | Hand pump | 20 1/16" |
| RJ-8A | 8,000 lb | Pneumatic | 21 3/4" |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – J6A
| Brand | AMGO® Hydraulics |
| Model | J6A |
| Part / SKU | ALMAMGJ6A |
| Lifting Capacity | 6,000 lbs |
| Type | Rolling / Bridge Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 33 1/16" - 53 7/16" |
| Min. Height | 8 7/16" |
| Air Pressure | 0.8 MPa |
| Shipping Weight | 282 lbs |
Installation & Setup
- Placement: Rides on a lift's runways; no floor anchoring
- Air: At least 0.8 MPa with an oil-water separator on the line
- Reach: Arm pads 33 1/16" - 53 7/16", minimum height 8 7/16"
AMGO 5-3-2 Limited Warranty – J6A
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - J6A
Why Buy the J6A from Alamo Equipment & Service?
- We set it up. Our crew delivers and commissions it in your bay.
- We service it. Parts and warranty run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and space; we confirm the fit.
- Straight answers. We will point you to a better-value model when one exists.
- Call for Shipping. Freight is quoted per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
