AMGO® 8,000 lb Air Rolling Bridge Jack #RJ-8A
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | RJ-8A |
| Lifting Capacity | 8,000 lbs |
| Type | Rolling Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 34 7/16" - 56" |
| Min. Height | 10 11/16" |
- Used on a lift's runways — no separate concrete anchoring
- Level, load-rated bay floor
- Shop air source of at least 0.8 MPa
- Fit an oil-water separator on the air line
- Arm pads reach 34 7/16" - 56"
- Minimum height 10 11/16"; max lift 21 3/16" (28 11/16" with adapters)

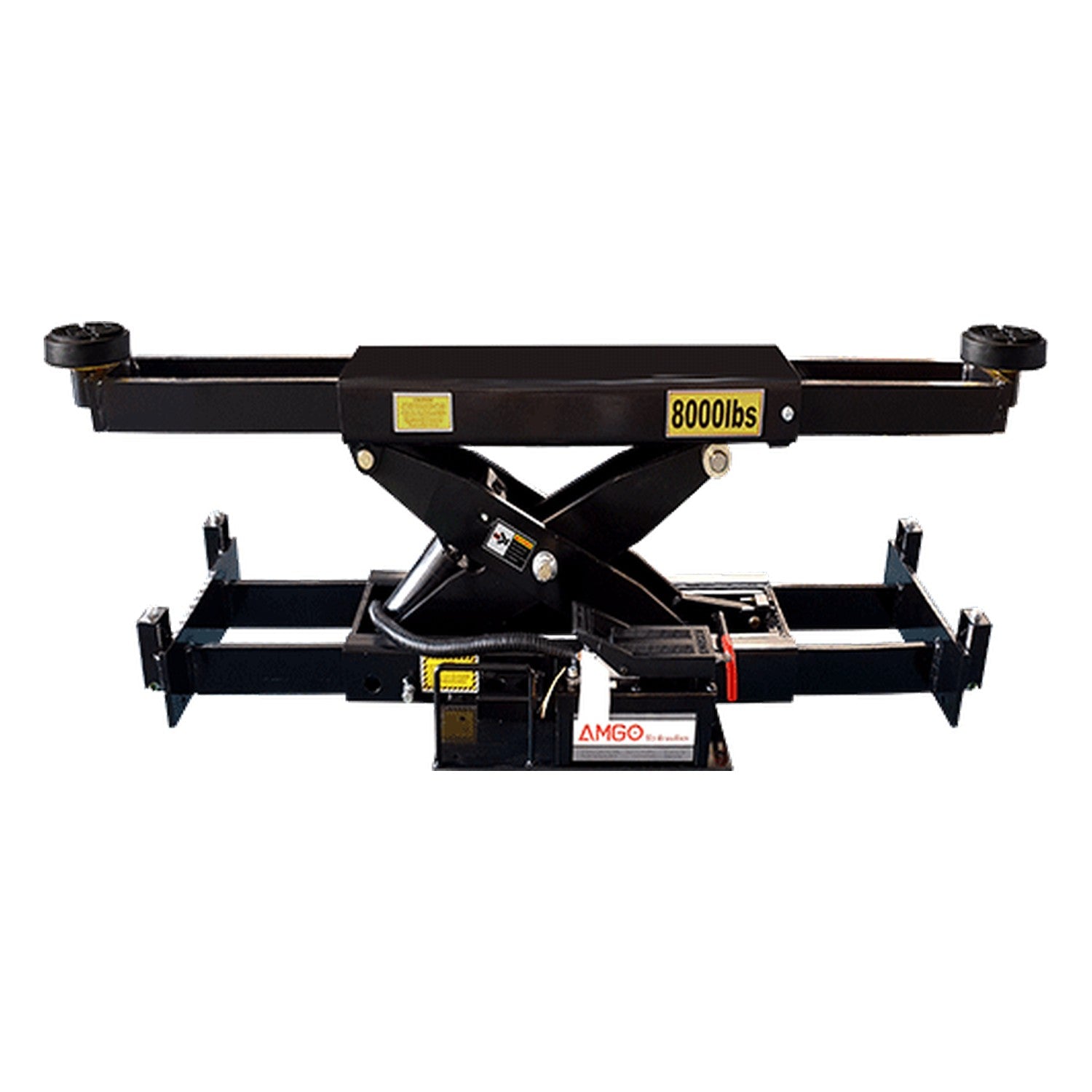

AMGO® RJ-8A 8,000 lb Air Rolling Bridge Jack
The AMGO® RJ-8A is an 8,000 lb pneumatic rolling bridge jack. A pneumatic pump raises it from a shop air source of at least 0.8 MPa, and mechanical safety locks hold the load. It rides on a lift's runways for wheel, brake and suspension service.
Arm pads reach from 34 7/16" to 56", and adapters extend max lift height from 21 3/16" to 28 11/16".
Who It's Built For
- Air-equipped lift bays needing more capacity
- Service on heavier vehicles within 8,000 lbs
- Shops wanting fast air-powered lifting
- Techs needing a wide 56" arm reach
- Bays servicing light trucks and SUVs
What It's NOT Built For
- Loads above 8,000 lbs
- Shops with no compressed-air supply
- Standalone floor lifting without a lift
- Vehicles wider than the support base
- Outdoor use
Key Differentiator: 8-ton air-powered reach
At 8,000 lbs with a 56" arm reach, the RJ-8A bridges wider, heavier vehicles than the 6-ton J6A.
- Heavier vehicles and wider runways
- Compact shops needing the smallest jack
How the RJ-8A Compares - Which AMGO Rolling Jack Fits Your Shop?
| Model | Capacity | Power | Overall Width |
|---|---|---|---|
| RJ-8A | 8,000 lb | Pneumatic | 21 3/4" |
| J6A | 6,000 lb | Pneumatic | 20 1/16" |
| RJ-10A | 10,000 lb | Pneumatic | 21 3/4" |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (844) 480-6059 and we will help you choose before ordering.
Full Specifications – RJ-8A
| Brand | AMGO® Hydraulics |
| Model | RJ-8A |
| Part / SKU | ALMAMGRJ8A |
| Lifting Capacity | 8,000 lbs |
| Type | Rolling / Bridge Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 34 7/16" - 56" |
| Min. Height | 10 11/16" |
| Air Pressure | 0.8 MPa |
| Shipping Weight | 397 lbs |
Installation & Setup
- Placement: Rides on a lift's runways; no floor anchoring
- Air: At least 0.8 MPa with an oil-water separator on the line
- Reach: Arm pads 34 7/16" - 56", minimum height 10 11/16"
AMGO 5-3-2 Limited Warranty – RJ-8A
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - RJ-8A
Why Buy the RJ-8A from Alamo Equipment & Service?
- We set it up. Our crew delivers and commissions it in your bay.
- We service it. Parts and warranty run through our shop, not a hotline.
- We size it with you. Tell us your vehicles and space; we confirm the fit.
- Straight answers. We will point you to a better-value model when one exists.
- Call for Shipping. Freight is quoted per order so you pay the real rate — (844) 480-6059.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
AMGO shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the shipping total before sending a payment link.
