AMGO® 10,000 lb Air Rolling Bridge Jack #RJ-10A
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | RJ-10A |
| Lifting Capacity | 10,000 lbs |
| Type | Rolling Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 38 5/8" - 62 3/8" |
| Min. Height | 11" |
- Used on a lift's runways — no separate concrete anchoring
- Level, load-rated bay floor
- Shop air source of at least 0.8 MPa
- Fit an oil-water separator on the air line
- Arm pads reach 38 5/8" - 62 3/8"
- Minimum height 11"; max lift 21 1/2" (29" with adapters)

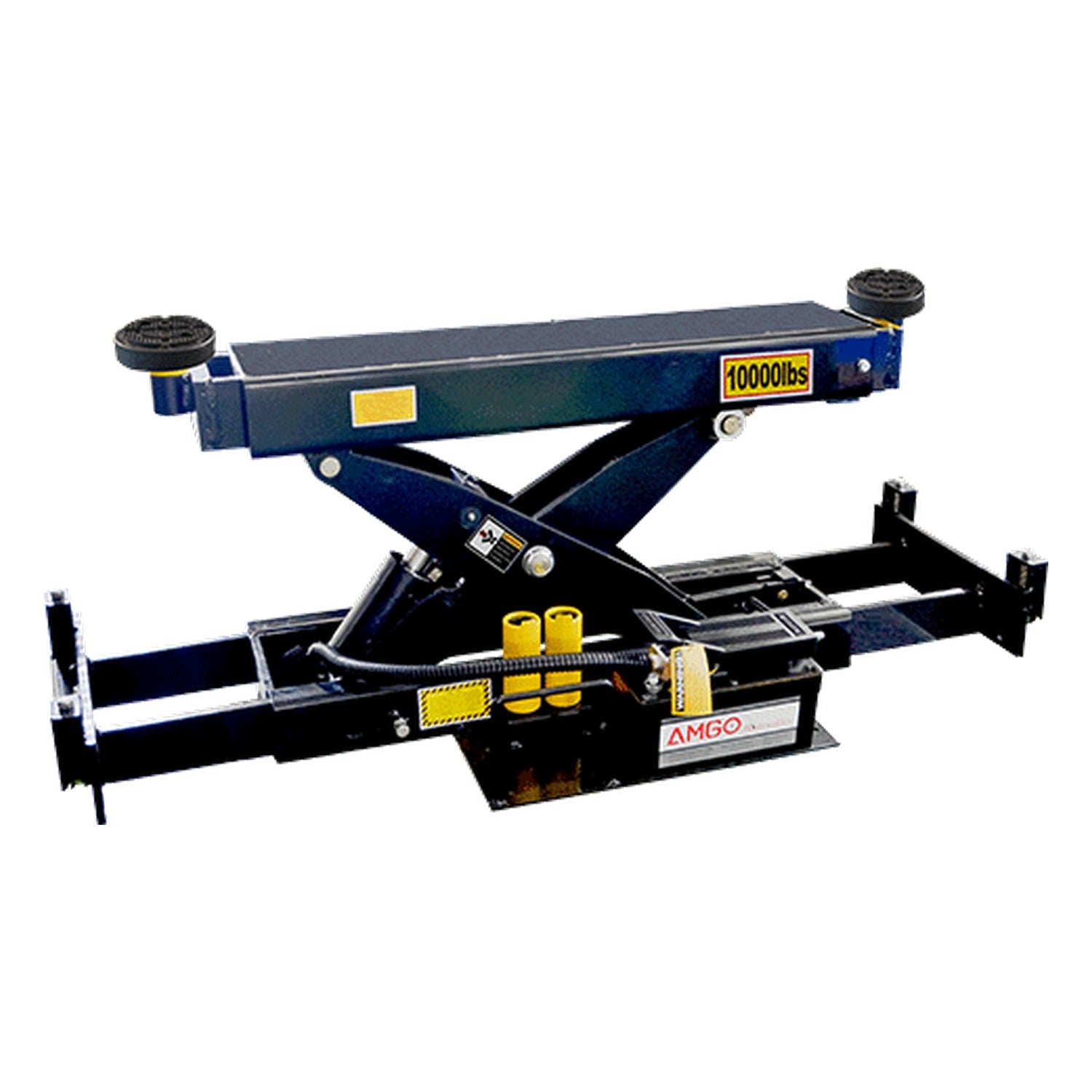

AMGO® RJ-10A 10,000 lb Air Rolling Bridge Jack
The AMGO® RJ-10A is a 10,000 lb pneumatic rolling bridge jack. A pneumatic pump raises it from a shop air source of at least 0.8 MPa, with mechanical safety locks holding the load. It rides on a lift's runways for heavier vehicle service.
Arm pads reach from 38 5/8" to 62 3/8", and adapters extend max lift height from 21 1/2" to 29".
Who It's Built For
- Air-equipped lift bays servicing heavy vehicles
- Wheel and suspension work within 10,000 lbs
- Shops wanting fast air-powered lifting
- Techs needing a wide 62 3/8" arm reach
- Bays servicing full-size trucks
What It's NOT Built For
- Loads above 10,000 lbs
- Shops with no compressed-air supply
- Standalone floor lifting without a lift
- Vehicles wider than the support base
- Outdoor use
Key Differentiator: 10-ton air-powered lifting
A 10,000 lb rating and 62 3/8" reach let the RJ-10A bridge full-size trucks that the 8-ton RJ-8A cannot.
- Full-size trucks and wide runways
- Light-duty bays needing a smaller jack
How the RJ-10A Compares - Which AMGO Rolling Jack Fits Your Shop?
| Model | Capacity | Power | Overall Width |
|---|---|---|---|
| RJ-10A | 10,000 lb | Pneumatic | 21 3/4" |
| RJ-8A | 8,000 lb | Pneumatic | 21 3/4" |
| RJ-20A | 20,000 lb | Pneumatic | 25 1/2" |
All models stay inside Alamo's catalog (comparison links go live as siblings publish). Call (817) 865-3707 and we will help you choose before ordering.
Full Specifications – RJ-10A
| Brand | AMGO® Hydraulics |
| Model | RJ-10A |
| Part / SKU | ALMAMGRJ10A |
| Lifting Capacity | 10,000 lbs |
| Type | Rolling / Bridge Jack |
| Power | Pneumatic (air) 0.8 MPa |
| Arm Pads Reach | 38 5/8" - 62 3/8" |
| Min. Height | 11" |
| Air Pressure | 0.8 MPa |
| Shipping Weight | 467 lbs |
Installation & Setup
- Placement: Rides on a lift's runways; no floor anchoring
- Air: At least 0.8 MPa with an oil-water separator on the line
- Reach: Arm pads 38 5/8" - 62 3/8", minimum height 11"
AMGO 5-3-2 Limited Warranty – RJ-10A
AMGO Hydraulics stands behind this lift with a strong limited warranty covering defects in materials and workmanship under normal service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, scissor frames, platforms, arms and structural steel |
| 3 Years | Hydraulic Parts | Cylinders, oil seals, hoses, bronze bushings, slider blocks and fittings |
| 2 Years | Electrical & Cables | Electrical components and cables (rubber pads are a wear item and excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO for you.
Coverage excludes consumable wear items such as rubber pads and is voided by loading past the rated capacity or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
