AMGO® 7,000 lb Full-Rise Scissor Lift #XL-7
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | XL-7 |
| Lifting Capacity | 7,000 lbs |
| Lift Type | Surface Full-Rise Scissor |
| Max Lifting Height | 78-3/4" |
| Lifting Time | 50 s |
| Motor | 2.0 HP |
- 6" minimum thickness, 3,000 psi minimum concrete
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- 24V control system
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Surface full-rise scissor; max platform height 78-3/4"
- Minimum platform height 4-5/8"
- Confirm overhead clearance for a raised vehicle before install

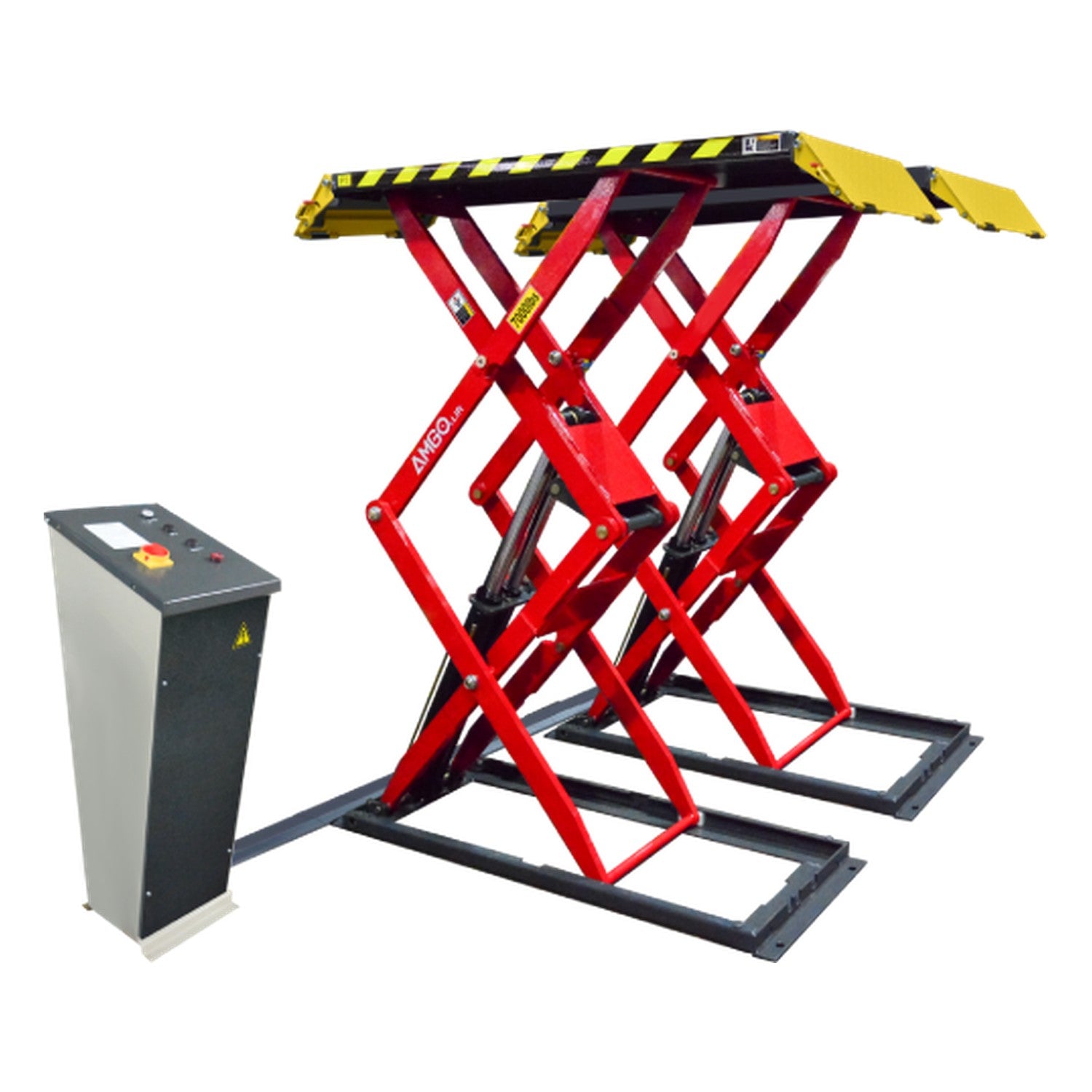

AMGO® XL-7 7,000 lb Full-Rise Scissor Lift
The AMGO® XL-7 is a 7,000 lb surface-mount full-rise scissor lift built for shops that want strong lifting height without cutting a recess into the floor. Hydraulic and mechanical lock systems, a 24V control and dual synchronous cylinders with hose-burst valves keep the platforms level and protected, while a 300 mm stop switch and descent alarm guard the bay.
Full-rise platforms reach 78-3/4" and drop to a low 4-5/8" for easy drive-on loading, giving general-service techs excellent working height for brakes, suspension and undercarriage jobs on cars and light vehicles up to the rated load.
Who It's Built For
- Shops that want a tall surface scissor without pouring a flush recess
- Cars and light vehicles within the 7,000 lb rating
- Bays that need a low 4-5/8" load height for low-clearance cars
- Techs who want hydraulic and mechanical locks plus hose-burst valves
- General-service shops after strong 78-3/4" full-rise height
What It's NOT Built For
- Loads above 7,000 lb — choose a higher-capacity scissor
- Bays wanting a flush, drive-over floor — pick the recessed XL-9F
- Slabs thinner than 6" — this model requires a 6" minimum slab
- Motorcycles and ATVs — use a powersport lift
- Ceilings that cannot clear a full-rise raised vehicle
Key Differentiator: Tall surface scissor with a low drive-on height
The XL-7 reaches 78-3/4" of full-rise height yet settles to just 4-5/8", so low-clearance cars load easily and techs still get a tall, comfortable working position — all on a surface mount with no floor recess.
- Surface installs needing tall lift height and low load height
- Shops that want the floor flush and drive-over (pick the XL-9F)
XL-7 vs the Flush XL-9F - Which Scissor Fits Your Floor?
| Model | Capacity | Mount | Max Height | Min Height |
|---|---|---|---|---|
| XL-7 | 7,000 lb | Surface | 78-3/4" | 4-5/8" |
| XL-9F | 9,000 lb | Flush-Mount | 74-1/32" | 13-3/4" |
Comparing surface-mount full-rise racks? Call Alamo at (817) 865-3707 and we'll walk through your options.
Full Specifications – XL-7
| Brand | AMGO® Hydraulics |
| Model | XL-7 |
| Part / SKU | ALMAMGXL7 |
| Lifting Capacity | 7,000 lbs |
| Lift Type | Surface Full-Rise Scissor |
| Max Lifting Height | 78-3/4" |
| Minimum Height | 4-5/8" |
| Overall Length | 80" |
| Runway Length | 57-5/8" |
| Overall Width | 76-3/4" |
| Distance Between Runways | 29-1/2" |
| Lifting Time | 50 s |
| Motor | 2.0 HP, 220V, 60Hz, single-phase |
| Control | 24V system, hydraulic + mechanical locks, hose-burst valves, 300 mm stop switch + alarm |
| Gross Weight | ~1,971 lbs |
| Shipping Carton | 67" x 28" x 21" |
Installation Requirements
- Concrete: Minimum 6" of 3,000 psi concrete under the lift
- Power: 220V single-phase with 24V control; confirm your service at order
- Overhead: Clear a full-rise raised vehicle before install
- Anchoring: Surface-mount anchors torqued per the AMGO manual
AMGO 5-3-2 Limited Warranty – XL-7
AMGO Hydraulics backs this scissor lift with a 5-3-2 warranty covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure | Scissor structure, platforms, base frame and steel weldments |
| 3 Years | Hydraulic Parts & Cable | Cylinders, oil seals, hoses, fittings and synchronization cable |
| 2 Years | Electrical & Power Unit | Electrical components and power unit (consumable parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - XL-7
Why Buy the XL-7 from Alamo Equipment & Service?
- Alamo installs it. We anchor and level the platforms and wire the control.
- Alamo services it. Parts, hose-burst valves and warranty run through our shop.
- Alamo sizes it. We confirm your 6" slab, ceiling and capacity before you buy.
- Straight talk. If the flush XL-9F suits your floor better, we say so.
- Call for Shipping. Freight is quoted per order — call (817) 865-3707.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
