AMGO® SPL-7 7,000 lb Single-Post Storage Lift #SPL-7
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Capacity | 7,000 lbs (manufacturer spec) |
| Design | Single-post storage |
| Max Lift | 74" |
| Overall Height | 109 7/16" |
| Underneath Clearance | 69 5/16" |
| Overall Length | 192 1/8" |
| Lift Time | 84 seconds |
| Warranty | AMGO 5-3-2 |
- Sound slab per the manual's concrete spec
- Single-post anchoring is critical — follow the manual exactly
- Confirm before the truck arrives
- 1.0HP, 110V/60Hz
- Standard household-adjacent circuit territory
- Electrician confirms the dedicated circuit
- 111" overall width
- 79 1/4" drive-thru clearance under the platform
- Confirm underneath parking fit (69 5/16" max underneath height)

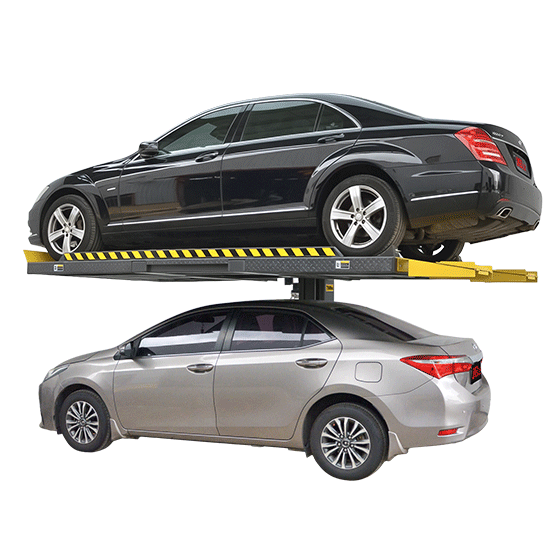

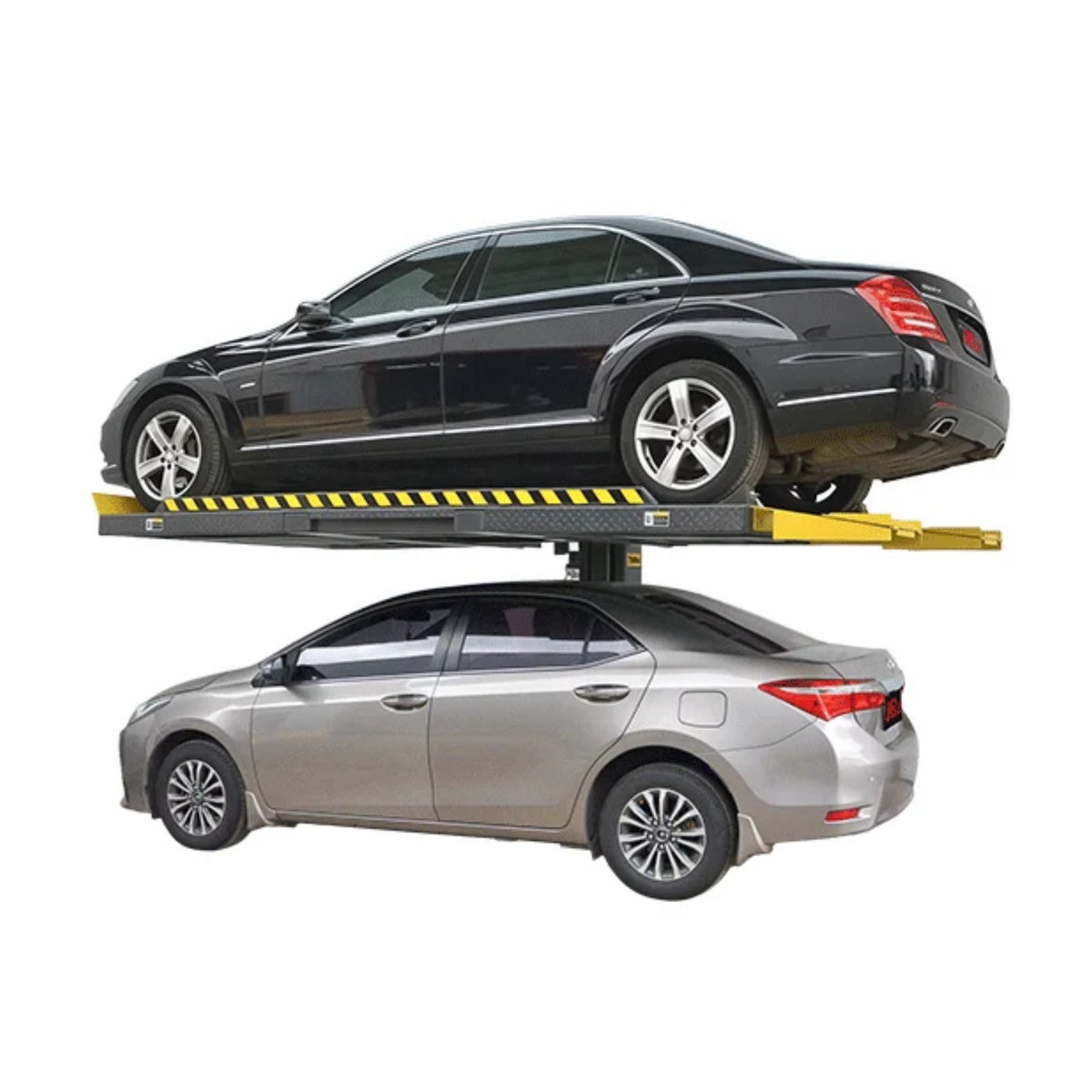

AMGO SPL-7 — Single-Post Storage Lift
A two-post storage lift gives a garage two posts to drive around forever — and for a single bay that parks one car over another, that's one post too many. The AMGO SPL-7 is the single-post answer: one column, one platform, 7,000 pounds of capacity (per the manufacturer's spec table), and 69 5/16 inches of clearance underneath for the second vehicle.
The platform lifts to 74 inches in an 84-second cycle on household-adjacent 110-volt power, and the whole machine is one post — the drive-in footprint is a car's width, not a lift's.
Who the AMGO SPL-7 Is Built For
- Home and collector garages doubling parking — one post instead of two means the bay stays driveable around the lift, and the underneath clearance (69 5/16" max) parks the second car.
- Shops with single-bay storage needs — the SPL-7 stores one vehicle over another without giving the whole bay to a four-post platform.
- Owners who dislike two-post drive-in choreography — 111" of overall width and a 79 1/4" drive-thru make the approach simple from either side.
- 110V buyers — a 1.0HP motor on standard power; no commercial circuit for a storage lift's pace of life.
- Buyers comparing four-post storage lifts — the single-post design trades the four-post's drive-on ramps for a smaller footprint and a cleaner bay when the lift is empty.
What the AMGO SPL-7 Is NOT Built For
This is not a service lift — 84-second cycles and a storage platform make it a parking tool, not a working bay (the OH-10 and the scissor line are AMGO's service answers). It's not for ceilings under 109 7/16" plus the raised vehicle, and it's not for vehicles over 7,000 lbs. Note: the
Important sizing note: measure bay length (192 1/8"), ceiling against the 109 7/16" post plus vehicle at full lift, and confirm the underneath parking height (69 5/16") fits the second vehicle before purchase. Capacity note: manufacturer spec = 7,000 lbs (draft listed 6,000).
What Makes the AMGO SPL-7 Different
One post — the footprint argument
A single column with 111" overall width and a 79 1/4" drive-thru — the garage stays a garage, not an obstacle course.
- Single-post design
- 111" overall width
- 79 1/4" drive-thru
7,000 lbs, verified
The manufacturer's spec table publishes 7,000 lbs of capacity — more than the two-post class typically offers at this footprint, and the number this page stands behind.
Real second-car storage
69 5/16" of maximum underneath height parks a car beneath the raised platform — with 65 1/2" at the lock height for secure storage.
Best For
- Single-bay parking doubling
- Home / collector garages
- Small-footprint shops
- 110V power
Not Ideal For
- Service-bay use (see OH-10 / scissors)
- Low-ceiling garages
- Vehicles over 7,000 lbs
SPL-7 vs four-post storage lifts
| SPL-7 (single-post) | Four-post storage | |
|---|---|---|
| Posts | One | Four |
| Bay footprint | 111" wide, one column | Full four-corner footprint |
| Underneath parking | 69 5/16" | Under-runway clearance |
| Drive on | Drive-in platform, 79 1/4" thru | Drive-on ramps |
| Best for | Single bays, tight garages | Multi-bay storage, drive-on ease |
The SPL-7 is the storage lift for the garage that can't spare four corners.
Full Specifications - AMGO SPL-7
| Model | SPL-7 |
| Lifting capacity | 7,000 lbs (manufacturer spec table) |
| Lifting time | 84s |
| Overall height | 109 7/16" |
| Max lifting height | 74" |
| Max lock height | 70 3/16" |
| Max underneath height | 69 5/16" |
| Max underneath lock height | 65 1/2" |
| Minimum height | 6 1/8" |
| Overall width | 111" |
| Width between runways | 42 3/8" |
| Overall length | 192 1/8" |
| Drive-thru clearance | 79 1/4" |
| Gross weight | 3,241 lbs |
| Motor | 1.0HP, 110V/60Hz |
⚠️ Installation Requirements
- Anchor the single post per the AMGO manual — single-post anchoring is critical; follow the concrete spec exactly
- Electrical: 1.0HP, 110V/60Hz — electrician confirms the dedicated circuit
- Hydraulic oil per the manual's spec
- Alamo installs every lift we sell — one team for anchoring, wiring, and setup
AMGO® Hydraulics Warranty - AMGO SPL-7
AMGO backs every lift with its published 5-3-2 warranty — five years on steel structure, three on hydraulics, two on electrical and power-unit components (rubber pads are consumables and excluded). Coverage applies in the 48 contiguous states, and it's handled through Alamo.
| Component | Coverage Term |
|---|---|
| Steel structure components | 5 years |
| Hydraulic parts (cylinders, seals, hoses, fittings) | 3 years |
| Electrical components & power unit | 2 years |
| Rubber pads (consumables) | Excluded |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - AMGO SPL-7
How much can it lift?
7,000 lbs per the manufacturer's spec table — the number this page uses. (The
Will a car fit underneath?
Yes — up to 69 5/16" of underneath height (65 1/2" at the storage lock), which covers most passenger cars and crossovers.
Why one post?
Footprint. A single-post lift leaves the bay driveable around the platform — the whole argument for the SPL-7 over a four-post in a one-bay garage.
What power does it need?
110V/60Hz on a dedicated circuit — household-adjacent power, storage-lift pace.
Why Buy the AMGO SPL-7 from Alamo Equipment & Service?
- We install it. Single-post anchoring is unforgiving — our crew sets it to the manual's spec.
- We service it. AMGO's 5-3-2 warranty routes through the shop that installed it.
- We size the bay with you. Ceiling, underneath-parking height, and the 192 1/8" length — checked before you order.
- Freight handled. 3,241 lbs ships freight; we coordinate delivery.
- Expert comparison help. Single-post vs four-post storage — one call gets the honest footprint math.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
