APlusLift WLV-828 Wheel Balancer #WLV-828
APlusLift shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
Couldn't load pickup availability
| Rim Diameter | 10"–24" |
| Rim Width | 1.5"–20" |
| Max Tire Diameter | 39" |
| Max Wheel Weight | 143 lbs |
| Cycle Time | 8 seconds |
| Accuracy | ±1 gram |
| Modes | Normal / Static / ALU 1–3 / ALU-S |
| Power | 110V (plug included) |

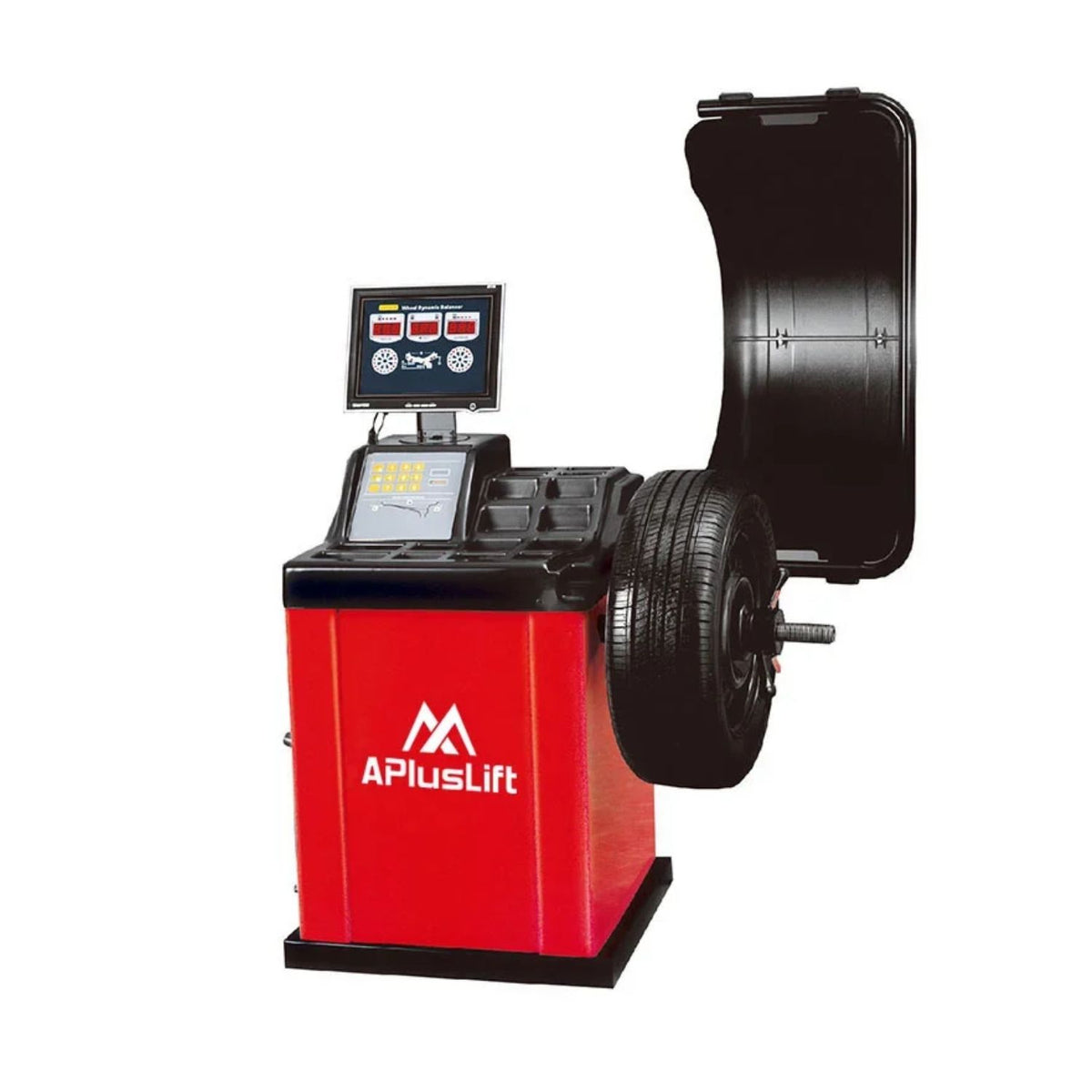

APlusLift WLV-828 — Wheel Balancer with LED Display
A balancer that's slow, loud, or vague turns tire work into rework — the wheel comes back, the customer waits, and the tech re-runs it. The APlusLift WLV-828 is built against that: an 8-second cycle, ±1 gram of balancing accuracy, six LED readouts, and the mode set that covers real work (Normal, Static, ALU 1–3, and ALU-S for the stick-on-weight jobs).
It handles rims from 10 to 24 inches (1.5–20 wide), wheels to 143 pounds and 39 inches in diameter, calibrates itself with intelligent self-calibration, self-diagnoses faults, and runs on 110 volts with the plug included — the plug-in partner to any of the APlusLift changers.
Who the APlusLift WLV-828 Is Built For
- Tire shops pairing a changer with a balancer — the WLV-828 is the APlusLift pairing for the TSA-24/DHM-24/THA-28 line, with the modes and accuracy to keep up with any of them.
- Shops doing stick-on weight work — ALU 1–3 and ALU-S modes cover the alloy-wheel weight placements that basic balancers fake.
- Volume-driven bays — 8-second cycles and ±1g accuracy mean the balancer isn't the line's bottleneck and the road-force complaints don't come back.
- Shops that hate calibrating — intelligent self-calibration and fault self-diagnosis keep the machine honest without a ritual.
- Plug-in buyers — 110 volts, plug included, under 70 dB: the balancer that installs where the work is.
What the APlusLift WLV-828 Is NOT Built For
This is not a truck-wheel balancer — 143 pounds of max wheel weight caps it at passenger and light-truck wheels, and 39 inches of tire diameter is the ceiling. It's not a heavy-duty or bus-class machine, and shops needing wheel-weight capacities beyond 143 lbs should call us for the bigger equipment.
Important sizing note: check your wheel weights against the 143 lb maximum, rim sizes against the 10"–24" range, and plan a 110V outlet before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the APlusLift WLV-828 Different
8 seconds, ±1 gram
The two numbers that define a balancer: cycle speed and accuracy — the WLV-828 delivers both, with six LED readouts for unambiguous results.
- 8-second cycle
- ±1 g accuracy
- 6-LED display
The modes real work needs
Normal, Static, ALU 1–3, and ALU-S — including the alloy-wheel stick-on-weight placements that separate real balancers from toys.
Self-calibrating, self-diagnosing
Intelligent self-calibration and fault self-diagnosis — the machine keeps itself honest instead of waiting for a service call.
Best For
- Pairing with APlusLift changers
- ALU / stick-on weight work
- Volume bays (8s cycles)
- 110V plug-in
Not Ideal For
- Truck wheels over 143 lbs
- Heavy-duty / bus class
- Shops wanting bigger-wheel capacity
WLV-828 — the numbers that matter in a shop balancer
| Spec | WLV-828 | Why it matters |
|---|---|---|
| Cycle time | 8 seconds | Queue discipline at the balancer |
| Accuracy | ±1 gram | The comeback killer |
| Rim range | 10"–24" | Passenger + light truck coverage |
| Modes | 4 mode families | ALU-S covers stick-on weights |
| Self-calibration | Intelligent | Stays honest without rituals |
Pair it with any APlusLift changer — the changer decides the tire work; the balancer decides the comebacks.
Full Specifications - APlusLift WLV-828

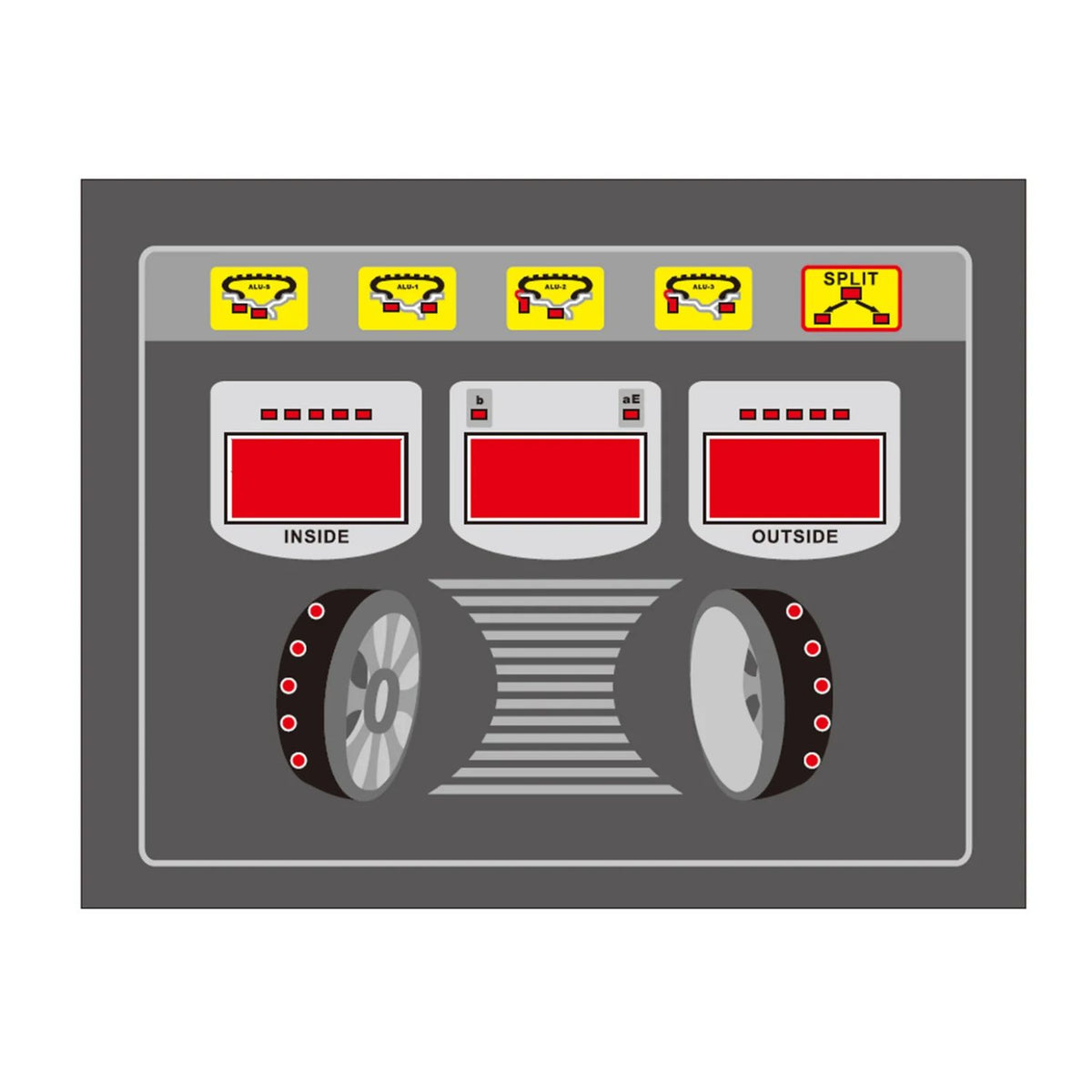

| Display | LED display screen (6 LED) |
| Rim diameter | 10"–24" |
| Rim width | 1.5"–20" |
| Maximum tire diameter | 39" |
| Maximum tire width | 19.5" |
| Maximum wheel weight | 143 LB |
| Cycle time | 8 seconds |
| Voltage | 110V Single Phase (plug included) |
| Balancing accuracy | -1g to +1g |
| Balancing modes | Normal Mode, Static Mode, ALU 1-3 Mode, ALU-S Mode |
| Features | Intelligent self-calibration; fault self-diagnosis and detection |
| Noise level | Less than 70dB |
| Finish | Red color powder coat |
| Machine body size (without protector) | 28 5/16" x 25 11/32" x 40 3/32" |
| Machine body size (with protector) | 44 1/16" x 33 15/32" x 63 3/4" |
| Shipping weight | 300 LB |
| Shipping package size | 38" x 30" x 50" |
| Certification | CE Certificate |
⚠️ Installation Requirements
- Power: 110V single-phase, plug included — standard outlet territory
- Floor: plan the with-protector footprint (44 1/16" x 33 15/32" x 63 3/4") for the working position
- Mount per the included manual; verify the shaft and cones against your wheel mix
- Run self-calibration on first use — the machine walks itself through it
- Alamo delivers it — and services the wheel equipment we sell
APlusLift Warranty - APlusLift WLV-828
APlusLift backs the WLV-828 with a one-year warranty, handled through Alamo.
| Component | Coverage Term |
|---|---|
| Warranty | 1 year |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - APlusLift WLV-828
What wheels fit on it?
Rims 10"–24" in diameter and 1.5"–20" wide, tires to 39" in diameter, wheels up to 143 pounds — the passenger and light-truck range.
How accurate is it?
±1 gram, on an 8-second cycle — the two numbers that stop balancing comebacks.
Does it handle stick-on weights?
Yes — ALU 1–3 and ALU-S modes cover the alloy-wheel weight placements, alongside Normal and Static modes.
Is it hard to calibrate?
No — intelligent self-calibration runs the machine through it, and fault self-diagnosis flags issues before they become mystery rework.
Why Buy the APlusLift WLV-828 from Alamo Equipment & Service?
- We sell what fits. Wheel weights, rim sizes, mode needs — the WLV-828 covers the passenger/light-truck range, and we'll say so when your work needs bigger.
- We deliver it. 300 lbs ships to your shop, coordinated by us.
- We service it. Warranty and calibration support from the shop that sold it.
- We know the pairing. Changer + balancer as one decision — the APlusLift ladder pairs cleanly, and we'll build it with you.
- No electrician required. 110V plug-in — balancing starts the day it arrives.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
