Atlas® 66,000 lb Battery Mobile Column Lift – ALI Cert. #ATEML-4030BC

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

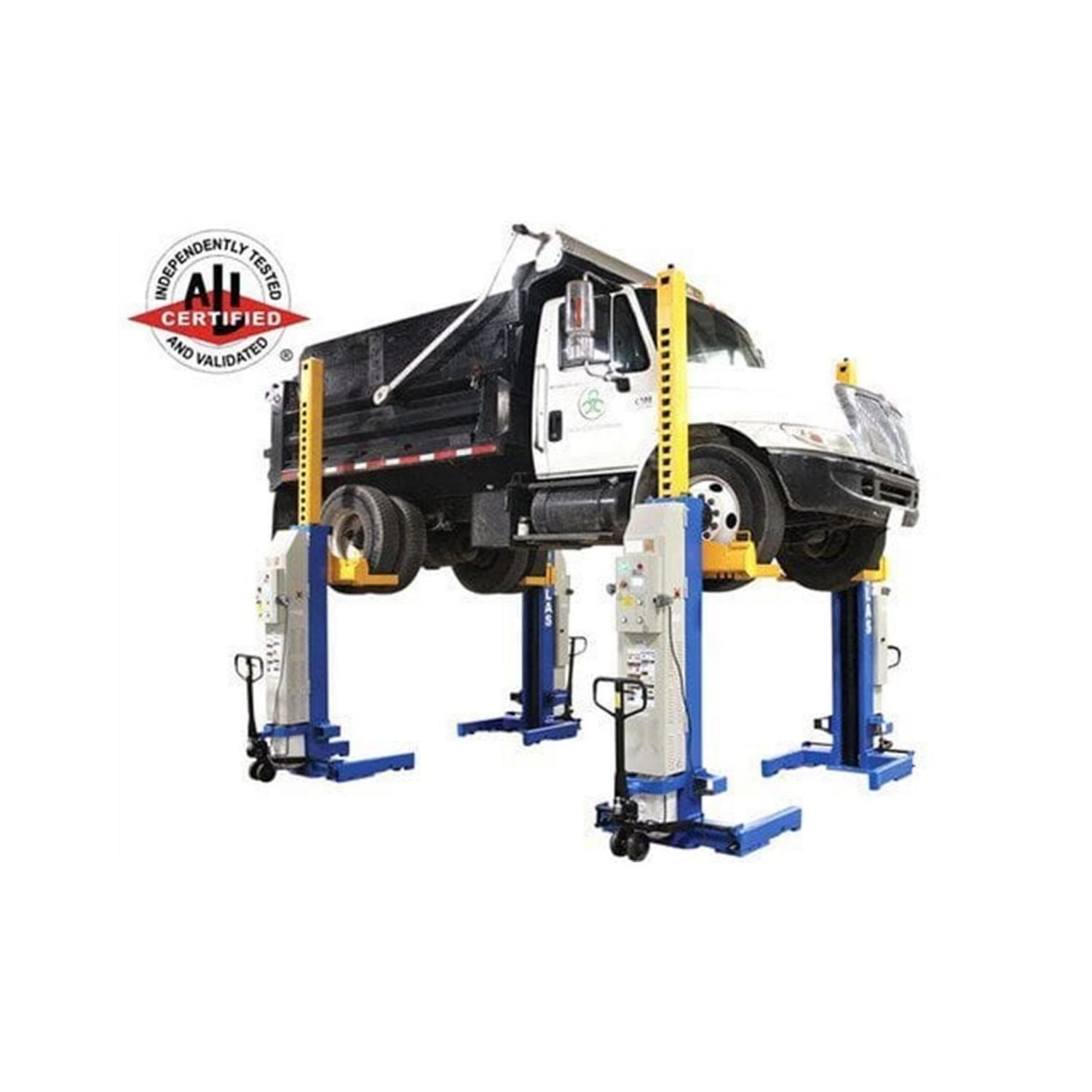

  The Atlas® 66,000 lb Battery Powered Mobile Column Lift (ALI Certified) is a heavy-duty lifting system designed for servicing large commercial vehicles such as trucks, buses, and fleet equipment.

  With an impressive 66,000 lb total lifting capacity, this system uses multiple mobile columns to safely raise large vehicles while providing flexibility in positioning. The battery-powered design allows for cordless operation, improving mobility and eliminating the need for external power sources during use.

  ALI certification ensures that this lift meets stringent safety and performance standards, making it a reliable solution for professional fleet service centers, municipalities, and heavy-duty repair facilities.

• FEATURES AND BENEFITS

  • ALI CERTIFIED
  • Simultaneous operation of all columns
  • LCD screen shows exact lifting height of each column
  • Electronic system ensuring synchronization of all columns
  • Double-safety guaranteed by both hydraulic flow control and mechanical locks
  • Portable columns make your work easy and comfortable
  • Can be Expanded from a four (66,000 lb. capacity) column system to a six (99,000 lb. capacity) or eight (132,000 lb. capacity) column system
  • Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
  • Emergency stop button on every column
  • Four 32? column connecting cables included
  • 2.2 Kw 24V DC motor with two batteries per column
  • 2 Year Limited Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEML-4030BC
  UPC:	850076687472
  Country of Origin:	CHN
  Capacity per Column:	16,500 LB.
  Motor:	2.2 Kw 24V DC motor with two batteries per column
  Max. Lifting Height:	67" (5' 7")
  Overall Height:	145" (12' 1")
  Resting Height:	88 1/2" (7' 4 1/2")
  Width:	43 1/2" (3' 7 1/2")
  Length:	55 1/2" (4' 7 1/2")
  Column Width:	13 1/4"
  Warranty:	2 Year Limited
  Shipping Weight (For Four Columns):	6,400 LB. each
  Shipping Weight Per Column:	1,600 LB. each
  Max Tire Diameter:	44"
  Min Tire Diameter:	19"

• DOCUMENTS

  • ATEML-4030BC - Owner's Manual
  • Maxima Mobile Column Lift-Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
