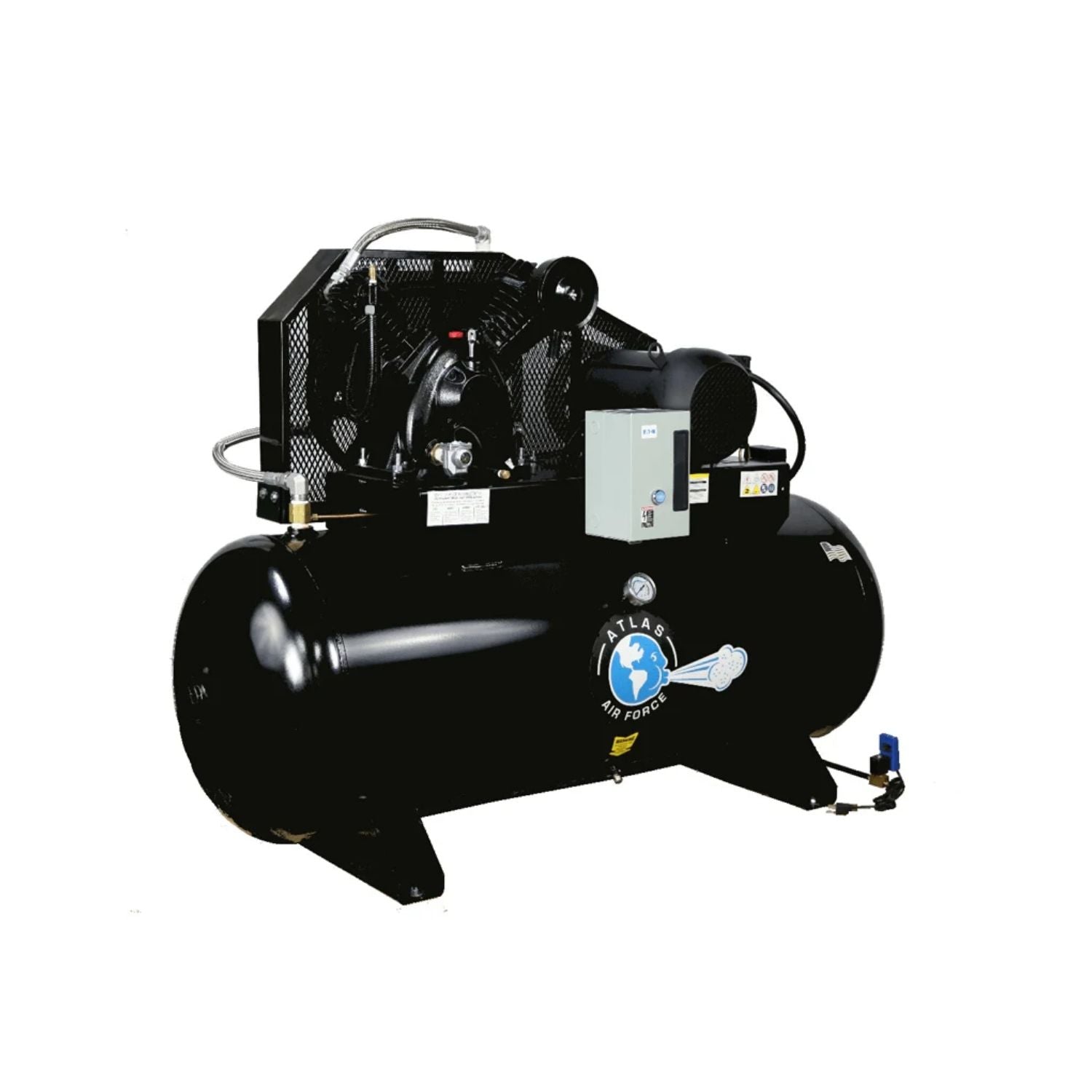

Atlas® AF10 10HP 120 Gallon Horizontal Air Compressor (1 Phase) #ATEMPAF10-1PH

Atlas® AF10 (1-Phase) — 10 HP Air Compressor

Shops running heavy simultaneous tool loads — multiple impact guns, a paint booth, and shop air all at once — outgrow 5-7.5 HP units fast, but not every facility has 3-phase power run to the shop floor to use a 10 HP unit.

The Atlas® AF10 (1-Phase) is a commercial 2-stage reciprocating compressor rated for 10 HP with a 120 gallon horizontal tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Plus Package — aftercooler, low oil shut off, auto-tank drain — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.

Who the AF10 (1-Phase) Is Built For

• ✅ Heavy-duty commercial and industrial shops that need 10HP output but only have single-phase electrical service available
• ✅ Multi-bay operations running several pneumatic tools, tire equipment, and shop systems simultaneously that need serious CFM headroom
• ✅ Shops without access to 3-phase power infrastructure who still need top-tier airflow — the 1-phase AF10 delivers the same core performance as the 3-phase version
• ✅ Facilities that value the built-in aftercooler, low-oil shutoff, and auto-tank drain (Plus Package equivalent) bundled in at this tier
• ✅ Operations running continuous, high-demand shop air where 35 CFM at 175 PSI keeps every bay supplied without cycling constantly
• ✅ Buyers upgrading from a 7.5HP unit who've maxed out its output and need the extra headroom the 10HP motor provides

What the AF10 (1-Phase) Is NOT Built For

• ❌ Facilities with 3-phase power already run to the building — the AF10 3-Phase version offers smoother operation and slightly better efficiency on that infrastructure
• ❌ Smaller shops that don't need 37 CFM — the 7.5HP AF9 or AF9-120H covers most multi-bay operations for considerably less money
• ❌ Operations on a tight budget — this is Atlas's highest-output AF-series electric model and priced accordingly

What Makes the AF10 (1-Phase) Different

Commercial 2-Stage Pump

The AF10 (1-Phase) uses a 3-Cylinder, 2-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.

CFM & Pressure Output

Delivers 37 CFM @ 90 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.

Plus Package Upgrades

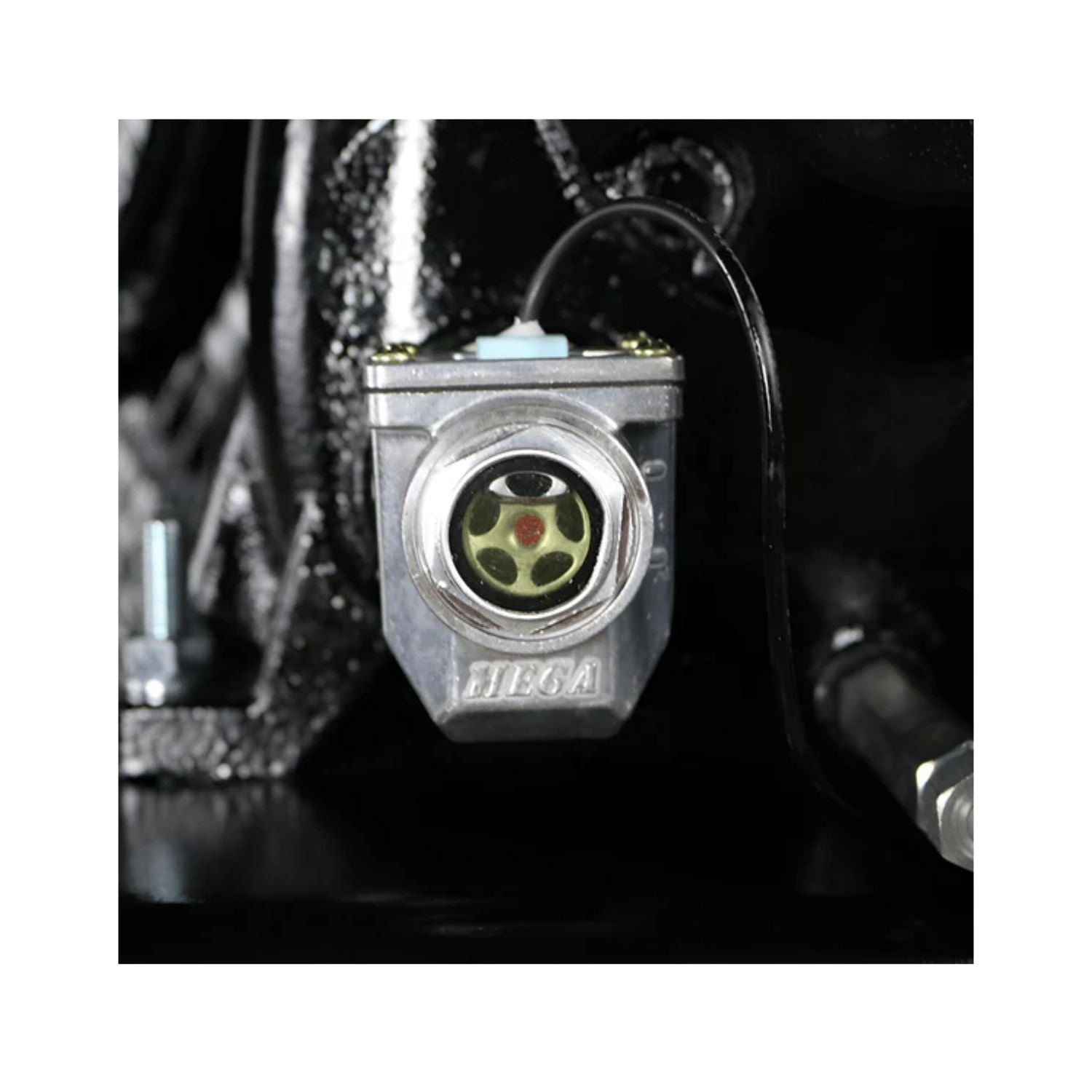

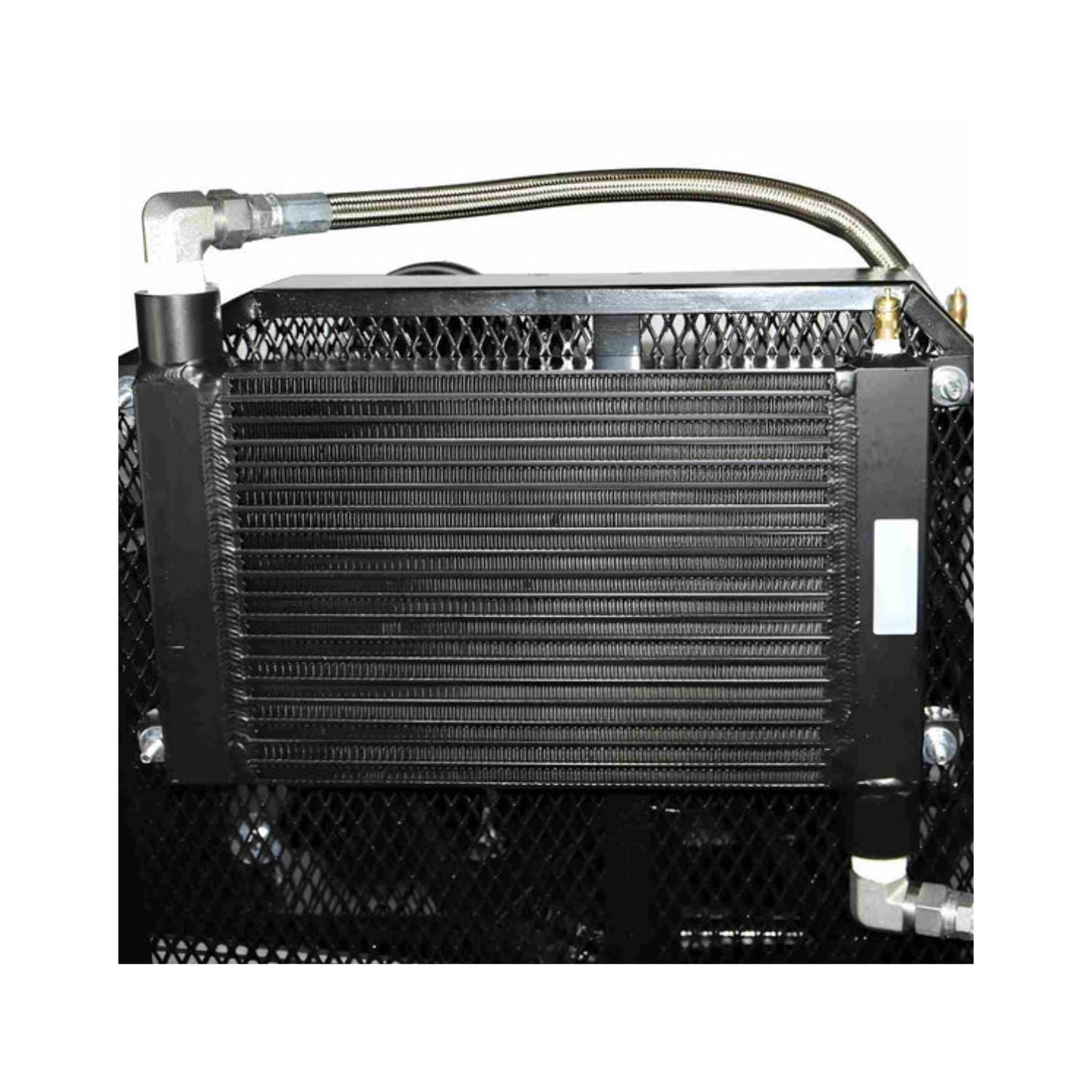

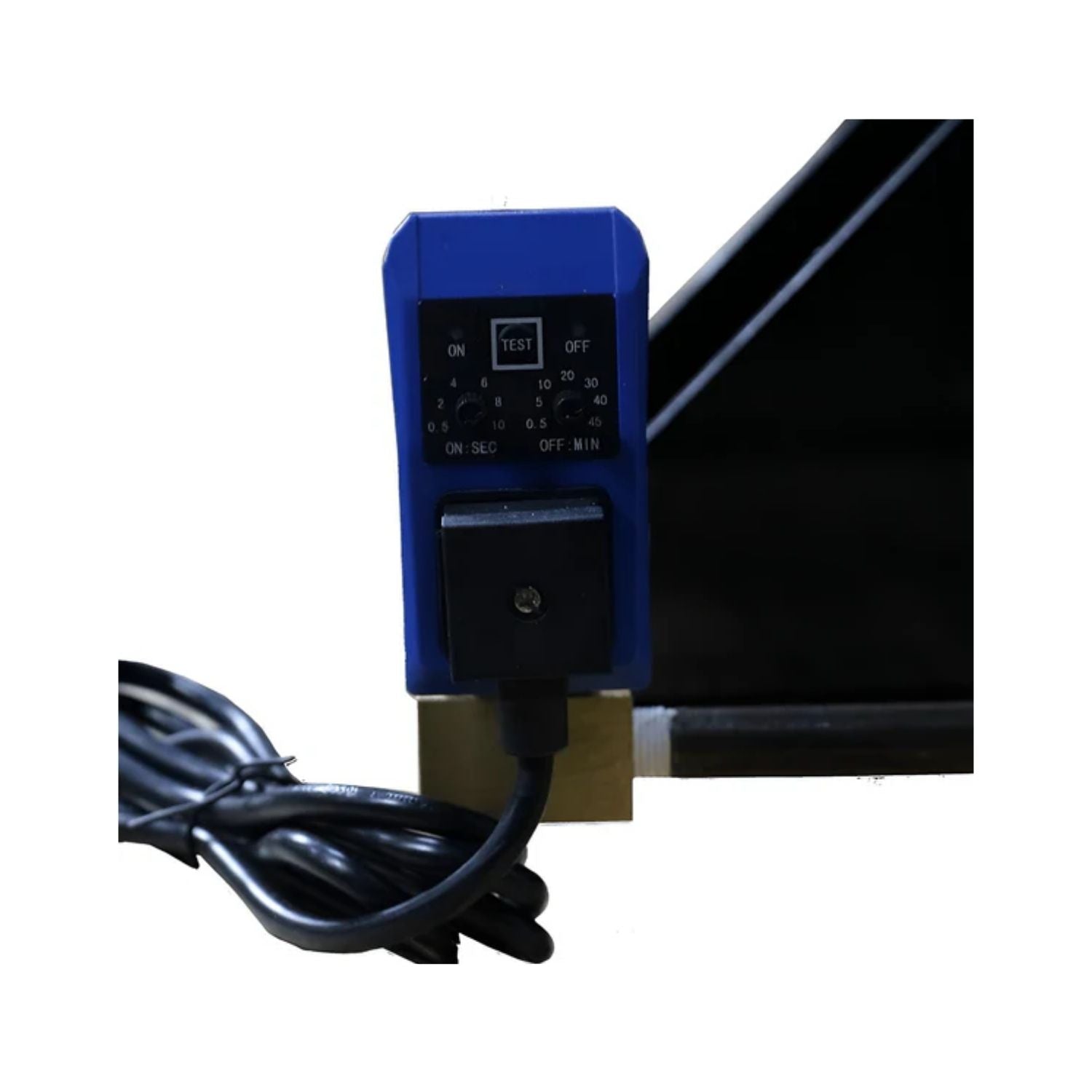

Includes aftercooler, low oil shut off, auto-tank drain — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.

Power Requirements

220V, 1-Phase, 50 Amp Breaker Required. Confirm your panel and breaker sizing with an electrician before delivery.

Full Specifications — AF10 (1-Phase)

Atlas® Warranty — AF10 (1-Phase)

Atlas® backs the AF10 (1-Phase) with a 1-year parts-only warranty.

Warranty service is through Alamo Equipment & Service — call (817) 865-3707 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
