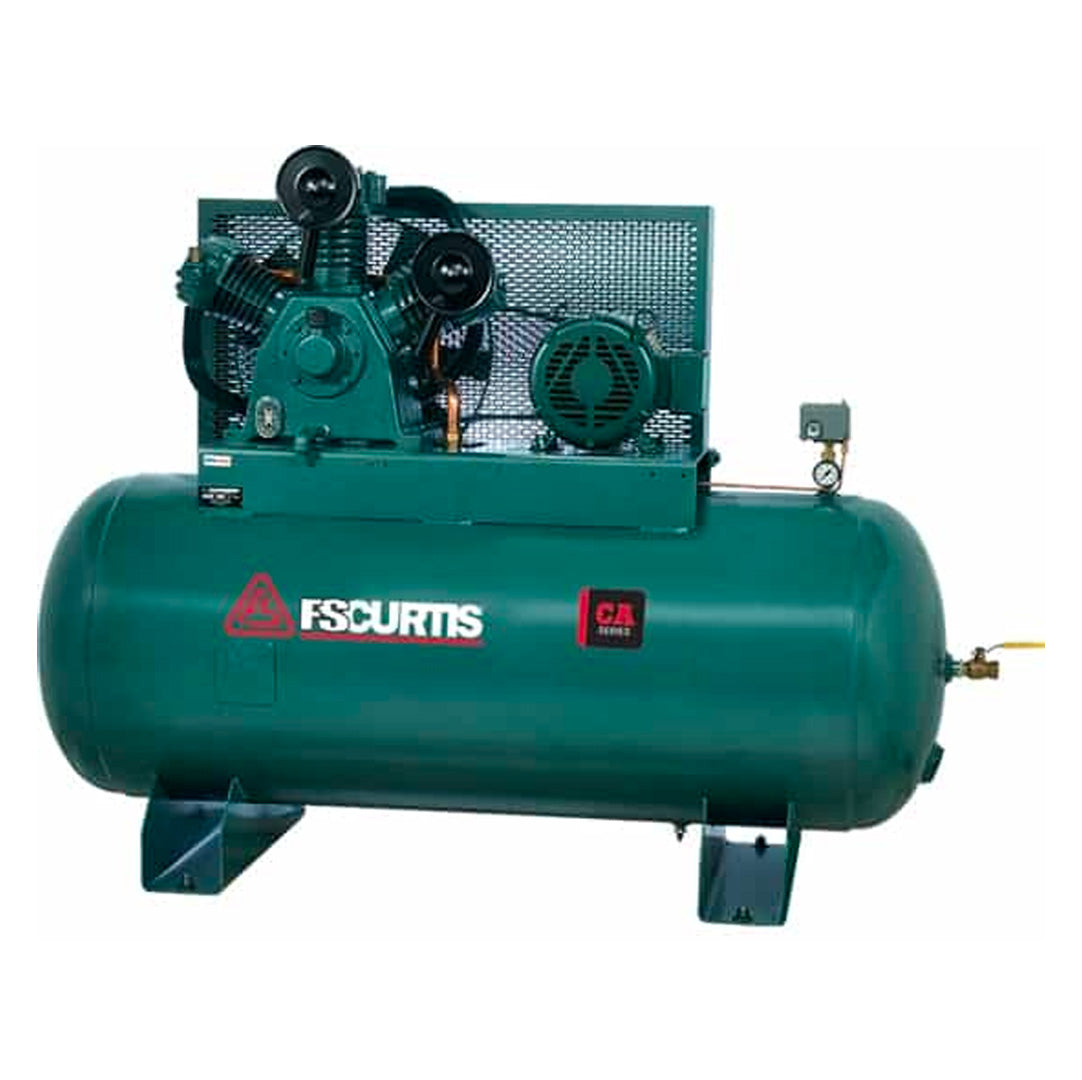

FS-Curtis CA10 120G 10HP Horizontal Simplex Air Compressor #CA10-H
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CA10-H |
| Horsepower | 10 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 34.2 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis CA10-H — 10 HP Air Compressor
A shop with low overhead clearance that's outgrown a 7.5 HP compressor needs both a genuine step up in output and a tank that fits under a low ceiling or mezzanine — this horizontal 10 HP unit delivers both.
The FS-Curtis CA10-H is a two-stage reciprocating compressor rated for 10 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the CA10-H Is Built For
- ✅ A shop with limited overhead clearance that's outgrown a 7.5 HP compressor's output and needs 10 HP headroom without a tall vertical tank
- ✅ A multi-bay commercial shop running several air tools simultaneously that needs a low-profile tank tucked under a bench, shelf, or low ceiling
- ✅ An owner who's watched a smaller unit's tank run dry faster than it recovers on busy days and wants a genuine capacity upgrade
- ✅ A general repair or commercial shop standardizing on FS-Curtis's CA line and stepping up from CA7.5 as demand has grown
- ✅ A shop installing under a mezzanine or raised storage platform where the horizontal tank fits without cutting a notch
What the CA10-H Is NOT Built For
- ❌ Single-bay or home garage use — a 5 or 7.5 HP unit is more cost-effective
- ❌ Shops needing built-in redundancy — look at the CA10-D duplex instead
- ❌ Three-phase-only electrical — no single-phase option at this HP tier
What Makes the CA10-H Different
Commercial 2-Stage Pump
The CA10-H uses an E71, Cast-Iron, Two-Stage, 3-Cylinder pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 34.2 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Low-clearance installs
- 10 HP headroom
- Multi-tech simultaneous draw
- Home garages / occasional use
- Shops needing single-phase power
CA10-H vs. FS-Curtis CA10-HUP (10 HP Horizontal, Ultra Pack) — Which Compressor Is Right for Your Shop?
| Decision Point | CA10-H | FS-Curtis CA10-HUP (10 HP Horizontal, Ultra Pack) |
|---|---|---|
| Horsepower / Tank | 10 HP / 120 Gal Horizontal | 10 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 34.2 CFM | 34.2 CFM |
| Included accessories | Standard configuration, no bundled accessories | Ultra Pack bundle (auto-drain/dryer per FS-Curtis config) |
| Best fit | Budget-first buyers who don't need the accessory bundle yet | Shops wanting factory air-quality accessories included |
Choose the CA10-H for the lowest-cost 10 HP horizontal configuration if you don't need the Ultra Pack accessories yet. Choose the CA10-HUP if factory-installed auto-drain and dryer accessories matter for your work. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CA10-H
| Model / Part Number | CA10-H |
| Horsepower | 10 HP |
| Pump | E71, Cast-Iron, Two-Stage, 3-Cylinder |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 34.2 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FCA10E71H1S-A9L1XX) |
| Overall Dimensions | 73" L x 26" W x 53" H |
| Shipping Weight | 940 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 73" L x 26" W x 53" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 940 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CA10-H
FS-Curtis backs the CA10-H with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CA10-H
Why Buy the CA10-H from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 10 HP, 120 Gallon Horizontal ASME tank, 34.2 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CA10-H or the FS-Curtis CA10-HUP (10 HP Horizontal, Ultra Pack) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
