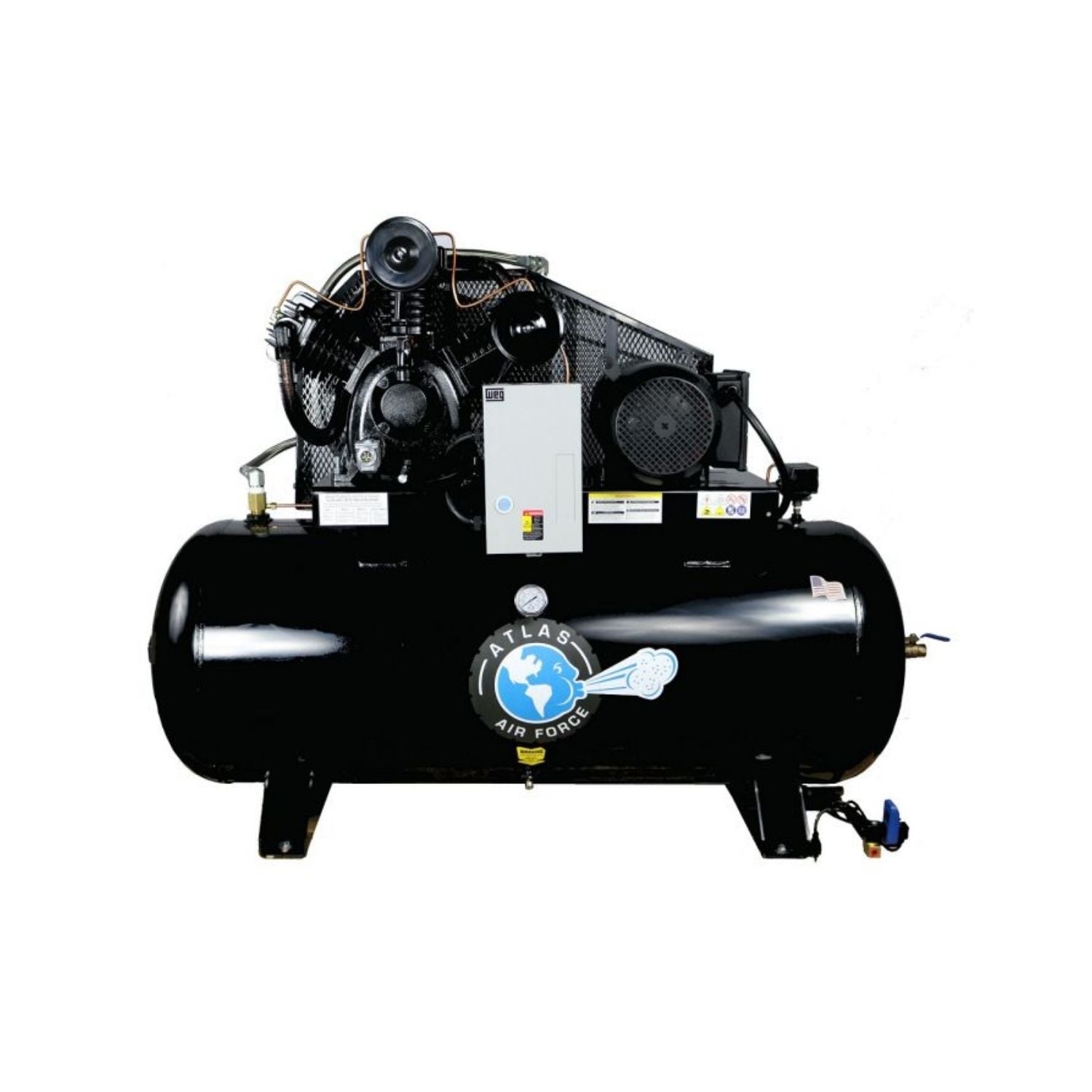

Atlas® AF10 10HP 120 Gallon Horizontal Air Compressor (3 Phase) #ATEMPAF10-3PH

Atlas® AF10 (3-Phase) — 10 HP, Low RPM Air Compressor

A 10 HP compressor makes the most sense in a shop that already has 3-phase power available — skipping the single-phase-to-3-phase conversion cost while still getting the full continuous-duty output a busy multi-bay operation needs.

The Atlas® AF10 (3-Phase) is a commercial 2-stage reciprocating (3-phase) compressor rated for 10 HP, Low RPM with a 120 gallon horizontal tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Plus Package — aftercooler, low oil shutoff, automatic tank drain (standard on this configuration) — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.

Who the AF10 (3-Phase) Is Built For

• ✅ Manufacturing environments, large service centers, and busy automotive shops with 3-phase electrical infrastructure already in place
• ✅ Facilities that want the efficiency and smoother operation 3-phase power provides over single-phase at this HP tier
• ✅ Multi-bay shops that need top-tier 10HP output — 37 CFM at 90 PSI — running several pneumatic tools and shop systems simultaneously
• ✅ Operations that value the durability features included standard: stainless steel reed valves, aluminum head, and 100% synthetic compressor oil from the factory
• ✅ Industrial facilities where lower amperage draw at higher voltage (3-phase) reduces wiring costs over long cable runs compared to single-phase
• ✅ Shops upgrading from a smaller single-phase unit who are also upgrading their electrical service to 3-phase for other equipment

What the AF10 (3-Phase) Is NOT Built For

• ❌ Facilities without 3-phase power — running new 3-phase service just for this compressor is usually not cost-effective; see the AF10 1-Phase version instead
• ❌ Smaller shops that don't need 37 CFM of continuous output — the 7.5HP AF9 or AF9-120H covers most multi-bay operations for less money
• ❌ Budget-conscious buyers — this is Atlas's top-tier AF-series compressor and priced for heavy industrial use

What Makes the AF10 (3-Phase) Different

Commercial 2-Stage Pump

The AF10 (3-Phase) uses a 3-Cylinder, 2-Stage Cast Iron pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.

CFM & Pressure Output

Delivers 37 CFM @ 90 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.

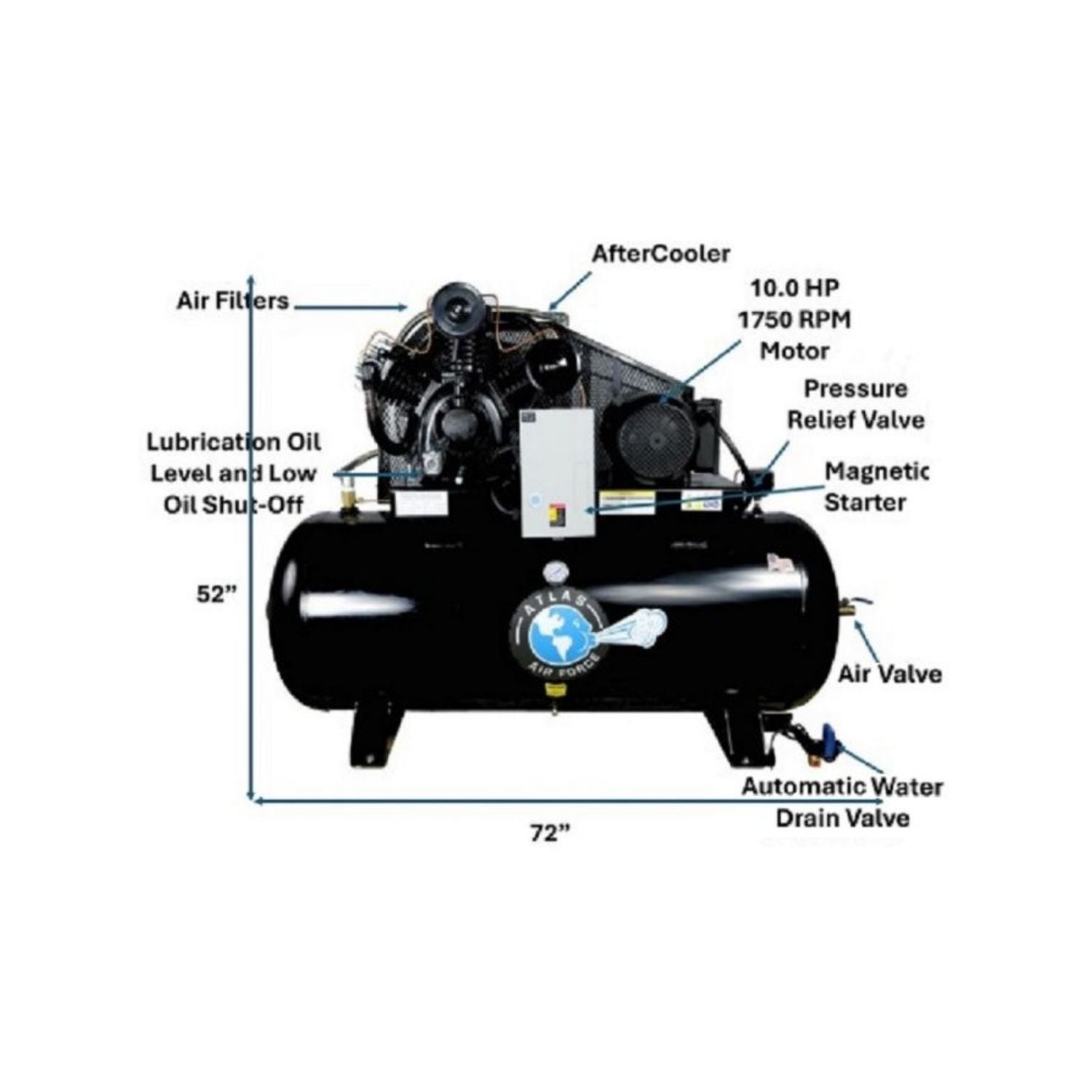

Plus Package Upgrades

Includes aftercooler, low oil shutoff, automatic tank drain (standard on this configuration) — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.

Power Requirements

220V, 3-Phase, 30 Amp Breaker, #10 Wire Recommended (70' Max from Breaker). Confirm your panel and breaker sizing with an electrician before delivery.

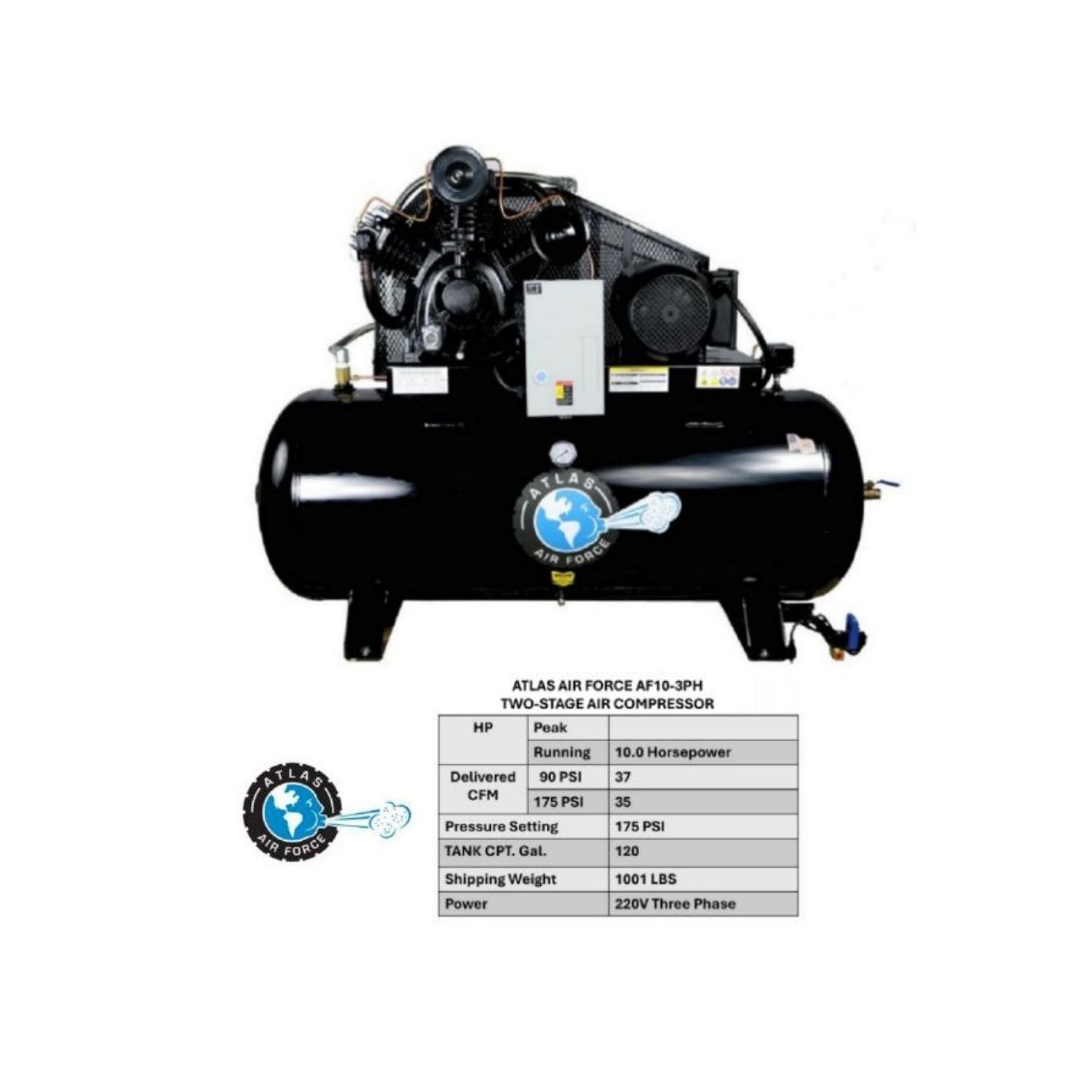

Full Specifications — AF10 (3-Phase)

Atlas® Warranty — AF10 (3-Phase)

Atlas® backs the AF10 (3-Phase) with a 1-year parts-only warranty.

Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
