Atlas® Garage PRO8000 8,000 lb. Hobbyist 4-Post Lift #ATEXH-PRO8000-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

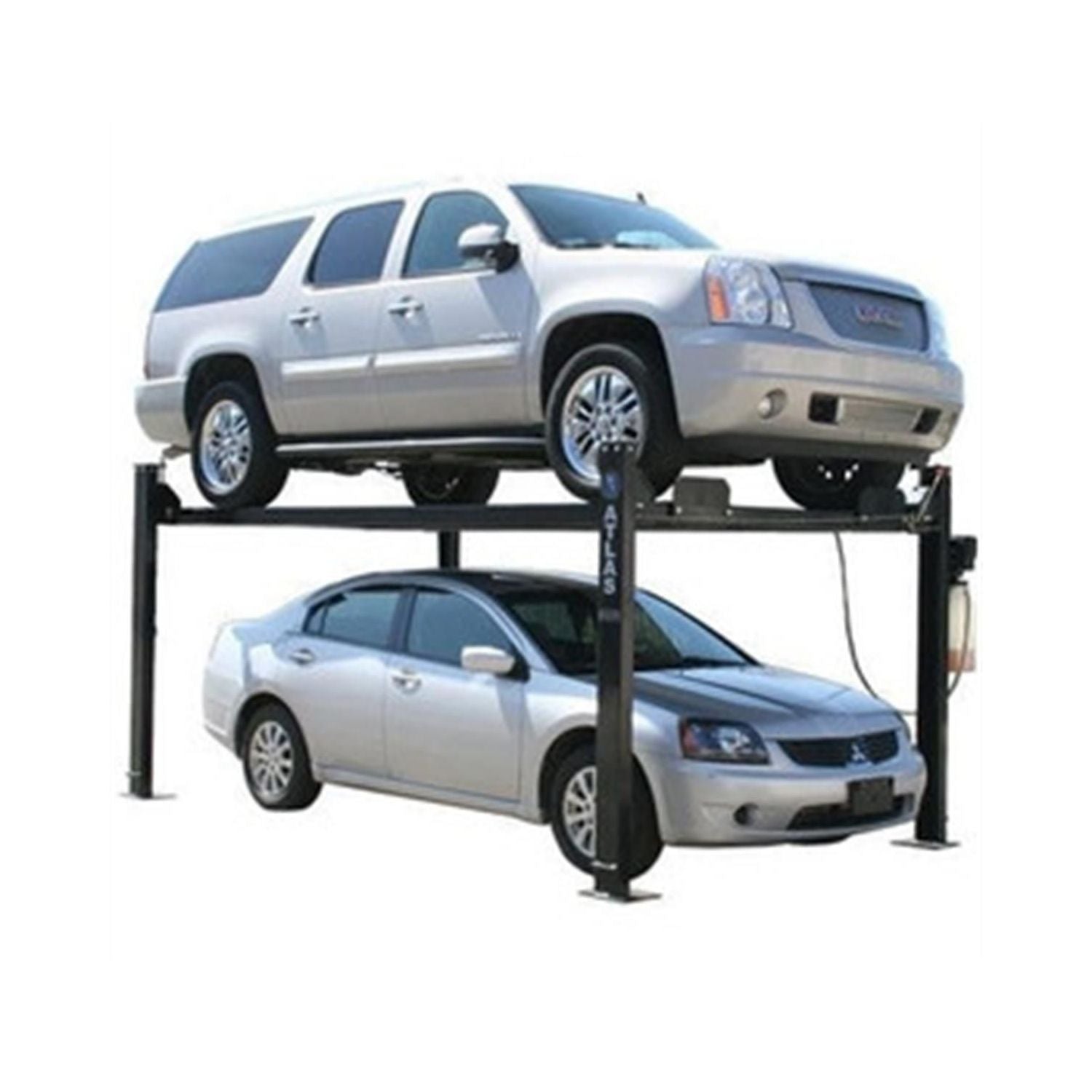

  The Atlas® Garage PRO8000 8,000 lb. Hobbyist 4-Post Lift is designed for vehicle storage, maintenance, and hobbyist automotive applications in home garages and light-duty commercial environments. Featuring an 8,000 lb lifting capacity, this 4-post lift provides dependable lifting performance for cars, trucks, SUVs, and specialty vehicles.

  The Garage PRO8000 features heavy-duty steel construction, diamond-plated runways, and a single-point lock release system for safe and efficient operation. Designed with hobbyists and car enthusiasts in mind, this lift is ideal for maximizing garage storage space while also supporting routine maintenance and repair work. The FPD designation indicates freight prepaid shipping.

• FEATURES AND BENEFITS

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • Diamond Plated Runways

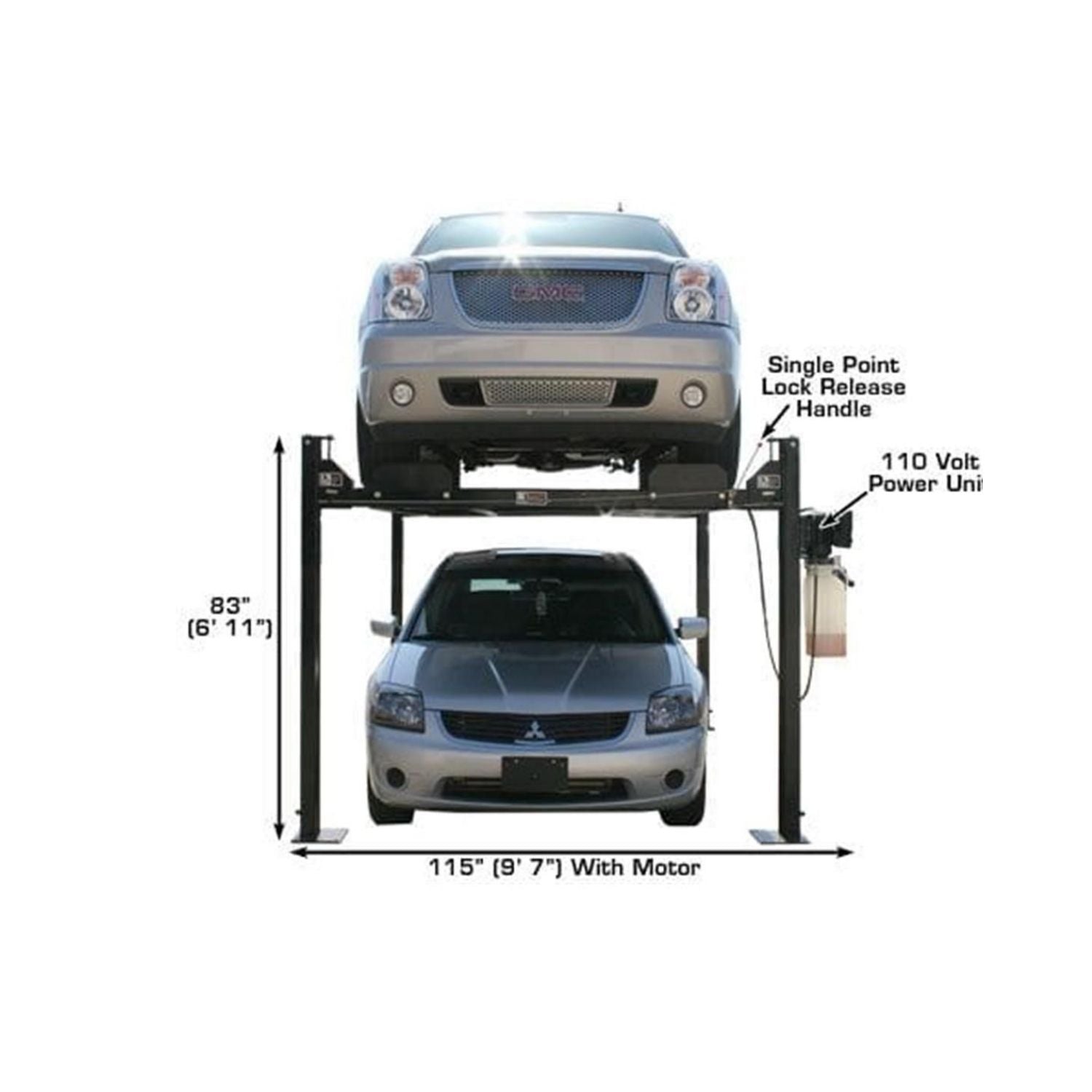

  • Single-Point Lock Release

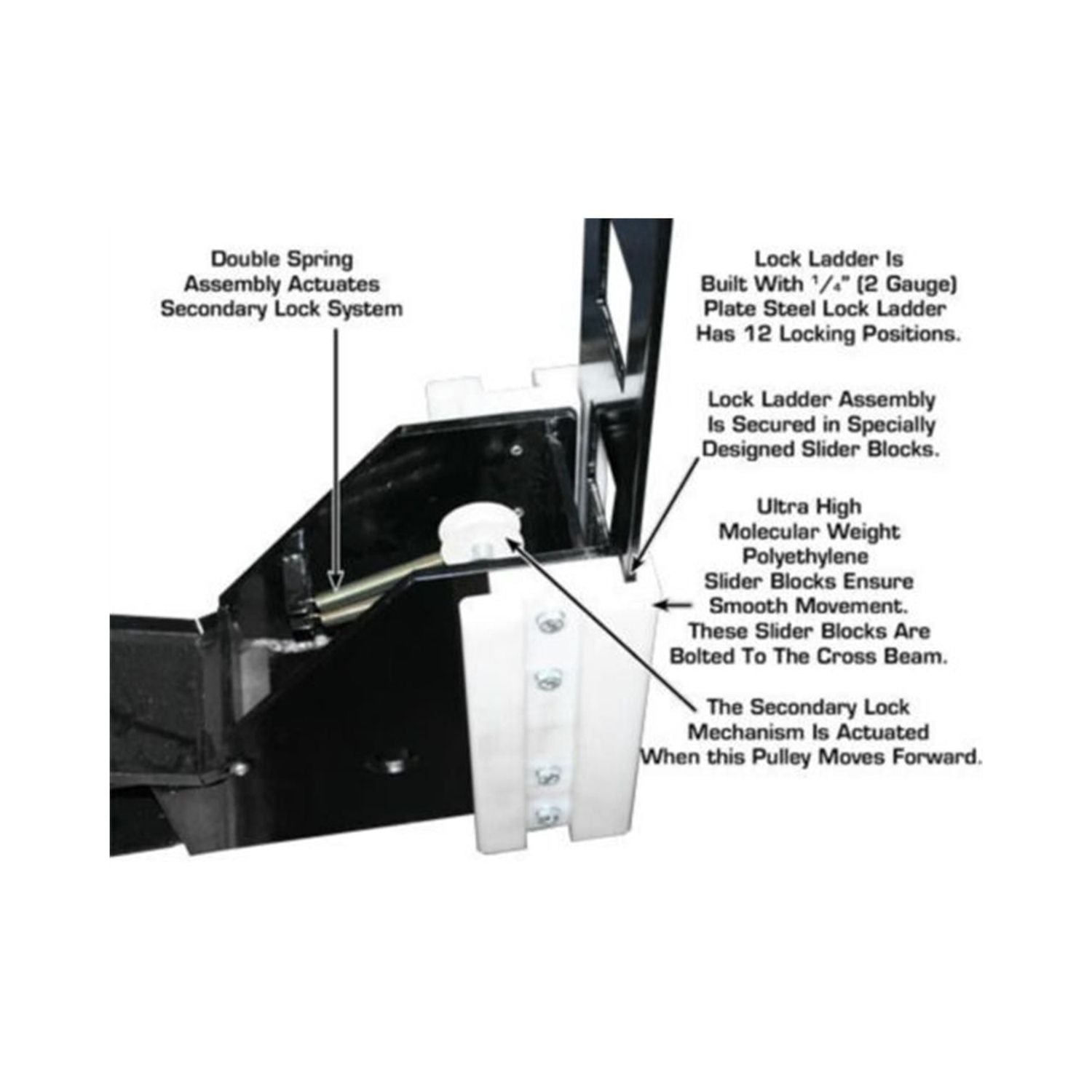

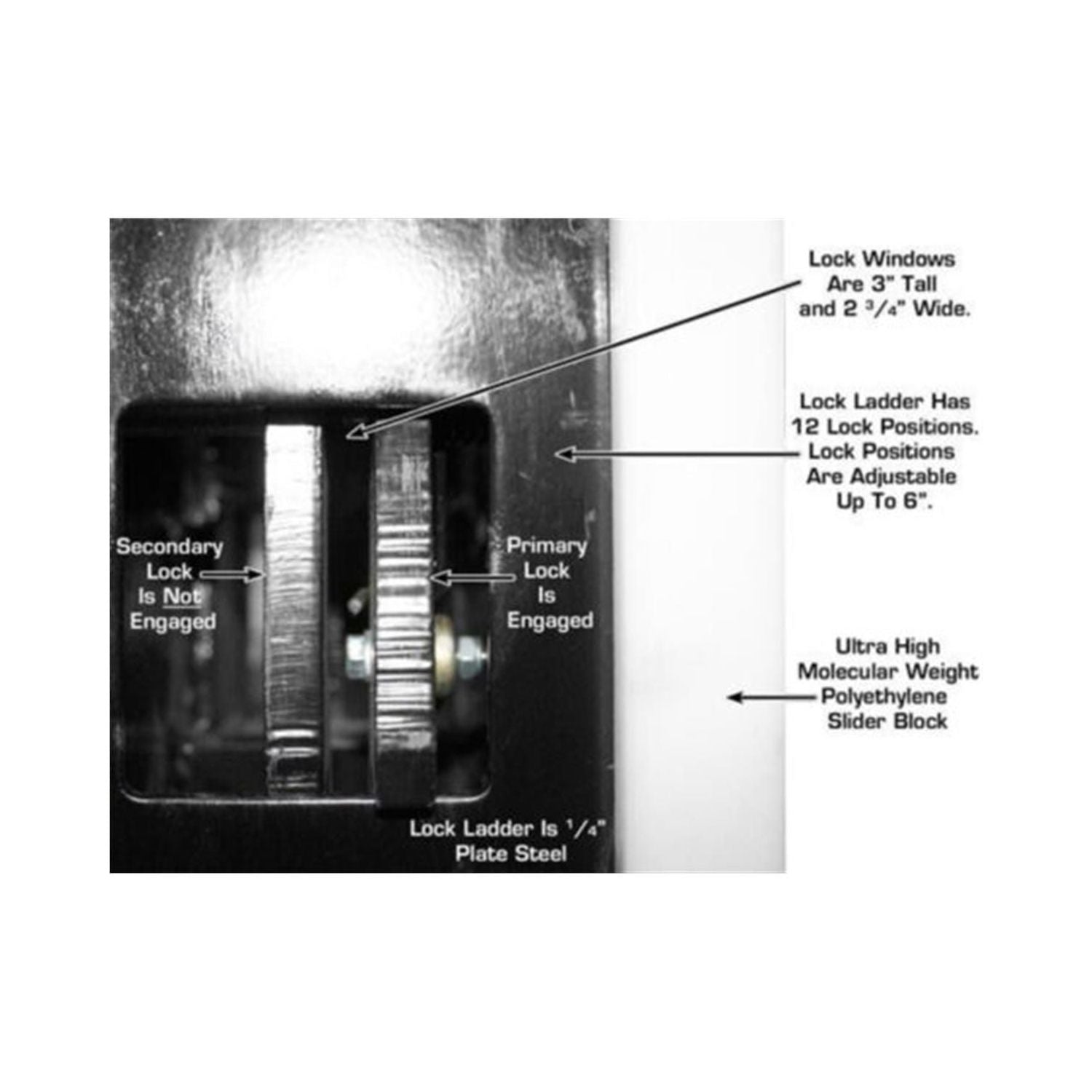

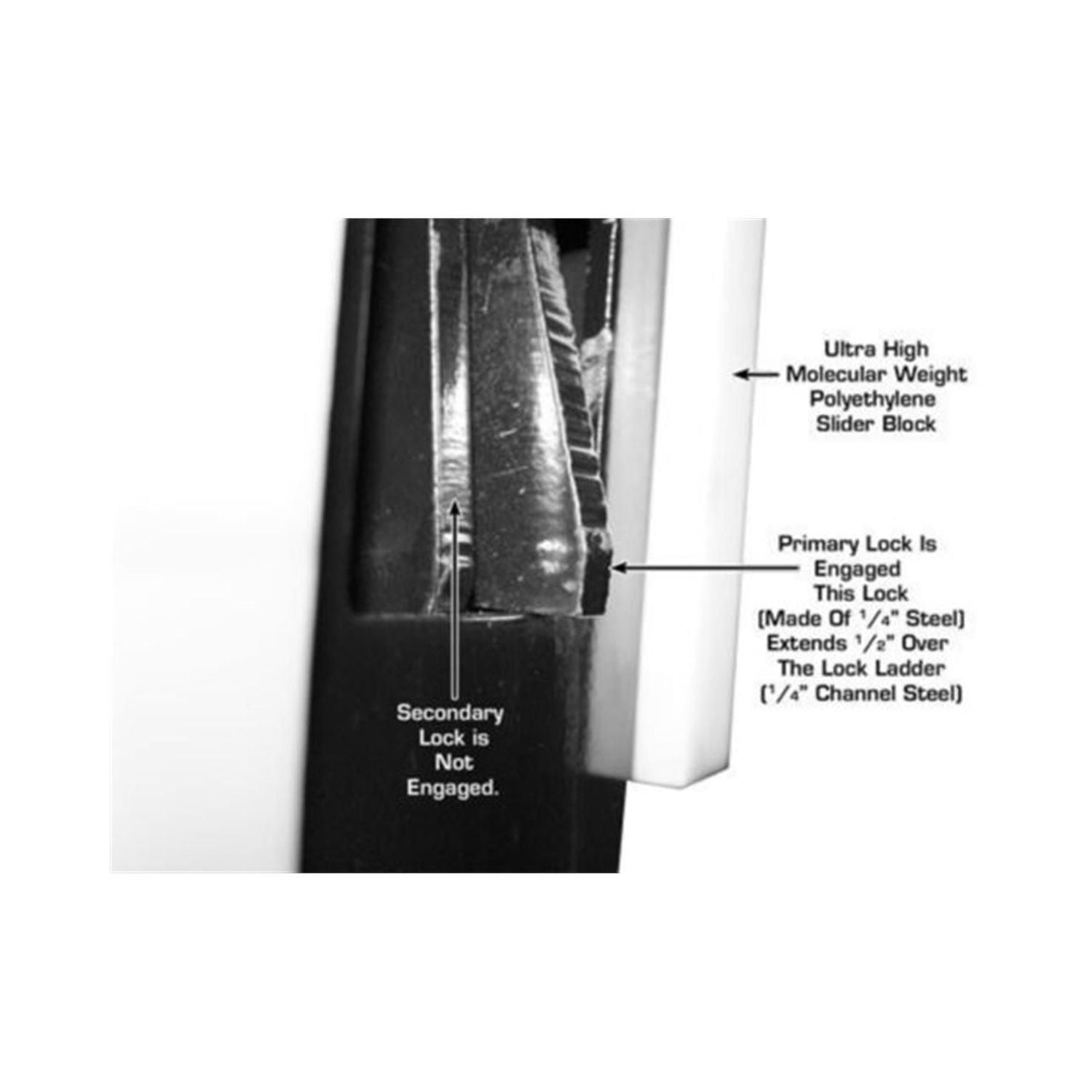

  • Lock Ladder Design

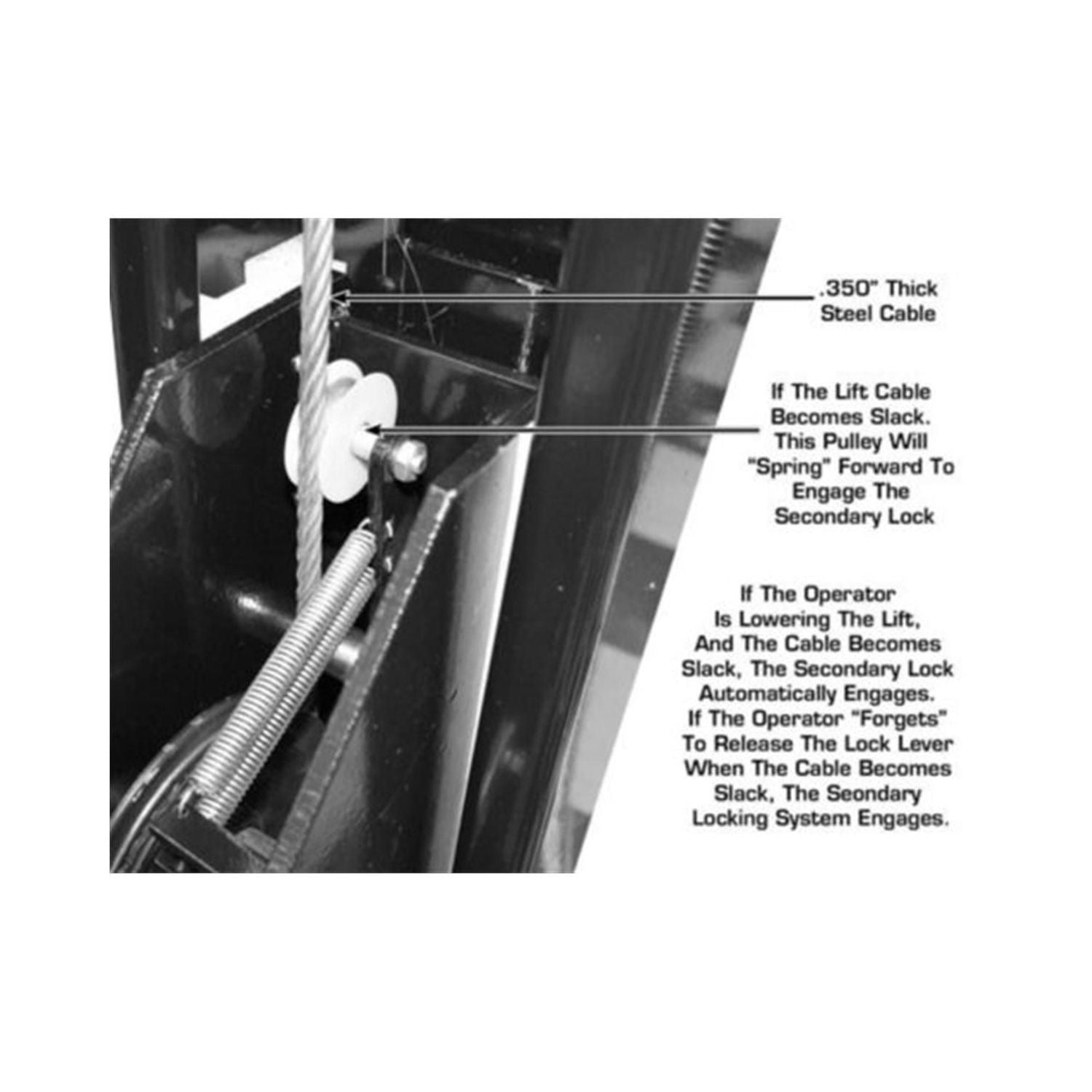

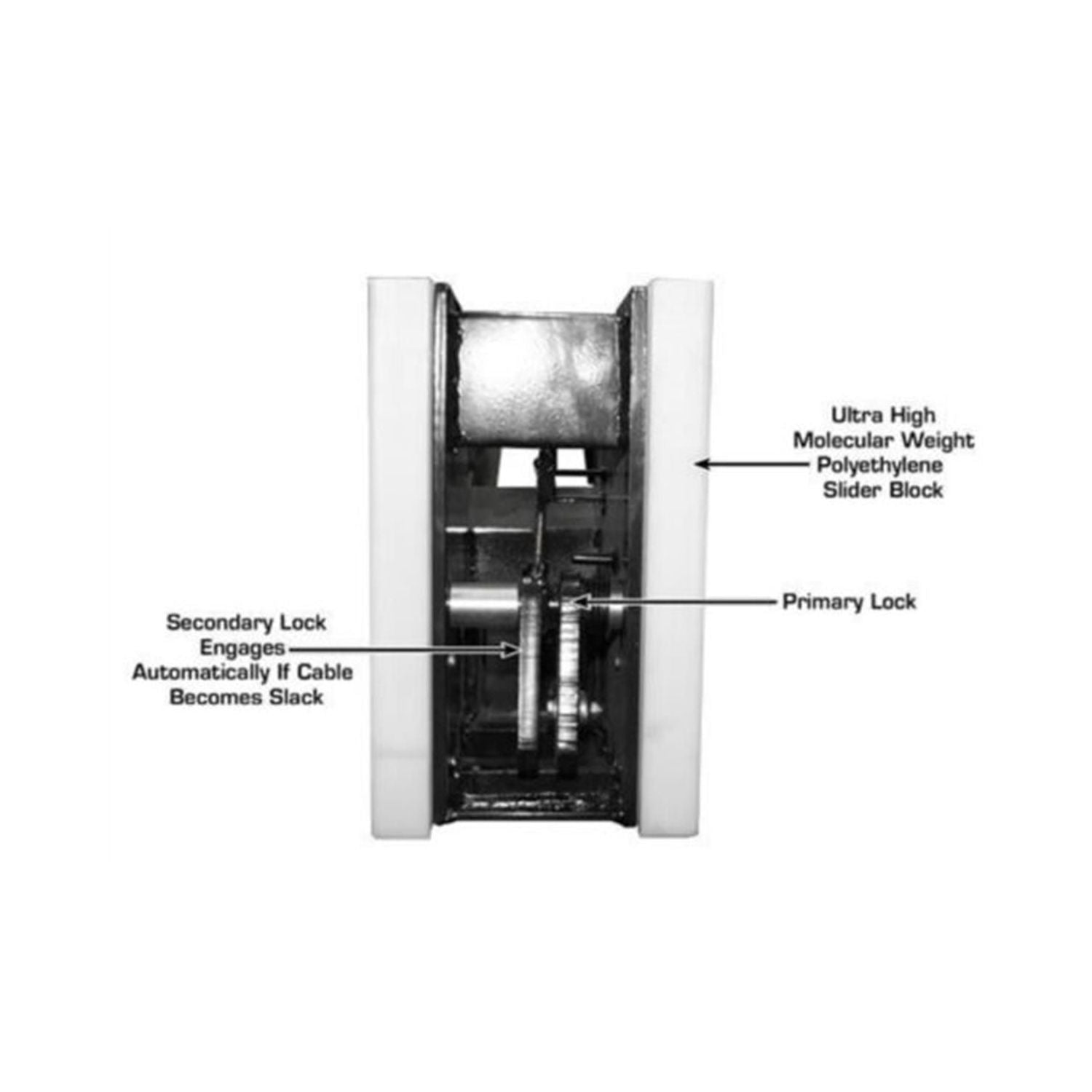

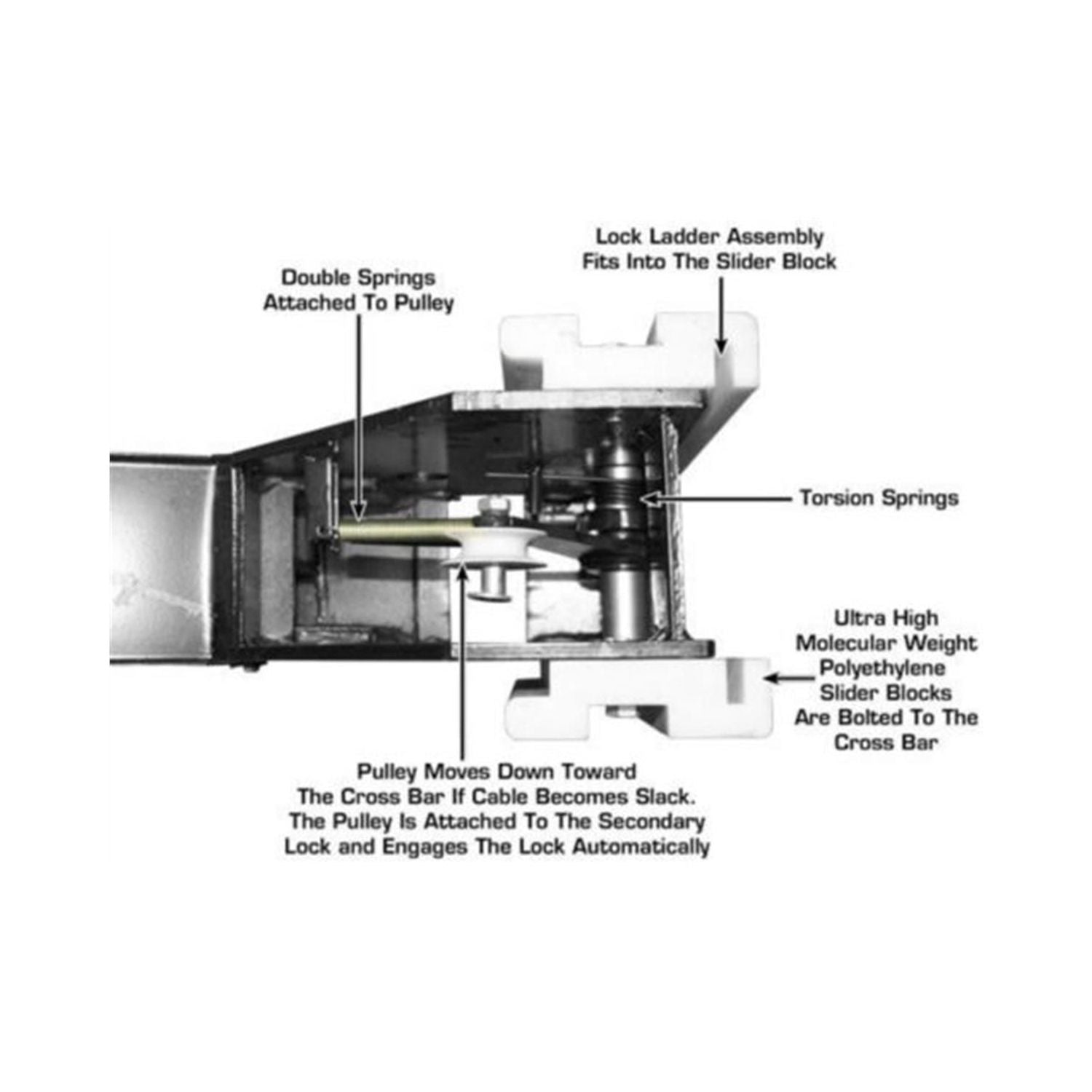

  • Double Lock Safety System

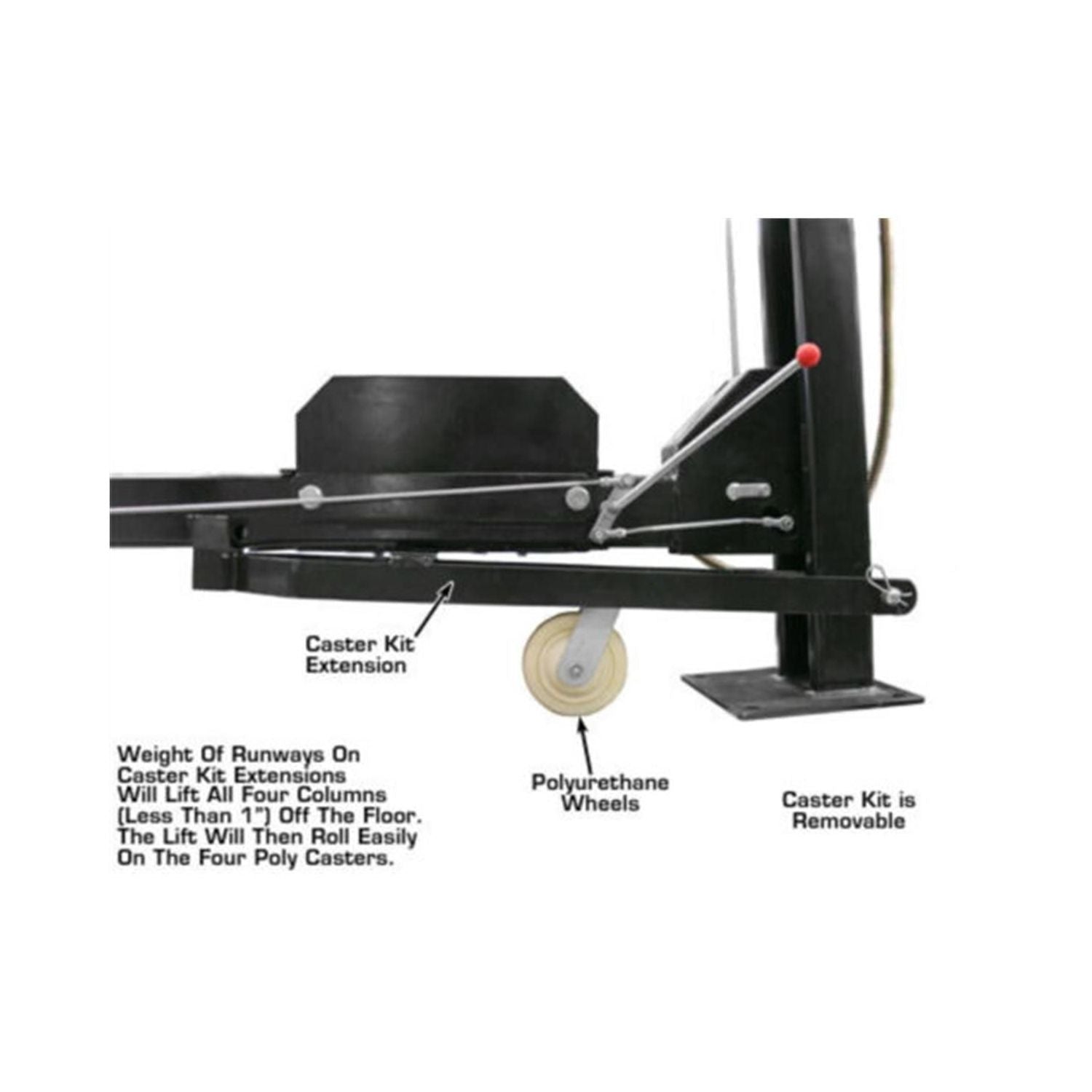

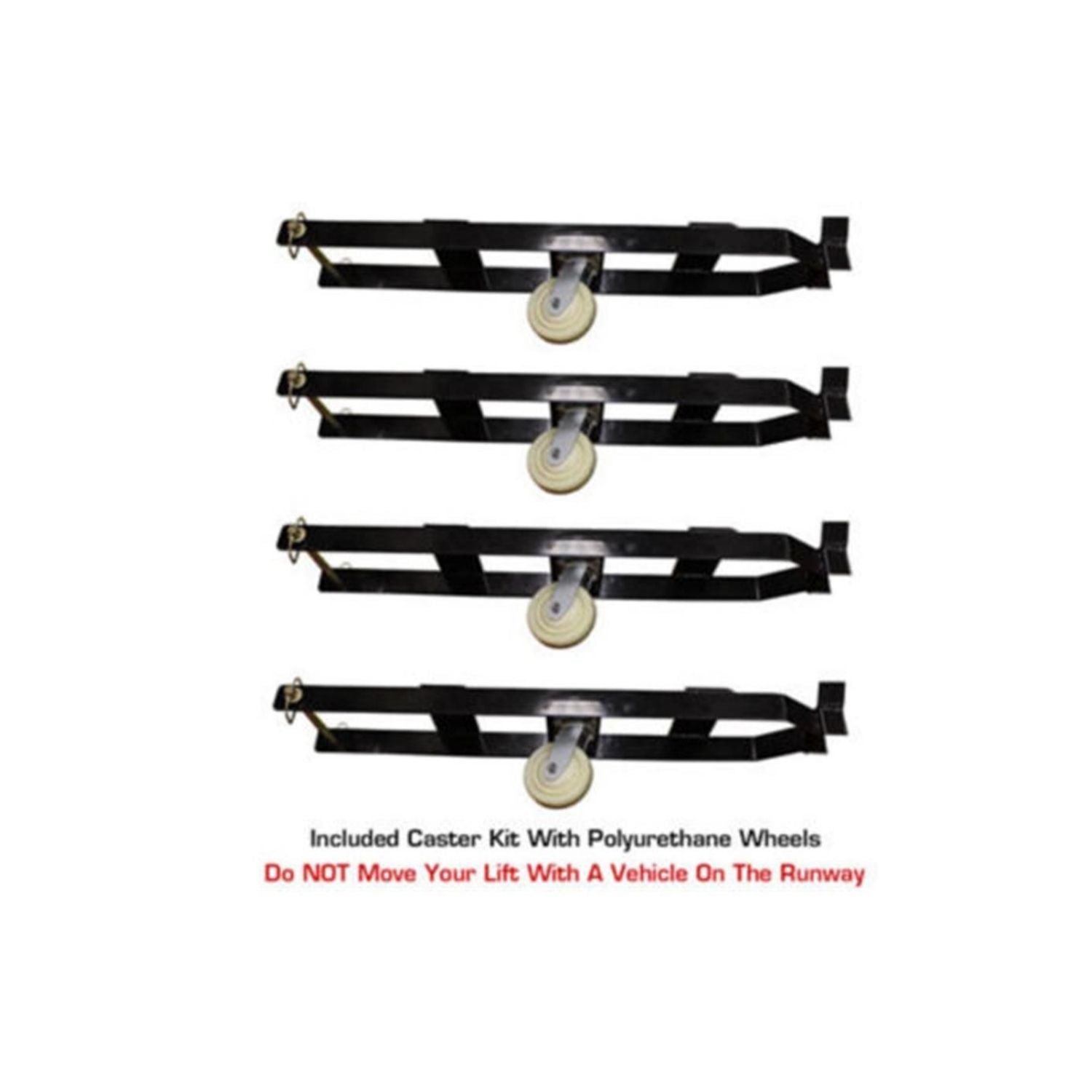

  • Caster Kit With Polyurethane Wheels Included

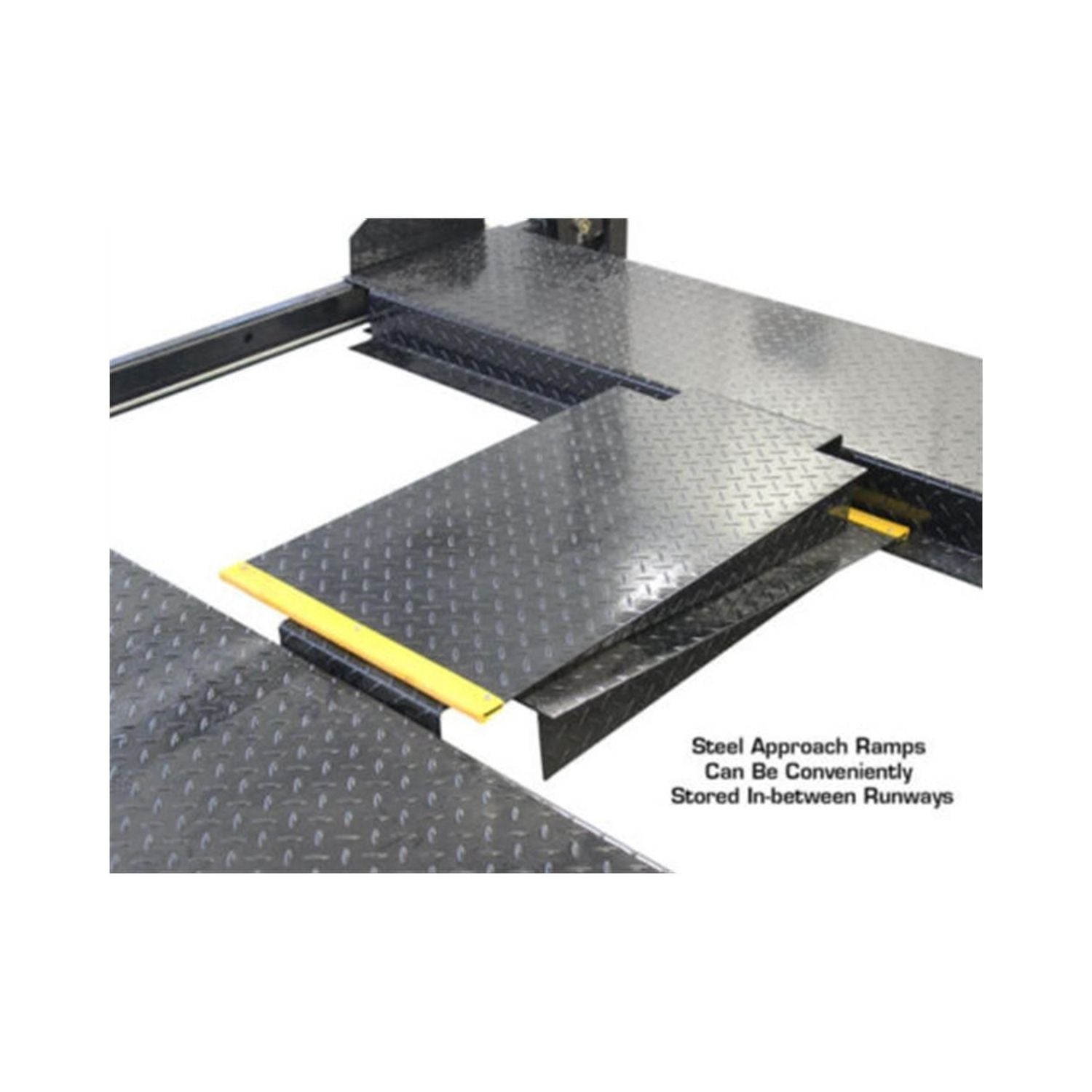

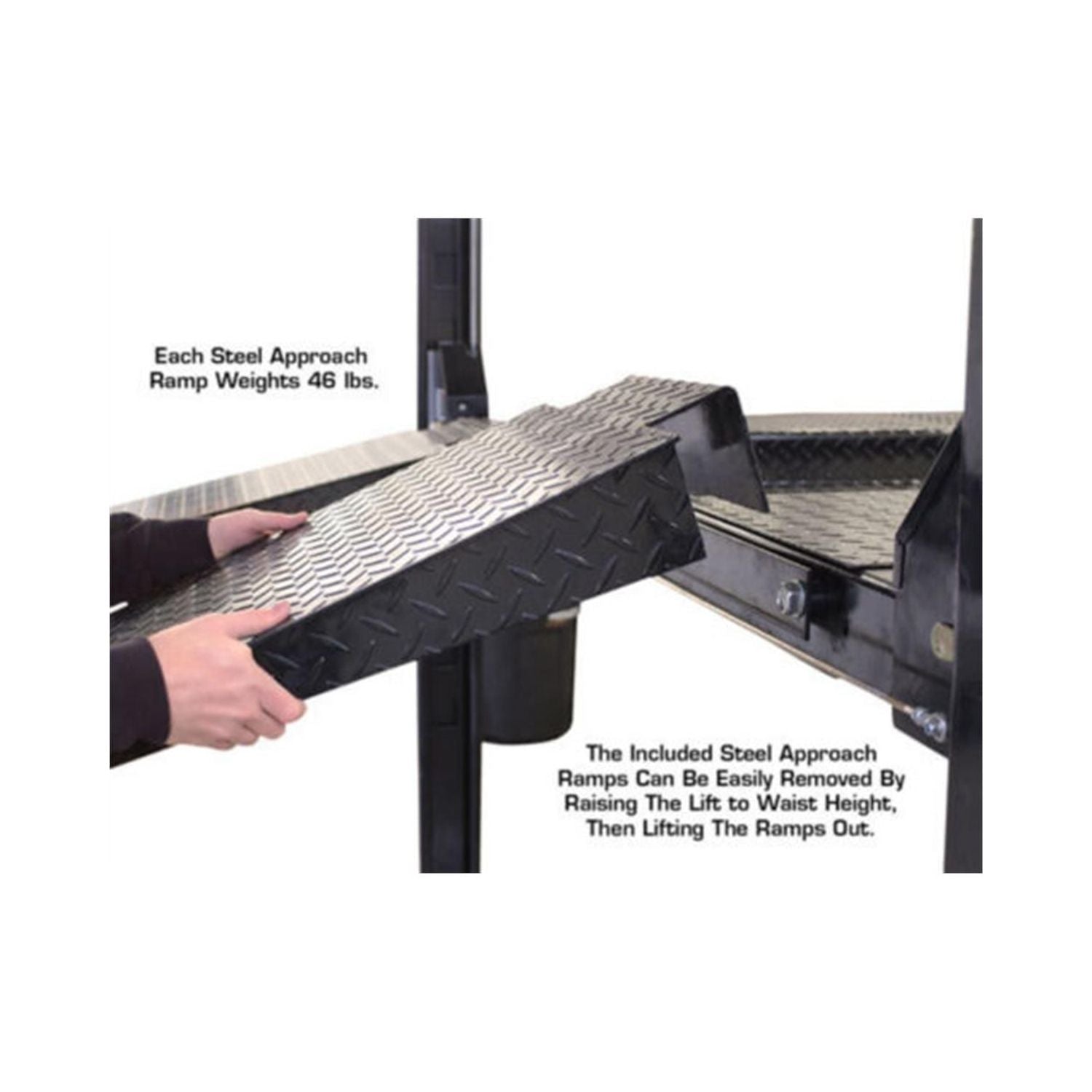

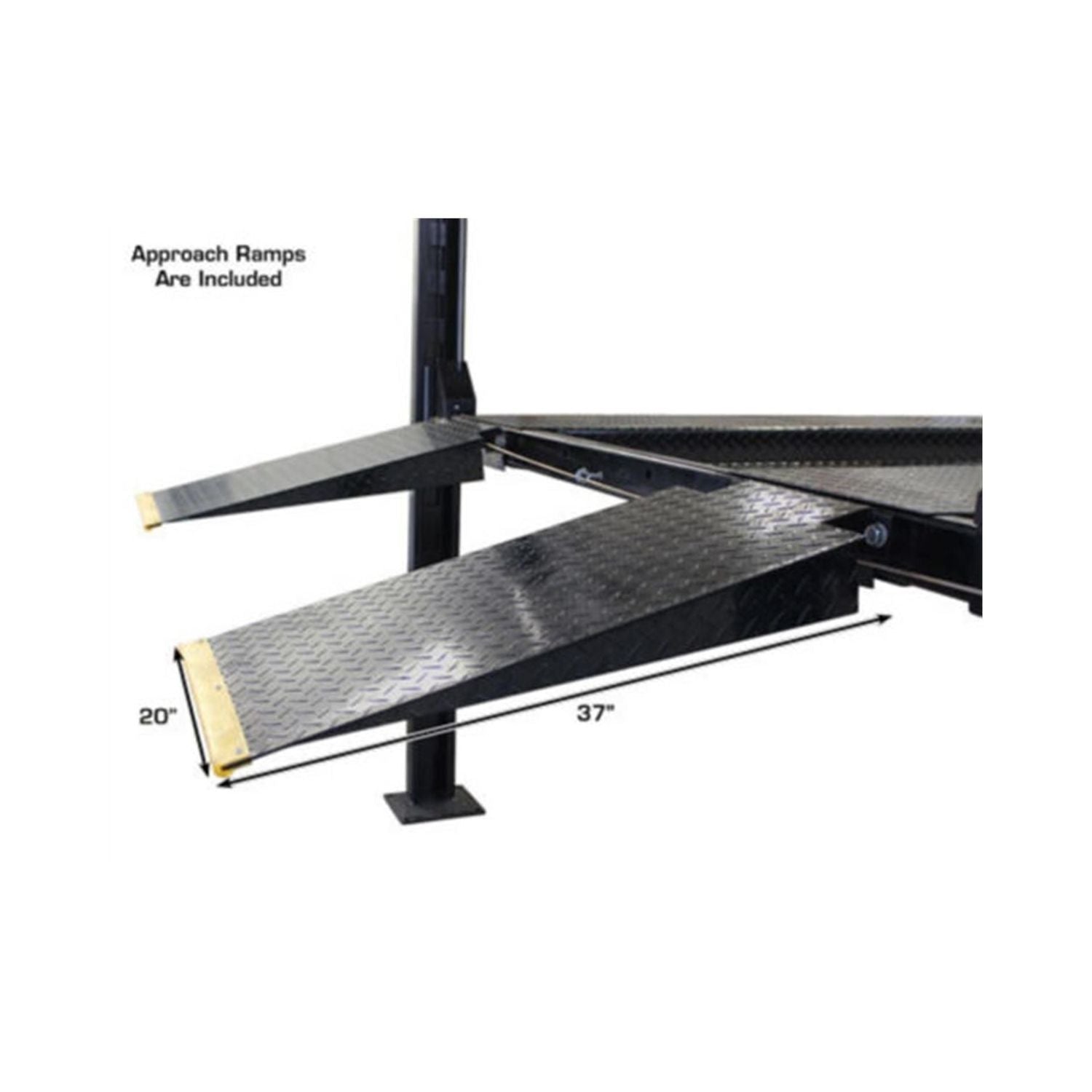

  • Steel Approach Ramps Included

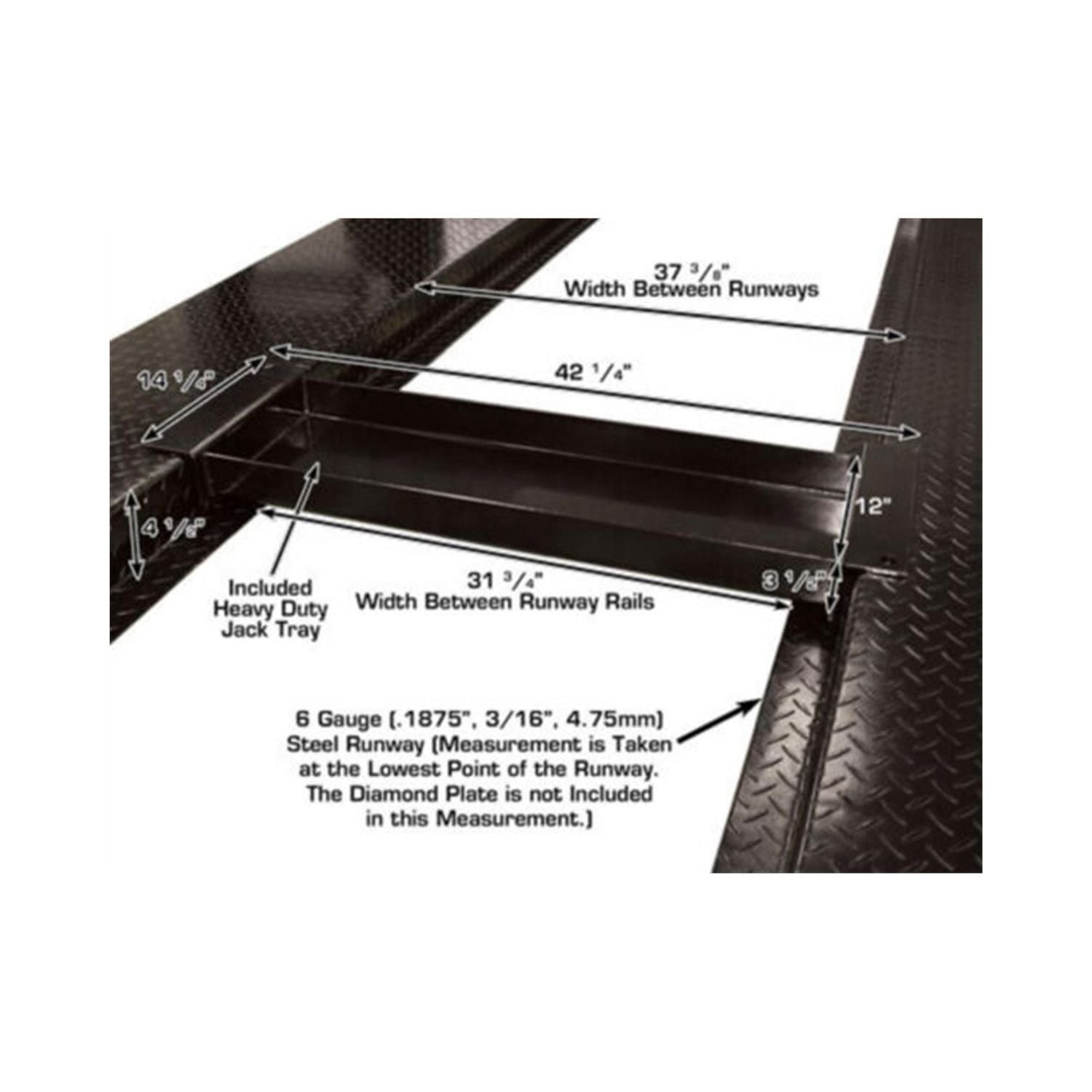

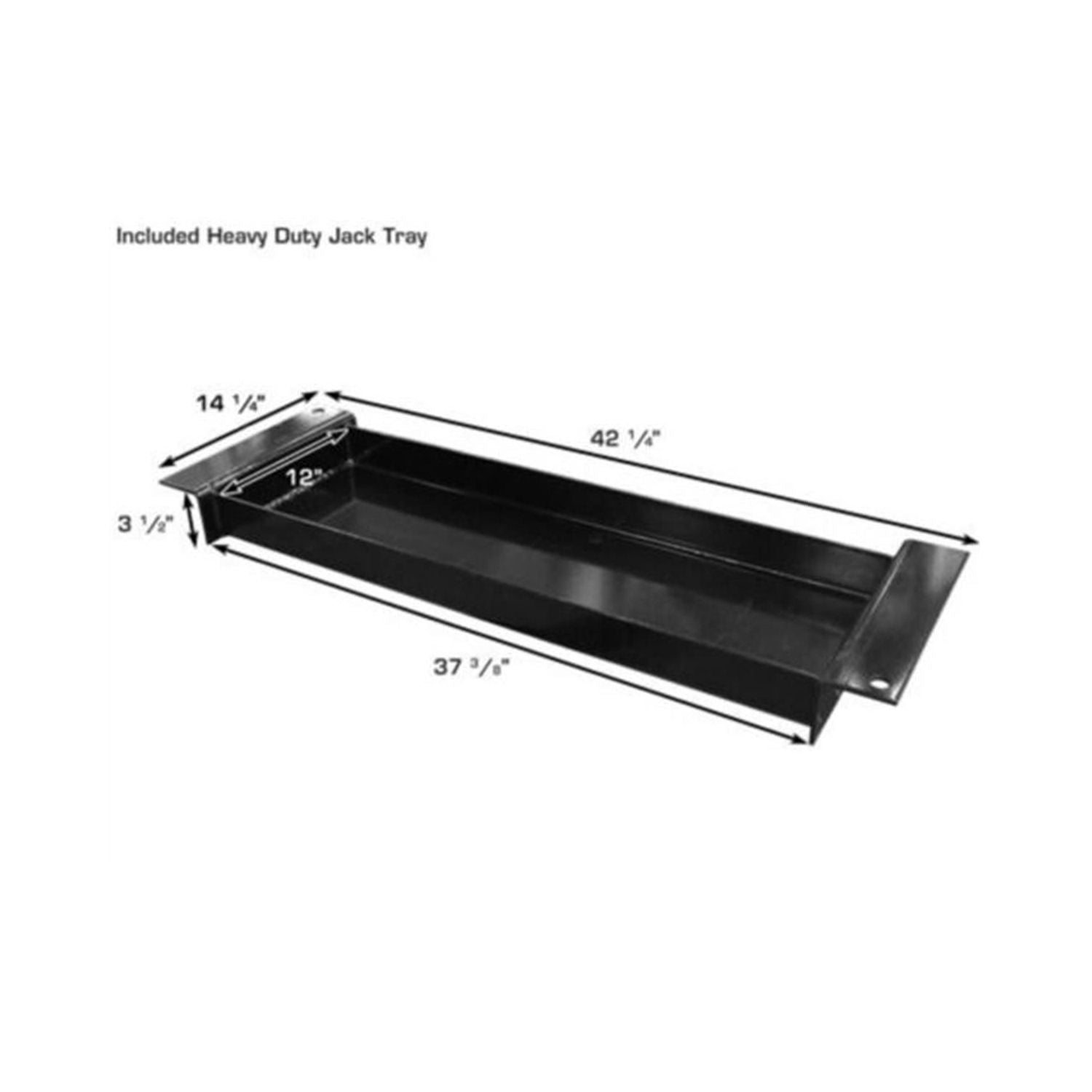

  • Steel Jack Tray Included

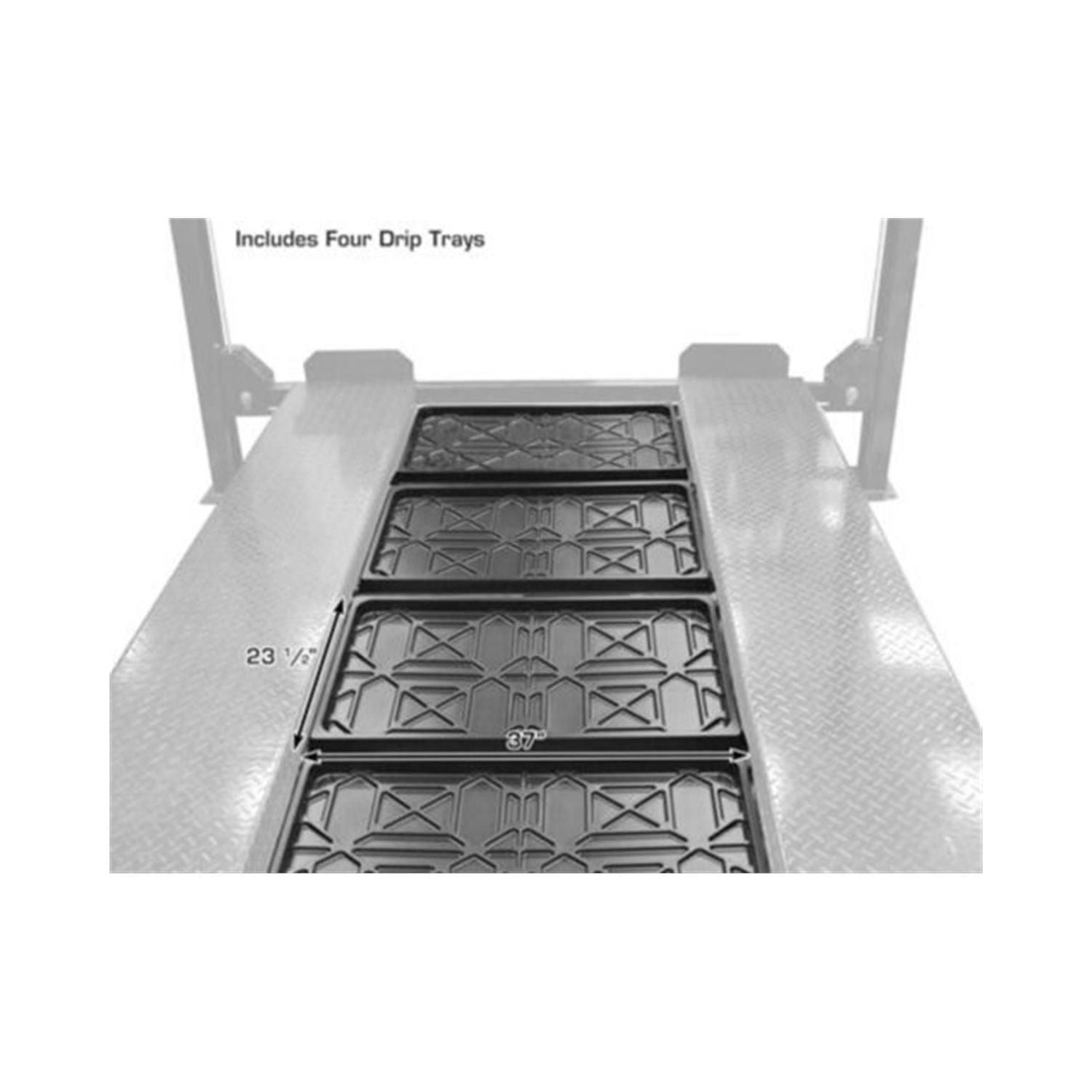

  • 4 Plastic Drip Trays Included
  • 4 Wheel Stops Included

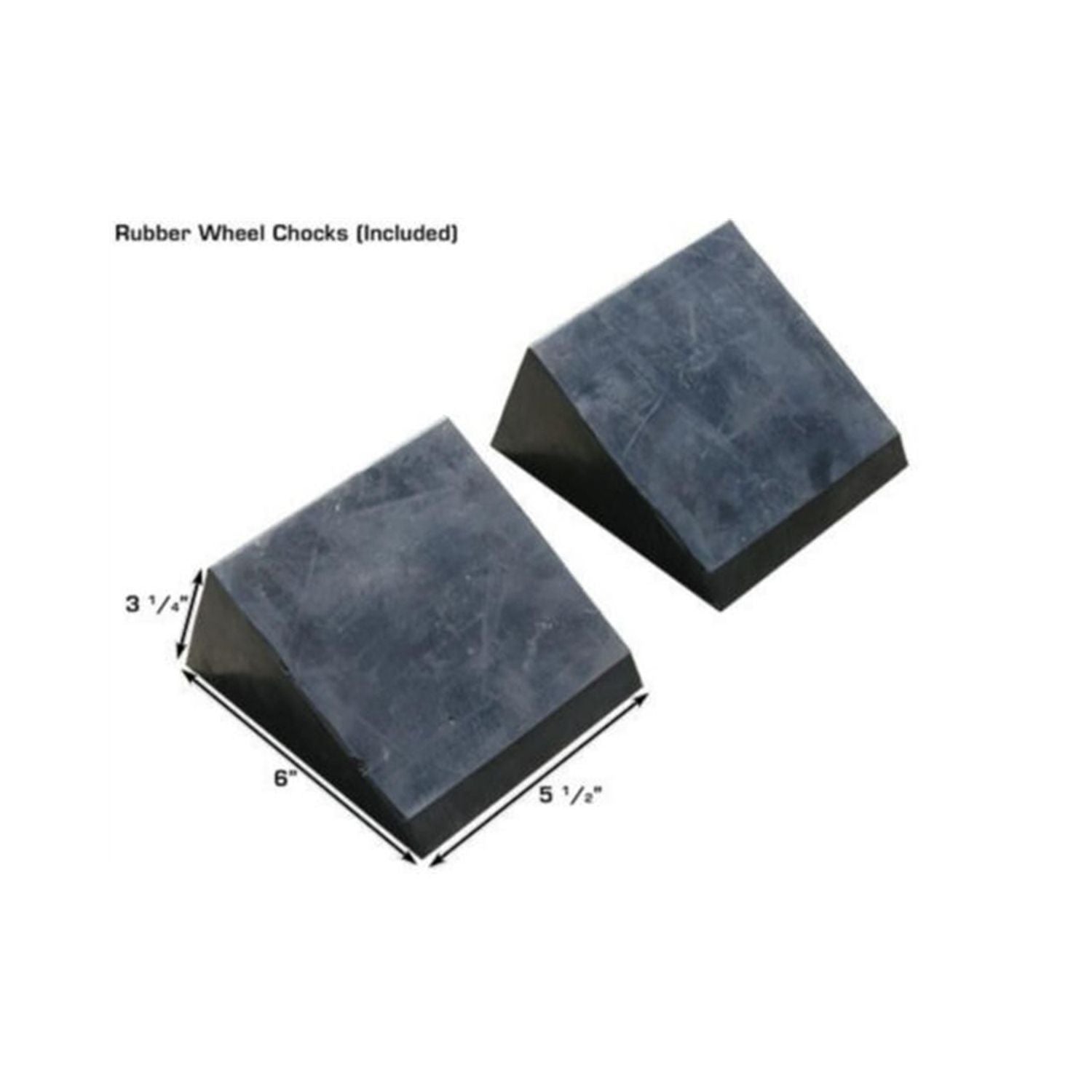

  • 2 Rubber Wheel Chocks Included
  • Perfect For Storing Or Working On Vehicles
  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)

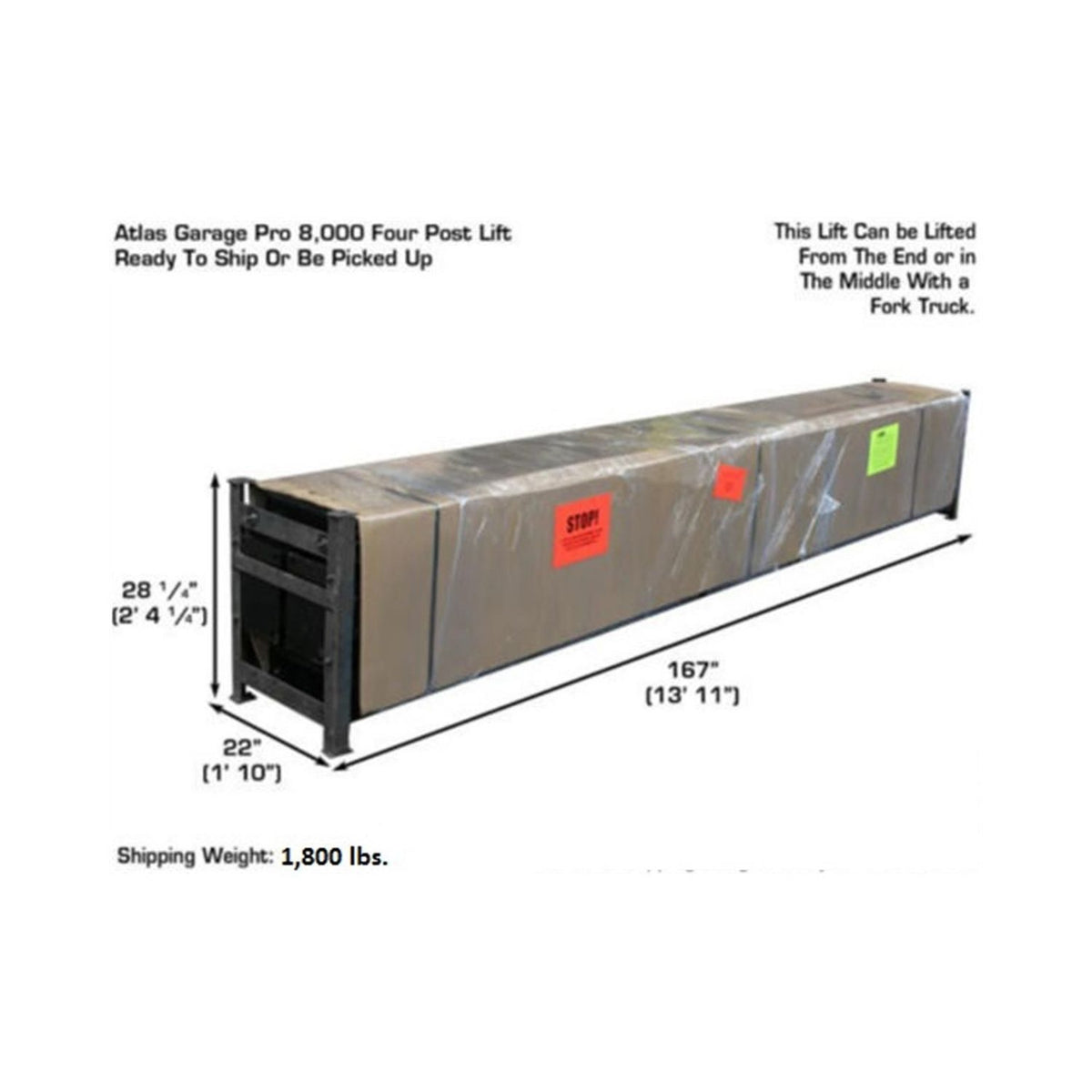

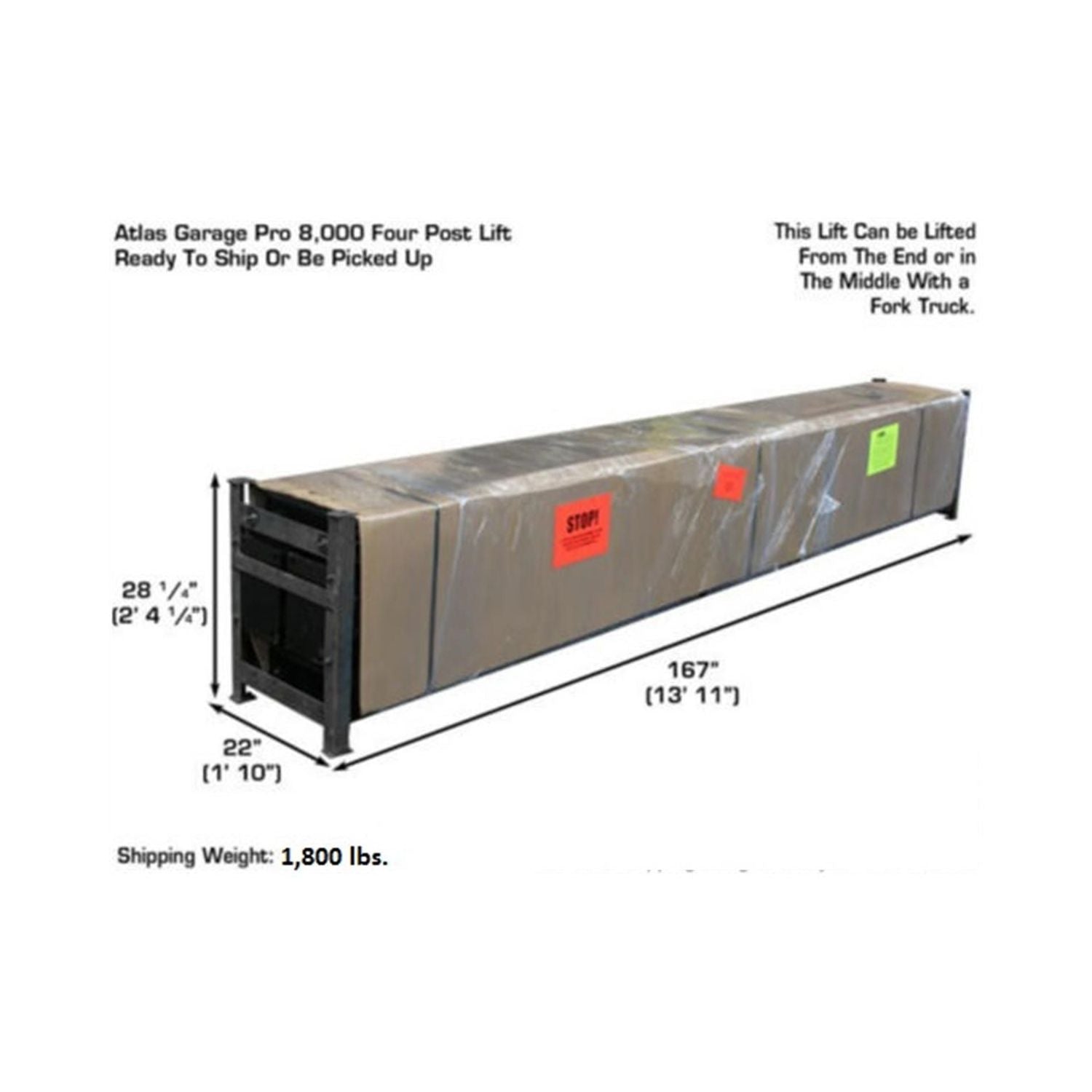

  • Shipping Weight 1,800 lbs.
  • 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-PRO8000-FPD
  Dimensions:	167" L × 29" W × 22" H
  Weight:	1800 lbs
  UPC:	810524027946
  Country of Origin:	CHN
  Capacity:	8,000 lb.

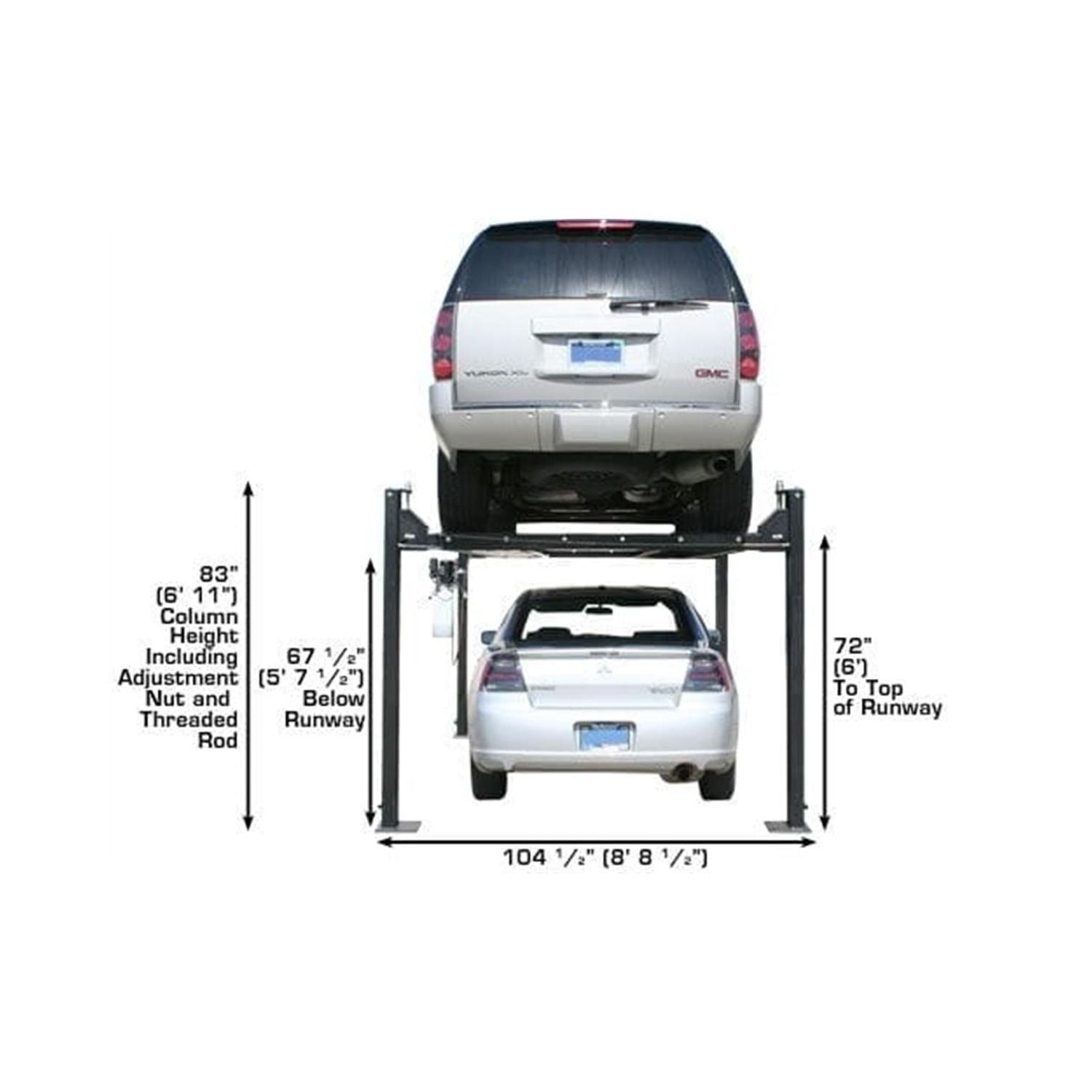

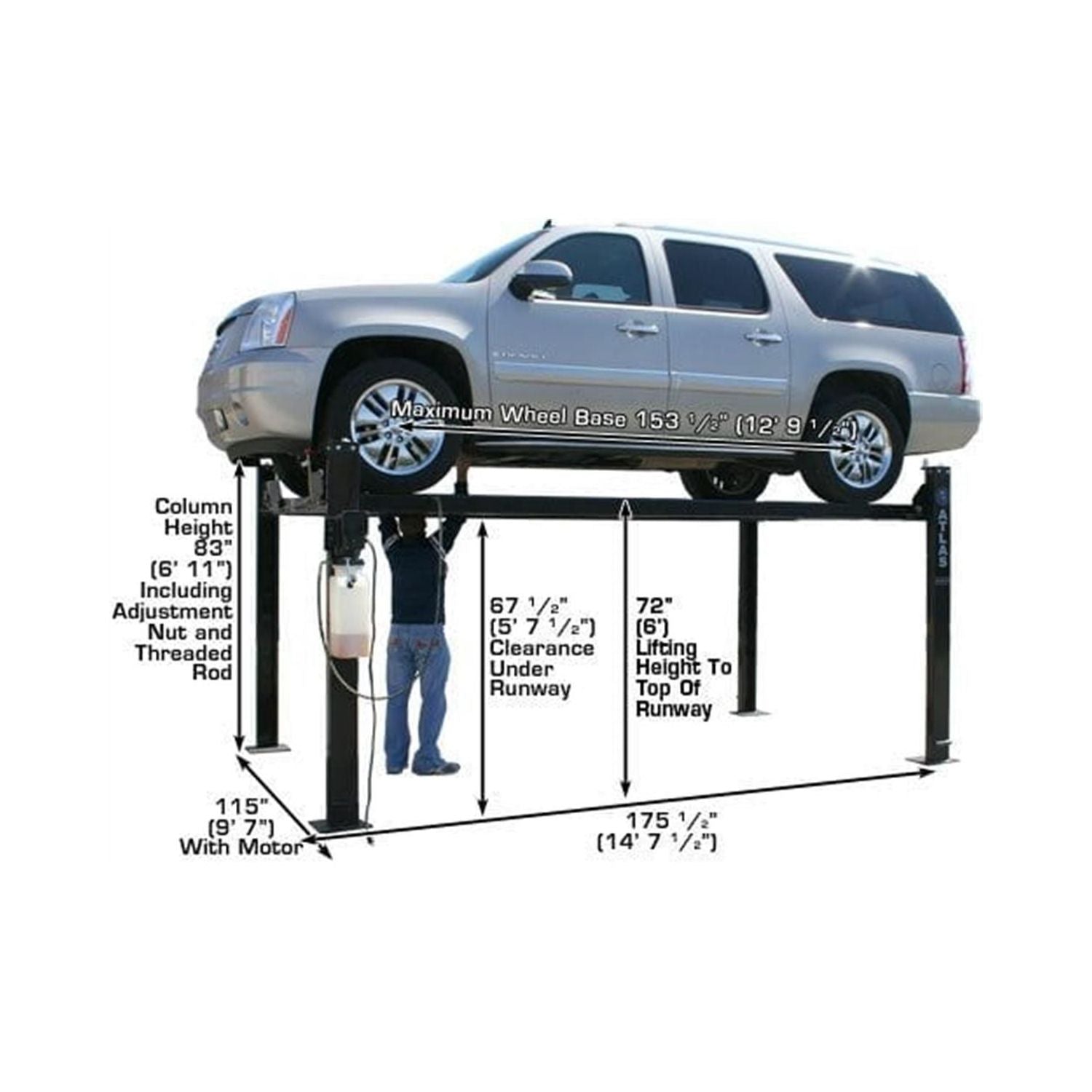

  Lifting Height To Top Of Runway:	72" (6')
  Clearance Under Runways:	67" (5' 7")

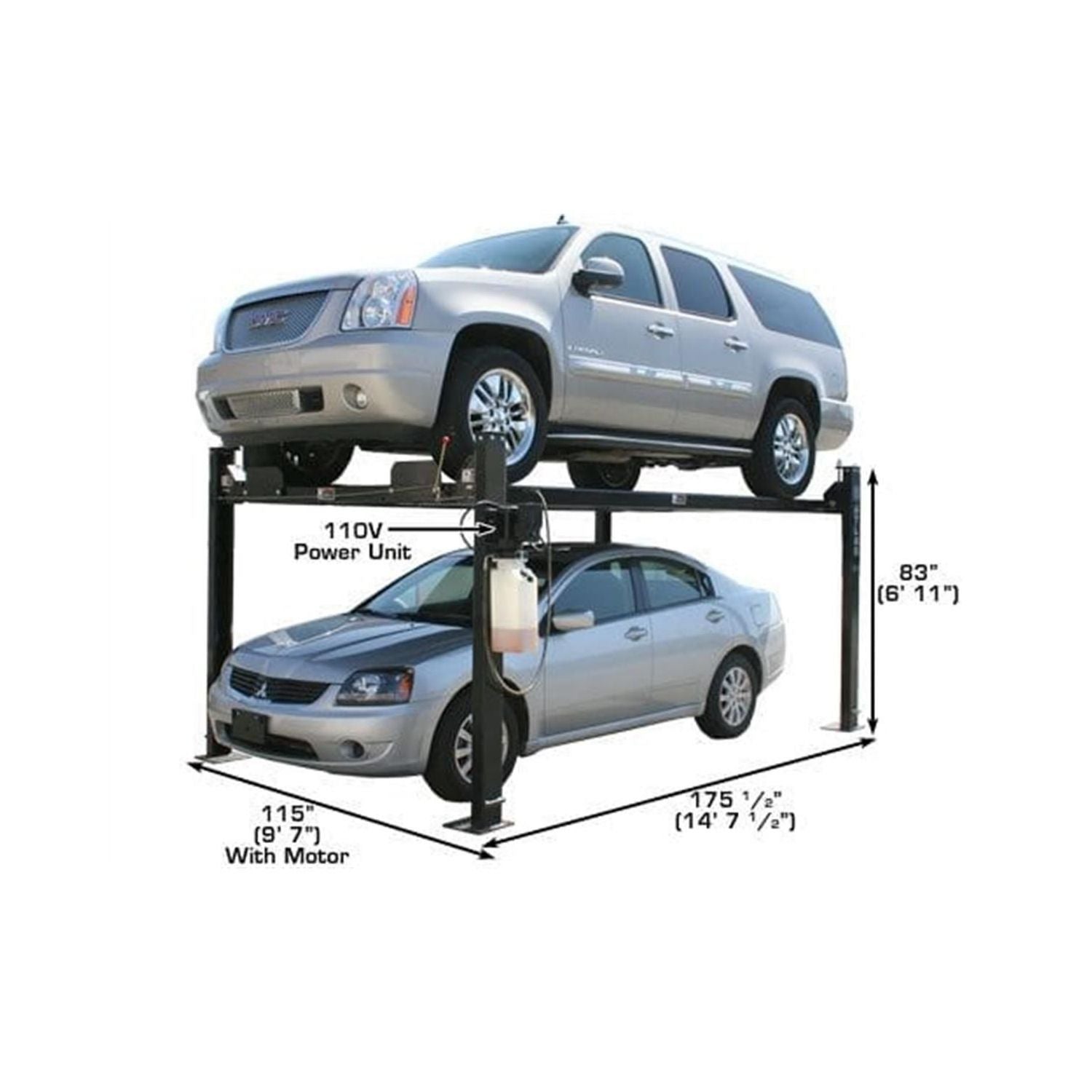

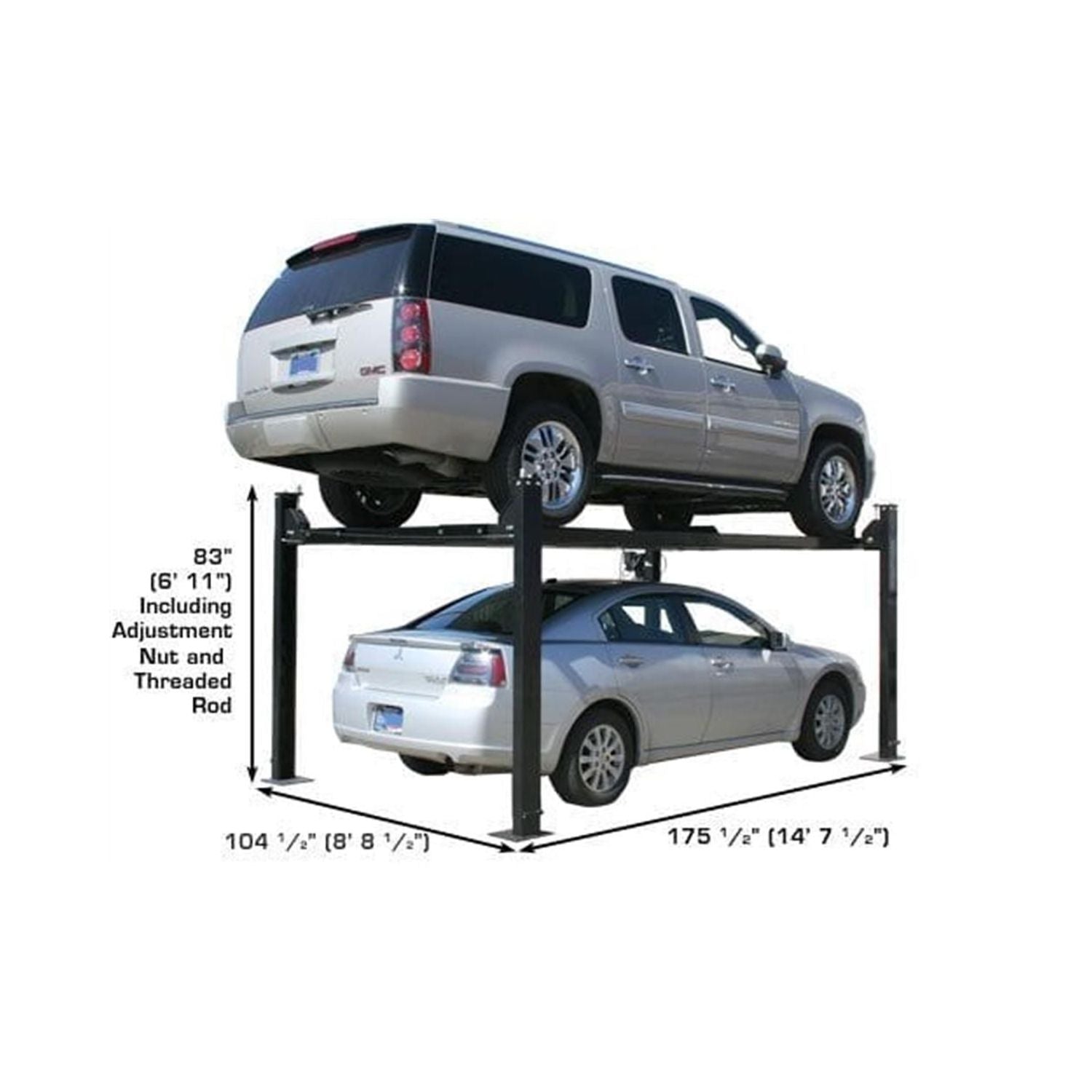

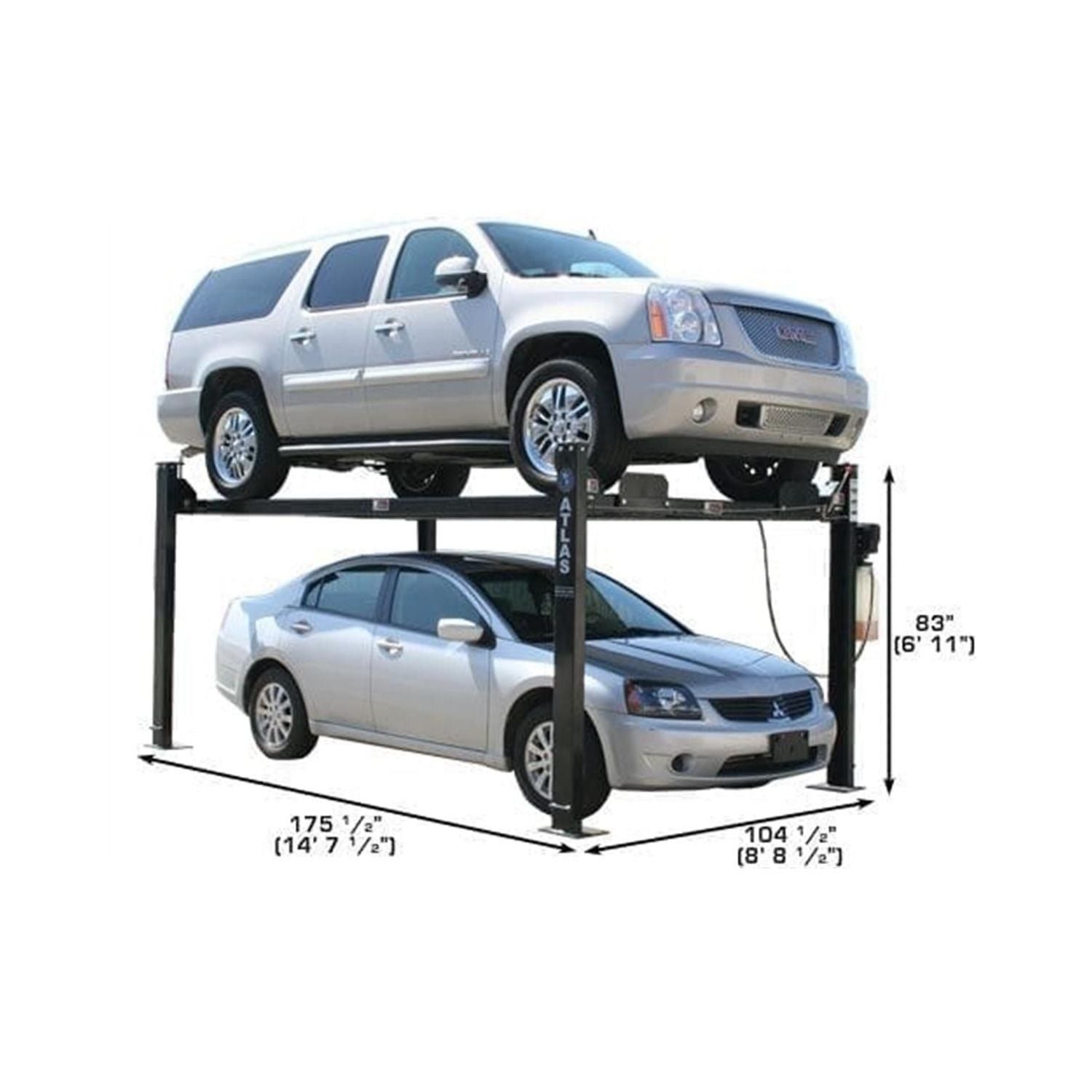

  Height Of Columns:	83" (6' 11")
  Overall Width (Without Motor):	104 1/2" (8' 8 1/2")
  Overall Width (With Motor):	115" (9' 7")

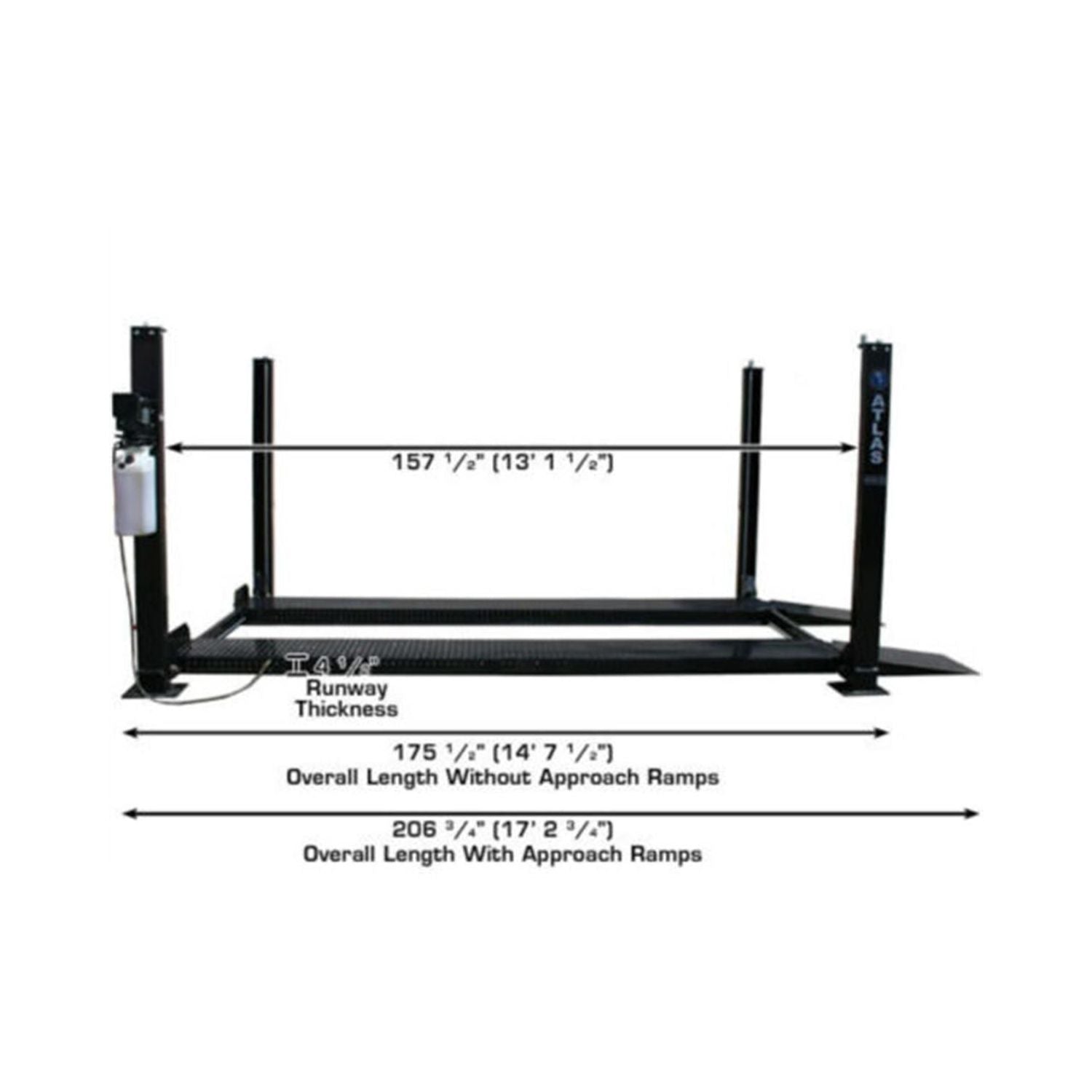

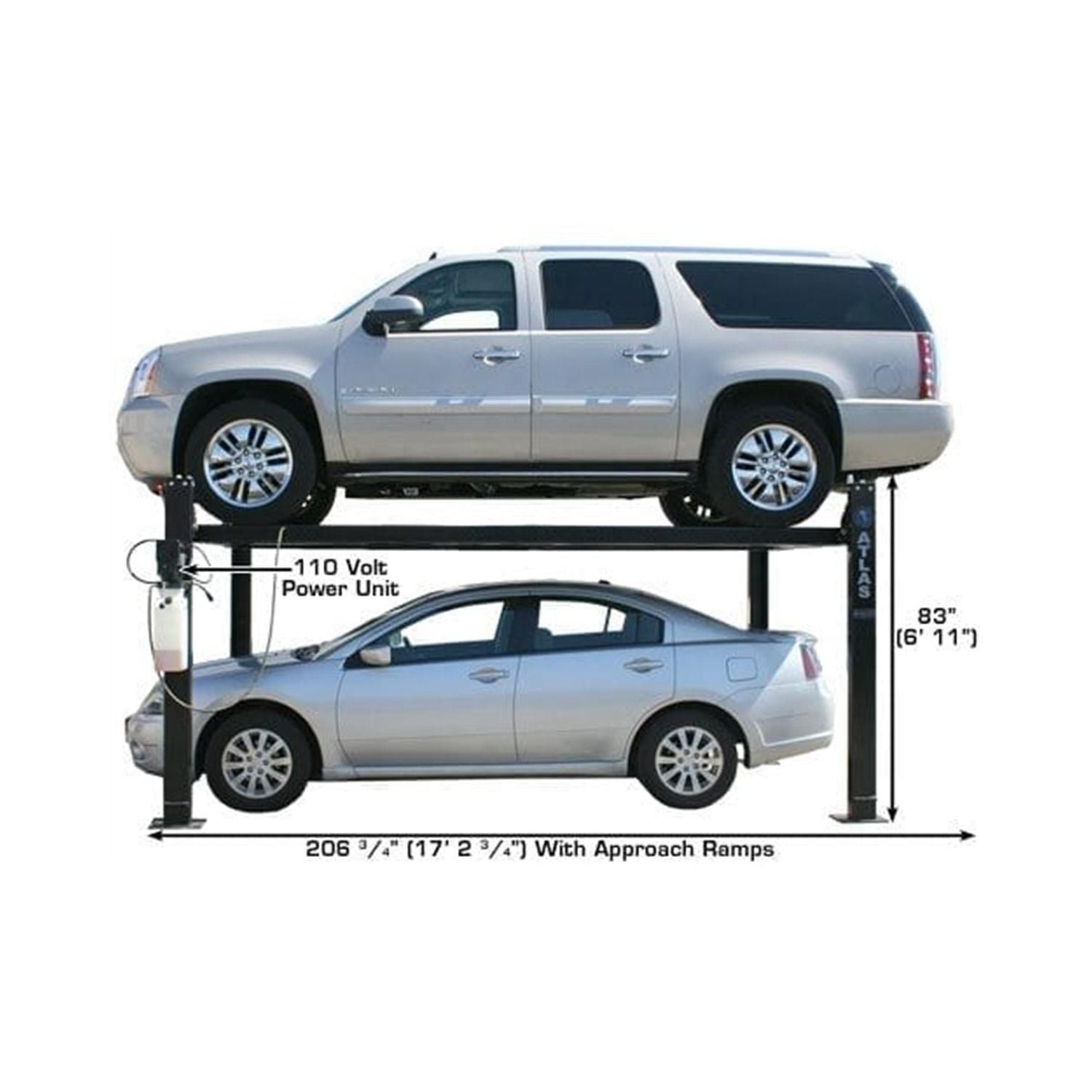

  Overall Length With Approach Ramp:	206 3/4" (17' 2 3/4")
  Approach Ramp:	37" (3' 1")

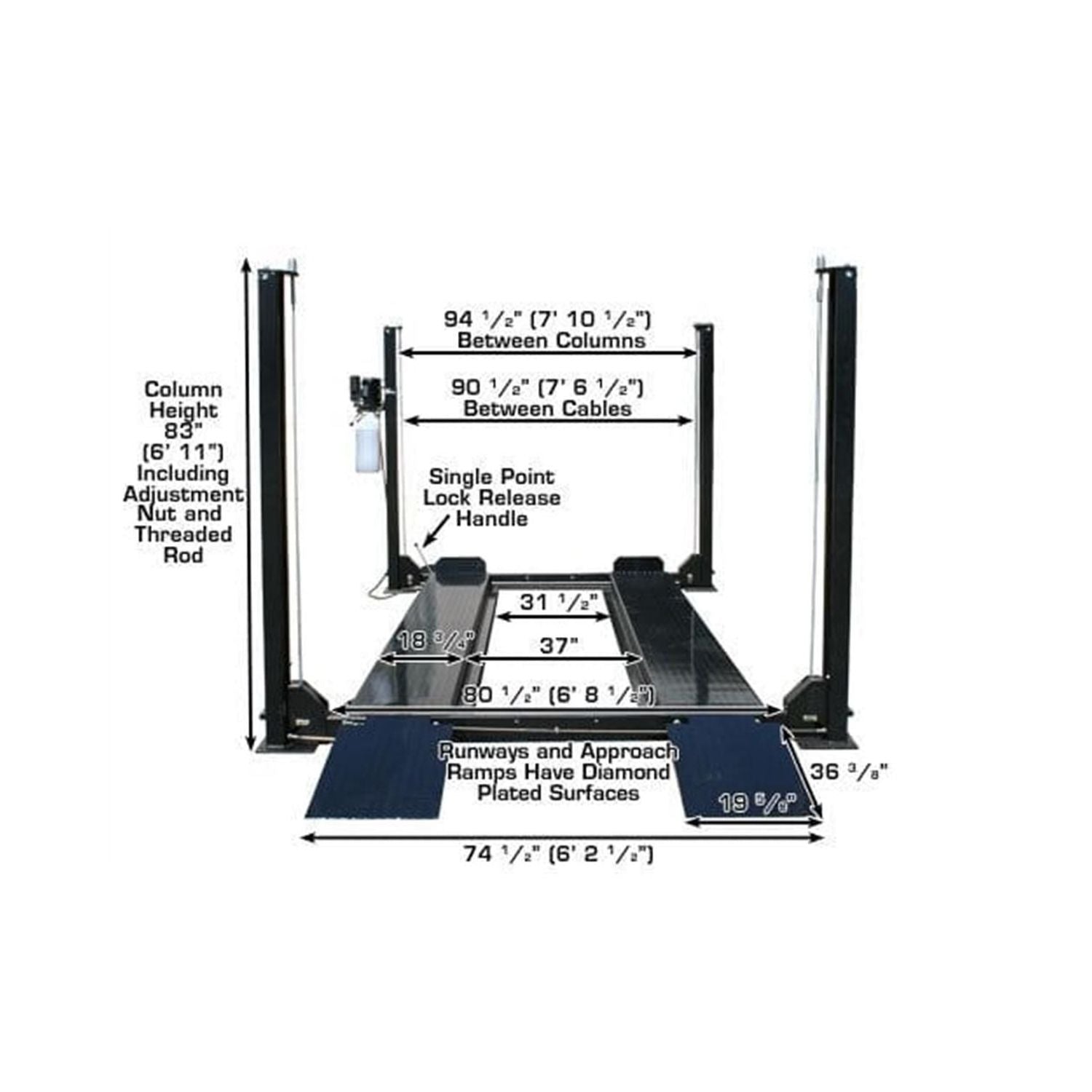

  Runway Width:	21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
  Runway Length:	165 3/4" (13' 9 3/4")
  Runway Thickness:	4 1/2"
  Width Between Runways:	37" (3' 1")
  Width Between Runway Rails:	31 1/2" (2' 7 1/2")
  Outside Runway To Outside Runway:	74 5/8" (6' 2 5/8")
  Clearance Between Columns:	94 1/2" (7' 10 1/2")
  Length Between Columns:	157 1/2" (13' 1 1/2")
  Maximum Wheel Base:	153 1/2" (12' 9 1/2")
  Drive Thru (Outside Of Tire To Outside Of Tire):	80 1/2" (6' 8 1/2")
  Motor/Electrical Requirement:	110 Volt, 30 AMP BREAKER REQUIRED

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
