Atlas 8,000 lb Hobbyist 4-Post Lift #ATEATTD-408SL-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

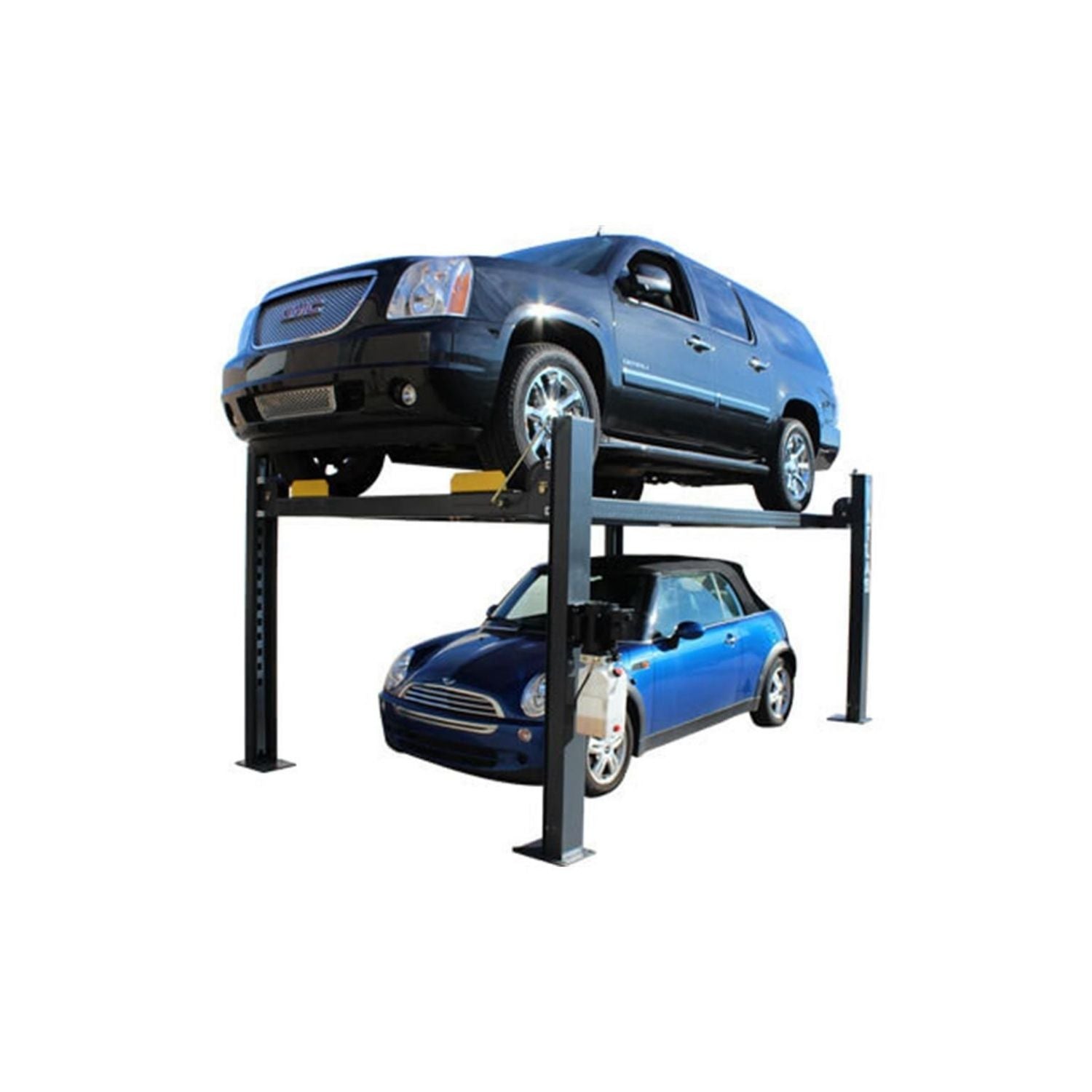

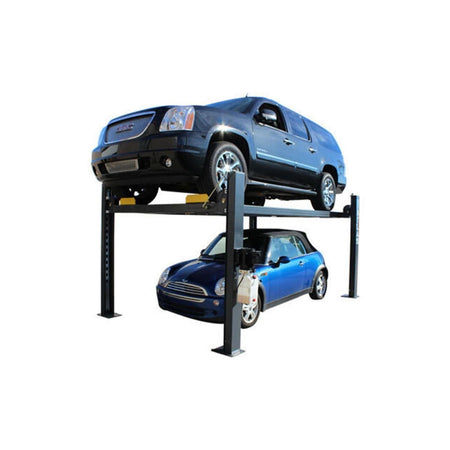

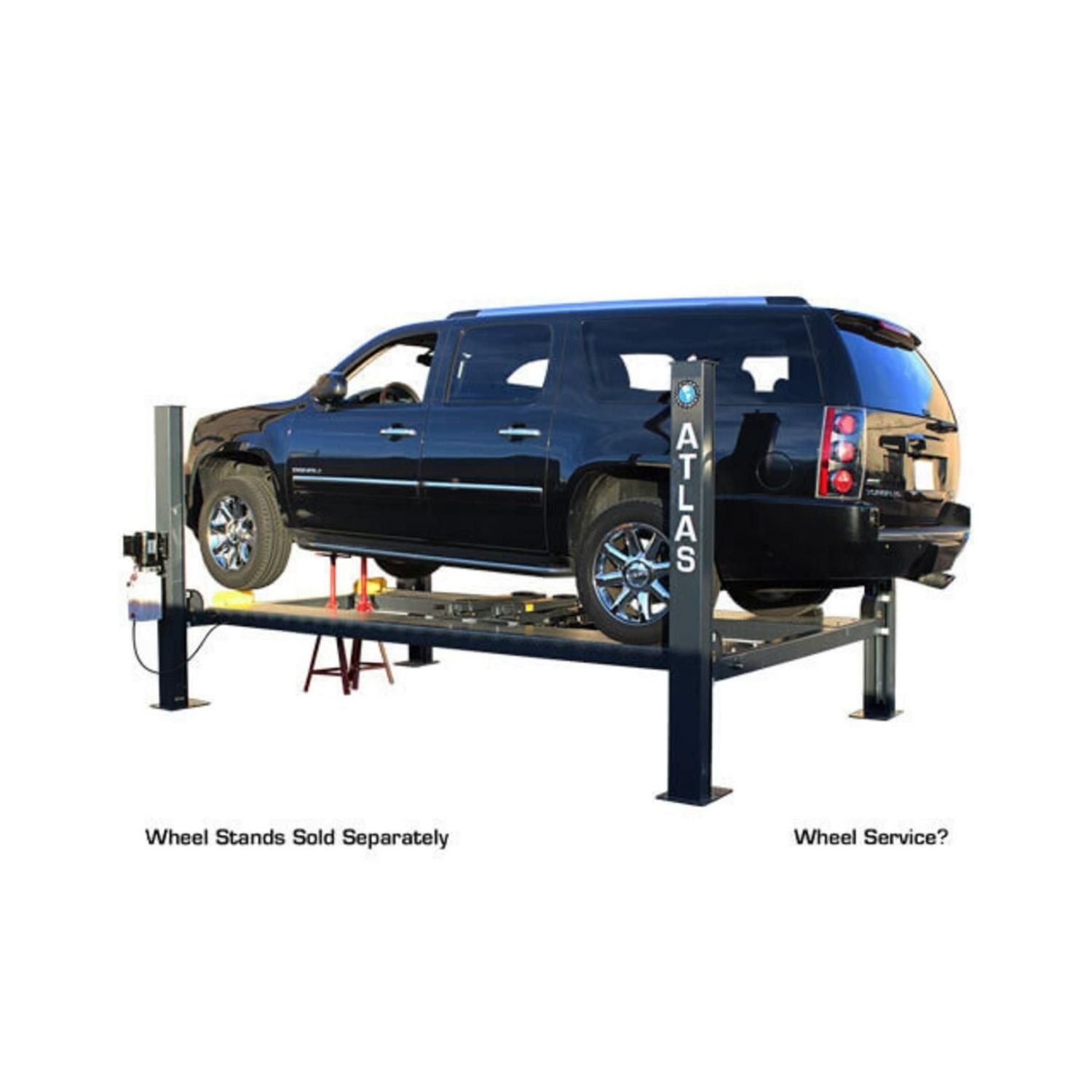

  The Atlas 8,000 lb Hobbyist 4-Post Lift is designed for light-duty lifting applications, making it ideal for home garages and hobbyist use.

  With an 8,000 lb capacity, this lift is suitable for cars, light trucks, and SUVs. Its 4-post design provides excellent stability and ease of use, making it perfect for vehicle storage and basic service tasks.

• FEATURES AND BENEFITS

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • Diamond Plated Runways
  • Single point lock release

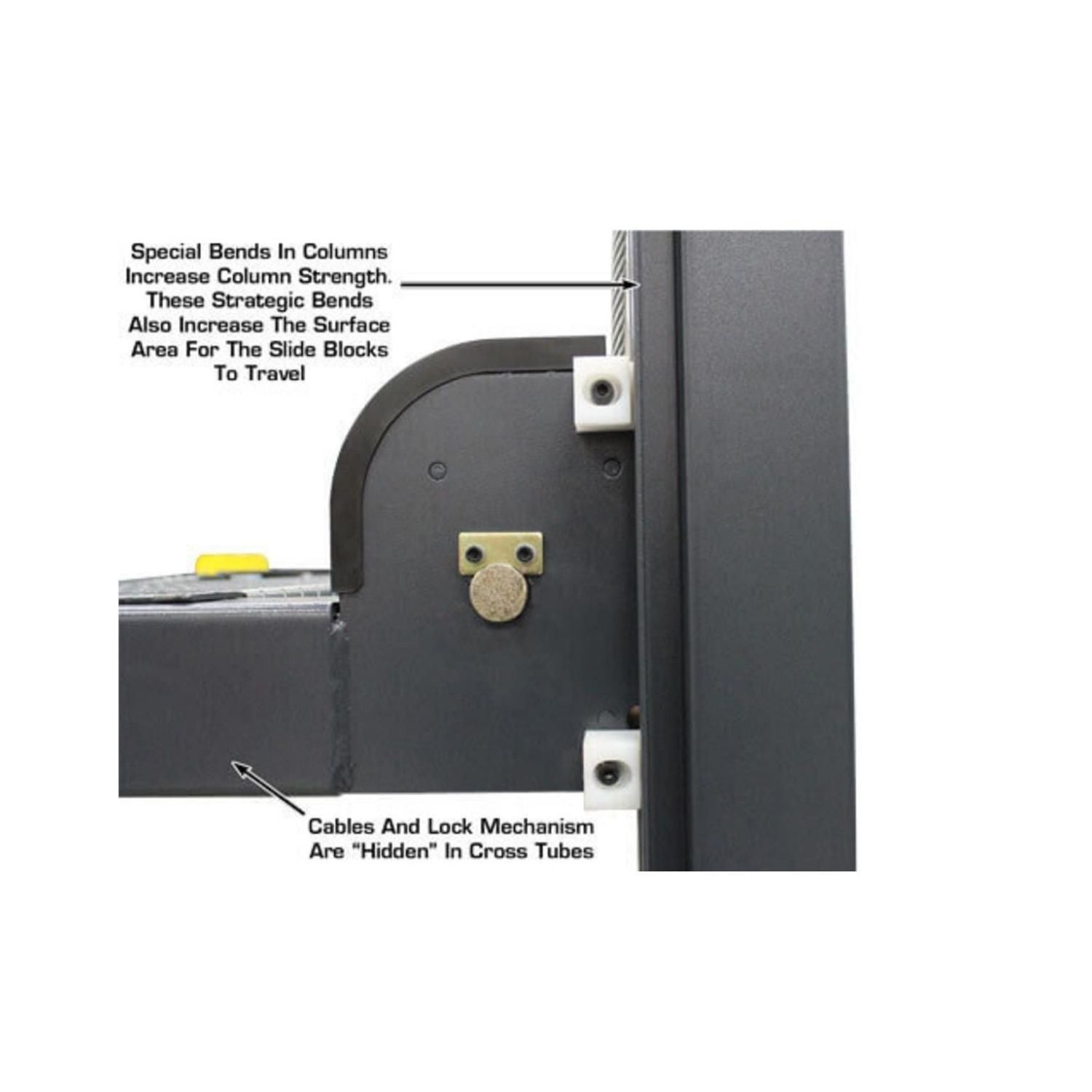

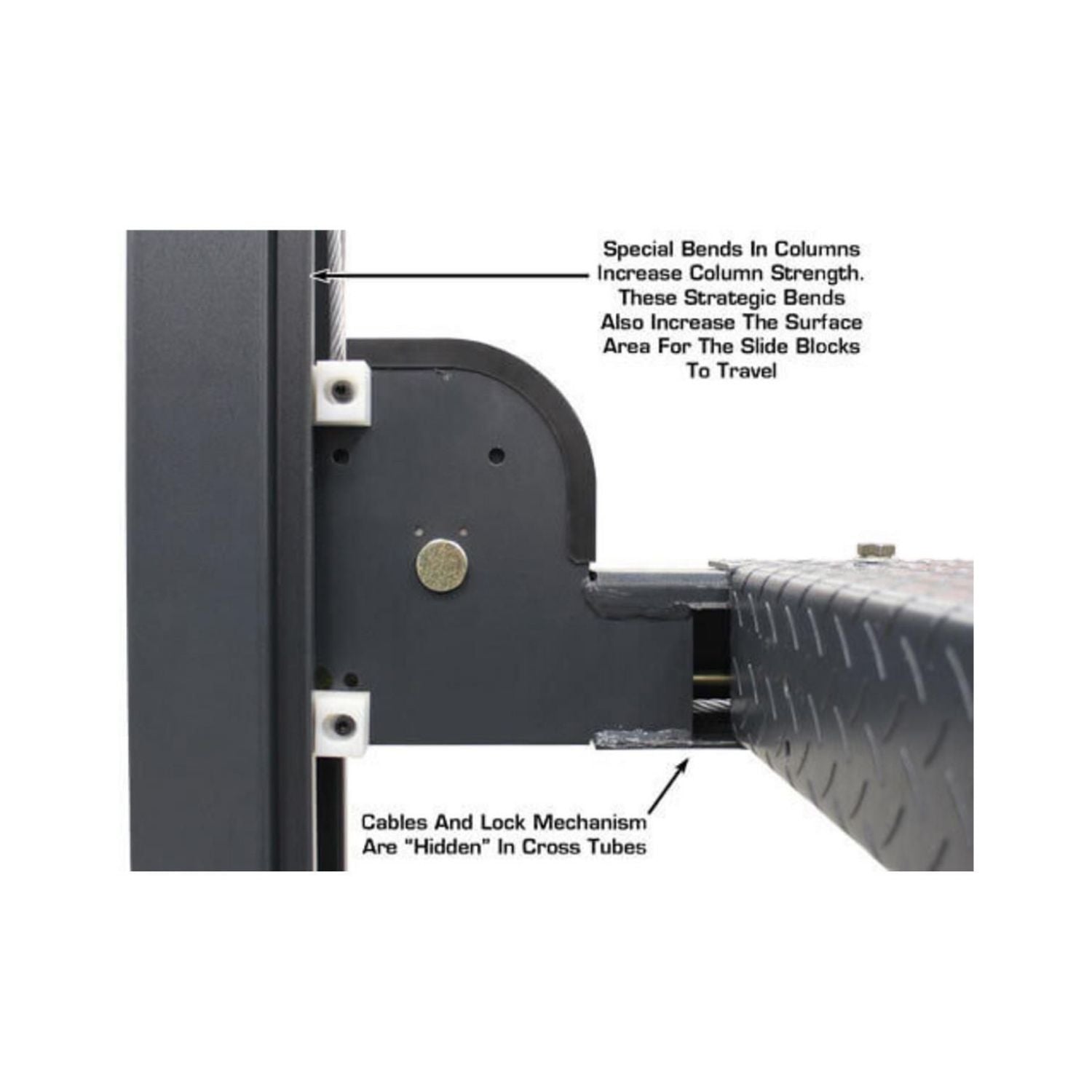

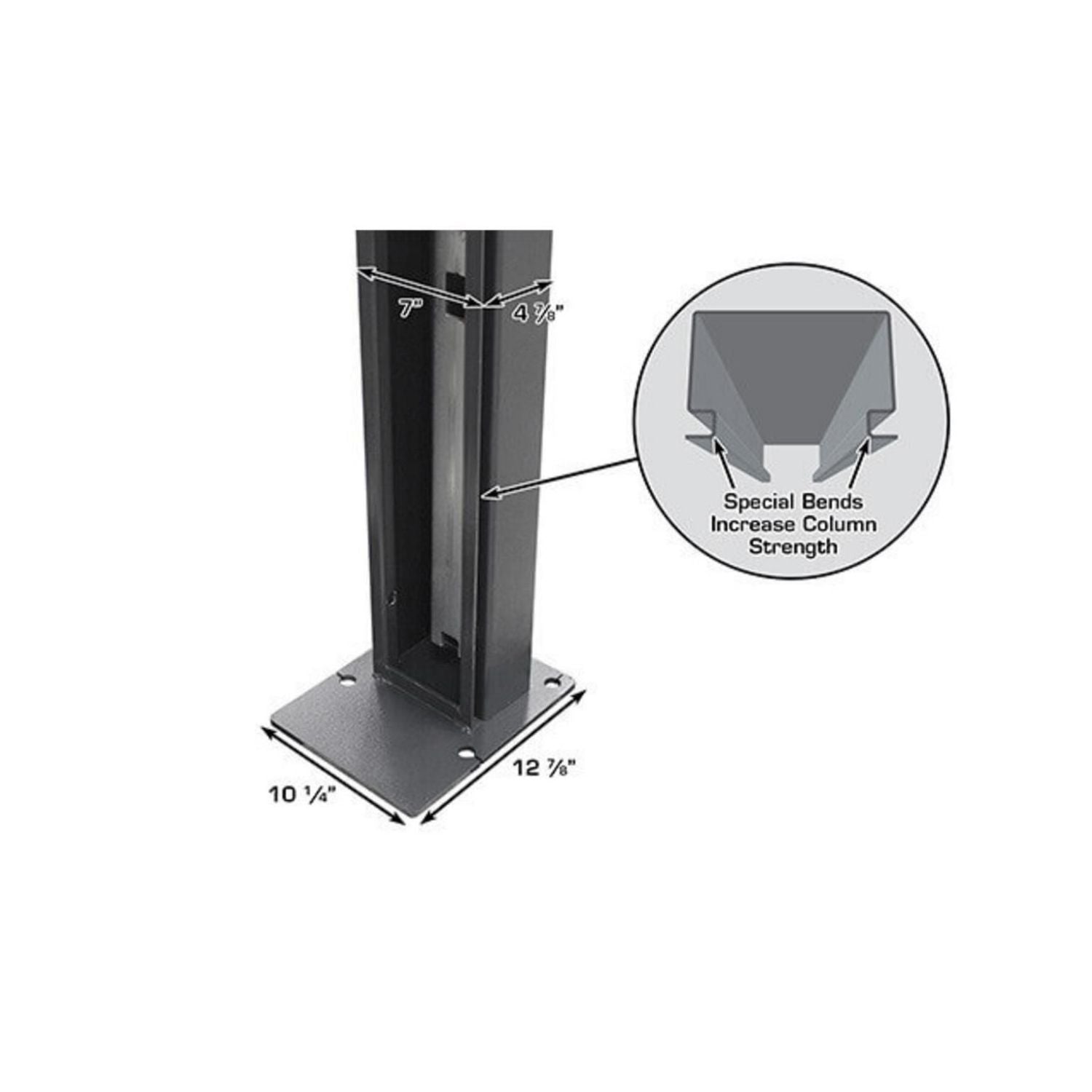

  • Columns incorporate two special bends to increase column strength.
  • Larger Column Size

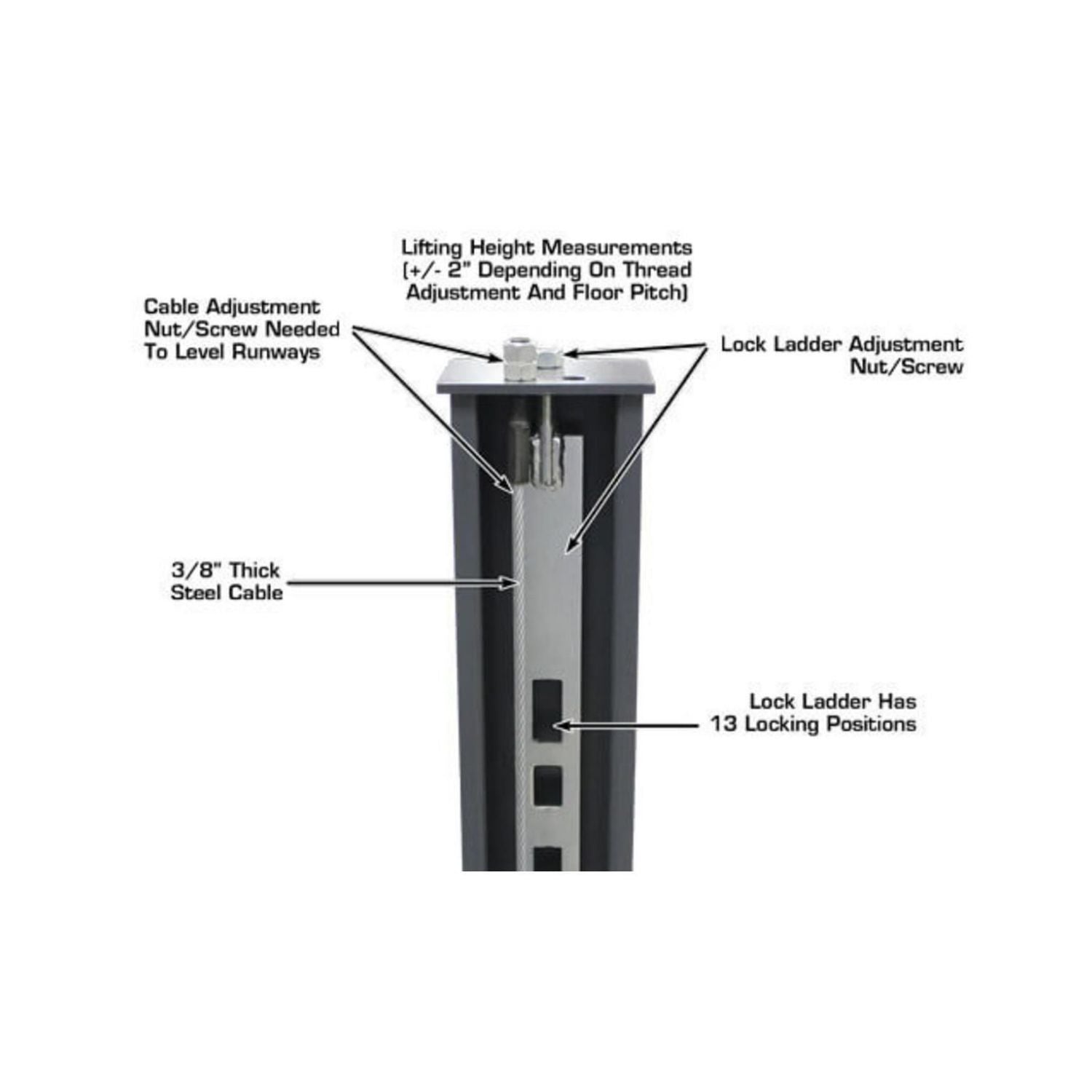

  • Double Lock Safety System
  • Higher quality powder coating (steel gray color)

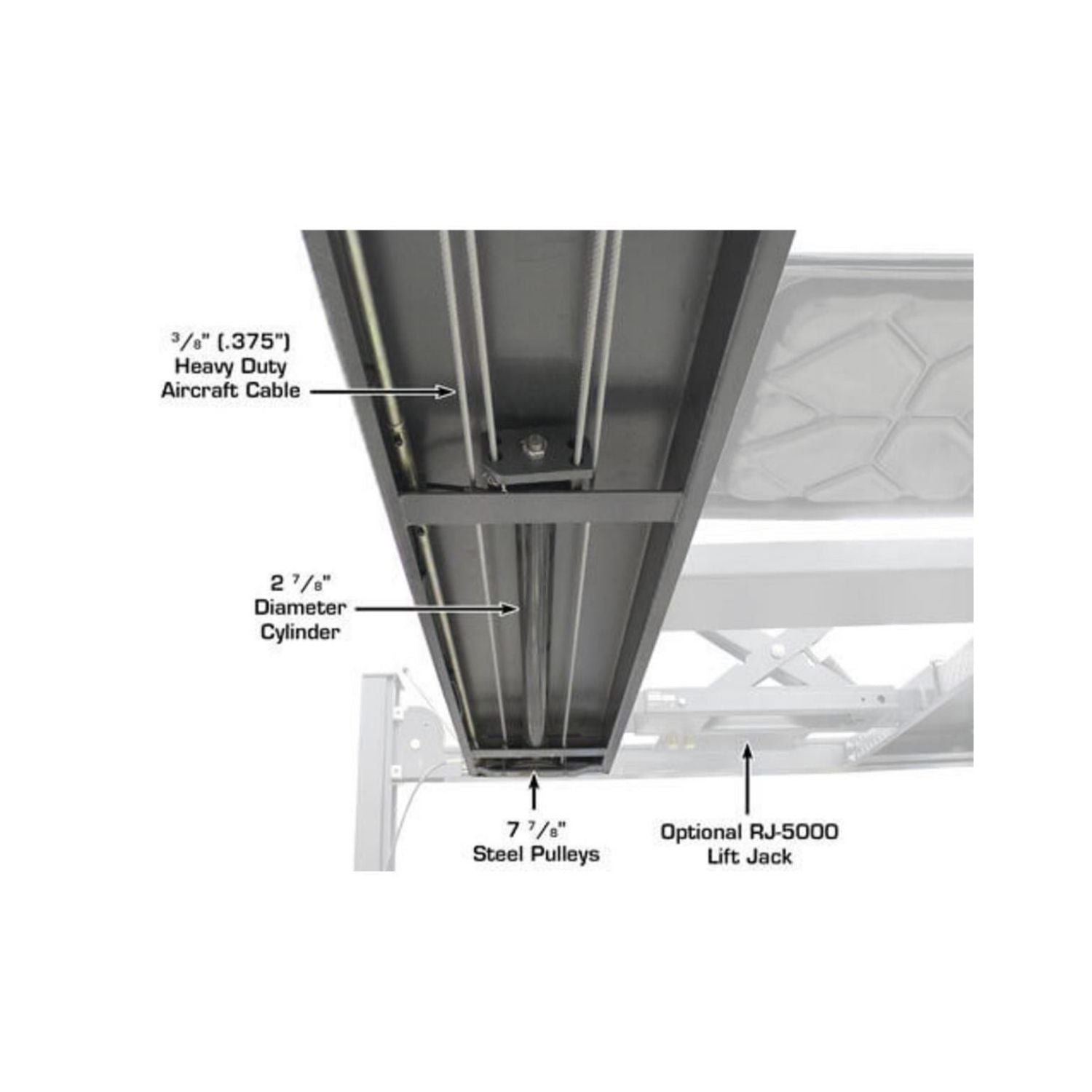

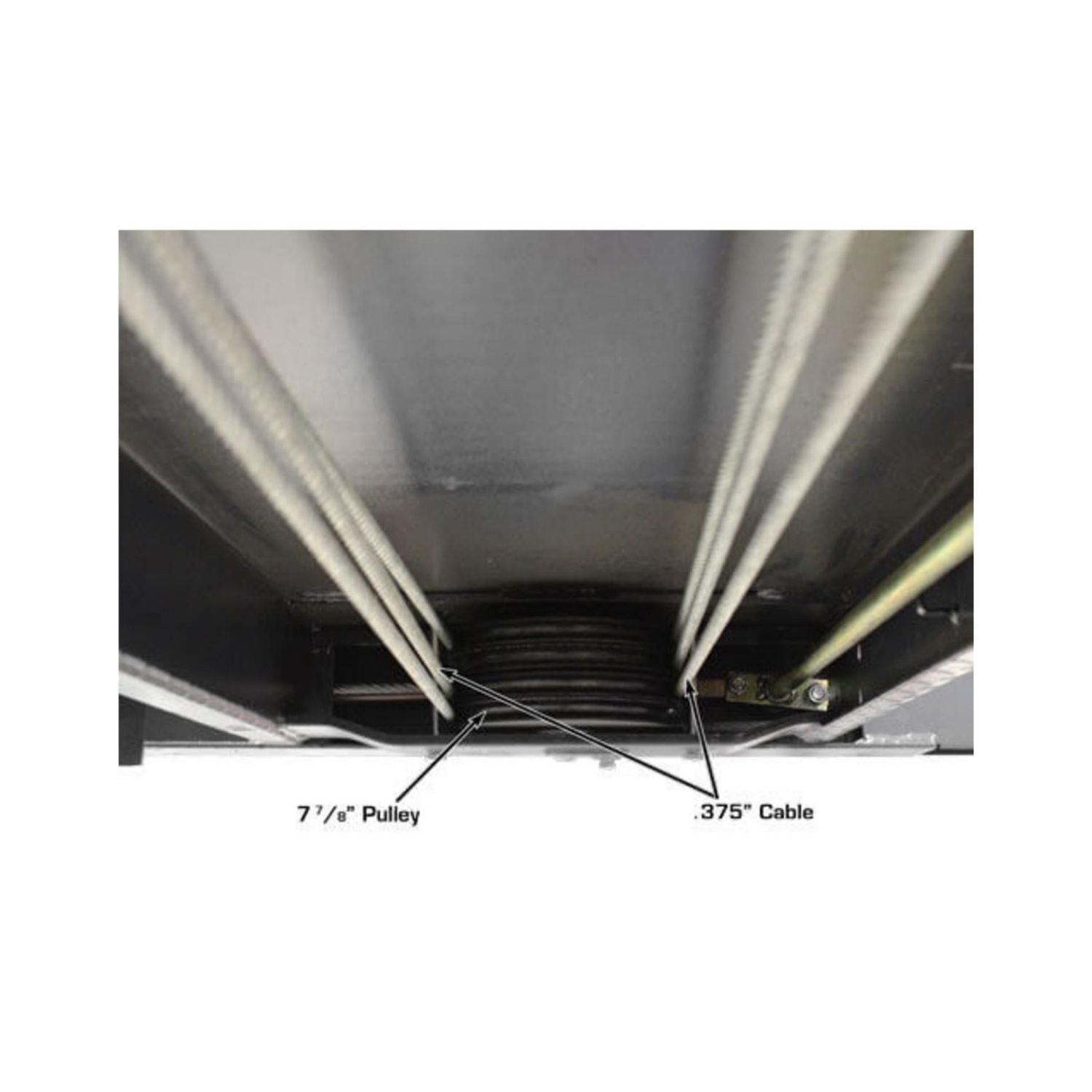

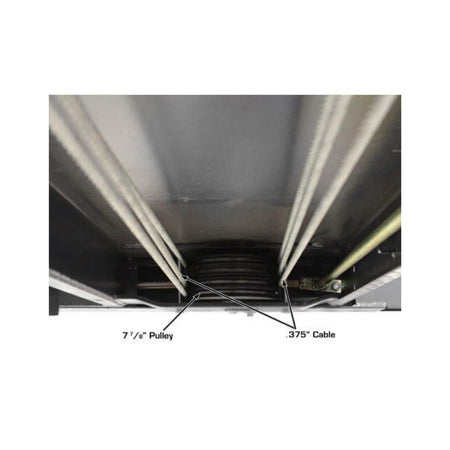

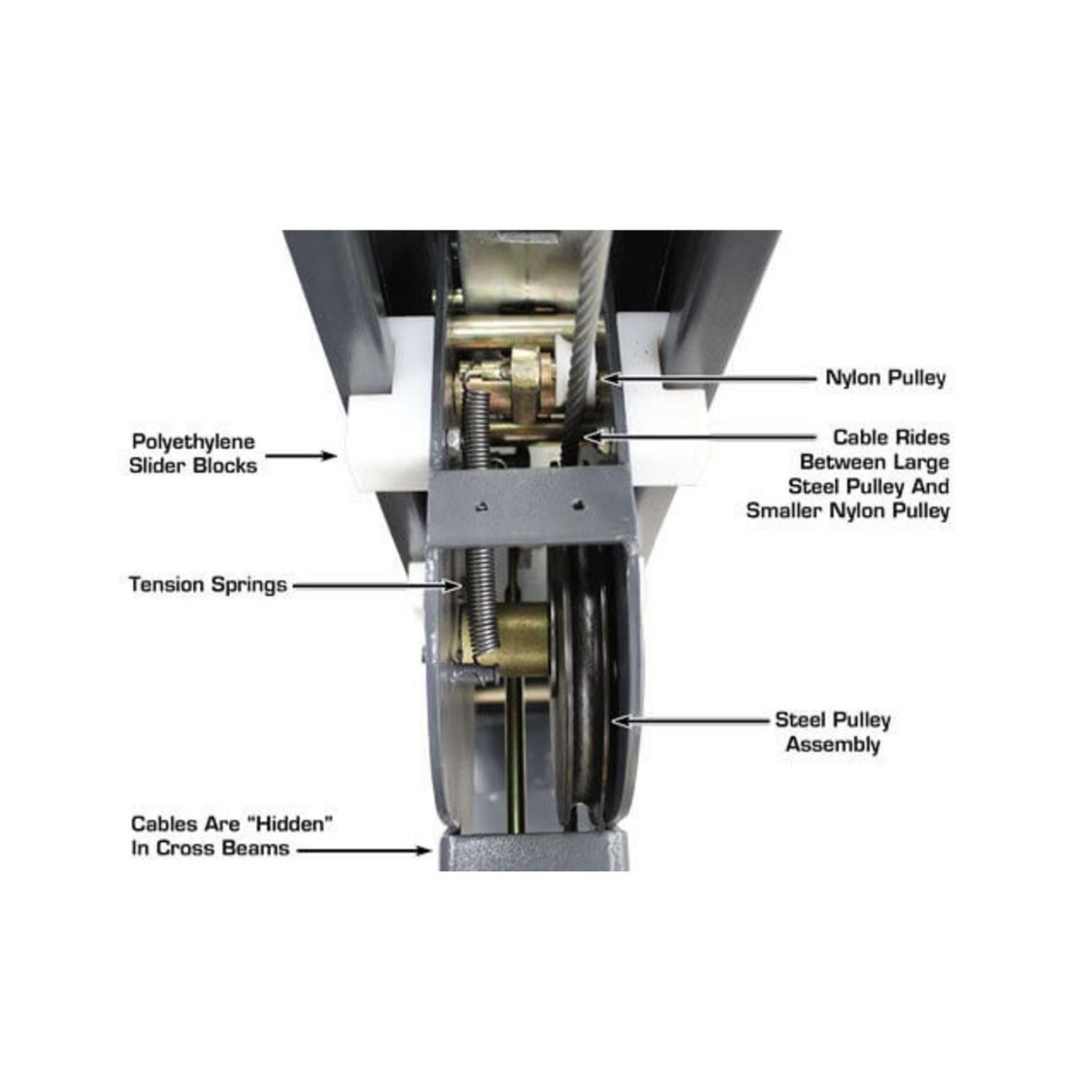

  • Cables hidden in Columns & Cross Tubes
  • Commercial Grade Wear Blocks

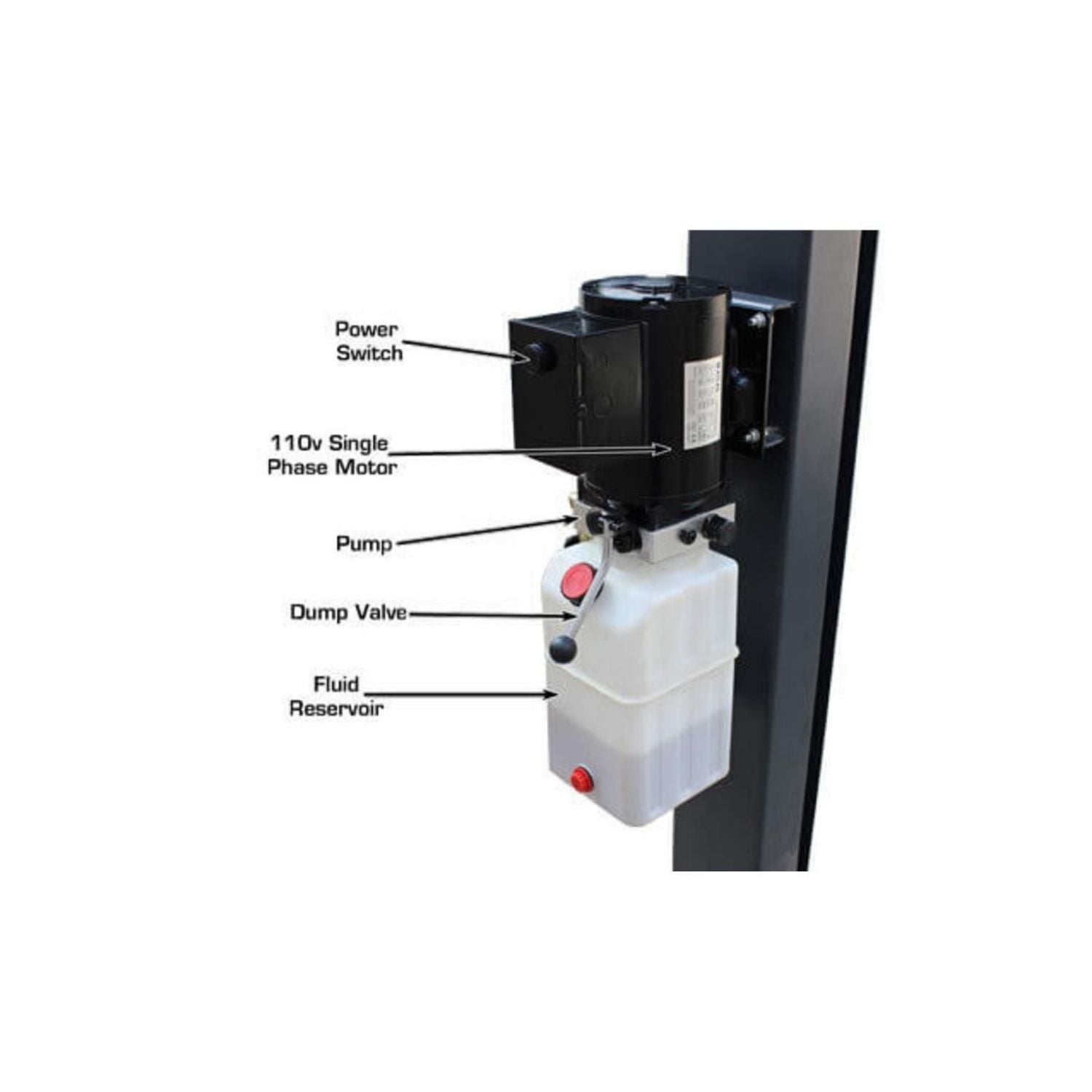

  • Power Unit can be positioned at any corner
  • Wider Access Between Runways

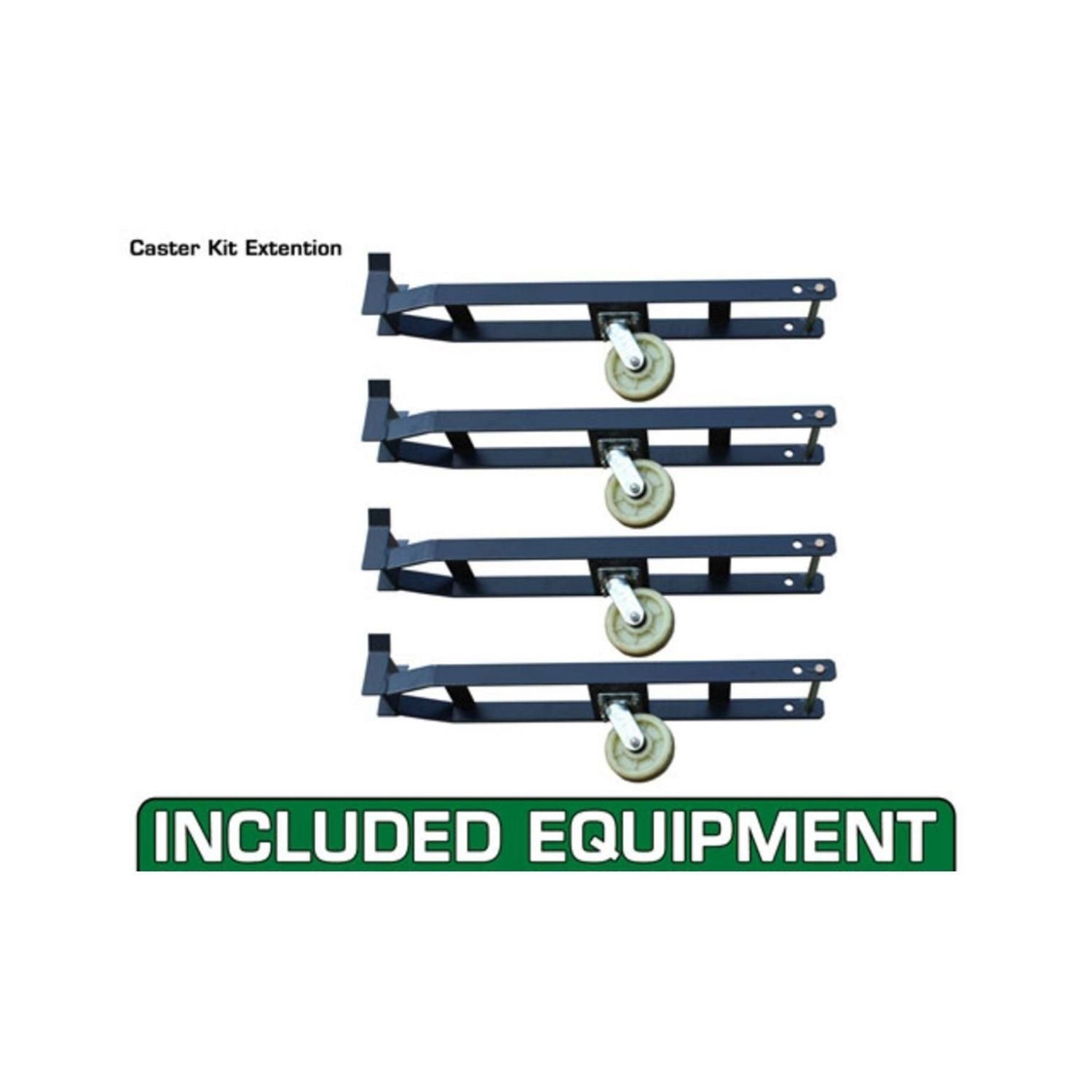

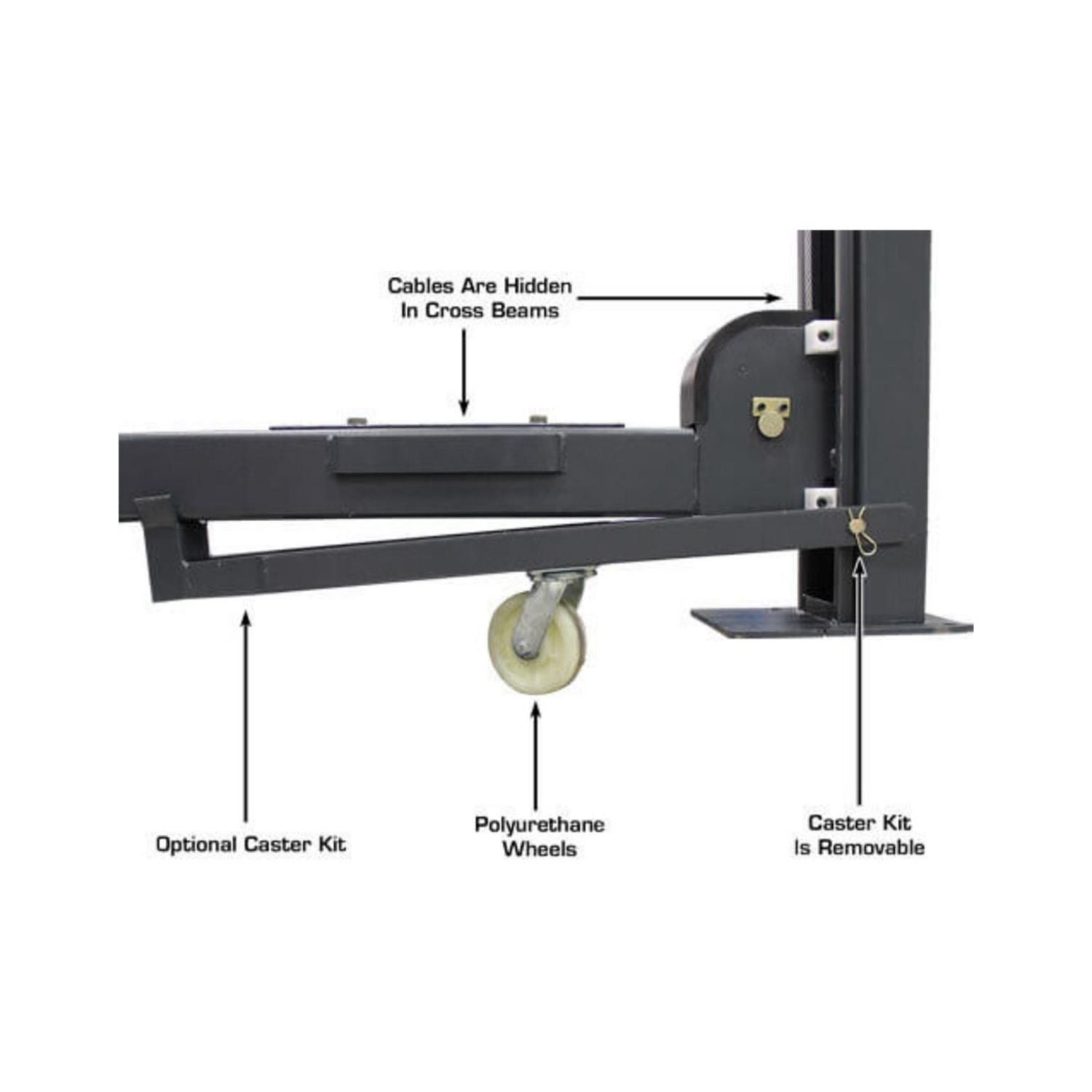

  • Caster Kit With Polyurethane Wheels Included

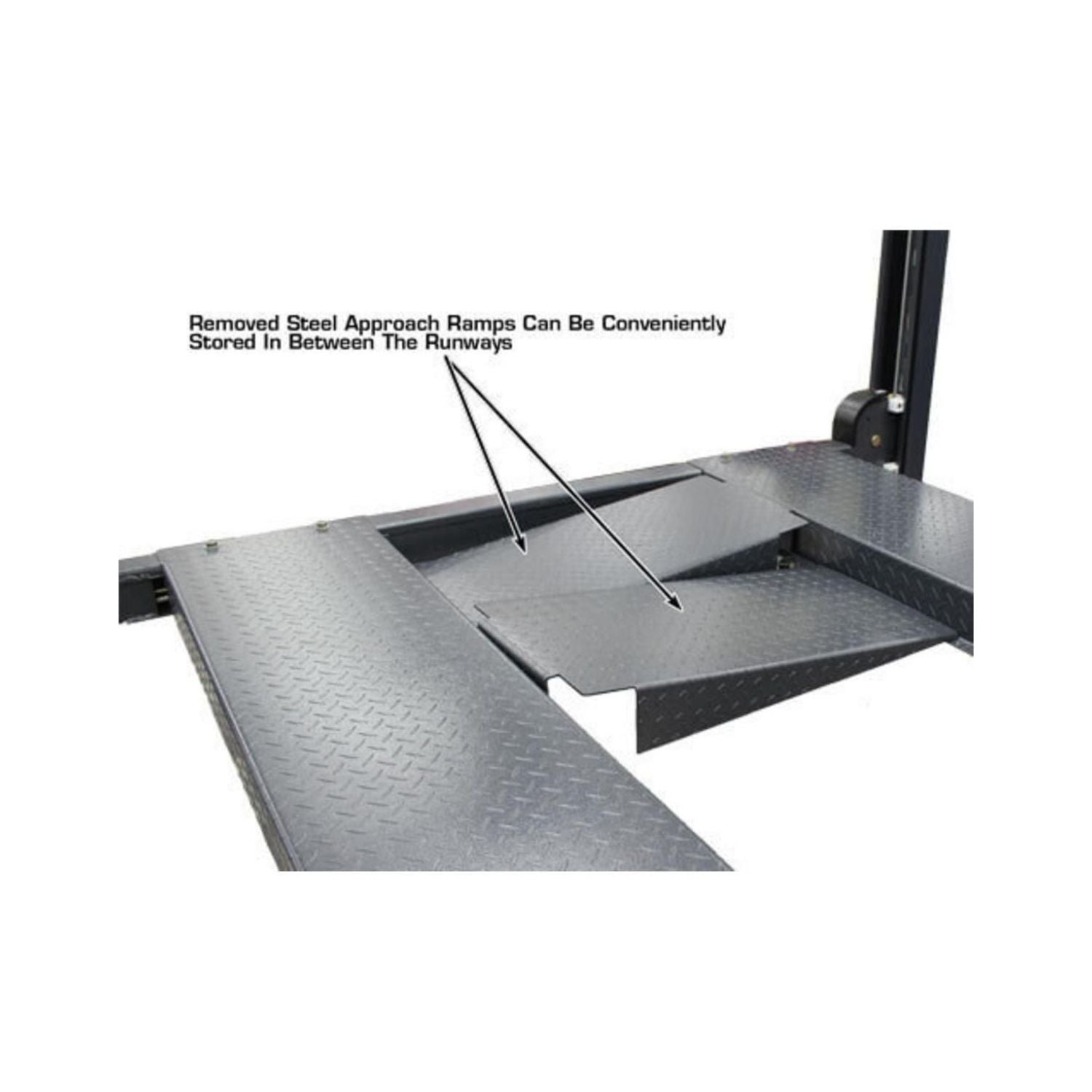

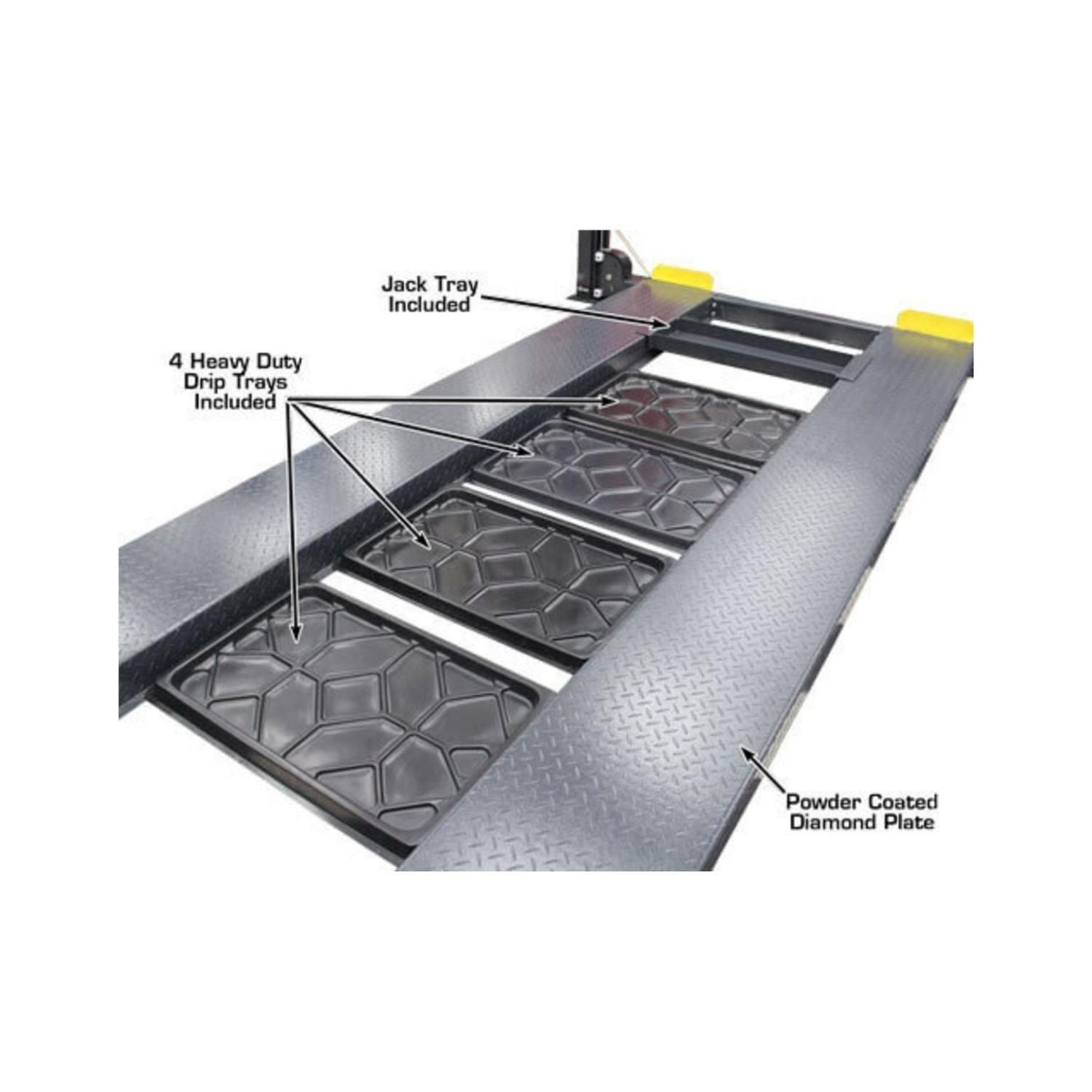

  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • Four Plastic Drip Trays Included

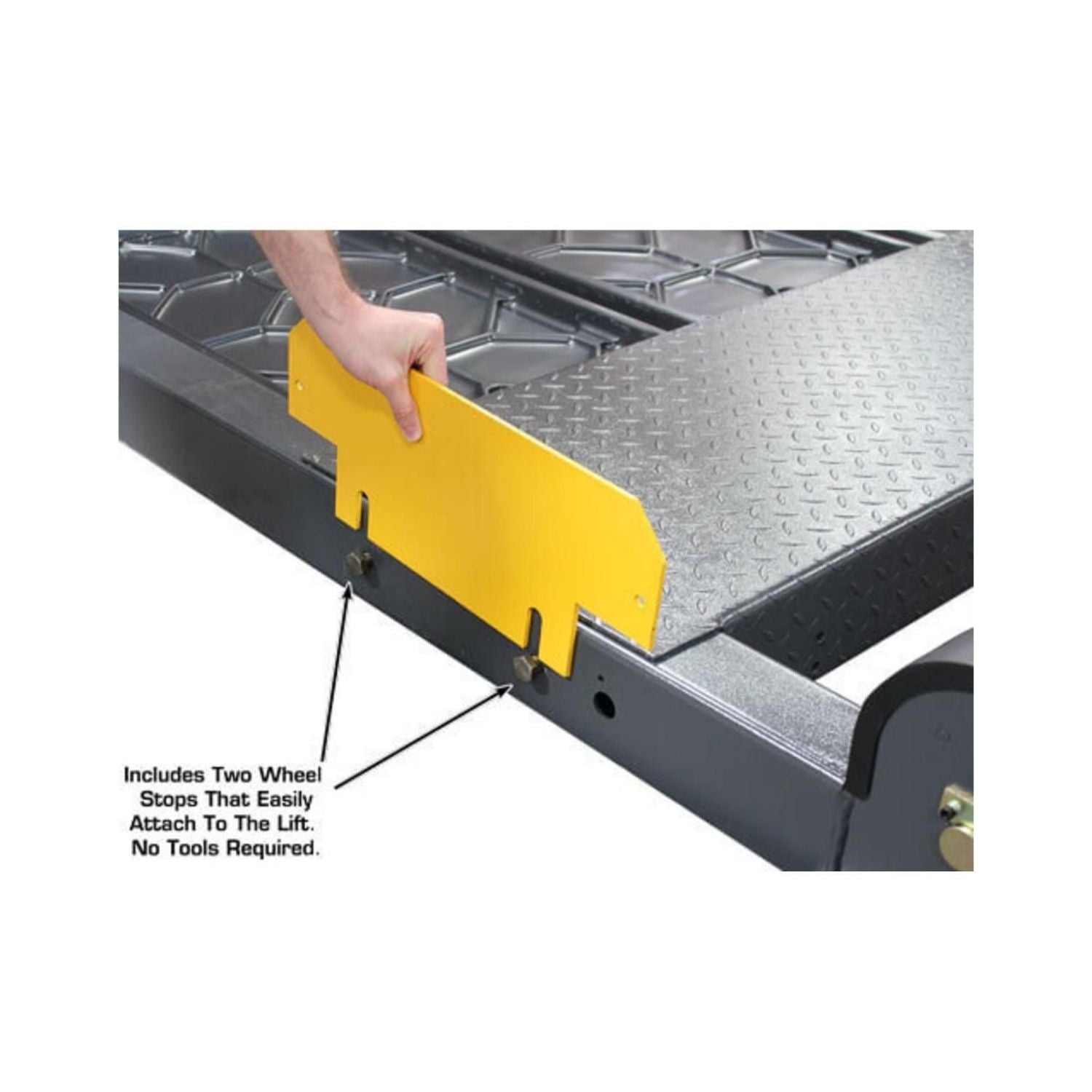

  • Wheel Stops Included
  • Anchor Bolts Optional (Sold Separately)
  • 110volt Electric Operation ‐ PLUG NOT INCLUDED (Requires 30amp Breaker)

  • 2 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Atlas® 408SL Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-408SL-FPD
  Dimensions:	173" L × 33" W × 21" H
  UPC:	810524027397
  Country of Origin:	CHN
  Capacity:	8,000 lb.

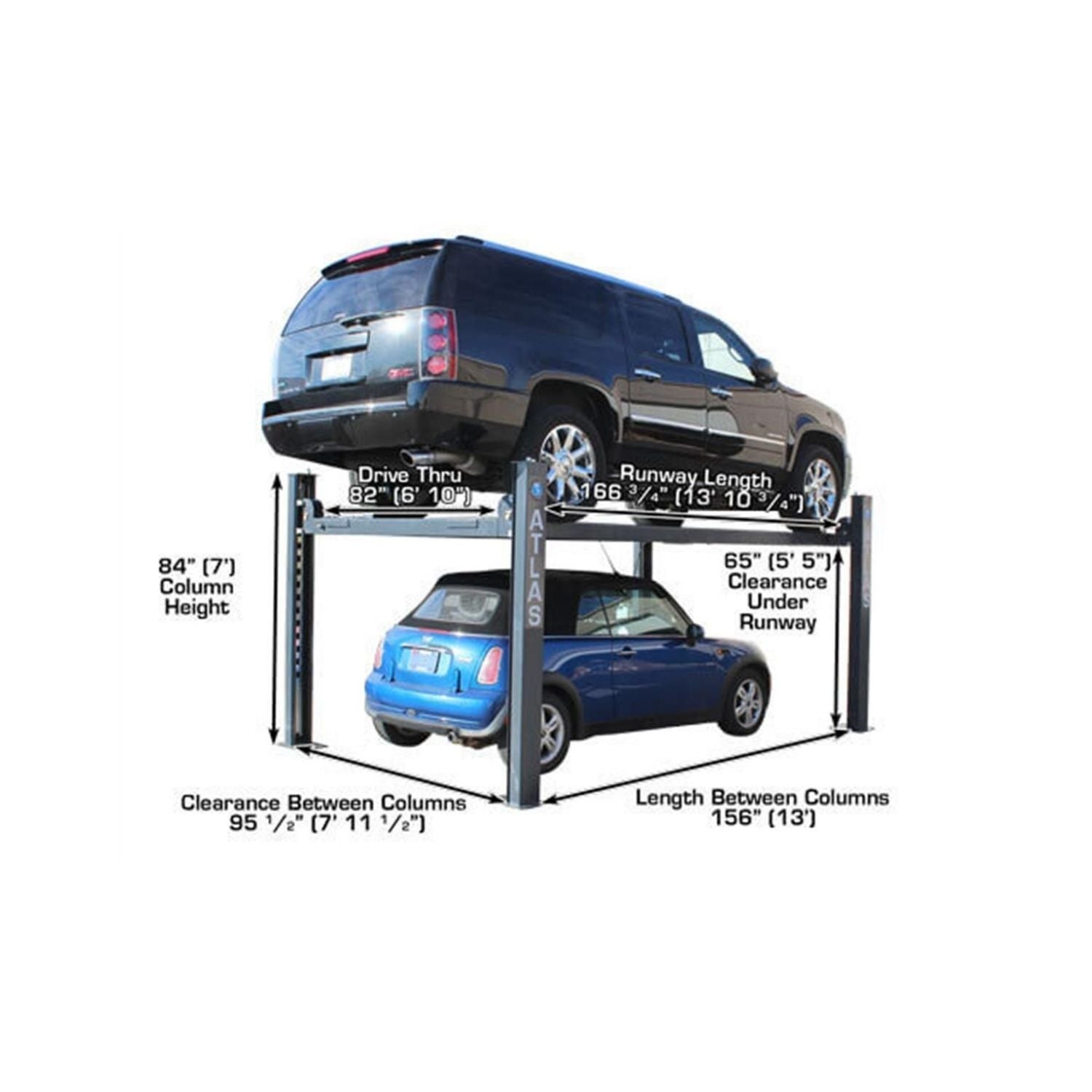

  Lifting Height To Top Of Runway:	73 1/4" (6' 1 1/4") (Not on Lock)
  Clearance Under Runways:	68 1/2" (5' 8 1/2")
  Height Of Columns:	83" (7' 11")
  Overall Width (Without Motor):	109 5/8" (9' 1 5/8")
  Overall Width (With Motor):	117 1/2" (9' 9 1/2")
  Overall Length With Approach Ramp:	205 3/8" (17' 1 3/8")
  Approach Ramp:	35" (2' 11")
  Runway Width:	21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)

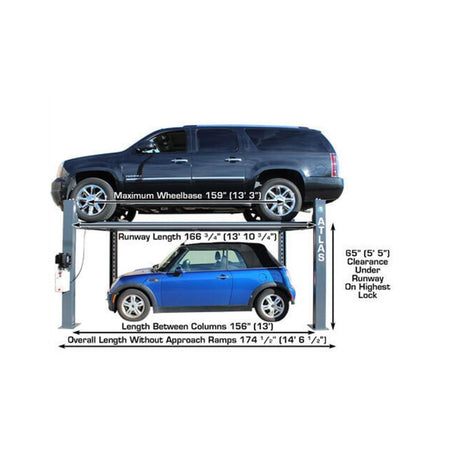

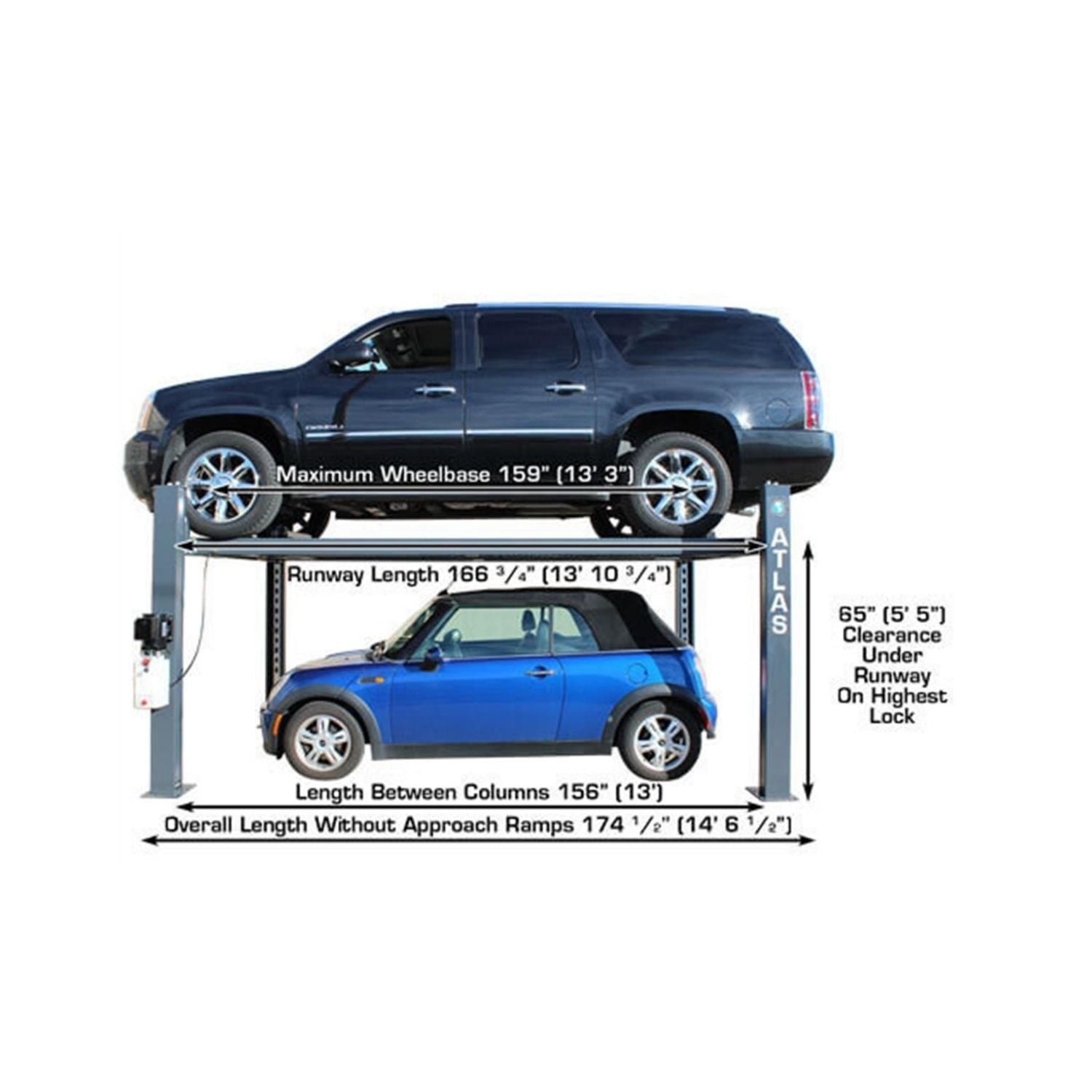

  Runway Length:	166 3/4" (13' 10 3/4")
  Runway Thickness:	4 3/4"

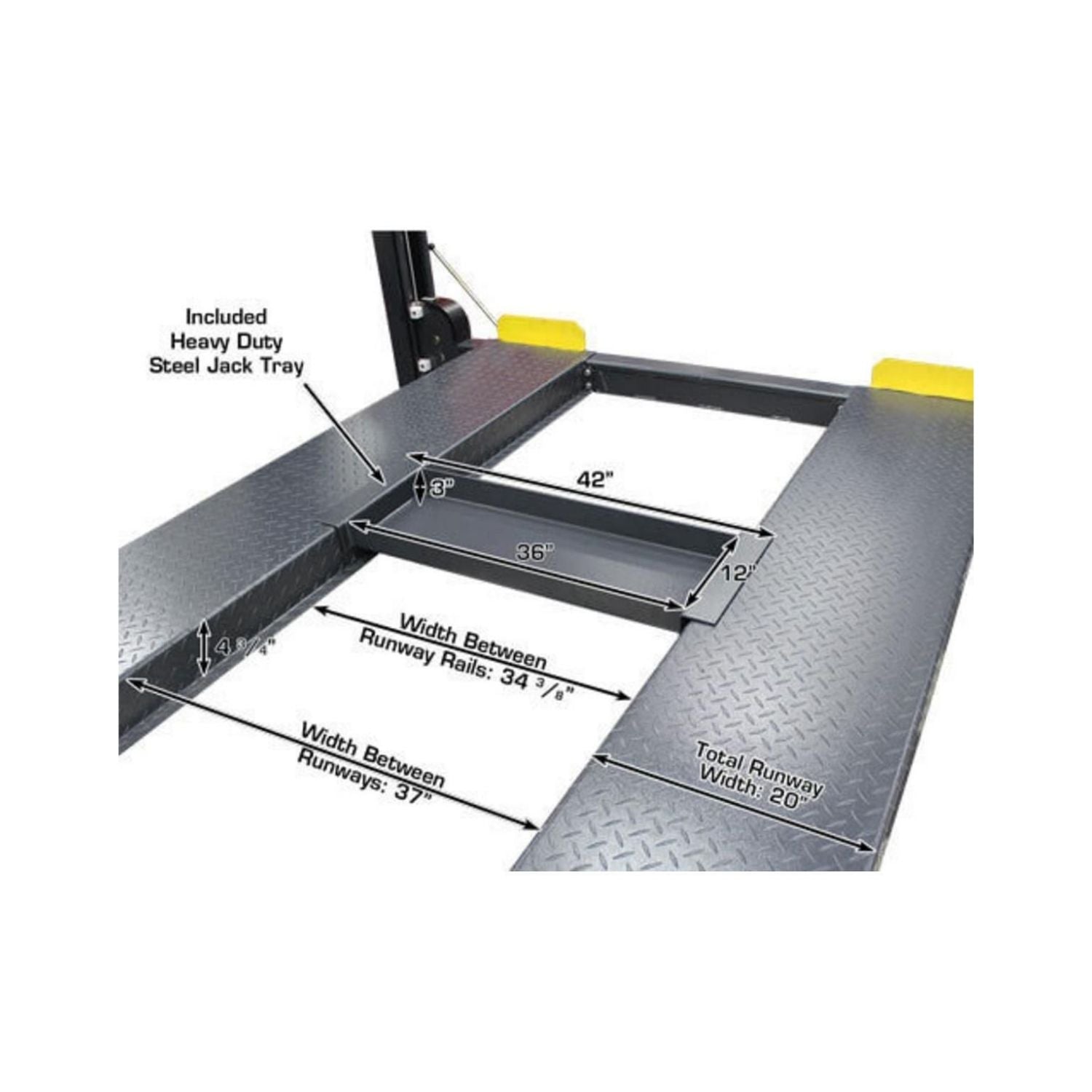

  Width Between Runways:	37 1/4" (3' 1 1/4")
  Width Between Runway Rails:	34 3/8" (2' 10 3/8")
  Outside Runway To Outside Runway:	74 3/4" (6' 2 3/4")

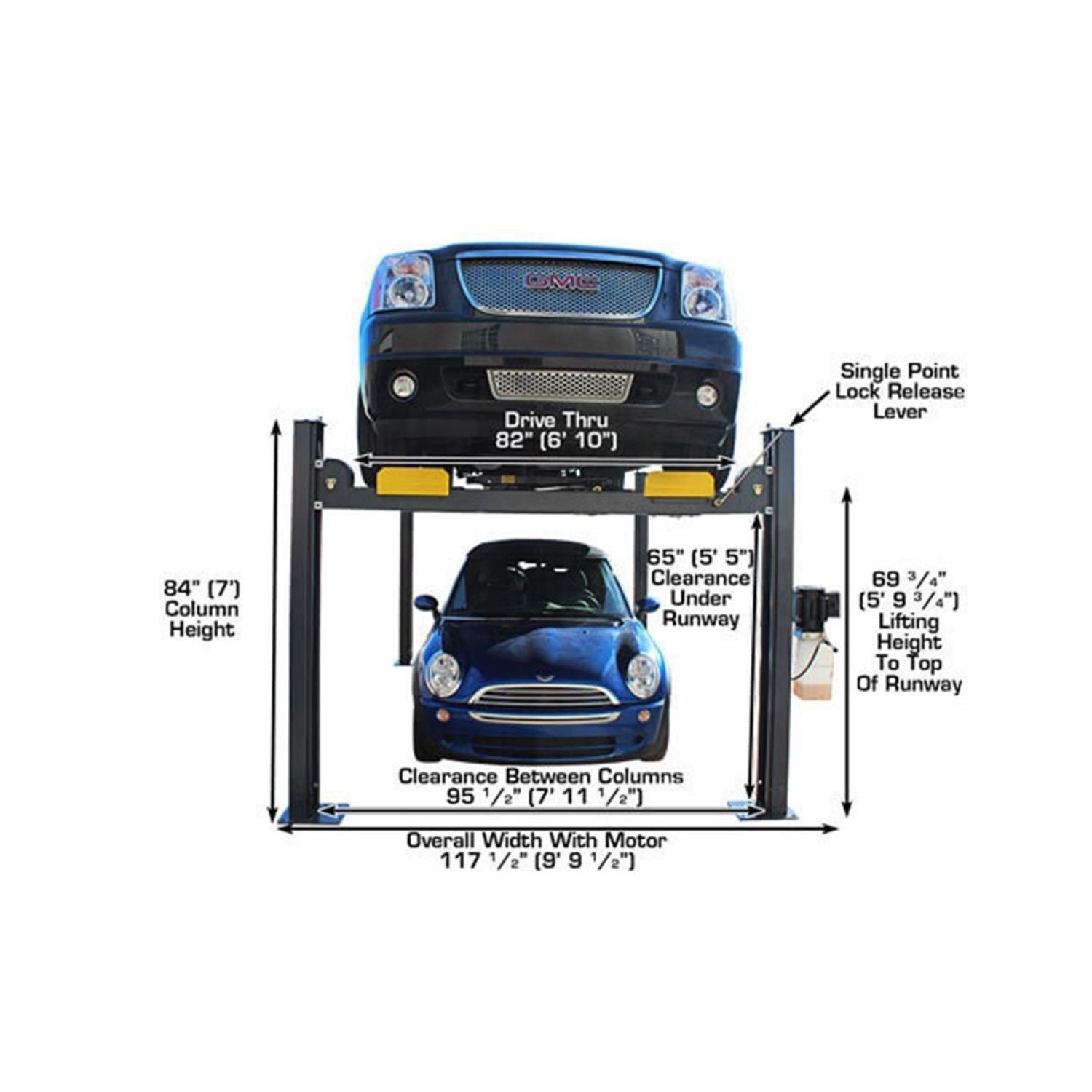

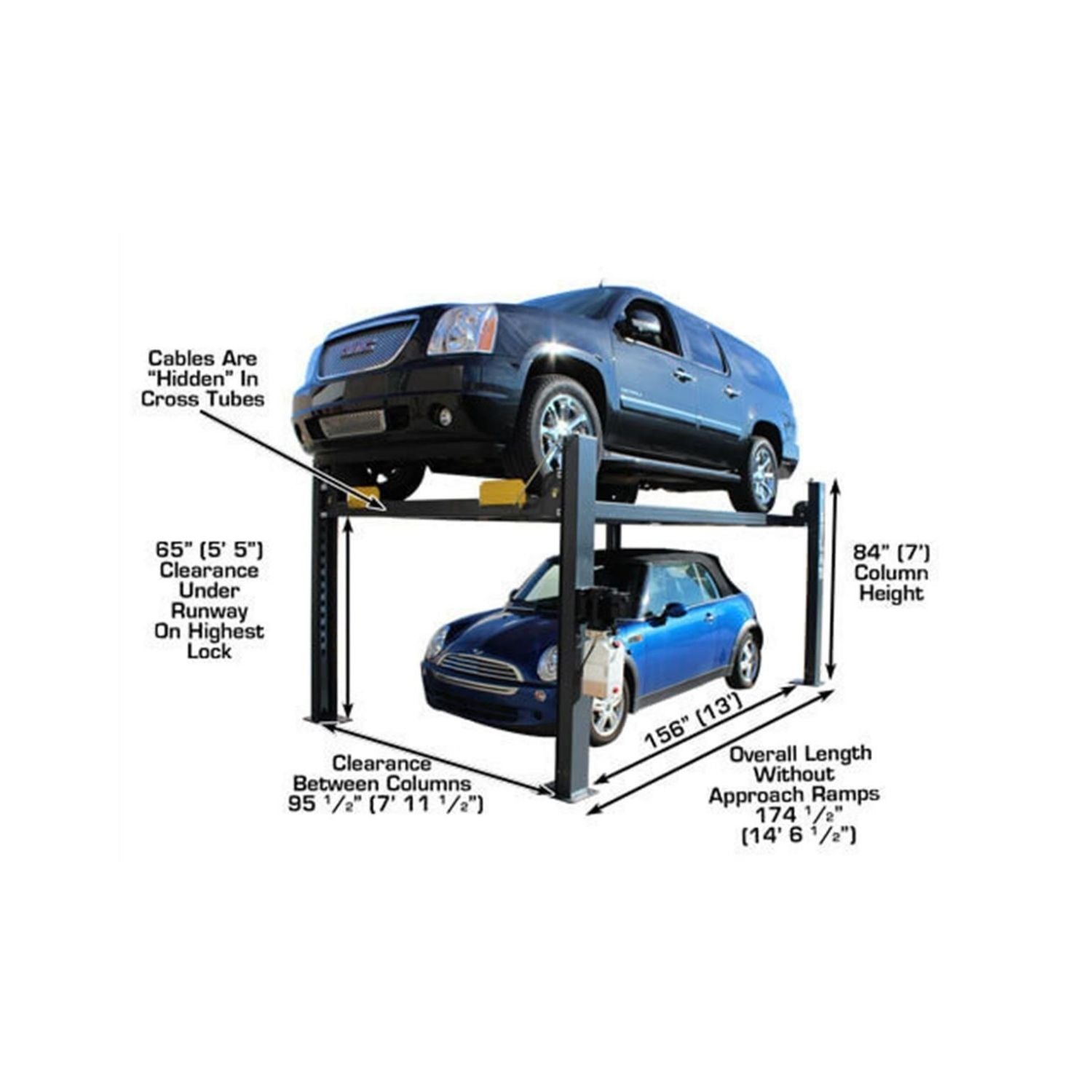

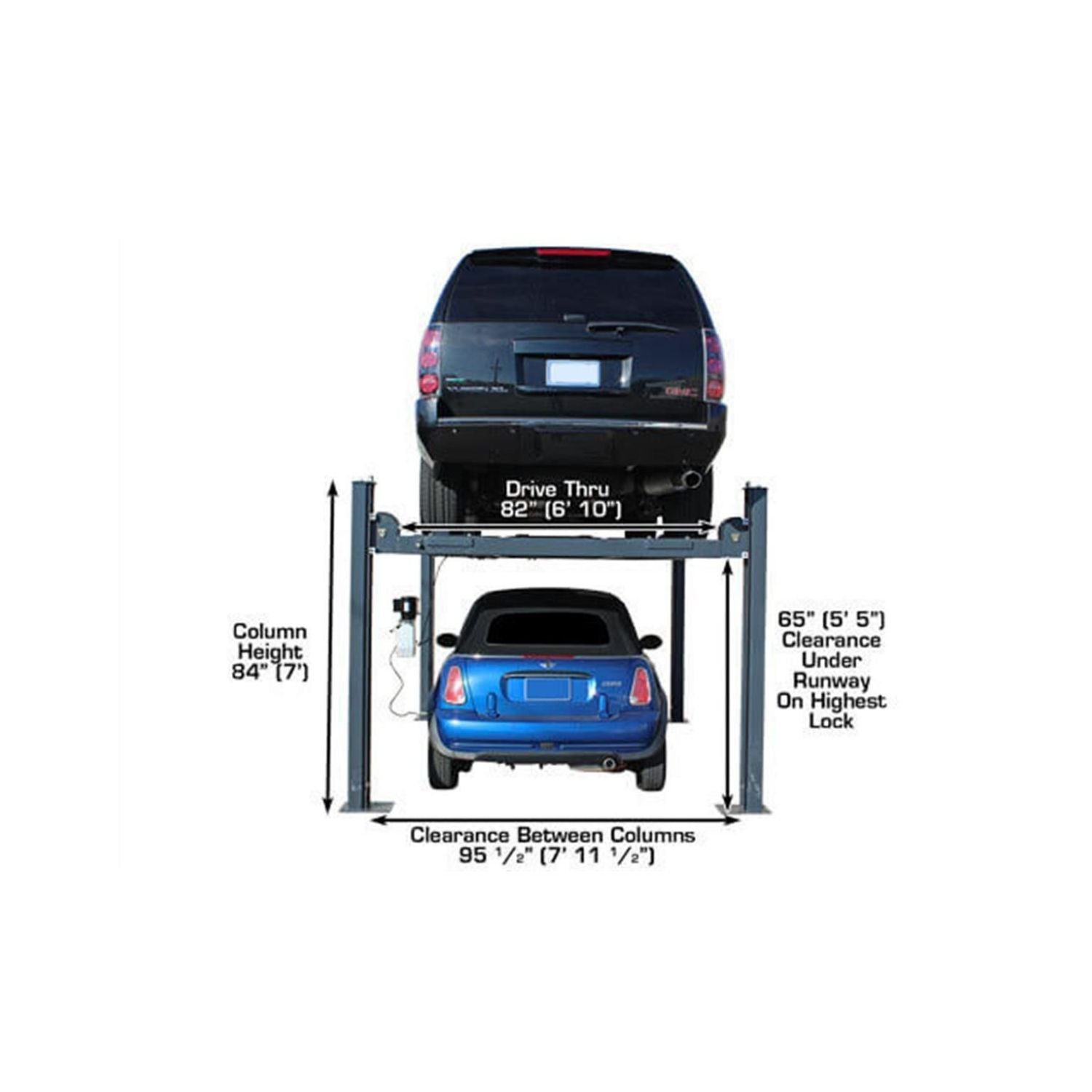

  Clearance Between Columns:	95 1/2" (7' 11 1/2")
  Length Between Columns:	156" (13')
  Maximum Wheel Base:	154" (12' 10")
  Drive Thru (Outside Of Tire To Outside Of Tire):	82" (6' 10")
  Motor/Electrical Requirement:	110 Volt, 30 AMP BREAKER REQUIRED

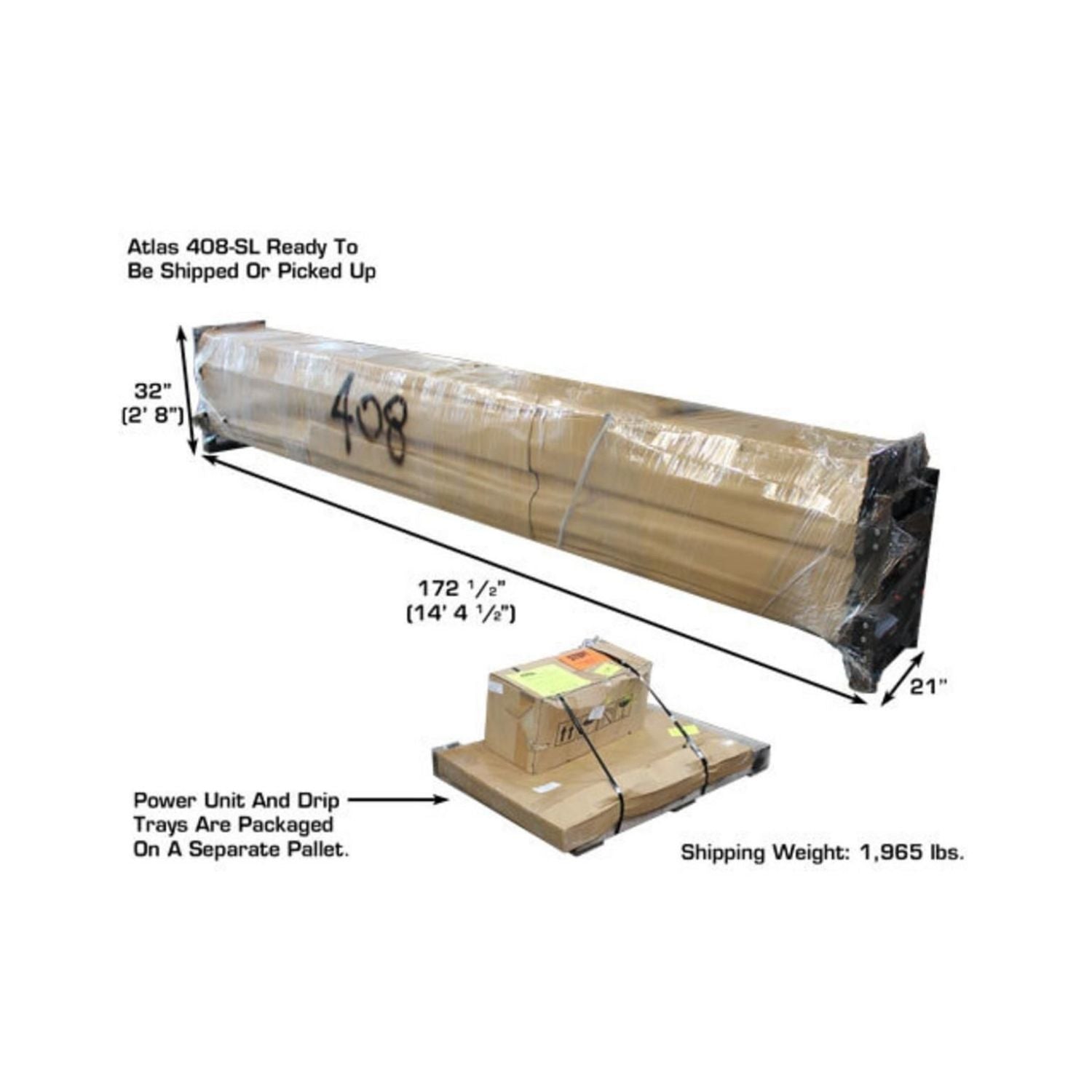

  Shipping Weight:	1,965 lbs

• DOCUMENTS

  • Atlas 408SL Manual
  • Atlas 408SL Cylinder Bleeding Procedure (Do this immediately after installation)

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
