Atlas® Platinum PTC300 & PWB50 Combo Package #ATEAP-TCWB-COMBO1-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

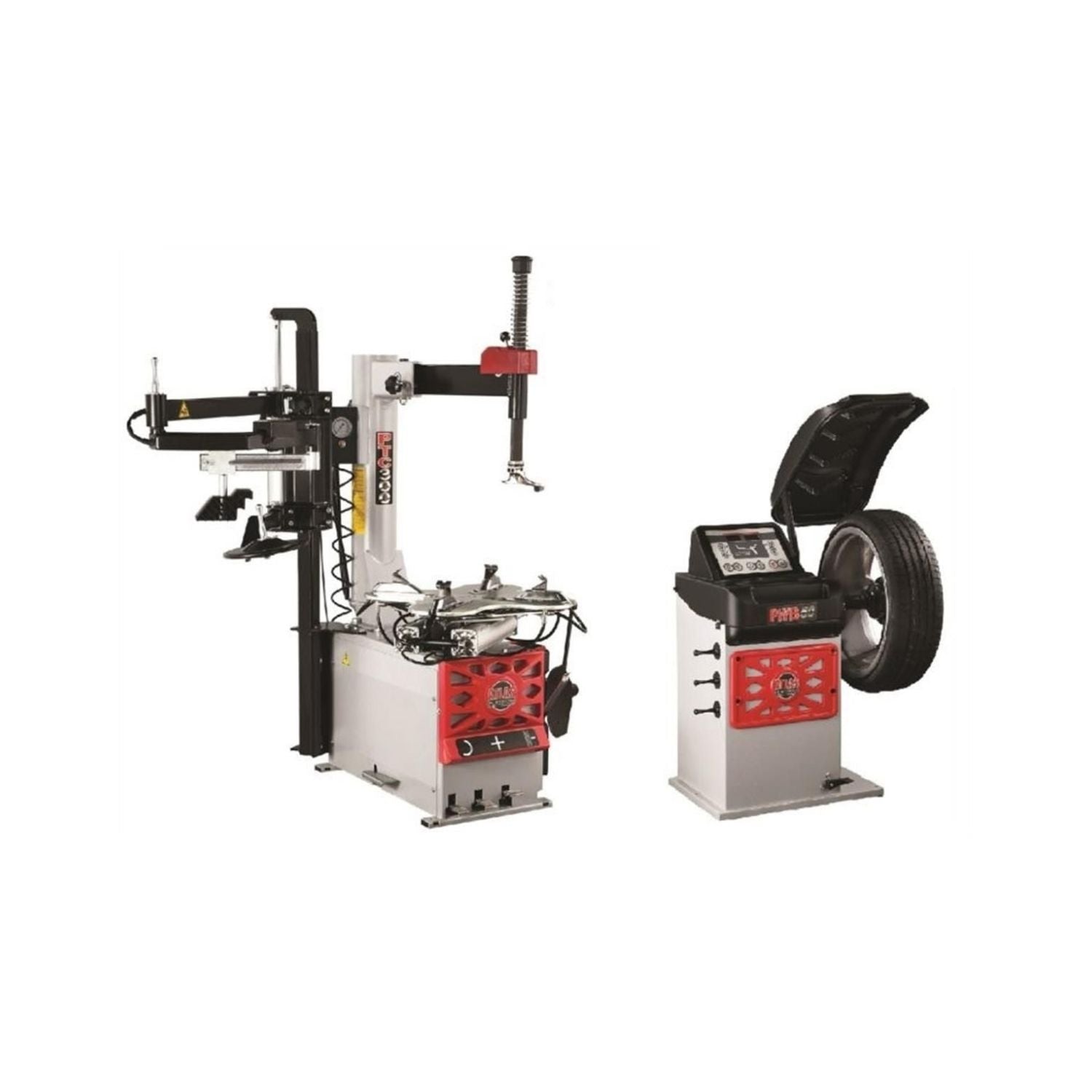

  The Atlas® Platinum PTC300 & WB50 Combo Package combines a premium assist-arm tire changer and a computerized wheel balancer into one professional wheel service solution. Designed for automotive repair shops, tire stores, and performance wheel service centers, this package provides the essential equipment needed for mounting, demounting, and balancing modern wheel and tire assemblies.

  The package includes the Atlas Platinum PTC300 Tire Changer, built to handle low-profile and performance tires with greater control and reduced risk of wheel damage, along with the Atlas Platinum PWB50 Computerized Wheel Balancer, which delivers fast and accurate wheel balancing for passenger vehicles and light trucks. Together, these machines help improve workflow efficiency while supporting a wide range of everyday tire service applications.

  Ideal for both new shop setups and equipment upgrades, the PTC300 & WB50 combo offers commercial-grade performance, modern wheel service capability, and dependable operation for busy professional environments.

• FEATURES AND BENEFITS

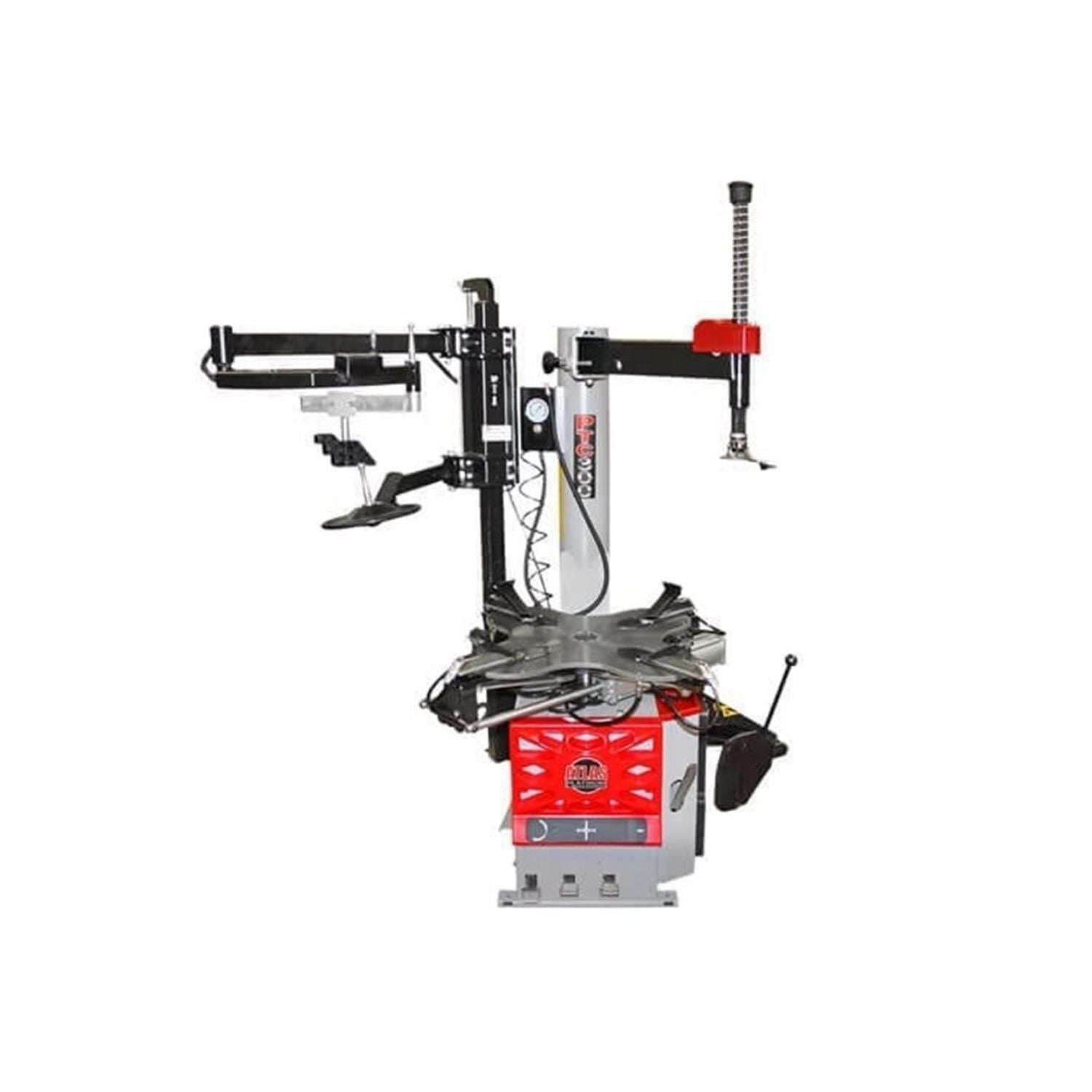

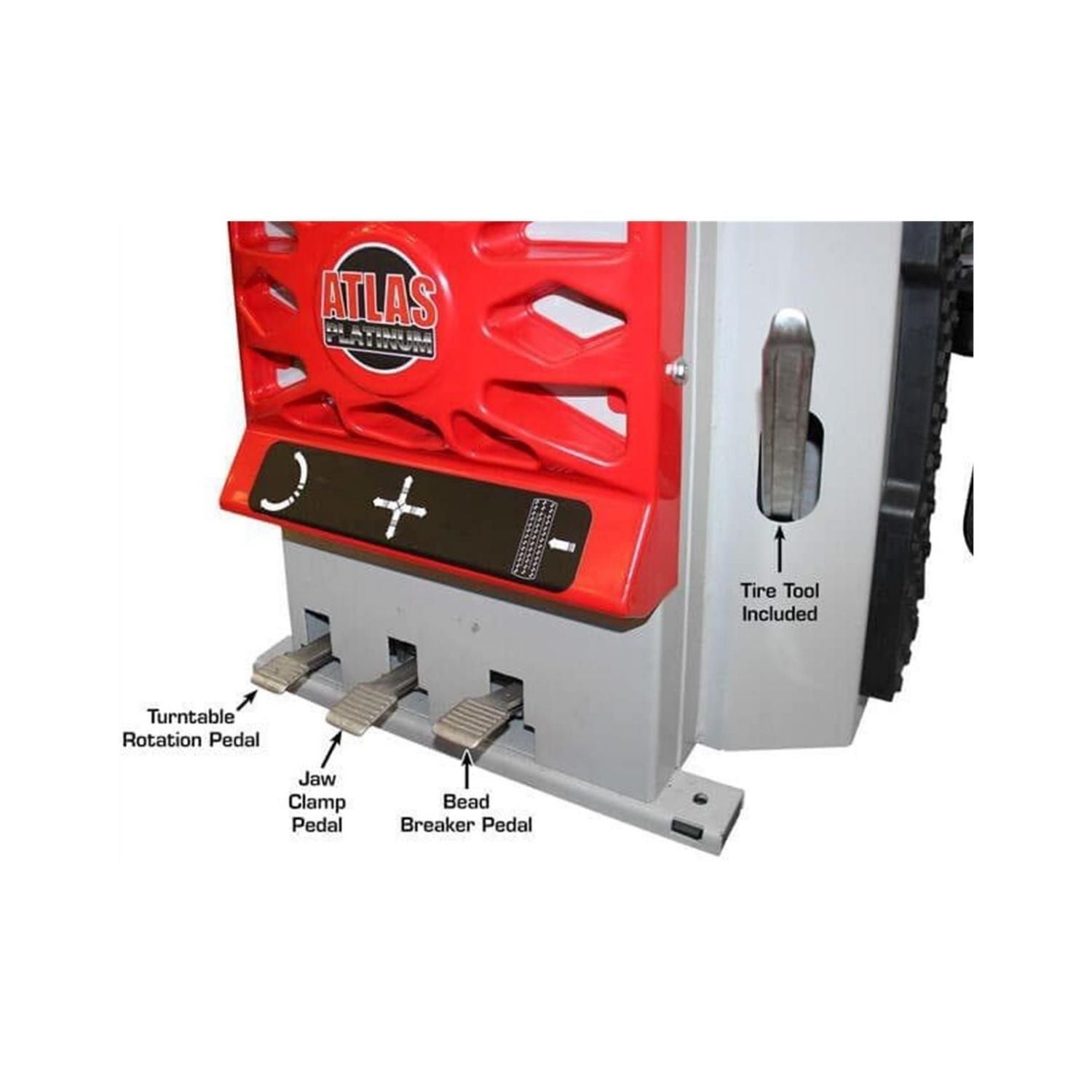

  Atlas® Platinum PTC300 Tire Changer

  • Rim Clamp/Swing Arm Tire Changer

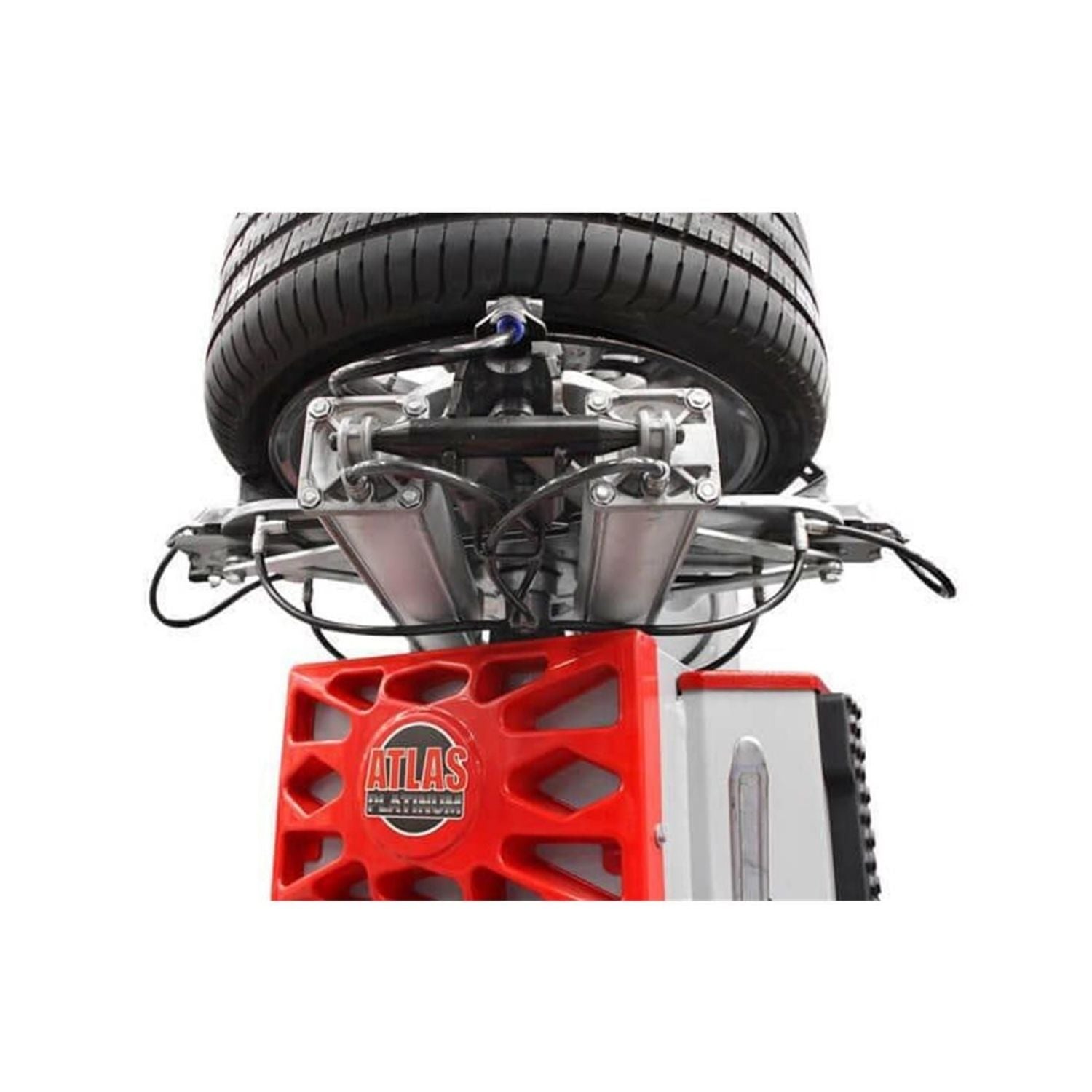

  • Extra Large Star Shaped Turntable
  • Built-in "Beadblaster"
  • Left Hand Assist Arm, Pressing/Lifting disk and Pressing Block
  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included

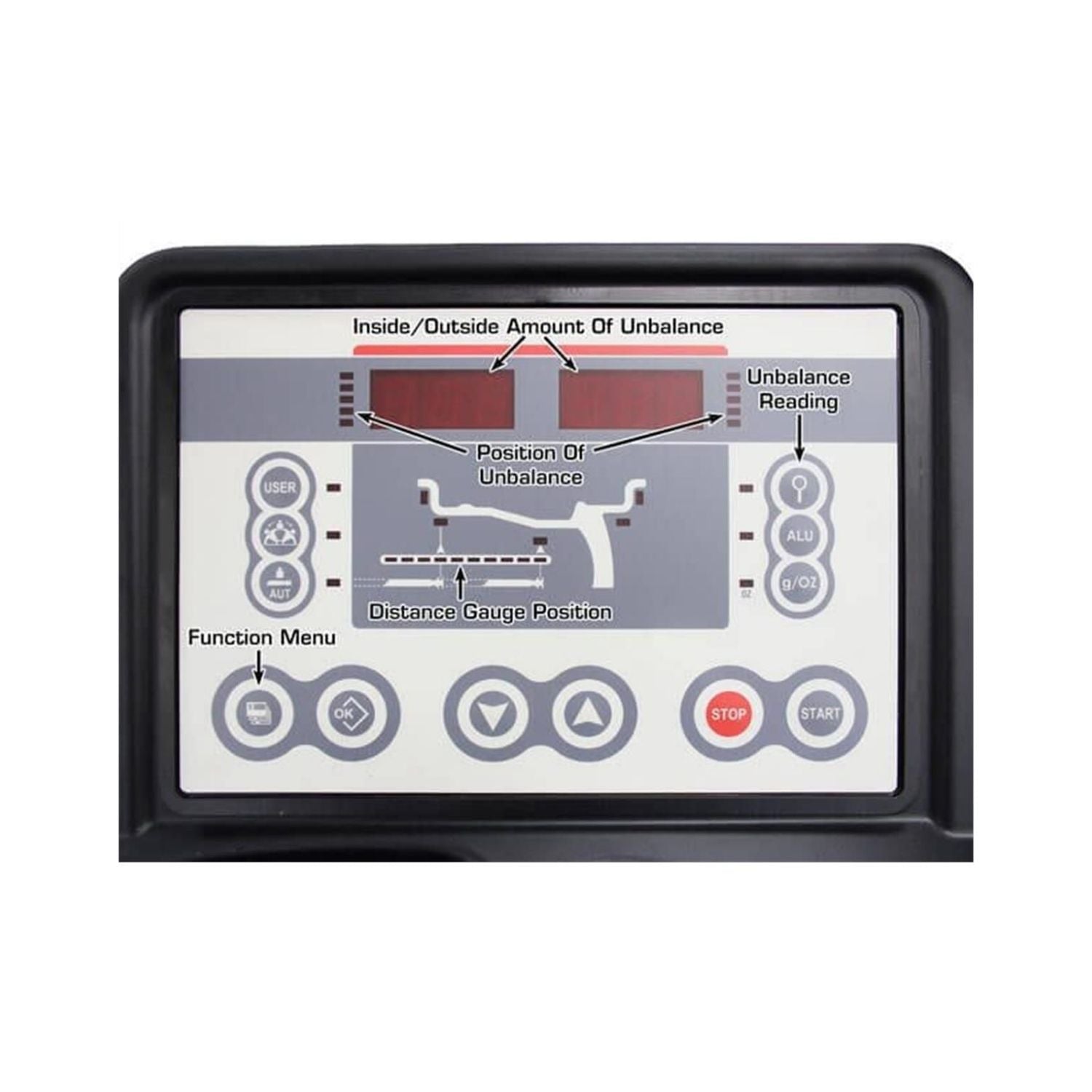

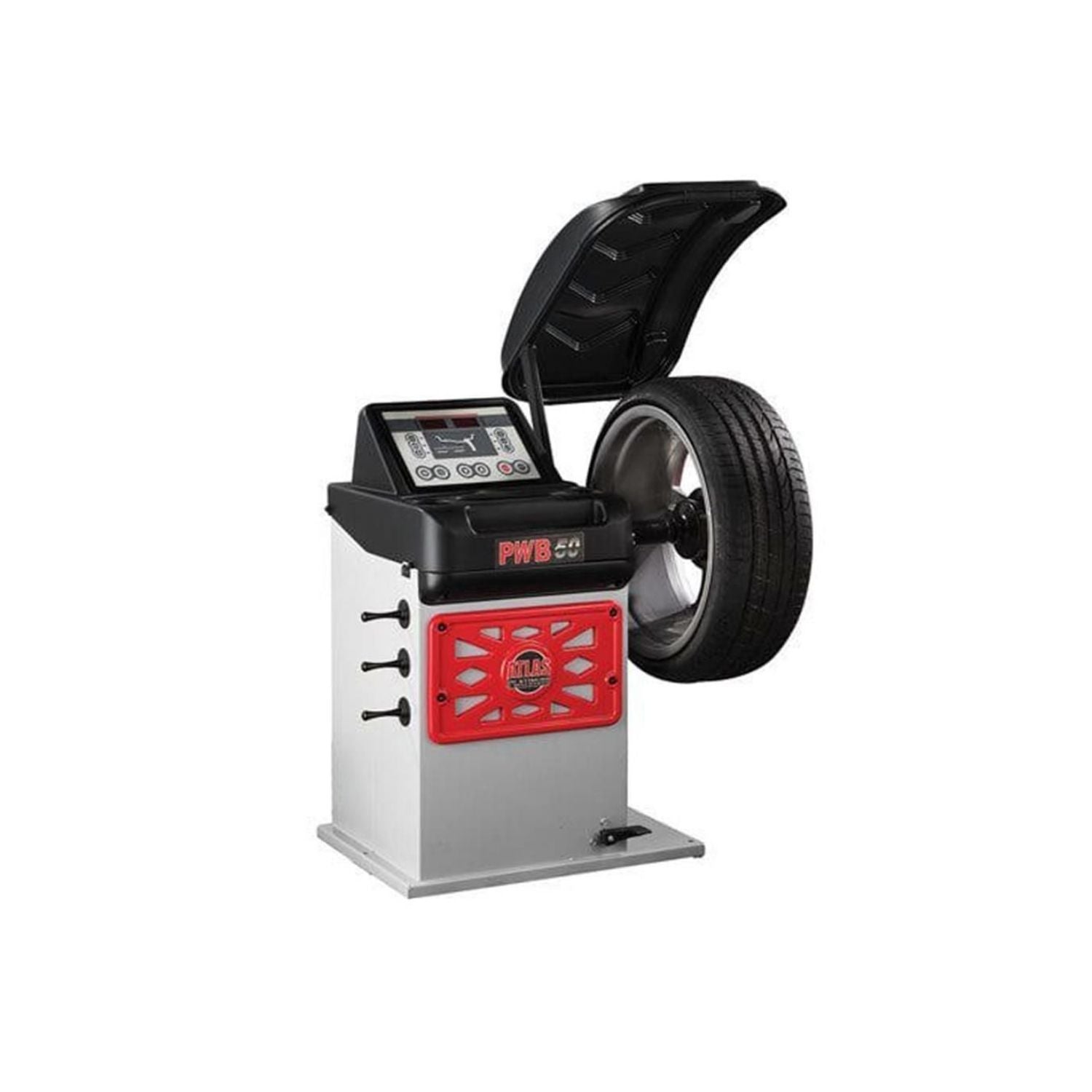

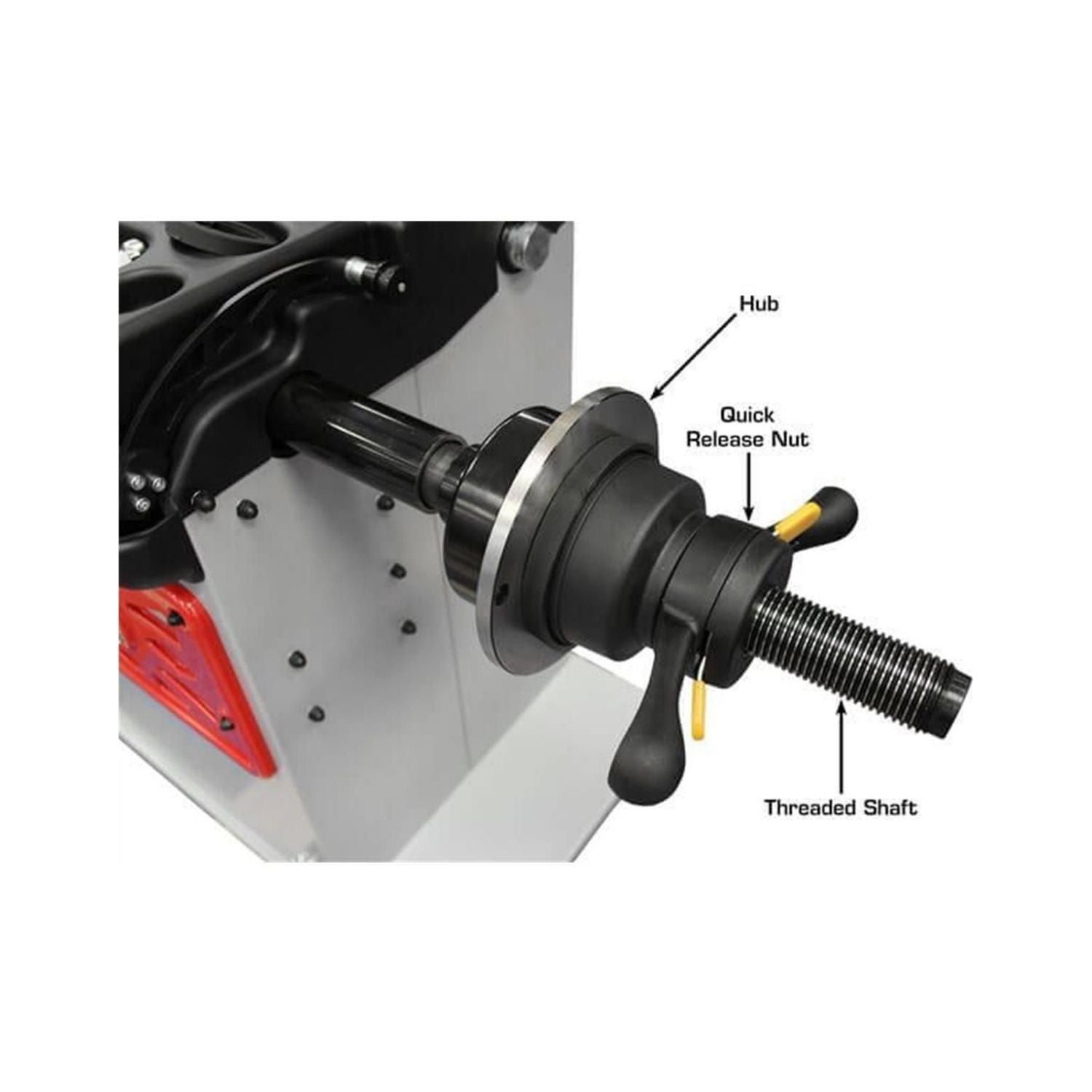

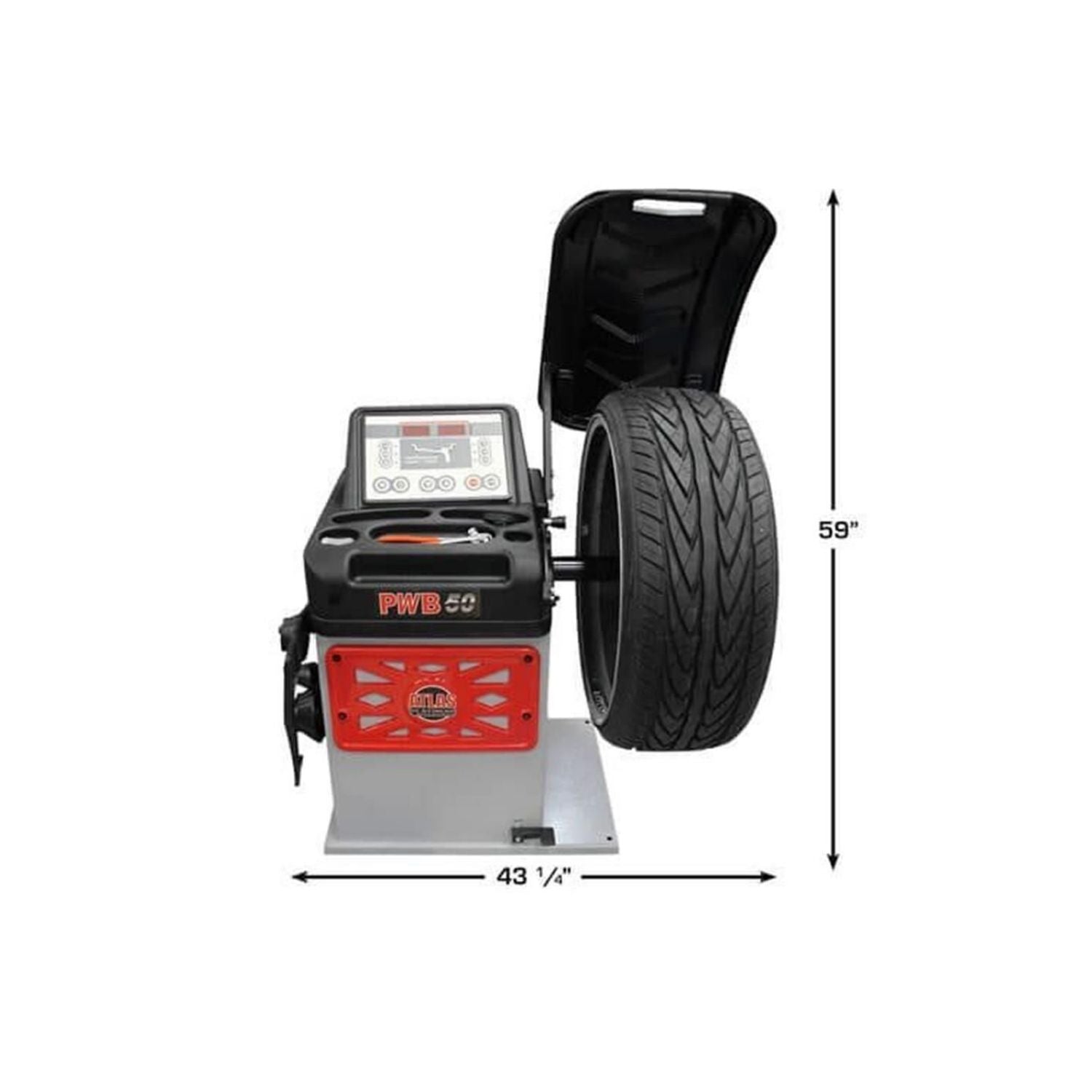

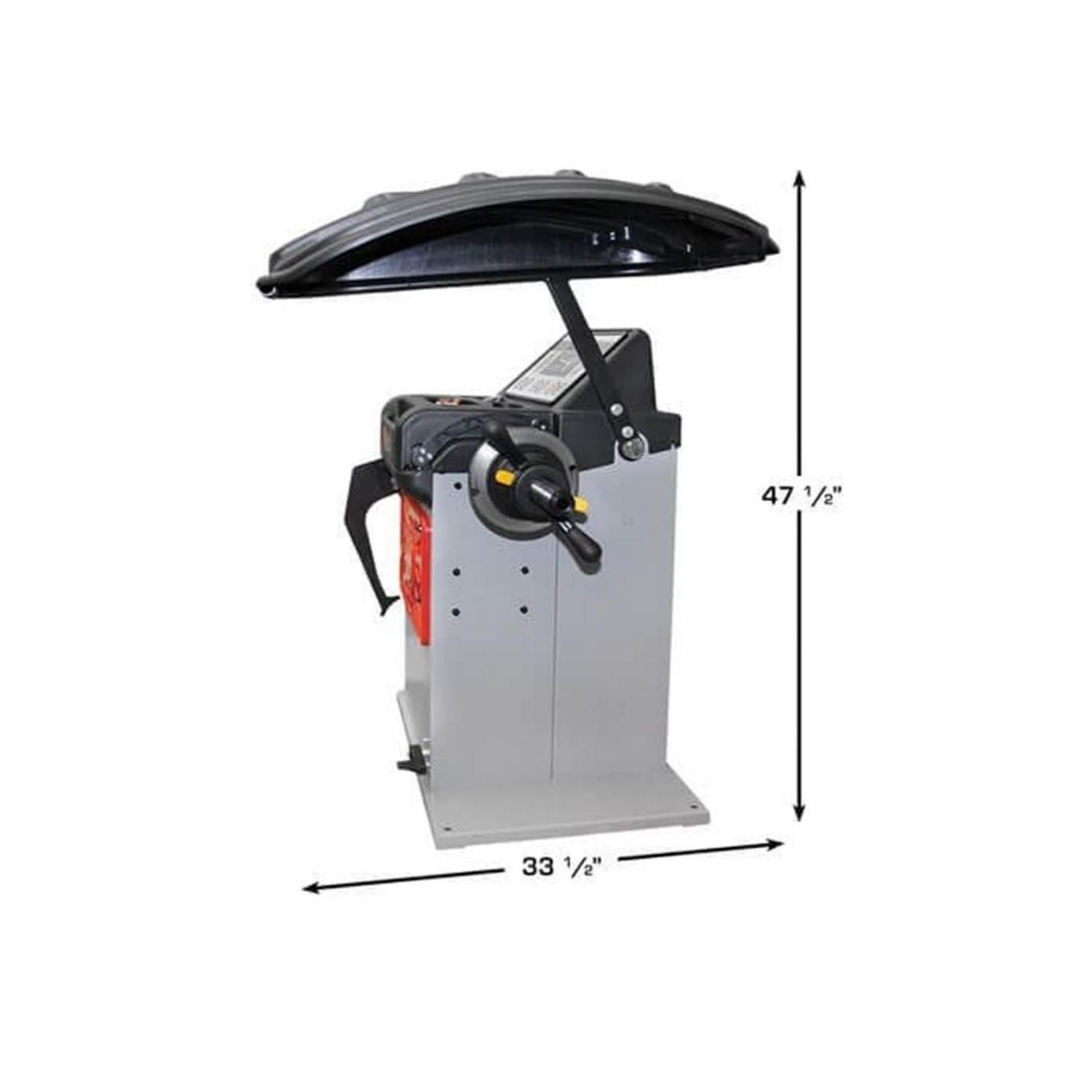

  Atlas® Platinum PWB50-110V Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes
  • Automatic 2D Data Entry
  • Optimatch, FES (Split), OPF (Opposite Position) Functions
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included


• SPECIFICATIONS

  Atlas® Platinum PTC300 Specifications

  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-TCWB-COMBO1-FPD
  Dimensions:	61" L × 52" W × 52" H
  UPC:	810524029025
  Country of Origin:	CHN
  External Locking Rim Dimensions:	10" to 24"
  Internal Locking Rim Dimensions:	12" to 26"
  Maximum Tire Diameter:	43"
  Maximum Wheel Width (Bead Breaker):	15"
  Turntable Rotating Speed:	7 rpm
  Bead Breaker:	6924 LB. Force
  Operating Pressure:	145 PSI
  Electric Requirement:	110volt
  Shipping Weight:	620 lbs

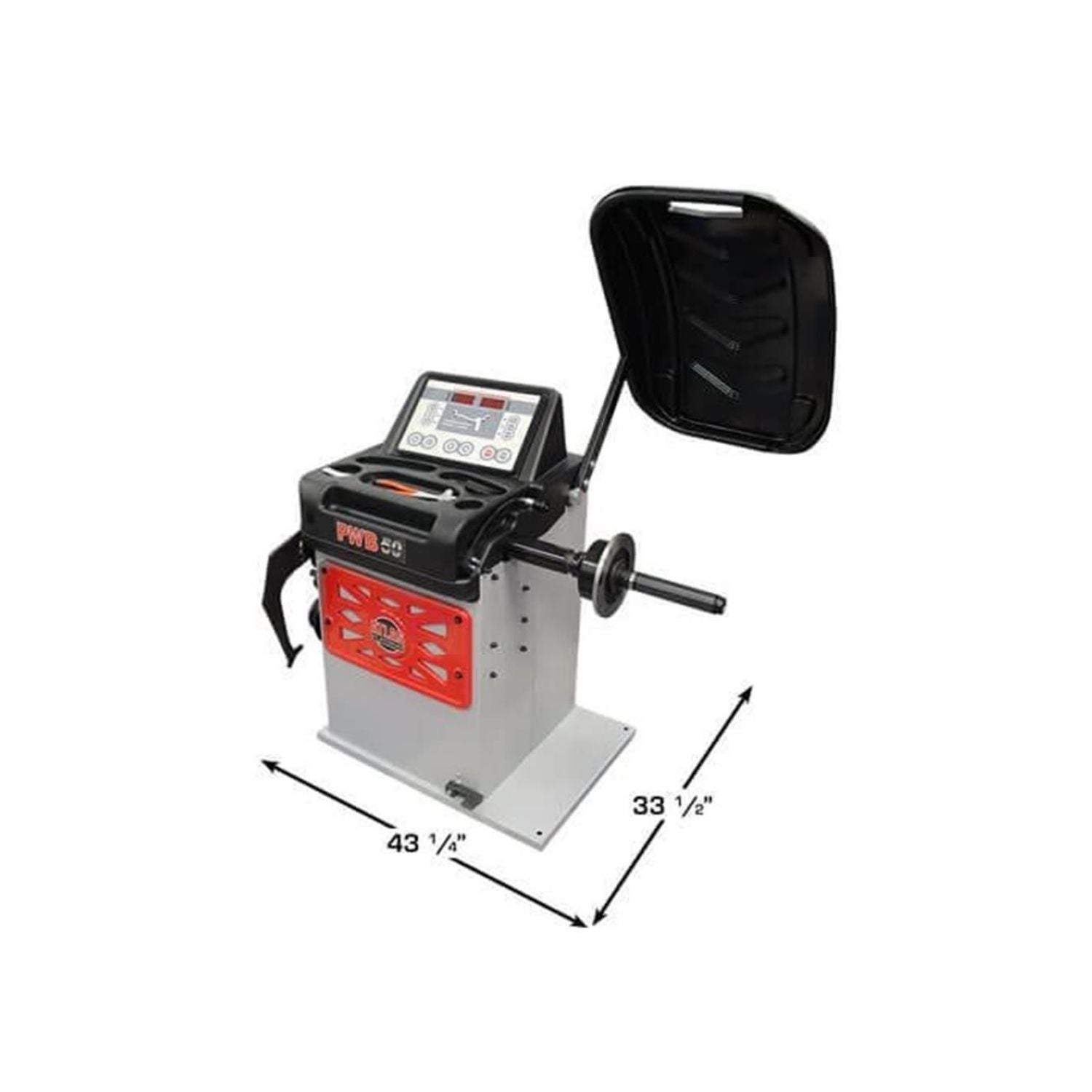

  Atlas® Platinum PWB50-110V Specifications

  Max Tire Diameter:	43"
  Rim Sizes (Cars & Light Trucks):	10" - 30"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	165 lbs
  Balancing Speed:	130 rpm
  Data Entry:	Automatic 2D
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Cycle Time:	7 seconds
  Electric Requirement:	110volt
  Shipping Weight:	230 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
