Atlas® Platinum PVL14OF-EXT Open Front Alignment Lift + RJ7000 Combo #ATEAP-PVL14OF-EXT-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

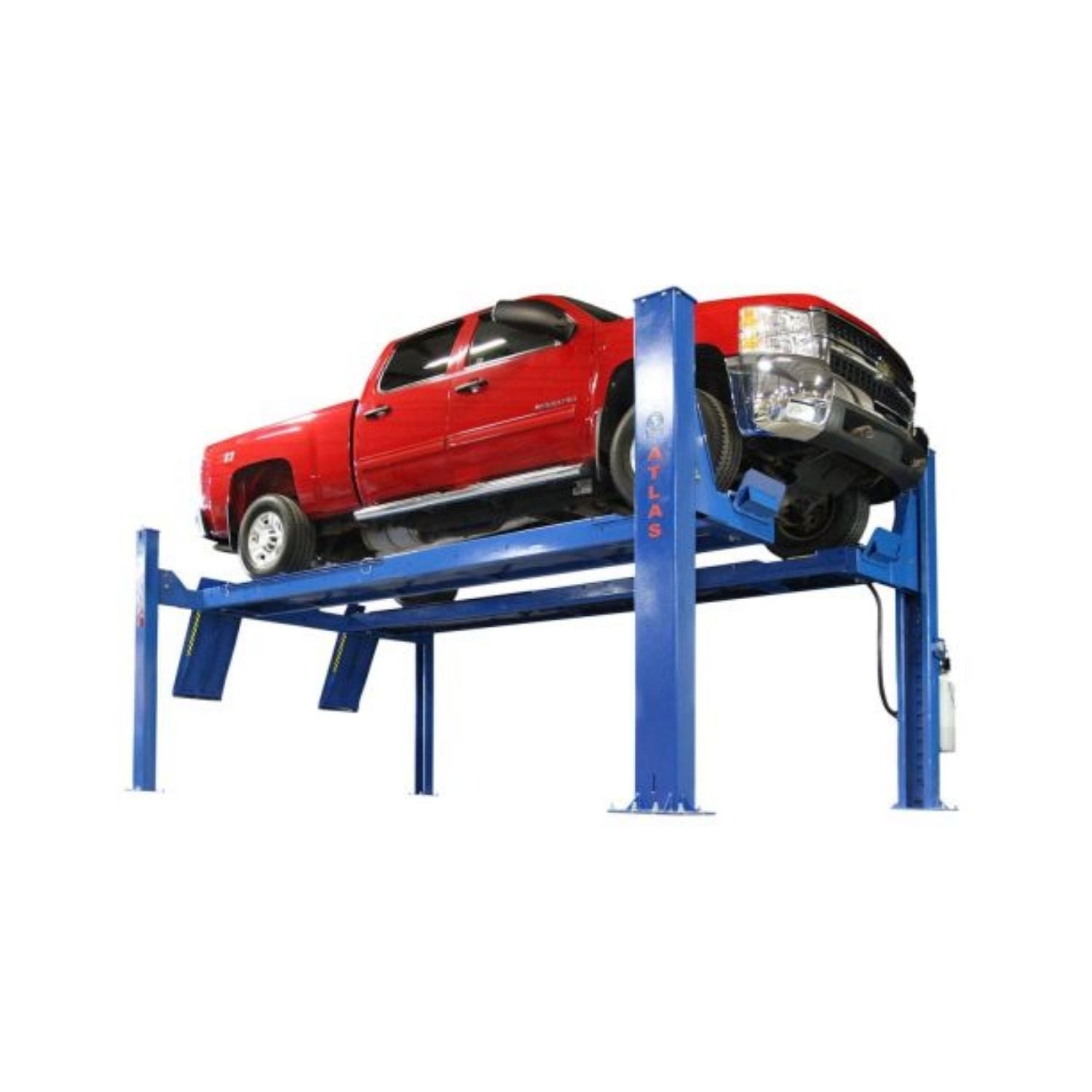

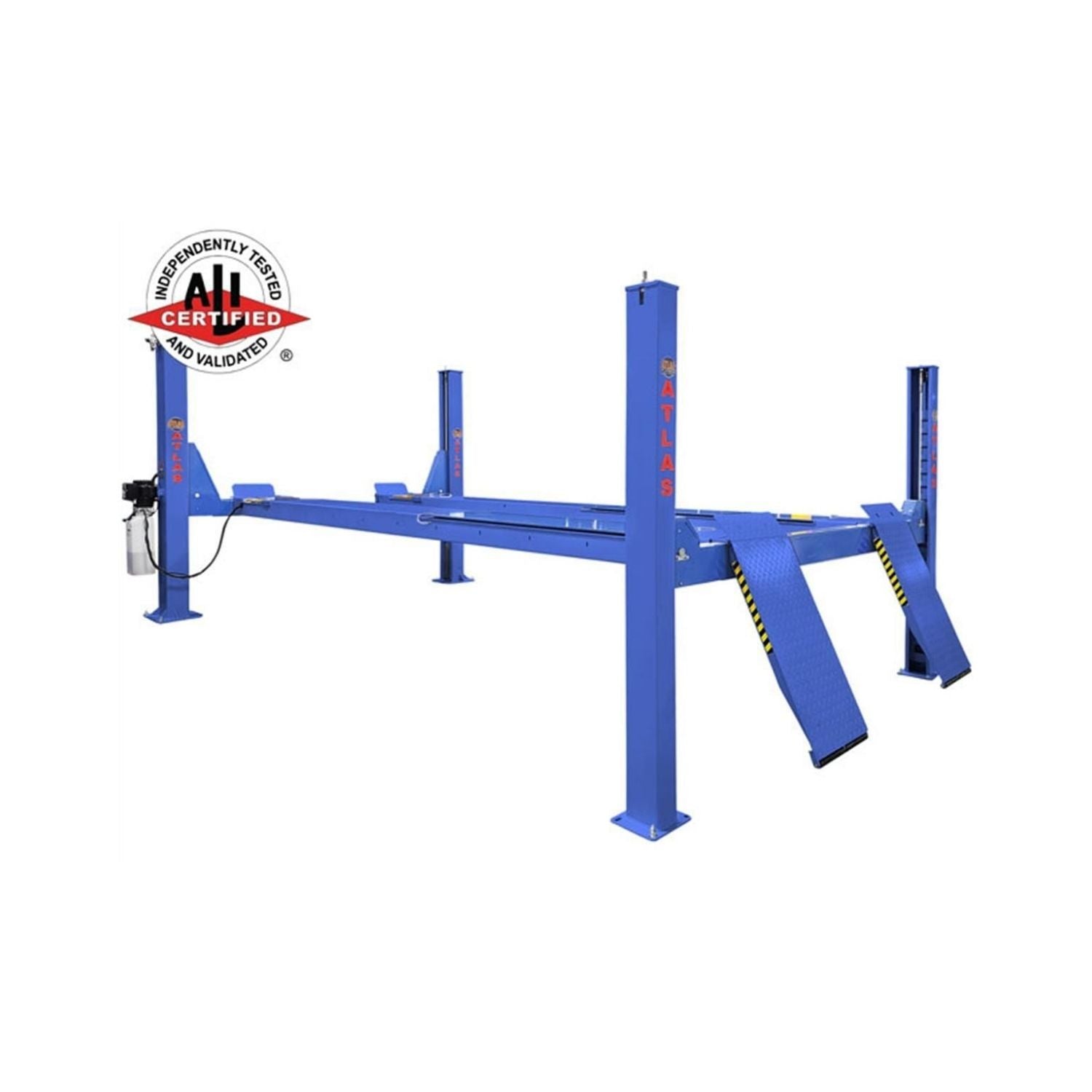

  The Atlas® Platinum PVL14OF-EXT Open Front Alignment Lift + RJ7000 Combo is a fully equipped commercial-grade alignment and wheel-service system designed for high-volume automotive repair facilities, alignment shops, fleet maintenance centers, and commercial service departments.

  This premium package combines the ALI-certified Atlas Platinum PVL14OF-EXT Open Front Alignment Lift with two Atlas Platinum RJ7000 rolling bridge jacks, creating a complete workstation capable of precision alignments, wheel-free brake service, suspension repairs, tire work, and undercarriage diagnostics.

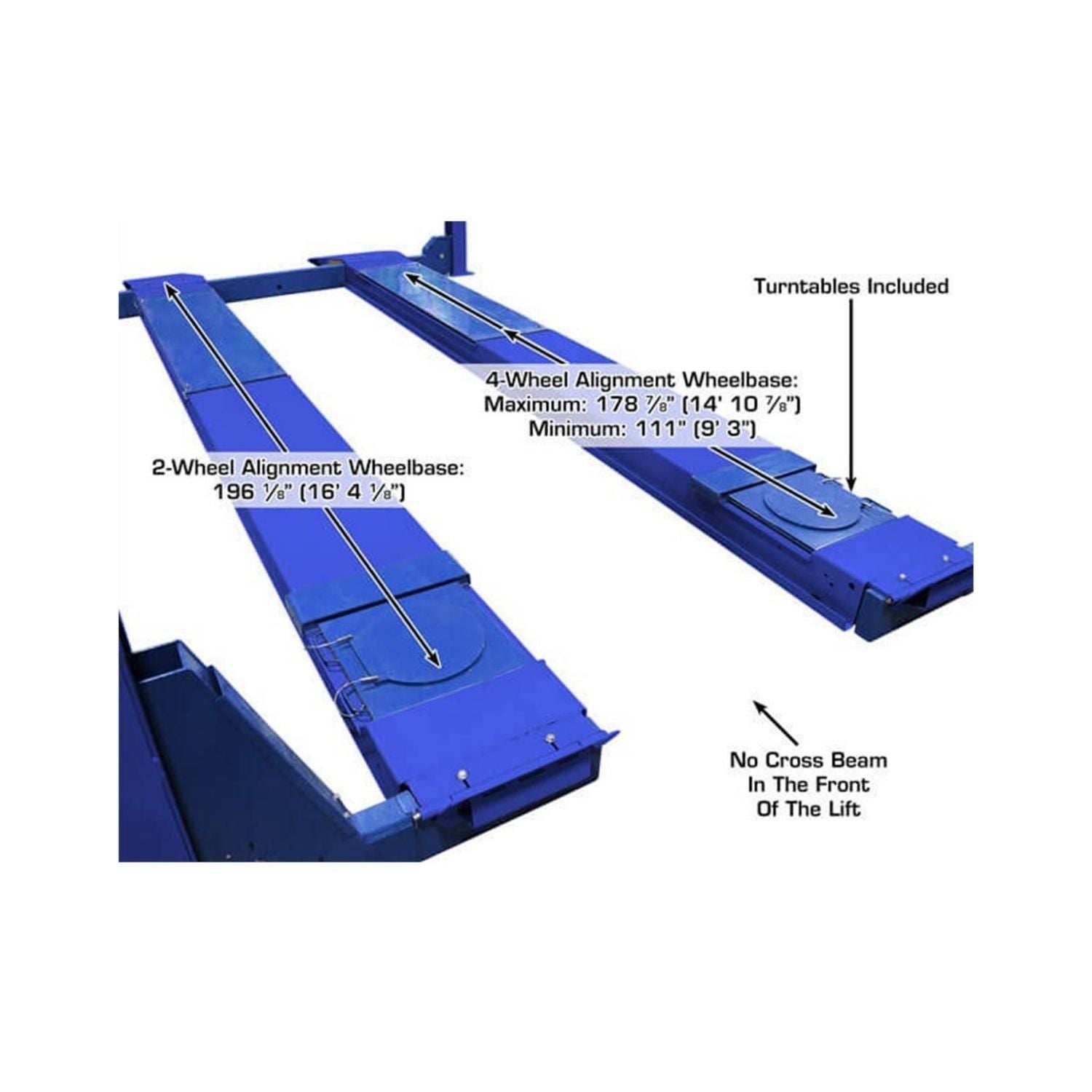

  The lift’s innovative open-front design eliminates the traditional front crossbeam, giving technicians unobstructed front-end access for steering, suspension, and alignment work. Extra-long runways support larger vehicles including trucks, vans, SUVs, and fleet vehicles with wheelbases up to 203 inches. Integrated slip plates and heavy-duty turntables come standard for professional alignment capability right out of the box.

  The included RJ7000 rolling bridge jacks allow technicians to lift the wheels off the runways for complete wheel and suspension access, turning the lift into a true full-service repair and alignment platform. Each jack includes truck adapters and uses an air-over-hydraulic design for commercial-grade performance.

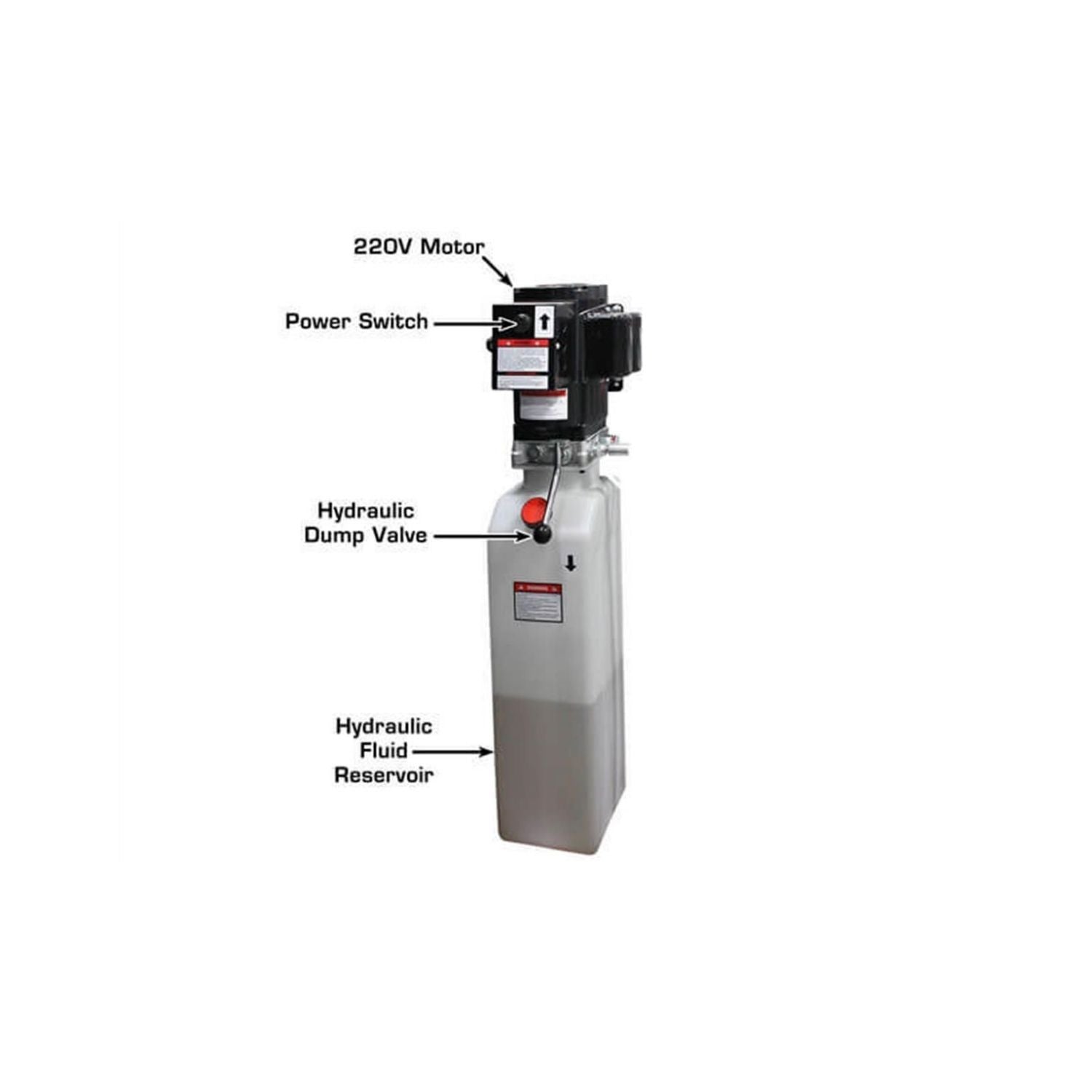

  Powered by the premium ALLY Hydraulic AL3000 power unit, the PVL14OF-EXT delivers smooth lifting performance, reduced heat generation, and constant torque throughout the lifting cycle. Unlike many competitor lifts that use exposed-cylinder chain systems, the Atlas Platinum hidden-cylinder design improves leveling accuracy and helps reduce accidental vehicle door damage.

• FEATURES AND BENEFITS

  • ALI Certified- Includes PVL14OF-EXT alignment lift & two RJ7000 rolling jacks
  • Heavy Duty, Commercial Grade
  • Open Front Design
  • Lift is Extra Tall, Extra Wide & Super Long

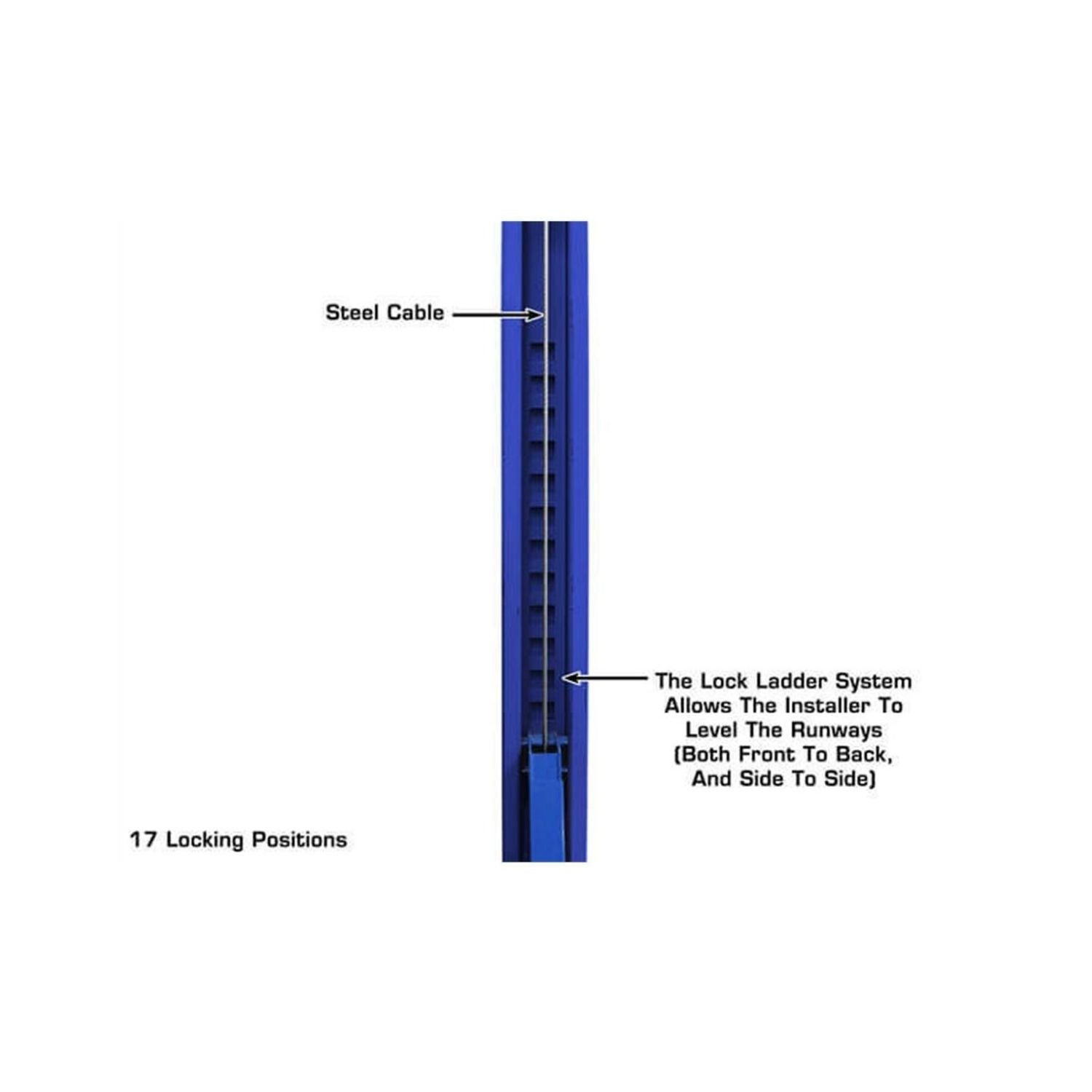

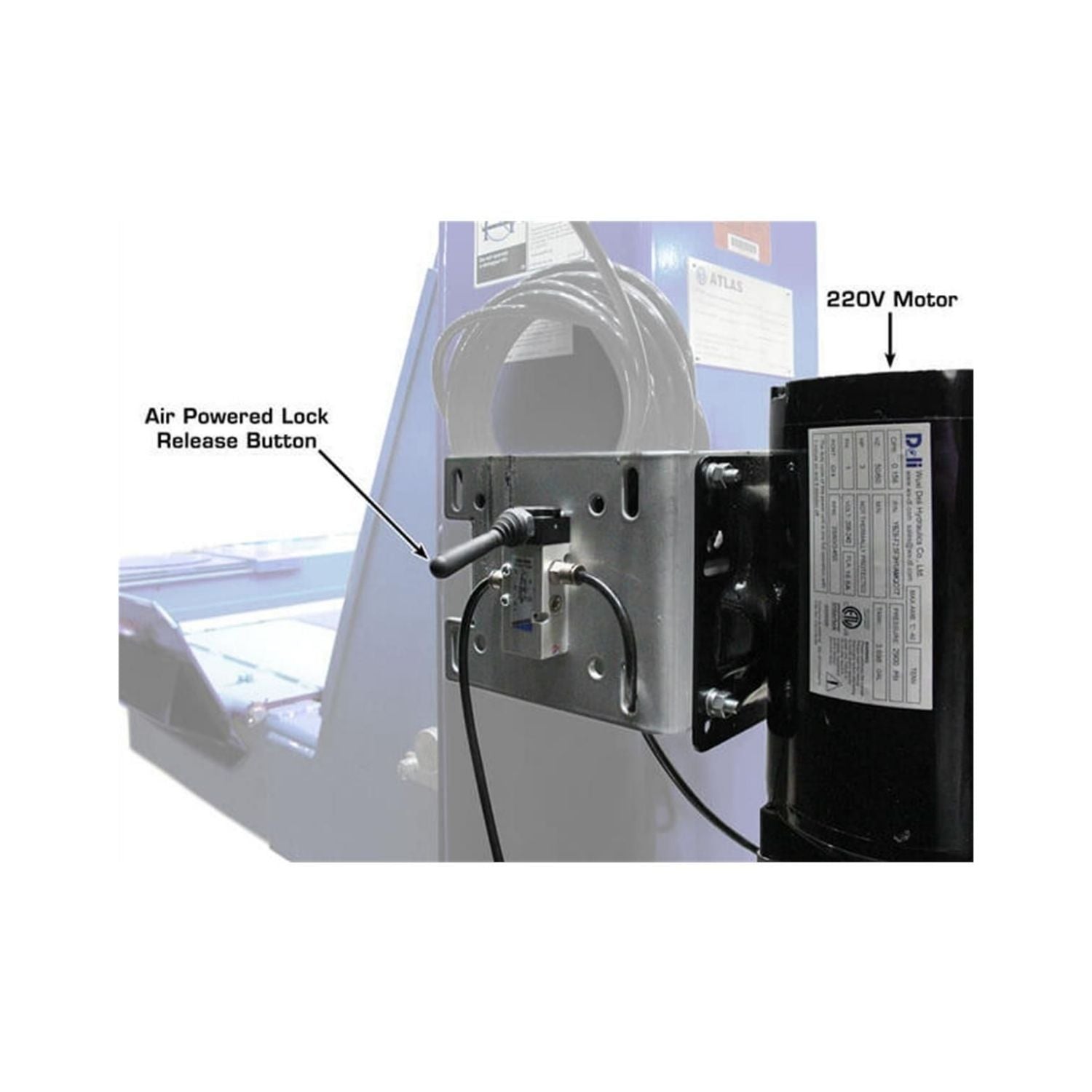

  • Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

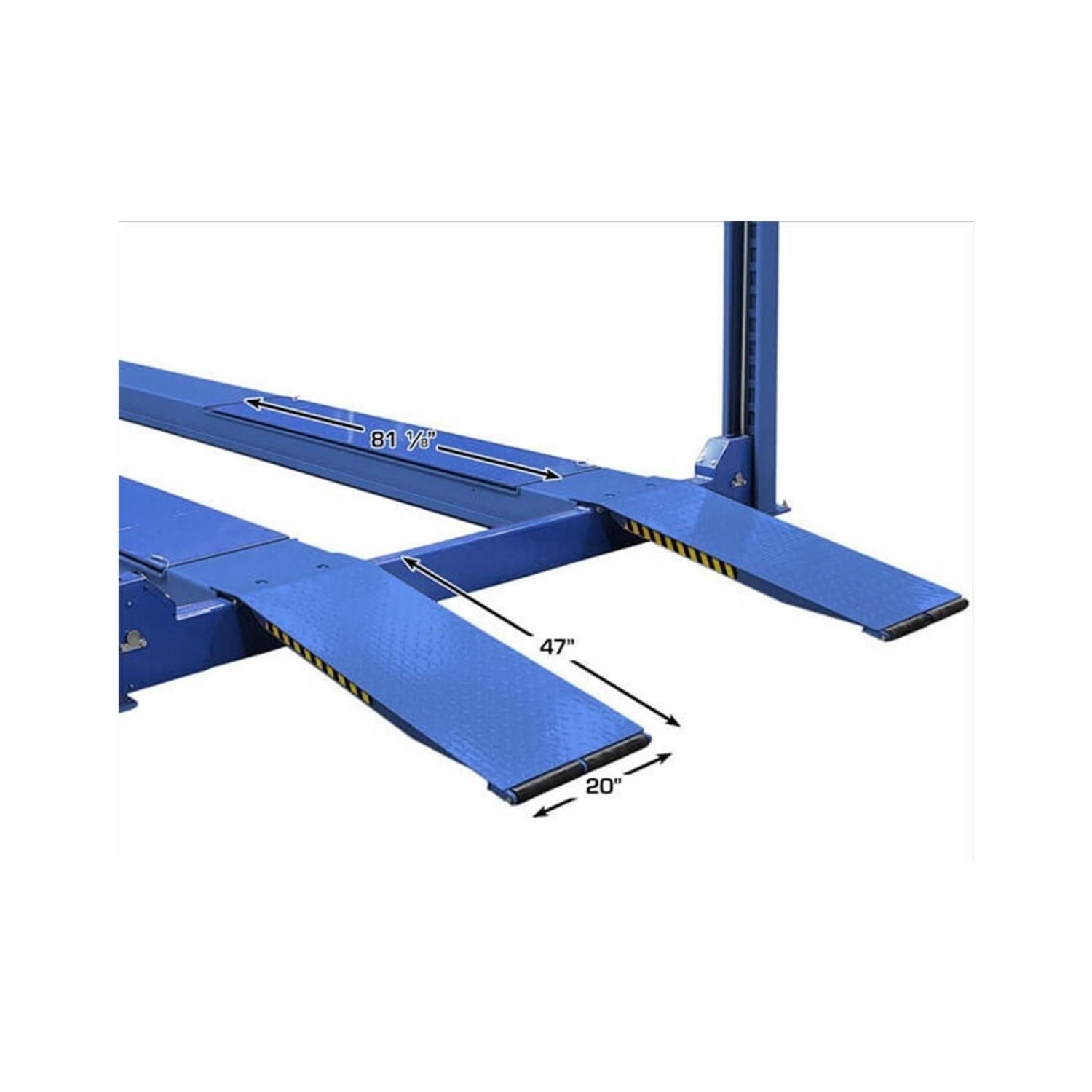

  • Steel Approach Ramps Included
  • Built in Slip-Plates
  • Alignment Turntables Included
  • Mounting Hardware Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® Platinum PVL14OF-EXT
  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-PVL14OF-EXT-COMBO-FPD
  Dimensions:	230" L × 72" W × 40" H
  Weight:	5400 lbs
  UPC:	810524028967
  Country of Origin:	CHN
  Capacity:	14,000 lb.
  Lifting Height:	73 1/4" (6' 1 1/4")

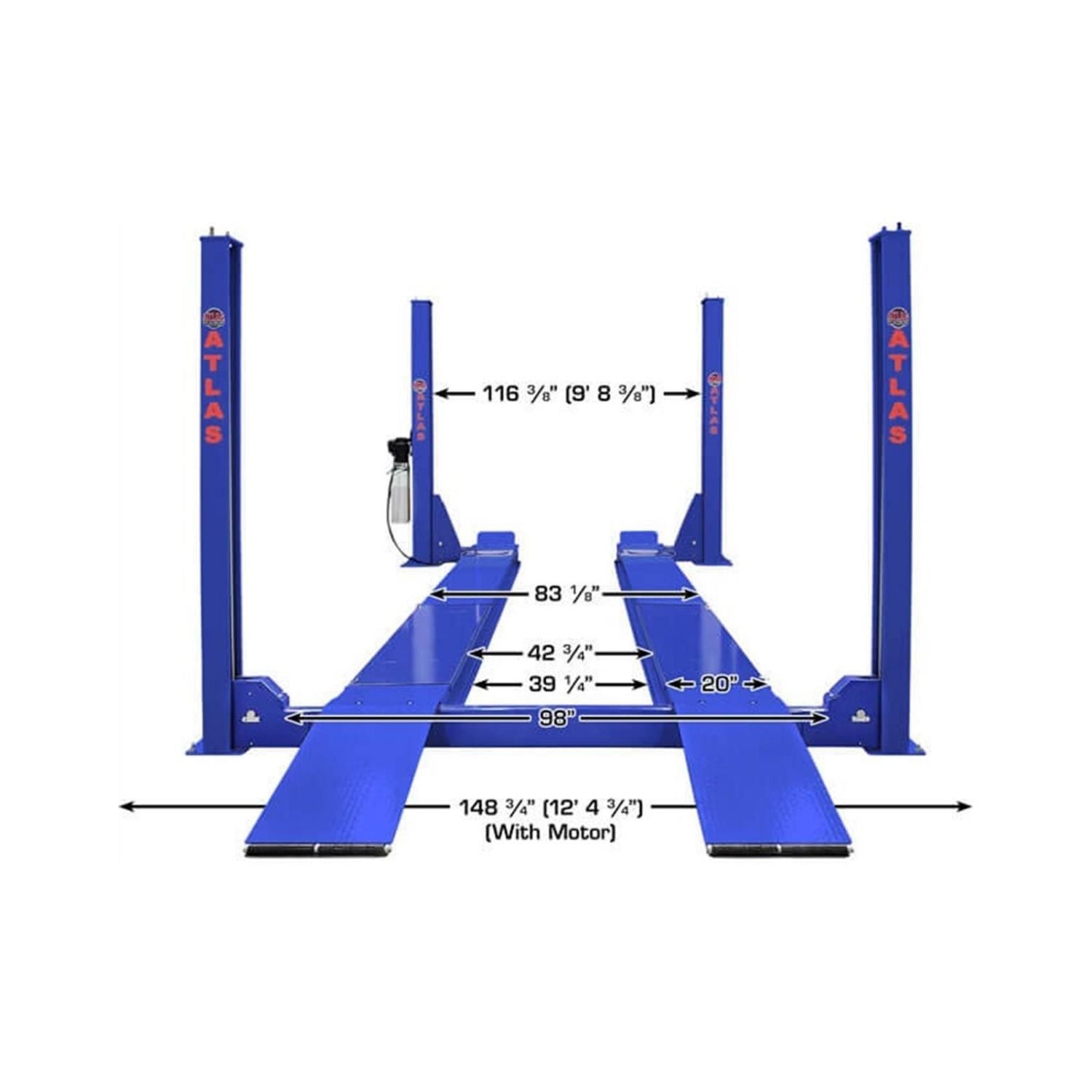

  Overall Width Of Columns (Without Motor):	140 1/8" (11' 8 1/8")
  Overall Width Of Columns (With Motor):	148 3/4" (12' 4 3/4")
  Overall Length With Approach Ramp:	272 1/8" (22' 8 1/8")
  Length Between Columns:	207" (17' 3")
  Runway Length:	223 1/2" (18' 7 1/2")
  Runway Width:	20"
  Thickness Of Runway:	7"
  Width Between Runways:	42 3/4" (w/ Rail 39 1/4")
  Outside Runway To Outside Runway:	83 1/8" (6' 11 1/8")

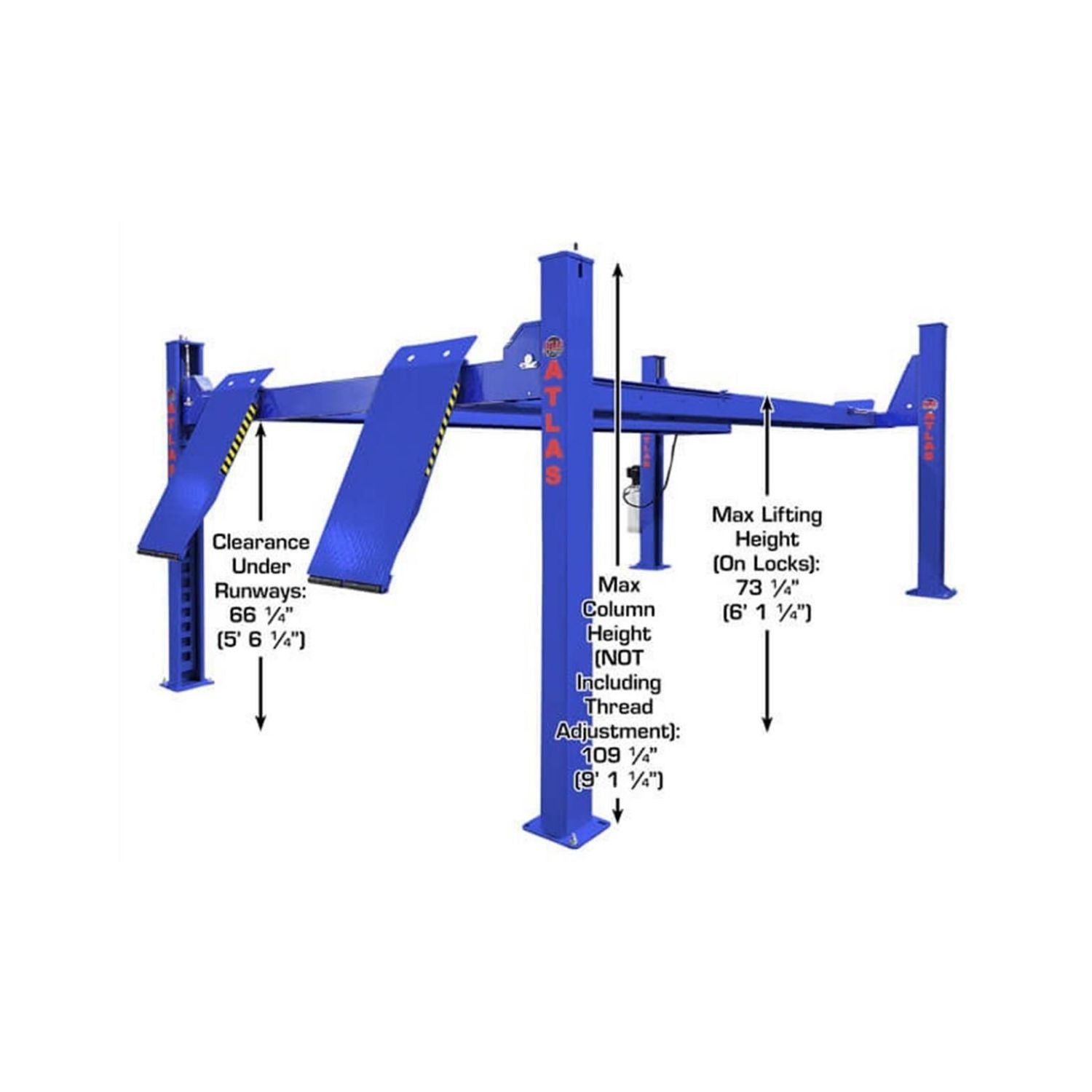

  Clearance Under Runways:	66 1/4" (5' 6 1/4")
  Clearance Between Columns:	116 3/8" (9' 8 3/8")

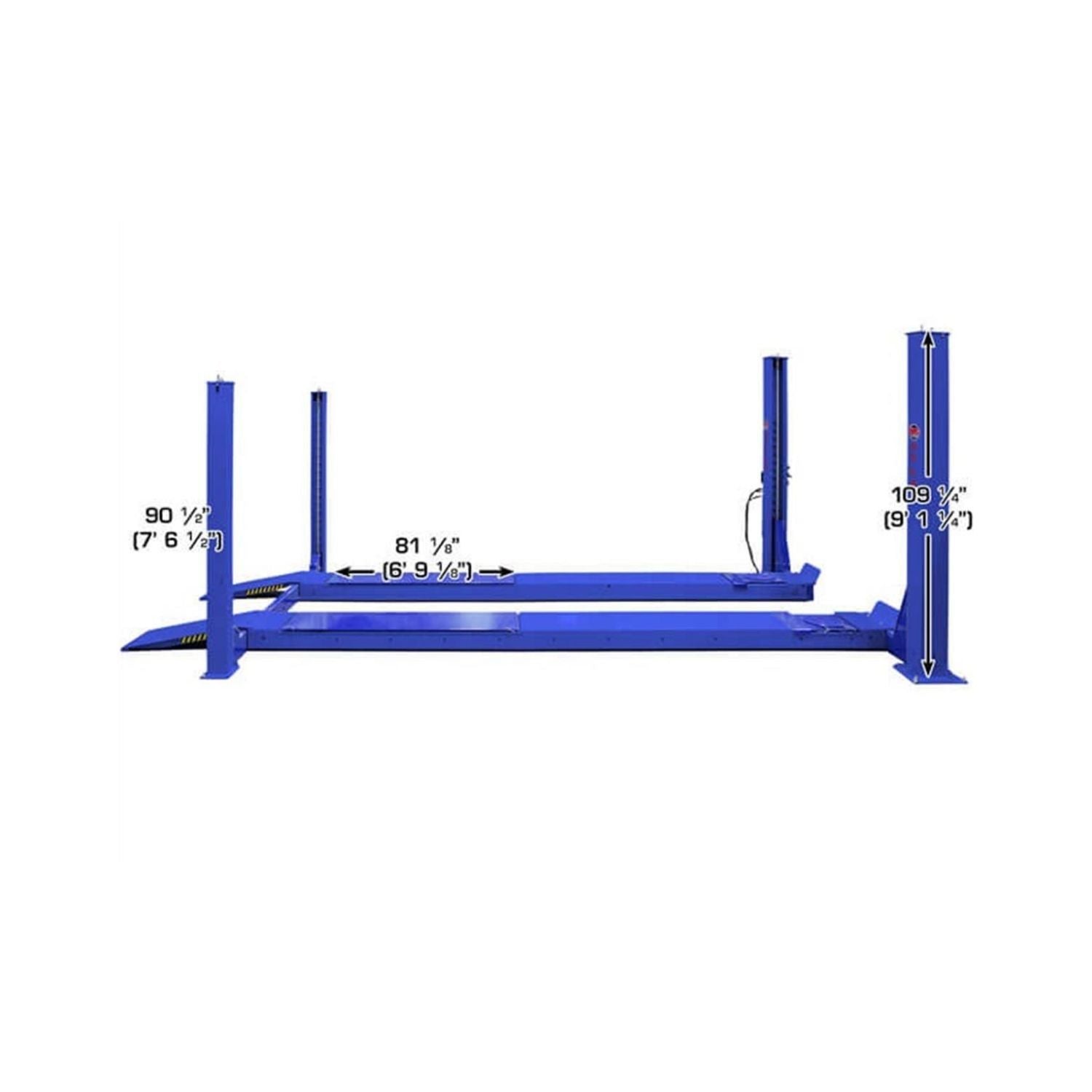

  Height Of Columns:	92 1/2" (7' 8 1/2") Rear / 109 1/4" (9' 1 1/4") Front
  Maximum Wheel Base:	203" (16' 11")
  Drive Thru:	94 1/2" (7' 10 1/2")
  Air Requirement:	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
  Motor/Electrical Requirement:	220 volt single (1) phase (30 amp breaker recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)

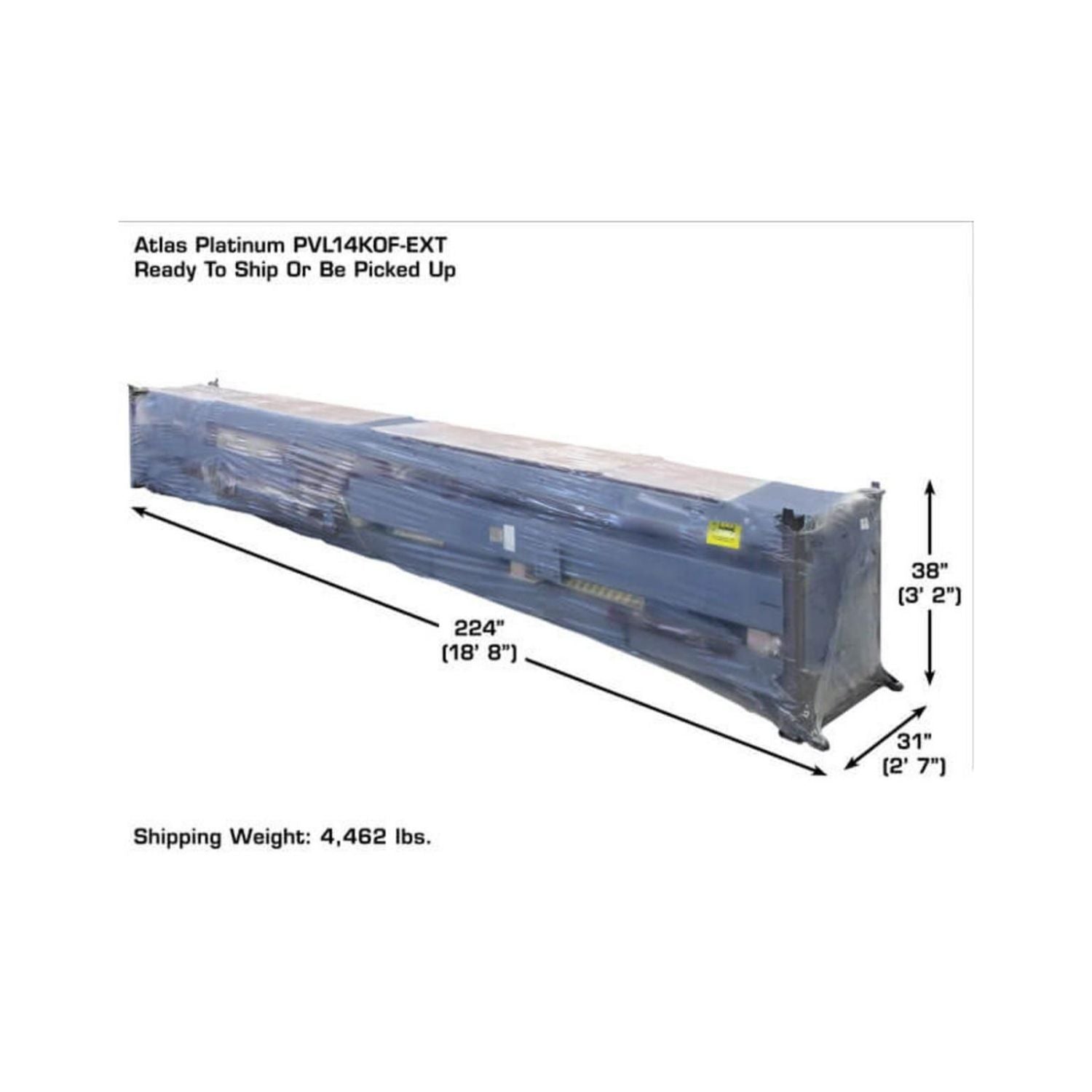

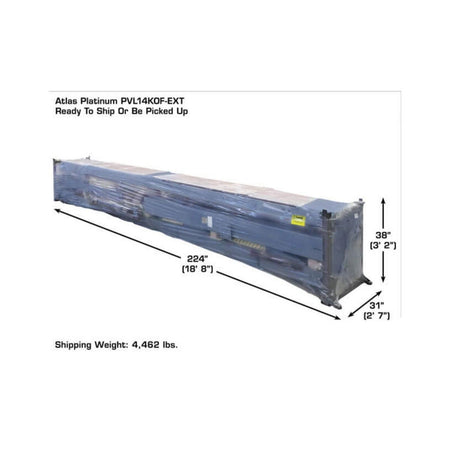

  Shipping Weight:	4,462 lbs
  Concrete Requirement:	Minimum 6" concrete with 3000 psi rating




  Atlas® Platinum RJ7000
  Minimum Width:	36"
  Maximum Width:	45 1/2"
  Distance Between Runway Capability:	36" - 45"
  Minimum Lifting Height:	12 1/2"
  Maximum Lifting Height (w/ Adapters):	27 1/2"
  Double Screw-Up Adapter Pad:	1 1/2" - 4"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
