Atlas® Platinum PVL15 Lift w/Height Extension Kit #ATEAP-PVL15-EXT-FPD
Couldn't load pickup availability
-
DESCRIPTION

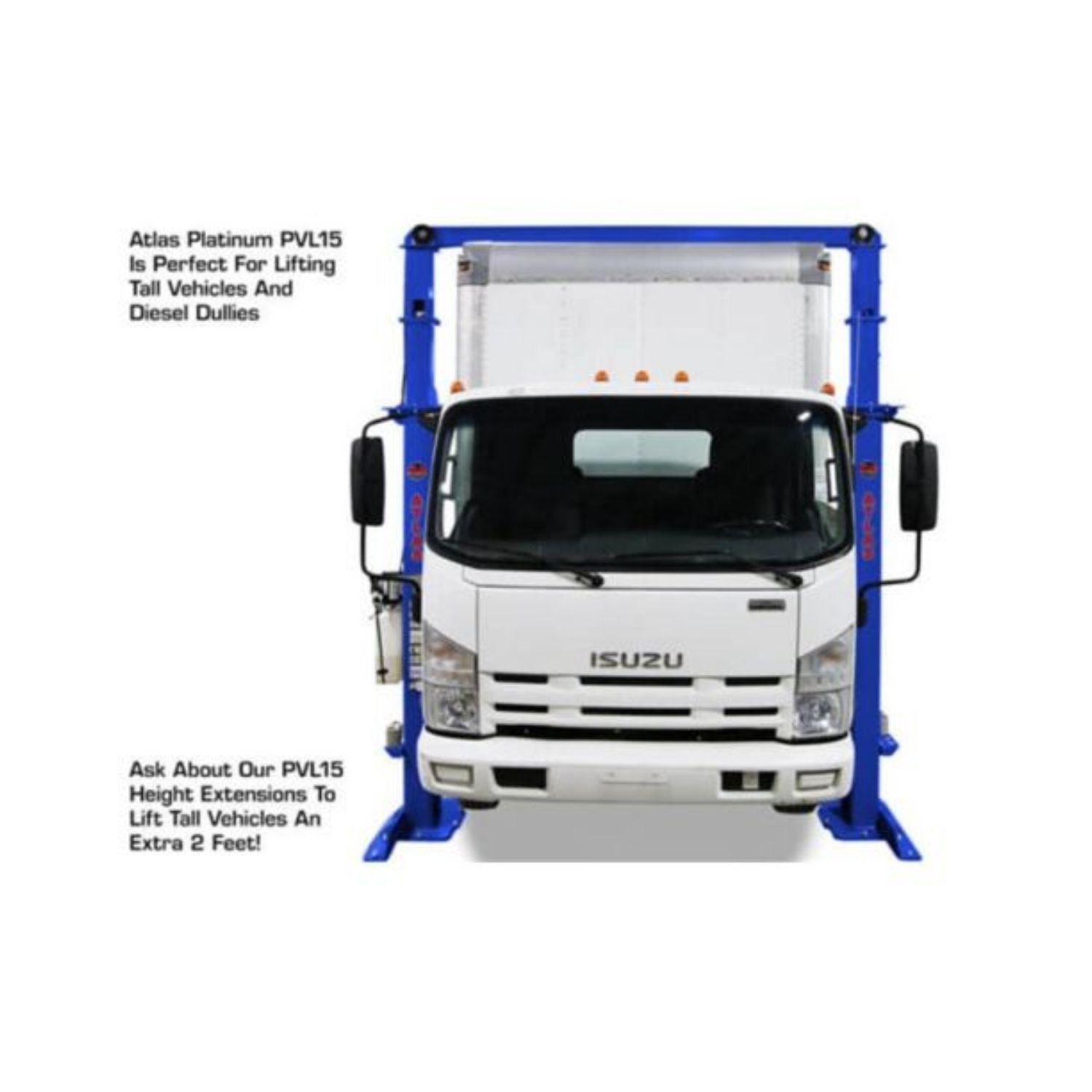

The Atlas® Platinum PVL15 Lift w/ Height Extension Kit is a heavy-duty commercial-grade two-post lift designed specifically for shops servicing larger trucks, vans, fleet vehicles, and commercial service vehicles.

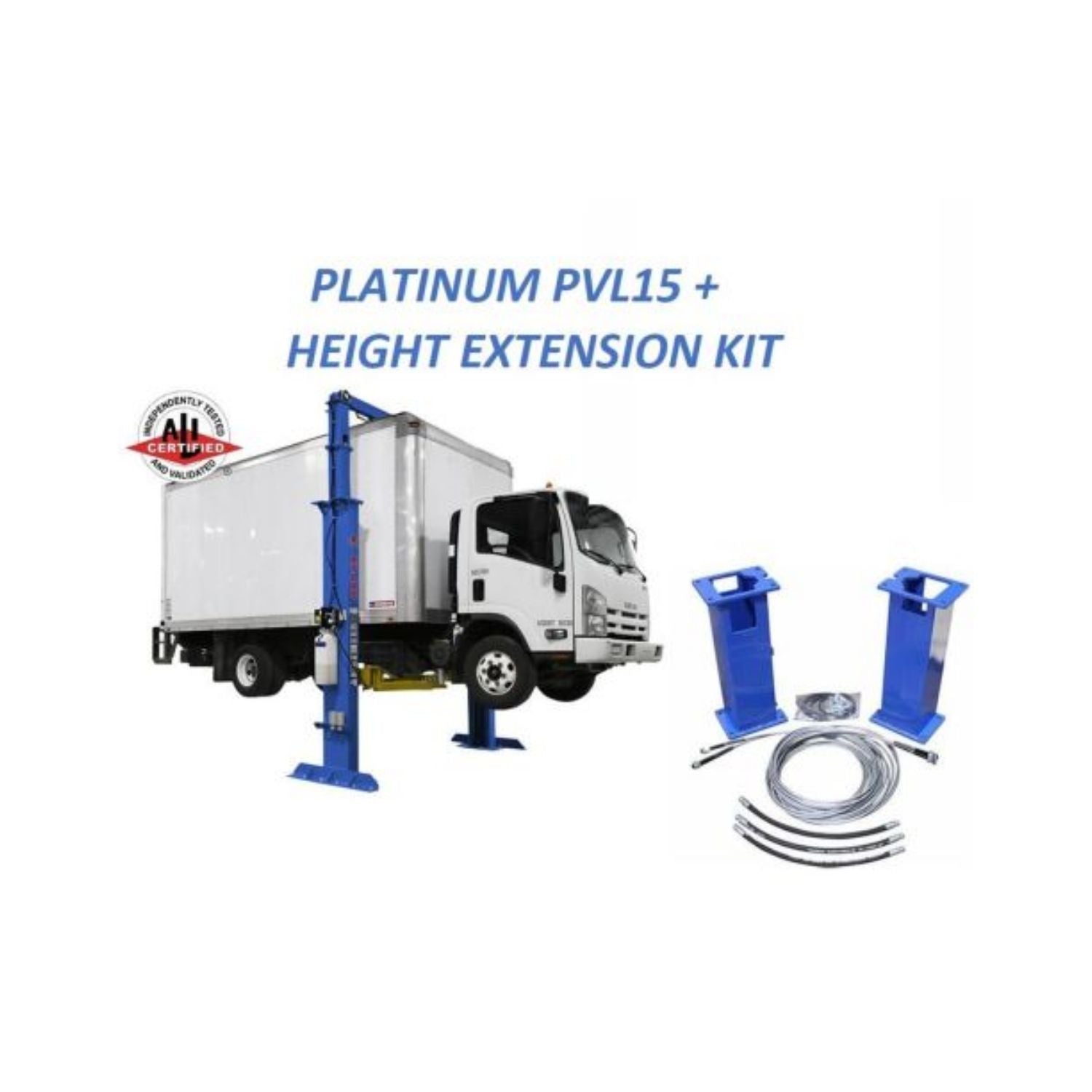

This package combines the ALI-certified Atlas Platinum PVL15 with the factory 2-foot Height Extension Kit, increasing the lift’s overall height from 174 1/2 inches to 198 1/2 inches for improved overhead clearance and taller vehicle accommodation. The integrated extension system includes extended cables, hydraulic hoses, and additional column sections engineered to work seamlessly together for maximum lifting performance and safety.

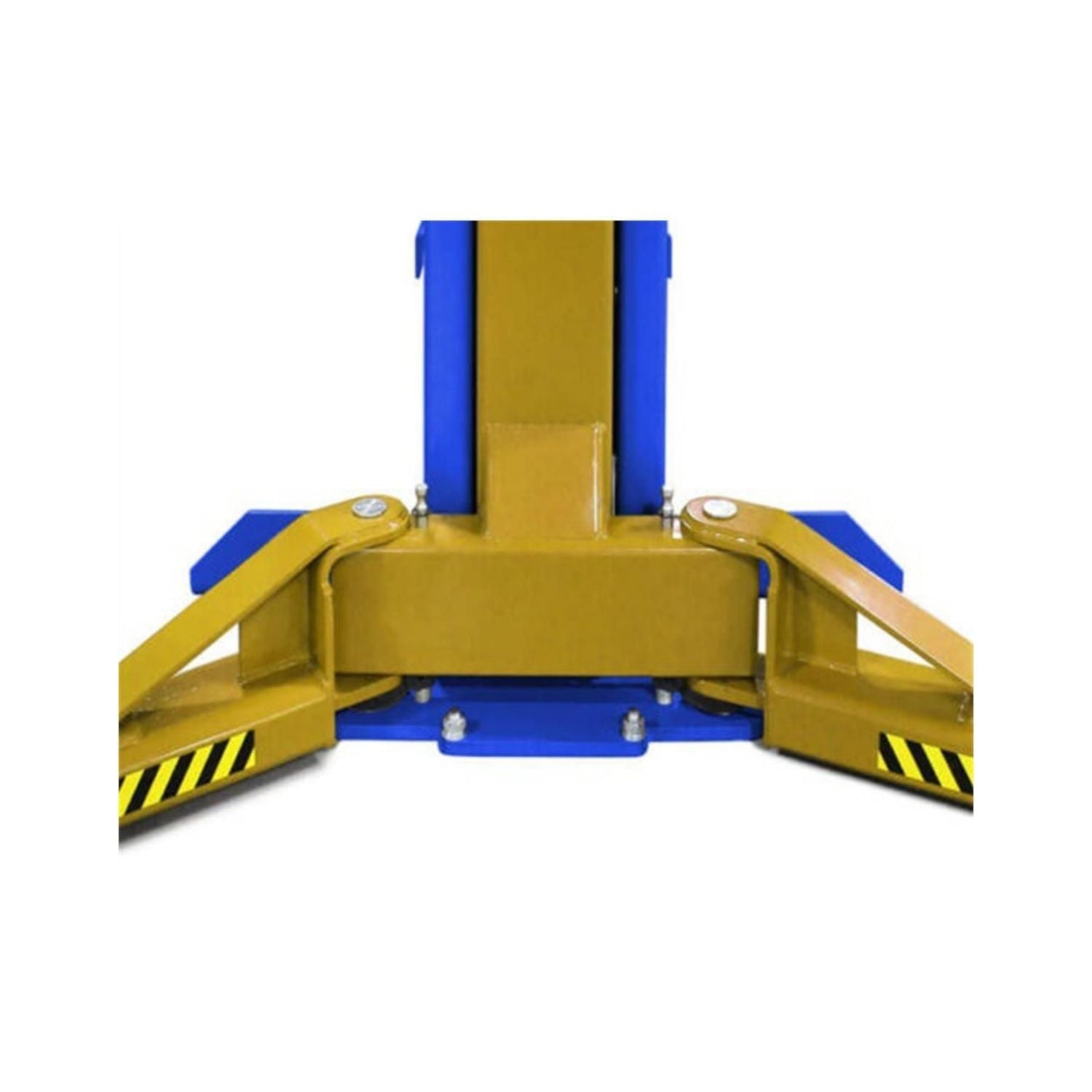

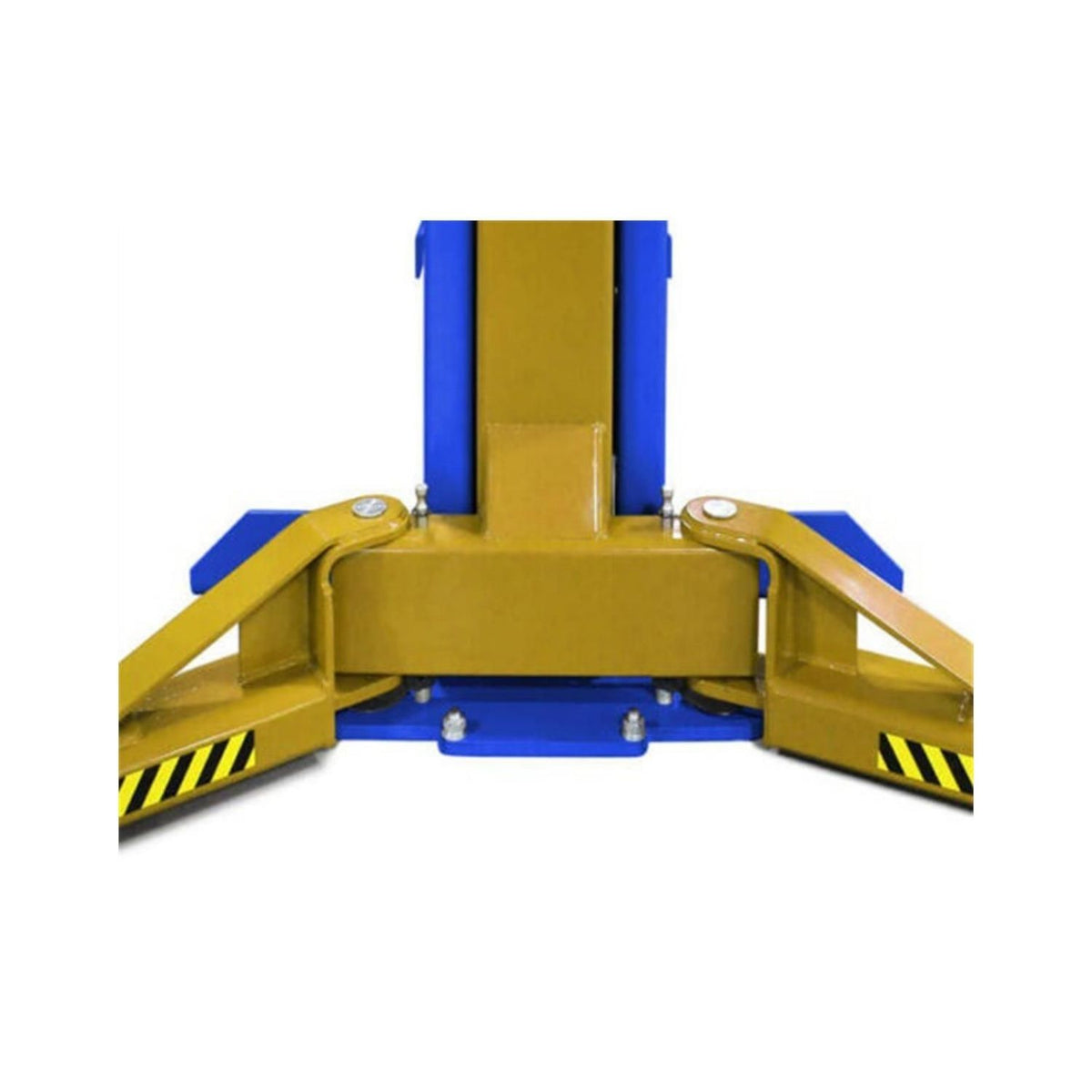

Built with an extra-wide commercial frame, oversized columns, heavy-duty equalization cables, and dual direct-drive hydraulic cylinders, the PVL15-EXT is engineered for demanding daily shop use. The lift includes symmetric lifting arms, padded carriages, professional-grade arm restraints, and a free truck adapter package to support a wide variety of commercial vehicle applications.

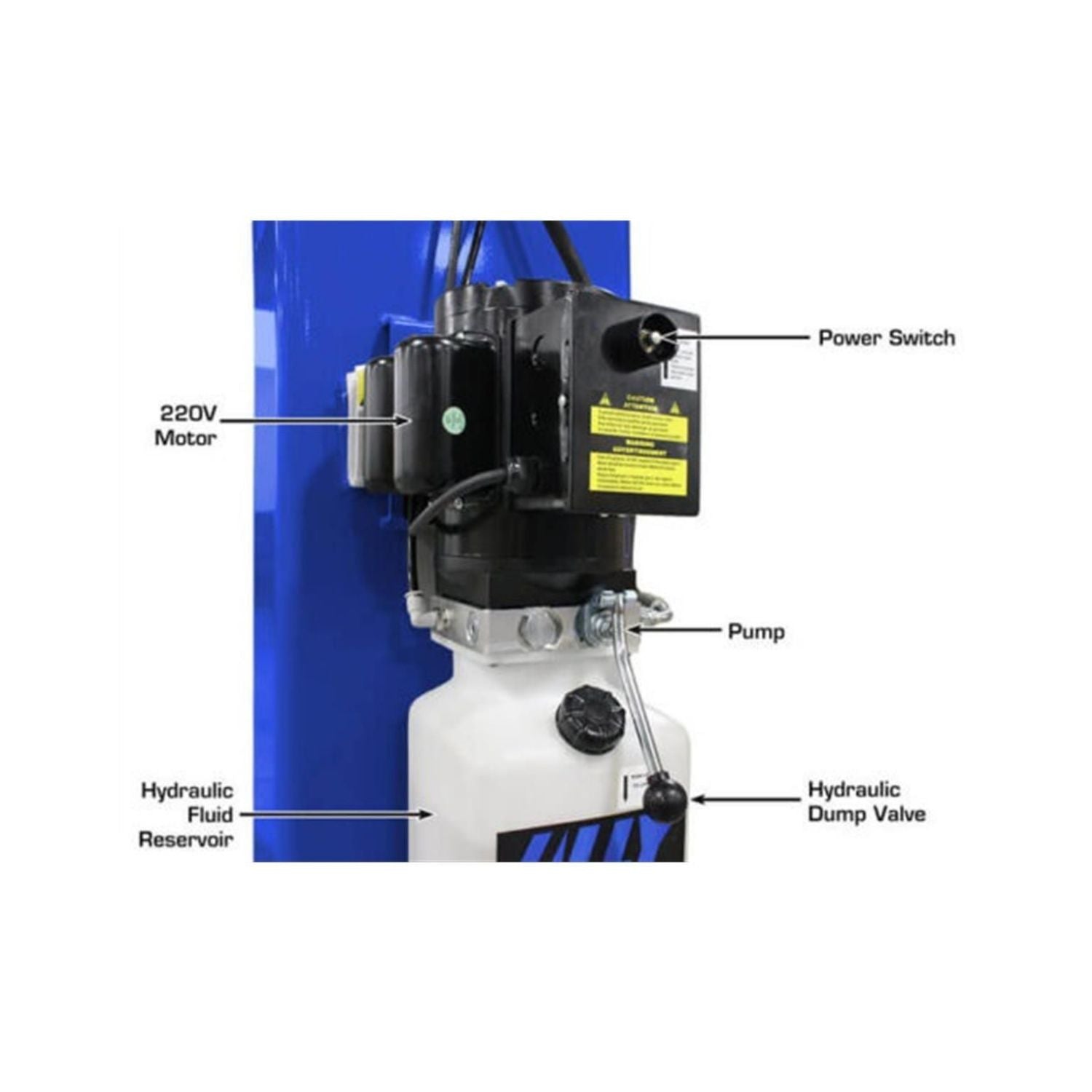

The PVL15-EXT is powered by the premium ALLY Hydraulic AL2300 power unit, certified by MET Laboratories for U.S. and Canadian electrical compliance. Its upgraded motor windings and heavy-duty armatures reduce heat buildup while maintaining consistent lifting torque throughout operation.
-
FEATURES AND BENEFITS
- ALI Certified Lift
- 15,000 lb. Capacity
- 2 Foot Height Extension Kit Included
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide

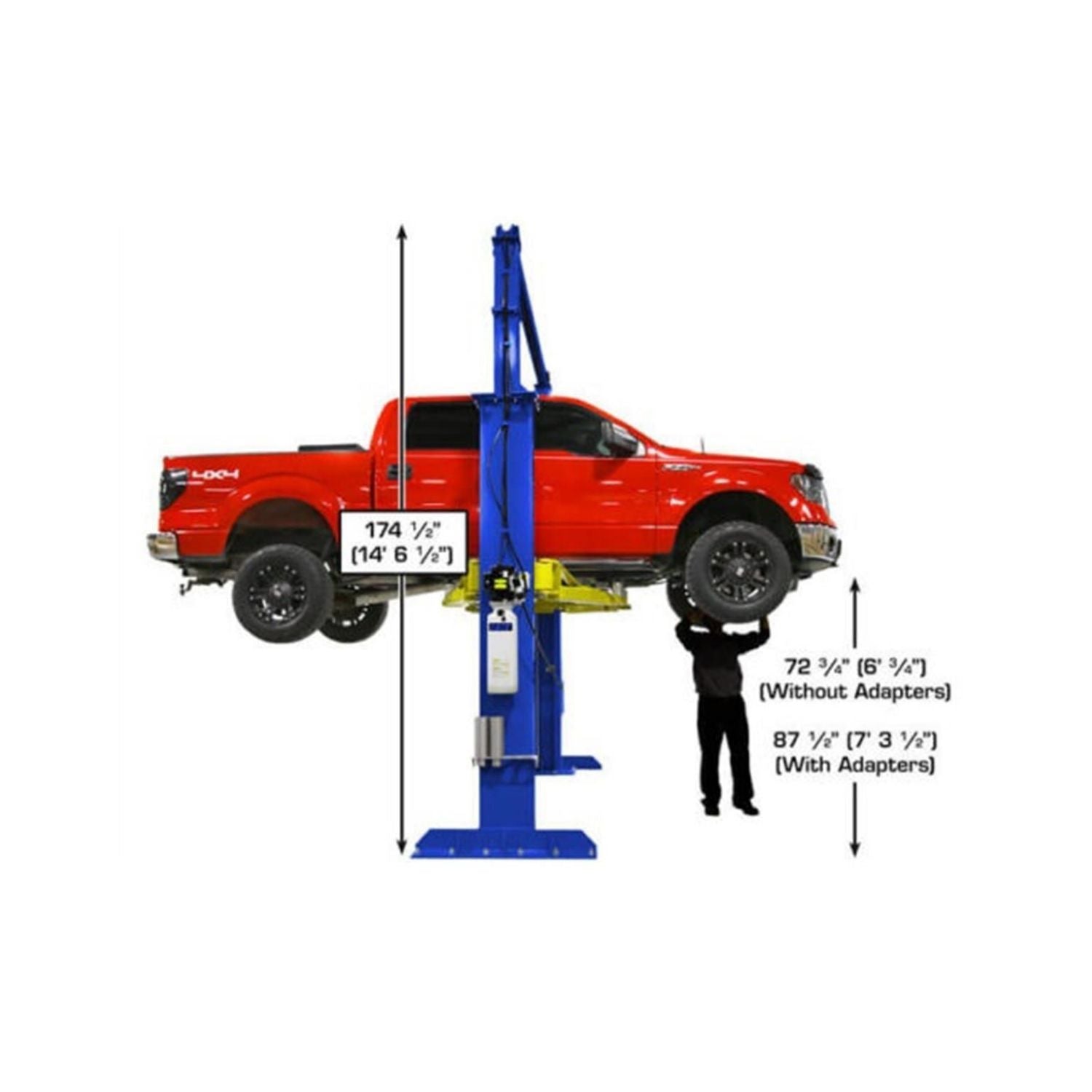

- Overall Height 174 1/2" (14' 6 1/2")
- Padded Carriages

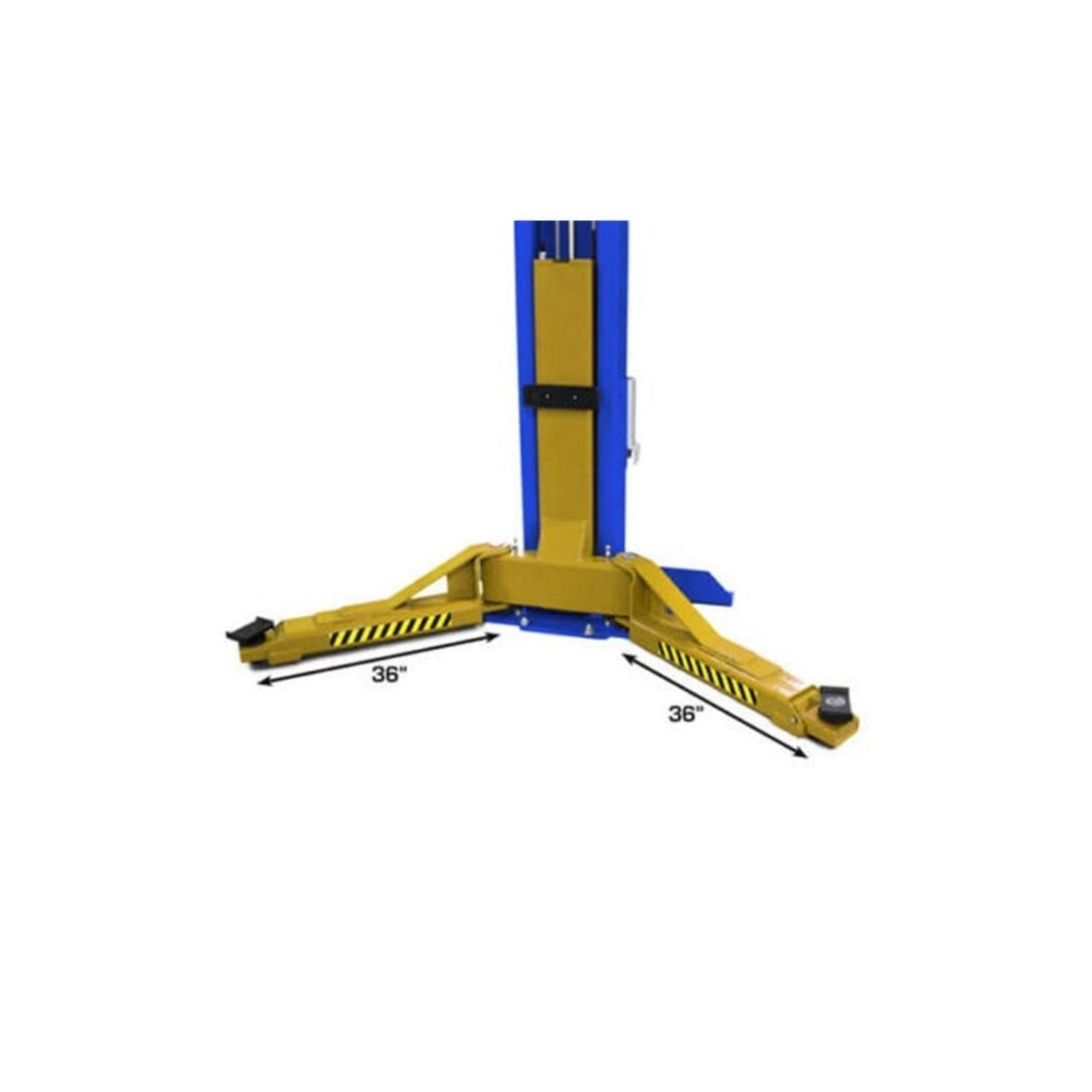

- Symmetric Arms
- Professional Grade Arm Lock Restraint System

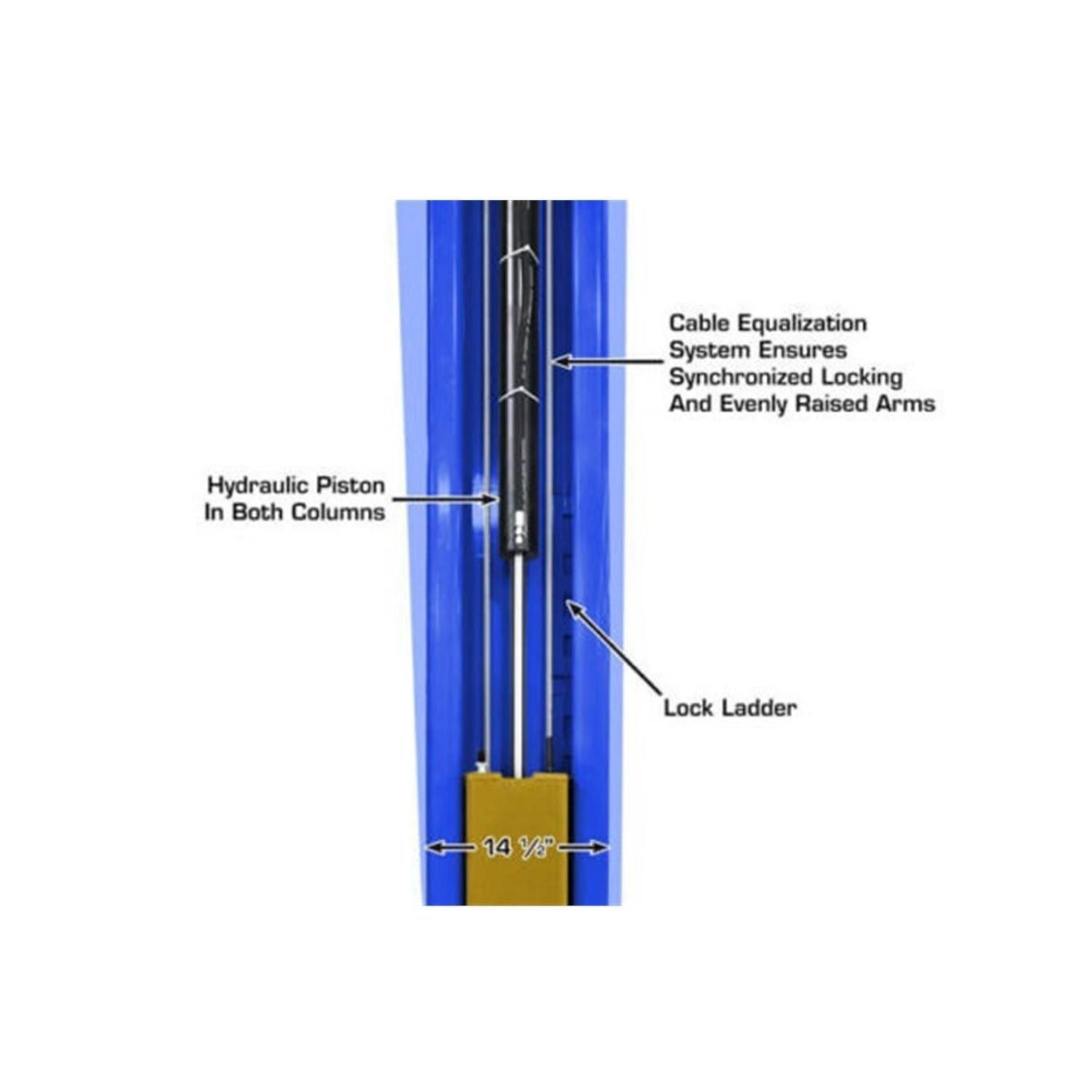

- Dual Direct-Drive Hydraulic Cylinders

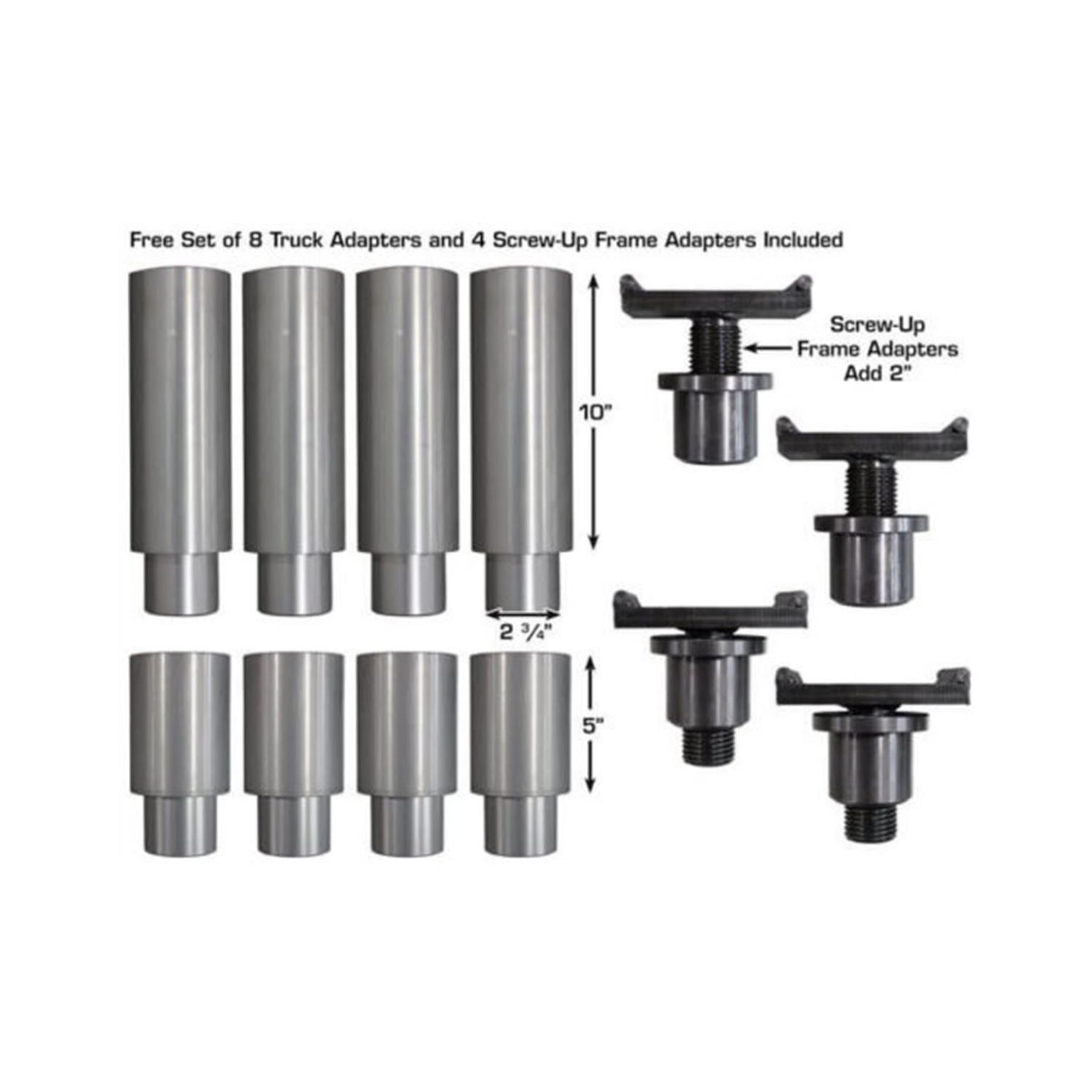

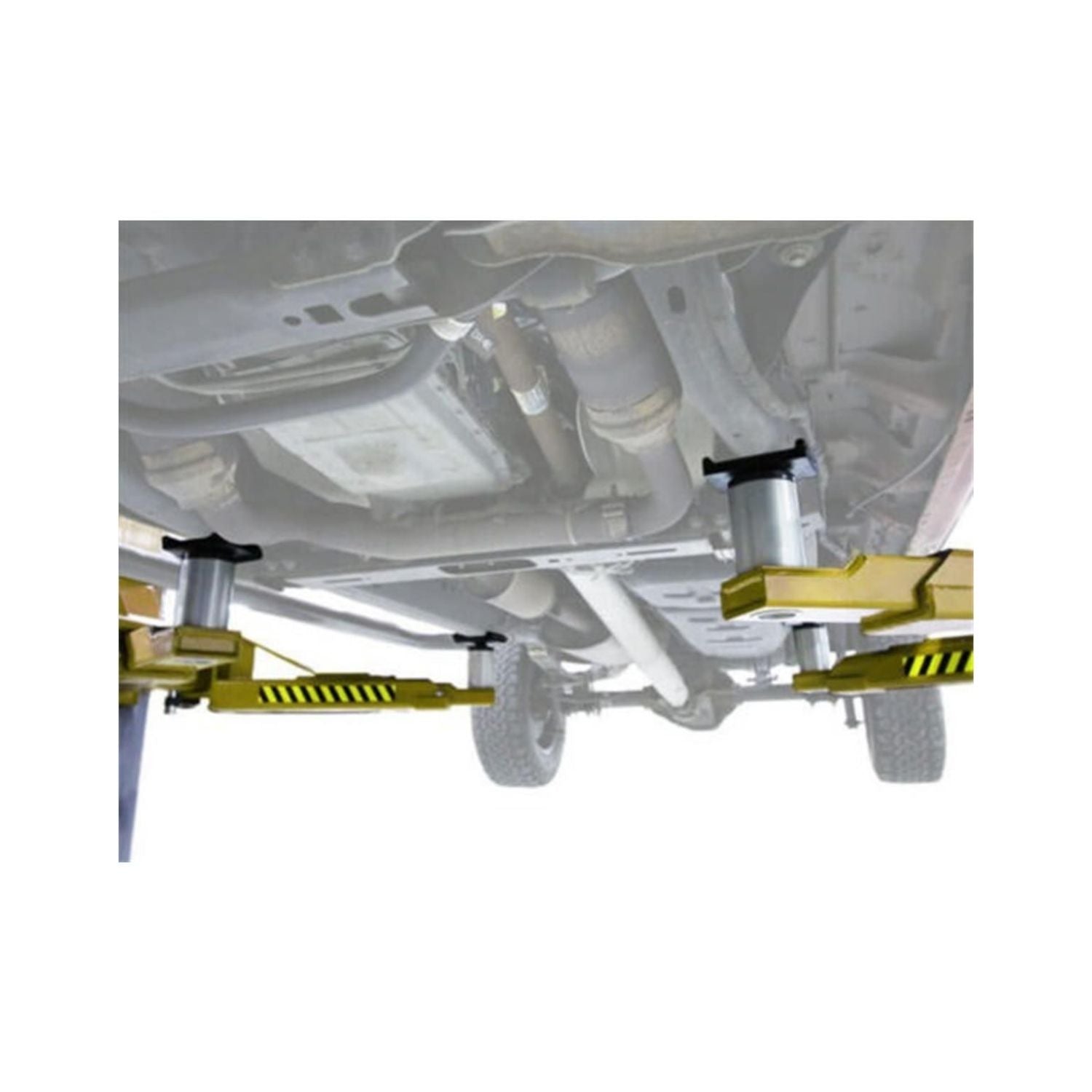

- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
- Heavy Duty 3/8" Equalization Cables
- Mounting Hardware Included
- Standard with Premium ALLY Power unit

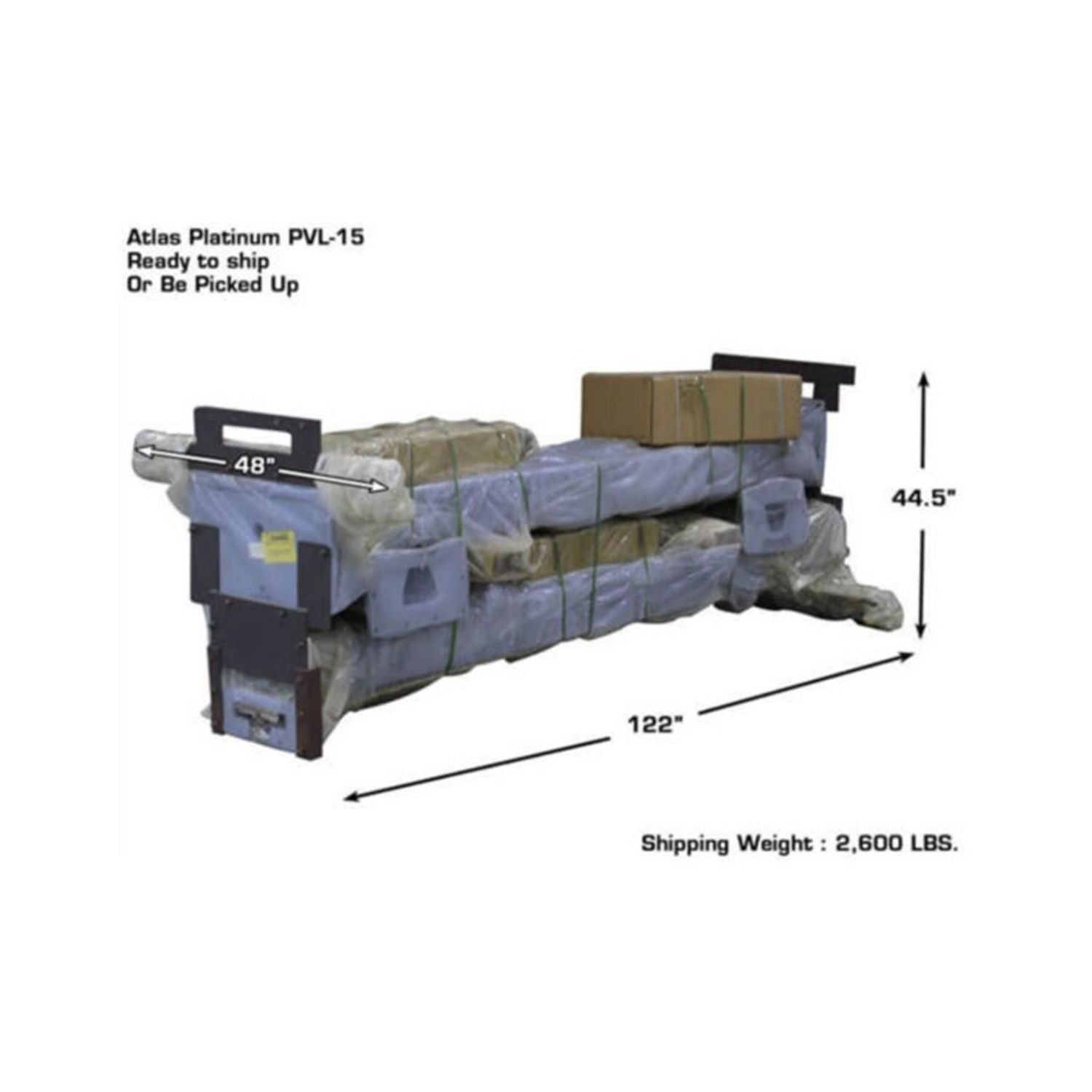

- Shipping Weight: 2,600 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
- This part number Freight Prepaid
-
SPECIFICATIONS

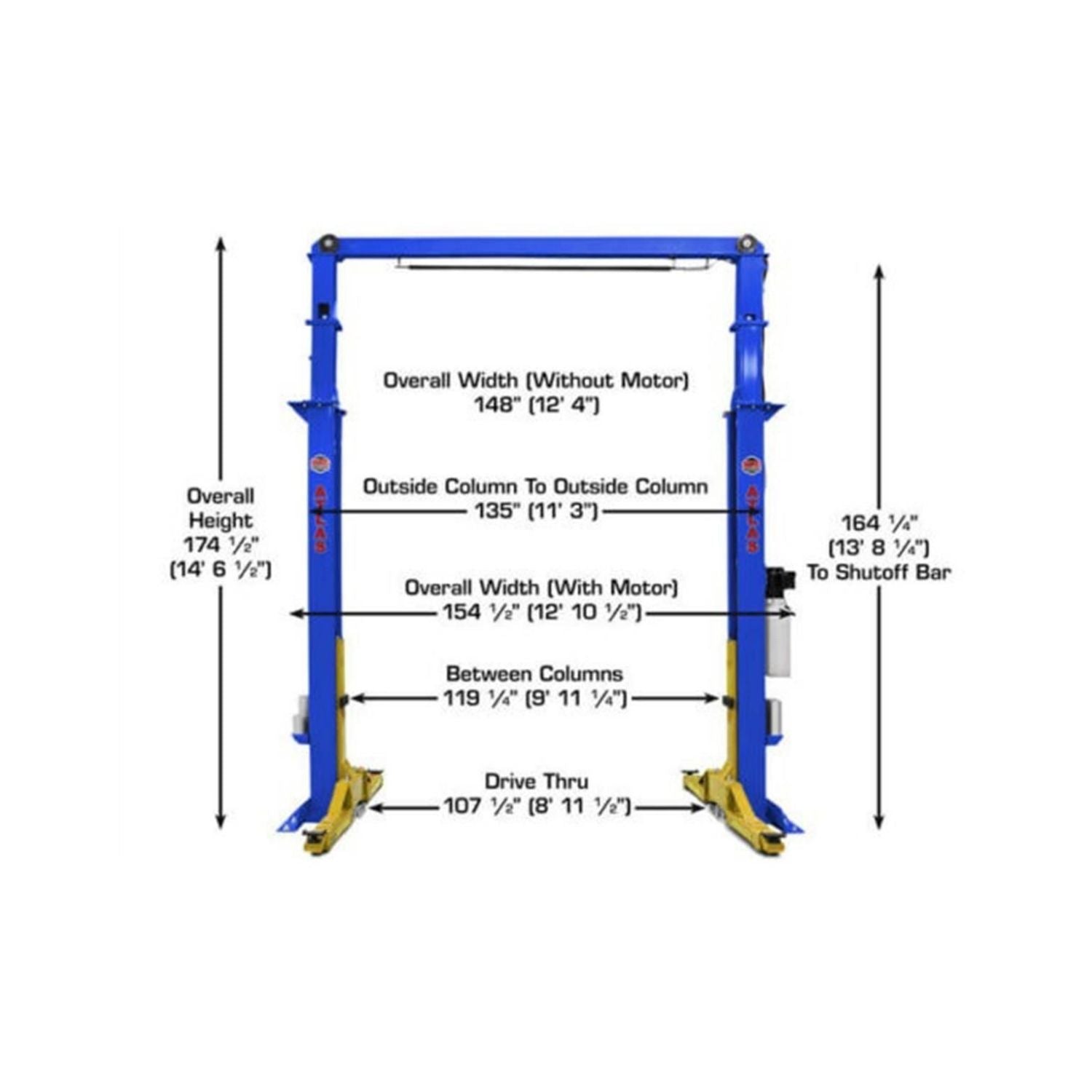

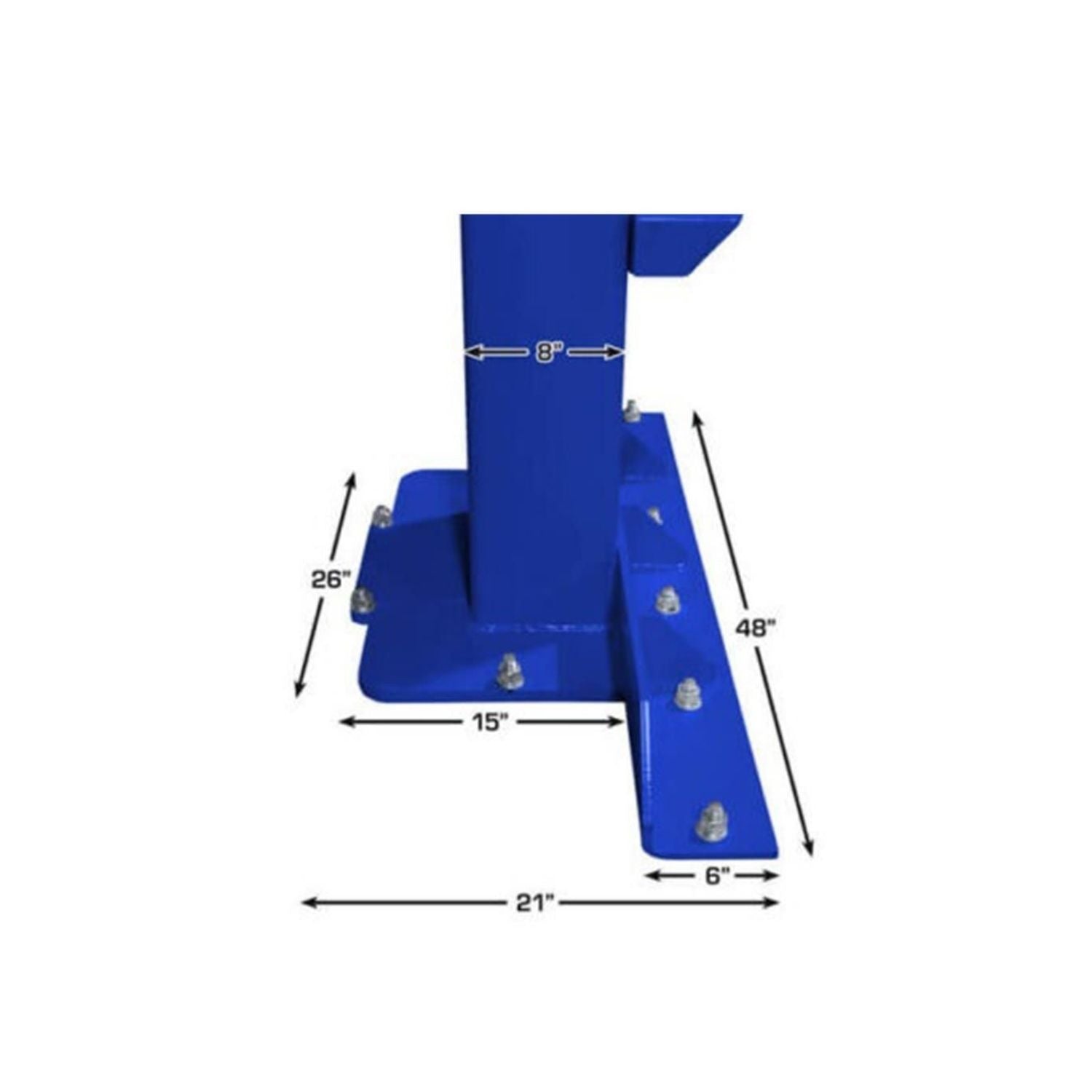

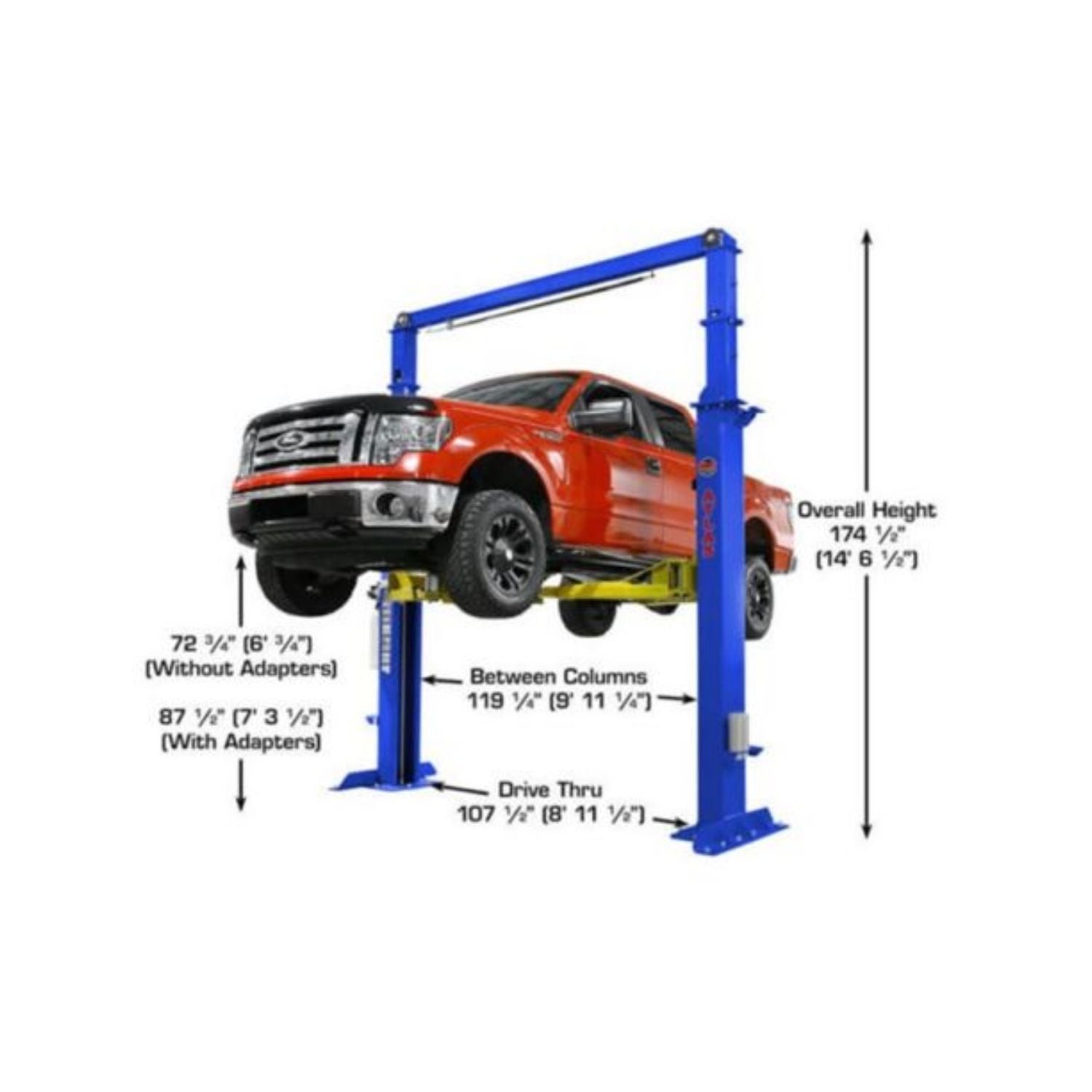

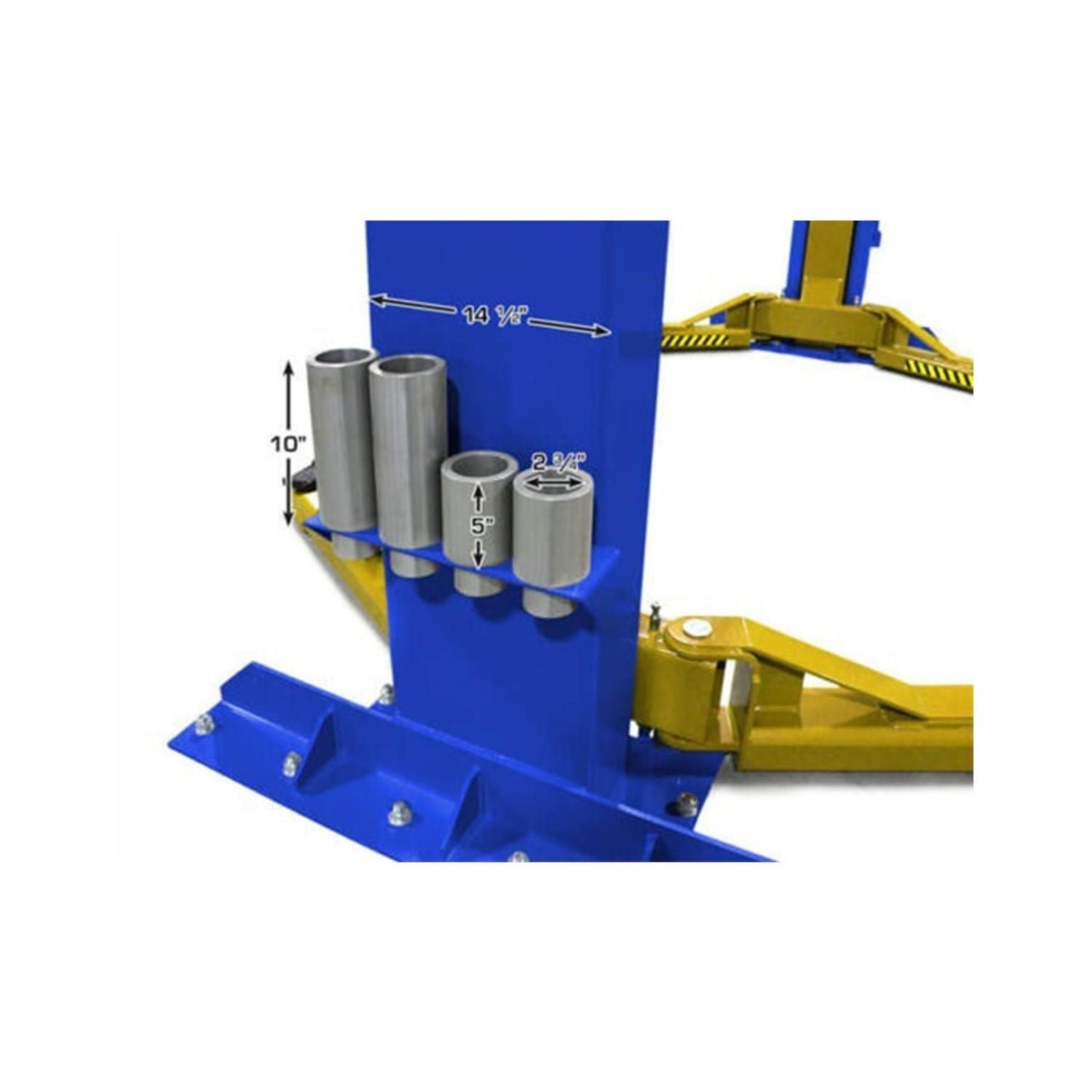

Atlas® Equipment Platinum Brand: Atlas® Equipment Platinum Part Number: ATEAP-PVL15-EXT-FPD Dimensions: 144" L × 49" W × 45" H UPC: 810524029889 Country of Origin: CHN Capacity: 15,000 LB Overall Height: 198 1/2" (16' 6 1/2") Overall Floor Width: 148" (12' 4") Outside Column to Outside Column: 135" (11' 3") Maximum Lift Height (Without Adapters): 72 3/4" Maximum Lift Height (With Adapters): 87 1/2" Minimum Arm Height: 6" Inside Column: 119 1/4" (9' 11 1/4") Drive Thru: 107 1/2" (8' 11 1/2") Column Size: 8" x 14 1/2" Column Thickness of Steel: 8mm Base Of Lift: 21" x 48" Motor/Electrical Requirement: 220 volt single (1) phase (30 amp breaker recommended) Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight: 2,750 LBS Adapter Heights: 4 Each 5”, 10” Arm Hole/Adapter Peg Size: 2.75” Concrete Requirement: Minimum 6" concrete with 3000 psi rating
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
