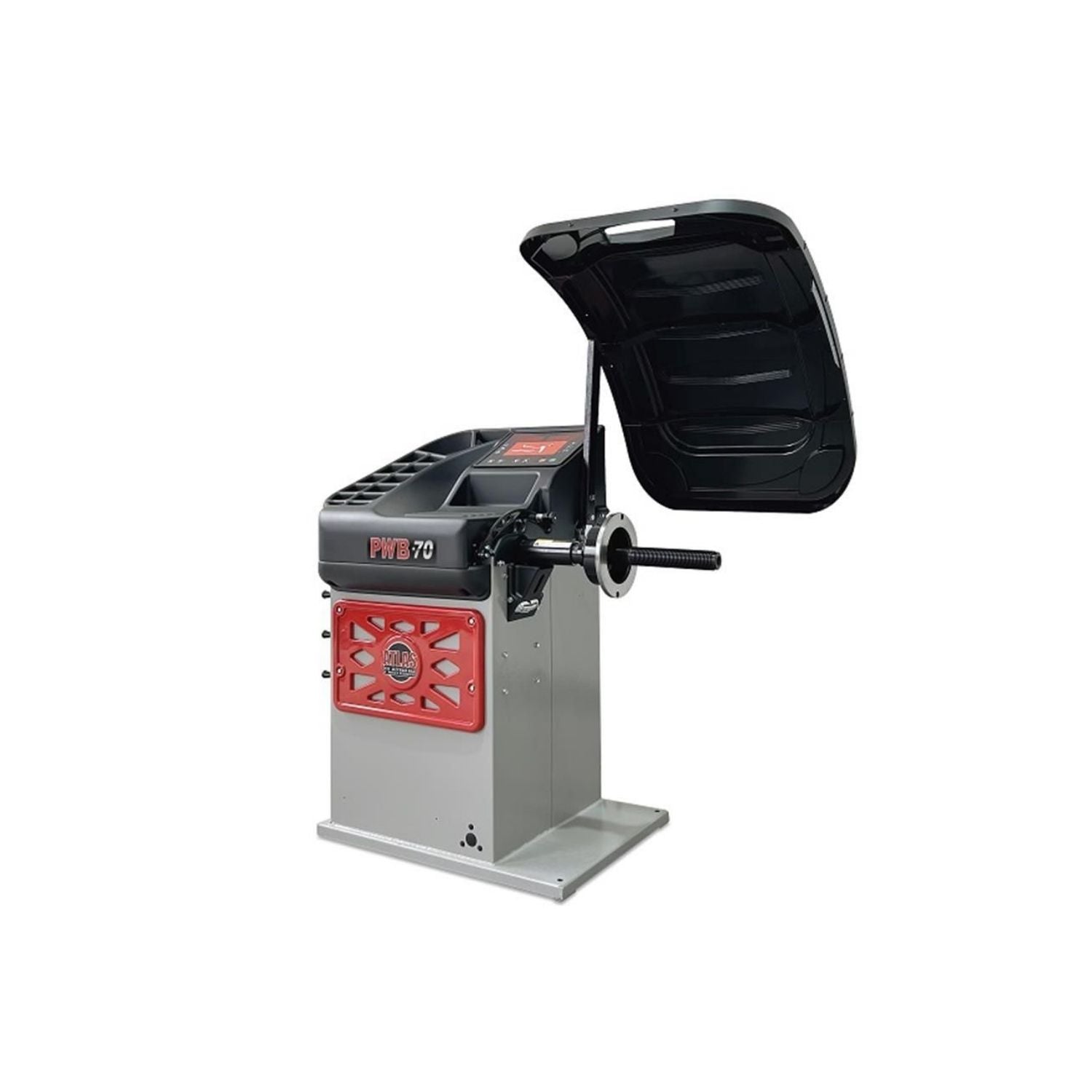

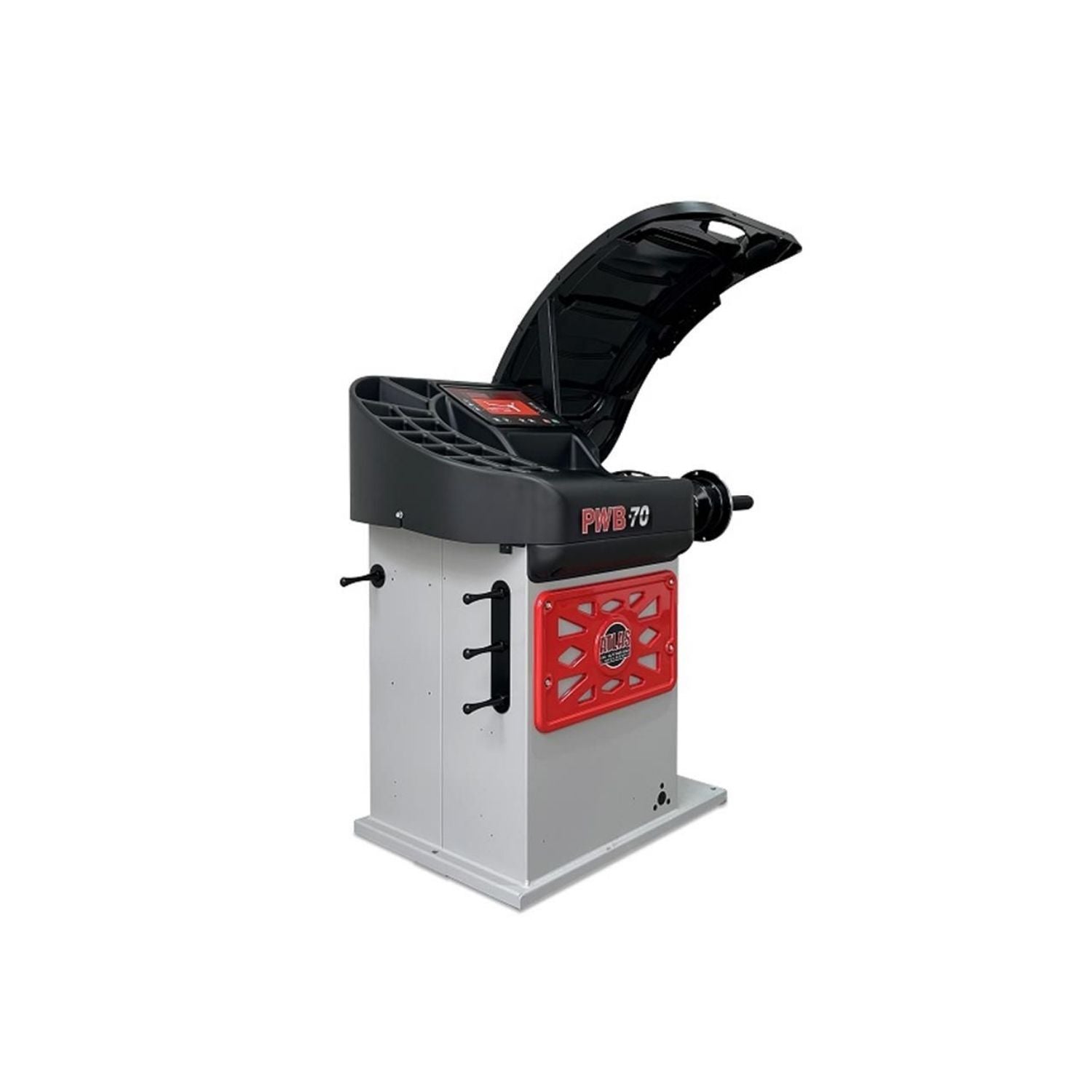

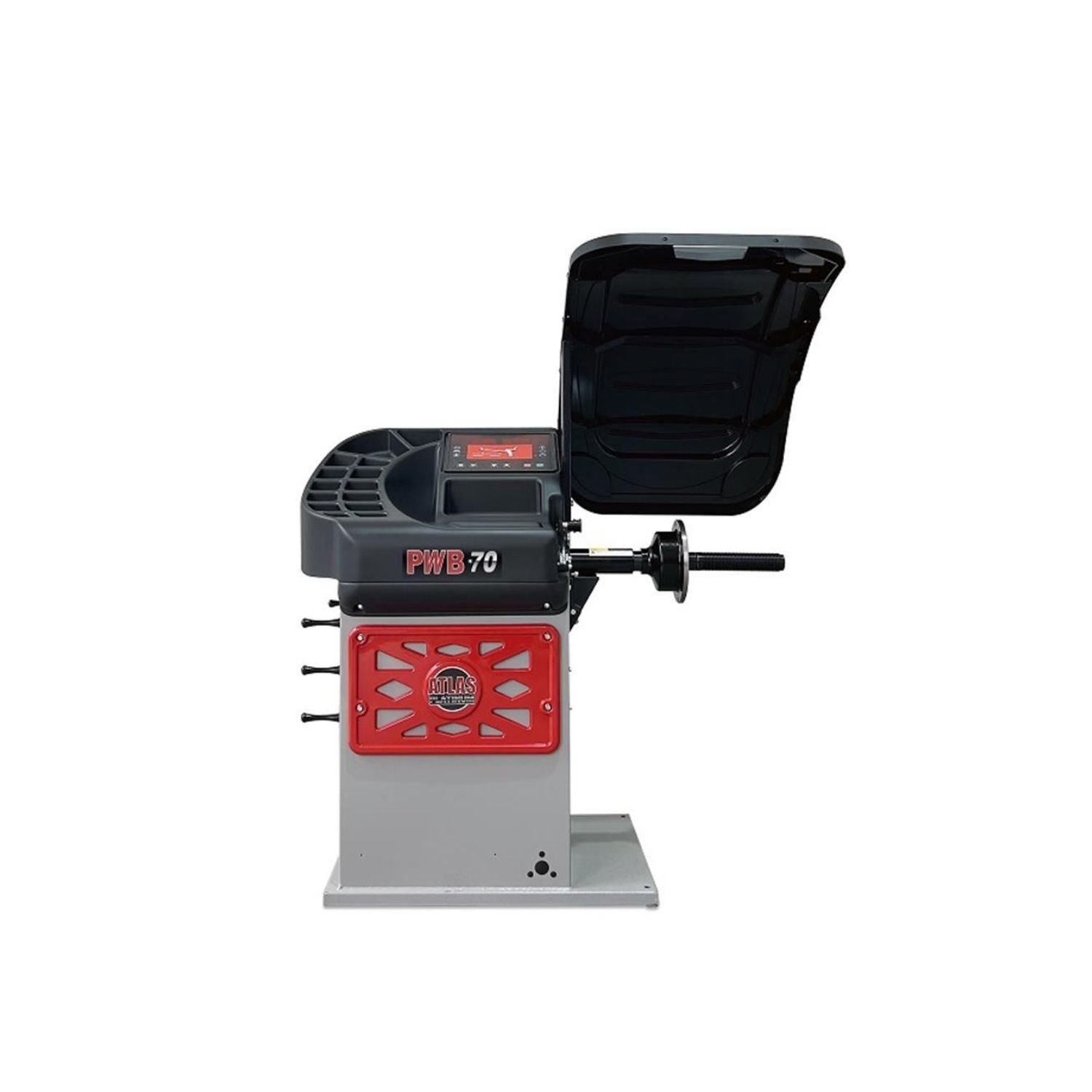

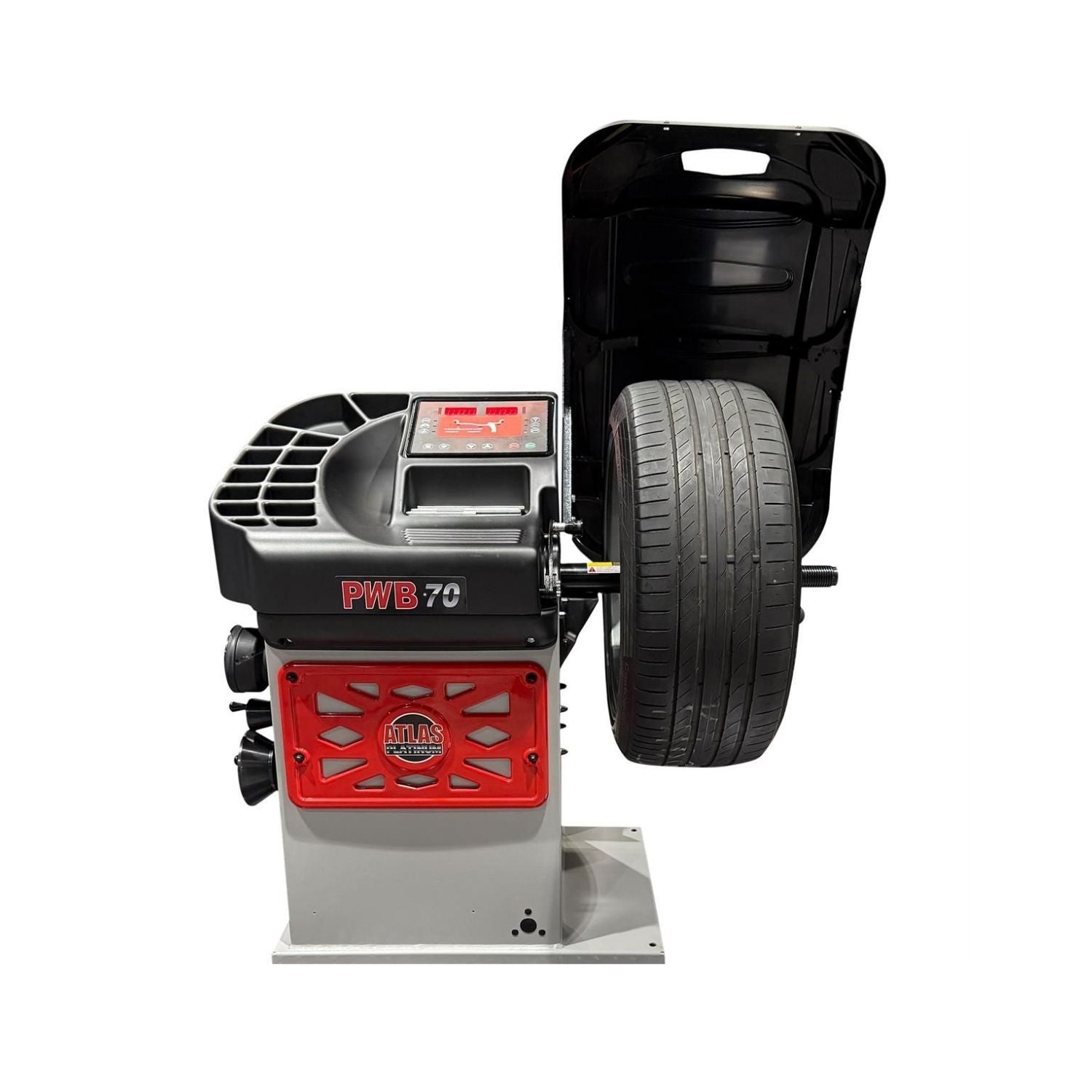

Atlas® Platinum PWB70 Motorized Spin Balancer with Laser #ATEAP-PWB70-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® Platinum PWB70 Motorized Spin Balancer w/ Laser is a premium commercial-grade wheel balancer engineered for high-volume tire shops and professional automotive service facilities demanding speed, accuracy, and advanced wheel balancing technology.

  Built as an upgraded version of the already popular PWB50, the PWB70 adds several premium enhancements including a laser line weight-placement guide, integrated LED wheel illumination, a larger wheel weight tray, and an oversized hood for easier handling of larger wheel and tire assemblies. These upgrades improve technician visibility, balancing precision, and overall workflow efficiency.

  The PWB70 features Automatic 2D Data Entry through a single measuring arm and includes advanced balancing technologies such as:

  • FES (Fast & Easy Split) for hiding adhesive weights behind spokes
  • OWF/OPF (Opposite Weight Function) for improved weight placement accessibility
  • OPTIMATCH software for tire-to-wheel match mounting optimization
  • Special ALU-S balancing modes for alloy wheel applications



  Its Italian-engineered electronics and precision balancing system deliver 1-gram balancing accuracy, fast 7-second cycle times, and support for wheels up to 165 lbs, making the PWB70 ideal for alloy, low-profile, performance, and light truck wheel balancing.

• FEATURES AND BENEFITS

  • Platinum Computer Controlled Motorized Spin Balancer
  • Italian Engineering and Components
  • Electric brake with smart approach function
  • Large Wheel Weight Tray
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Optimatch, FES (Split), OPF (Opposite Position) Functions
  • Special ALU-S and other ALU Programs
  • Automatic 2D Data Entry
  • NWN (no wheel need) System
  • Self-Diagnosing and Self-calibrating
  • USB hub for firmware update through PC/Notebook
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • Laser Line to guide weight placement
  • LED light illuminates wheel interior
  • No anchor-down installation needed
  • Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
  • Replacement Parts & Wear Items Always in Stock
  • 2 Year Parts Only Warranty


• SPECIFICATIONS

  Atlas® Equipment Platinum
  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-PWB70-FPD
  Dimensions:	46" L × 39" W × 30" H
  Weight:	280 lbs
  UPC:	810524025775
  Country of Origin:	CHN

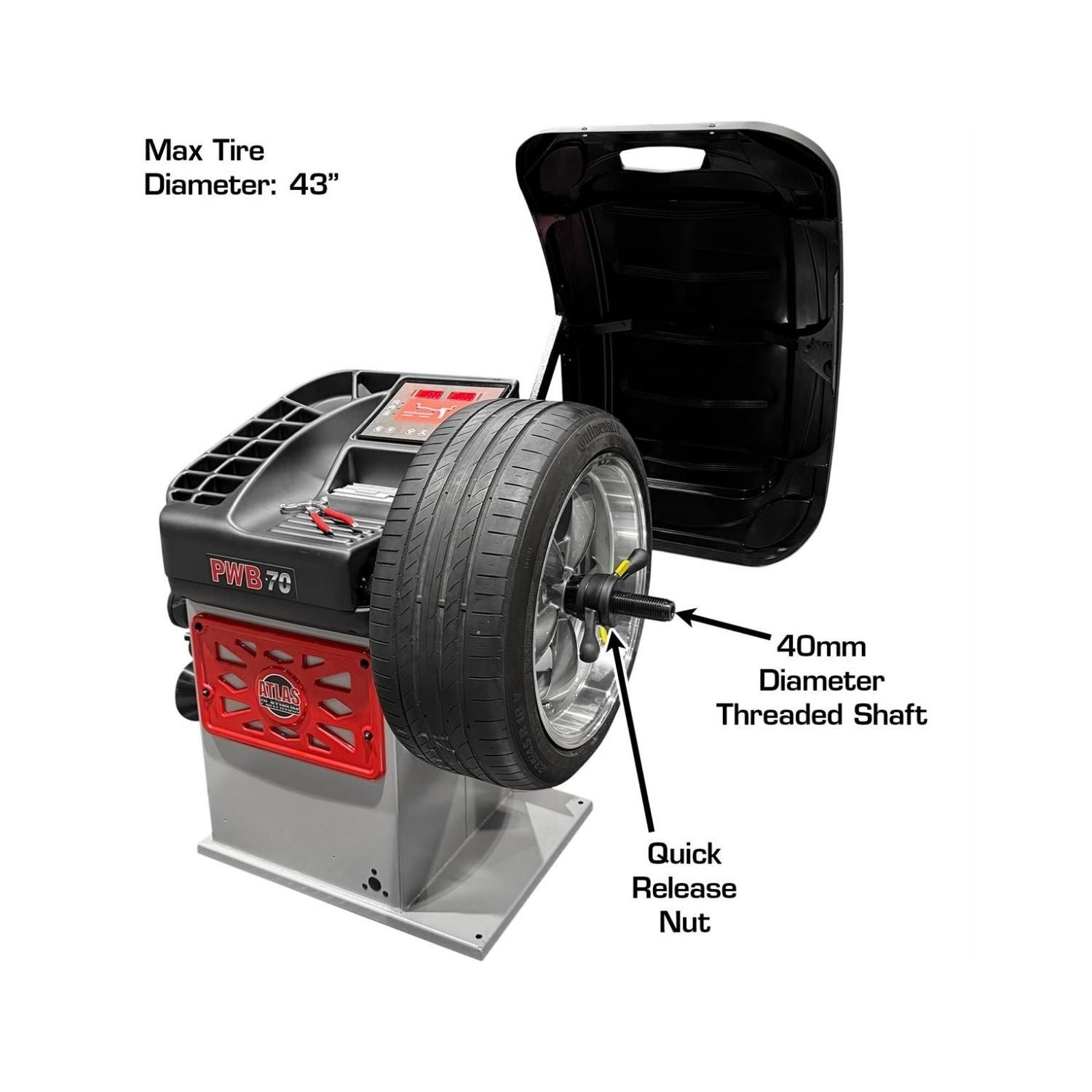

  Max Tire Diameter:	43"
  Rim Sizes (Cars and Light Trucks):	10"-30"
  Rim Width:	1 1/2"-20"
  Shaft Size:	40mm
  Max. Wheel Weight:	165 lbs.
  Balancing Speed:	130 rpm
  Data Entry:	Automatic 2D
  Measurements:	Standard Or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self-Calibration:	Yes
  Cycle Time:	7 seconds
  Power Supply:	110volt

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
