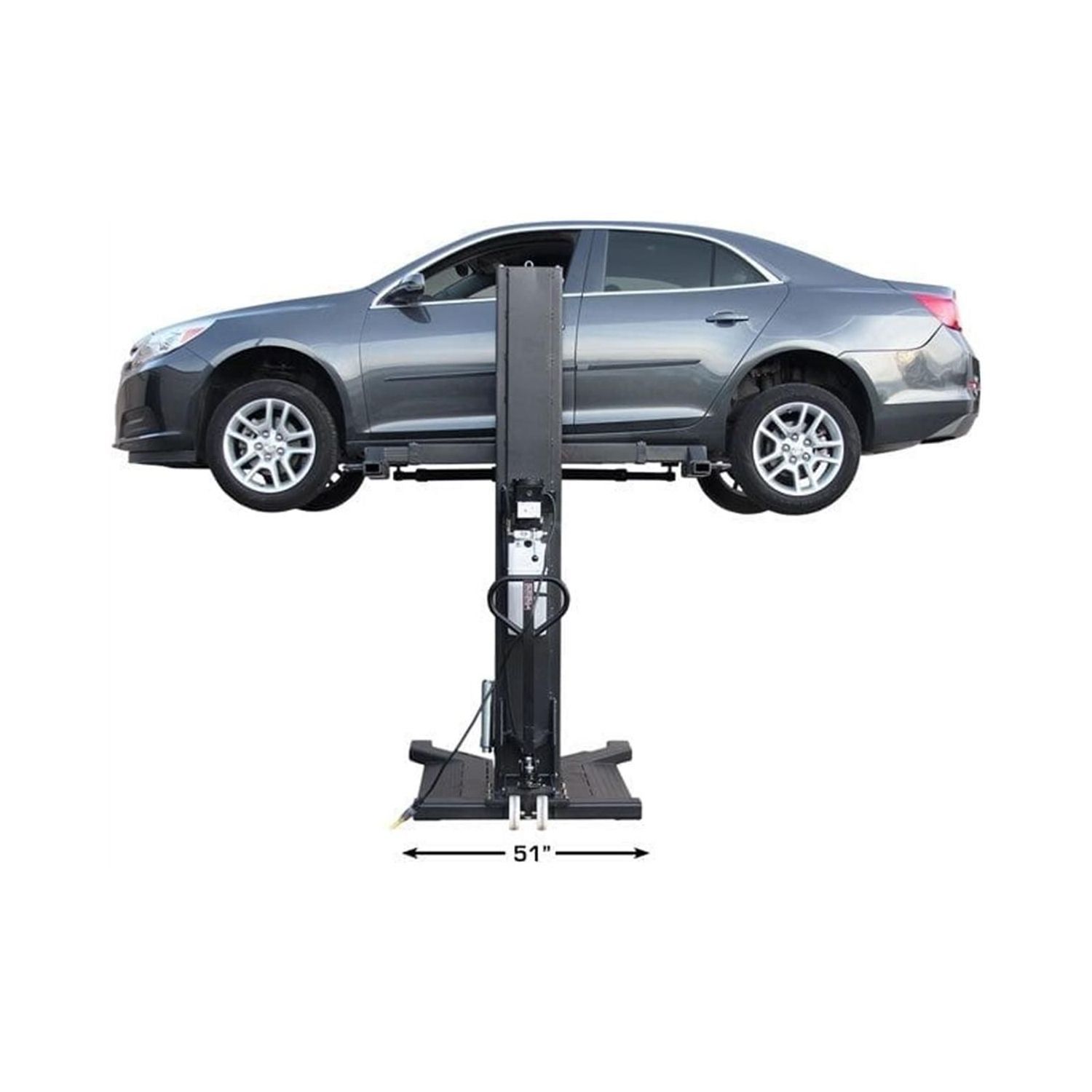

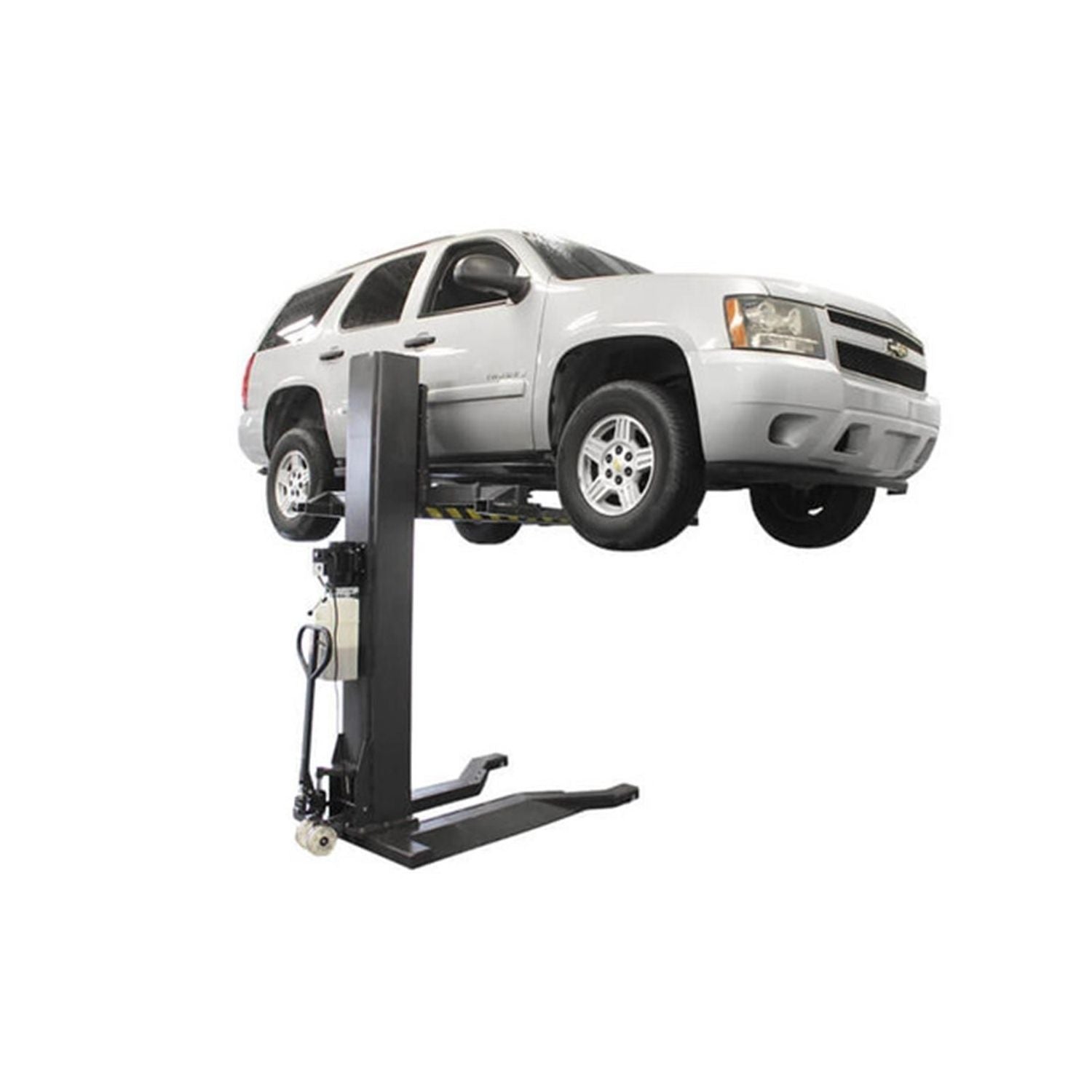

Atlas® PSP-6000 6,000 lb. Portable Single Post Lift #ATEXH-PSP-6000-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® PSP-6000 6,000 lb. Portable Single Post Lift is a compact and versatile lifting solution designed for home garages, detailing shops, automotive service facilities, and space-conscious work environments. Featuring a portable single-post design and a 6,000 lb lifting capacity, this lift provides dependable vehicle lifting performance while maximizing usable floor space.

  The PSP-6000 is designed for easy positioning and portability, making it ideal for applications where flexibility and efficient space utilization are important. Its compact footprint allows users to perform maintenance, detailing, wheel service, and storage operations without the permanent space requirements of traditional two-post or four-post lifts. The FPD designation indicates freight prepaid shipping.

• FEATURES AND BENEFITS

  • 6,000 lbs. Capacity
  • Portable
  • Low Profile Design
  • Rigid Base Construction

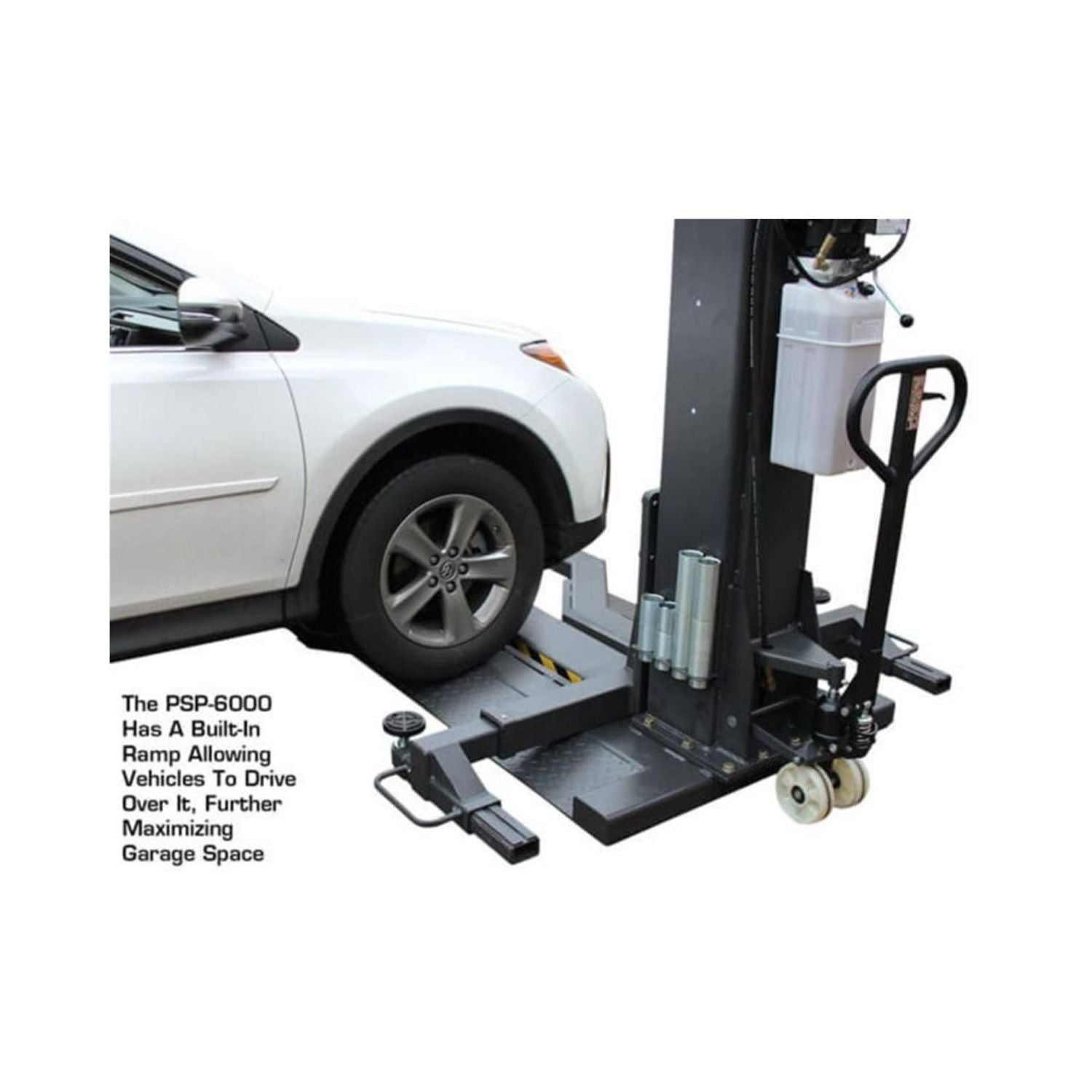

  • Built in Drive-over Ramps

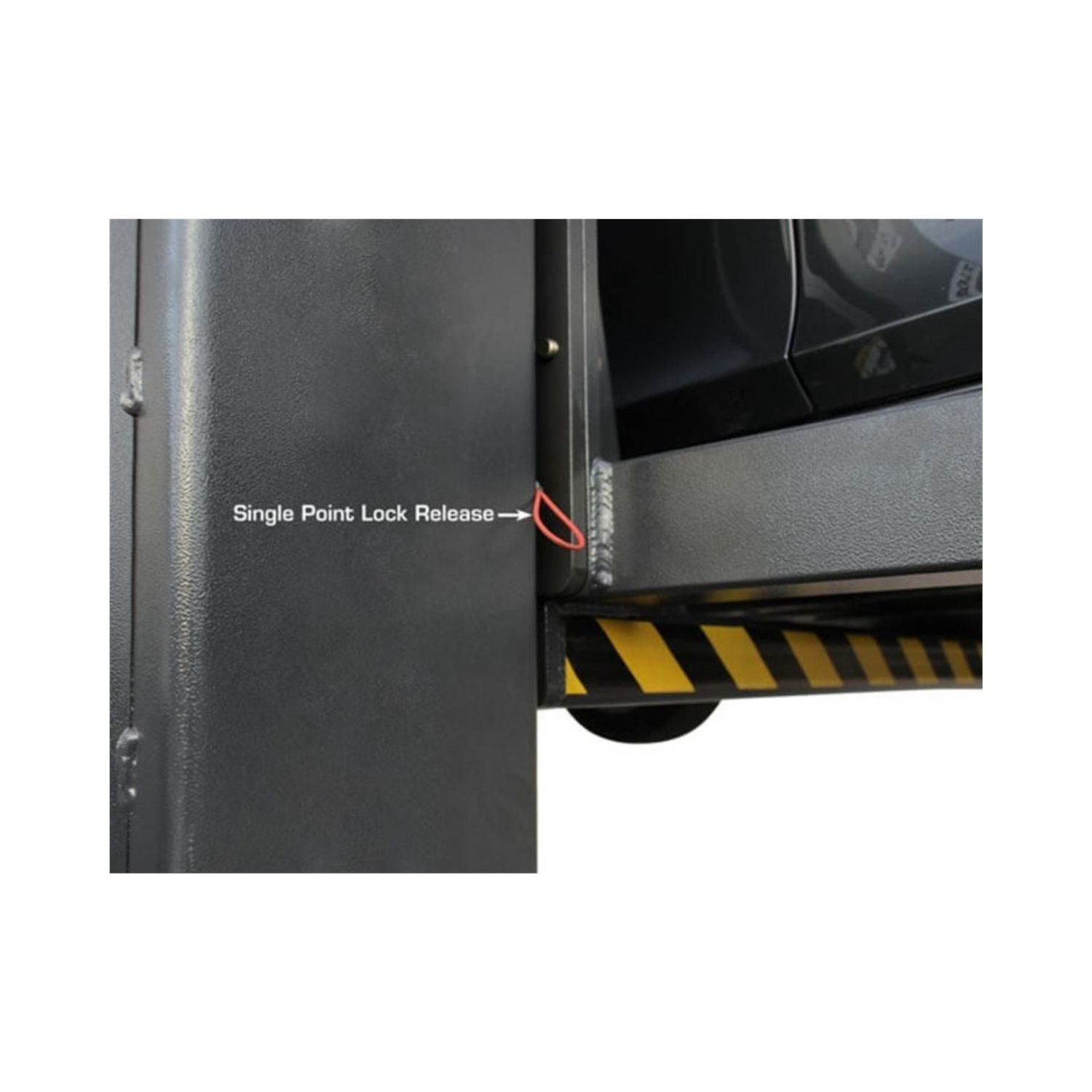

  • Single Point Lock Release

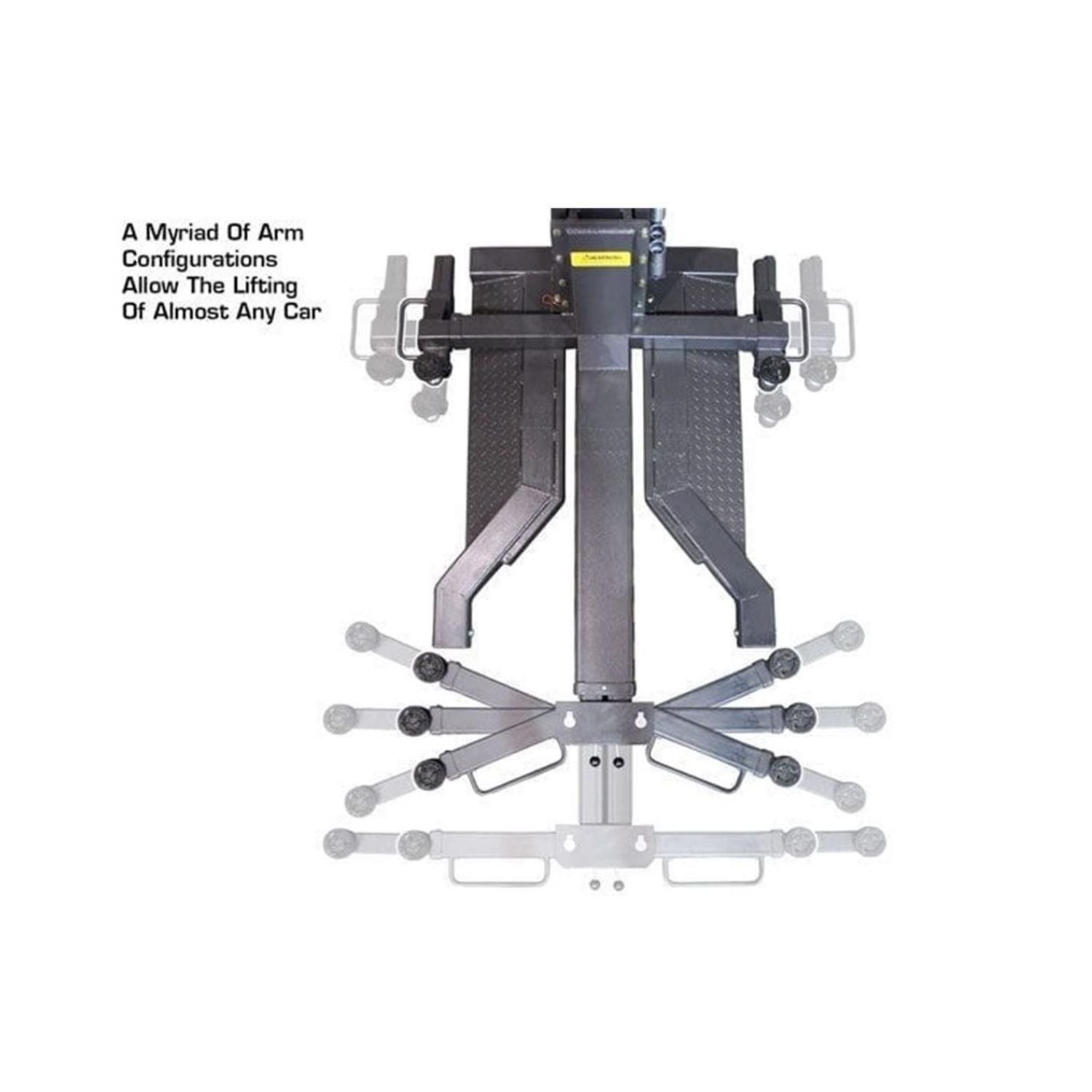

  • Two-Stage Telescoping Swing Arms
  • Locking Arm Restraints

  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)
  • Free 8 Piece Truck Adapter Set

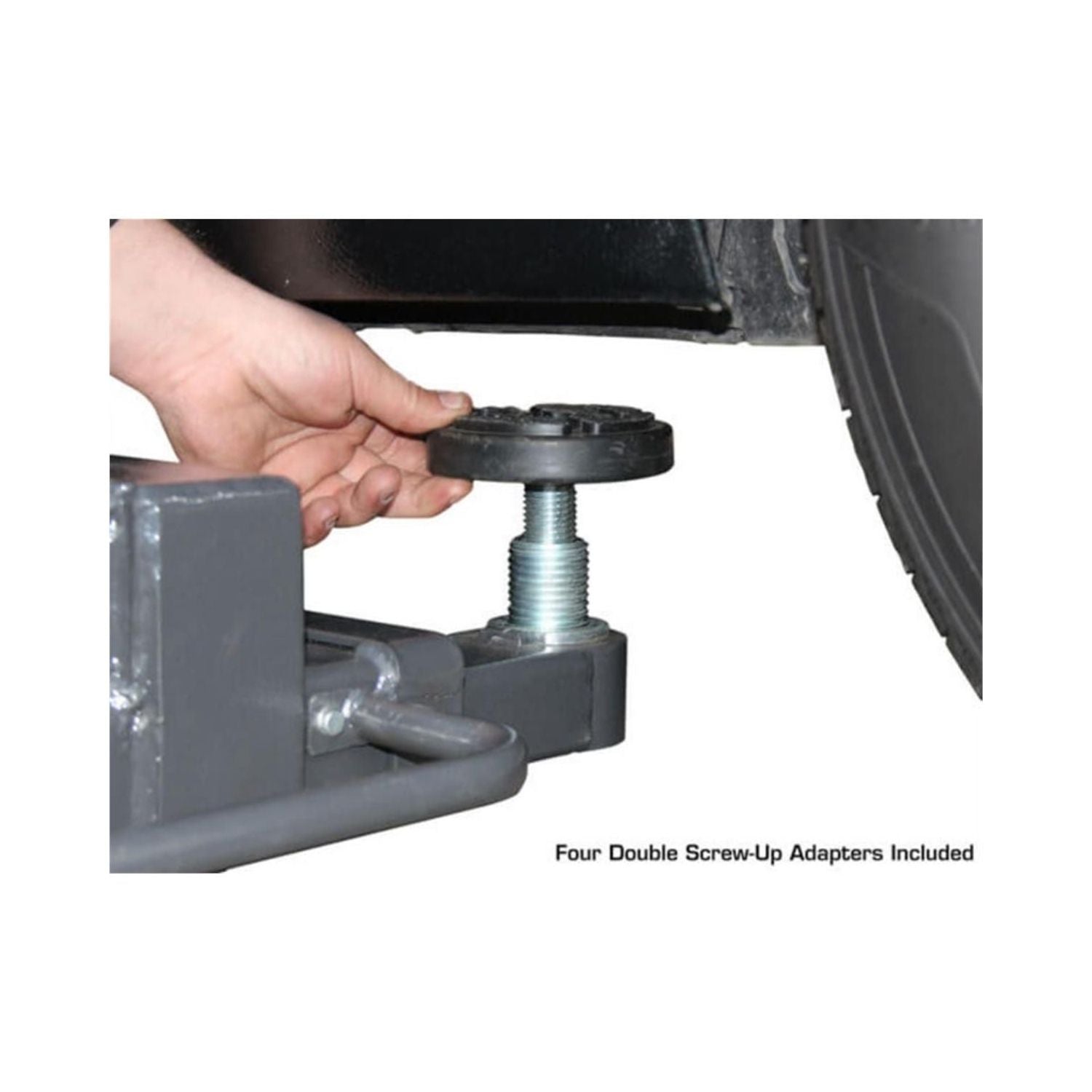

  • Includes Double Screw-up Adapters

  • 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-PSP-6000

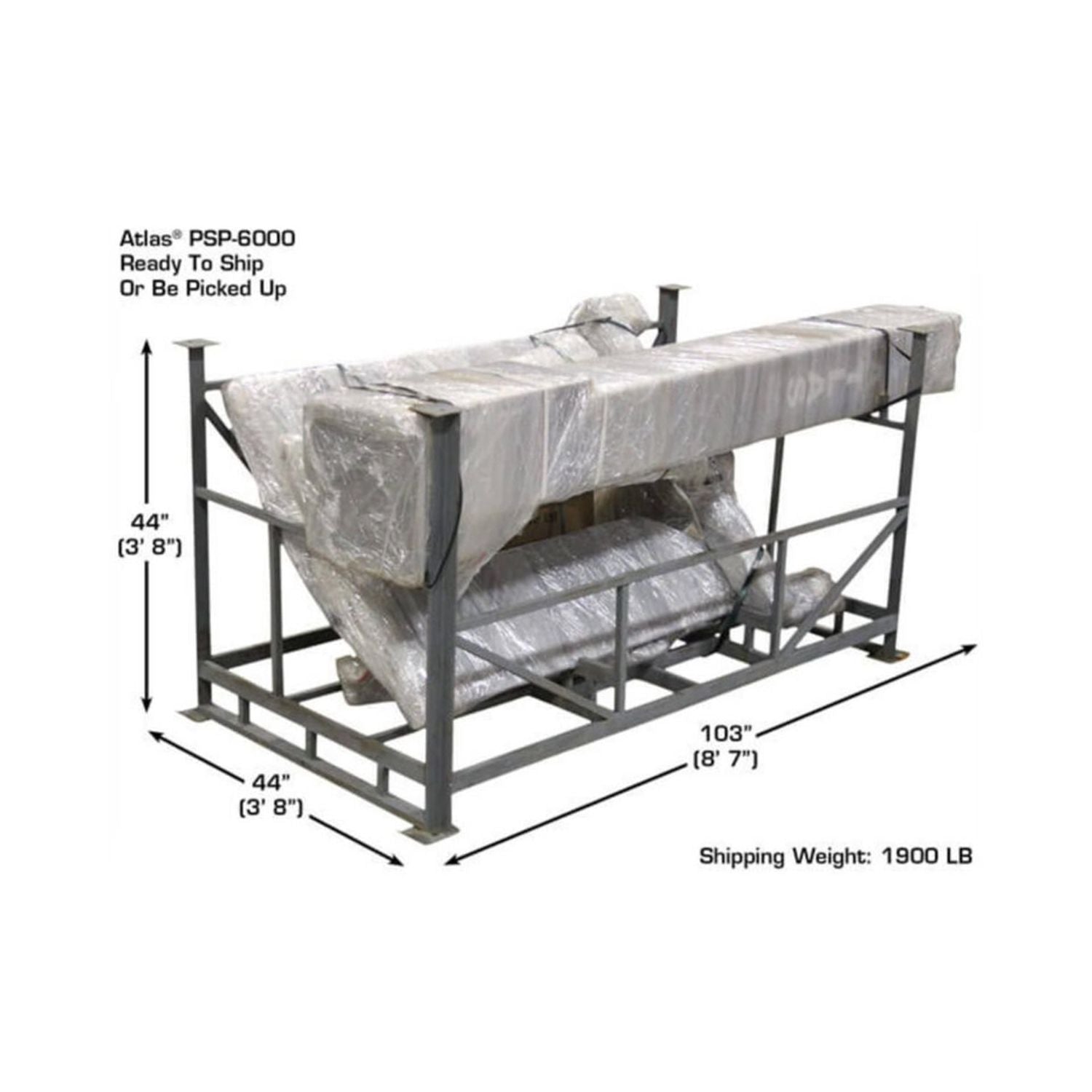

  Dimensions:	103" L × 44" W × 44" H
  Weight:	1,900 lbs
  UPC:	810524026024
  Country of Origin:	CHN
  Capacity:	6,000 lbs

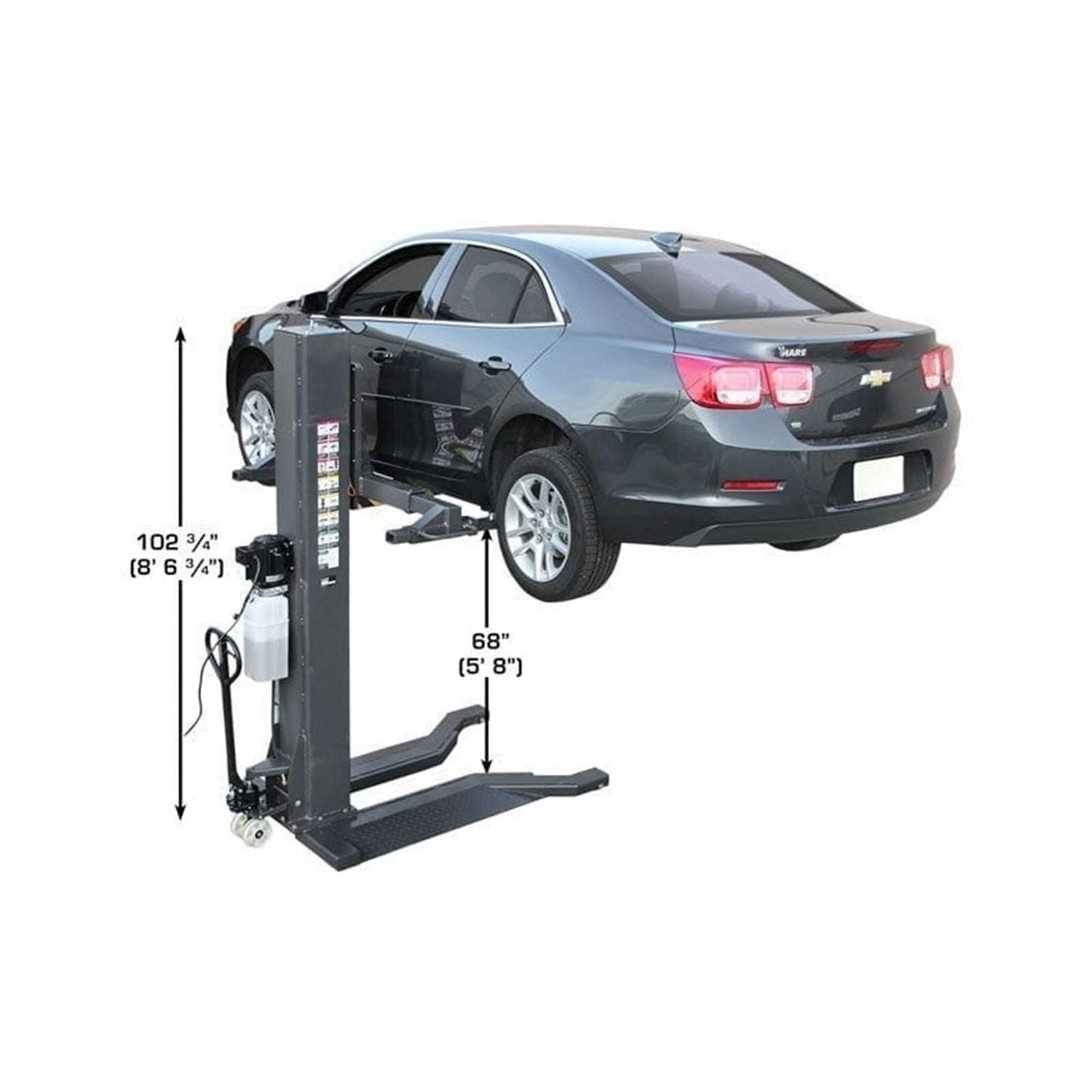

  Overall Height:	102 3/4" (8' 6 3/4")

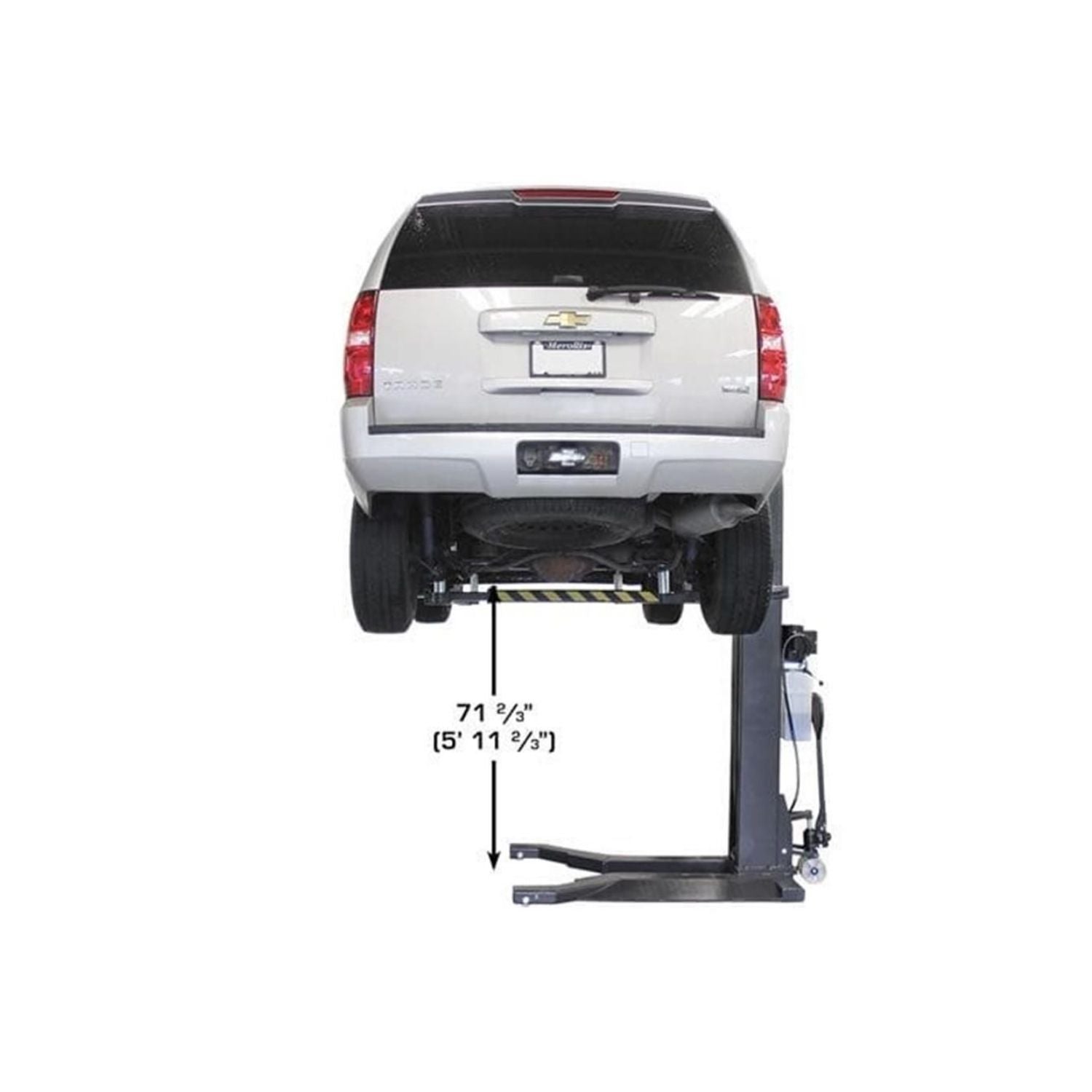

  Max. Lifting Height (Without Truck Adapters):	71 2/3" (5' 11 2/3")

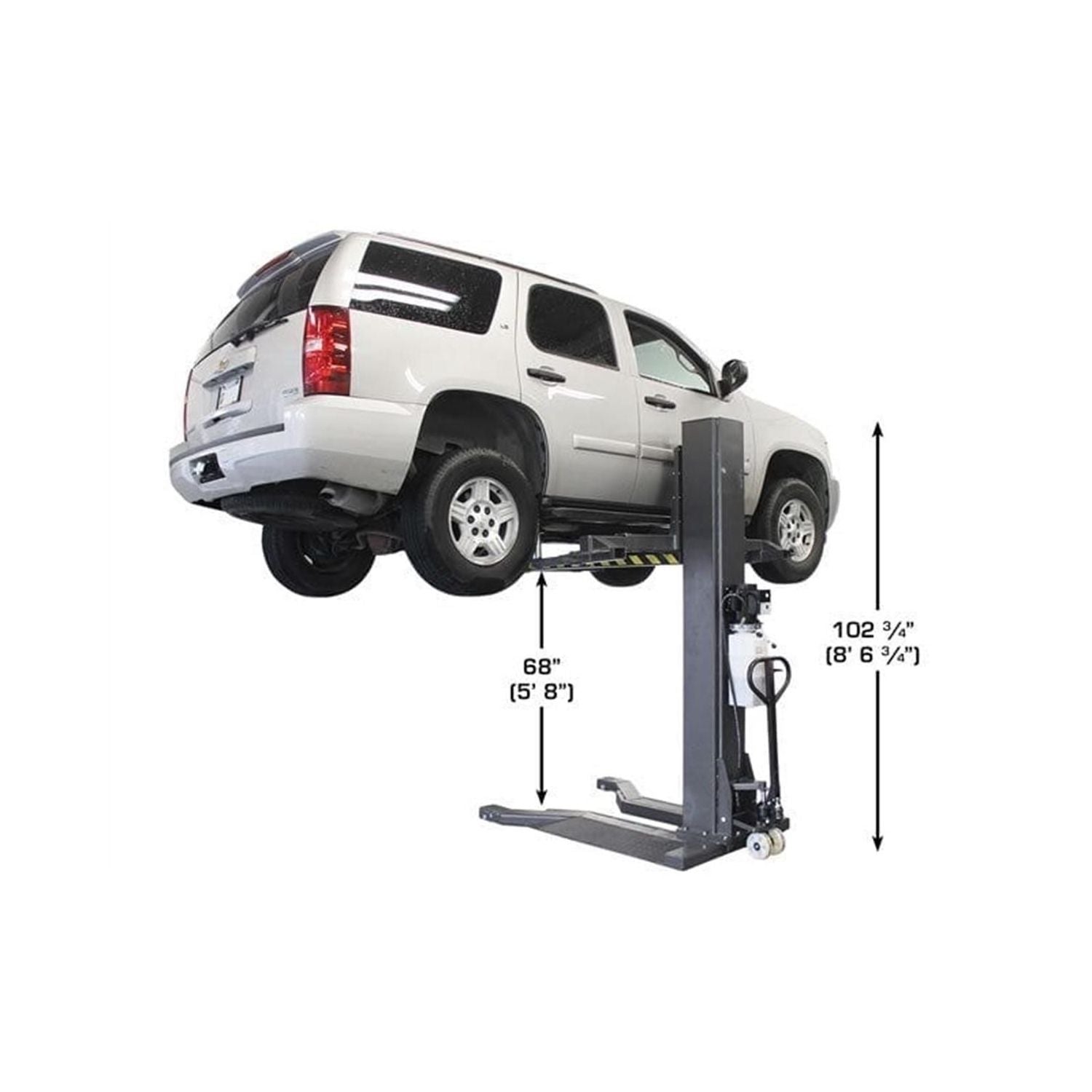

  Max. Clearance:	68" (5' 8")
  Minimum Height:	5"

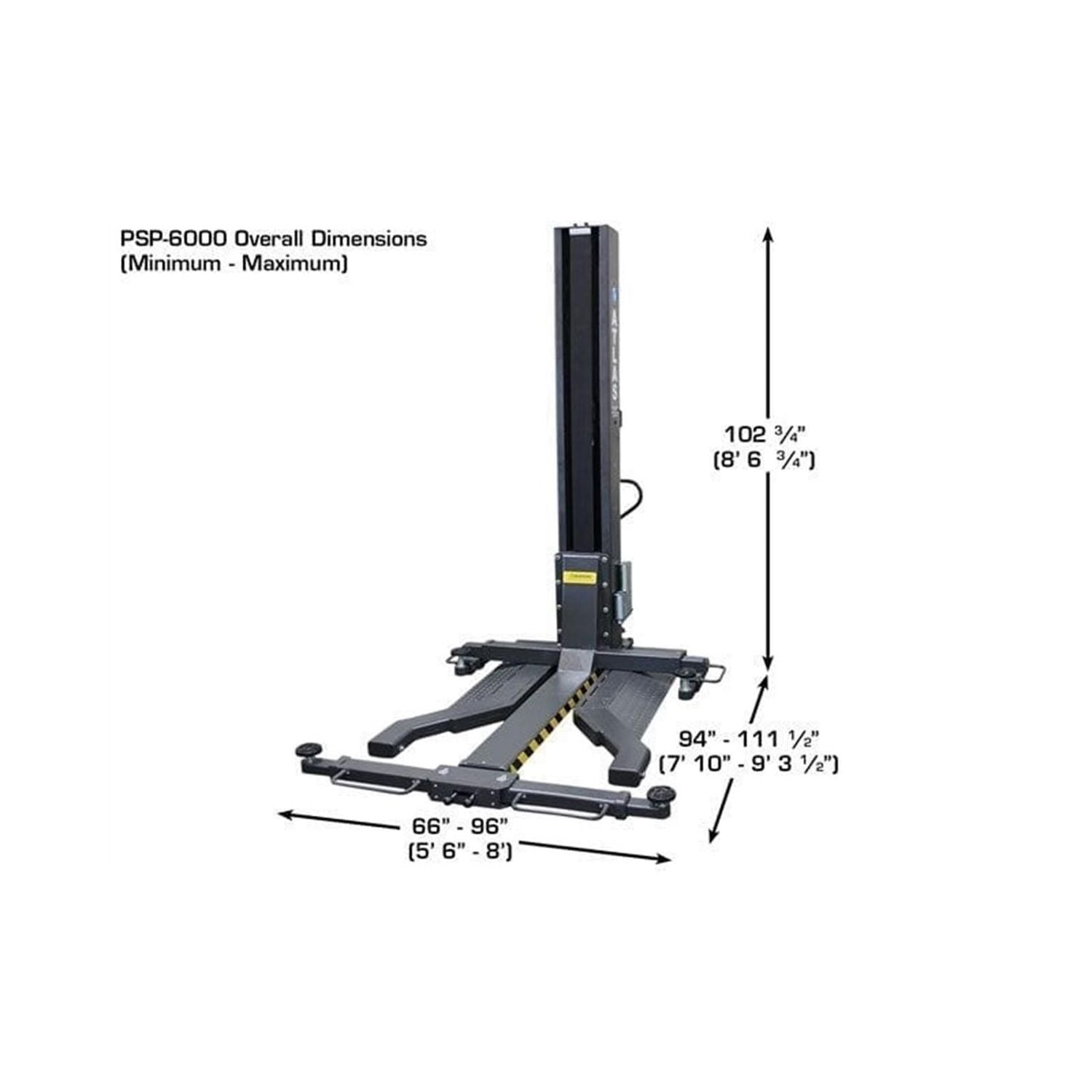

  Overall Maximum Dimensions:	L: 111 1/2" × W: 96" × H: 102 3/4"
  Column Size:	10 1/2" × 12 1/2"
  Distance Between Lifting Pads (Column Side to Offside):	39 1/2" to 81"
  Distance Between Lifting Pads (Column Side to Column Side):	53" to 73"
  Distance Between Lifting Pads (Offside Side to Offside):	54 1/3" to 91 1/2"
  Motor/Electrical Requirement:	110 Volt, 30 AMP breaker required
  Oil Requirement:	3–5 Gallons AW32 or AW46 (NOT INCLUDED)
  Shipping Weight:	1,900 lbs
  Adapter Heights:	4 each 2.75", 6"
  Arm Hole/Adapter Peg Size:	2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
