Atlas® PV15PX Adj Height Symmetric 2 Post Lift 15,000 lbs #ATEXH-PV15PX-FPD
Couldn't load pickup availability
Quick Specs
| Model / Part Number | ATEXH-PV15PX-FPD |
| Capacity | 15,000 lbs |
| Lift Type | Extra-tall / extra-wide clearfloor 2-post |
| Lifting Configuration | Symmetric |
| Overall Height | 165" (13' 9") or 177" (14' 9") |
| Special Low Height | 150" (12' 6") with extra short cables |
| Overall Floor Width | 150 3/4" (12' 6 3/4") |
| Inside Columns | 122 7/8" (10' 2 7/8") |
| Drive-Thru Clearance | 109" (9' 1") |
| Max Lift Height | 81" with adapters / 72 1/2" without adapters |
| Adapter Set | 12-piece truck adapter set included |
| Motor / Electrical | 220V, 1-phase, 30 amp breaker required |
| Shipping Weight | 2,490 lbs |
| Warranty | 5-year structural / 2-year hydraulic-power |
| Installation | Available — call (817) 865-3707 |

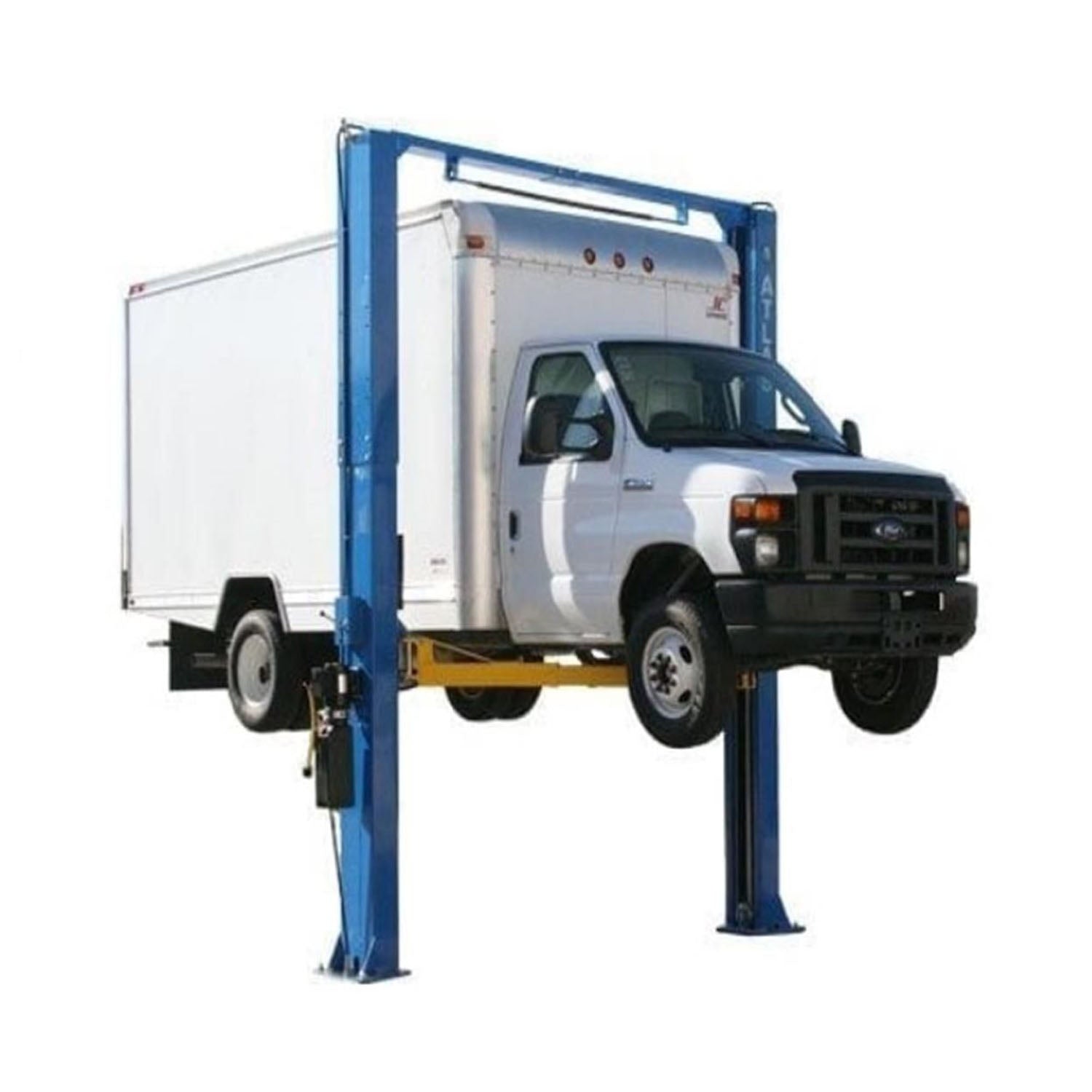

The Atlas® PV15PX is a 15,000 lb symmetric 2-post lift built for shops that need extra width, extra height, and heavy-duty capacity without stepping into a premium Challenger price point. Its wide column layout, included truck adapter set, and adjustable height settings make it a practical Alamo-sold option for trucks, vans, box trucks, and commercial service bays.
This is the Atlas® value play in the 15K 2-post lane: more room between the columns, three height paths, direct-drive cylinders, single-point lock release, and a commercial-grade frame for shops that want a heavy-duty lift with a lower acquisition cost.
15K Heavy-Duty Capacity
The PV15PX is rated for 15,000 lbs, giving shops more capacity margin for heavy pickups, vans, service trucks, and long-wheelbase commercial vehicles than a 10K or 12K lift can offer.
Extra-Wide Symmetric Layout
The distance between the columns is nearly 123", with 109" of drive-through clearance. That extra space helps with wide mirrors, wider vehicles, and the daily reality of moving larger trucks through a busy bay.
Adjustable Height Choices
Standard height settings are 165" or 177", with a special 150" low-height setup available when extra short cables are purchased. This gives shops more layout flexibility than a fixed-height heavy-duty 2-post.
Included Truck Adapter Set

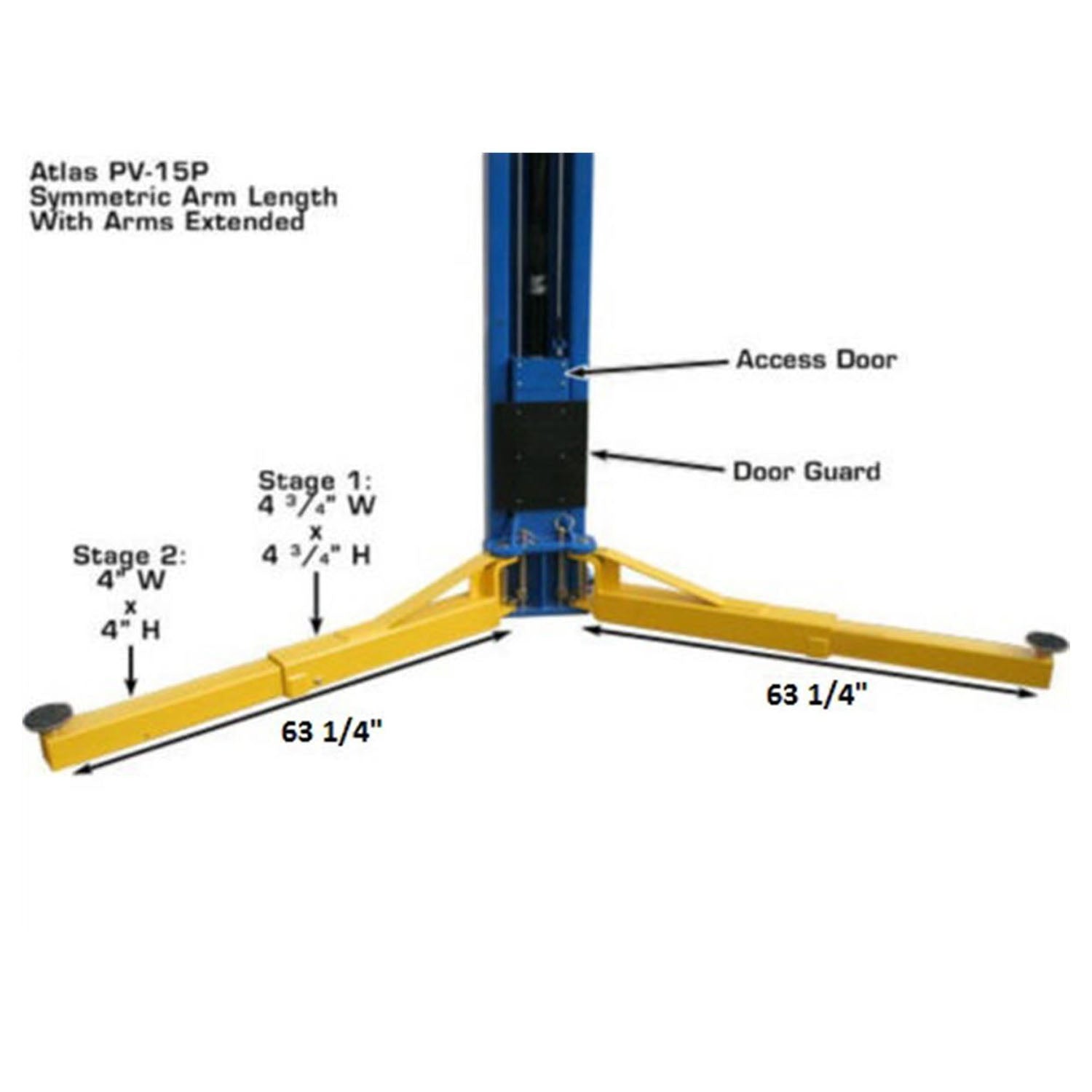

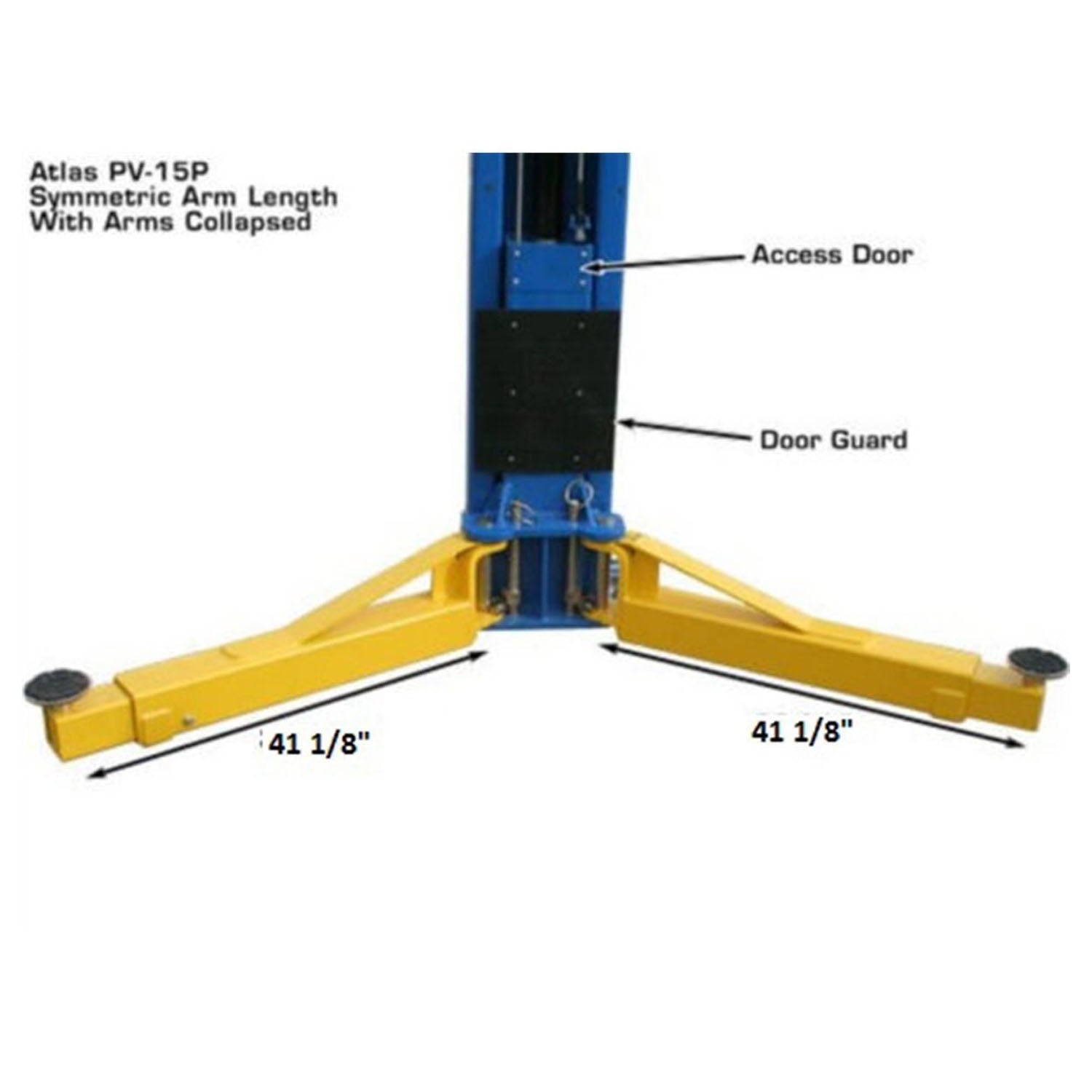

The 12-piece truck adapter set helps technicians reach pickup points on taller vehicles and work trucks. Adapter heights include 1.25", 2.5", and 5" options for real-world truck service.
Commercial-Grade Atlas® Value

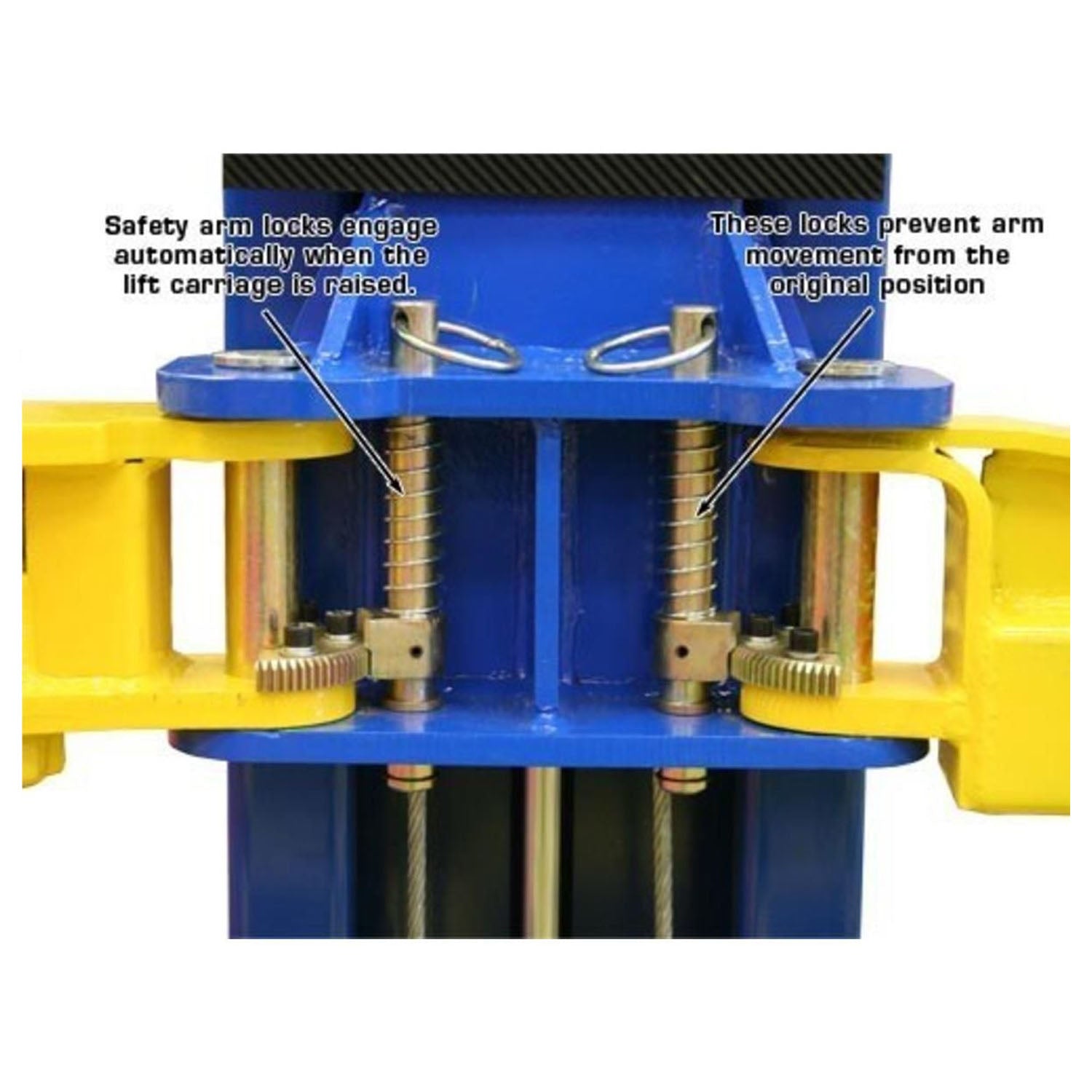

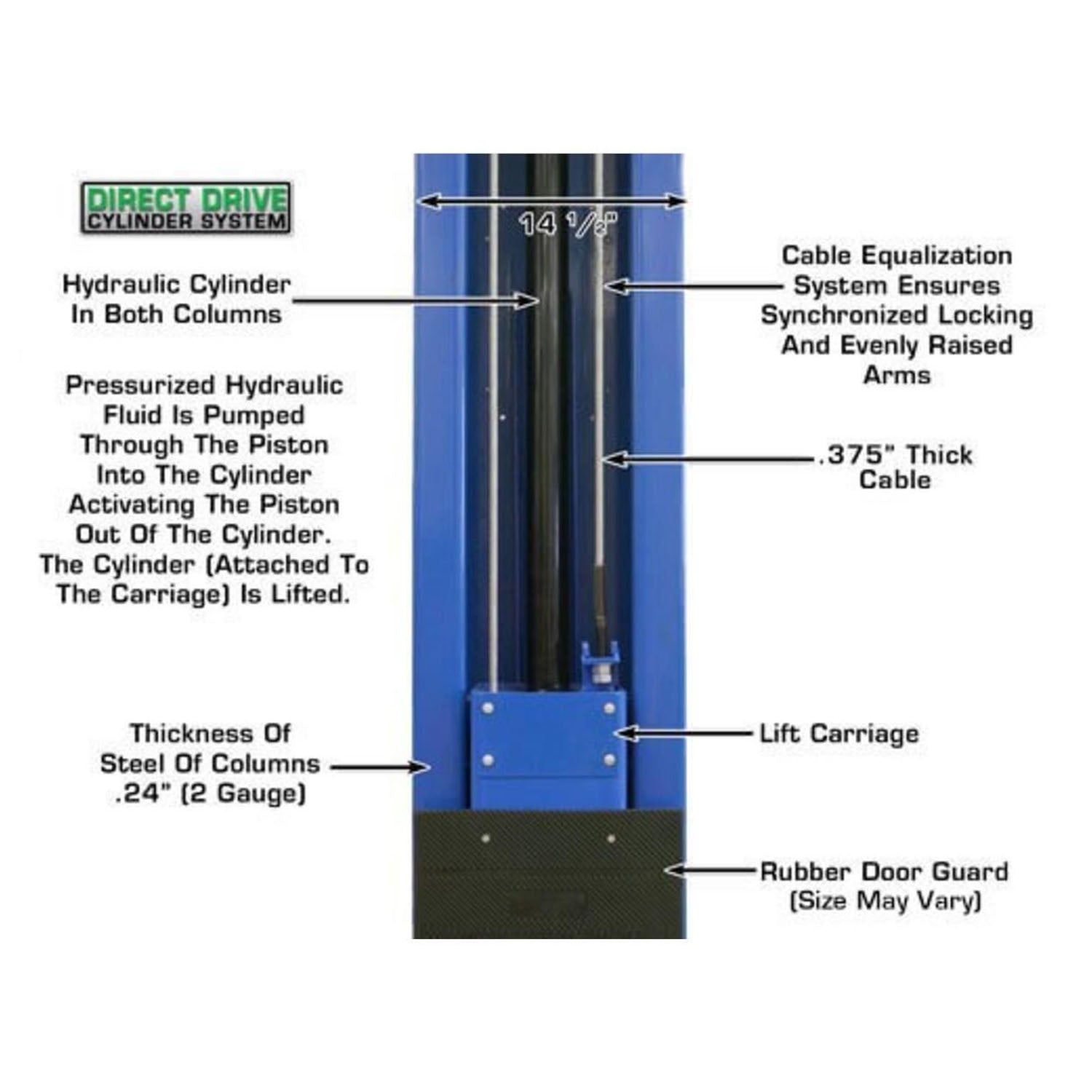

The PV15PX includes automatic arm restraints, a padded shut-off bar, carriage door guards, single-point lock release, direct-drive cylinders, powder coat finish, and mounting hardware. Alamo can help confirm the bay, electrical, and receiving plan before it ships.
Frequently Asked Questions
What is the lifting capacity of the Atlas® PV15PX?
The Atlas® PV15PX is rated for 15,000 lbs, making it a heavy-duty 2-post option for trucks, vans, SUVs, and commercial service vehicles.
How tall is the Atlas® PV15PX?
The standard height settings are 165" or 177". A special 150" low-height setup is available when extra short cables are purchased.
How wide is the Atlas® PV15PX?
The overall floor width is 150 3/4", with 122 7/8" inside the columns and 109" of drive-through clearance.
Does the PV15PX include truck adapters?
Yes. The Atlas® PV15PX includes a 12-piece truck adapter set with 1.25", 2.5", and 5" adapter heights.
What electrical service does it need?
The listed electrical requirement is 220V, single phase, with a 30 amp breaker. Have a qualified electrician verify the circuit before installation.
What warranty does the PV15PX have?
The listed warranty is 5 years structural and 2 years hydraulic-power.
Does Alamo install the PV15PX?
Yes. Alamo can help with bay fit, delivery planning, installation, annual inspections, repair, and ongoing service support. Call (817) 865-3707.
How does the PV15PX compare to the Challenger E15?
Both are Alamo-sold 15K 2-post lifts. The Atlas® PV15PX is the value-focused extra-wide and adjustable-height choice, while the Challenger E15 is the premium option when ALI/ETL certification is required.
Best For
✓ Shops that need 15,000 lb capacity at a lower acquisition cost
✓ Commercial truck, van, SUV, and mixed fleet service bays
✓ Facilities that need extra width for wide mirrors and larger vehicles
✓ Buyers who want included truck adapters and adjustable height flexibility
✓ Shops that want Alamo help with delivery, installation, and long-term service
✗ Not ideal when documented ALI/ETL lift certification is required
✗ Not ideal for low-ceiling bays unless the special low-height cable setup is planned in advance
✗ Not ideal if most work is compact/passenger-car only and a lighter 10K or 12K lift would fit the bay better
Installation Requirements
• Ceiling height: plan around 165" or 177" standard height settings; 150" special low-height setup requires extra short cables
• Bay width: allow for 150 3/4" overall floor width and 109" drive-through clearance
• Concrete: verify slab thickness, reinforcement, PSI, condition, and local code before installation
• Electrical: 220V, 1-phase power with 30 amp breaker required

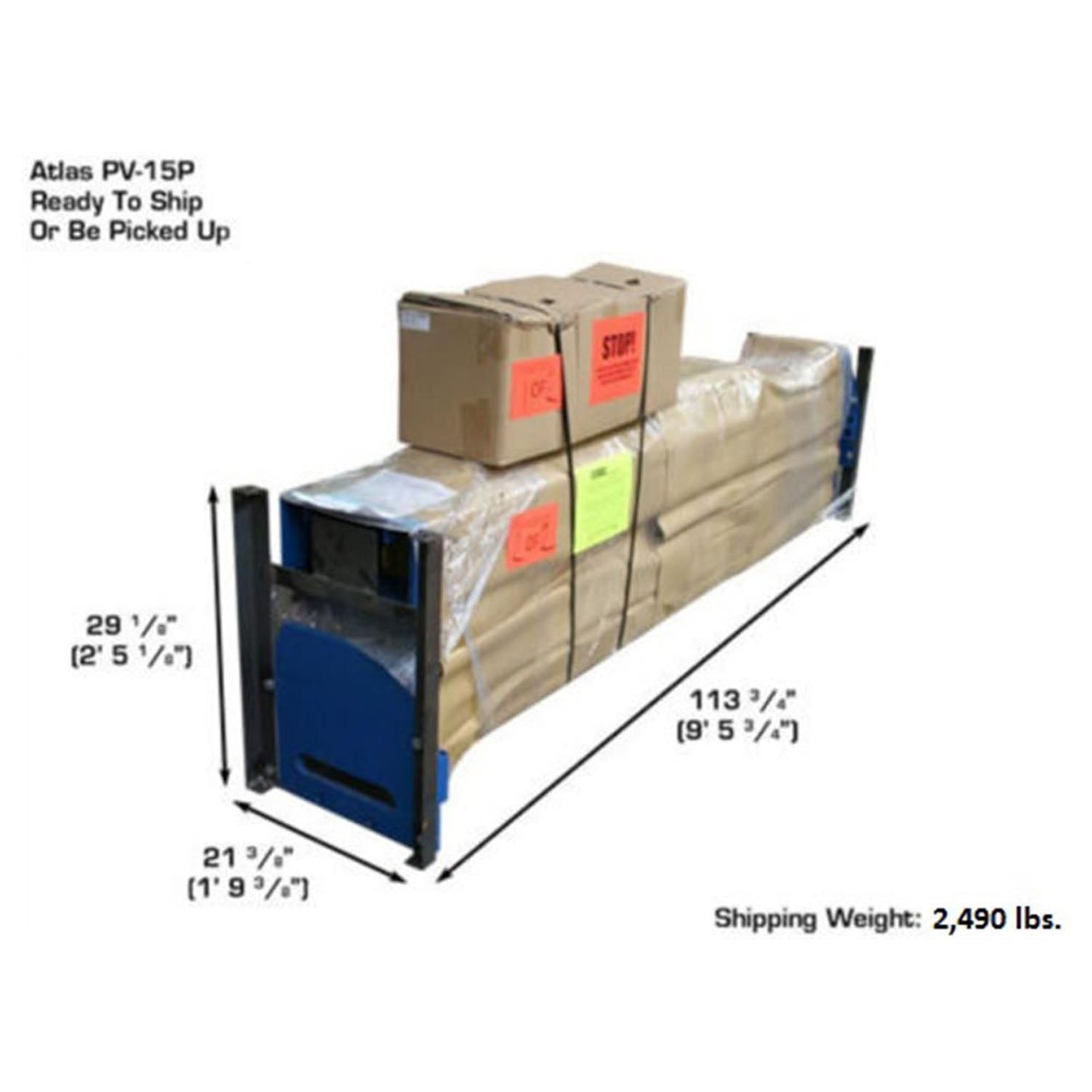

• Receiving: plan for a listed 2,490 lb shipping weight and appropriate unloading equipment
• Professional installation strongly recommended for a 15,000 lb commercial lift
• Alamo offers installation planning and support — call (817) 865-3707
Why Buy This Atlas® PV15PX From Alamo Equipment
✓ Alamo can help confirm whether the PV15PX's 15K capacity, extra-wide layout, and height settings match the shop's vehicle mix
✓ Heavy-duty 2-post planning matters: Alamo can review bay height, slab condition, electrical, delivery access, and installation timing before the lift arrives
✓ The PV15PX is a strong value fit when the buyer wants 15K capacity and extra-wide truck clearance without the premium Challenger price point
✓ Alamo supports lift buyers with installation planning, annual inspections, maintenance, and repair after the sale
✓ Buyers can compare the Atlas® PV15PX against Alamo-sold 15K alternatives like the Challenger E15 without leaving the catalog
✓ Free shipping to the 48 contiguous states unless noted otherwise
(817) 865-3707
Atlas® PV15PX vs Challenger E15
Both are Alamo-sold 15,000 lb 2-post lifts for heavier service work. The Atlas® PV15PX is the value-focused extra-wide/extra-tall choice with adjustable height settings and an included 12-piece truck adapter set. The Challenger E15 is the premium ALI/ETL-certified alternative for shops where documented certification is required.
| Spec | Atlas® PV15PX | Challenger E15 |
|---|---|---|
| Capacity | 15,000 lbs | 15,000 lbs |
| Positioning | Commercial-grade Atlas® 15K value alternative | ALI/ETL-certified premium Challenger 15K lift |
| Layout | Extra-wide symmetric 2-post | Heavy-duty clearfloor symmetric 2-post |
| Lift / Rise Height | 81" max lift height with adapters | 77.75" rise height |
| Overall Height | 165" or 177"; 150" low-height setup with extra cables | 14' 6" / 16' 6" |
| Best Fit | Best when value, extra width, adjustable height, and included truck adapters matter most | Best when ALI/ETL certification and premium Challenger support are required |
Choose the PV15PX when the shop wants a 15K Alamo-sold value lift with extra width, adjustable height, and truck adapters included. Choose the Challenger E15 when ALI/ETL certification is the deciding factor.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
