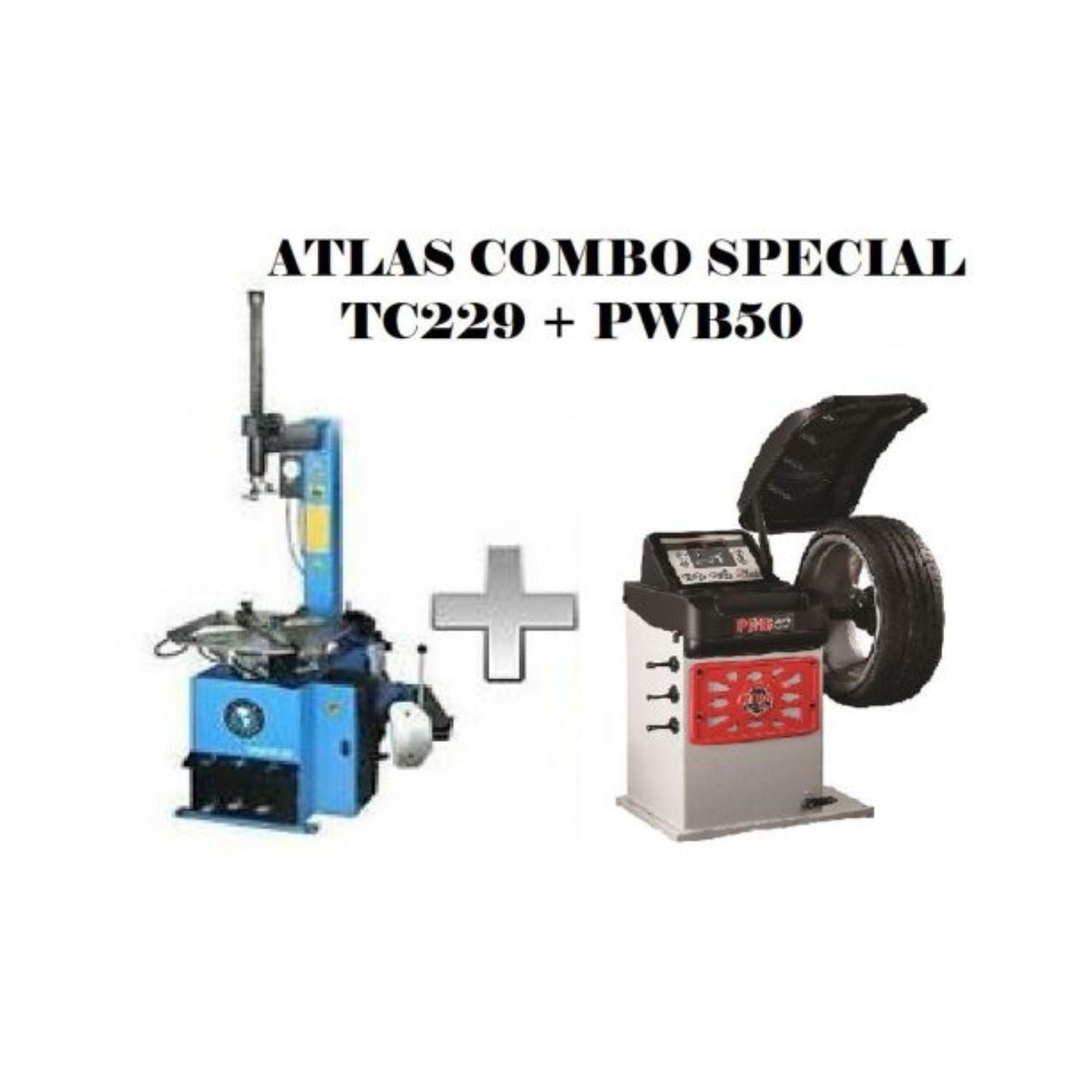

Atlas® TC229 & PWB50 Combo Package #ATETCWB-COMBO7-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC229 & PWB50 Combo Package combines a commercial-grade tire changer and computerized wheel balancer into one complete wheel service solution for automotive repair shops, tire stores, and general service facilities. Designed for everyday passenger vehicle and light truck tire service, this package provides the core equipment needed for mounting, demounting, and balancing modern wheel and tire assemblies.

  The package includes the Atlas TC229 Tire Changer, featuring a rim-clamp swing-arm design with an integrated Beadblaster inflation system for easier tire bead seating, along with the Atlas Platinum PWB50 Computerized Wheel Balancer, which delivers fast and accurate wheel balancing performance with automatic 2D data entry and advanced balancing capability. Together, these machines help improve shop workflow while supporting a wide variety of tire and wheel applications.

  Ideal for both startup shops and existing facilities upgrading equipment, the TC229 & PWB50 combo offers dependable commercial-grade performance, user-friendly operation, and versatile wheel service capability at an excellent overall value.

• FEATURES AND BENEFITS

  Atlas® TC229 Tire Changer

  • Rim Clamp/Swing Arm Tire Changer
  • Built-in "Beadblaster"
  • Adjustable jaws, 3 mounting positions
  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included




  Atlas® Platinum PWB50-110V Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes
  • Automatic 2D Data Entry
  • Optimatch, FES (Split), OPF (Opposite Position) Functions
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® TC229 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO7-FPD
  Dimensions:	60" L × 48" W × 40" H
  Weight:	900 lbs
  UPC:	810524029094
  Country of Origin:	CHN
  External Locking Rim Dimensions:	9 3/4" to 23 1/4"
  Internal Locking Rim Dimensions:	11 5/8" to 25 1/4"
  Maximum Tire Diameter:	39"
  Maximum Wheel Width (Bead Breaker):	13"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	550 lbs




  Atlas® Platinum PWB50-110V Specifications

  Max Tire Diameter:	43"
  Rim Sizes (Cars & Light Trucks):	10" - 30"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	165 lbs
  Balancing Speed:	130 rpm
  Data Entry:	Automatic 2D
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Cycle Time:	7 seconds
  Electric Requirement:	110volt
  Shipping Weight:	230 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
