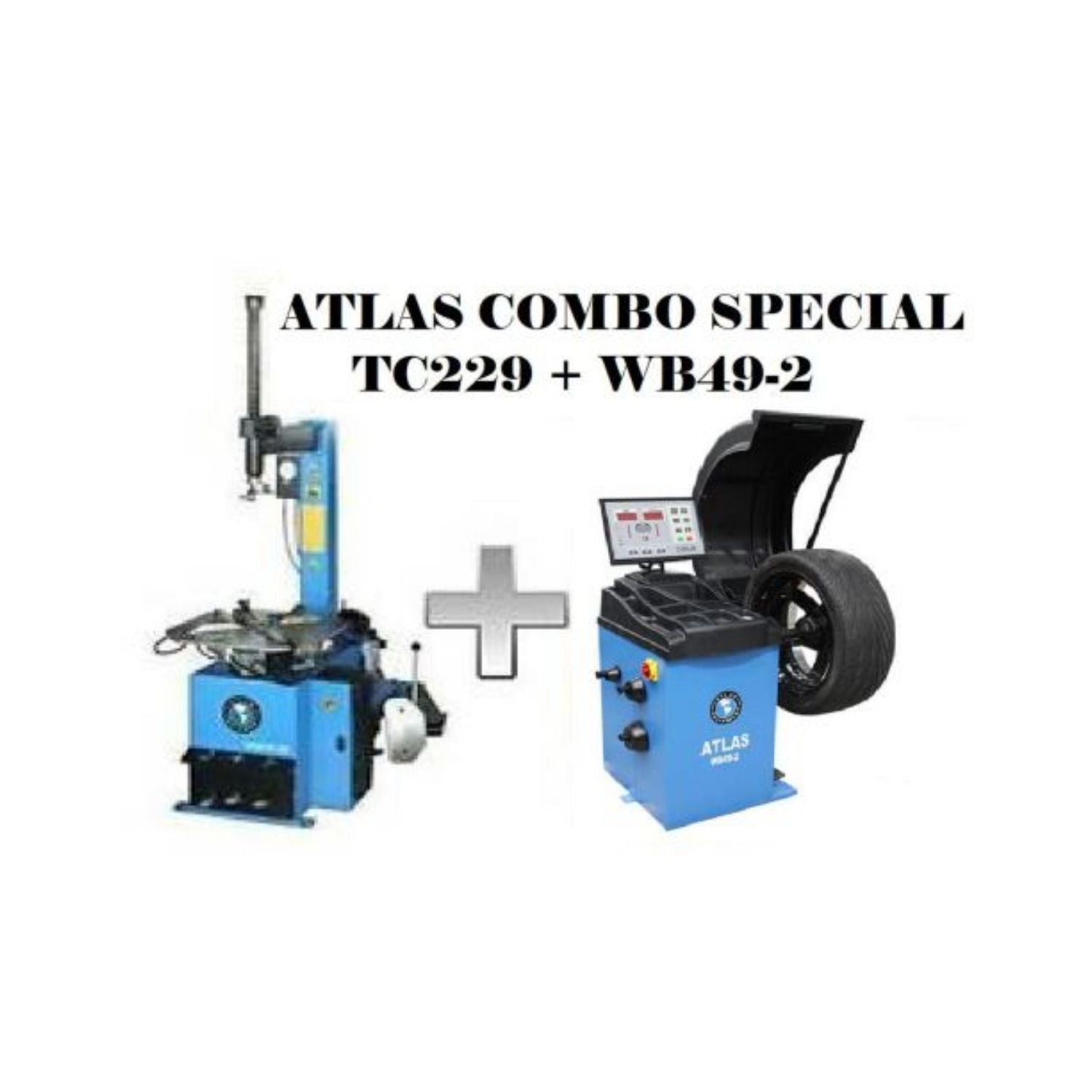

Atlas® TC229 & WB49-2 Combo Package #ATETCWB-COMBO6-FPD
Couldn't load pickup availability
| Combo Part Number | ATETCWB-COMBO6-FPD |
| Machine 1 | Atlas® TC229 Rim-Clamp Swing-Arm Tire Changer |
| Machine 2 | Atlas® WB49-2 Computerized Wheel Balancer |
| Combo Price | $5,099.00 |
Atlas® TC229 & WB49-2 Combo Package
Growing tire shops eventually hit a point where an all-manual balancer starts costing real time on every alloy wheel job — measuring width and offset by hand adds up fast when you're doing a dozen wheels a day, and that's minutes a tech could be spending on the next car.
The TC229 & WB49-2 combo keeps Atlas's proven rim-clamp swing-arm tire changer and steps up the balancer side to automatic 2D data entry, with a split-weight function that hides weights behind spokes on alloy wheels — the same reliable changer as the entry-level pairing, matched with a balancer built for higher daily volume.
Who This Combo Is Built For
- Growing tire shops and commercial service facilities upgrading their balancing capability without replacing a proven tire changer
- Shops handling a steady mix of alloy wheels and low-profile tires where split-weight balancing saves real time
- Facilities that want automatic 2D data entry to speed up routine passenger and light-truck balancing
- Operations that already know and trust the TC229 tire changer's beadblaster and swing-arm design
- Businesses on standard 110V power looking for a professional-grade upgrade path from an entry-level combo
- Shops fielding enough daily volume that automatic data entry pays for itself in saved cycle time
What This Combo Is NOT Built For
Shops on the tightest entry budget that don't need automatic data entry — the TC229 & WB41 combo covers the same tire range with all-manual balancing at a lower price.
What's Included in This Combo
Atlas® TC229 Rim-Clamp Swing-Arm Tire Changer
- Built-in beadblaster for fast bead seating on stubborn tires
- Adjustable 3-position jaws cover a 9 3/4"–23 1/4" range
- Column-mounted inflator box with gauge included

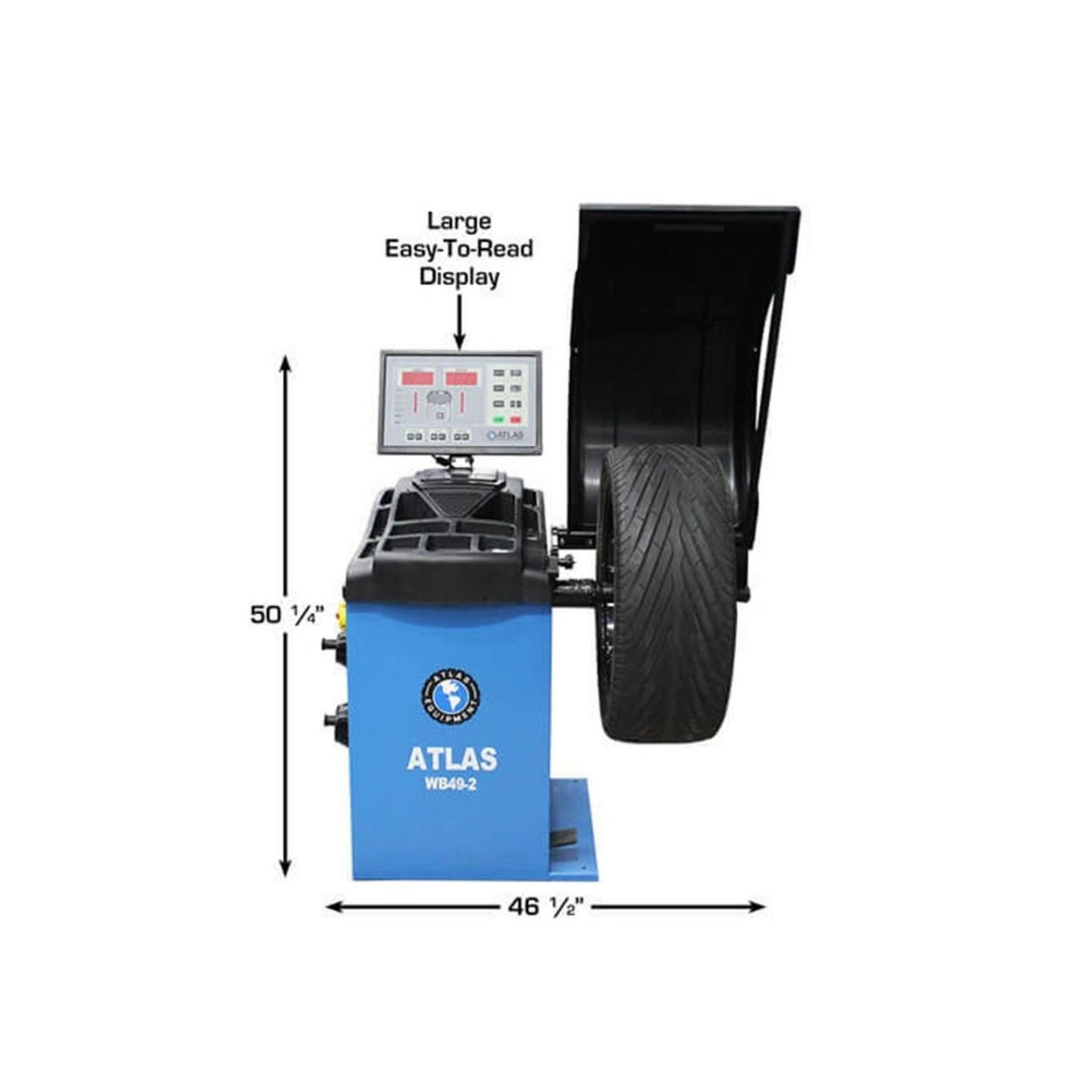

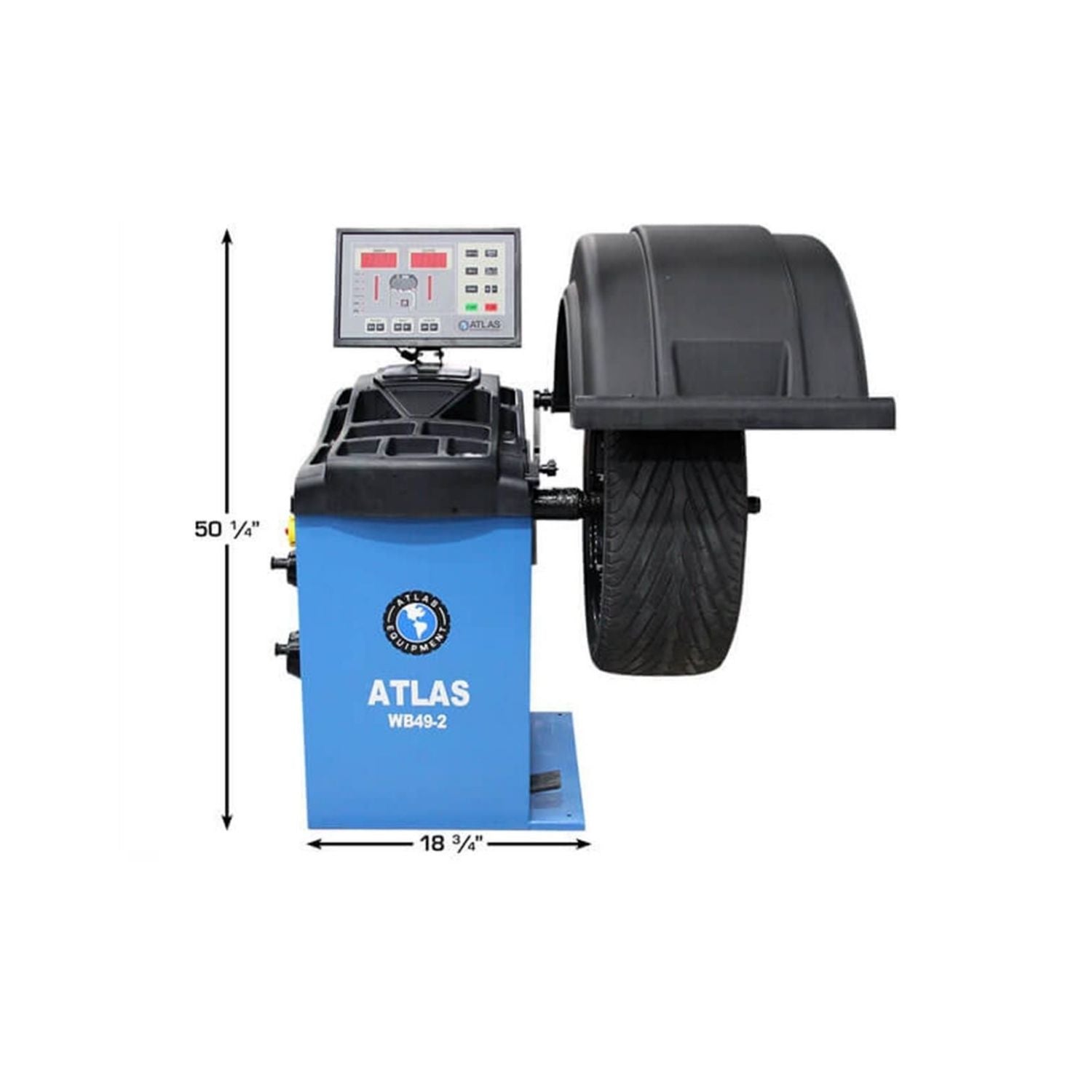

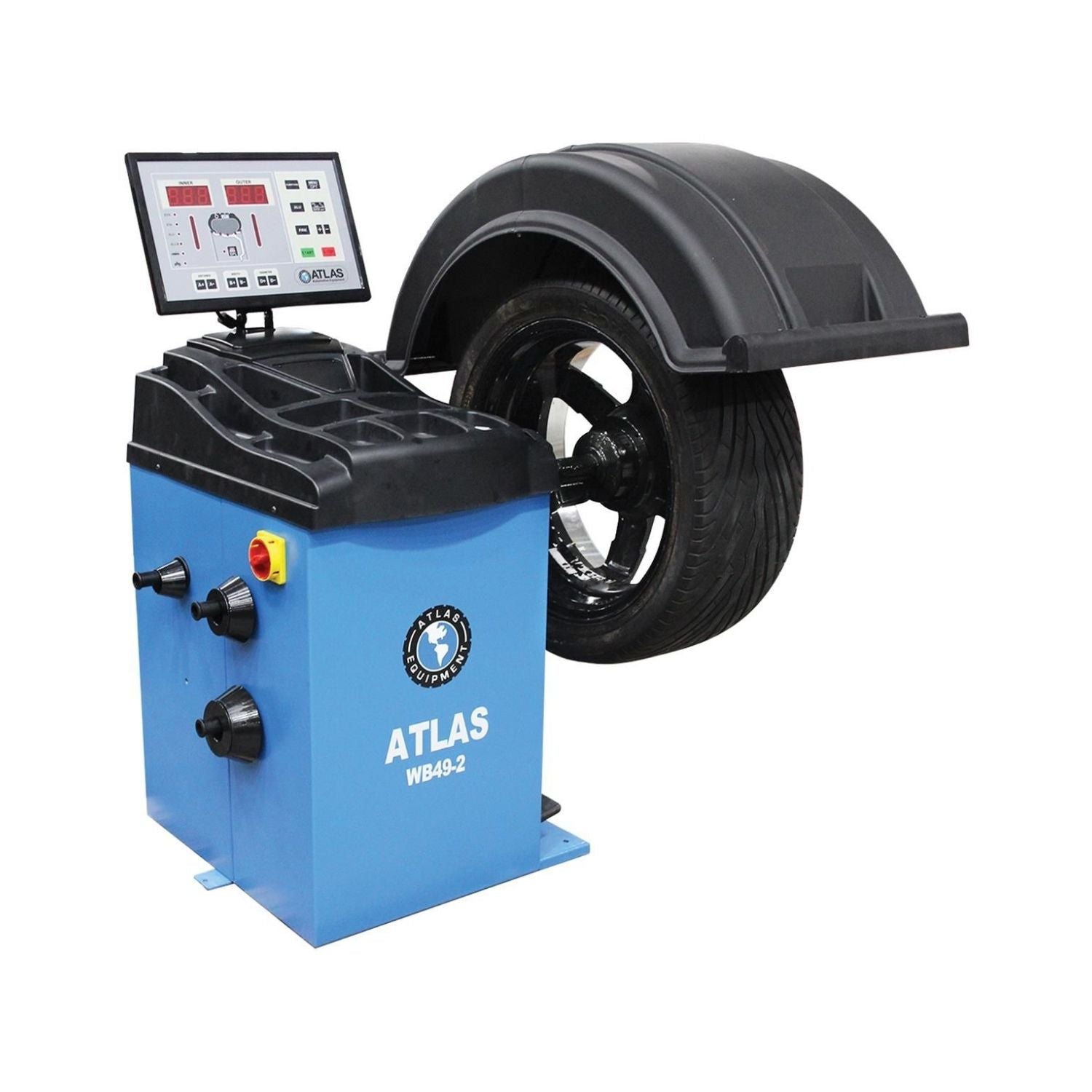

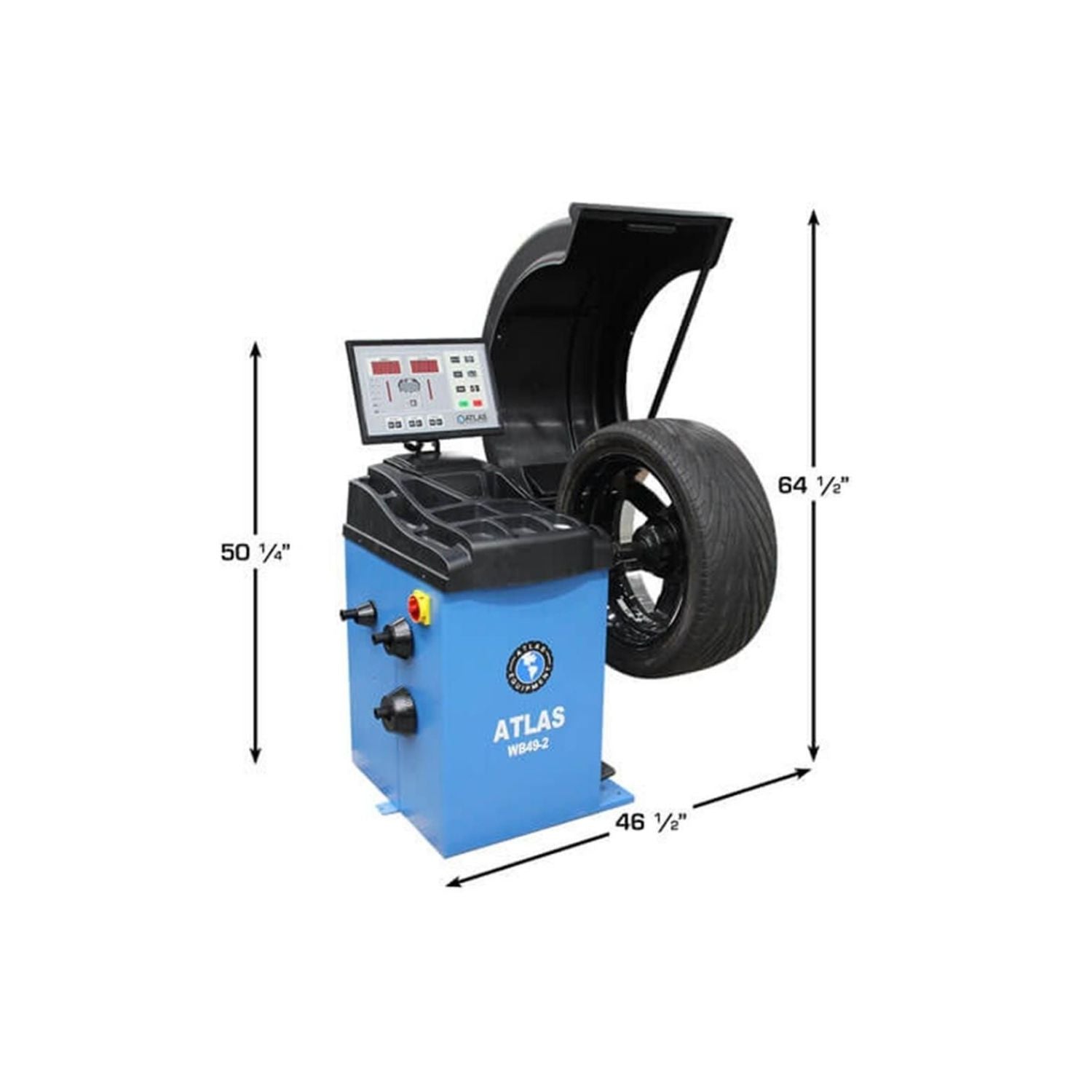

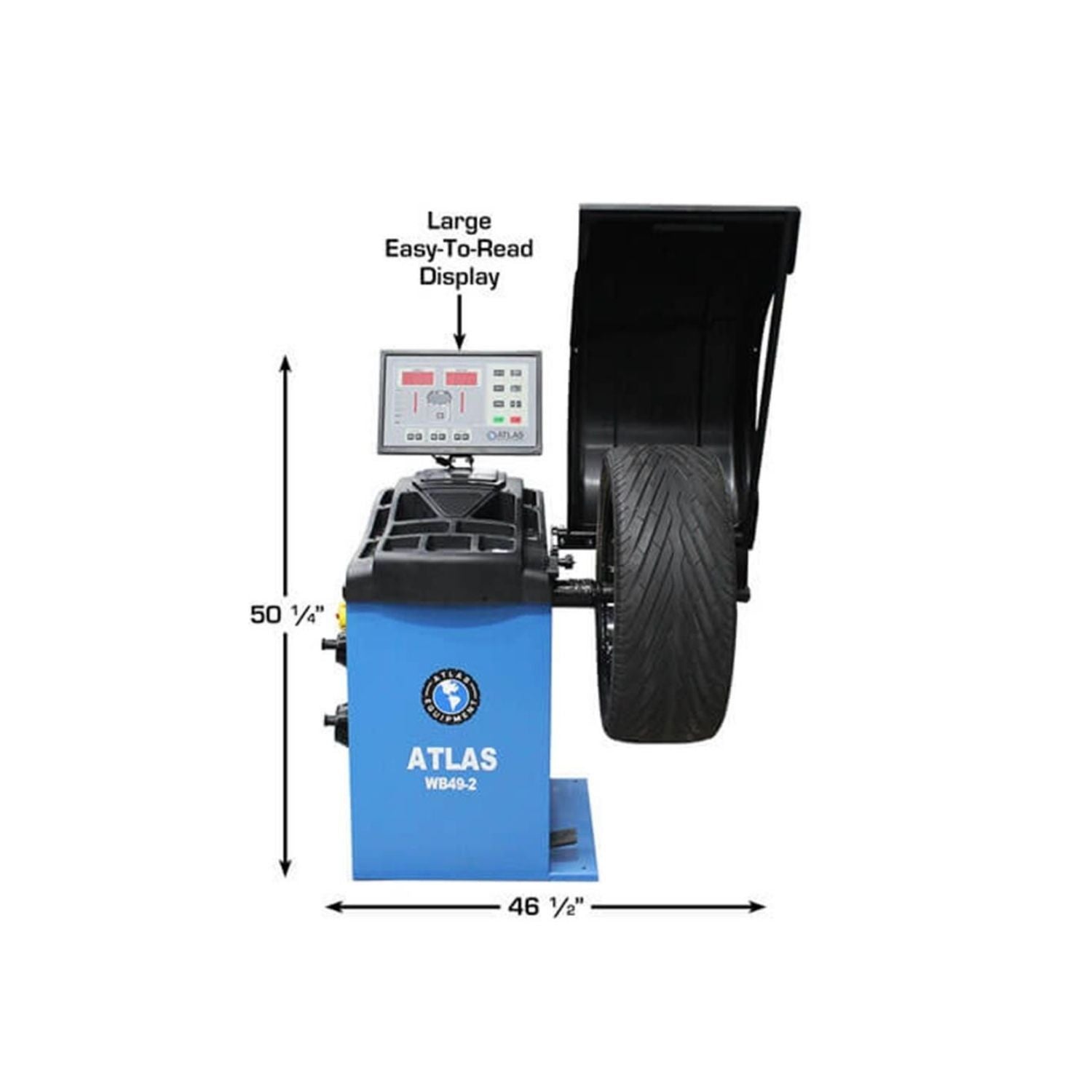

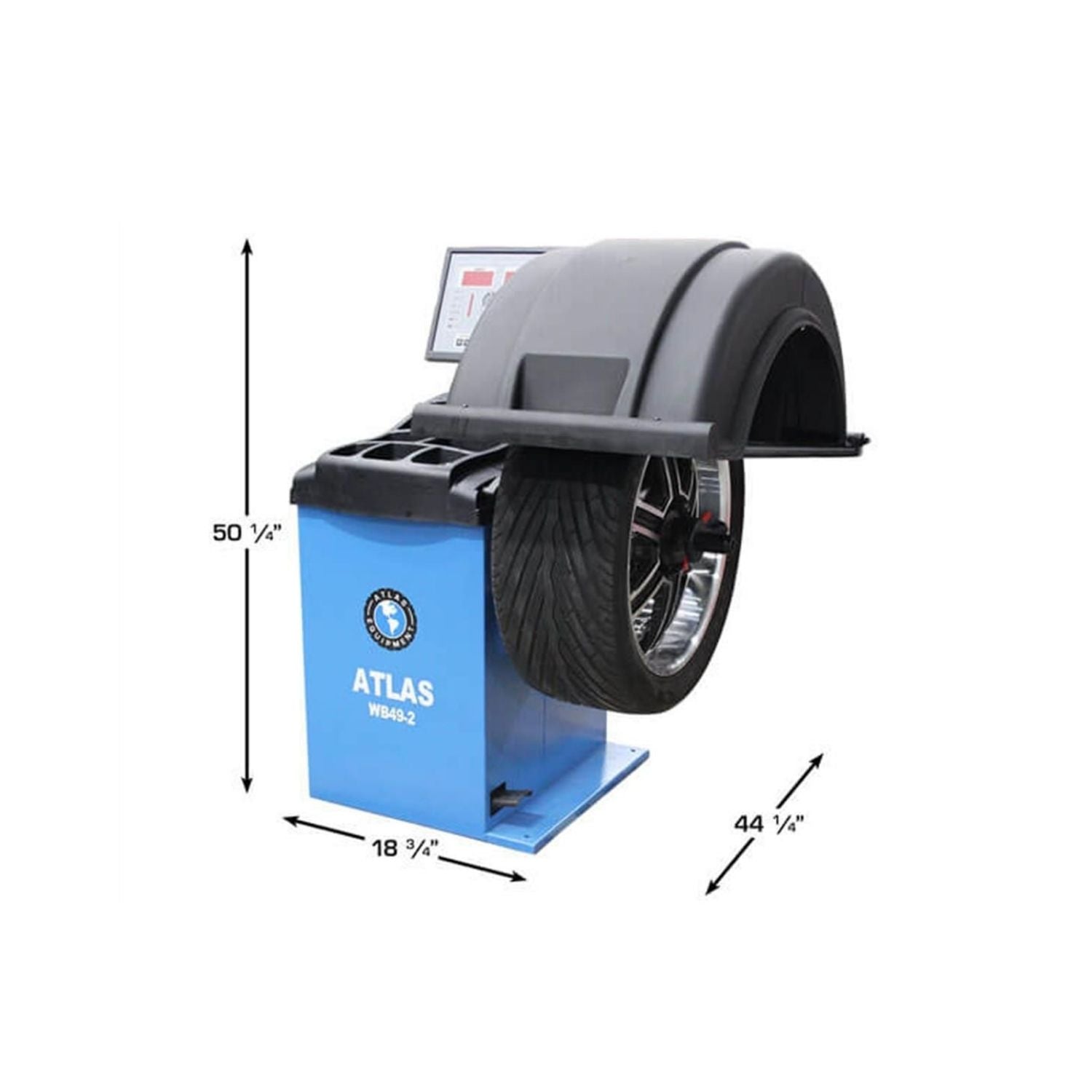

Atlas® WB49-2 Computerized Wheel Balancer
- Automatic 2D data entry with an optional 3D width-measuring gauge for faster passenger-wheel jobs
- Split-weight function hides weights behind spokes on alloy wheels
- Auto start/stop when the hood is raised/lowered — no separate footswitch step
- Daily alloy wheel and low-profile tire service where automatic 2D entry and split-weight balancing matter
- Shops upgrading balancing capability while keeping the same familiar tire changer
- Startup shops on the tightest budget that don't need automatic data entry — the TC229 & WB41 combo covers the same tire range for less
- High-volume shops running frequent low-profile or performance tires that benefit from assist-arm or tilt-back changers
Buy the Combo vs. Buy Separately
| Item | Individual Price |
|---|---|
| Atlas® TC229 Rim-Clamp Swing-Arm Tire Changer | N/A — sold as TC229LH/TC229DAA standalone variants; this combo bundles the base TC229 |
| Atlas® WB49-2 Computerized Wheel Balancer | N/A — sold only as part of this combo package |
| This Combo Package | $5,099.00 |
Not sure if this combo or the individual machines fit your shop better? Call (844) 480-6059 and we'll help you decide.
Full Specifications
Atlas® TC229 Rim-Clamp Swing-Arm Tire Changer — TC229
| Dimensions | 60" L × 48" W × 40" H |
| External Locking Rim Dimensions | 9 3/4" to 23 1/4" |
| Internal Locking Rim Dimensions | 11 5/8" to 25 1/4" |
| Maximum Tire Diameter | 39" |
| Maximum Wheel Width (Bead Breaker) | 13" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs. |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (do not exceed 140 PSI) |
| Electric Requirement | 110V |
| Shipping Weight | 550 lbs. |
| UPC | 810524029087 |
| Country of Origin | China |

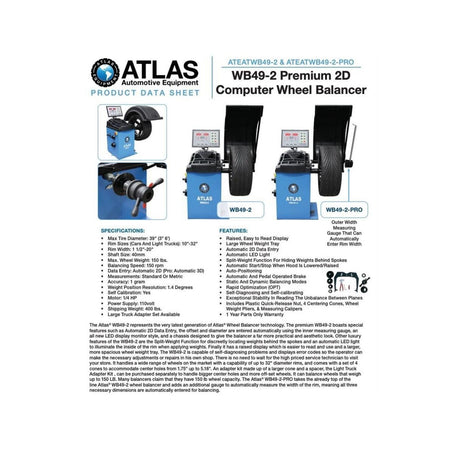

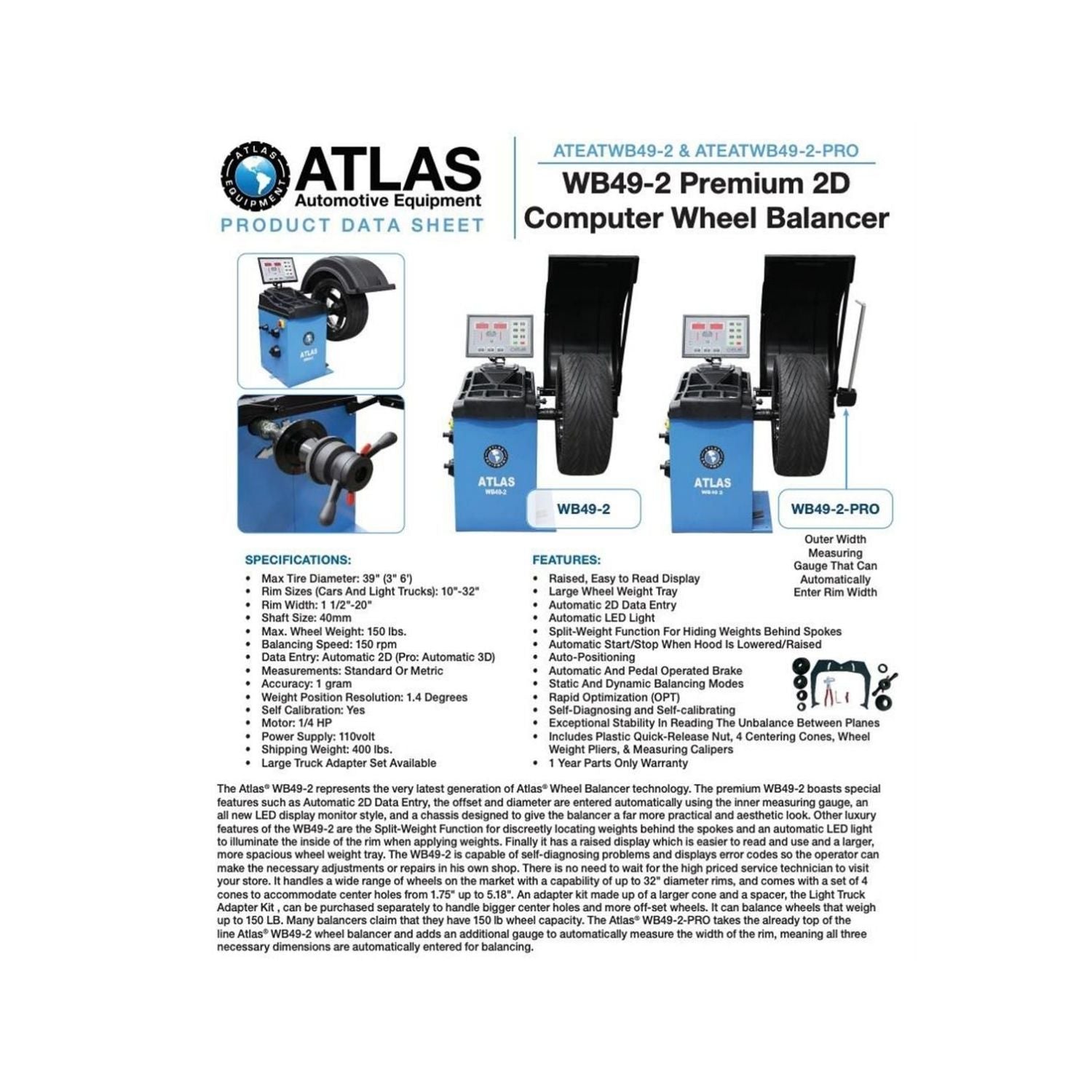

Atlas® WB49-2 Computerized Wheel Balancer — WB49-2
| Max Tire Diameter | 39" |
| Rim Sizes (Cars & Light Trucks) | 10"–32" (manual entry may be required over 23") |
| Rim Width | 1 1/2"–20" |

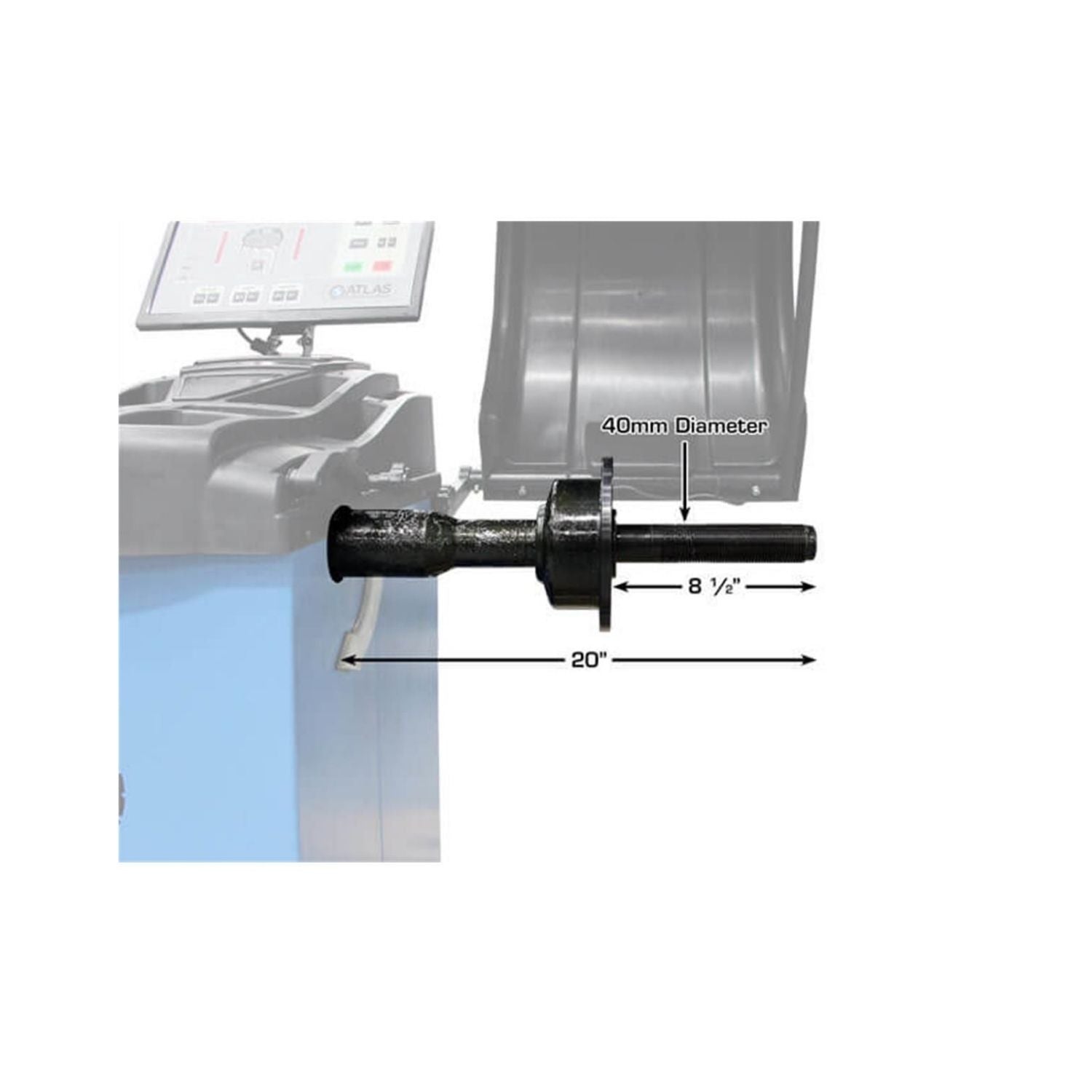

| Shaft Size | 40mm |
| Max Wheel Weight | 150 lbs. |
| Balancing Speed | 150 RPM |
| Data Entry | Automatic 2D (Automatic 3D optional) |
| Measurement | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibrating | Yes |
| Motor | 1/4 Horsepower |
| Electric Requirement | 110V |
| Shipping Weight | 400 lbs. |
⚠️ Setup Requirements
- Power: Confirm your shop's electrical service matches both machines' power requirements before ordering — they may differ.
- Air supply: Confirm shop compressed-air capacity meets each machine's air pressure requirement (where applicable).
- Floor space: Confirm clear floor space for both machines plus operator clearance on all working sides.
- Setup help: Call (844) 480-6059 with any setup or first-use questions.
Warranty — Both Machines
Each machine in this combo carries its own manufacturer warranty terms.
| Item | TC229 Tire Changer |
| Parts | 1 Year |
| Labor | Not included — parts-only coverage |
| Item | WB49-2 Wheel Balancer |
| Parts | 1 Year |
| Labor | Not included — parts-only coverage |
Warranty service is coordinated through Alamo Equipment & Service. Call (844) 480-6059 with any warranty question.
⚠️ Confirm exact terms at the time of purchase.
Frequently Asked Questions
Why Buy This Combo from Alamo Equipment & Service?
- We service both machines. When something needs attention after the sale, we're the same people you call for either machine — not two separate manufacturer hotlines.
- We help you size the combo right. This pairing handles up to a 39" tire diameter on the changer side and up to 150 lbs. wheel weight on the balancer side, with automatic 2D data entry and split-weight balancing built in — tell us your typical wheel mix and we'll confirm it's the right fit before you order.
- Free shipping. Both machines delivered to your shop, no hidden freight fees.
- Expert comparison help. Not sure if this combo or the individual machines are the right fit? Call (844) 480-6059 — we'll walk you through it.
A shop buying from a pure e-commerce retailer gets two boxes. A shop buying from Alamo gets a partner for both machines.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
