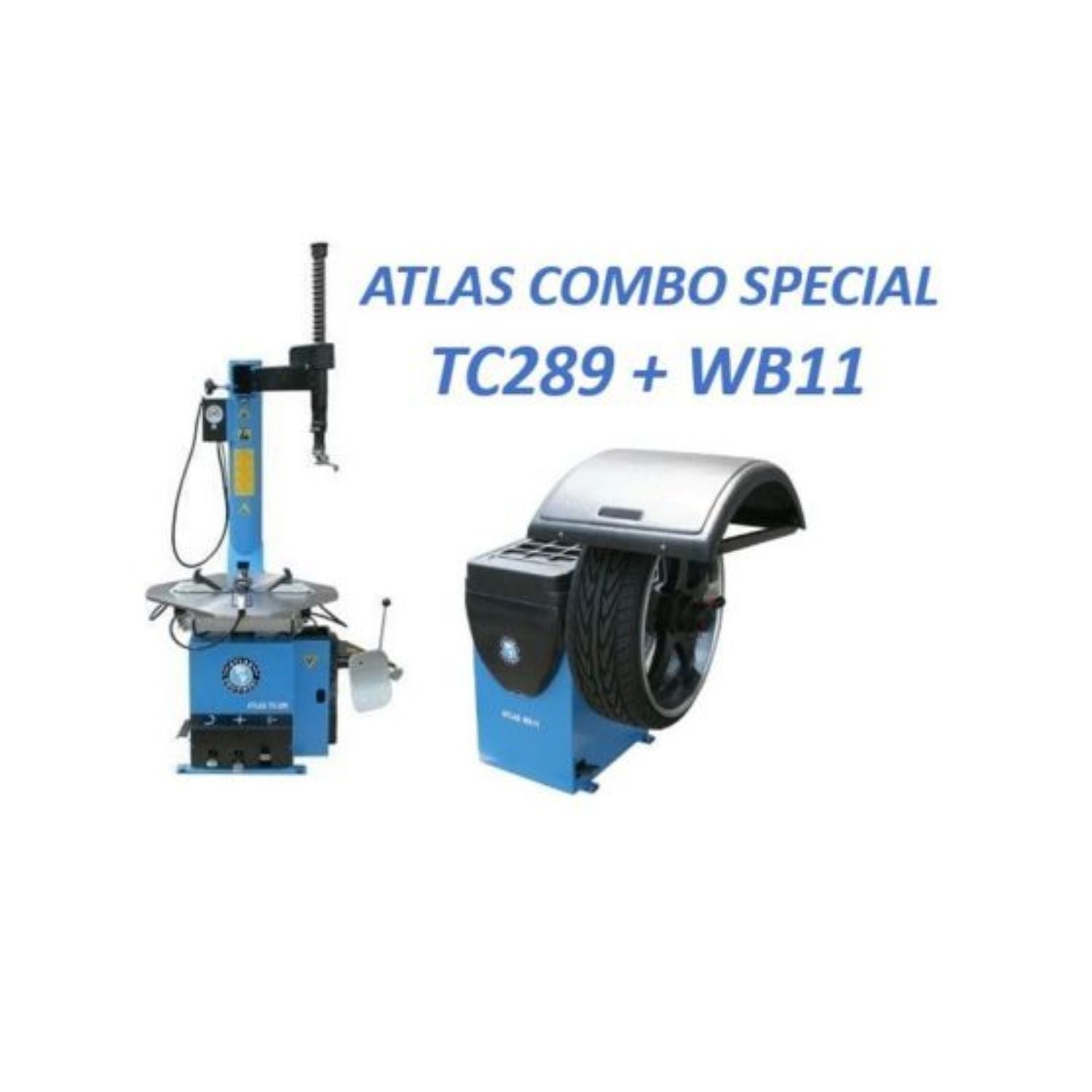

Atlas® TC289 & WB11 Combo Package #ATETCWB-COMBO8-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC289 & WB11 Combo Package combines a heavy-duty tire changer and entry-level computerized wheel balancer into one complete wheel service solution for automotive repair shops, farm service facilities, fleet operations, and general tire service applications. Designed for larger wheel and tire assemblies, this package provides dependable equipment for mounting, demounting, and balancing passenger vehicle, SUV, and light truck wheels.

  The package includes the Atlas TC289 Tire Changer, featuring an extra-large rim-clamp swing-arm design with increased wheel capacity and an integrated Beadblaster inflation system for easier tire bead seating, along with the Atlas WB11 Computerized Wheel Balancer, which delivers simple and reliable balancing performance for everyday wheel service work. Together, these machines provide a practical and affordable solution for shops servicing larger wheels and tires without the cost of premium balancing systems.

  Ideal for startup shops, commercial garages, farm applications, and facilities servicing SUVs and light trucks, the TC289 & WB11 combo offers solid commercial-grade performance, larger tire capability, and dependable daily operation for general wheel service environments.

• FEATURES AND BENEFITS

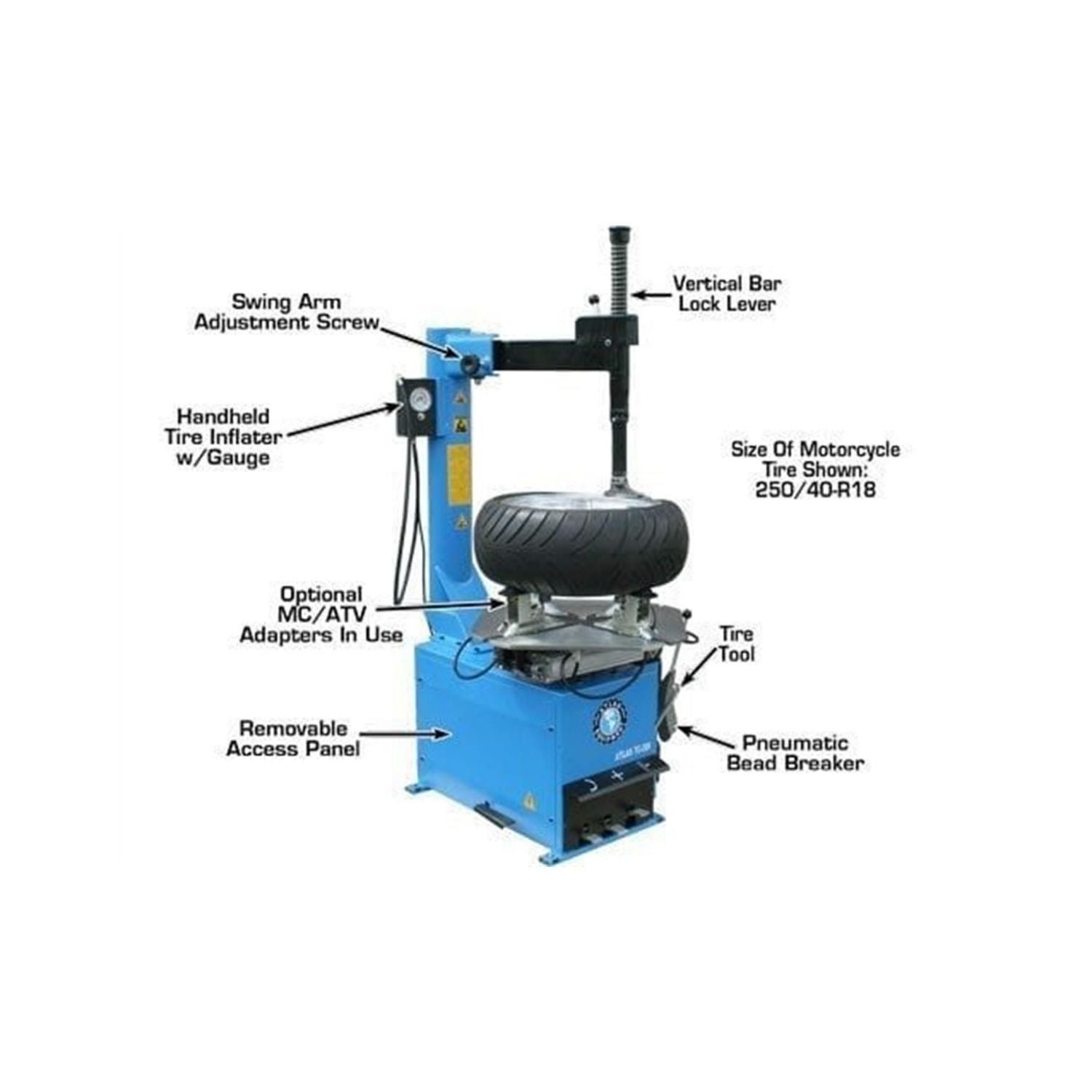

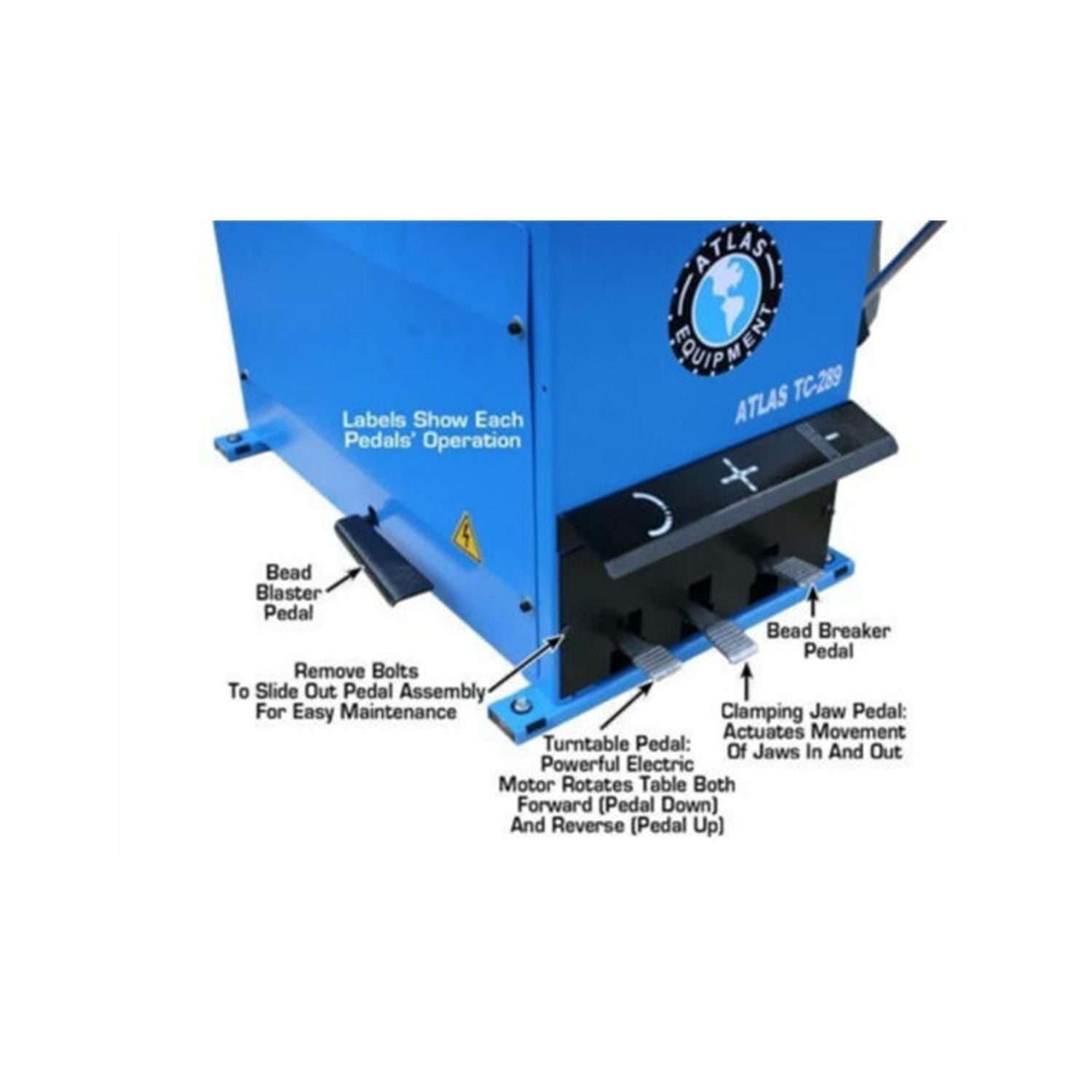

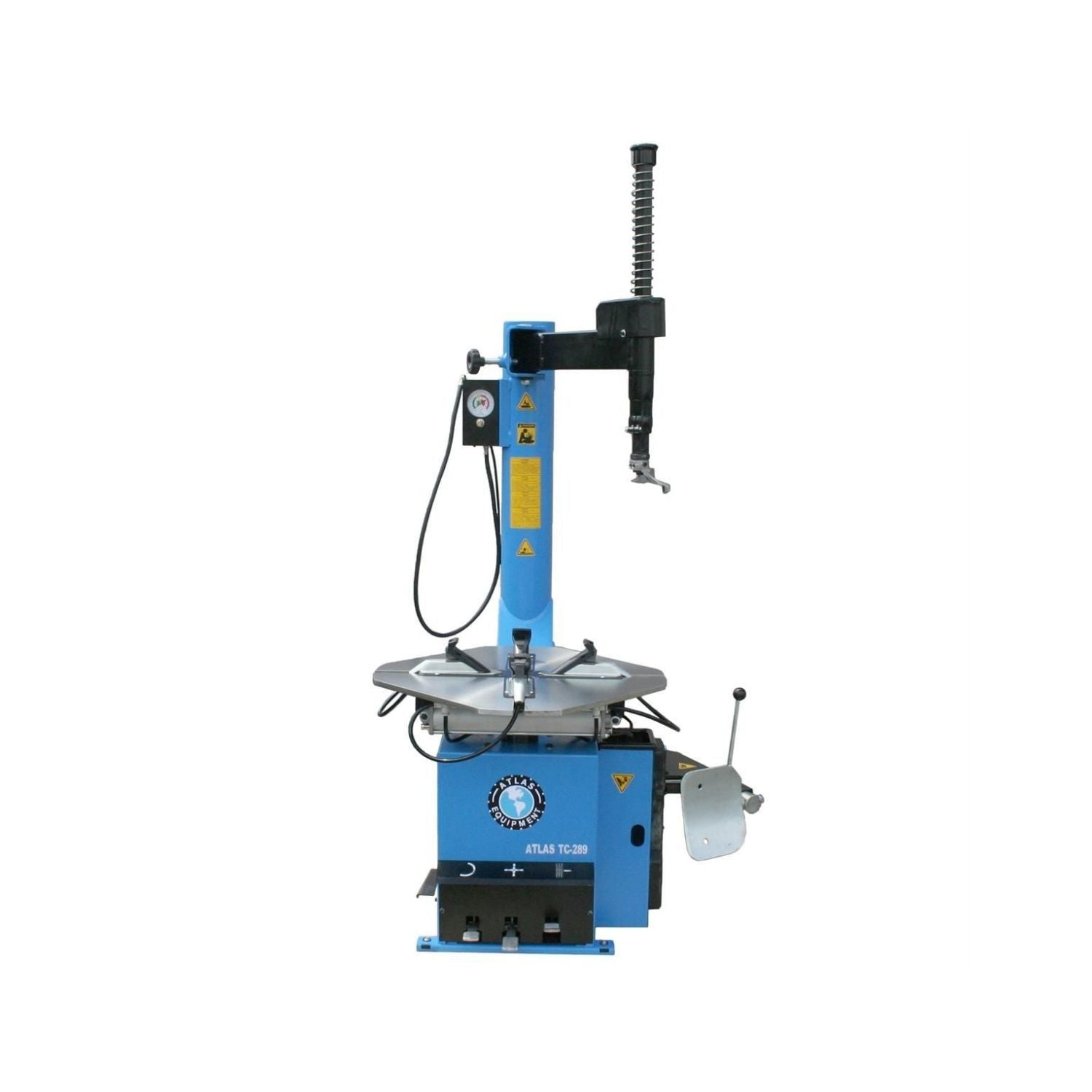

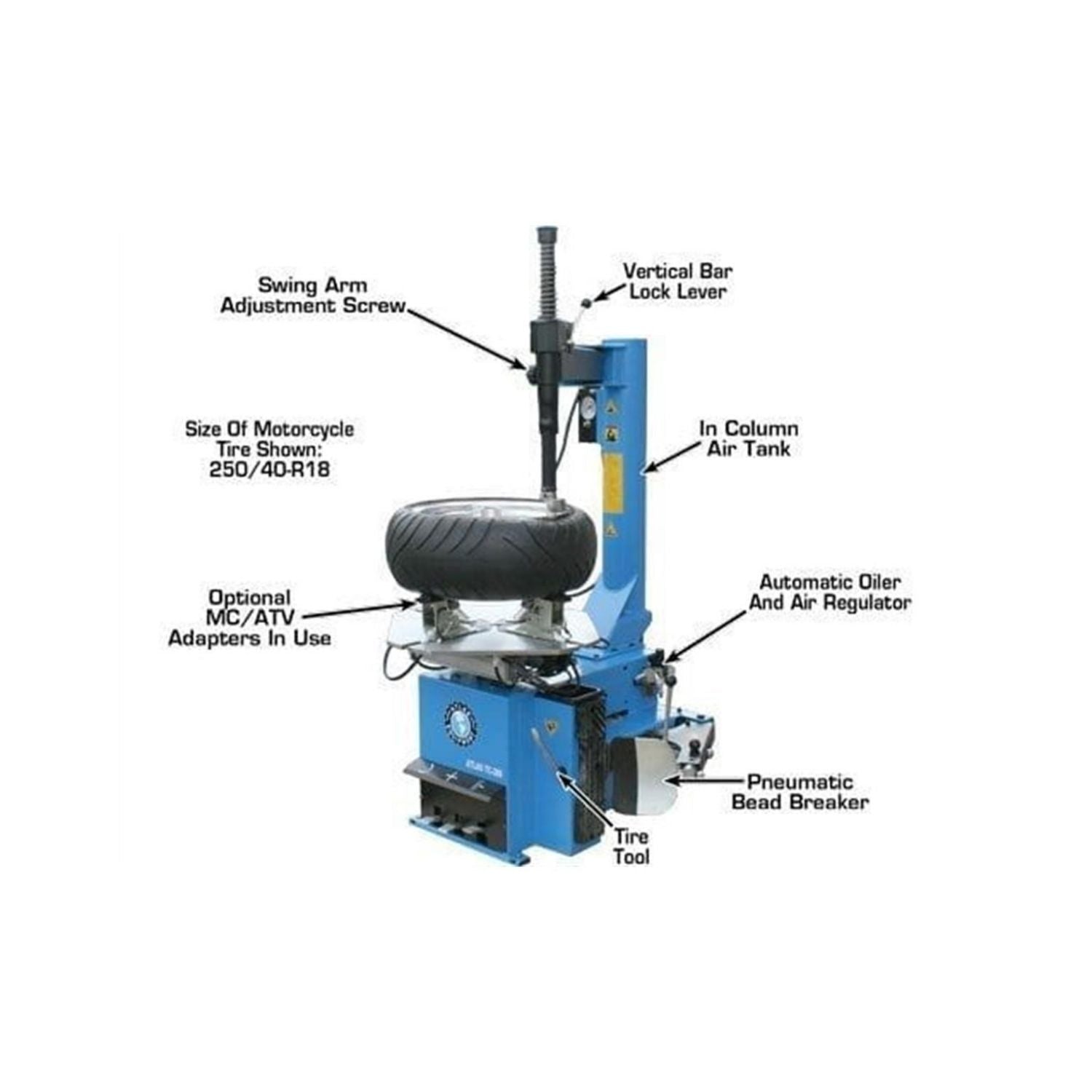

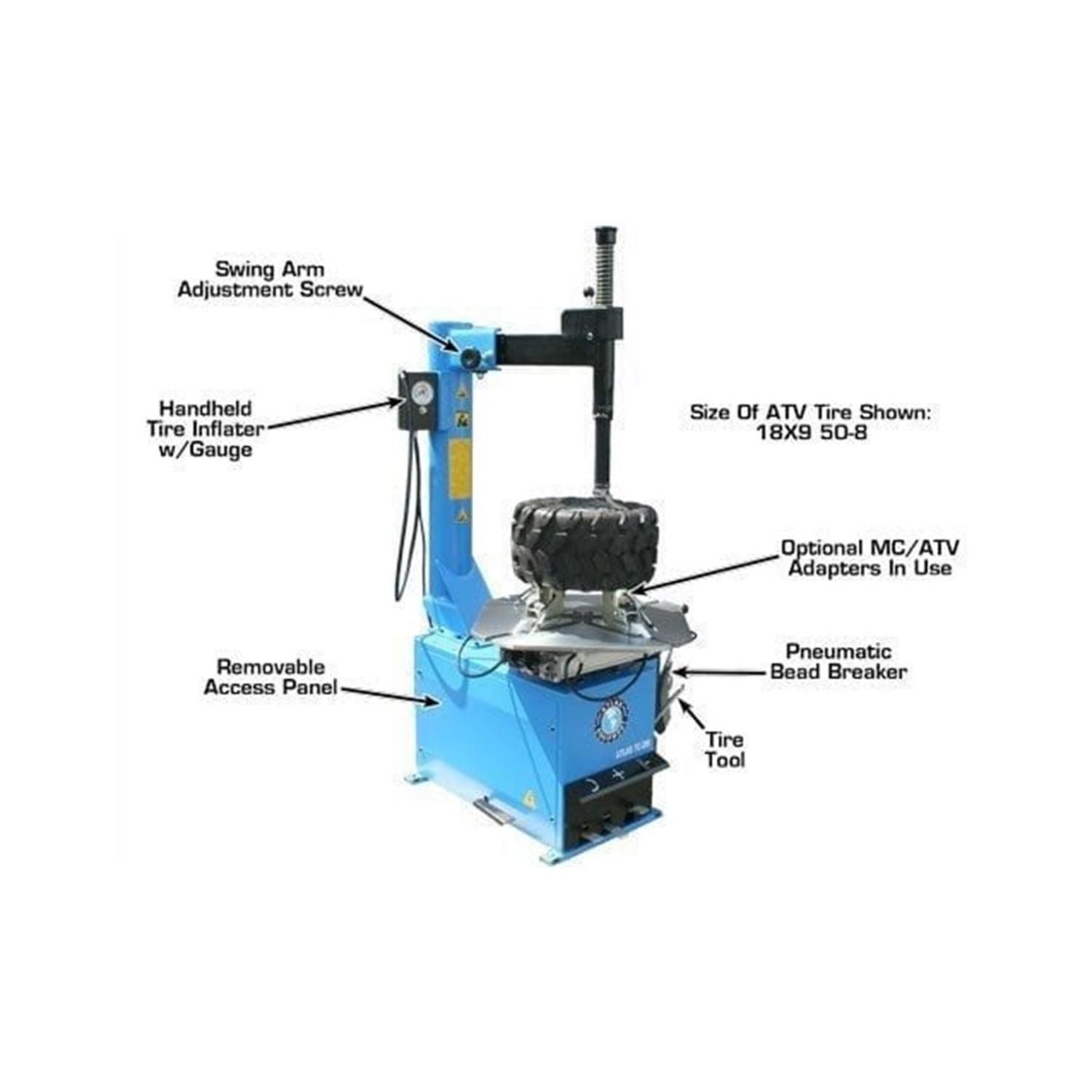

  Atlas® TC289 Tire Changer

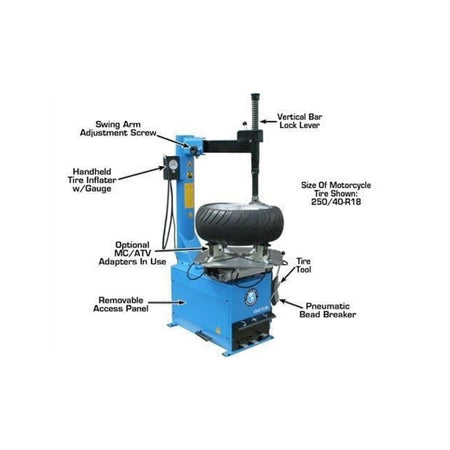

  • Rim Clamp/Swing Arm Tire Changer
  • Extra Large Turntable, More Clearance

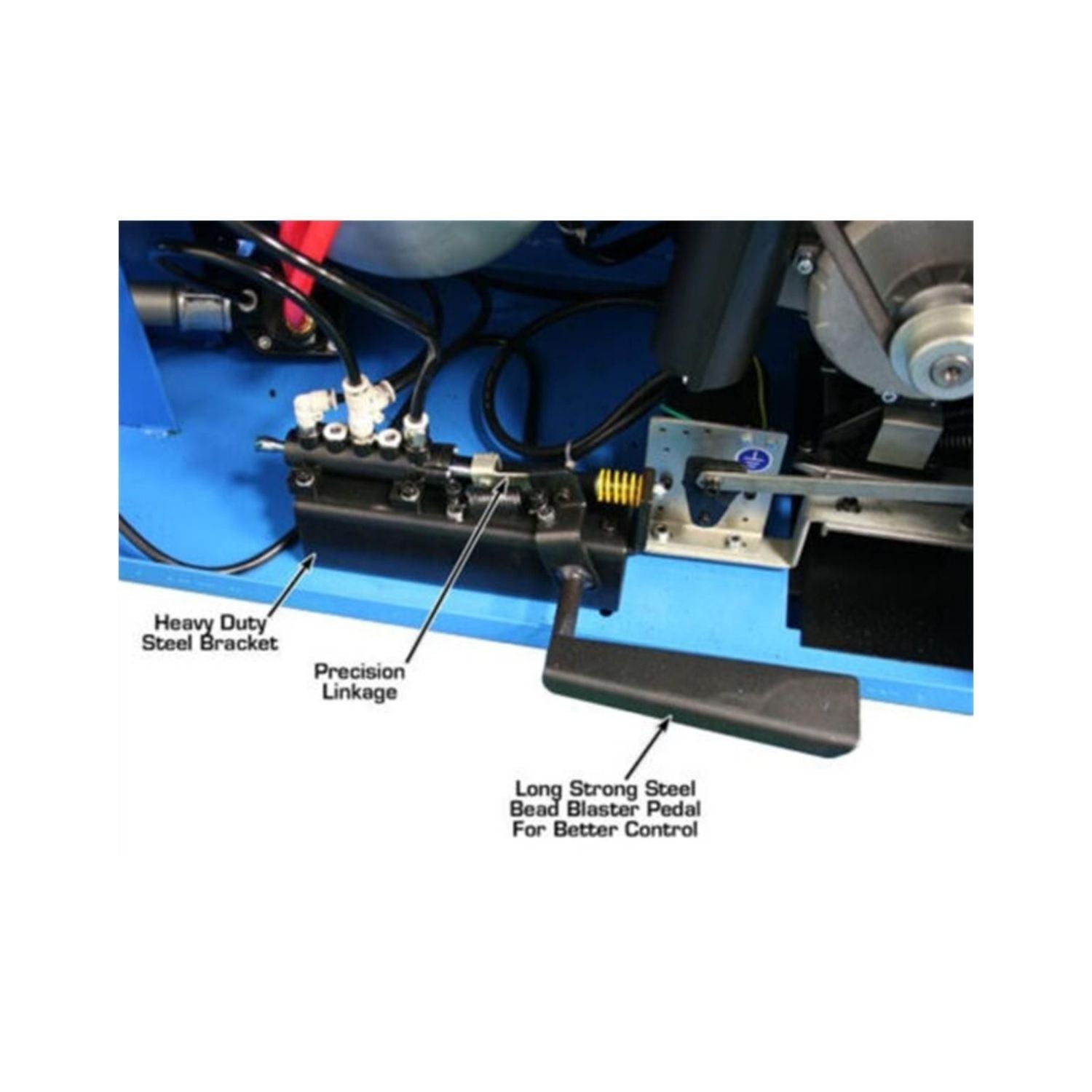

  • Built-in "Beadblaster"

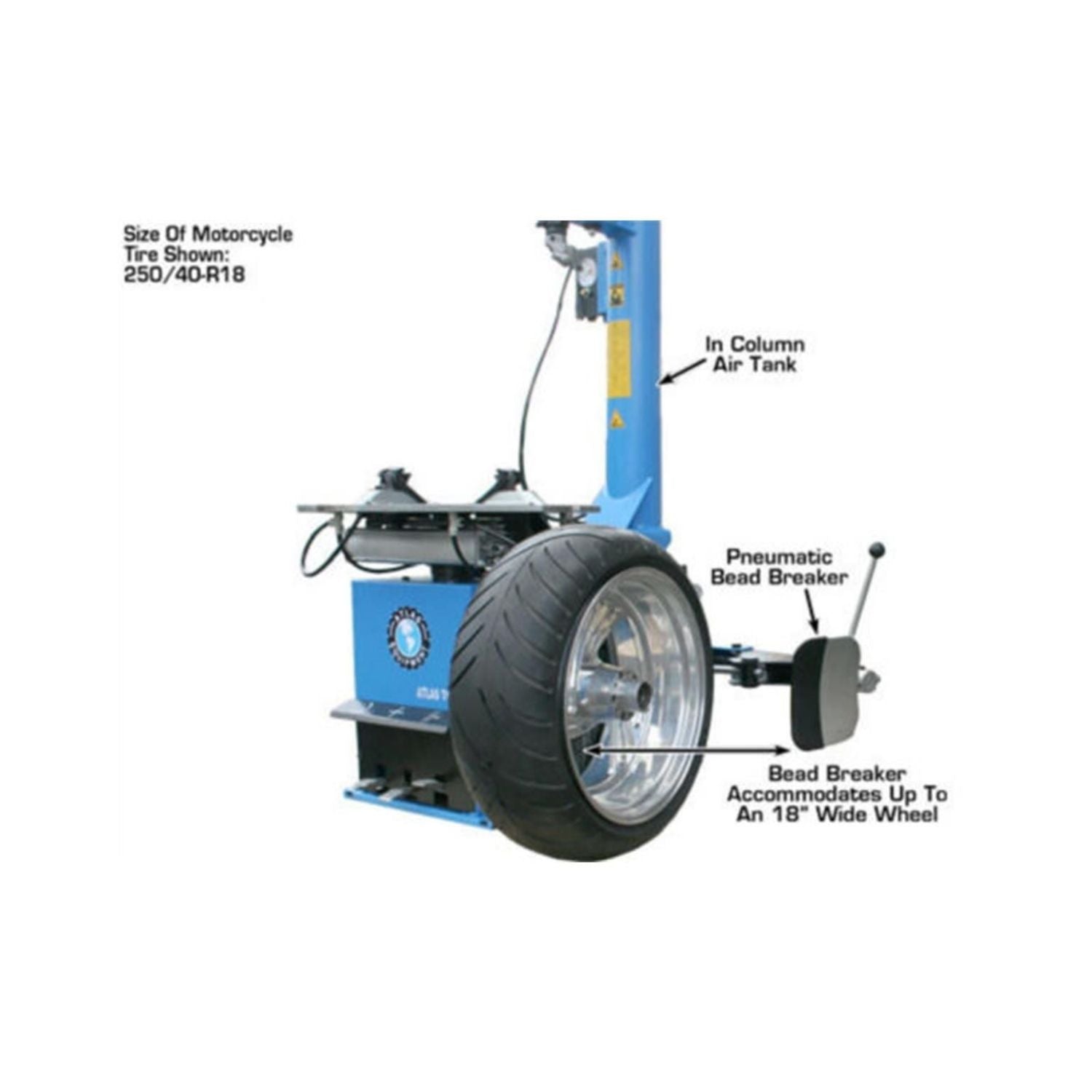

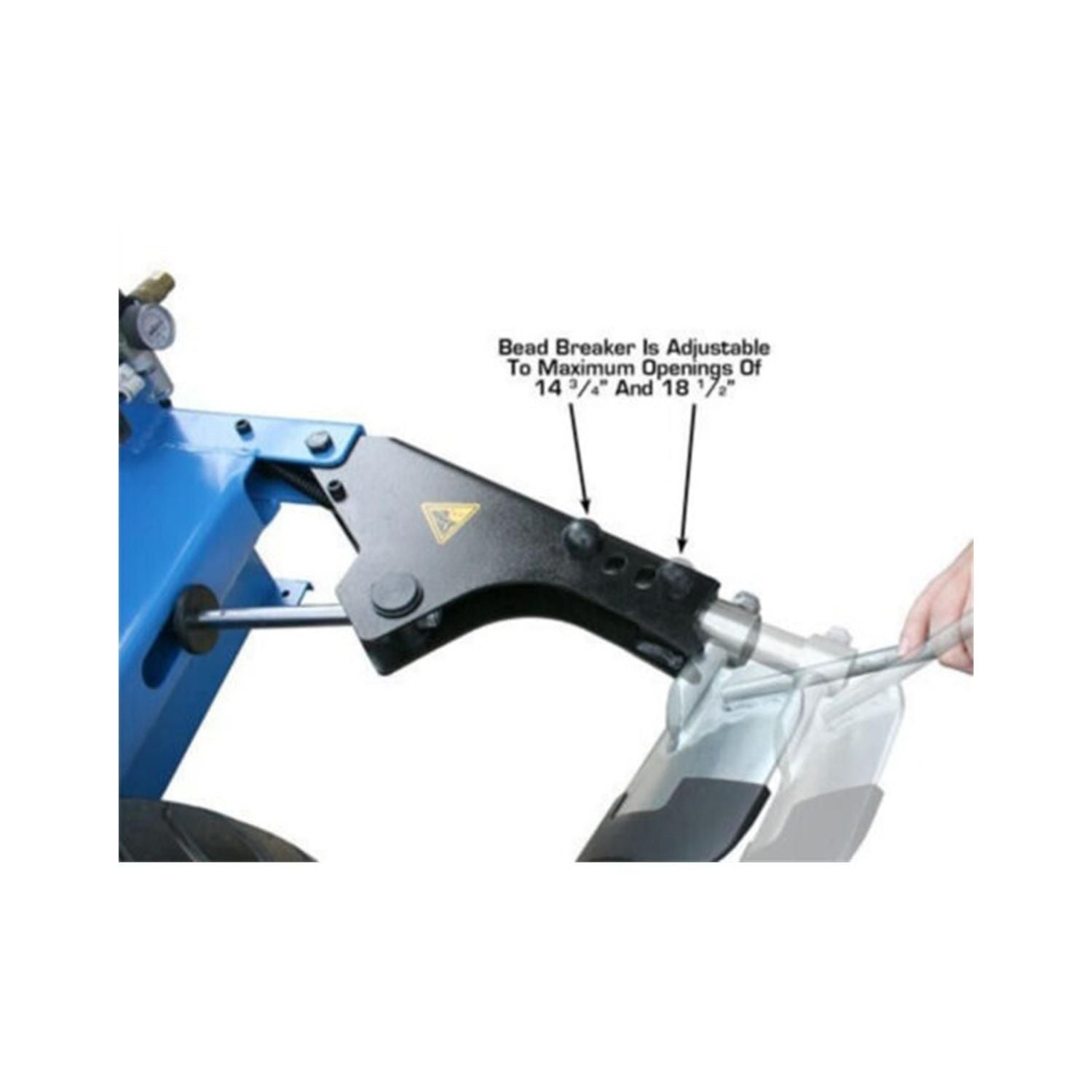

  • Adjustable Bead Breaker Plate

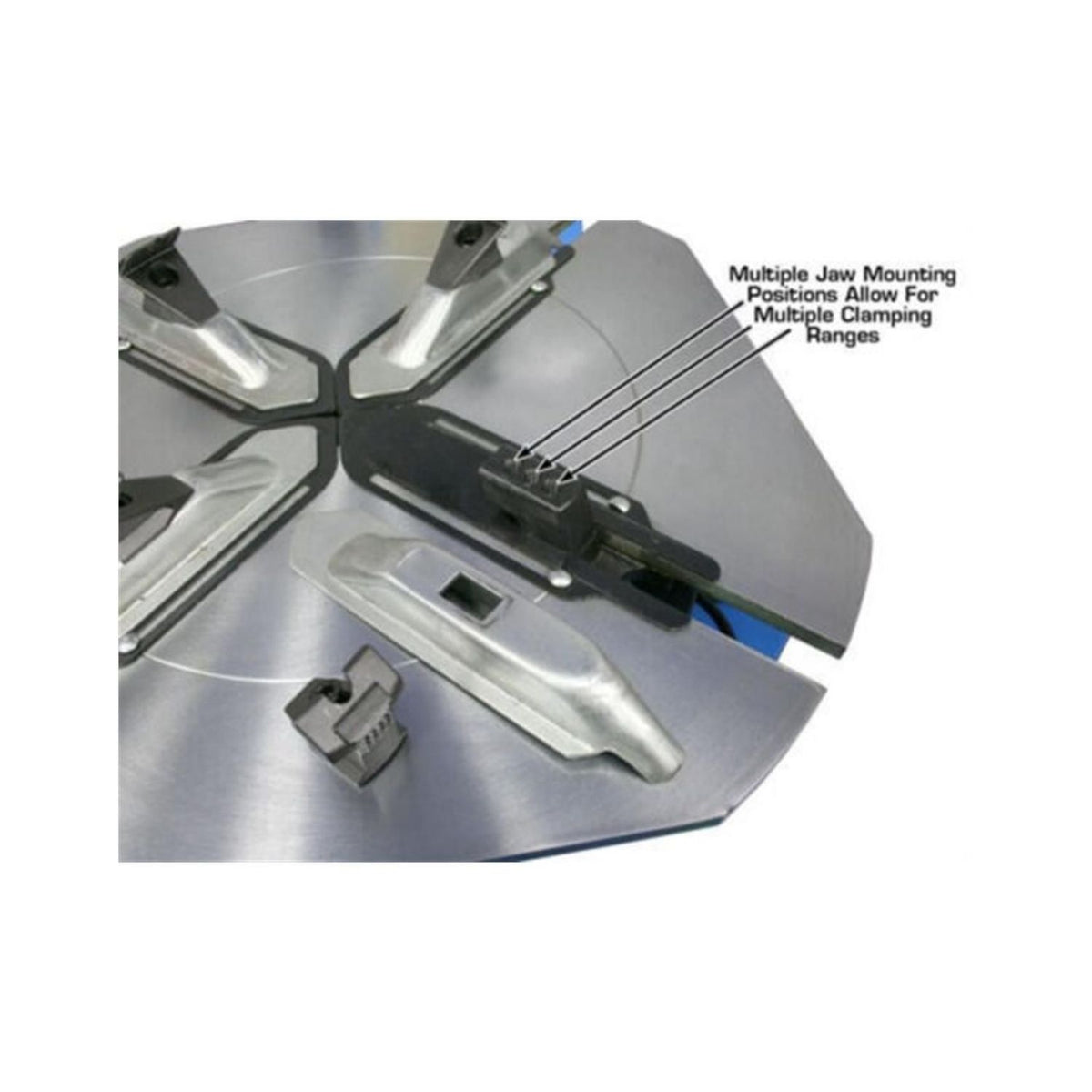

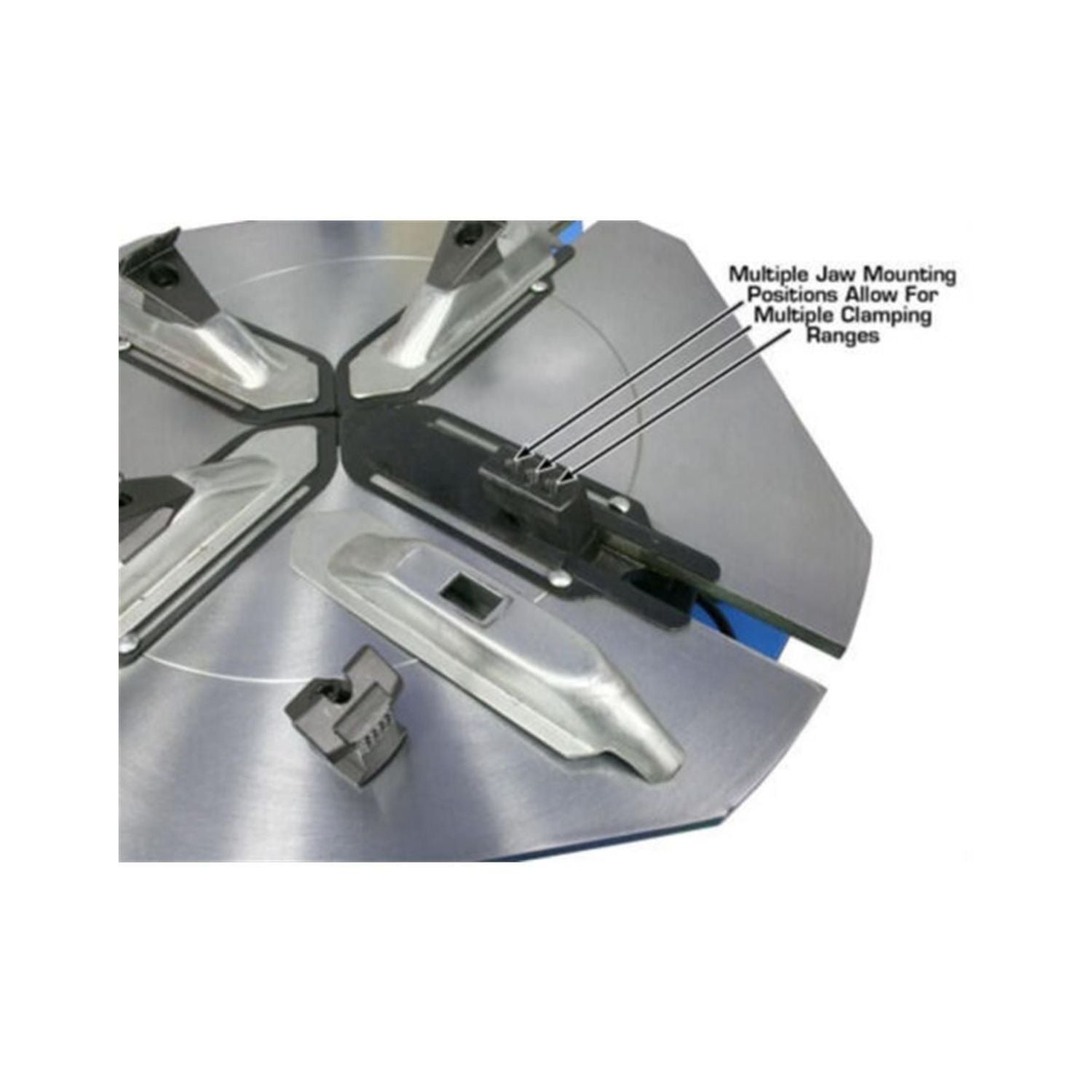

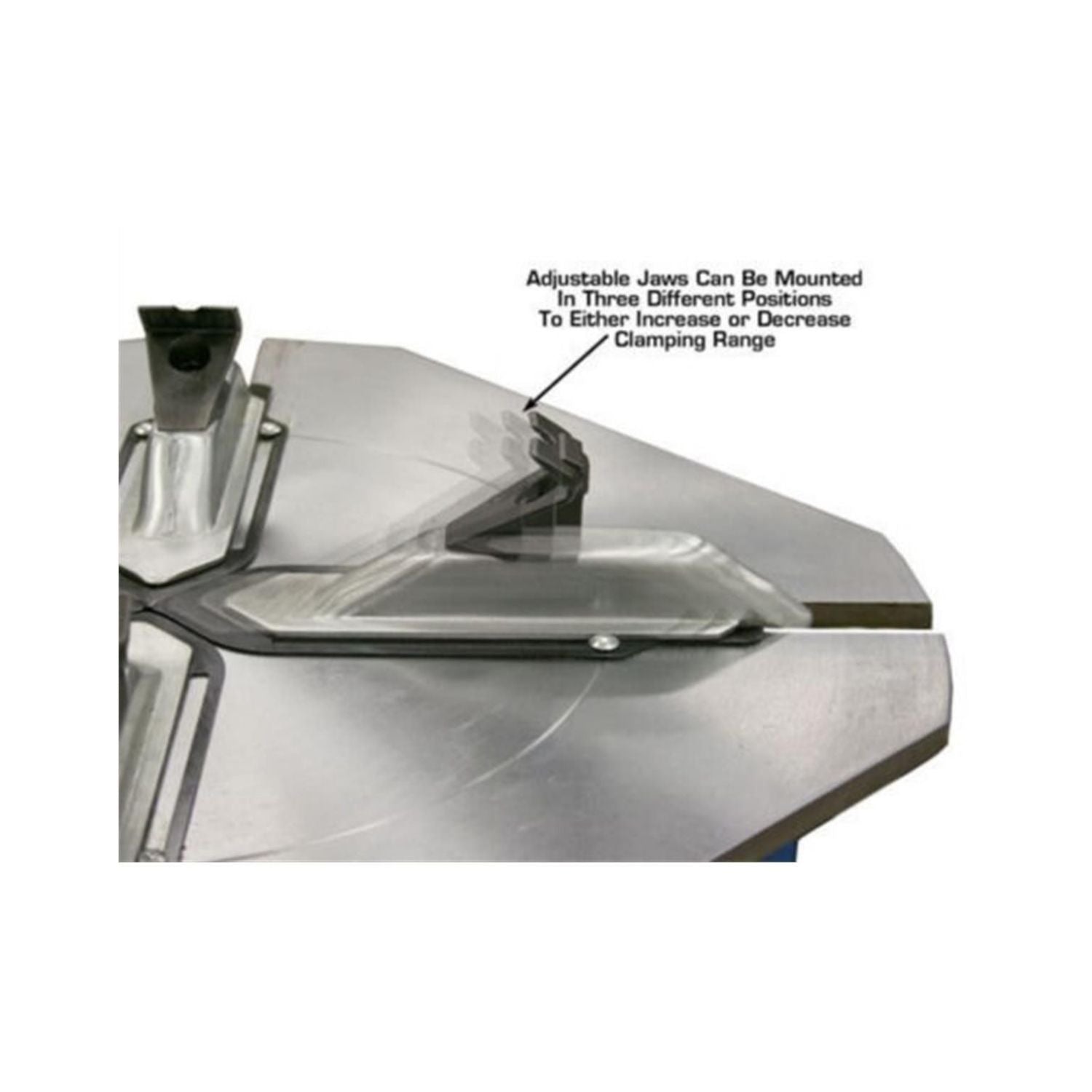

  • Adjustable jaws, 3 mounting positions

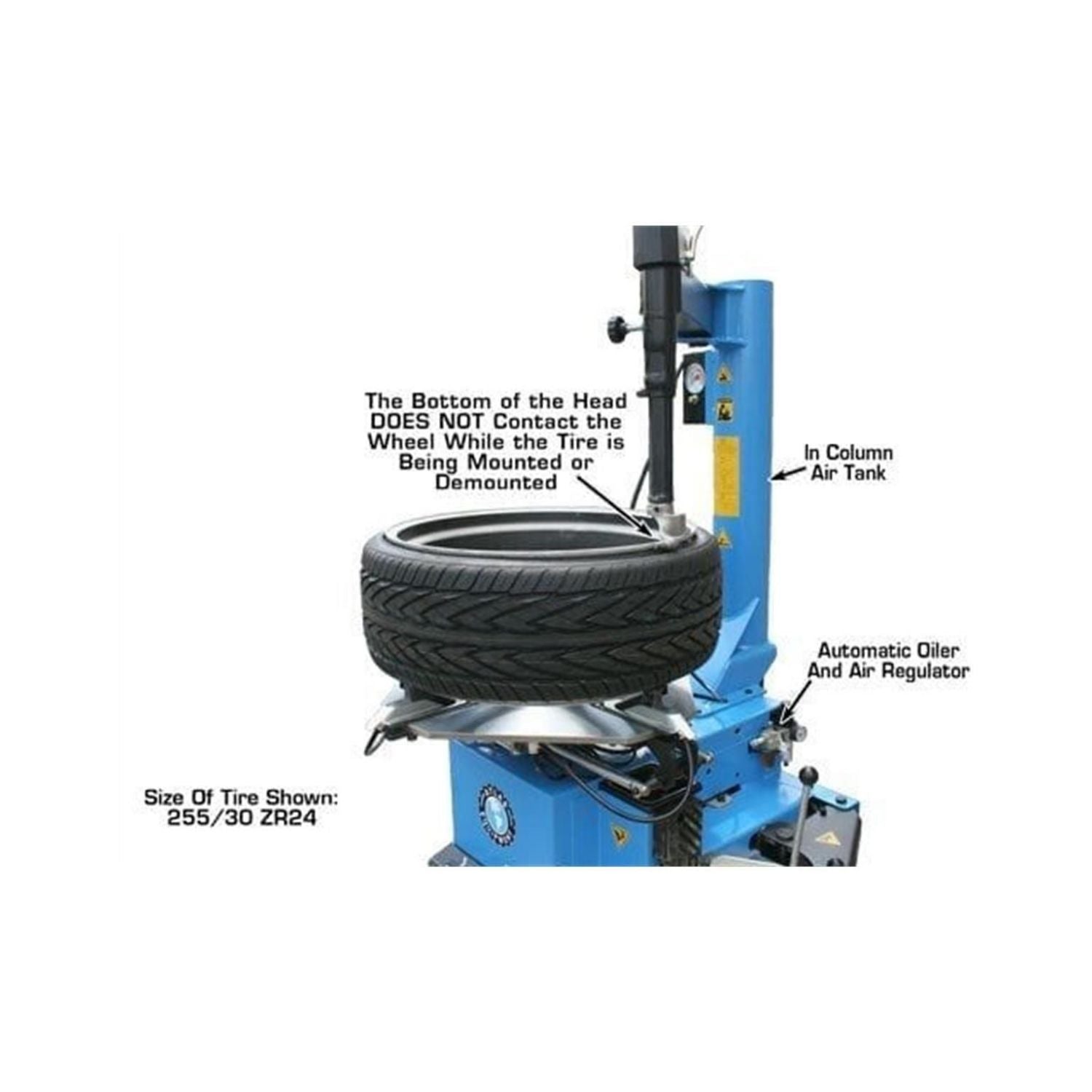

  • Oiler, Filter, Regulator included (external air supply required)

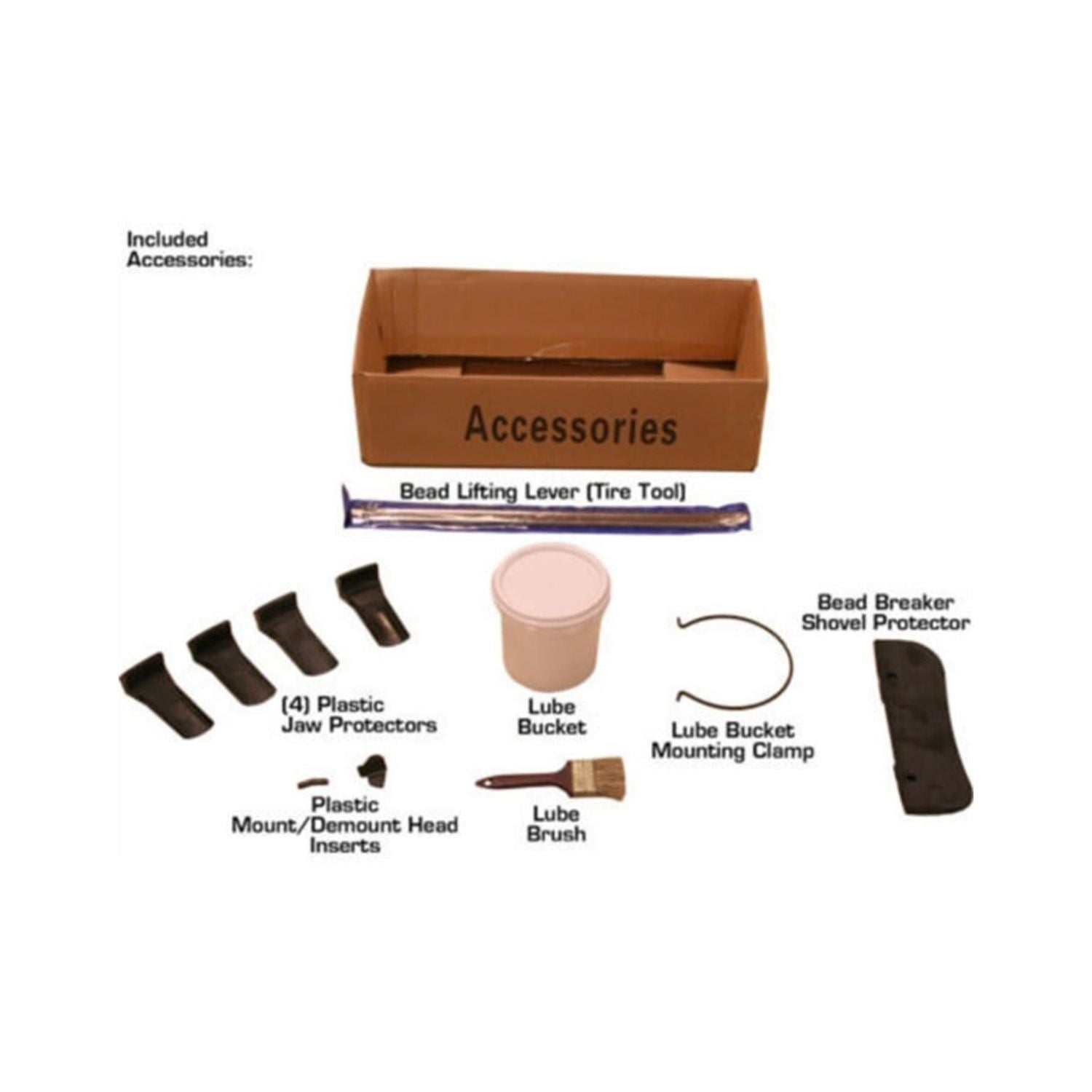

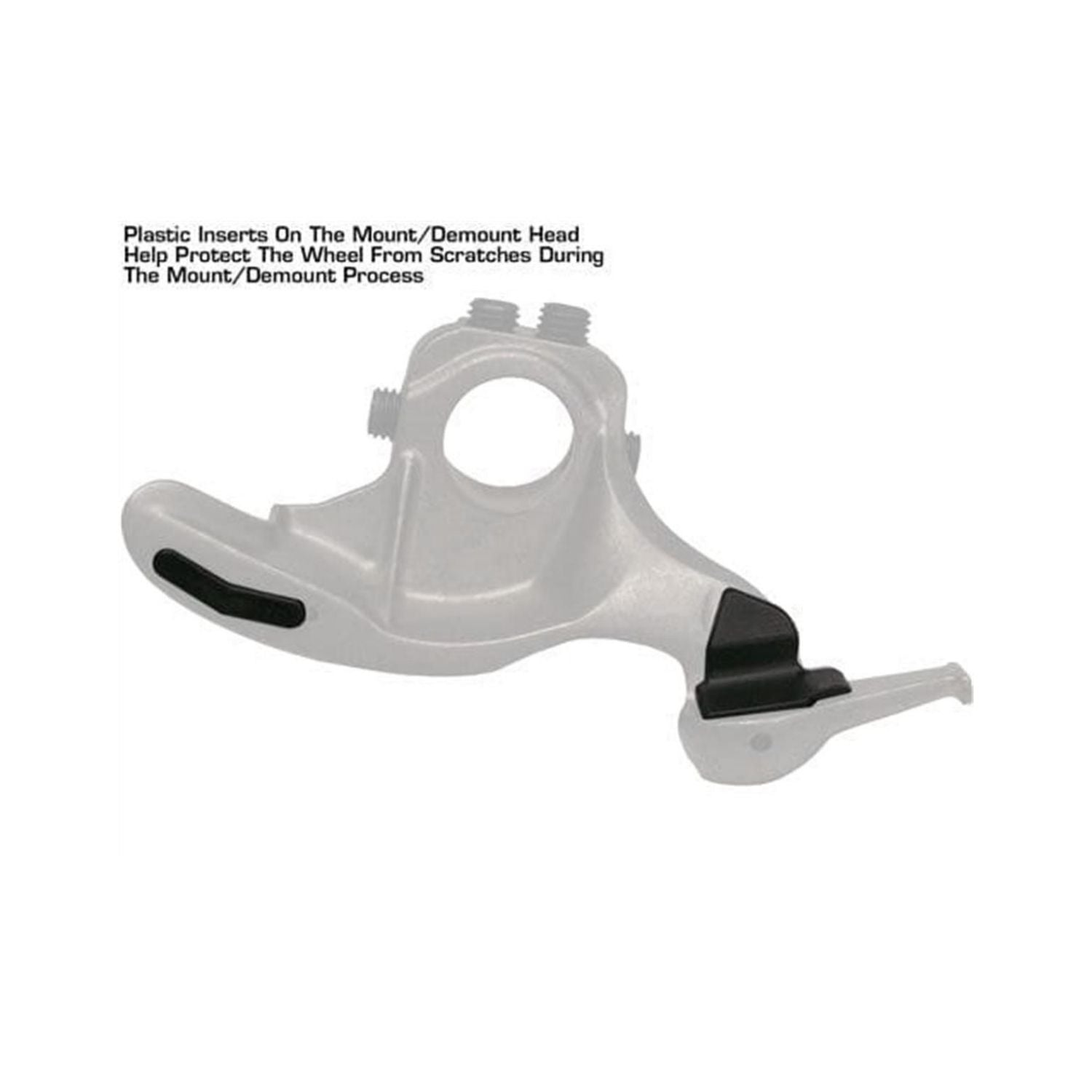

  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included




  Atlas® WB11 Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® TC289 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO8-FPD

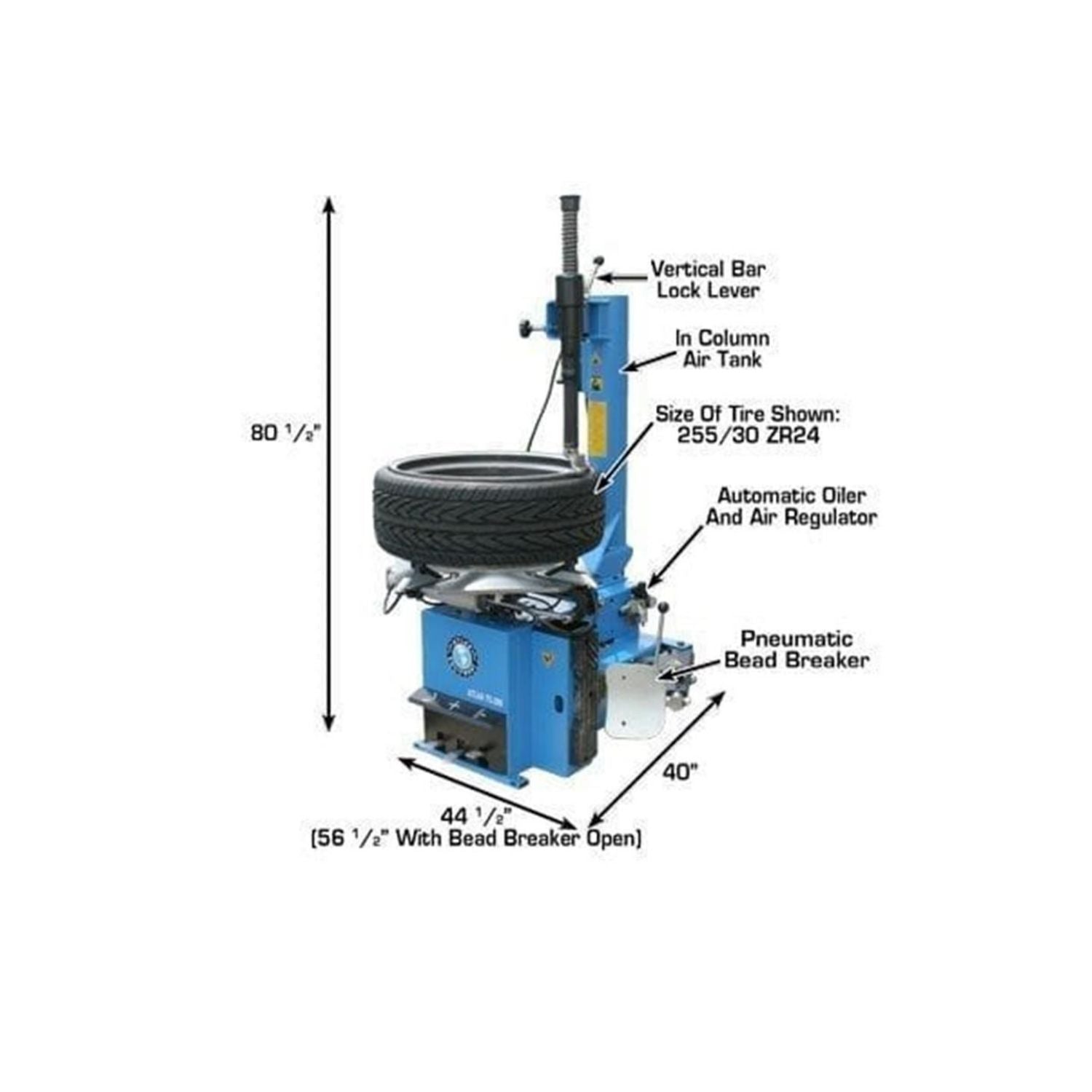

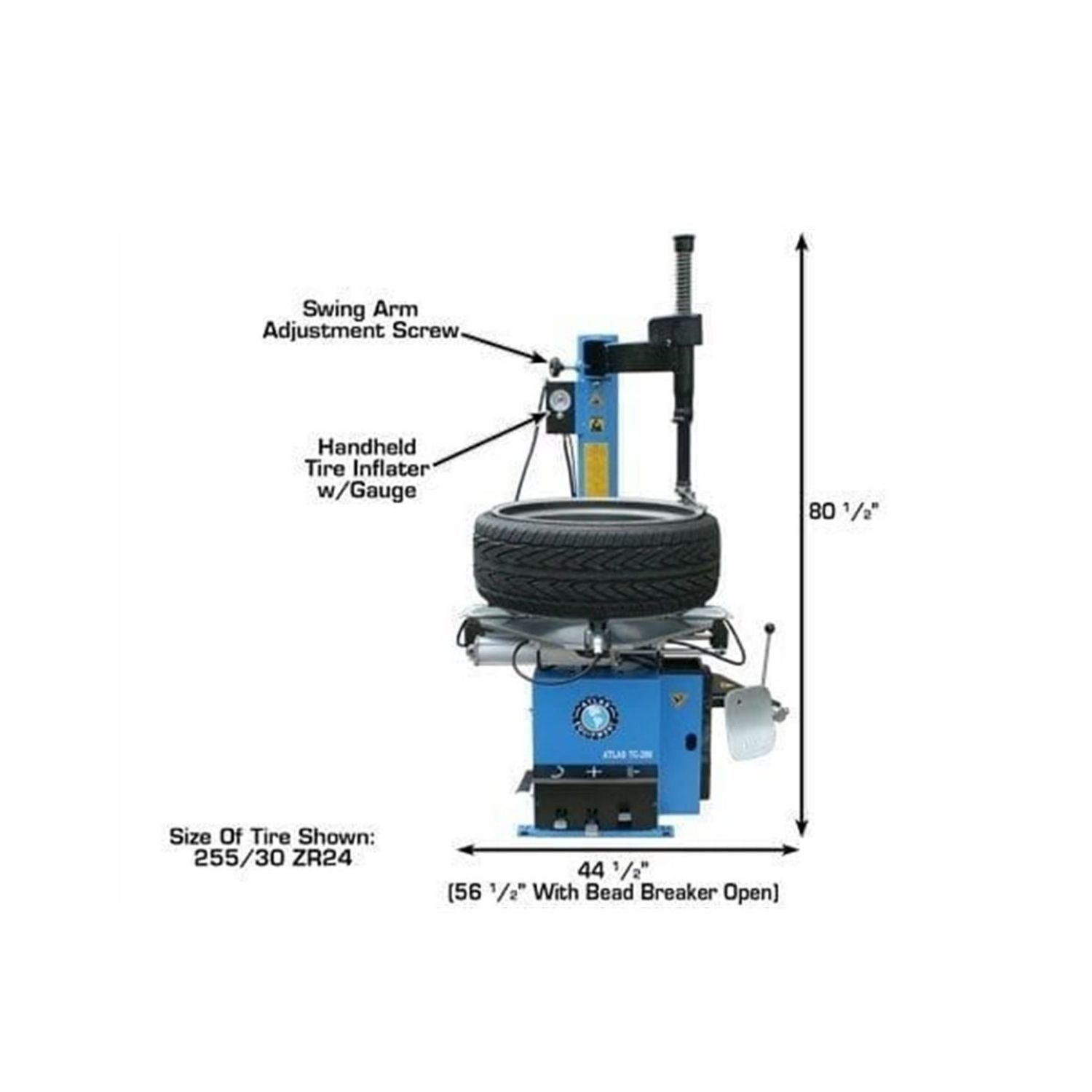

  Dimensions:	80" L × 45" W × 38" H

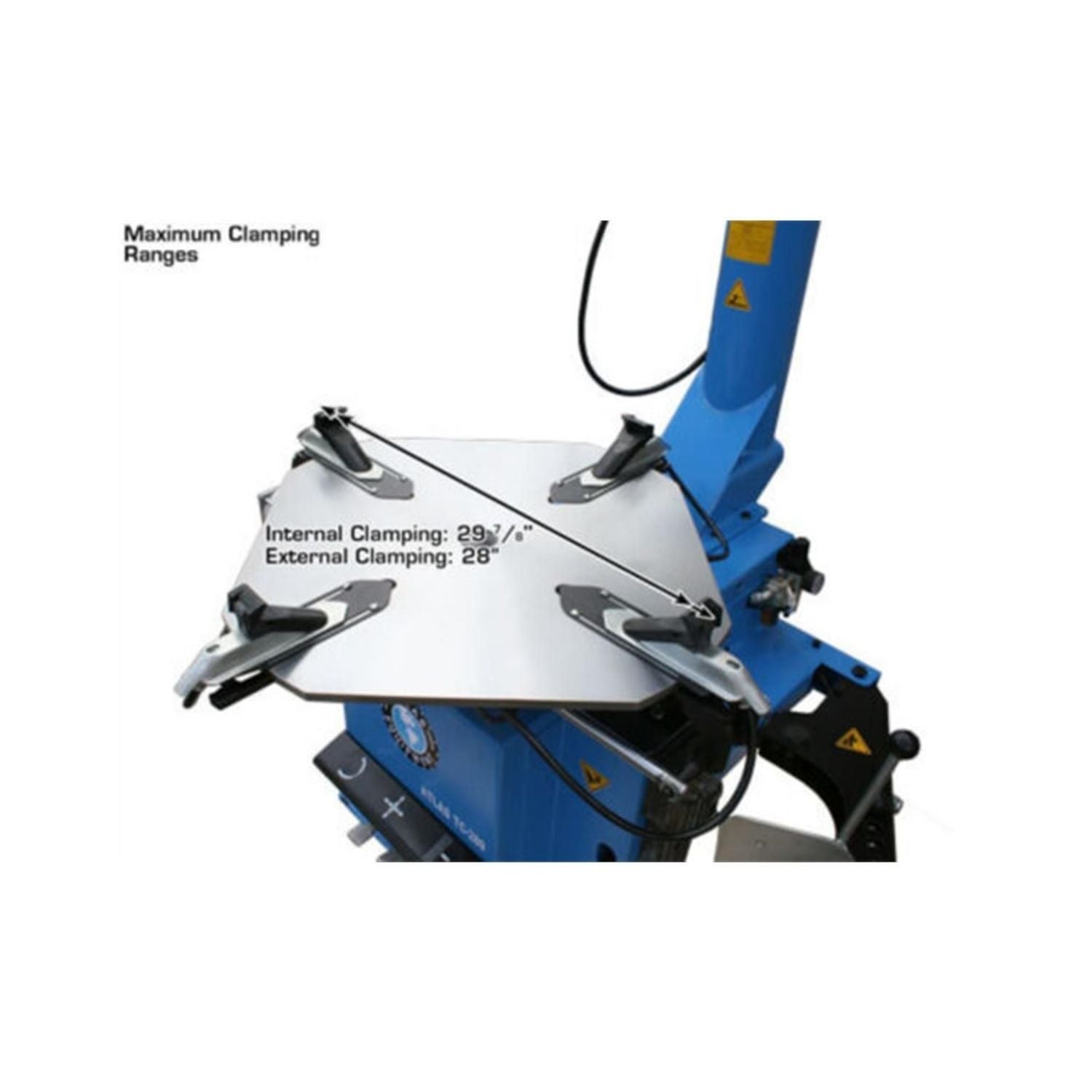

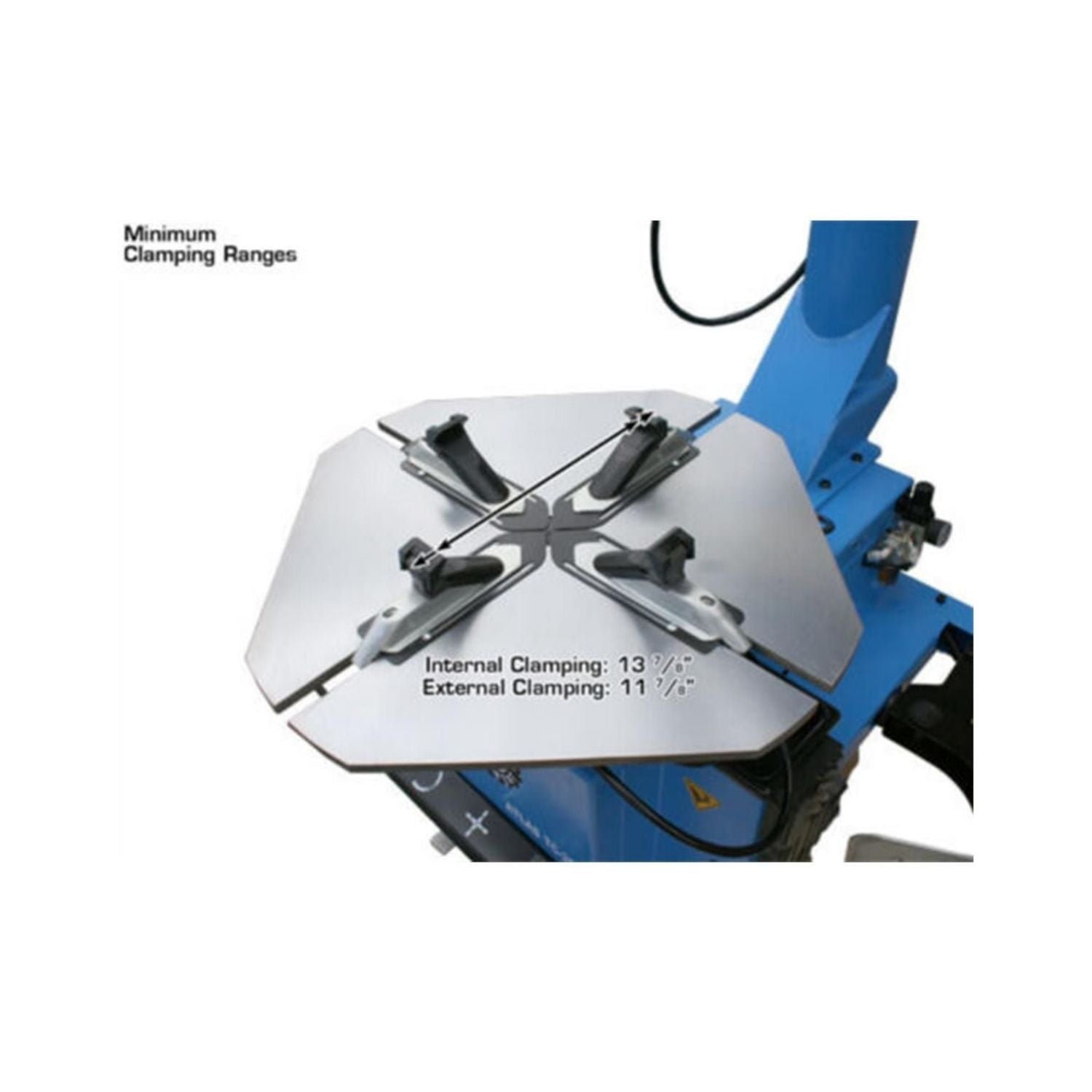

  External Locking Rim Dimensions:	11 7/8" to 27 7/8"
  Internal Locking Rim Dimensions:	13 7/8" to 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"

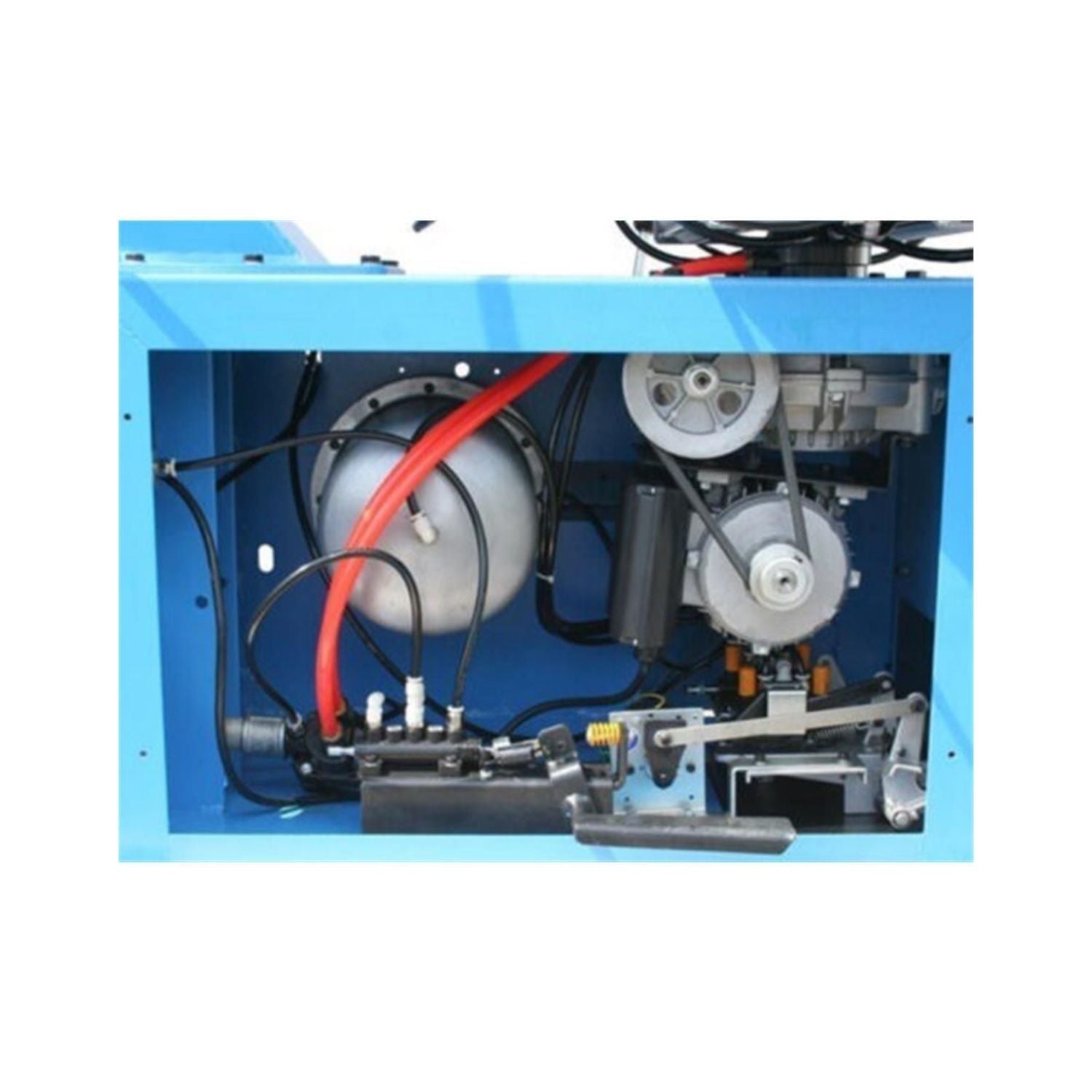

  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt

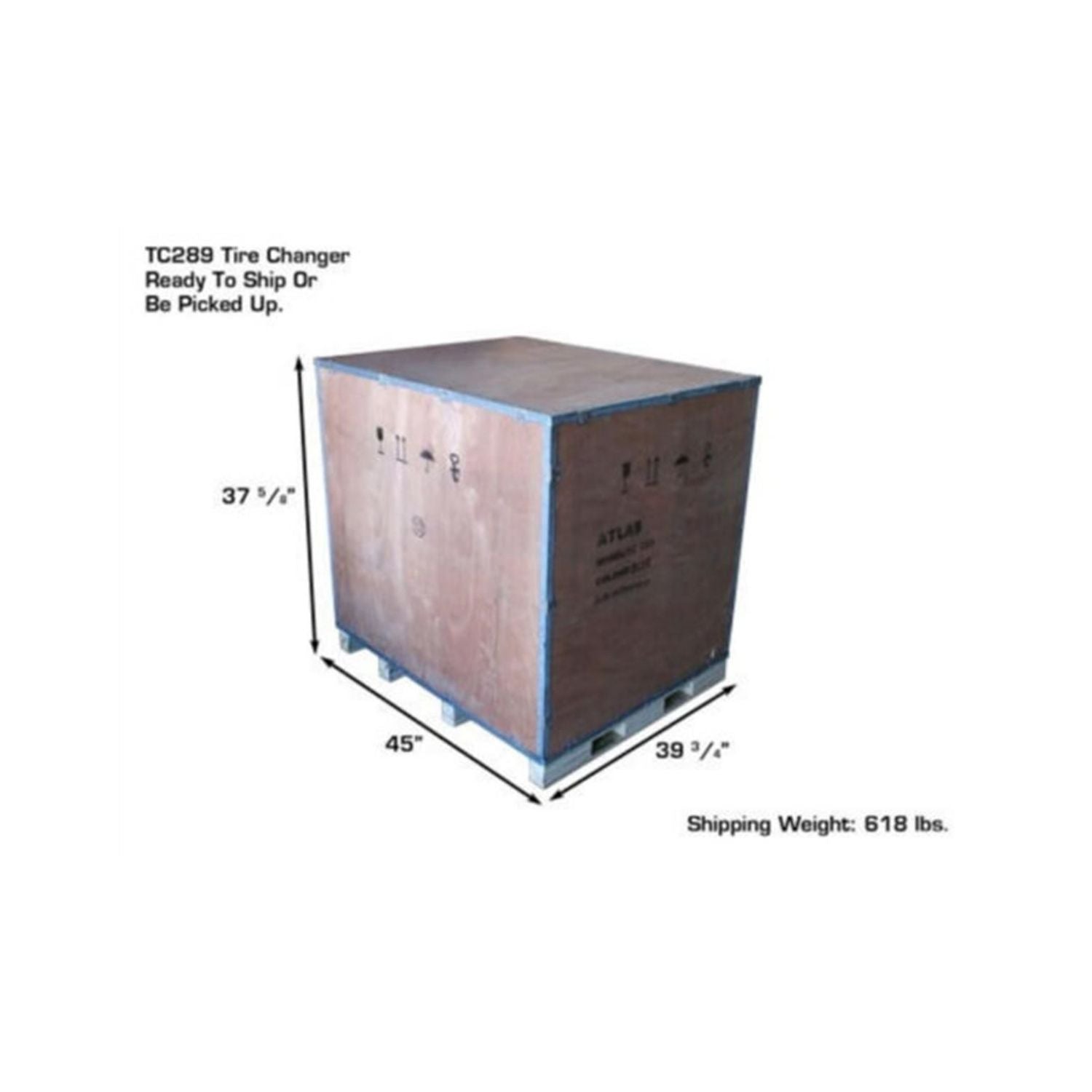

  Shipping Weight:	620 lbs
  UPC:	810524029421
  Country of Origin:	CHN




  Atlas® WB11 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	All Dimensions Manual
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt
  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
