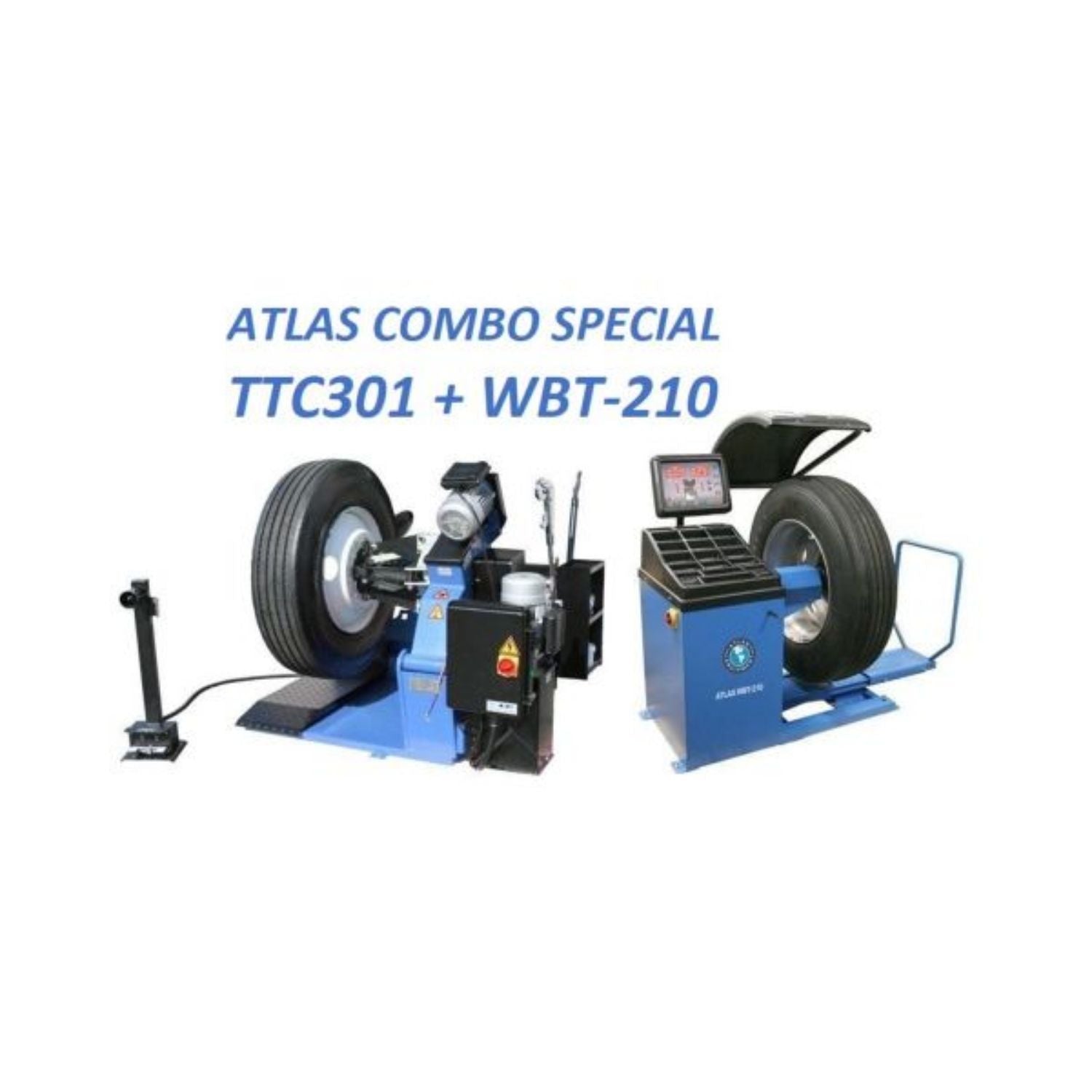

Atlas® TC301 Tire Changer & WBT210 Balancer Combo Package #ATETTCWB-COMBO1-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas® TC301 Tire Changer & WBT210 Balancer Combo is a heavy-duty wheel service package designed for commercial truck shops, fleet maintenance facilities, agricultural tire service centers, and high-volume automotive operations. This combo package includes the Atlas® TC301 truck tire changer and the Atlas® WBT210 computerized heavy-duty wheel balancer, delivering professional tire mounting, demounting, and balancing capabilities for everything from passenger vehicles to semi-truck tires.
The TC301 tire changer features an electric/hydraulic self-centering four-jaw chuck, bead breaker mount/demount head, and five rim locking positions for handling oversized wheels and tires with ease. The WBT210 wheel balancer provides computerized balancing with static and dynamic modes, rapid optimization, self-diagnosis, and self-calibration for accurate balancing performance on large commercial wheel assemblies. Both machines are engineered for durability, precision, and continuous daily operation in demanding shop environments.
-
FEATURES AND BENEFITS
Atlas® TC301 Standard Truck Tire Changer
- Handles rims from 13" to 27" and tire diameters in excess of 63"
- Accommodates tires with a max width of up to 30 1/2?
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
Atlas® WBT210 Heavy Duty Spin Balancer
- Cone sets for car and light truck tires included
- Cone and spacer set for truck, bus, or implement tires included
- Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
- Pneumatic wheel lift (external air supply required - NOT INCLUDED)
- Automatic start/stop when hood is lowered/raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-Diagnosing and Calibrating
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers & Wheel Width Caliper Included
- Both Machines 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATETTCWB-COMBO1-FPD Dimensions: 121" L × 69" W × 50" H Weight: 2115 lbs UPC: 810524027137 Country of Origin: CHN Atlas® TC301 Specifications
Rim Clamping Range: 13" - 27" Minimum Clamping Size W/ Alloy Adapters: 6 3/8" Max Wheel Weight: 3,300 lbs. Max Tire Diameter: 63" (5' 3") Max Tire Width: 30 1/2" (2' 6 1/2") Clamping Power: 6,614 lbs Operating Pressure: 0-1885 PSI Acoustic Pressure: 70dBA Bead Breaker Force: 4112 lbs. Tool Arm Positioning: Manual Tool Head Positioning: Manual Construction: Single Piece Frame w/ Solid Floor Plate Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Shipping Weight: 1,390 lb. Atlas® WBT-210 Specifications
Max Tire Diameter: 47" Rim Sizes (Cars And Light Trucks): 10"-32" Rim Width: 1 1/2"-20" Shaft Size: 40mm Max. Wheel Weight: 440 lbs. Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
