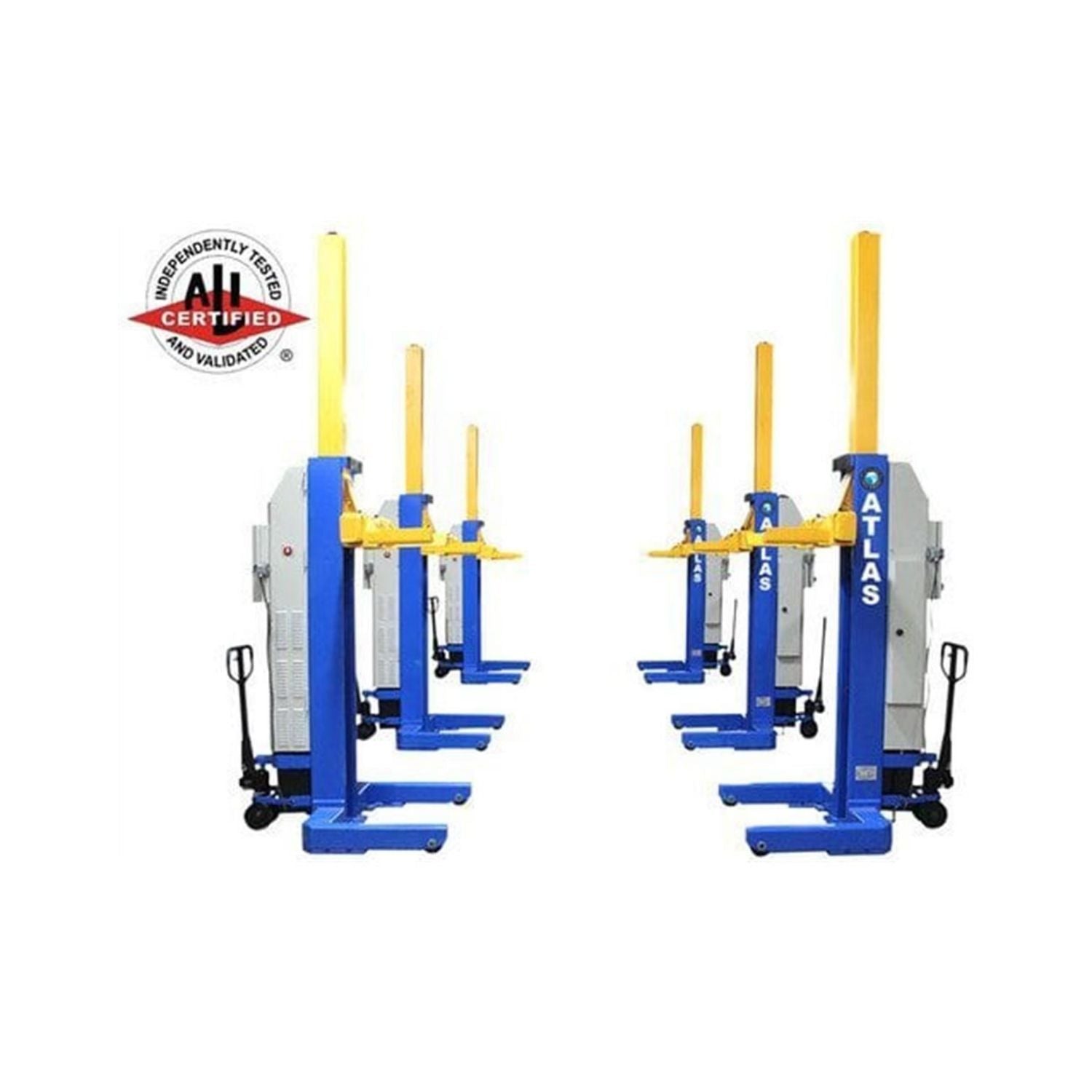

Atlas® 111,000 lb Battery Mobile Column Lift – ALI Cert. #ATEML-6051BC

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

  The 111,000 lb Battery Powered Mobile Column Lift (ALI Certified) is an ultra heavy-duty lifting system engineered for the largest commercial vehicles and fleet operations.

  With an industry-leading 111,000 lb total lifting capacity, this system is designed to handle extreme-duty applications including transit buses, articulated vehicles, and heavy industrial fleet equipment. The mobile column design provides maximum flexibility for positioning, while the battery-powered operation allows cordless use and improved mobility throughout the shop.

  Built for demanding environments and high-capacity lifting needs, this system delivers reliable performance and efficiency for large-scale service facilities.

• FEATURES AND BENEFITS

  • ALI CERTIFIED
  • Simultaneous operation of all columns
  • LCD screen shows exact lifting height of each column
  • Electronic system ensuring synchronization of all columns
  • Double-safety guaranteed by both hydraulic flow control and mechanical locks
  • Portable columns make your work easy and comfortable
  • Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
  • Emergency stop button on every column
  • Six 32? column connecting cables included
  • 2.2 Kw 24V DC motor with two batteries per column
  • 2 Year Limited Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEML-6051BC
  UPC:	810524027670
  Capacity per Column:	18,500 LB.
  Motor:	2.2 Kw 24V DC motor with two batteries per column
  Max. Lifting Height:	67" (5' 7")
  Overall Height:	145" (12' 1")
  Resting Height:	88 1/2" (7' 4 1/2")
  Width:	43 1/2" (3' 7 1/2")
  Length:	55 1/2" (4' 7 1/2")
  Column Width:	13 1/4"
  Warranty:	2 Year Limited
  Shipping Weight (For Six Columns):	10,200 LB. each
  Shipping Weight Per Column:	1,700 LB. each
  Max Tire Diameter:	44"
  Min Tire Diameter:	19"

• DOCUMENTS

  • ATEML-6051BC - Owner's Manual
  • Maxima Mobile Column Lift-Warranty
