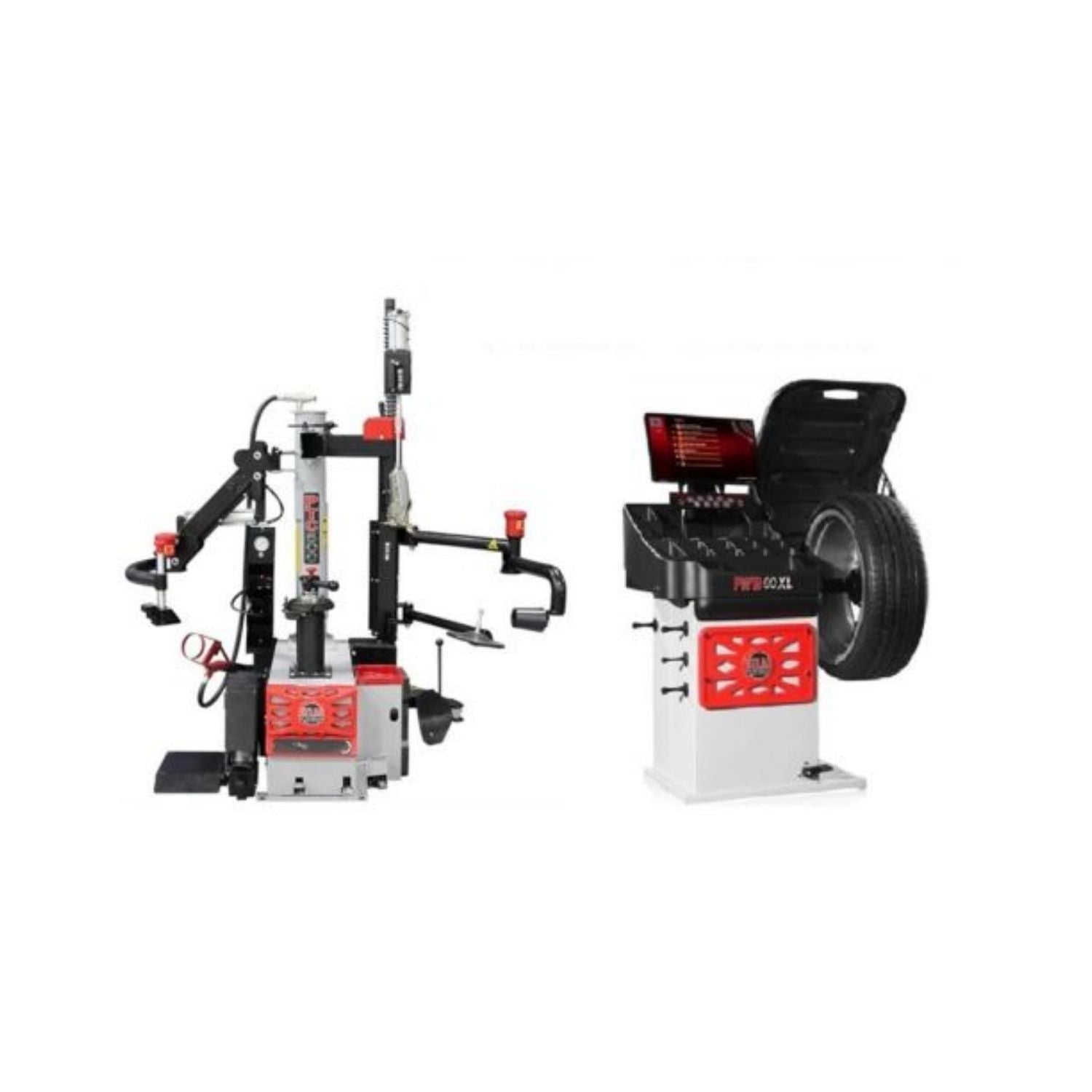

Atlas® Platinum PTC500 & PWB90XL Combo Package #ATEAP-TCWB-COMBO2-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® Platinum PTC500 & PWB90XL Combo Package combines two flagship Atlas Platinum wheel service machines into one premium commercial-grade package designed for high-volume tire shops, performance wheel centers, and professional automotive service facilities. This package delivers advanced tire changing and wheel balancing capability for modern low-profile, run-flat, alloy, and oversized wheel applications.

  The package includes the Atlas Platinum PTC500 Center-Post Tire Changer, engineered for easier handling of difficult wheel and tire combinations with its center-post clamping design and advanced helper systems, along with the Atlas Platinum PWB90XL 3D Video Wheel Balancer, featuring fully automatic 3D wheel measurement and premium balancing technology for fast and precise balancing performance. Together, these machines help improve technician efficiency while supporting demanding commercial wheel service operations.

  Ideal for shops servicing luxury vehicles, performance wheels, larger SUVs, and modern low-profile tire packages, the PTC500 & PWB90XL combo offers premium-level wheel service capability, advanced technology, and professional-grade durability for busy commercial environments.

• FEATURES AND BENEFITS

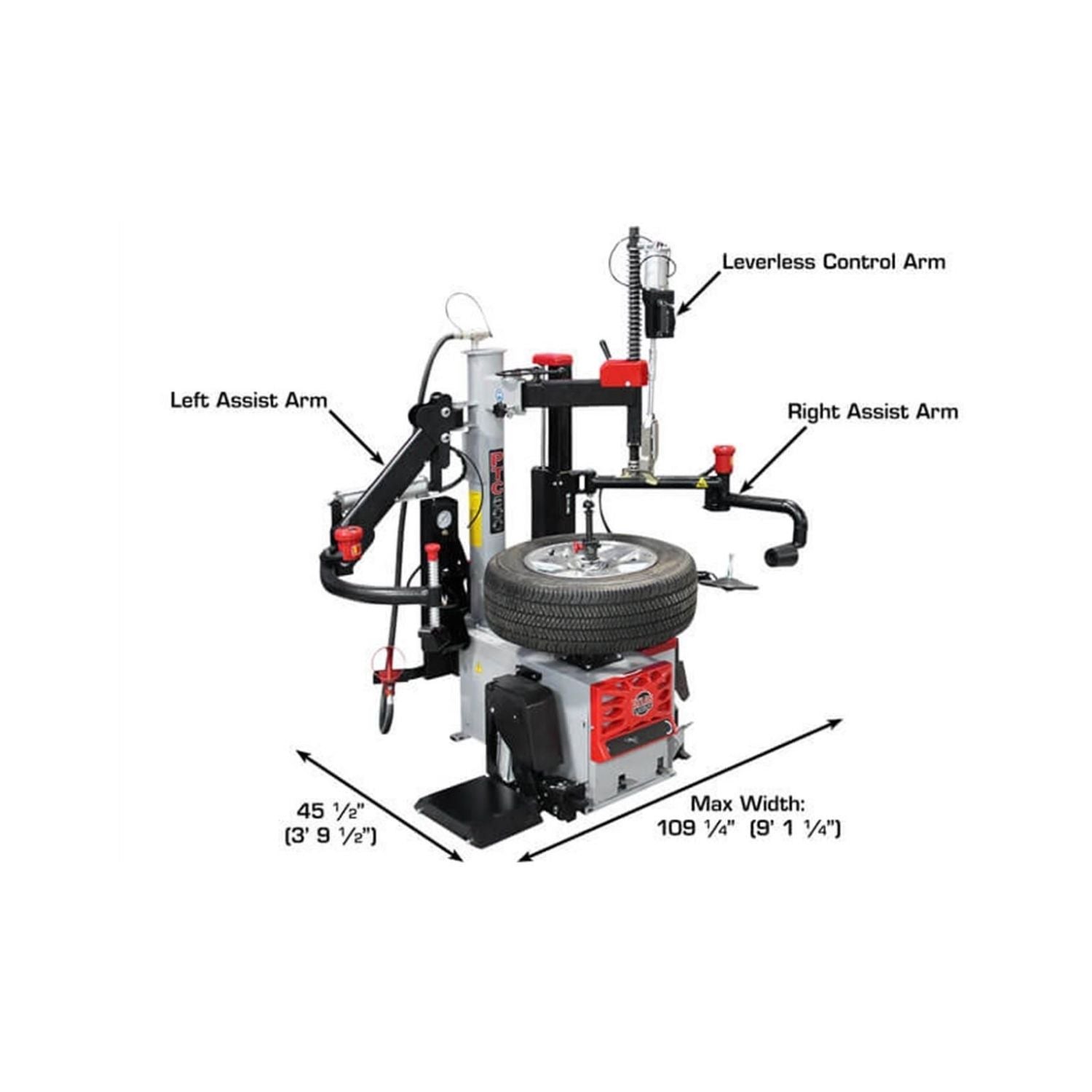

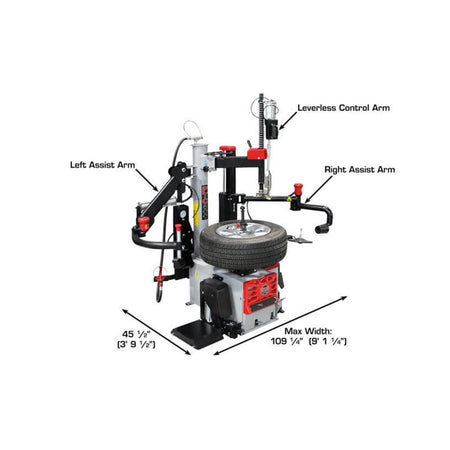

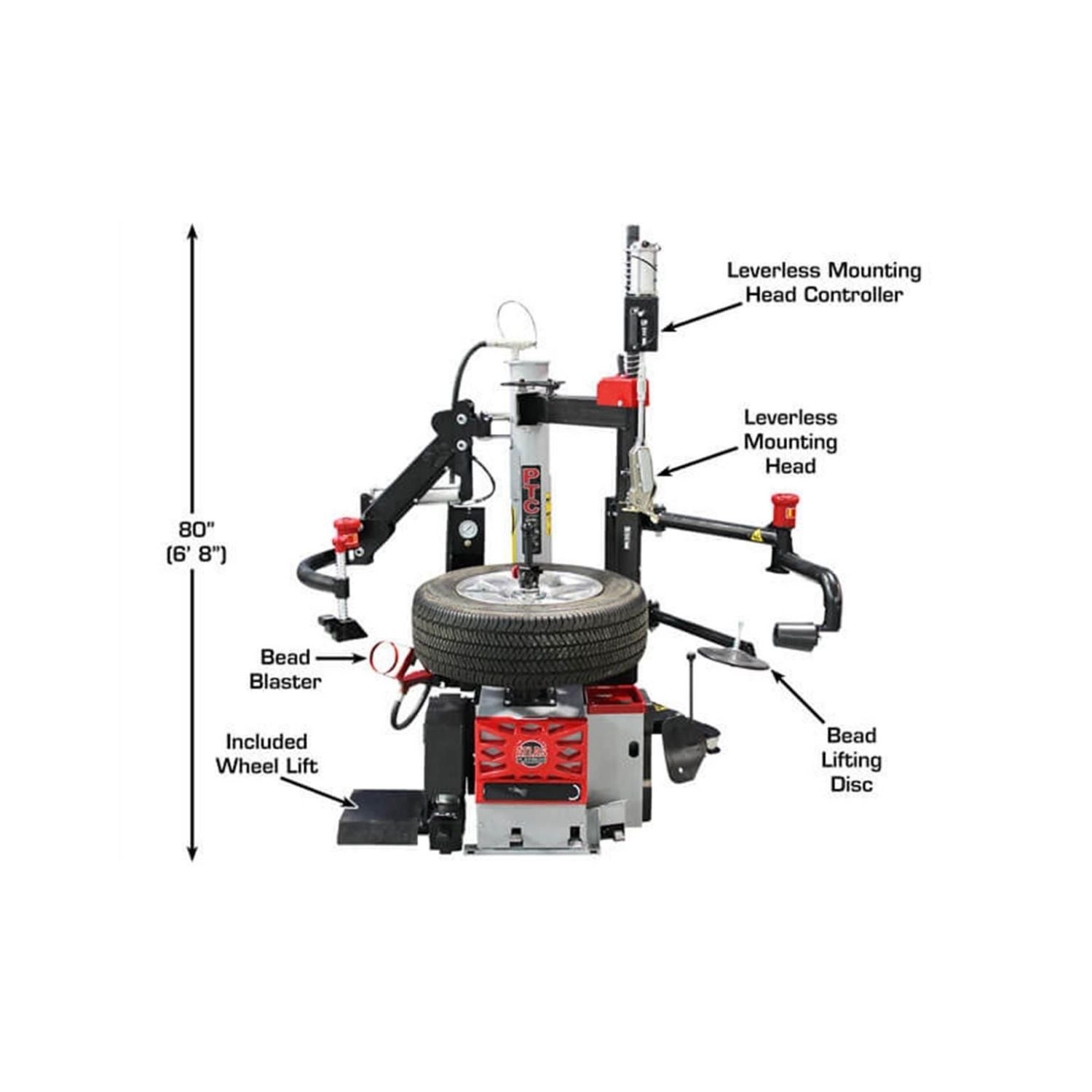

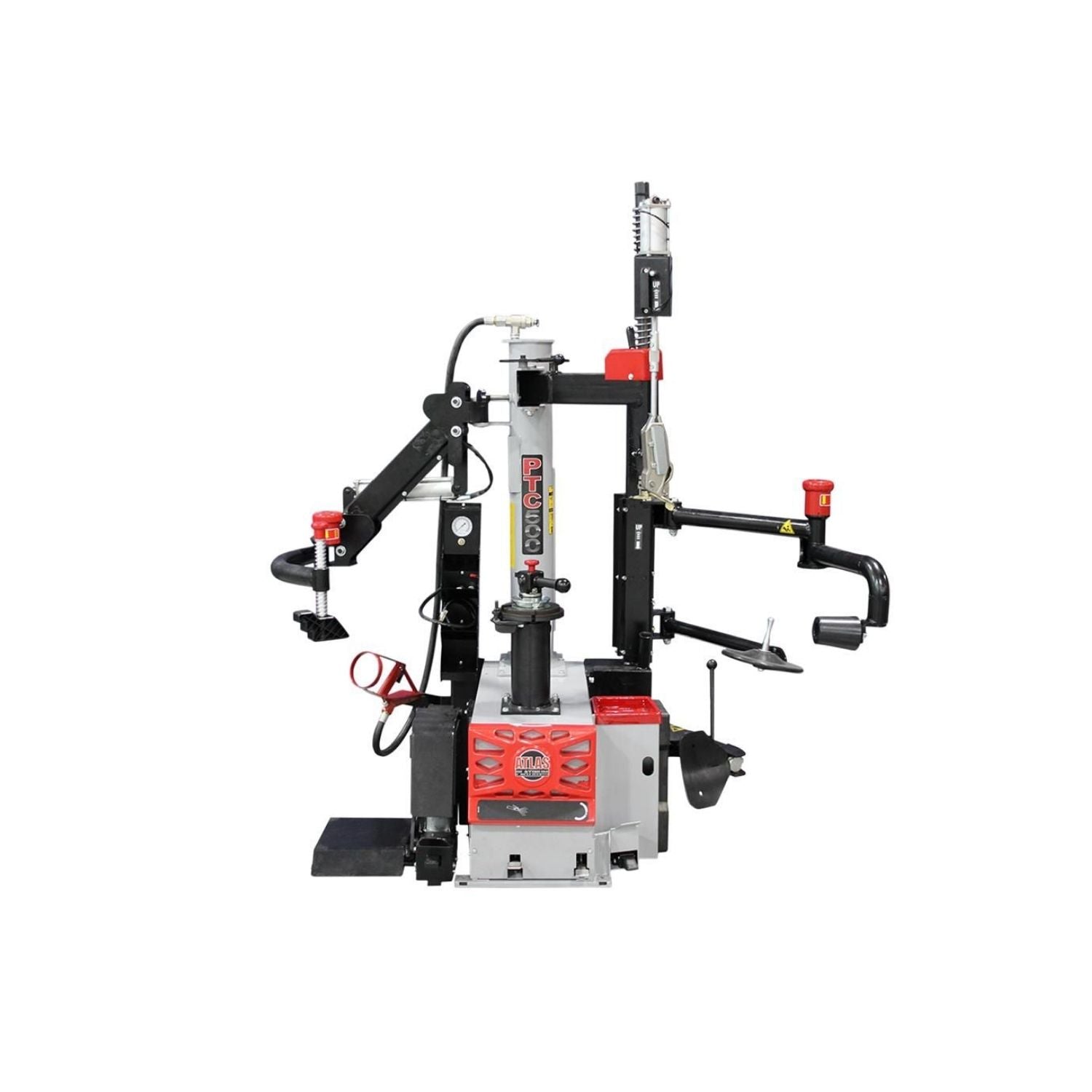

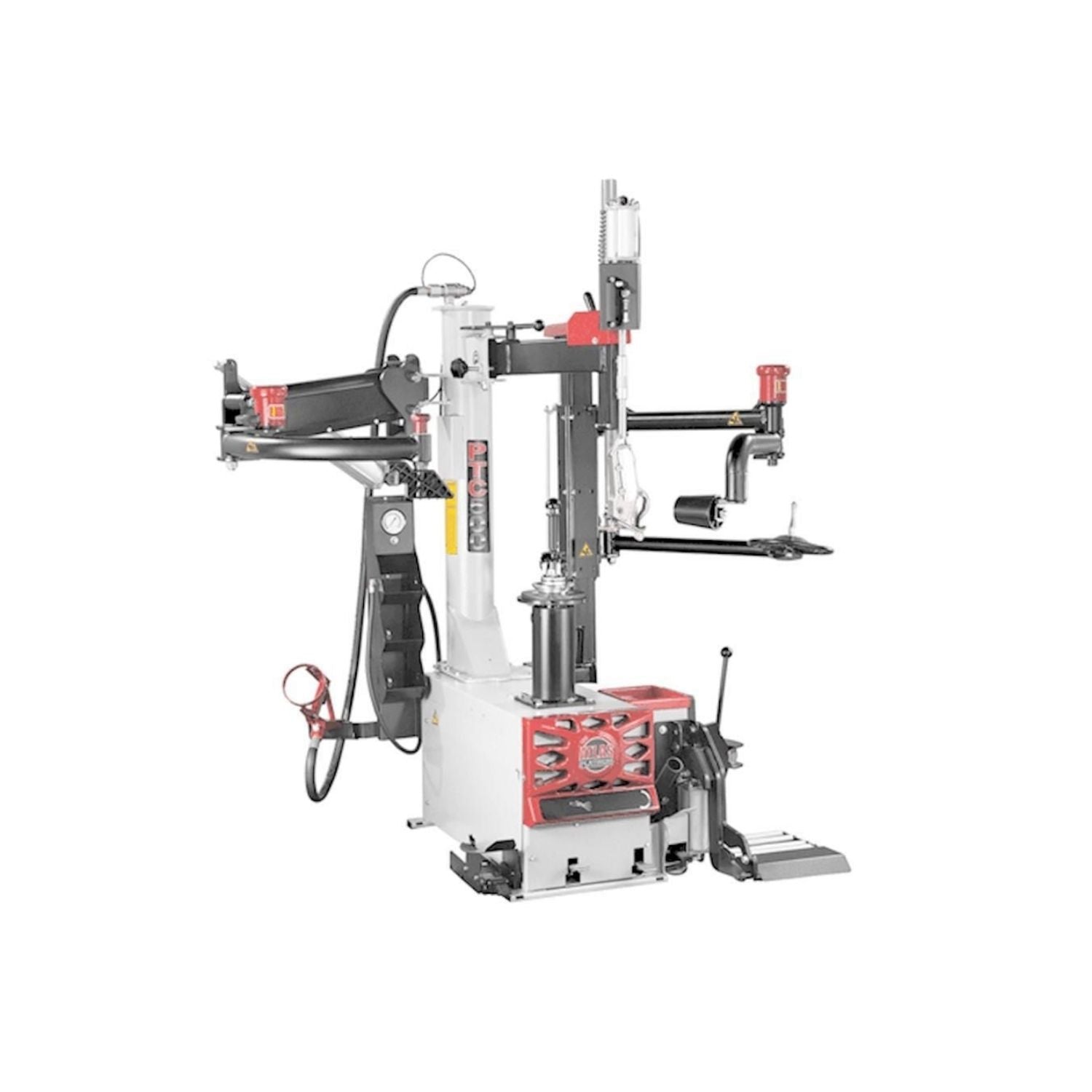

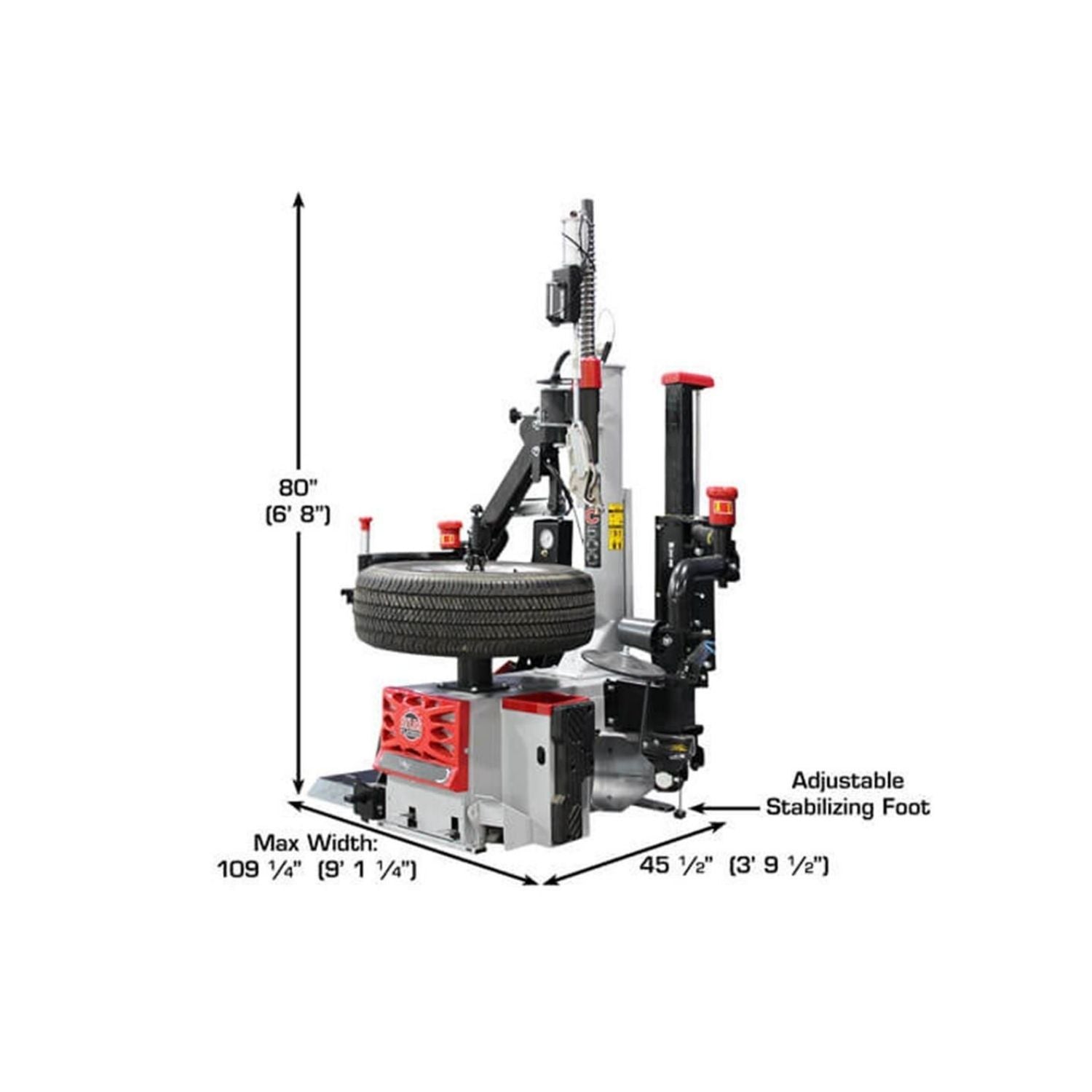

  Atlas® Platinum PTC500 Tire Changer

  • Center Post Tire Changer

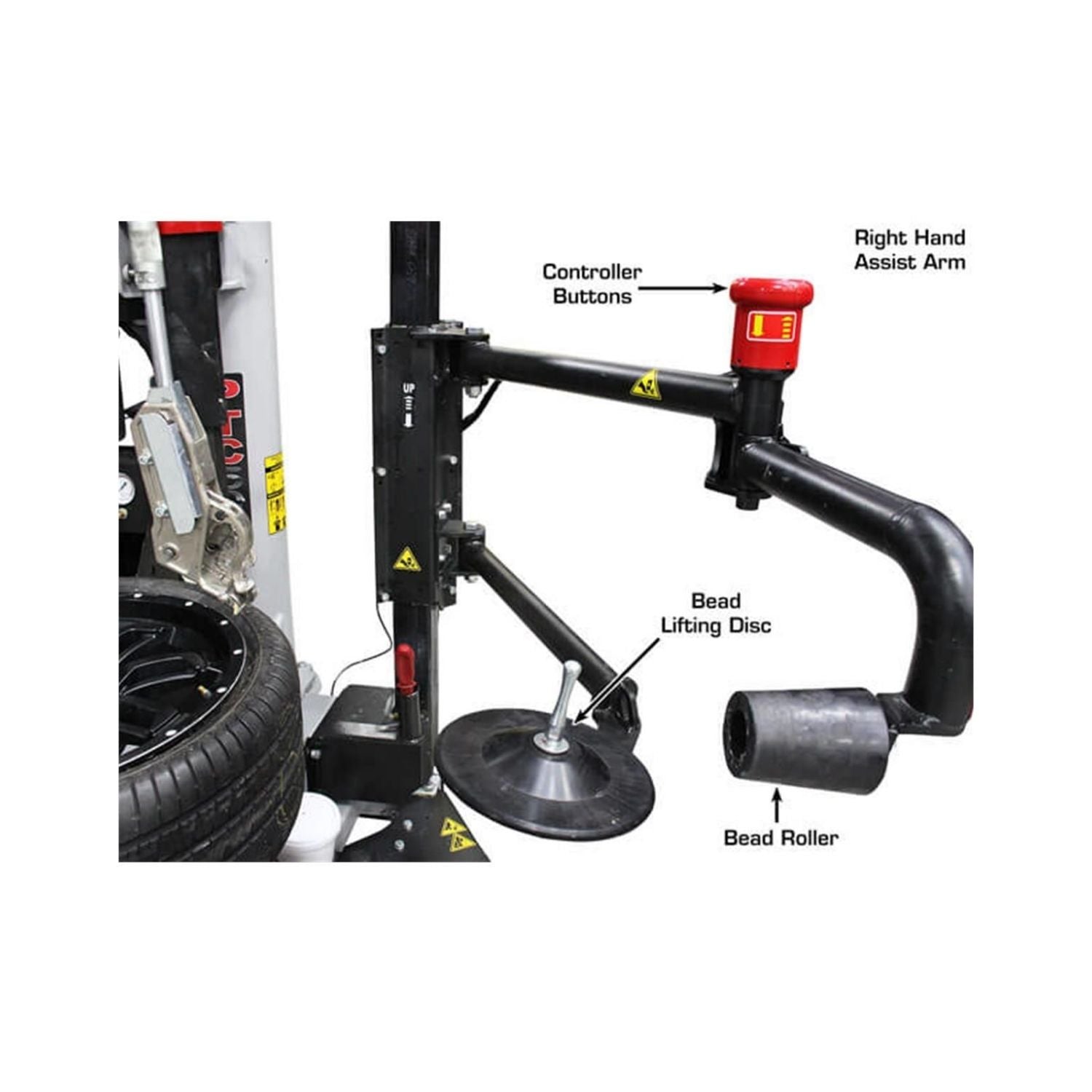

  • Dual Assist Arms and Wheel Lift Included

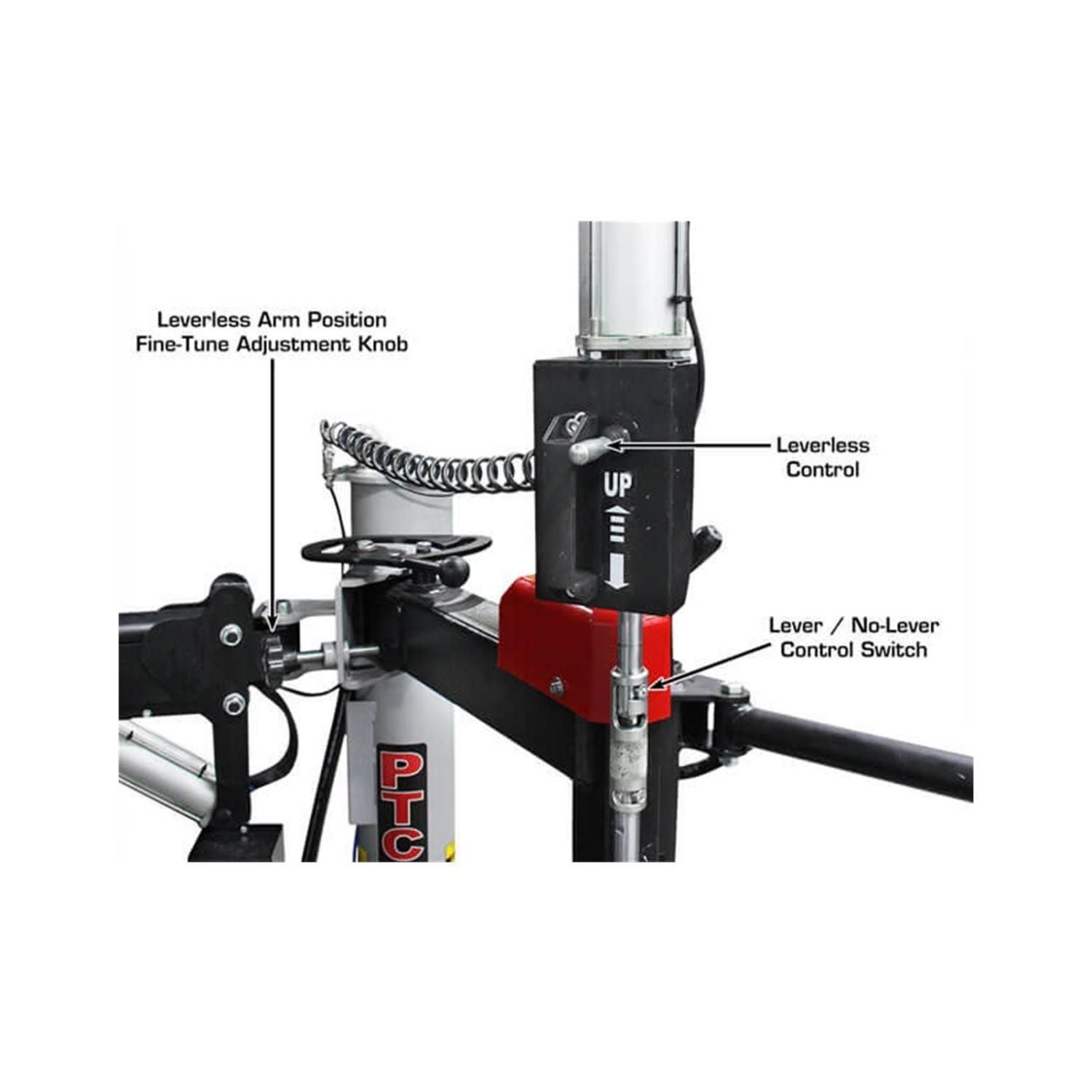

  • "Lever/No-Lever" Changing System
  • "Smart Lock" Center-Post Mounting System
  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included

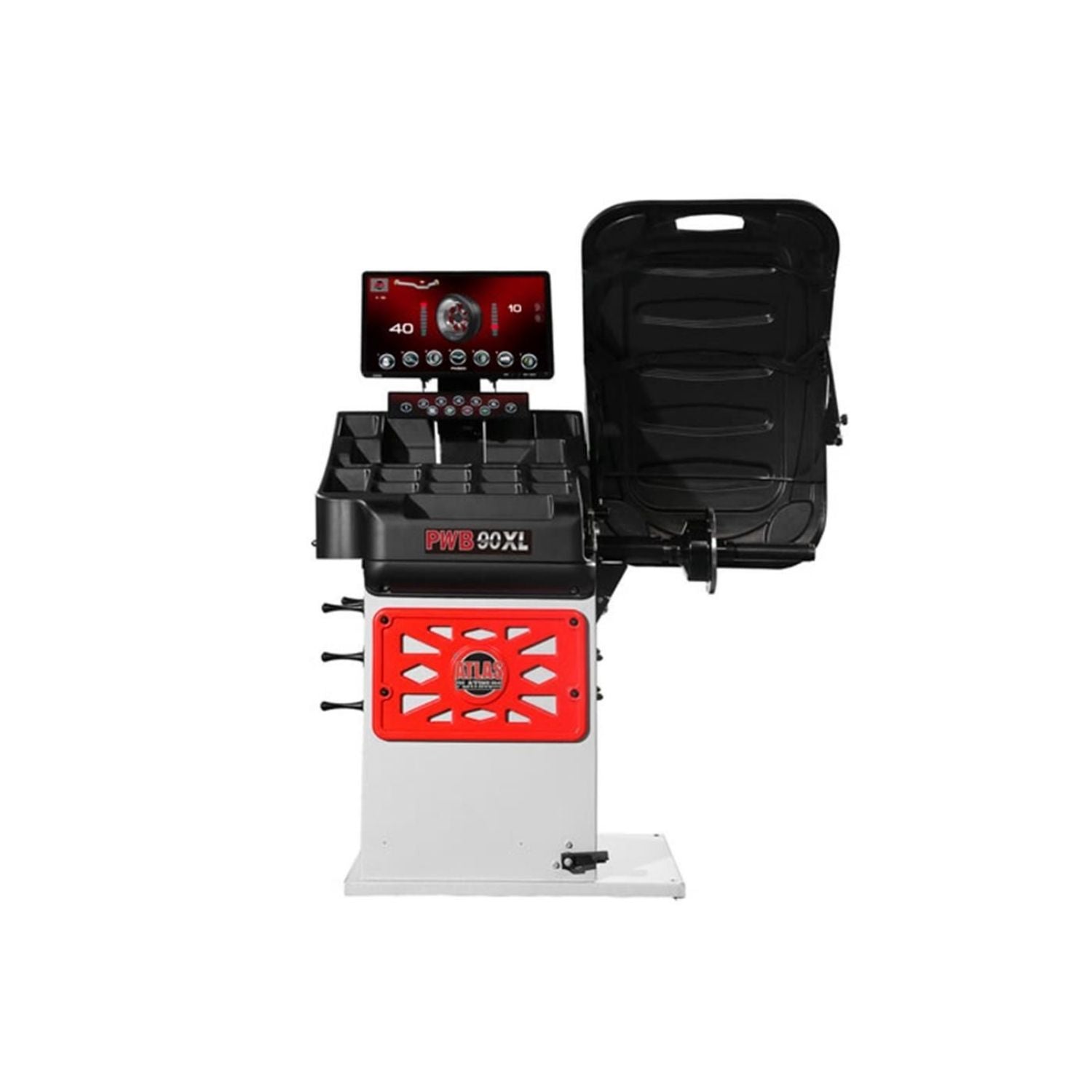

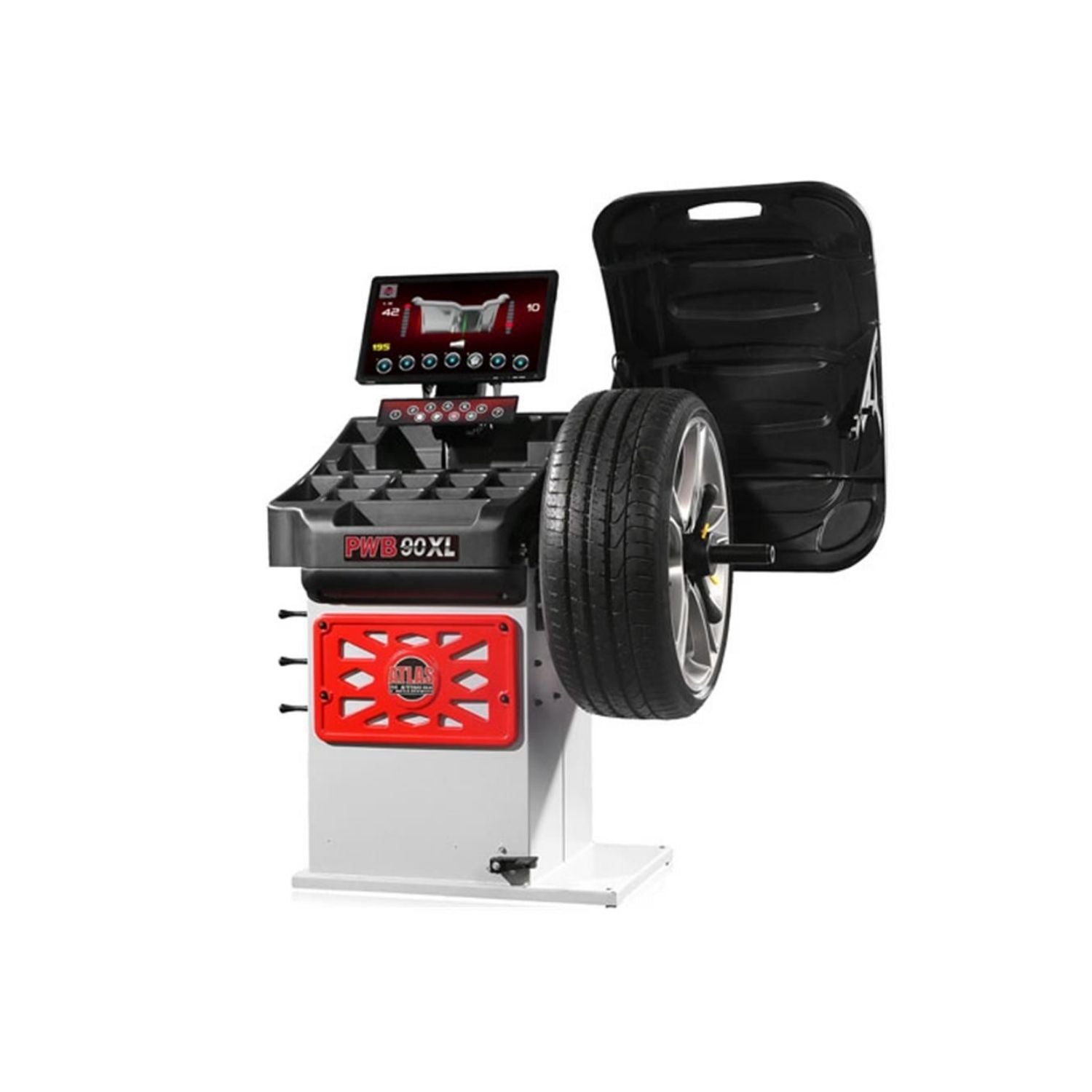

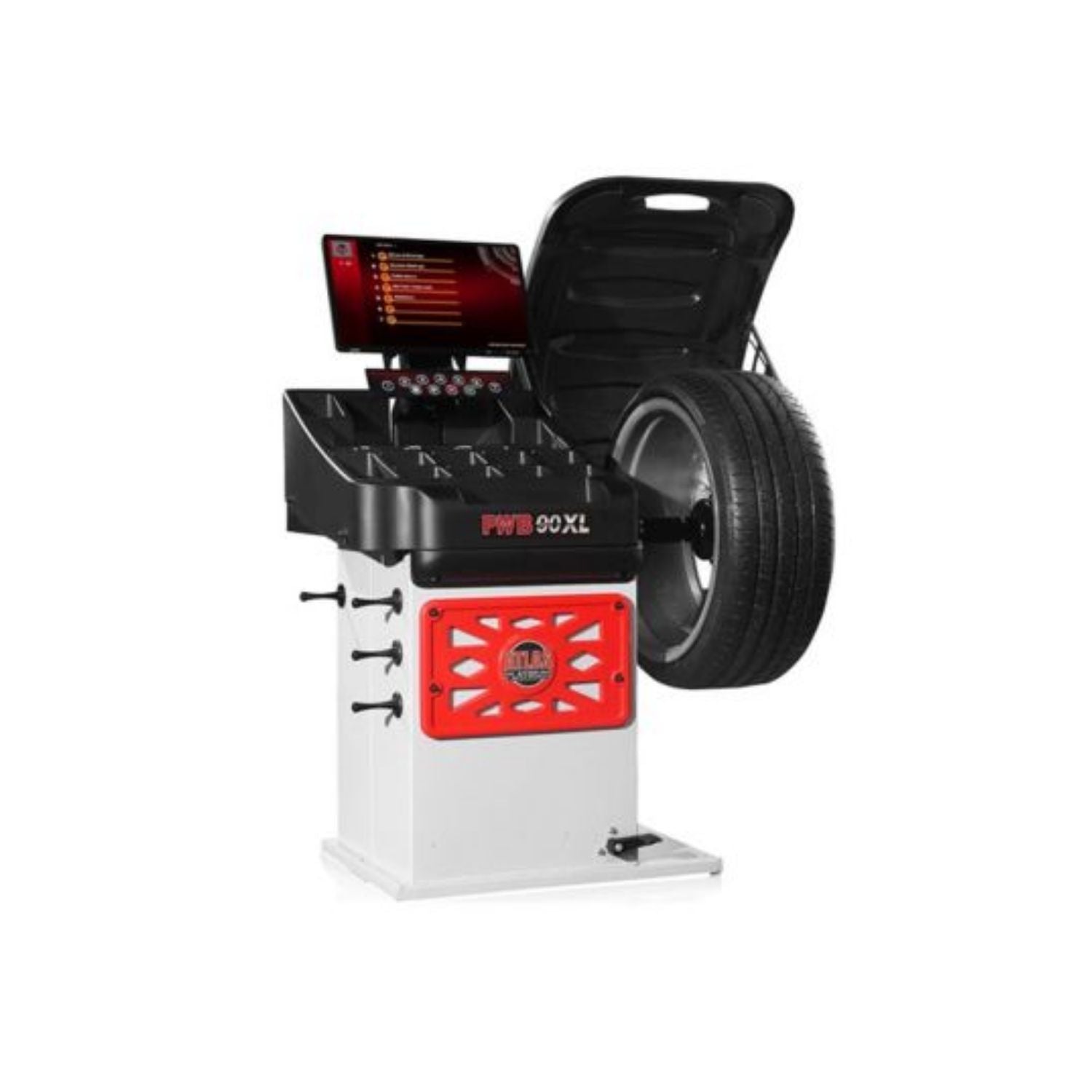

  Atlas® Platinum PWB90XL Wheel Balancer

  • Computer Controlled Spin Balancer

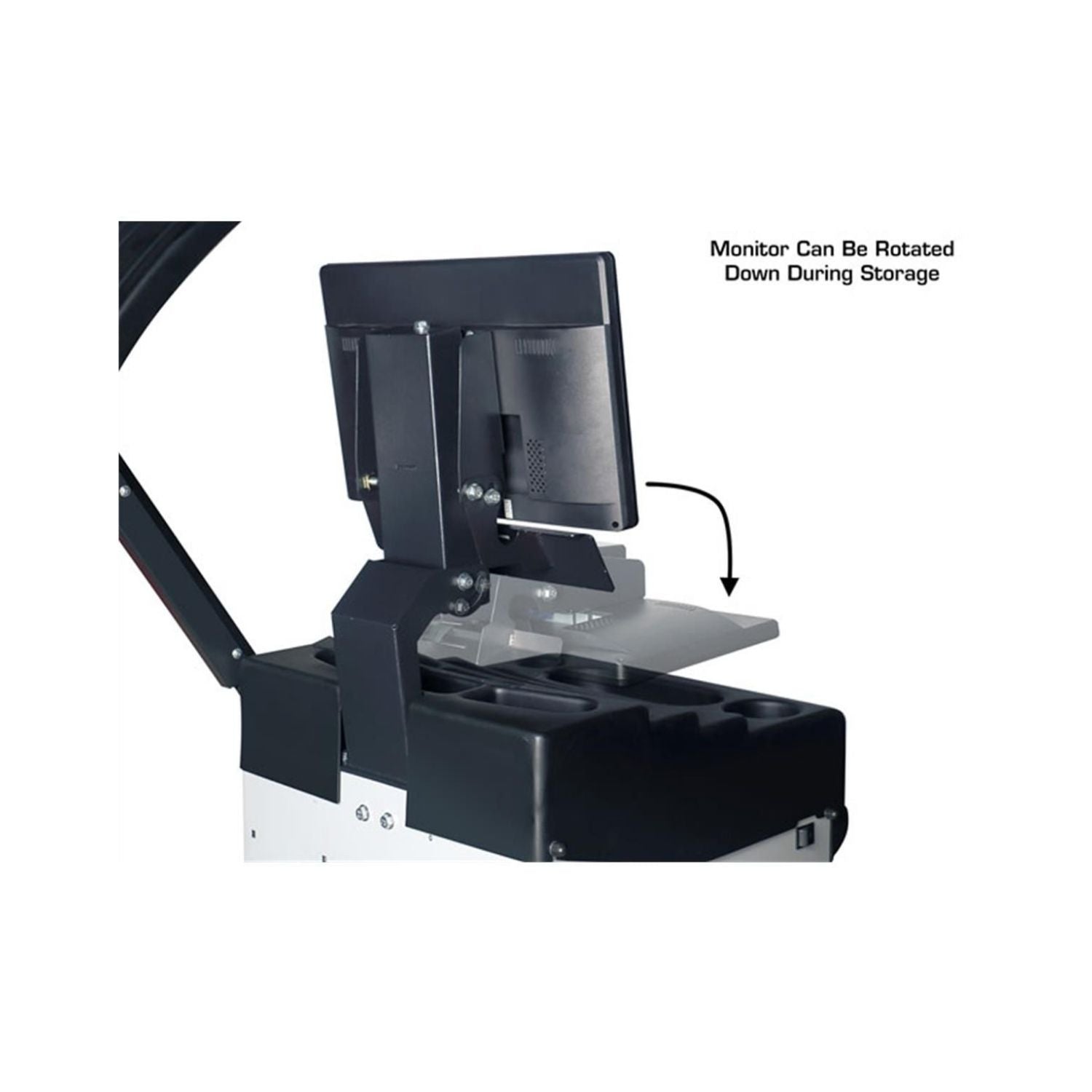

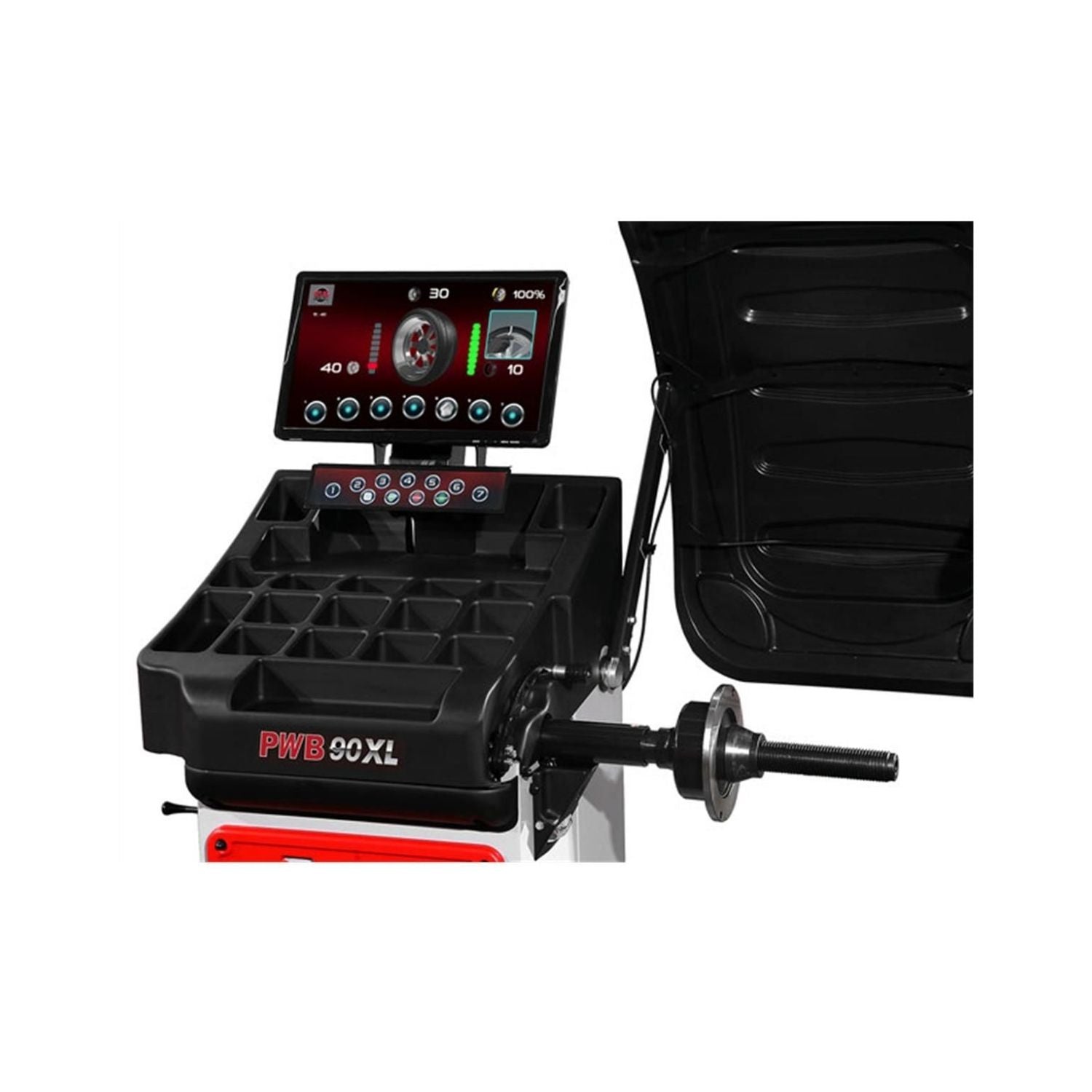

  • High-Resolution Video Monitor Display
  • Automatic 3D Data Entry

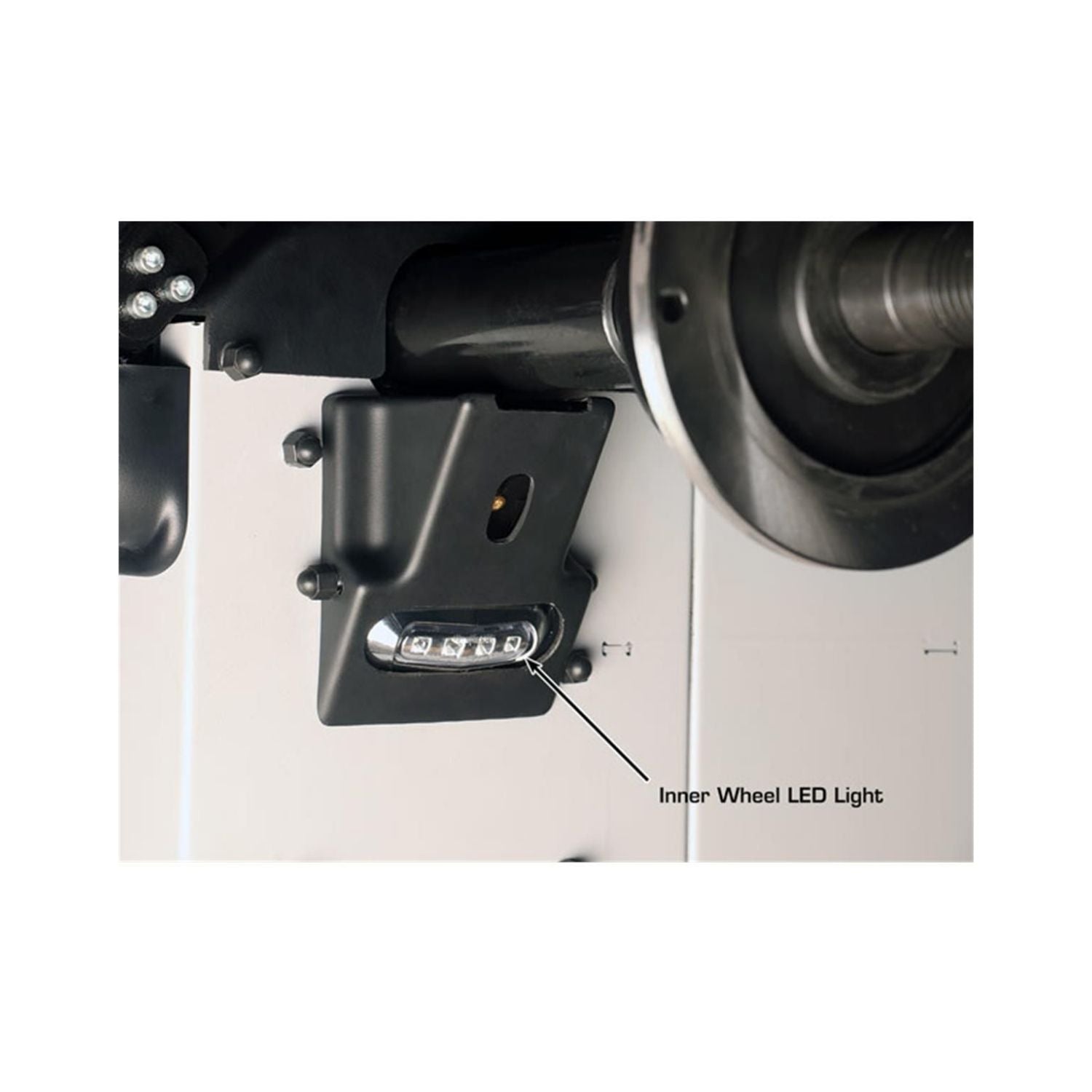

  • LED Light to Illuminate Wheel, Laser Line to Guide Weight Placement
  • Optimatch, FES (Split), OPF (Opposite Position) Functions
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included


• SPECIFICATIONS

  Atlas® Platinum PTC500 Specifications

  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-TCWB-COMBO2
  Dimensions:	69" L × 37" W × 31" H
  UPC:	810524029032
  Country of Origin:	CHN
  Clamping Range:	12" to 30"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width:	15"
  Turntable Rotating Speed:	7 rpm
  Bead Breaker:	6924 LB. Force
  Operating Pressure:	145 PSI
  Electric Requirement:	110volt
  Shipping Weight:	885 lbs




  Atlas® Platinum PWB90XL Specifications

  Max Tire Diameter:	43"
  Rim Sizes (Cars & Light Trucks):	10" - 30"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	165 lbs
  Balancing Speed:	130 rpm
  Data Entry:	Super Automatic 3D
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Cycle Time:	7 seconds
  Electric Requirement:	110volt
  Shipping Weight:	290 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
