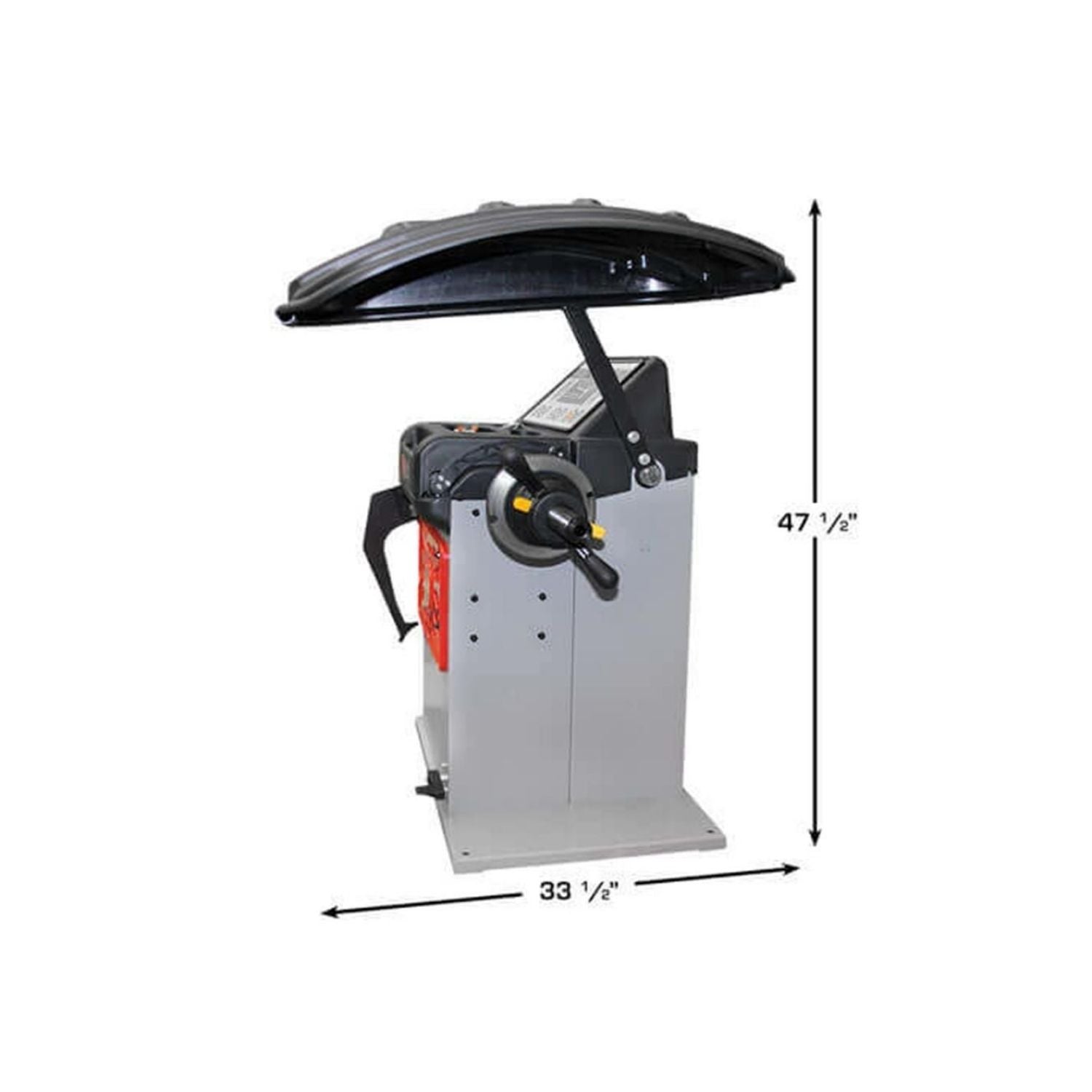

Atlas® Platinum PWB50 Computerized Wheel Balancer #ATEAP-PWB50-110V-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

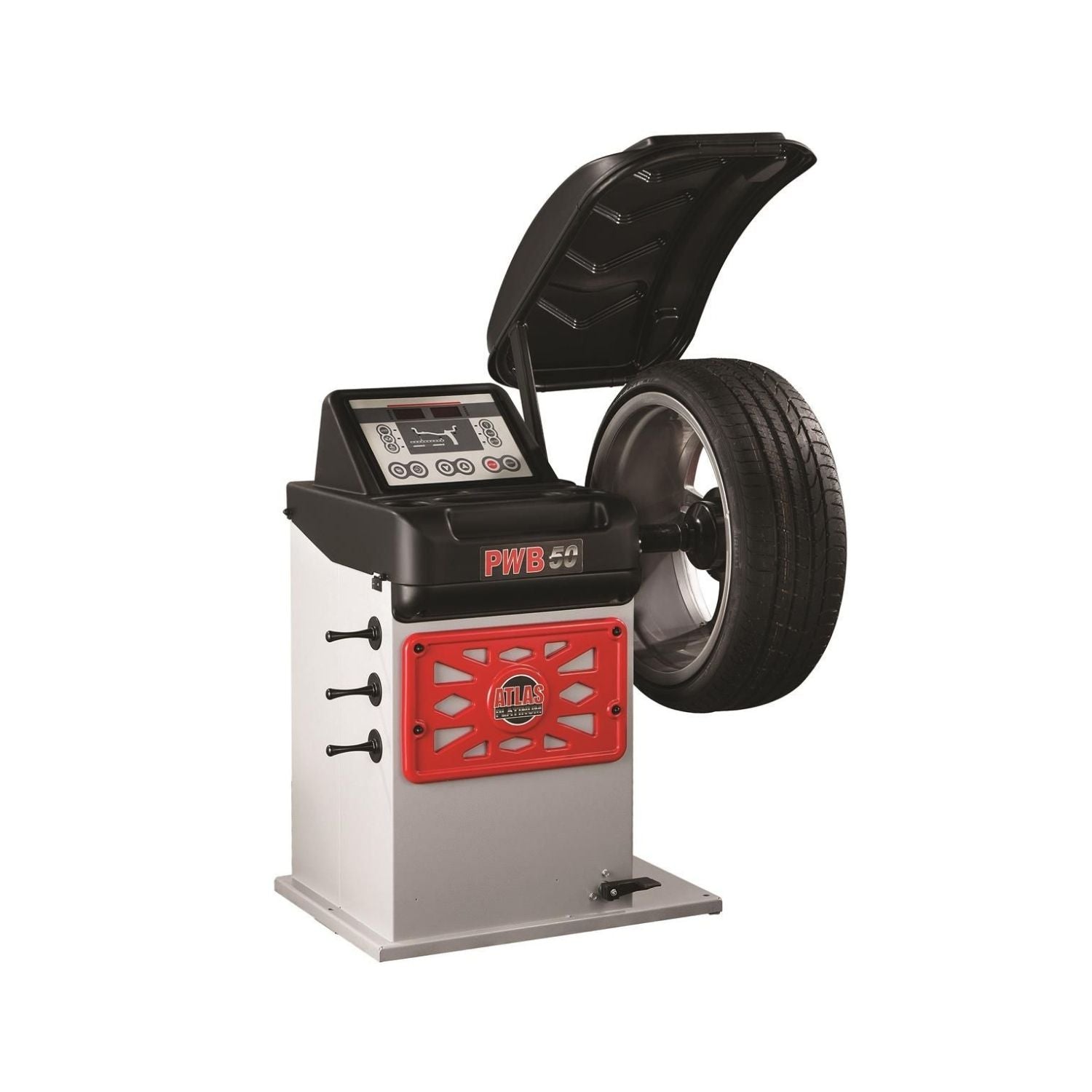

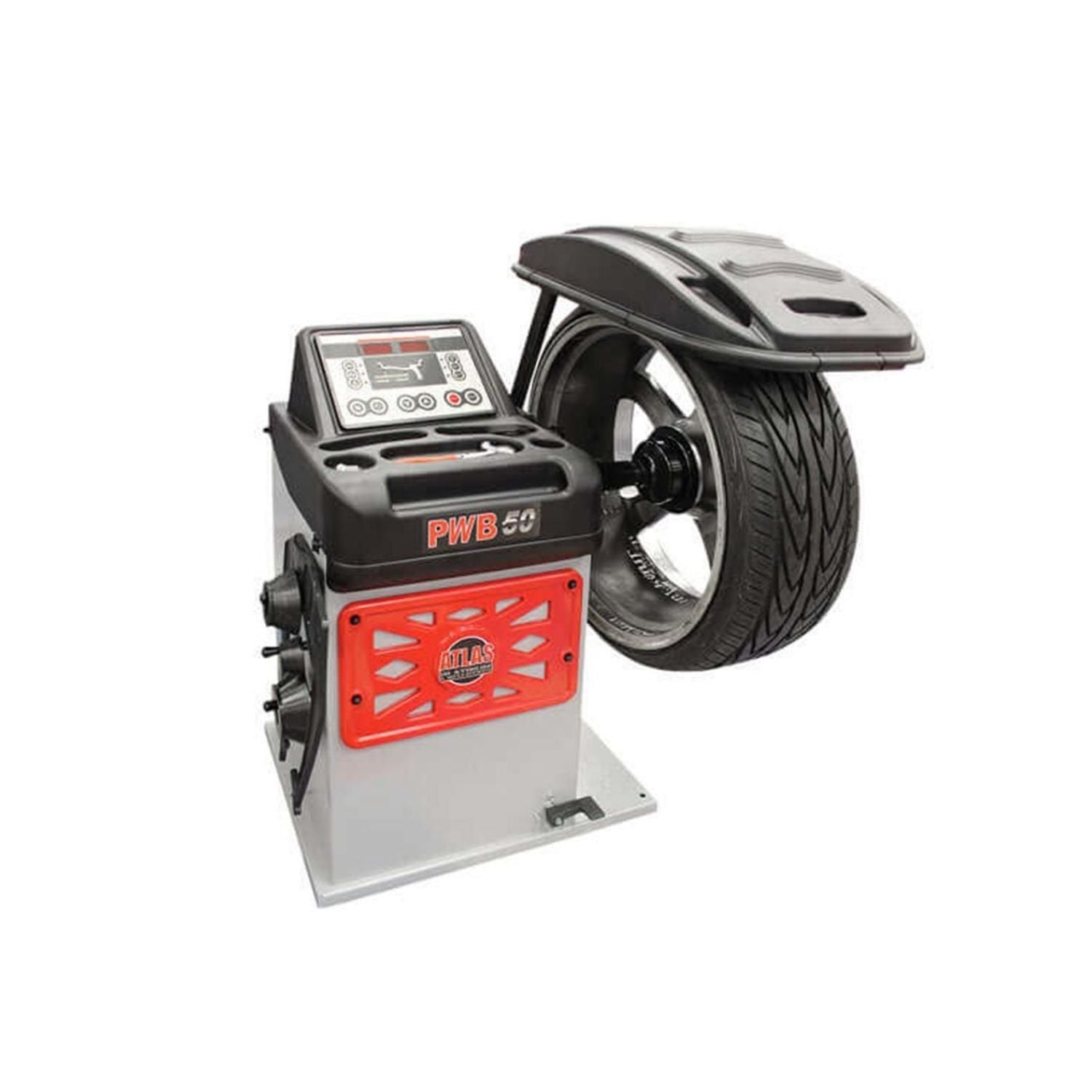

  The Atlas® Platinum PWB50 Computerized Wheel Balancer is a premium commercial-grade wheel balancer engineered for high-volume passenger vehicle and light truck tire service operations.

  Designed with Italian-engineered components and advanced balancing technology, the PWB50 combines fast cycle times, precise balancing accuracy, and user-friendly automation to improve shop productivity and balancing consistency. The integrated Automatic 2D Data Entry system uses a single measuring arm to automatically capture wheel dimensions while guiding technicians to the exact adhesive weight placement position after each spin cycle.

  The PWB50 includes advanced balancing features such as:

  • Fast & Easy Split (FES) function for hiding weights behind spokes
  • Opposite Weight Function (OWF) for improved weight placement accessibility
  • OPTIMATCH software for tire-to-wheel match mounting optimization
  • Multiple ALU balancing modes for alloy wheel applications



  Its 40mm shaft, high-resolution balancing system, and commercial-grade construction allow the PWB50 to accurately balance wheels up to 165 lbs with 1-gram precision, making it ideal for modern automotive shops servicing alloy, low-profile, and performance wheels.

• FEATURES AND BENEFITS

  • Platinum Computer Controlled Motorized Spin Balancer
  • Italian Engineering and Components
  • Automatic and pedal operated brake.
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Optimatch, FES (Split), OPF (Opposite Position) Functions
  • Special ALU-S and other ALU Programs
  • Automatic 2D Data Entry
  • NWN (no wheel need) System
  • Self-Diagnosing and Self-calibrating
  • USB hub for firmware update through PC/Notebook
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • No anchor-down installation needed

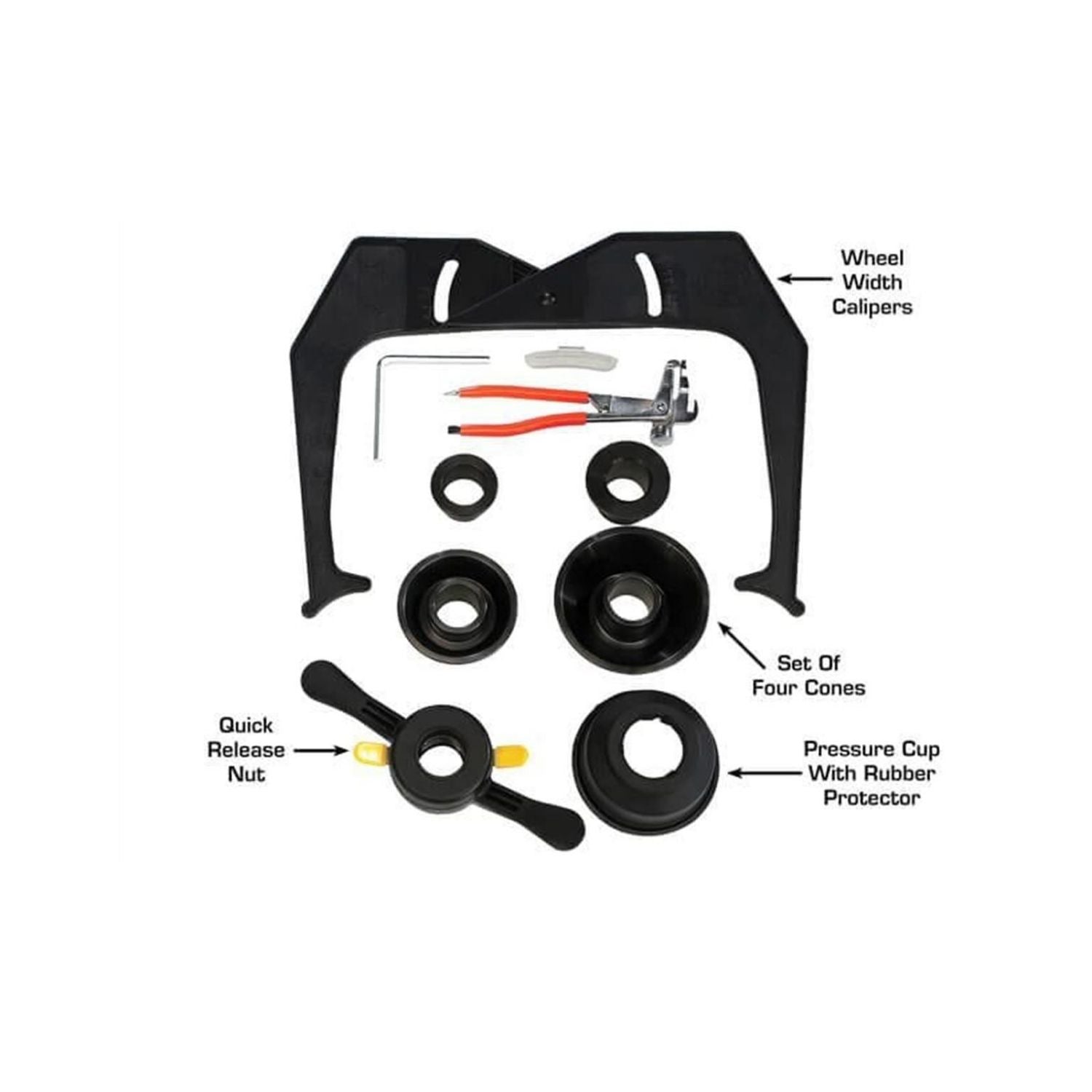

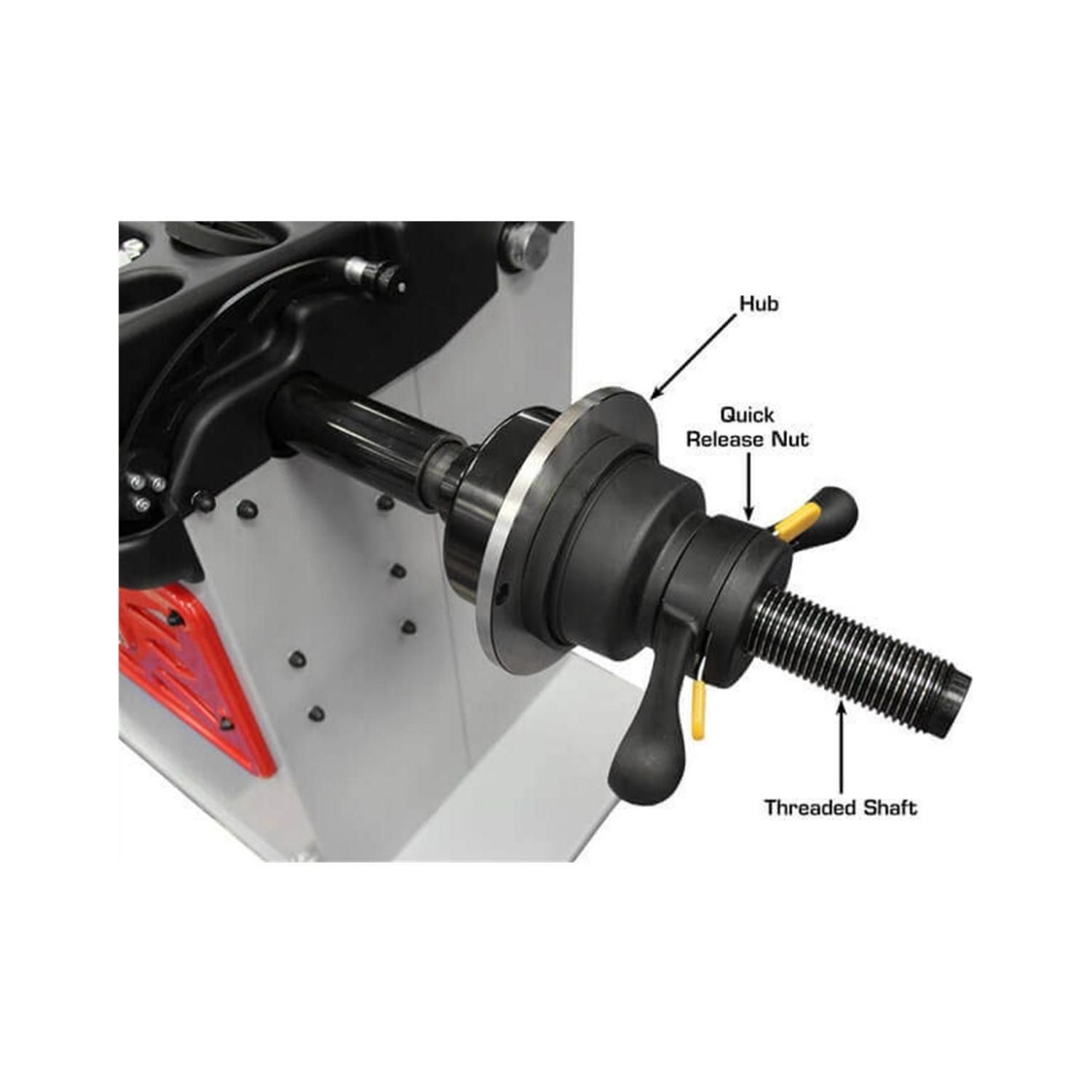

  • Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
  • Replacement Parts & Wear Items Always in Stock
  • 2 Year Parts Only Warranty


• SPECIFICATIONS

  Atlas® Equipment Platinum
  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-PWB50-110V-FPD

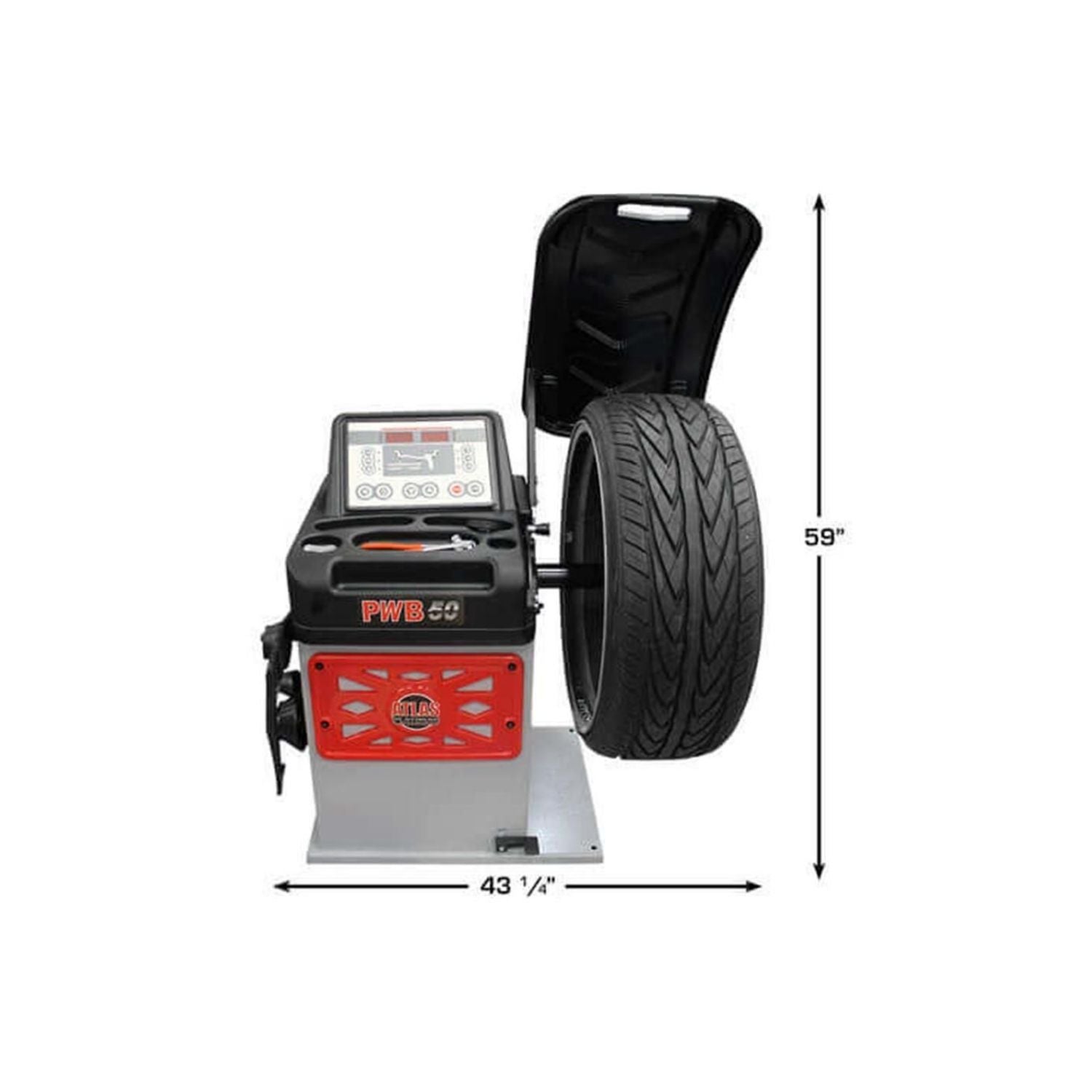

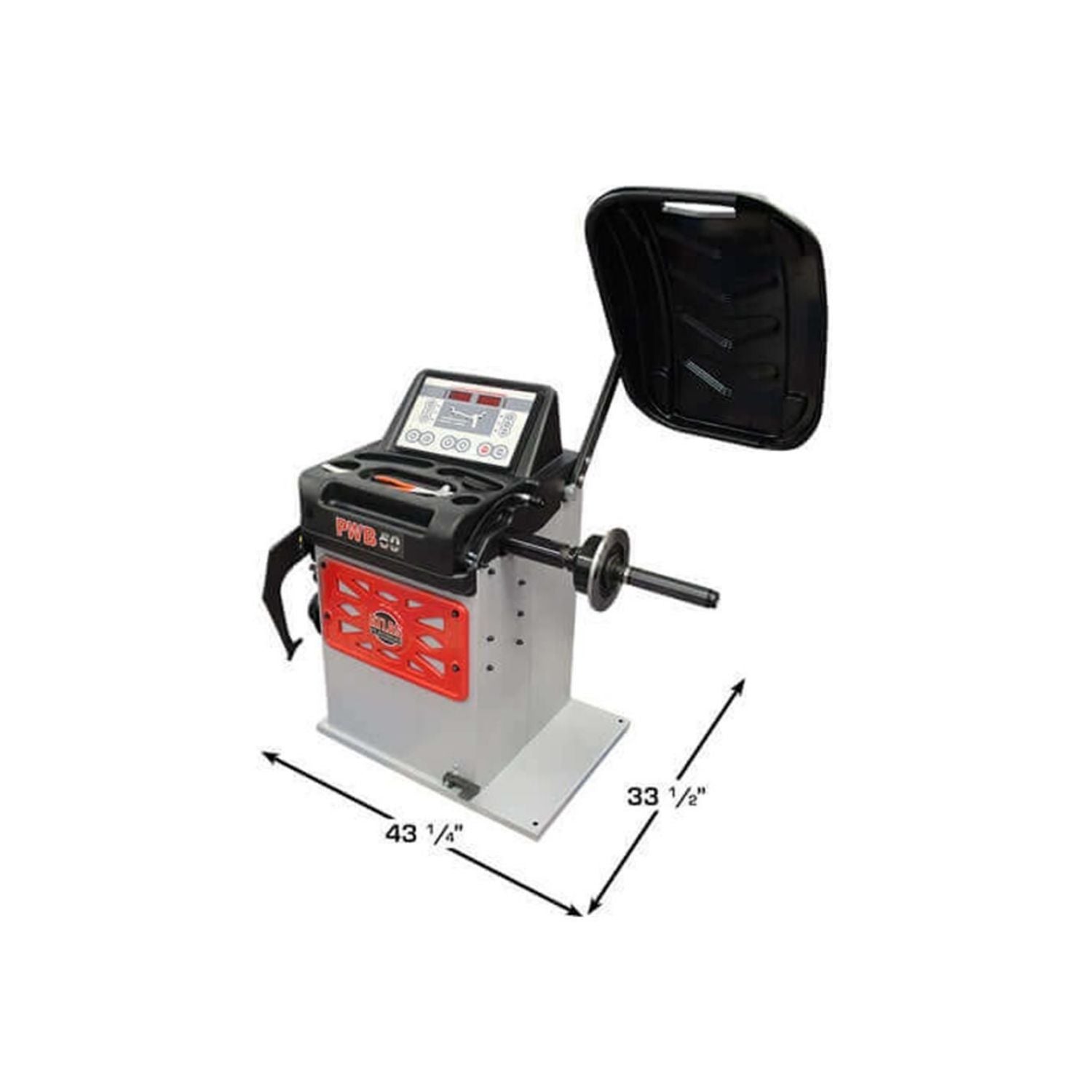

  Dimensions:	46" L × 39" W × 30" H
  UPC:	810524028073
  Country of Origin:	CHN
  Max Tire Diameter:	43"
  Rim Sizes (Cars And Light Trucks):	10"-30"
  Rim Width:	1 1/2"-20"

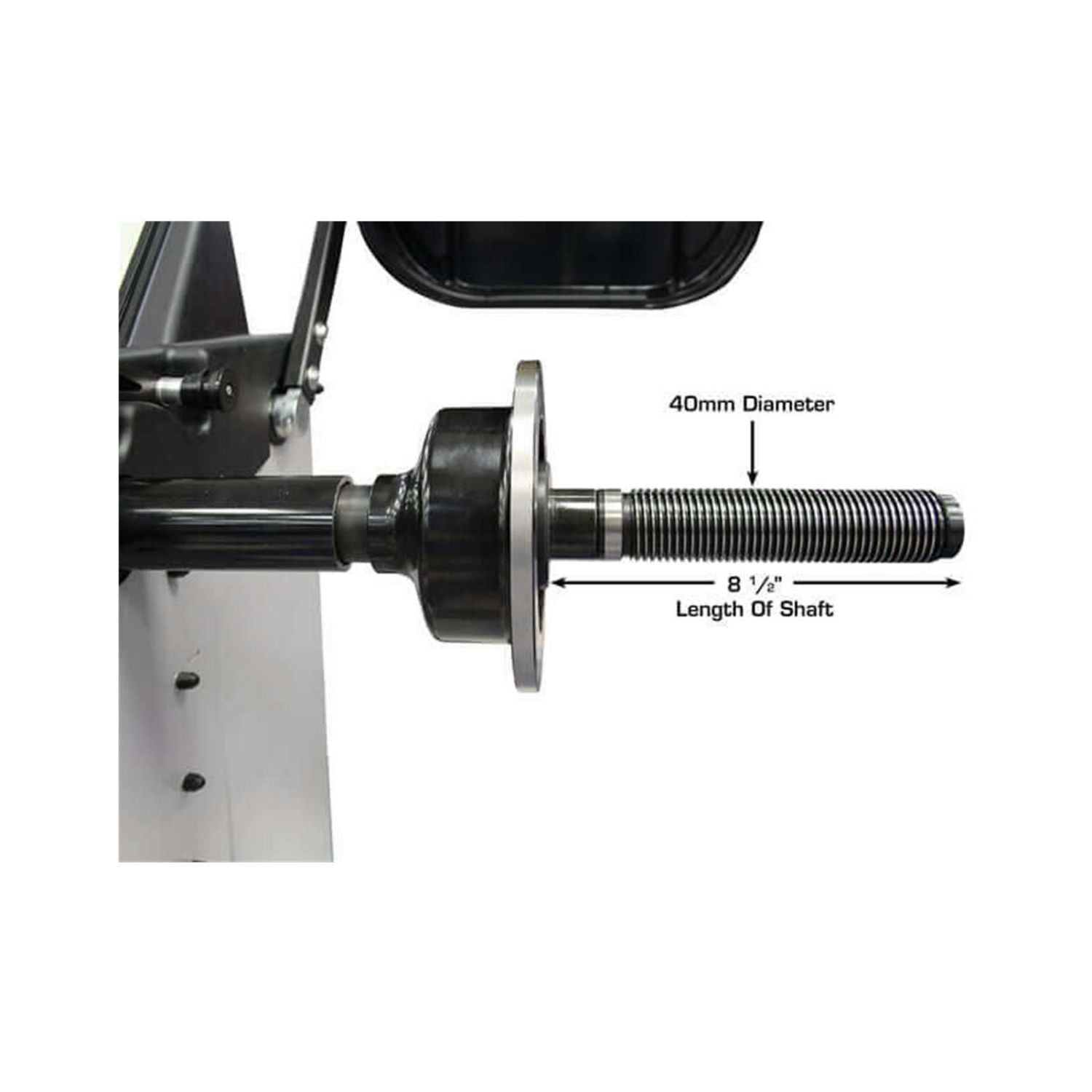

  Shaft Size:	40mm
  Max. Wheel Weight:	165 lbs.
  Balancing Speed:	130 rpm
  Data Entry:	Automatic 2D
  Measurements:	Standard Or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibration:	Yes
  Cycle Time:	7 seconds
  Power Supply:	110volt

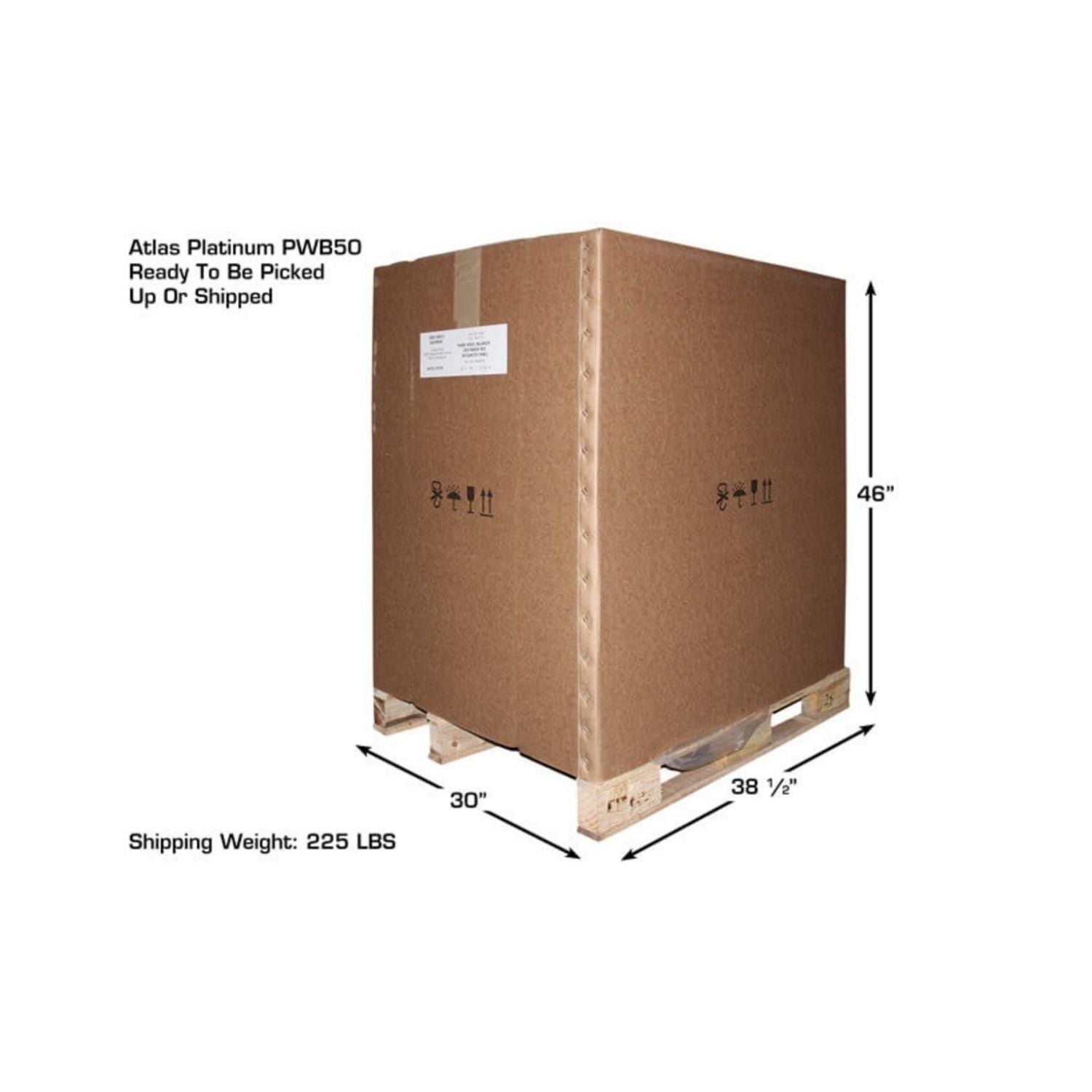

  Shipping Weight:	230 lbs.

• DOCUMENTS

  • Atlas Platinum PWB50 Manual
  • Atlas Platinum PWB50 Parts Manual
