Atlas® TC229DAA Tire Changer with Dual Assist Arms #ATETC229DAA-FPD
Couldn't load pickup availability
-
DESCRIPTION

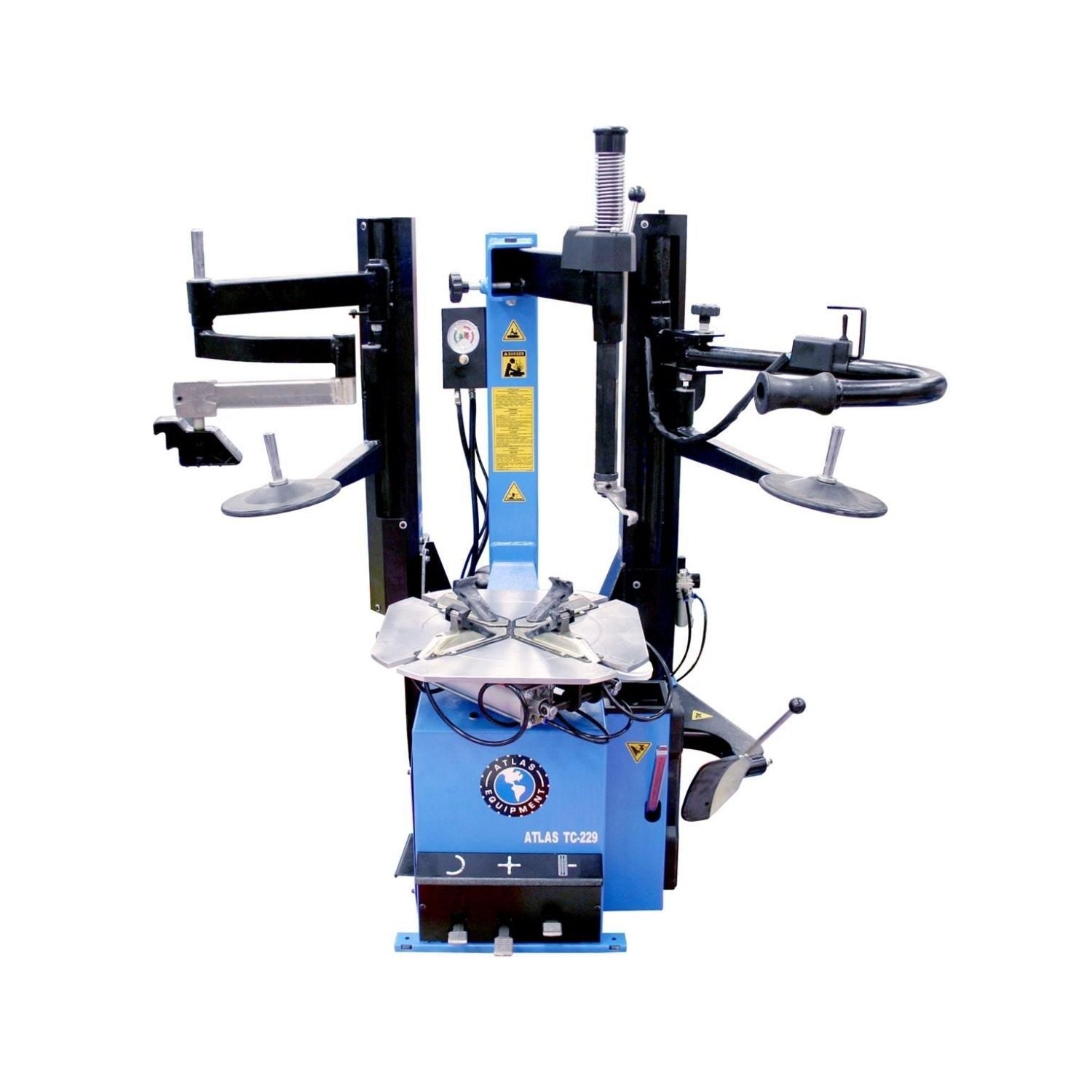

The Atlas® TC229DAA Tire Changer is a commercial-grade rim-clamp swing-arm tire changer package equipped with the premium DAA-SA Dual Assist Arm System for servicing difficult low-profile, stiff-sidewall, and run-flat tires. Designed for homeowners, ATV/motorcycle dealers, and professional automotive shops, the TC229DAA combines the proven TC229 platform with dual helper arms that act like an extra set of hands during tire service operations.

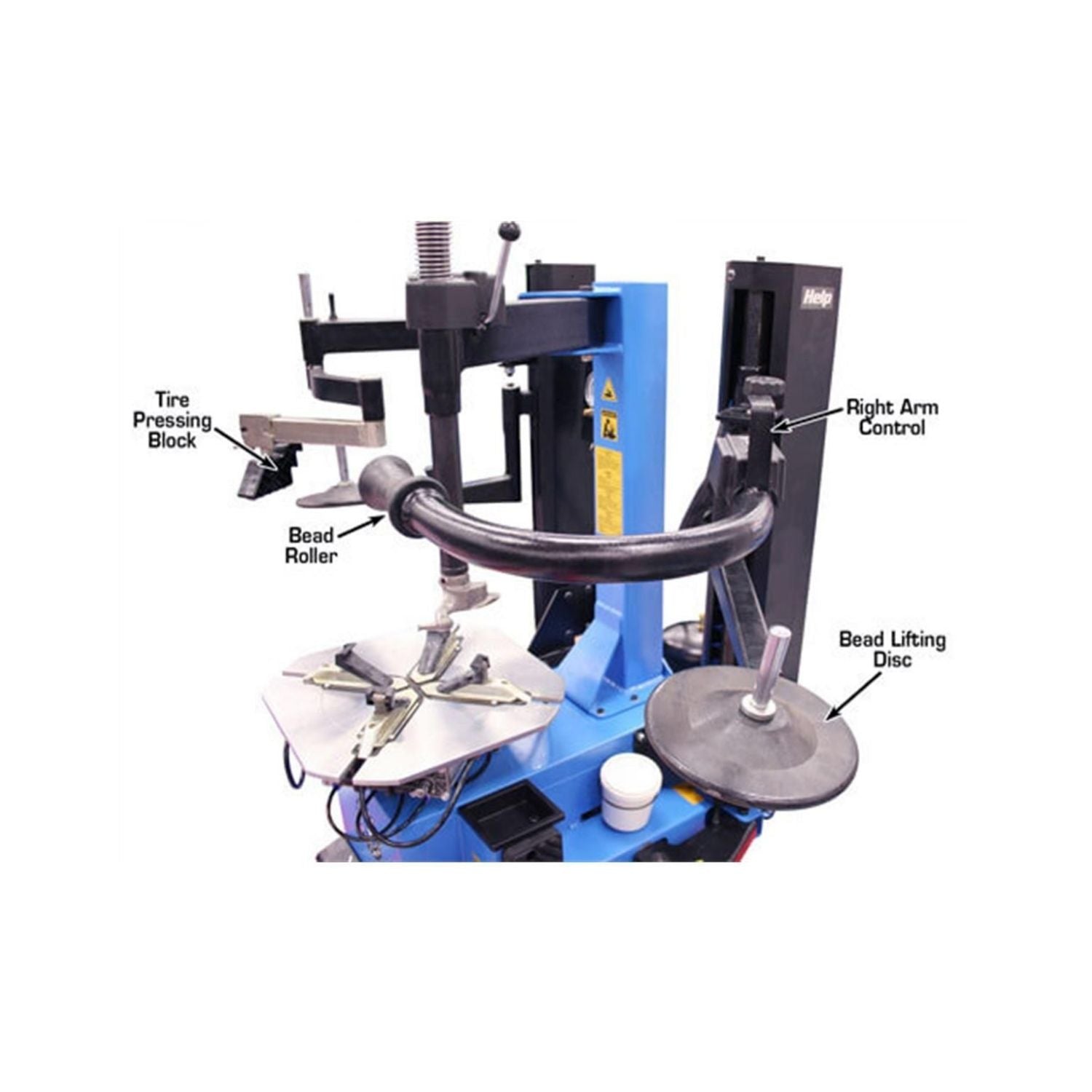

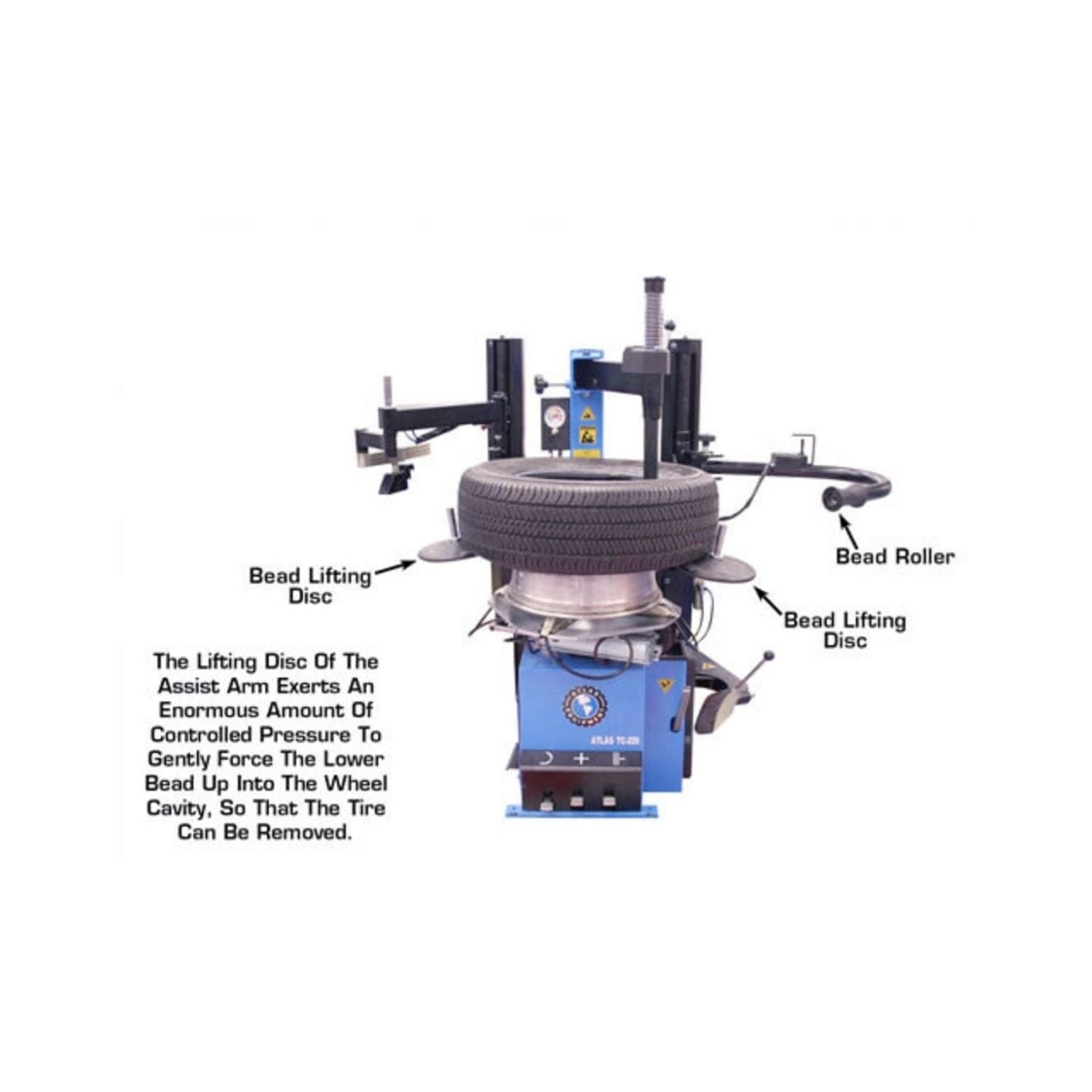

The included dual assist arm system features:

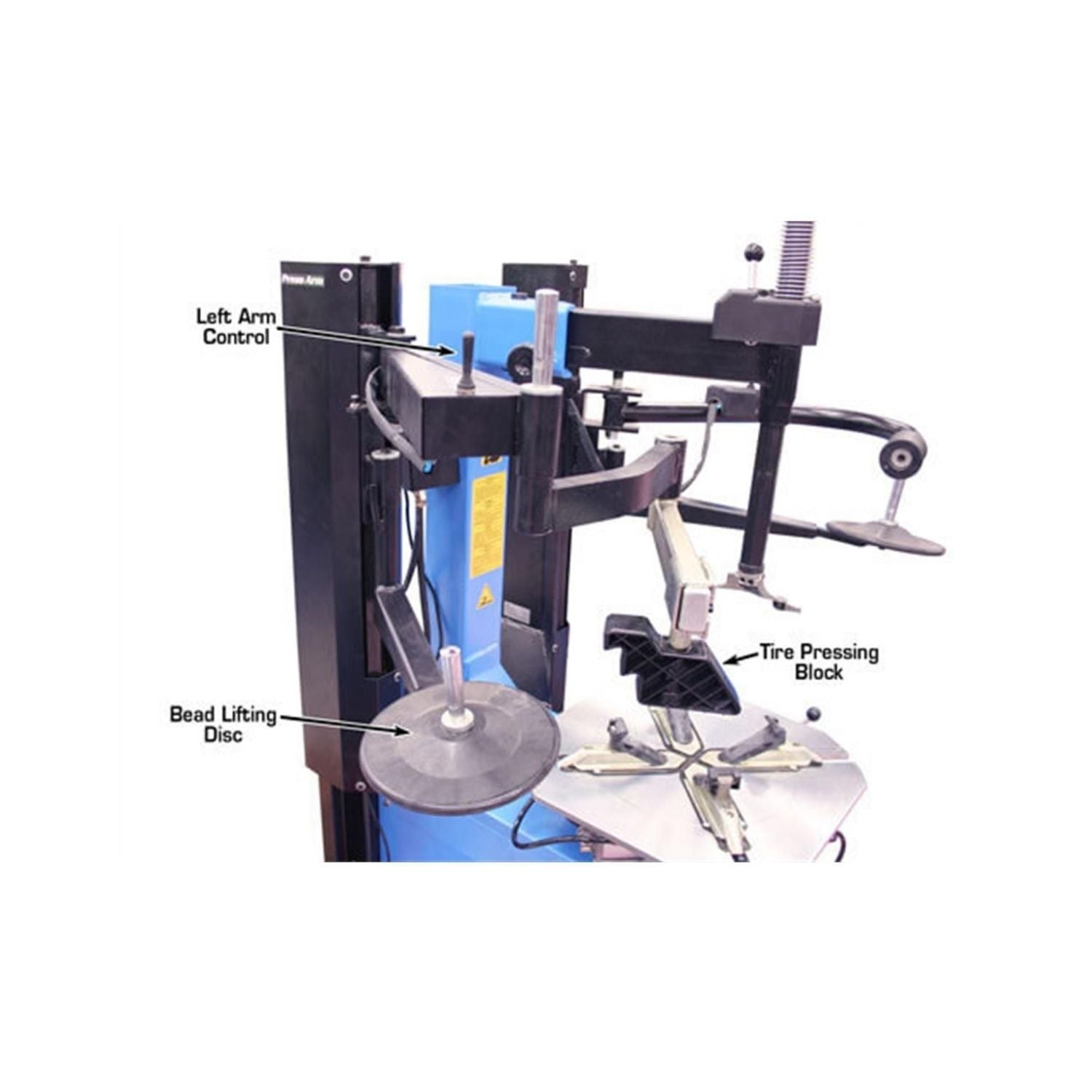

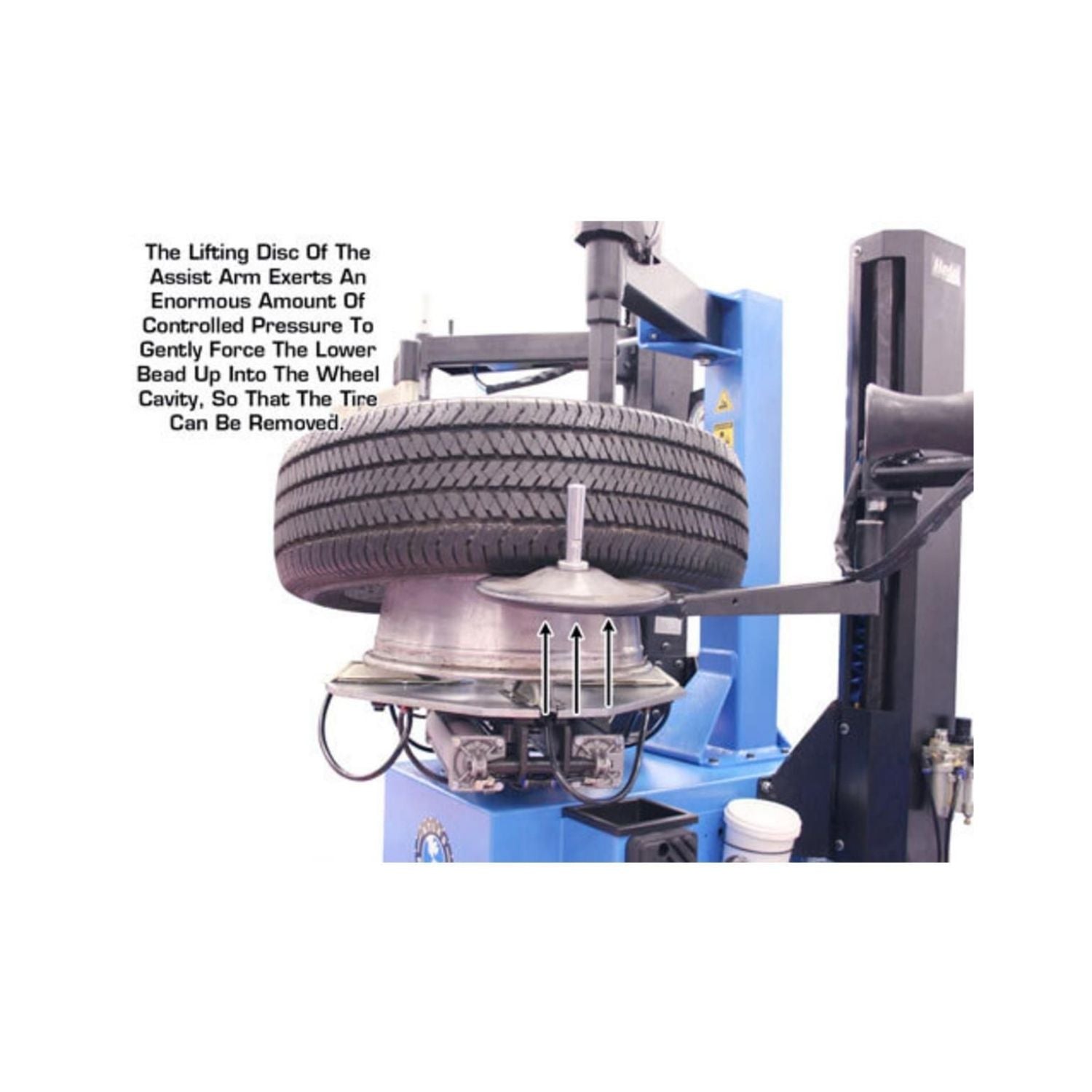

- a left-side pressing block & lifting disk arm
- a right-side bead roller & pressing/lifting disk arm
These helper arms significantly improve control and reduce technician effort when mounting and demounting modern performance tires.

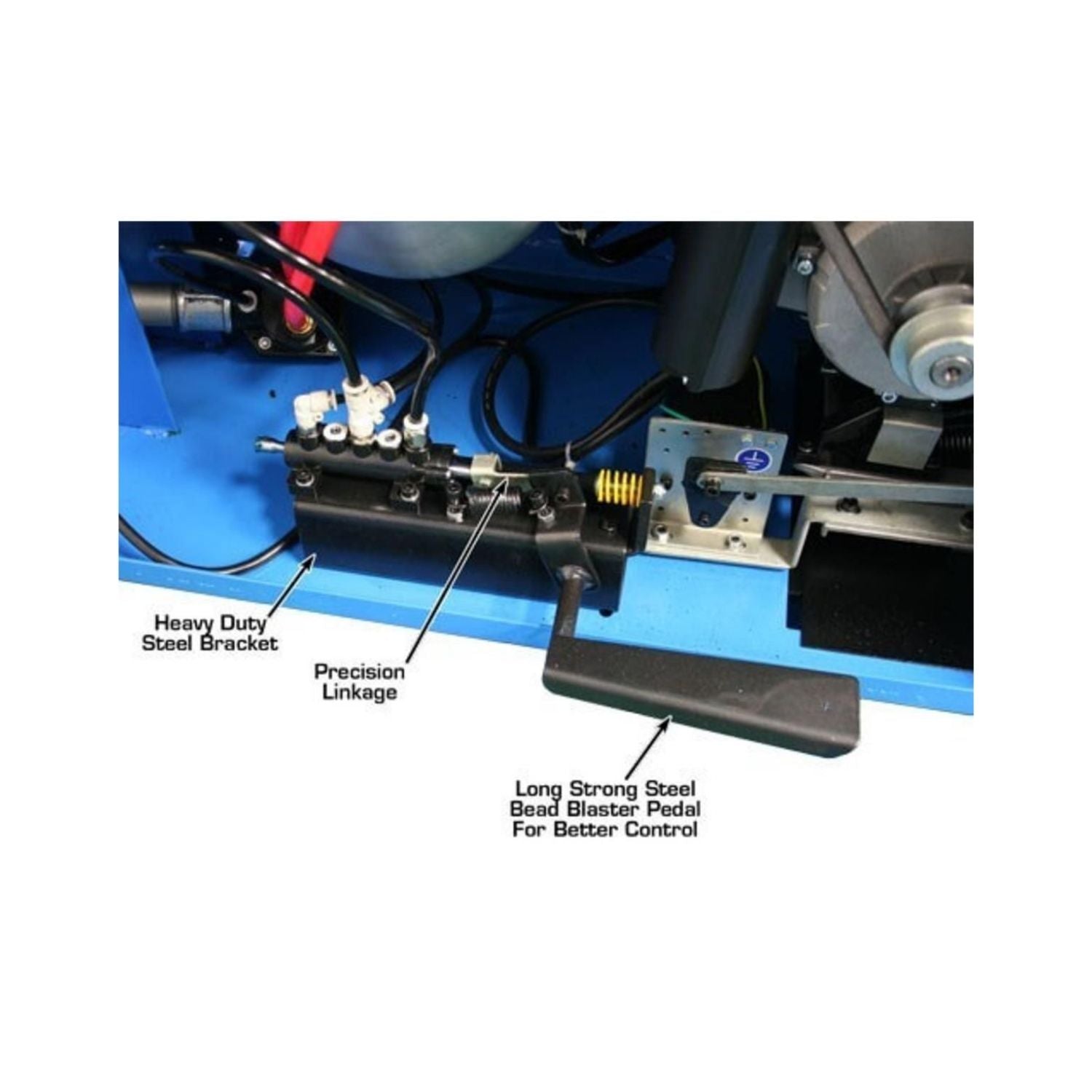

The TC229DAA also includes Atlas’ integrated Bead blaster inflation system, designed to help seat difficult tire beads quickly by delivering a powerful burst of air directly into the tire cavity.
-
FEATURES AND BENEFITS
- Rim Clamp/Swing Arm Tire Changer
- Dual Assist Arms Included
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

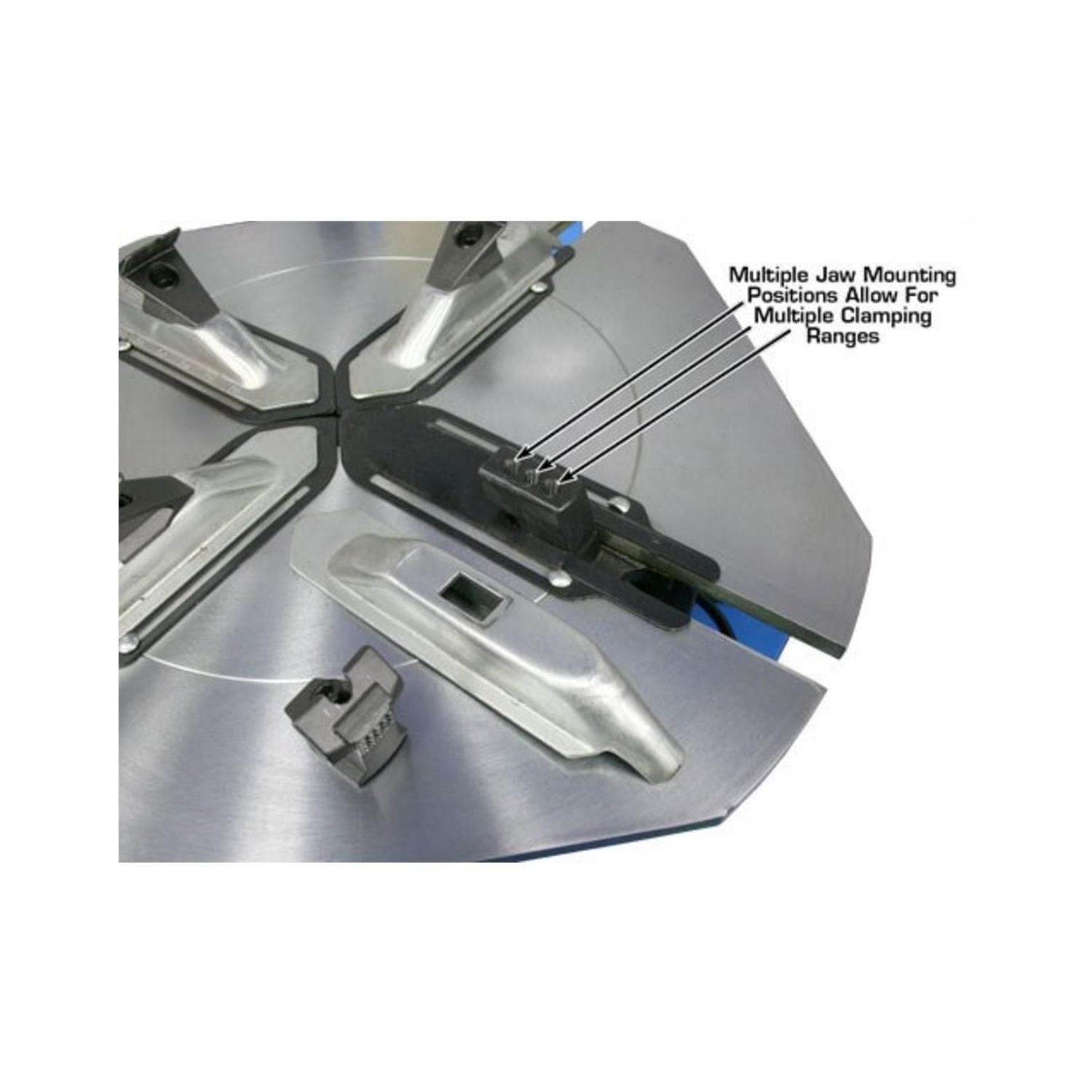

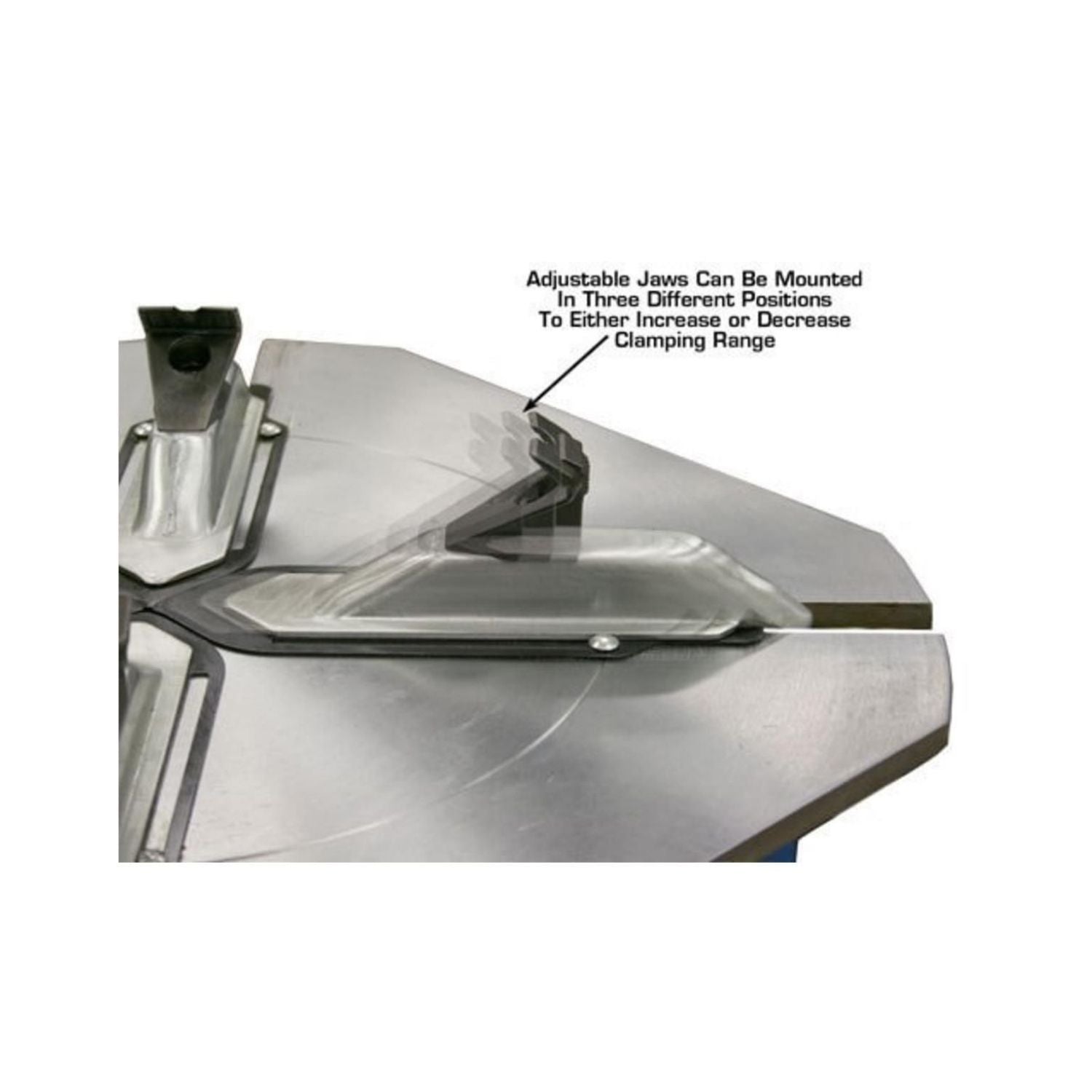

- Adjustable jaws, three mounting positions

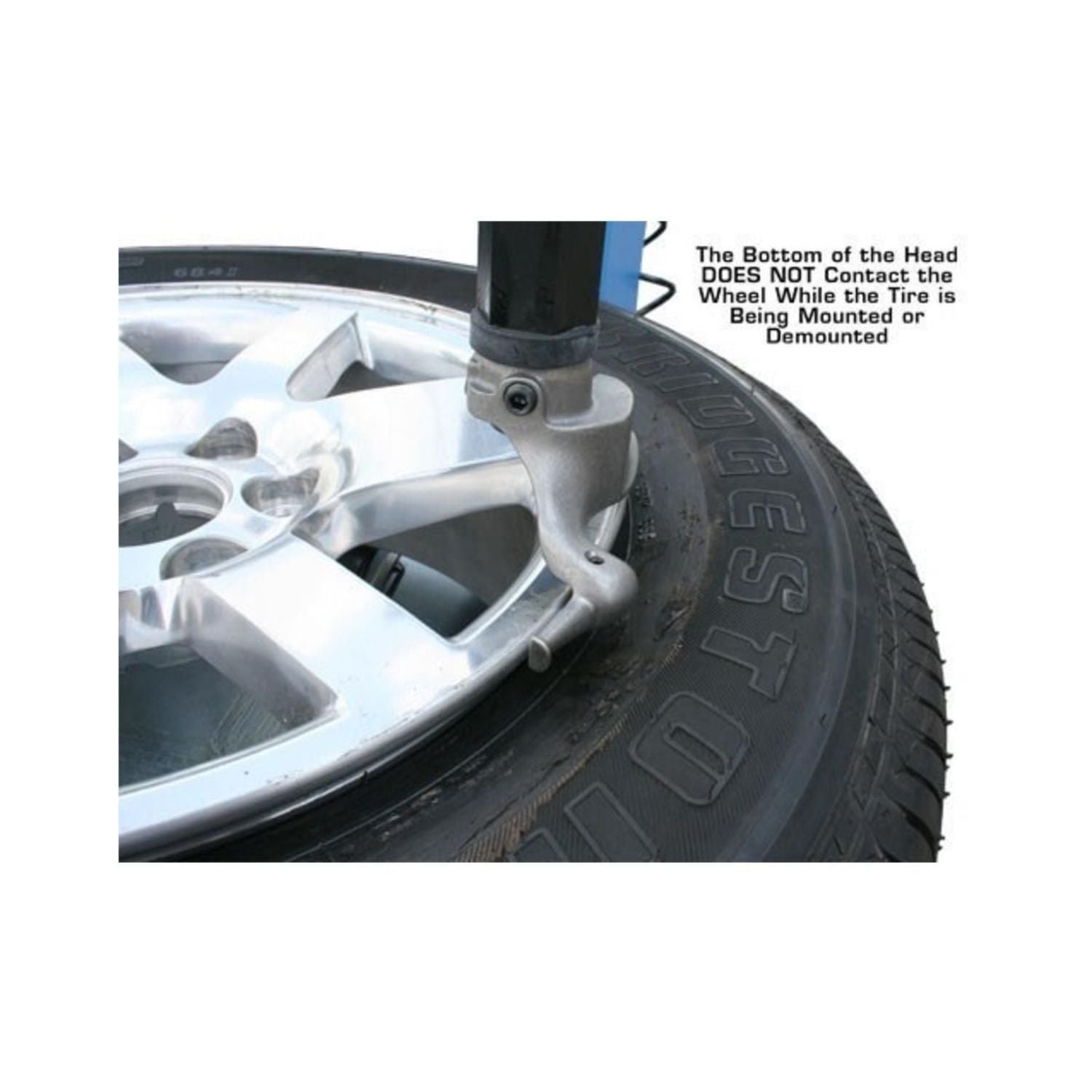

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

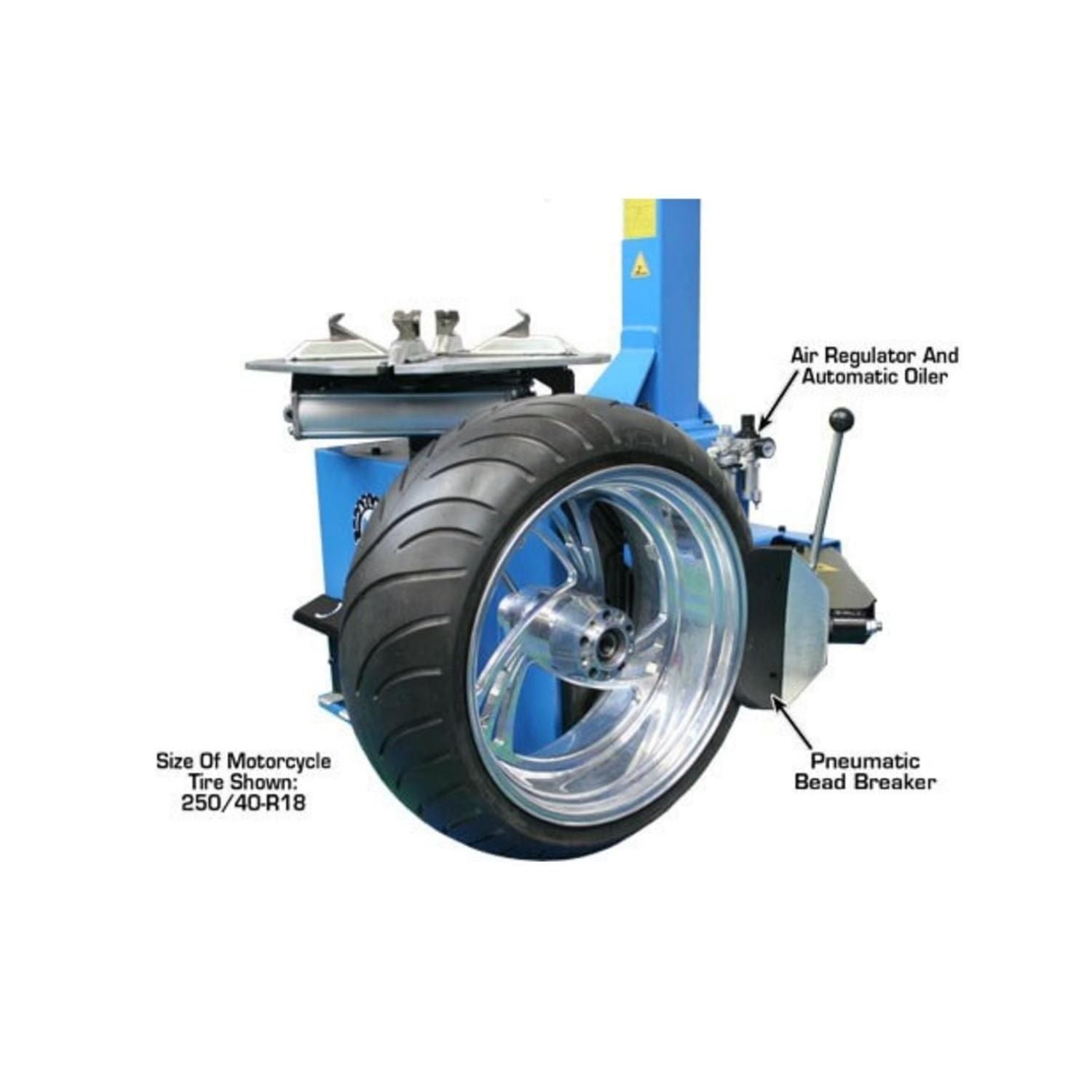

- Filter/Regulator/Lubricator Included

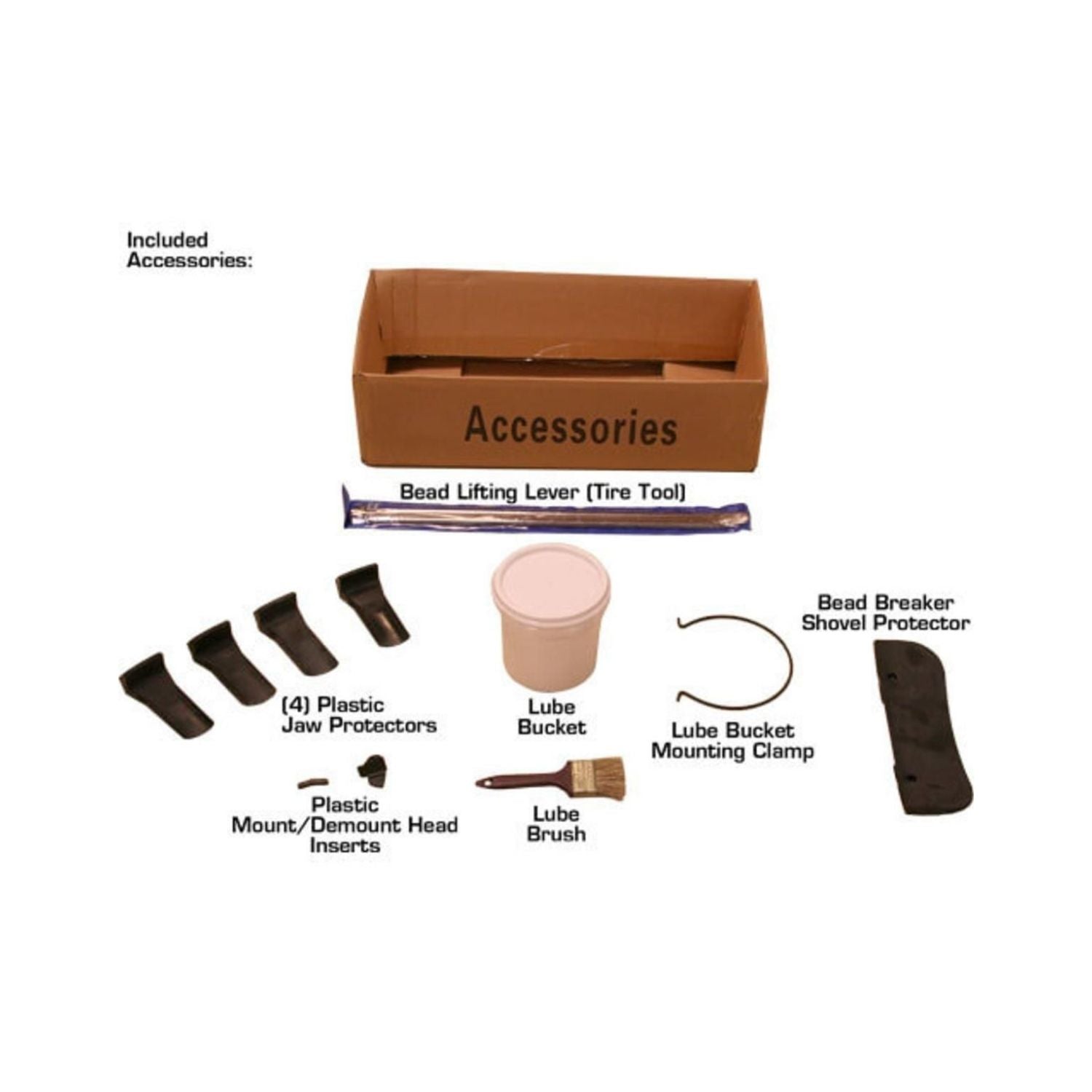

- 20" Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Motorcycle and ATV adapters available (sold separately)

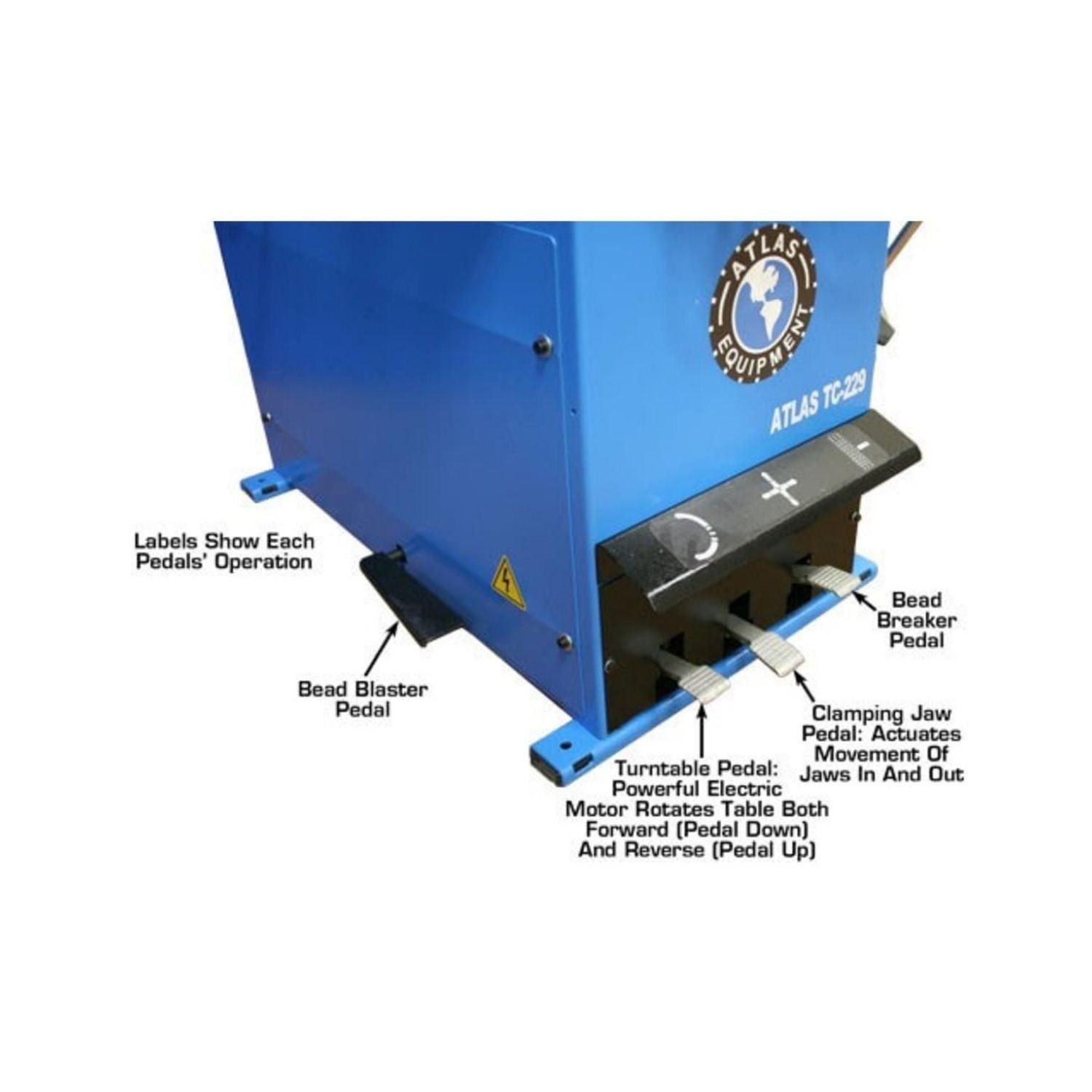

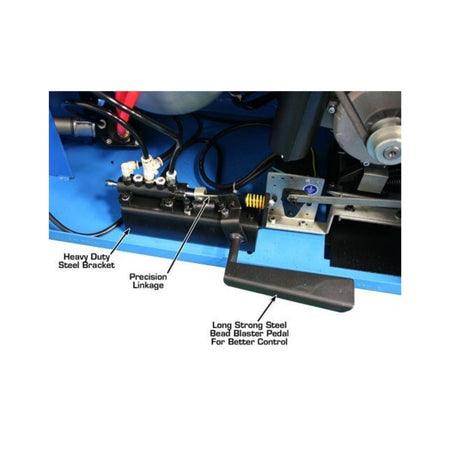

- Built in “Bead blaster”
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
-
SPECIFICATIONS

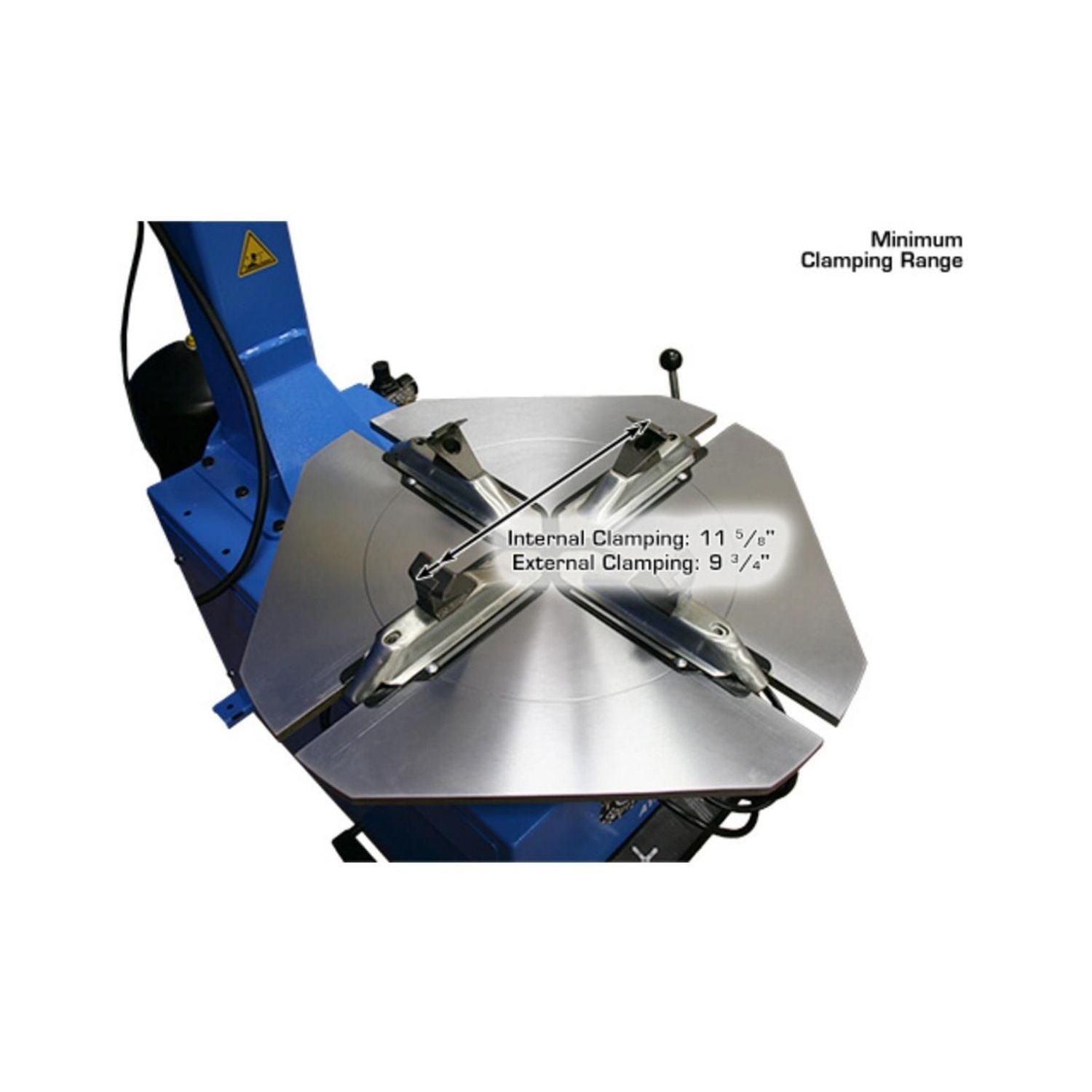

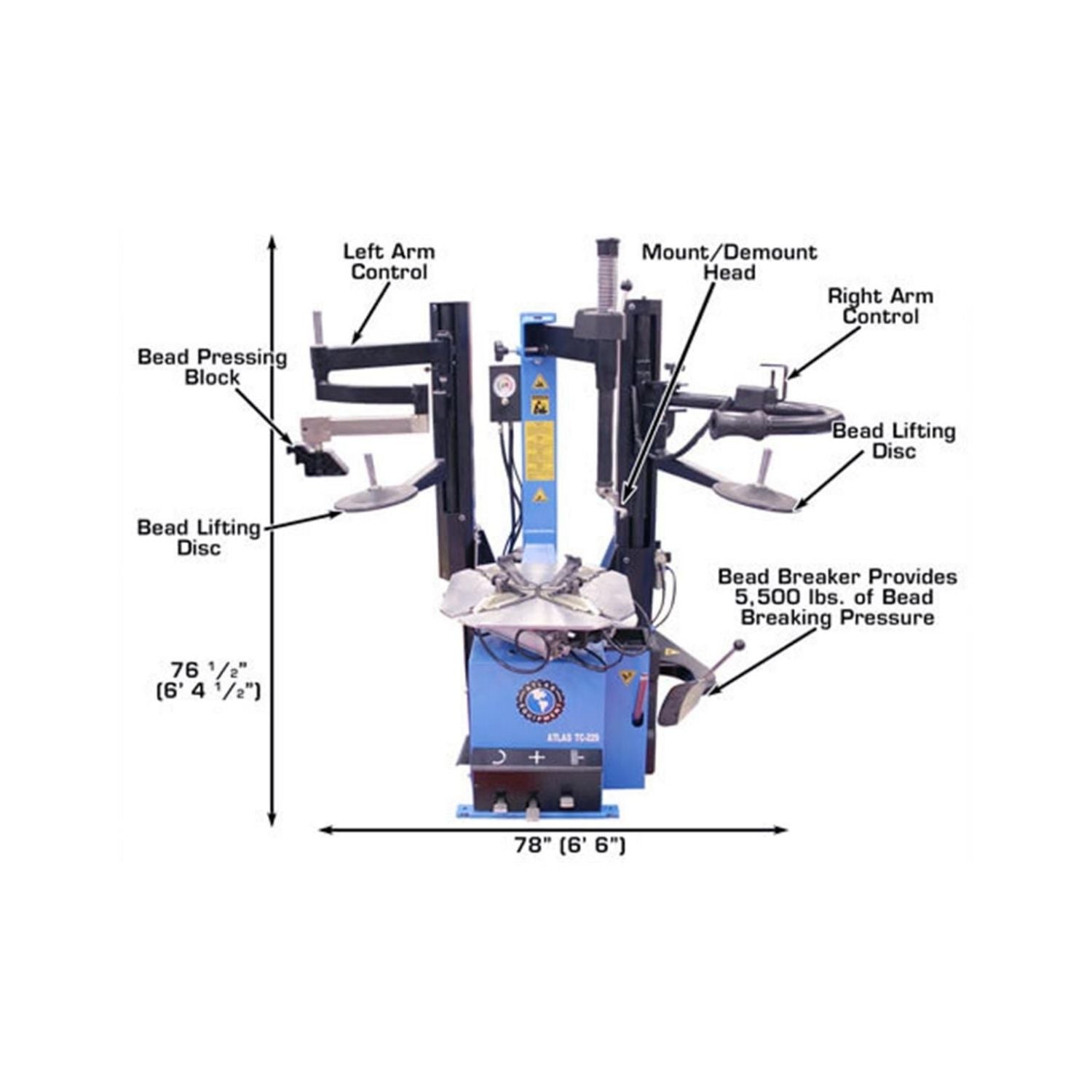

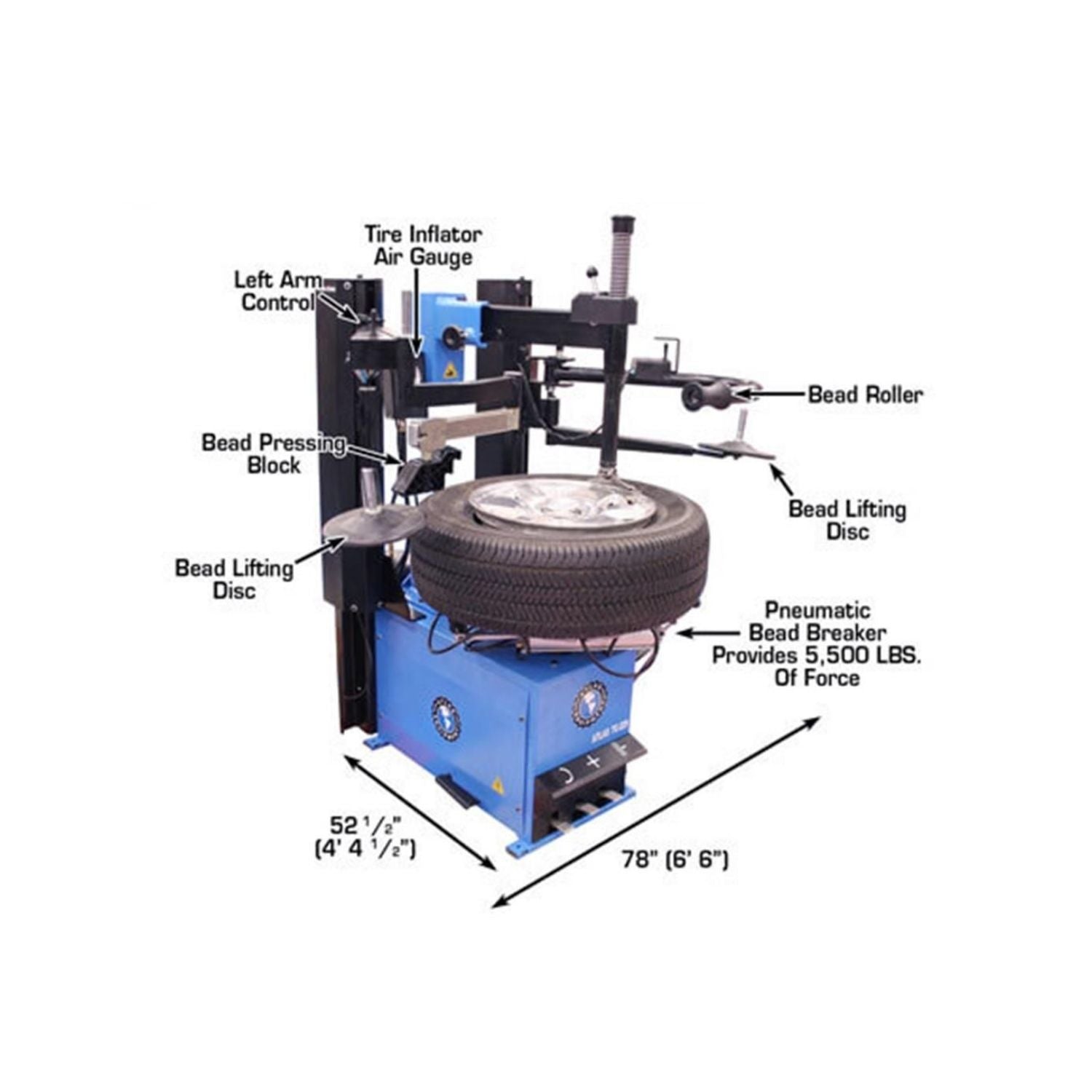

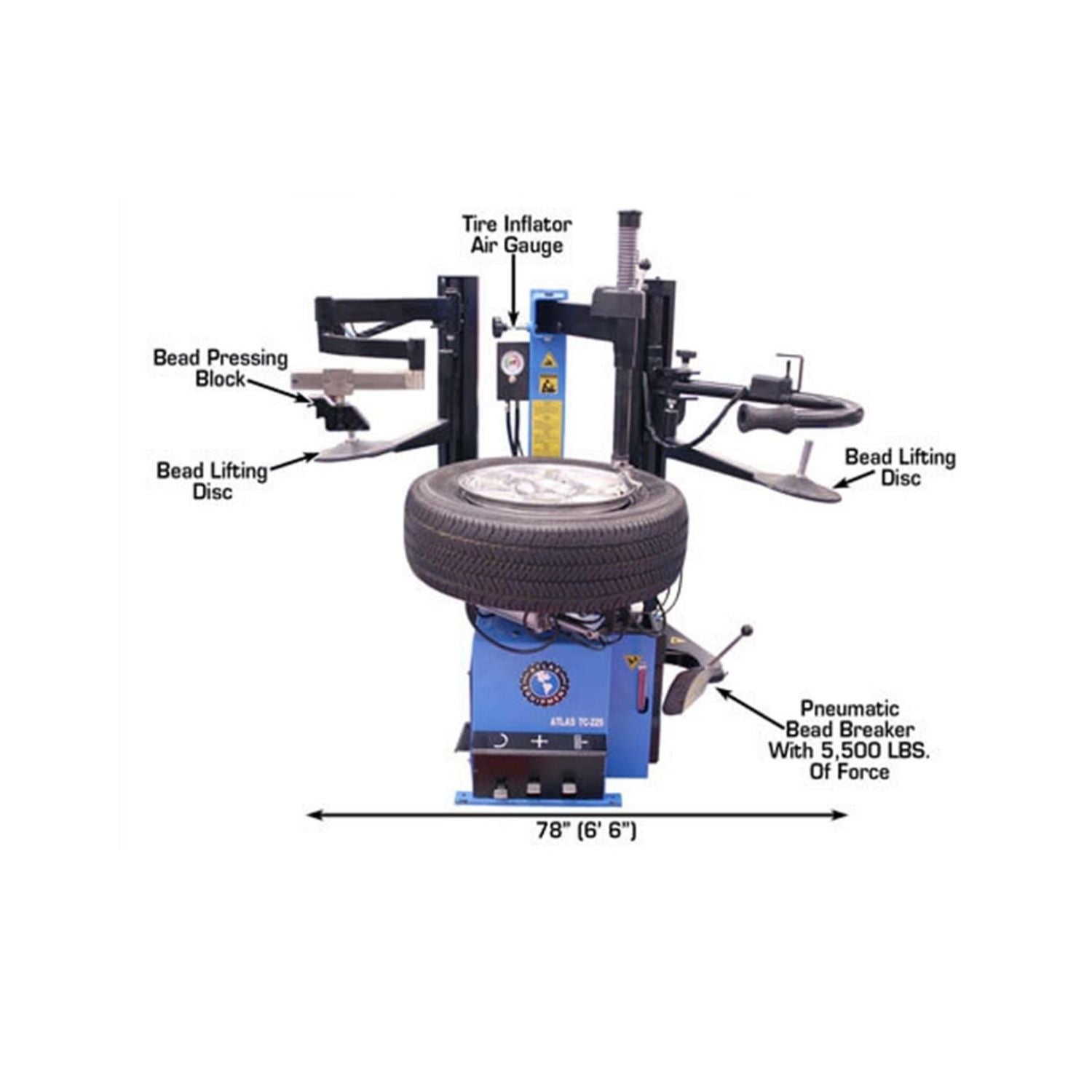

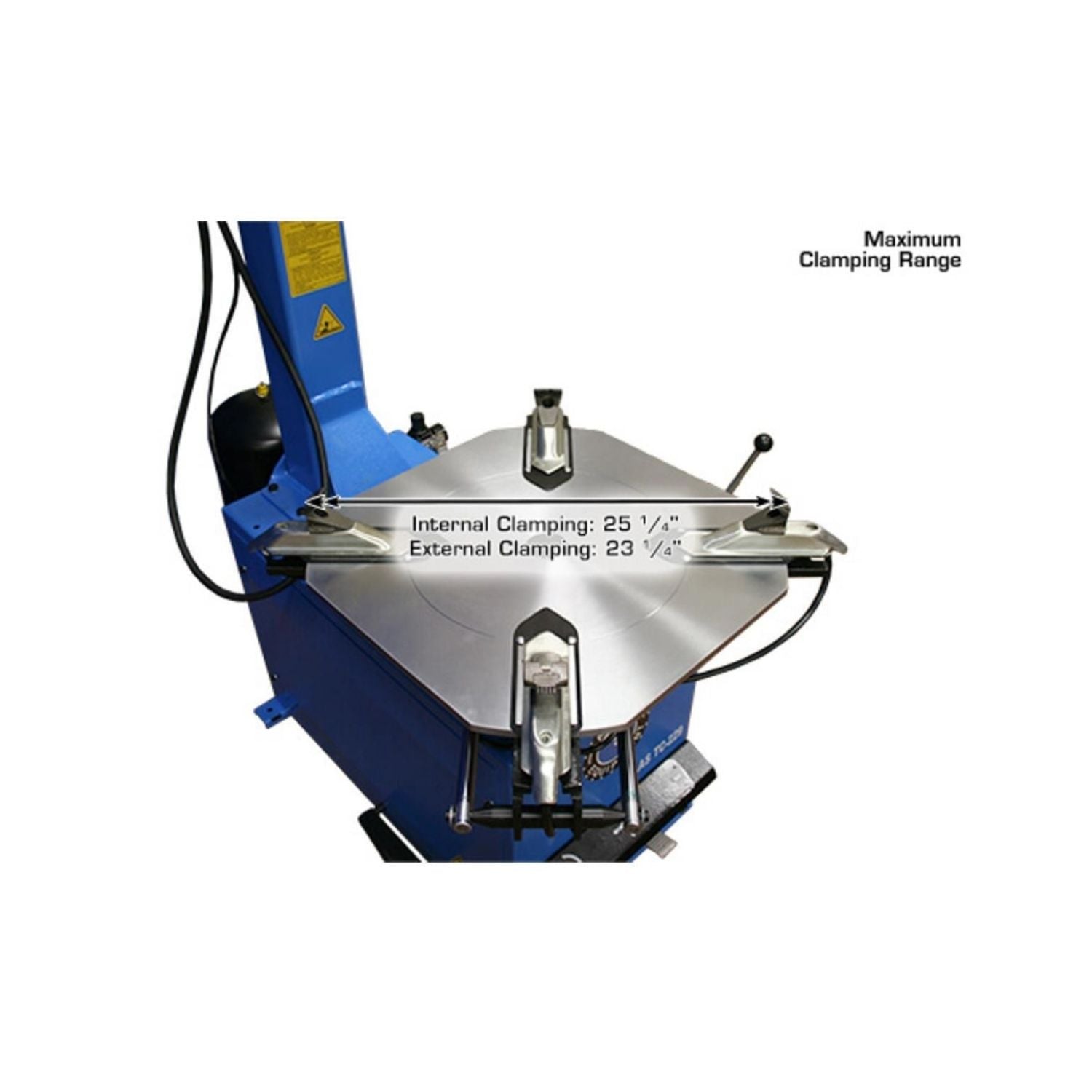

Atlas® Automotive Equipment Brand: Atlas® Automotive Equipment Part Number: ATETC229DAA Dimensions: 77" L × 60" W × 49" H UPC: 810524027489 Country of Origin: CHN Rims: Steel, Aluminum, Alloy External Locking Rim Dimension (3 Positions): 1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4" Internal Locking Rim Dimension (3 Positions): 1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4" Maximum Tire Diameter: 39" Maximum Wheel Width (Bead Breaker): 13" Table Motor: 1 HP Turntable Rotating Torque: 885 ft/lbs Bead Breaker: 5,500 LB. Force Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI) Operating Voltage: 110volt Shipping Weight: 850 lbs. -
DOCUMENTS

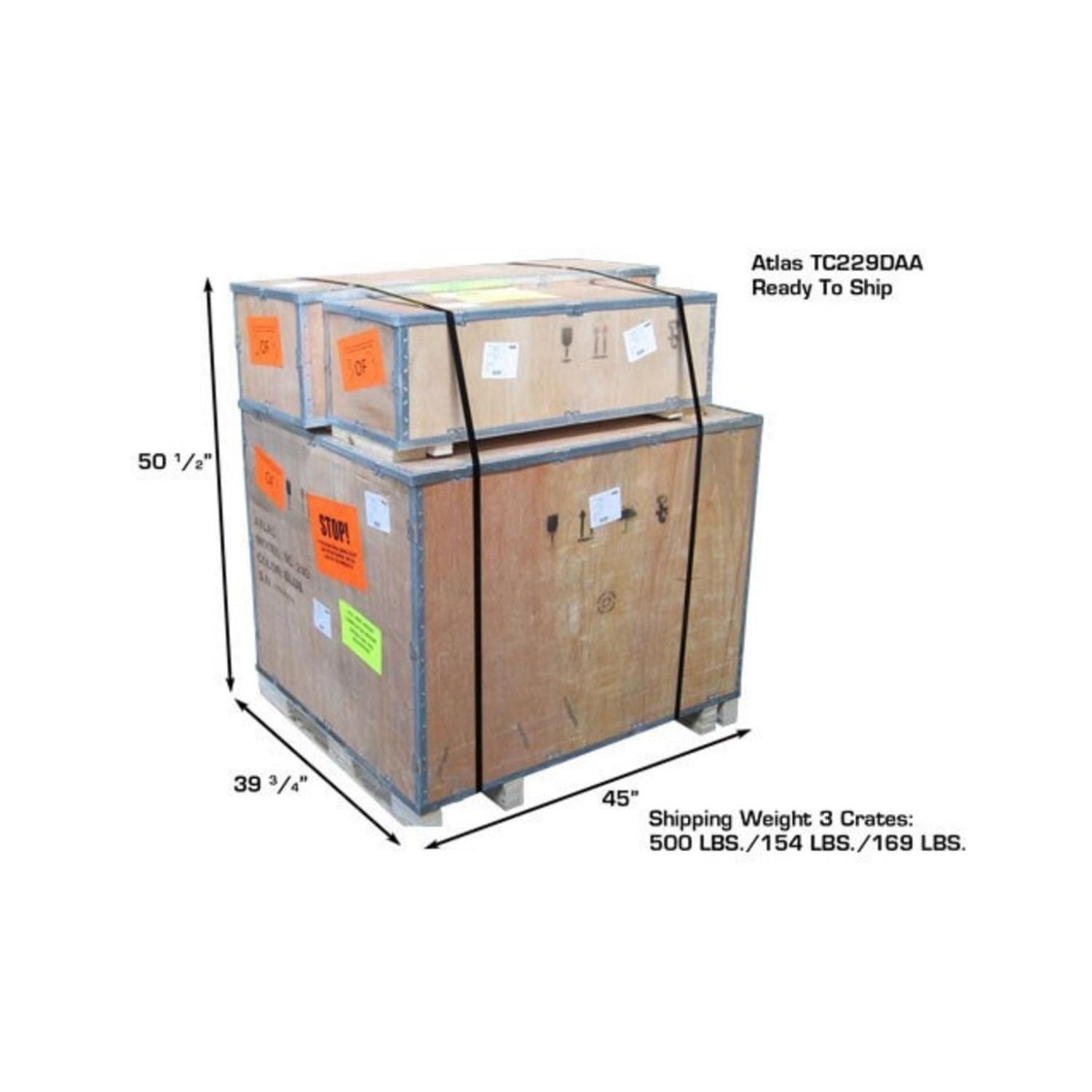

Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
