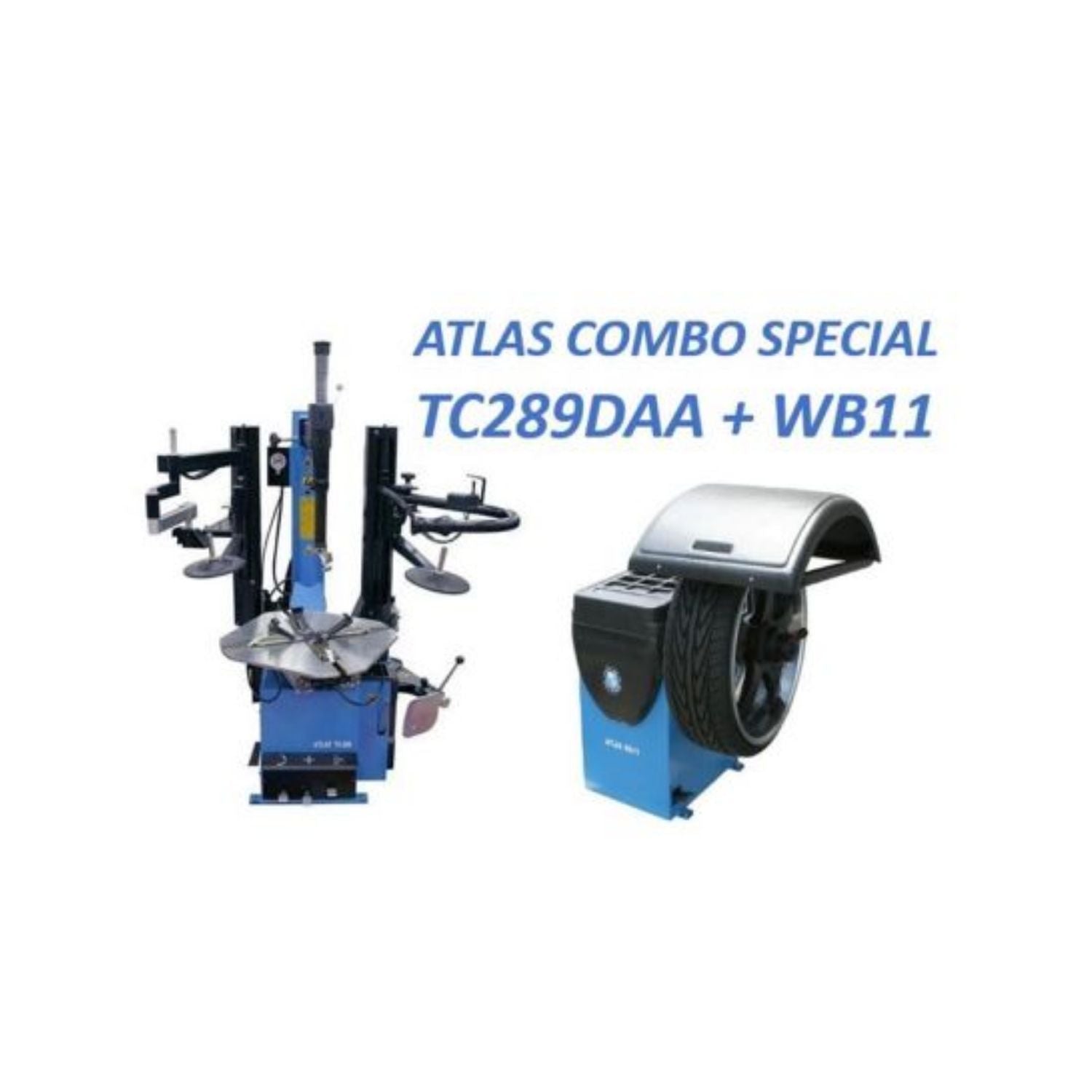

Atlas® TC289DAA & WB11 Combo Package #ATETCWB-COMBO9-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® TC289DAA & WB11 Combo Package combines a heavy-duty dual assist-arm tire changer and computerized wheel balancer into one complete wheel service solution for commercial tire shops, automotive repair facilities, and larger wheel/tire applications. Designed for servicing oversized wheels, low-profile tires, SUVs, and light trucks, this package provides dependable equipment for mounting, demounting, and balancing modern wheel and tire assemblies.

  The package includes the Atlas TC289DAA Tire Changer, featuring an extra-large rim-clamp platform with the advanced DAA-SA Dual Assist Arm system for improved handling of difficult tire combinations, along with the Atlas WB11 Computerized Wheel Balancer, which delivers simple and reliable balancing performance for everyday wheel service work. Together, these machines help improve technician efficiency while supporting a wide variety of passenger vehicle, SUV, and light truck tire applications.

  Ideal for growing tire shops, fleet service facilities, and commercial garages needing larger tire capability, the TC289DAA & WB11 combo offers commercial-grade durability, assist-arm tire service capability, and dependable daily operation at an excellent overall value.

• FEATURES AND BENEFITS

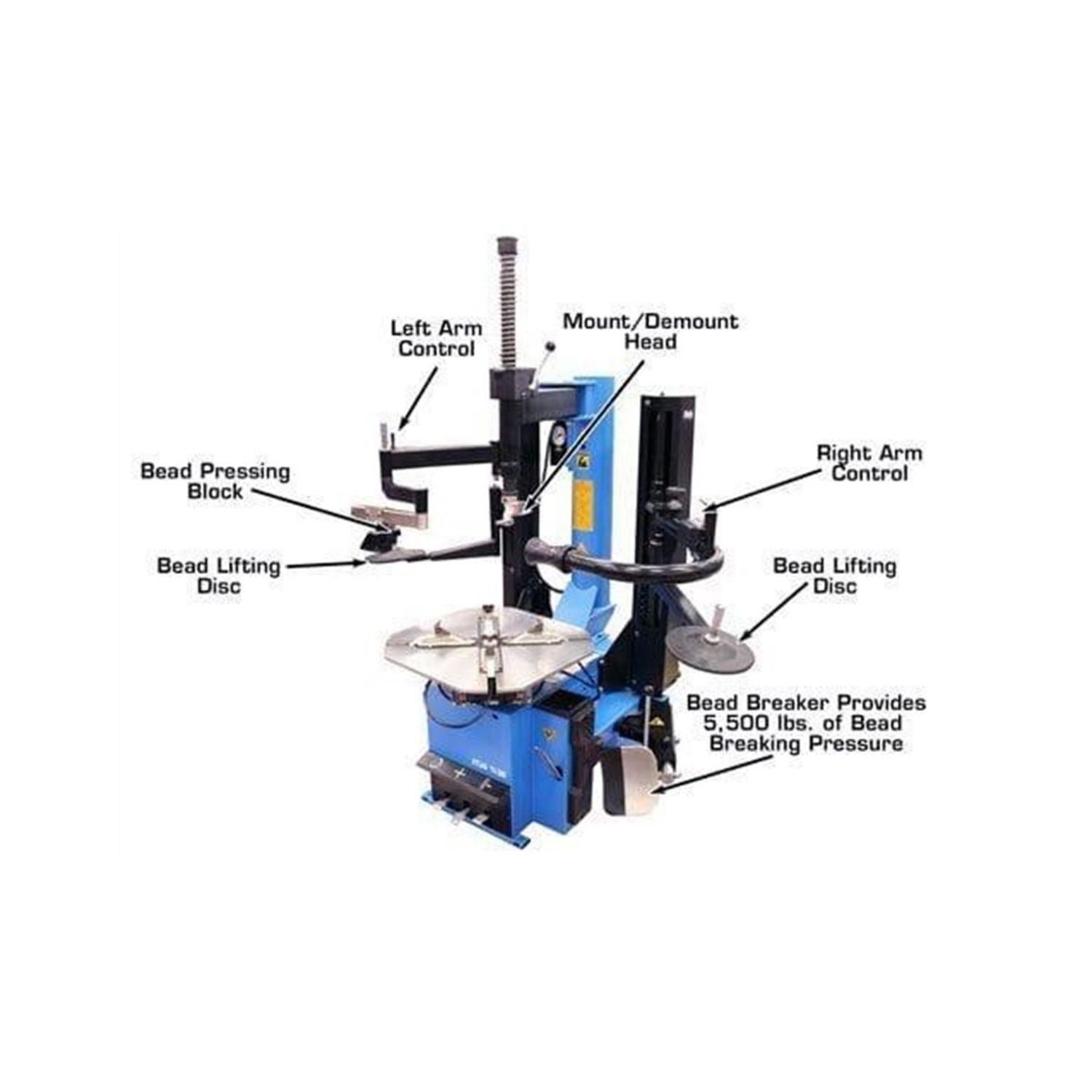

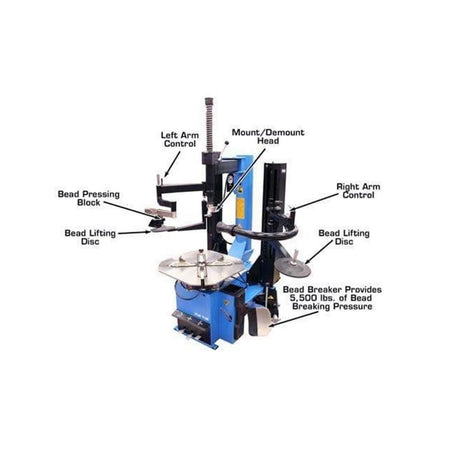

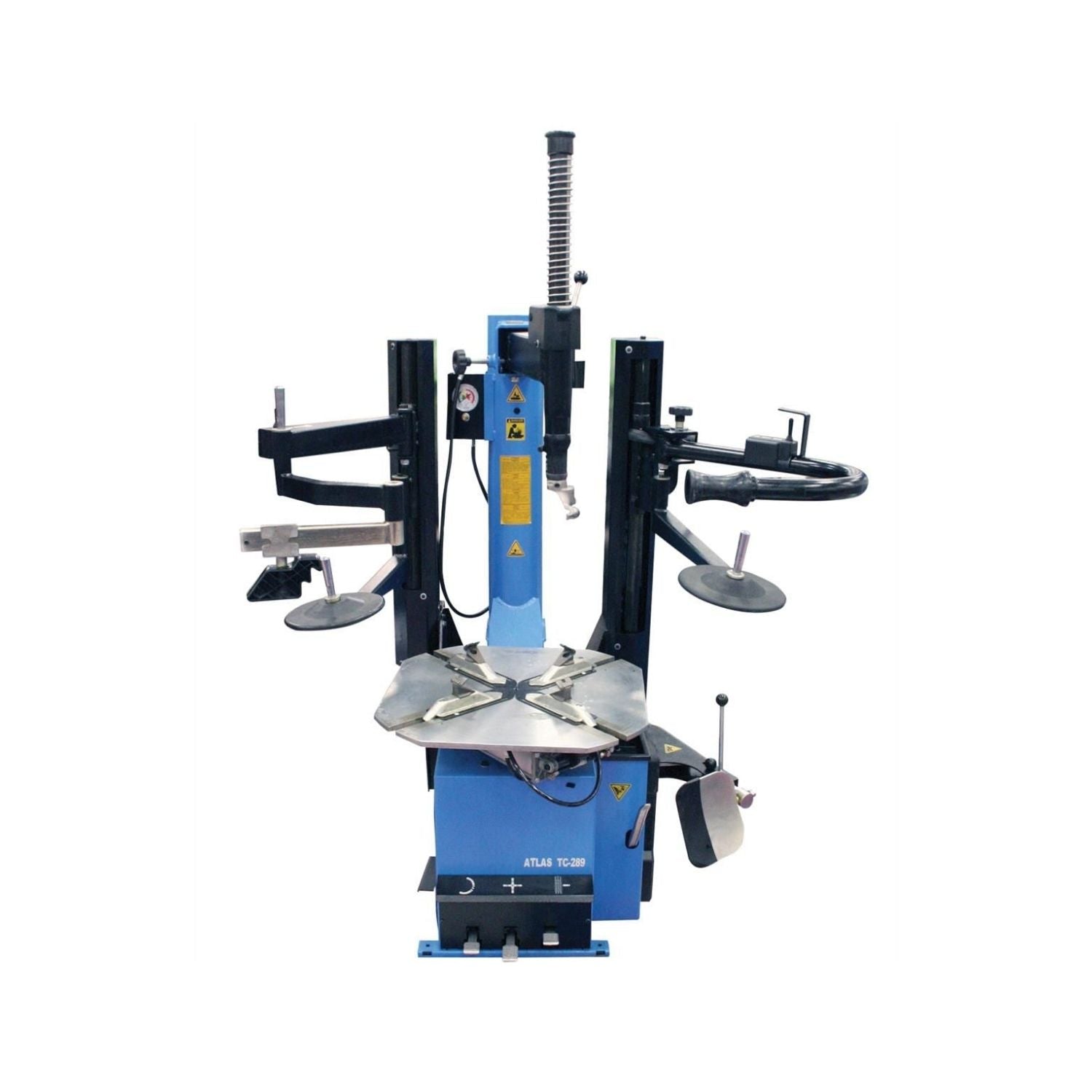

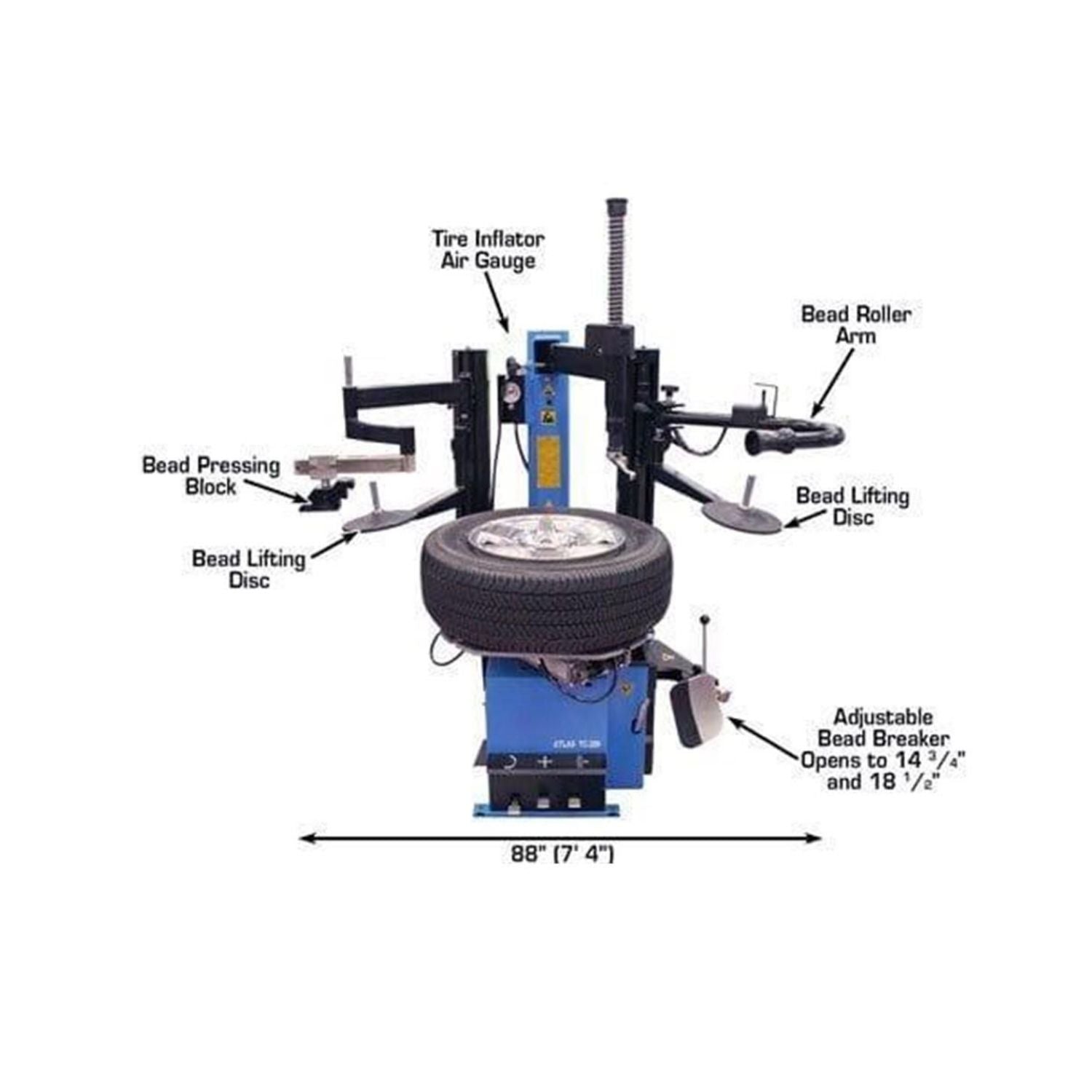

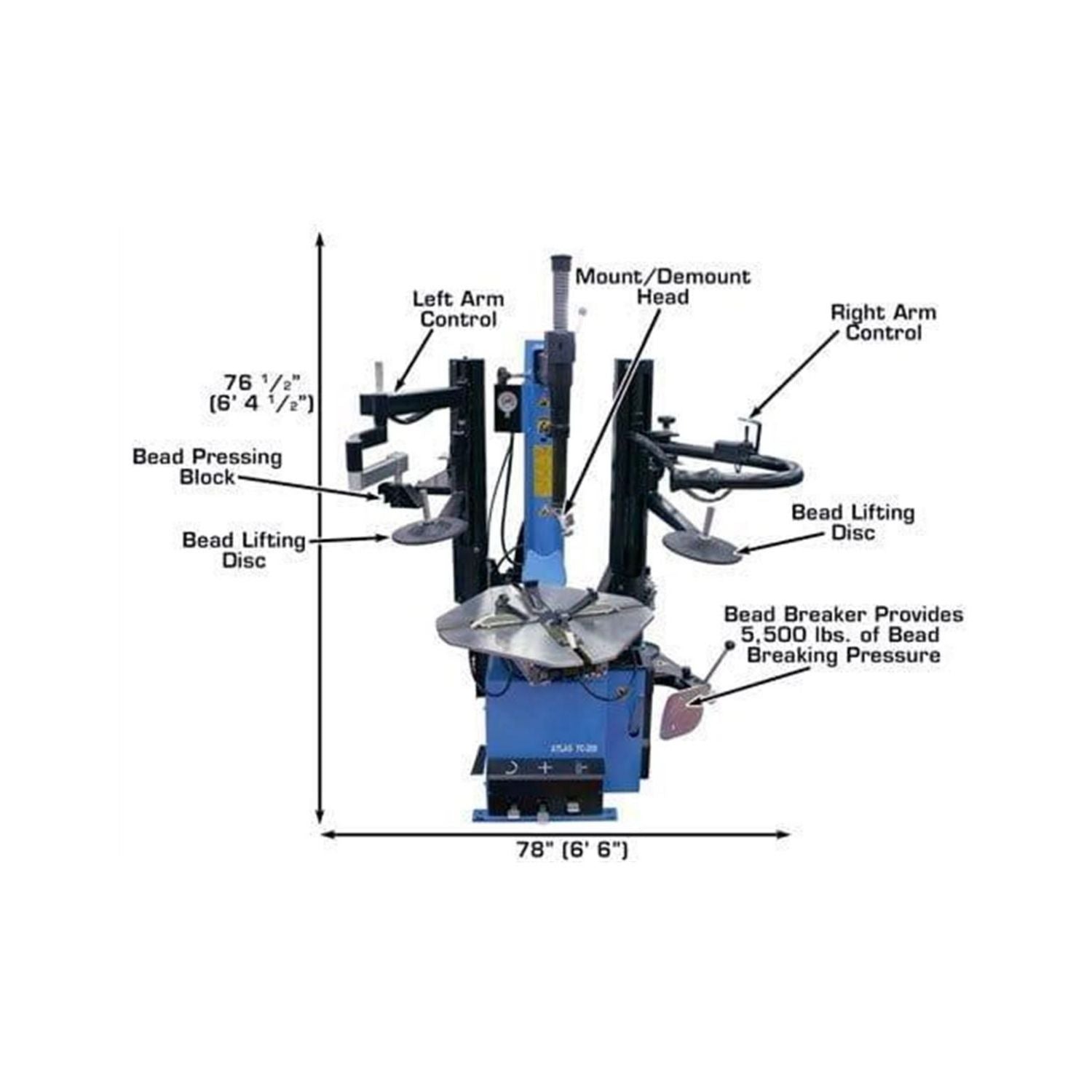

  Atlas® TC289DAA Tire Changer

  • Rim Clamp/Swing Arm Tire Changer

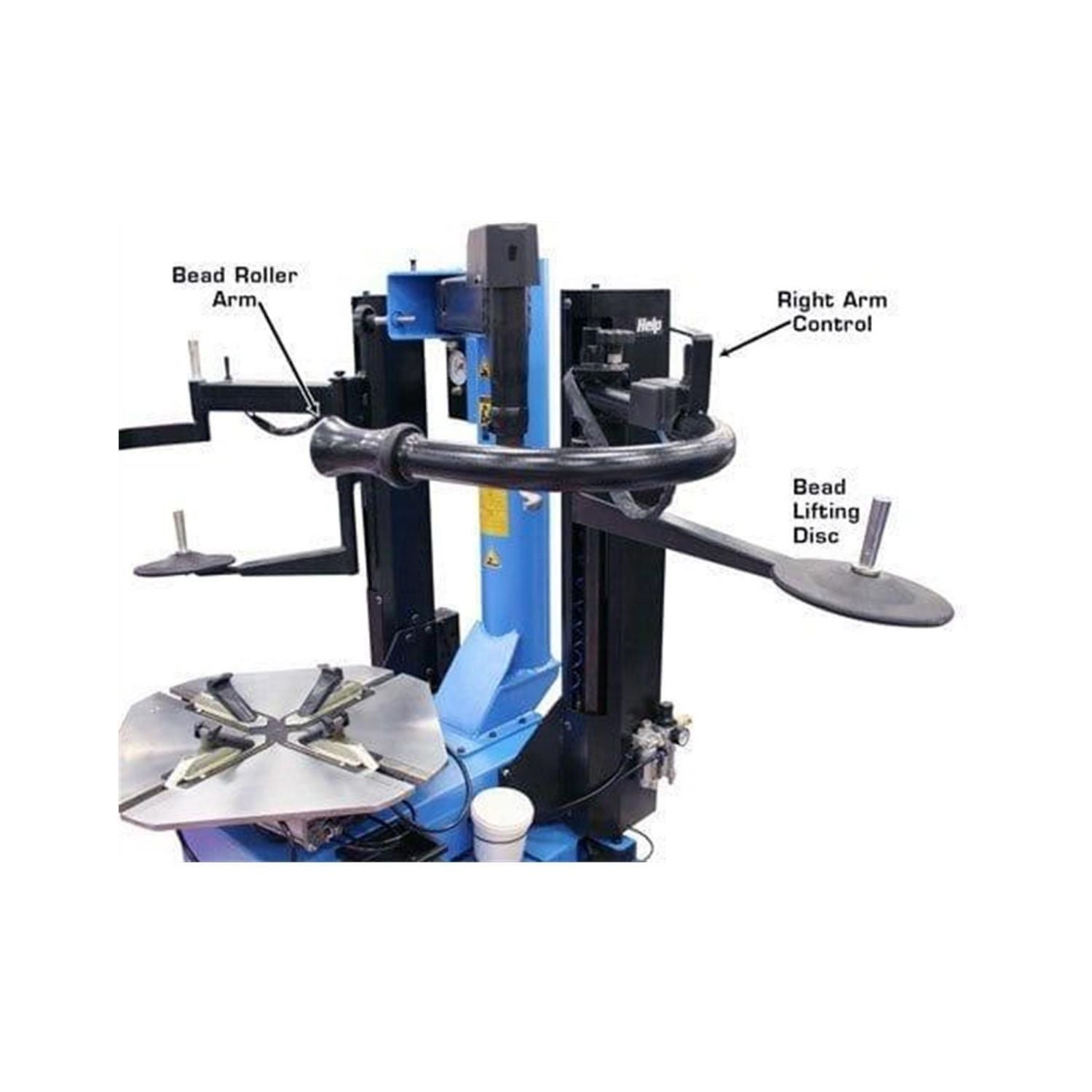

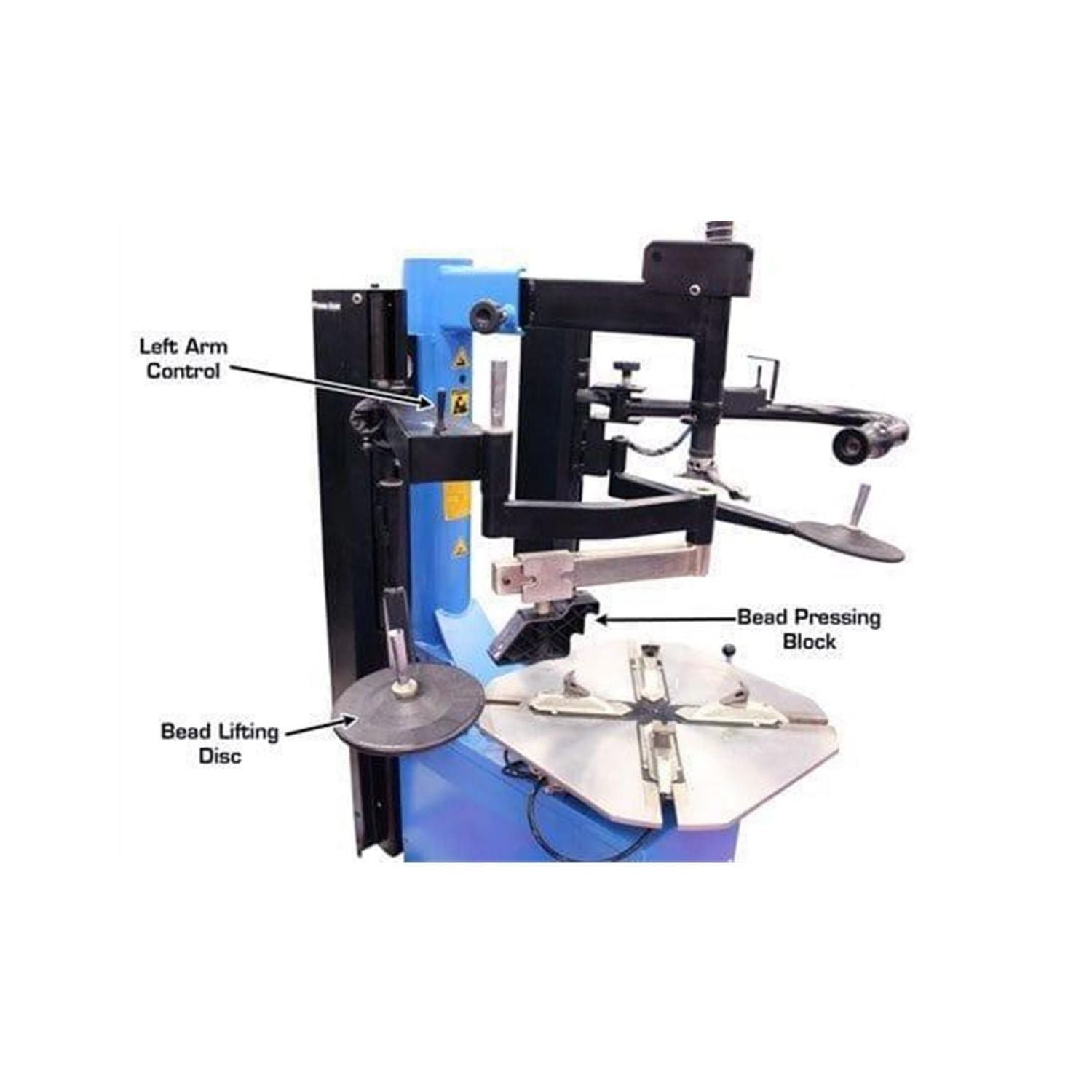

  • Left Hand and Right Hand Assist Arms Included
  • Extra Large Turntable, More Clearance
  • Built-in "Beadblaster"
  • Adjustable Bead Breaker Plate
  • Adjustable jaws, 3 mounting positions
  • Oiler, Filter, Regulator included (external air supply required)
  • Plastic Protectors included
  • Tire Tool, Lube Bucket, and Lube Brush Included
  • Inflation Box w/ Gauge Included

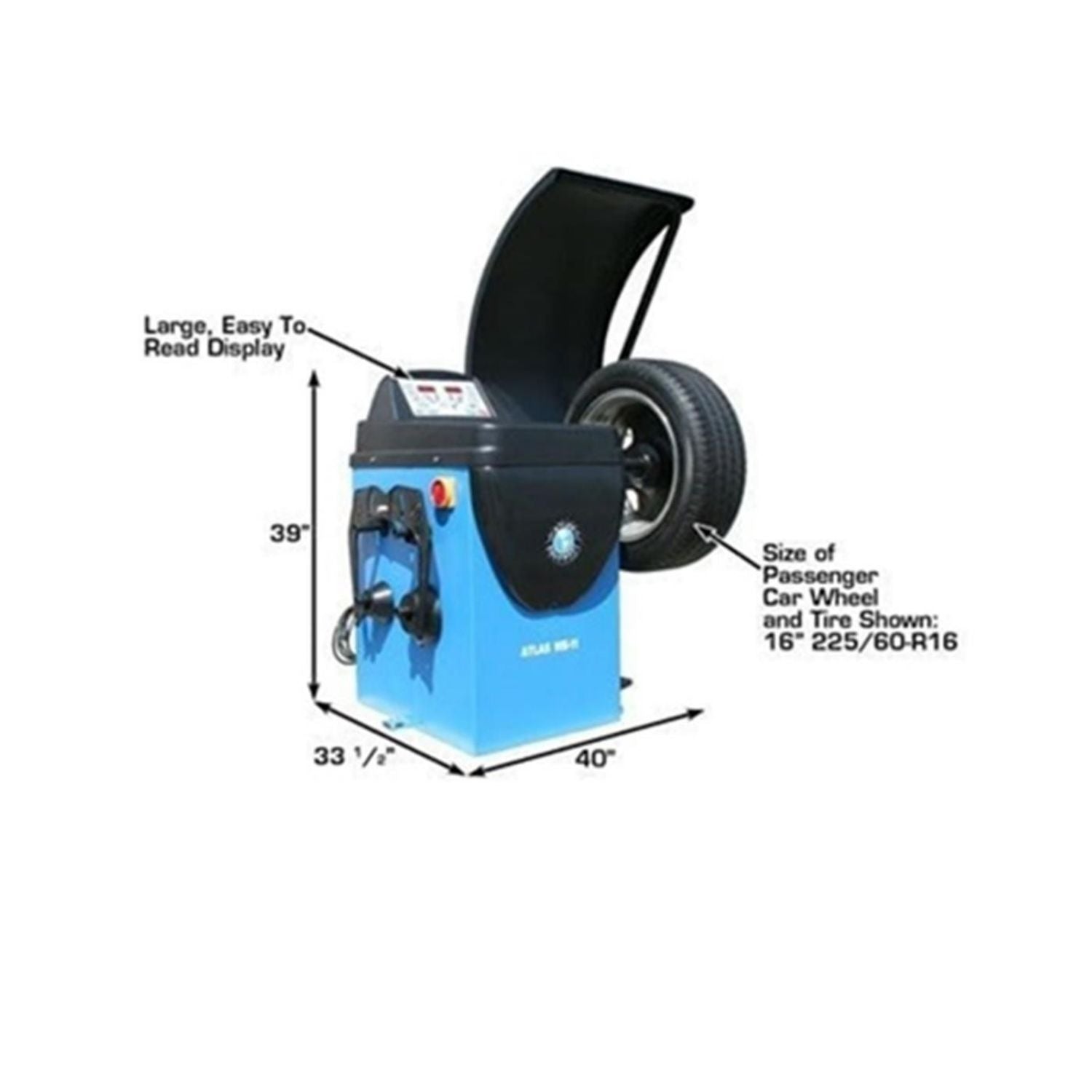

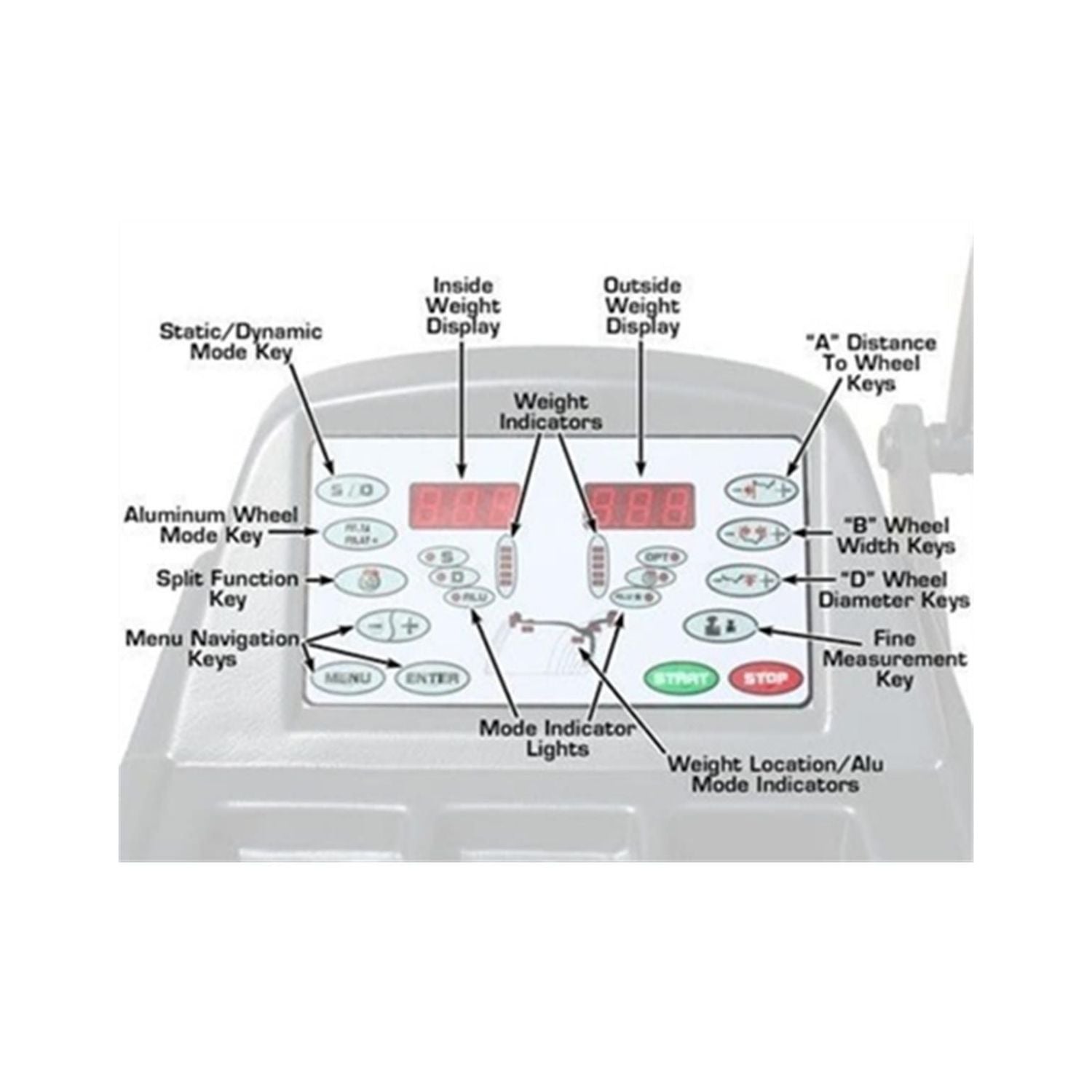

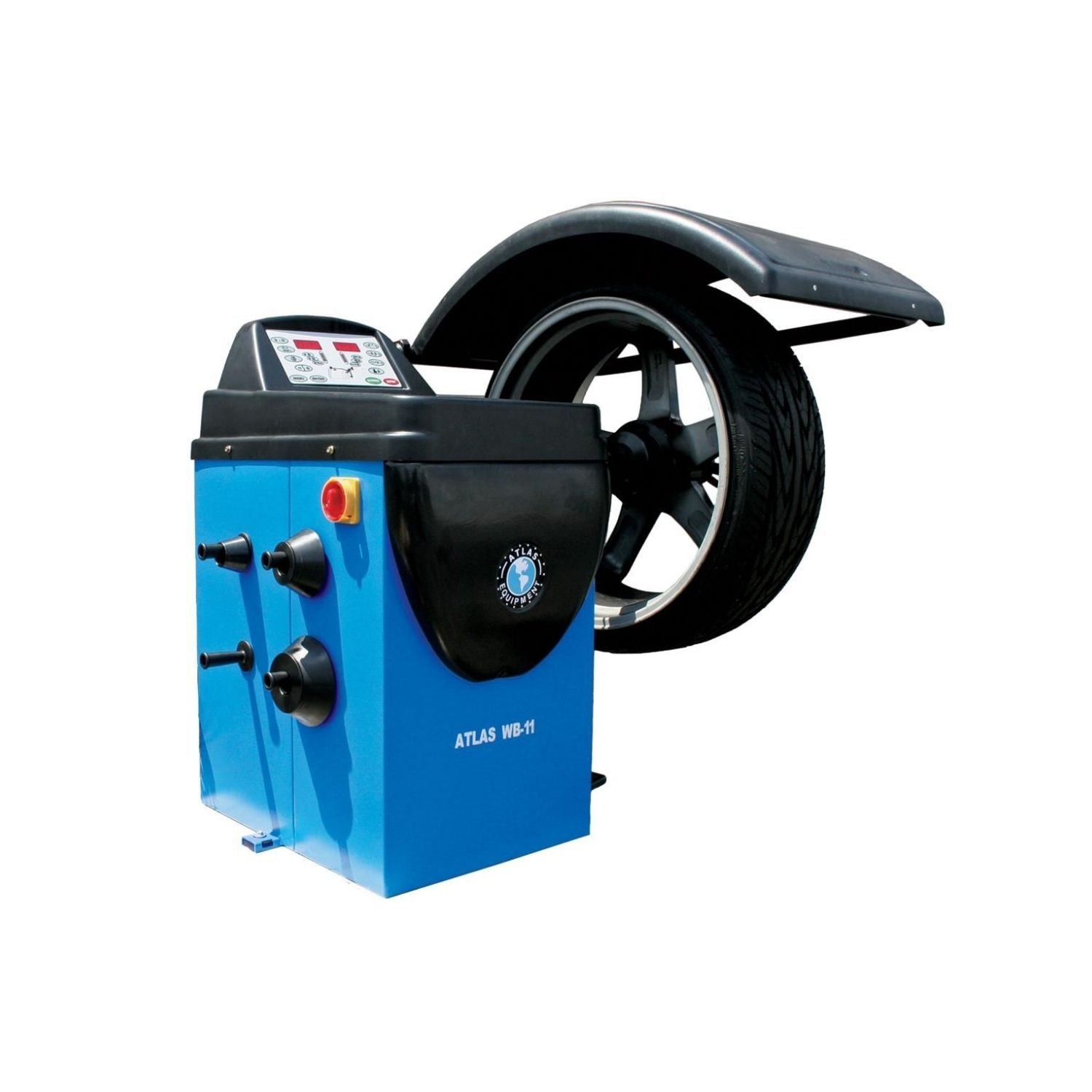

  Atlas® WB11 Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches

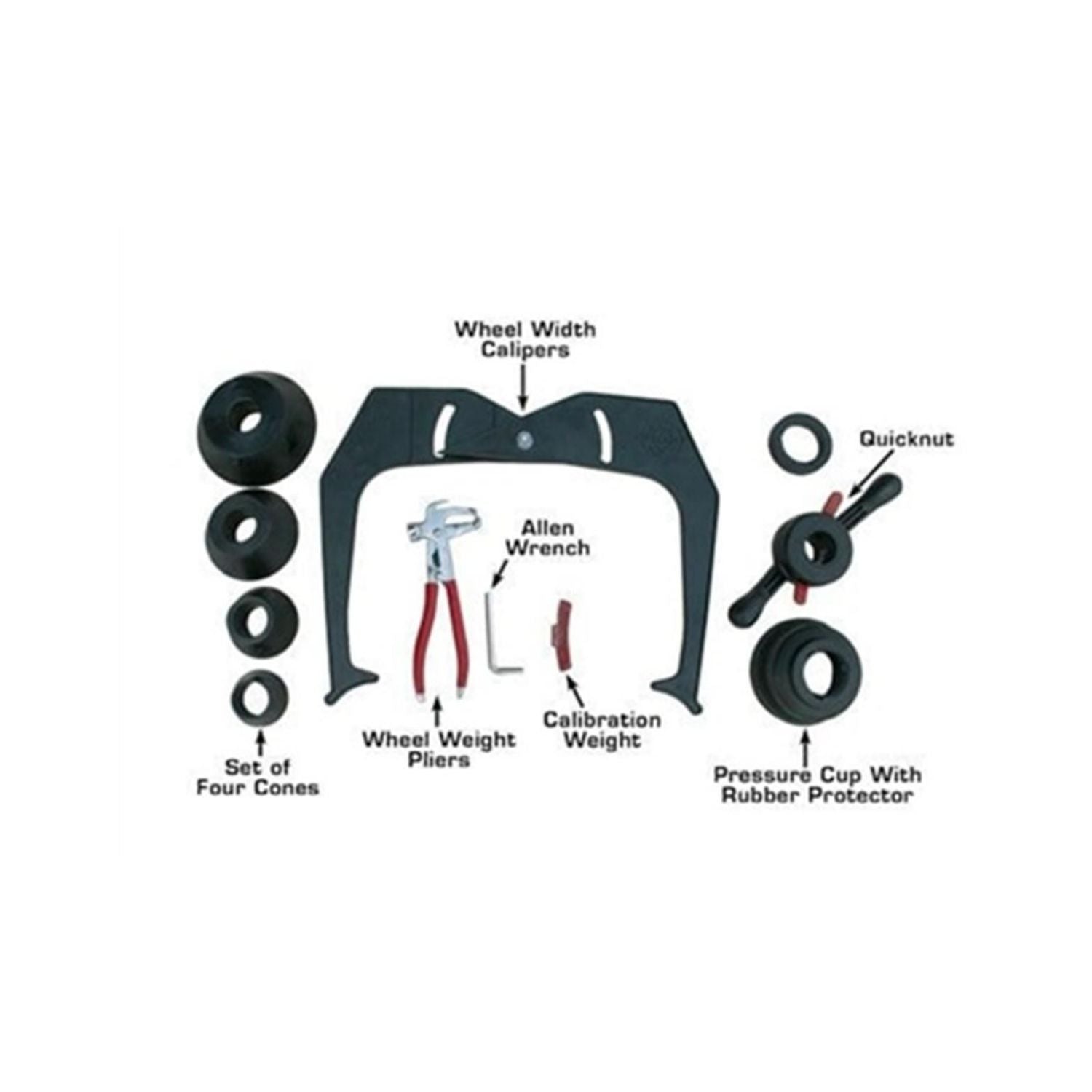

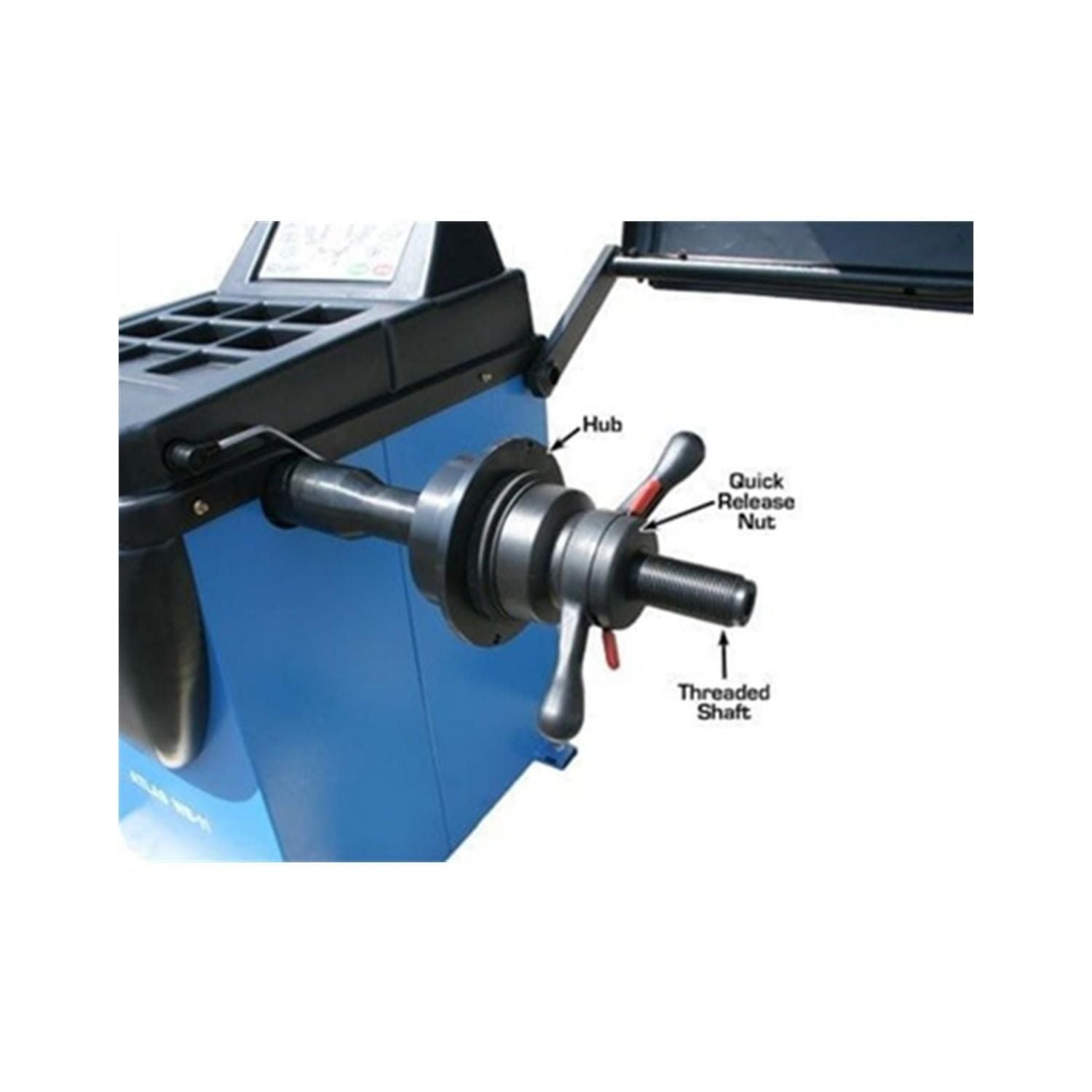

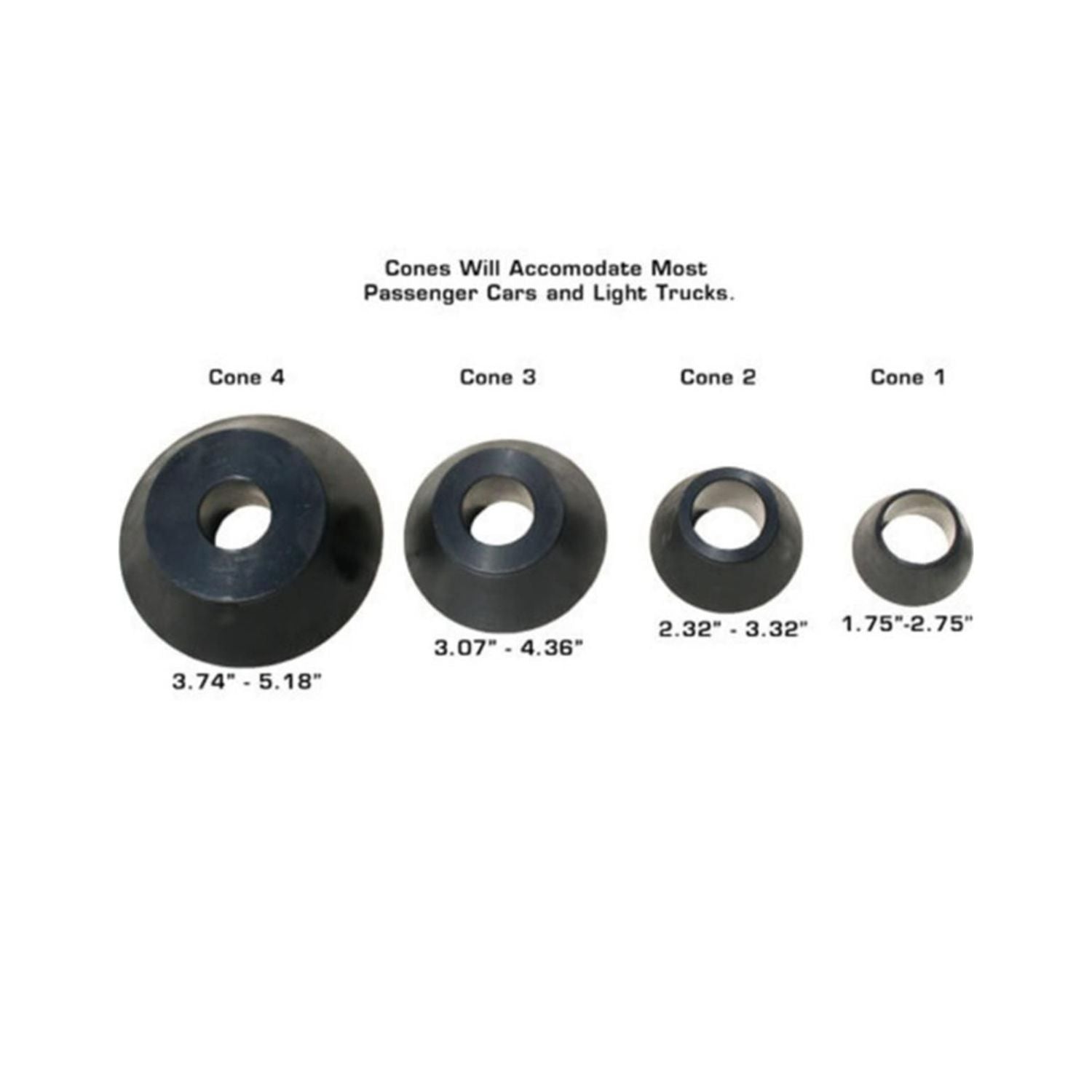

  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

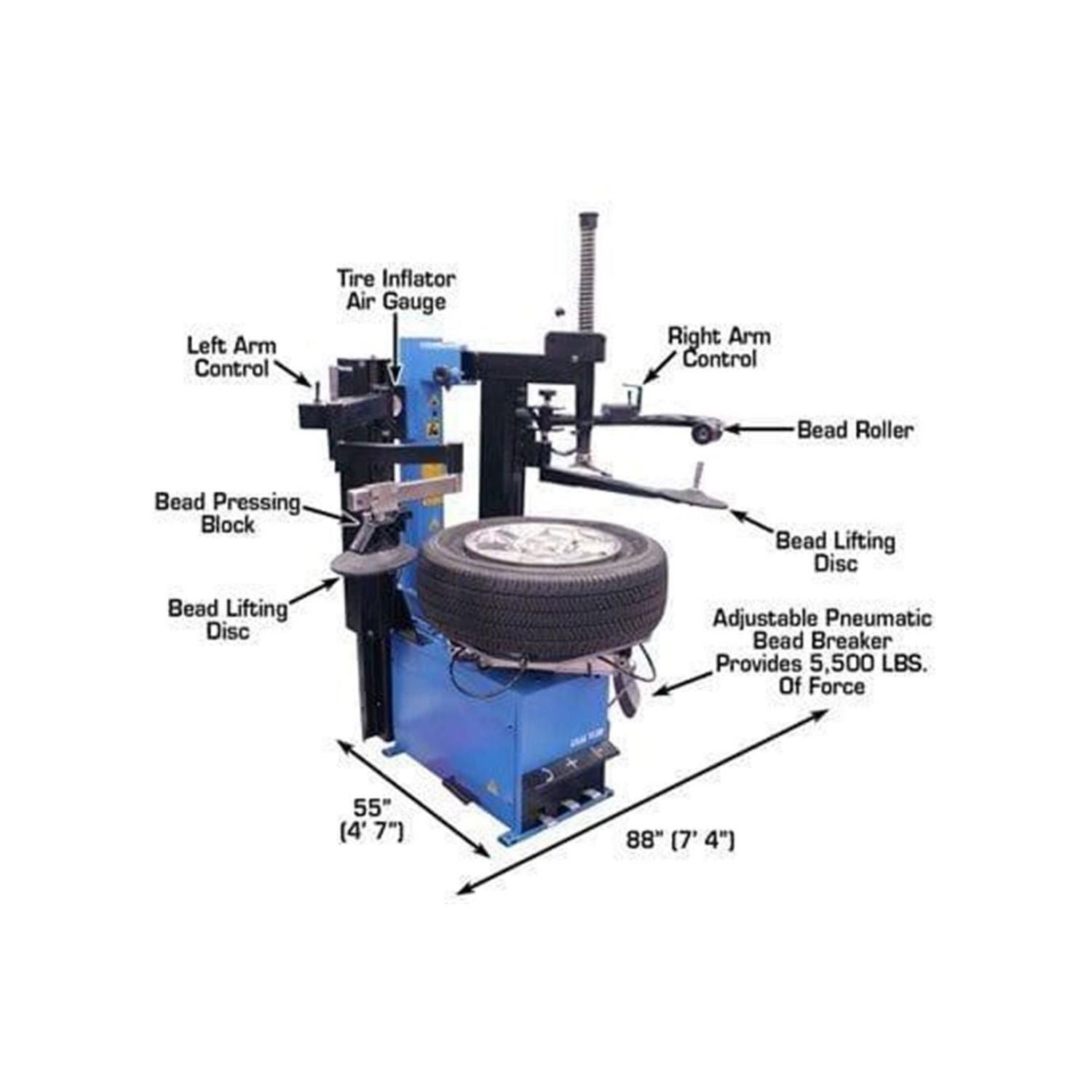

  Atlas® TC289 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO9-FPD
  Dimensions:	80" L × 54" W × 45" H

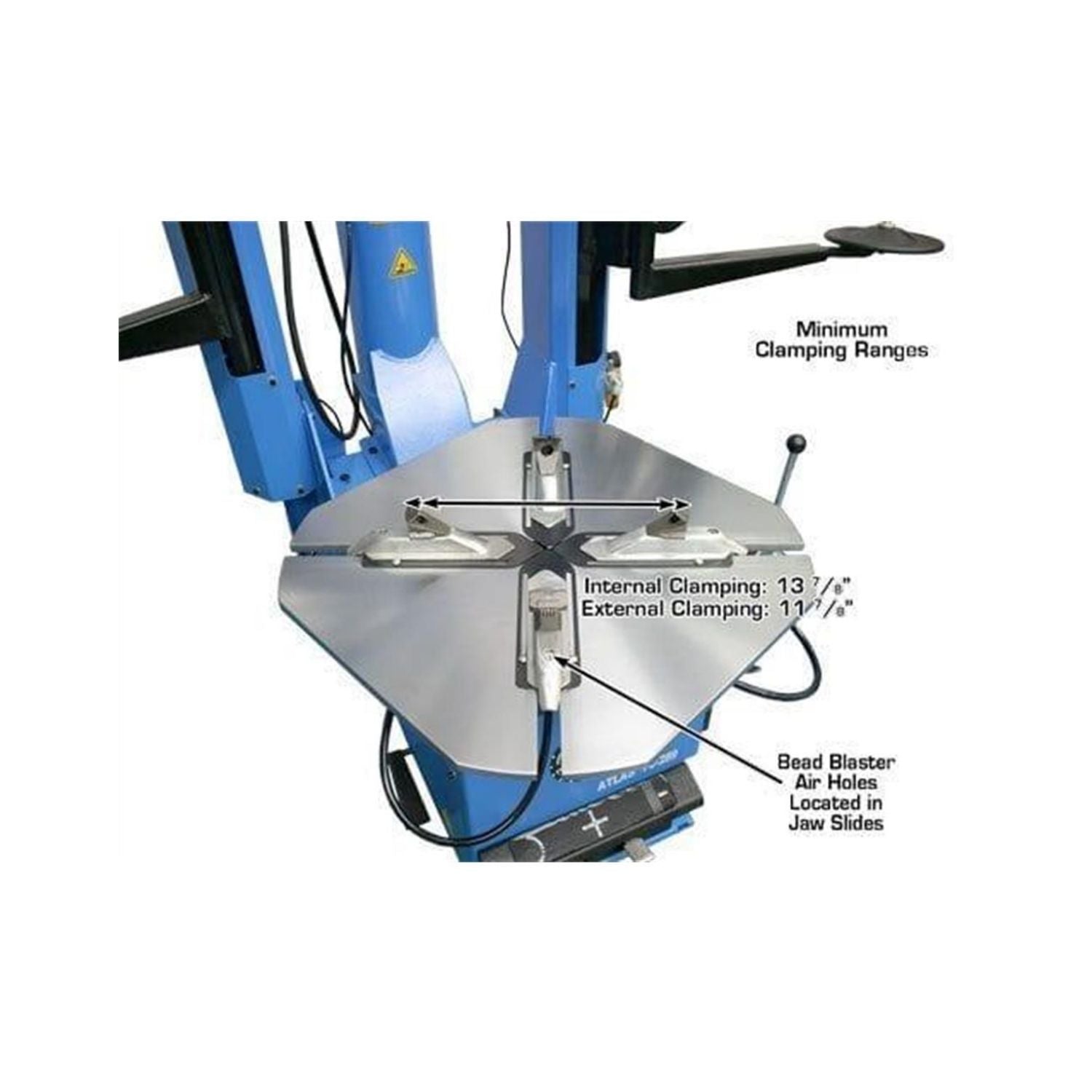

  External Locking Rim Dimensions:	11 7/8" to 27 7/8"
  Internal Locking Rim Dimensions:	13 7/8" to 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	620 lbs
  UPC:	810524029445
  Country of Origin:	CHN

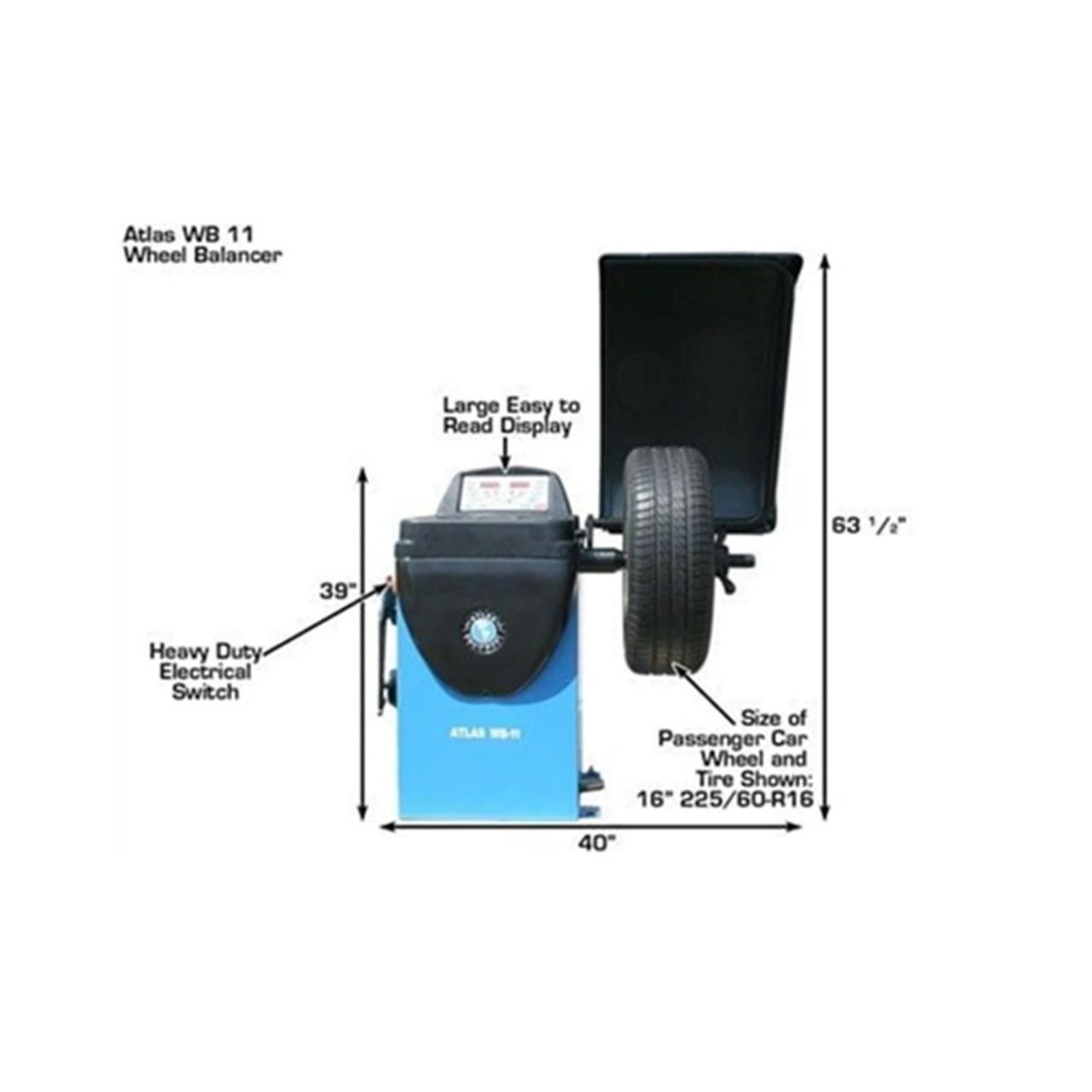

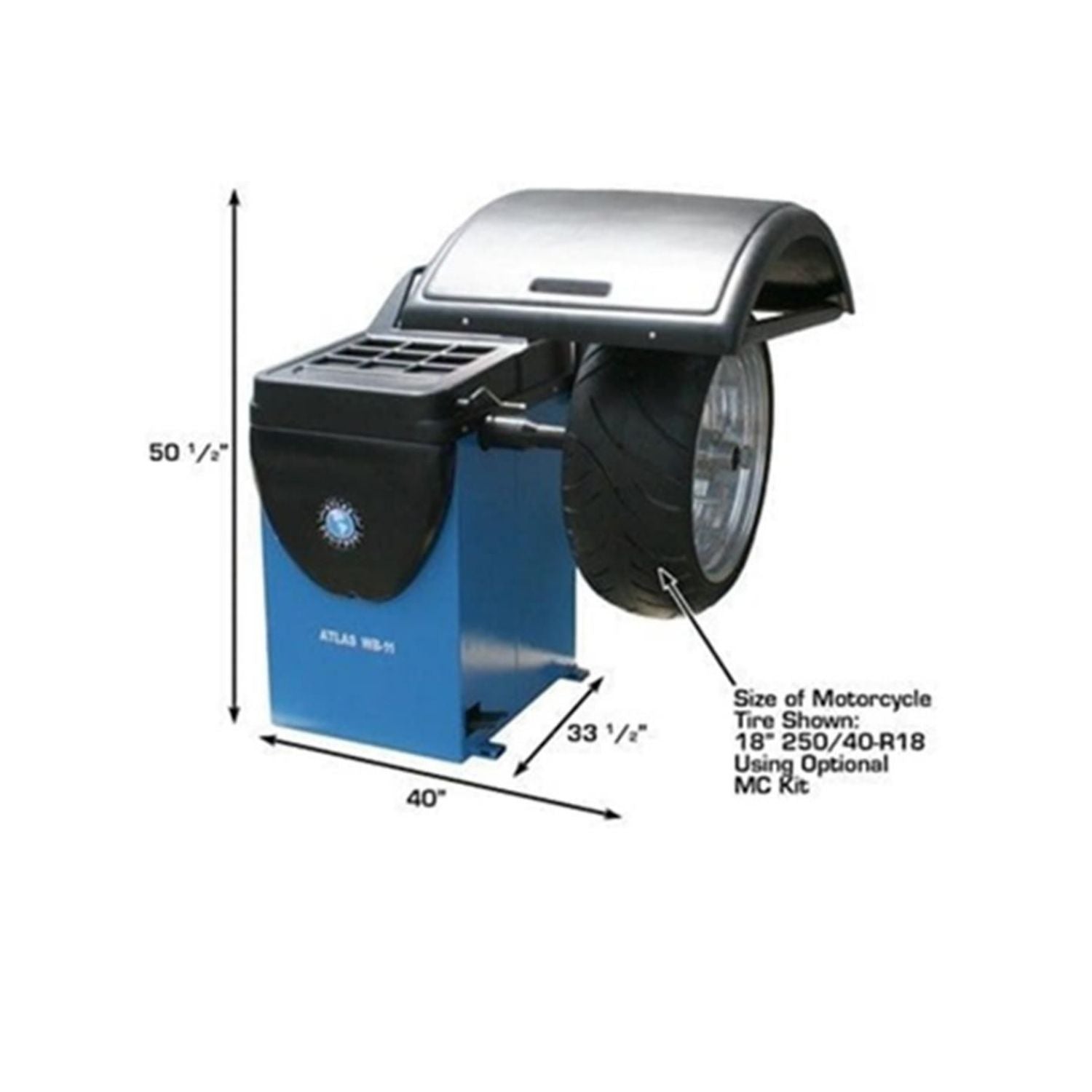

  Atlas® WB11 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32"
  Rim Width:	1 1/2" - 20"

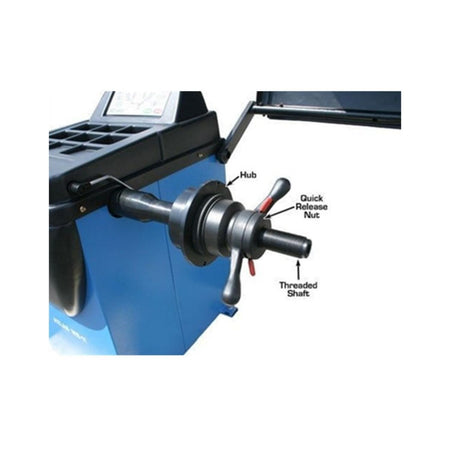

  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	All Dimensions Manual
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt

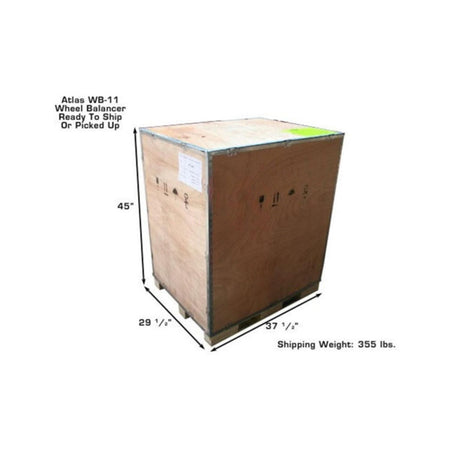

  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
