Atlas® TC755EZ & WB49-2-PRO Combo Package #ATETCWB-COMBO4-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

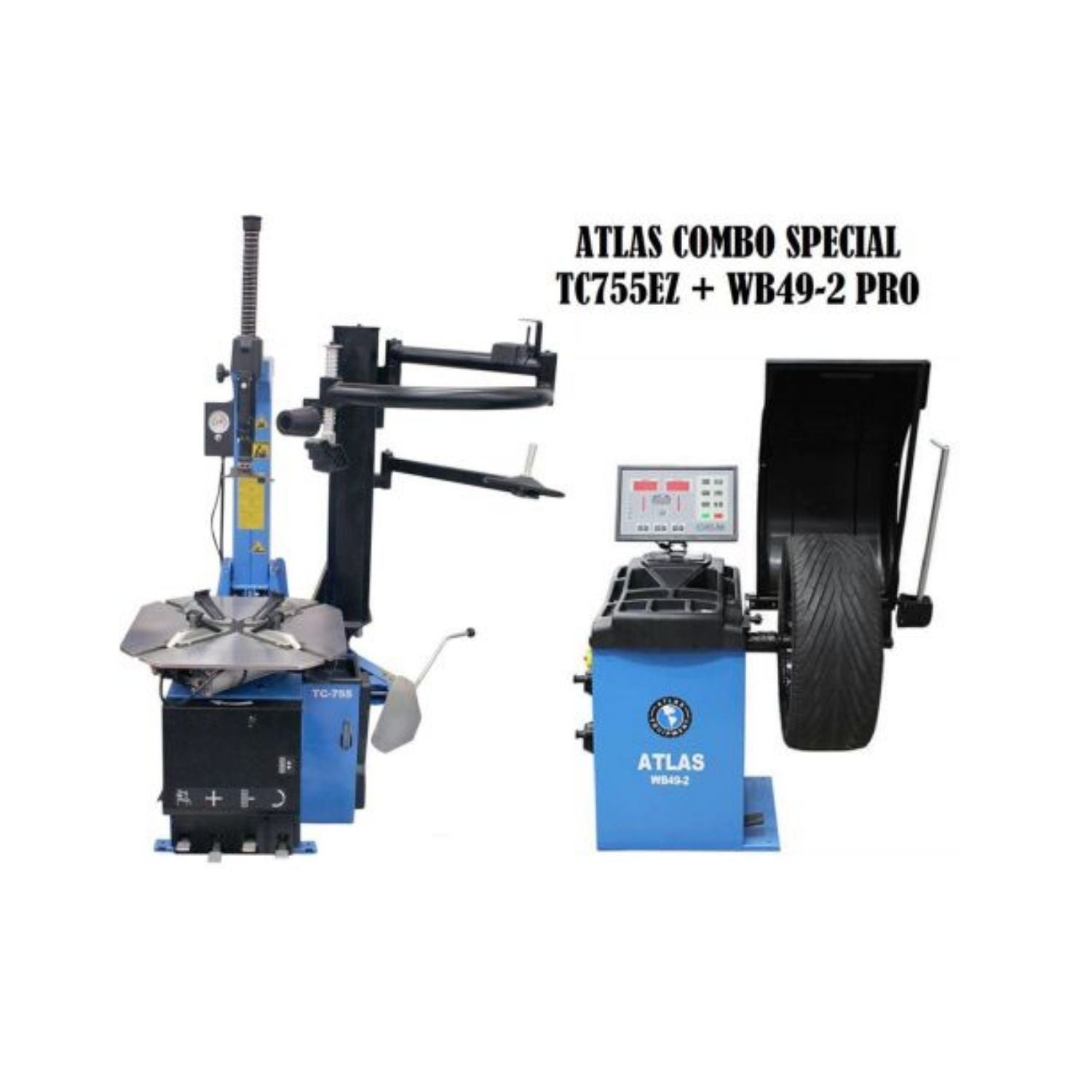

  The Atlas® TC755EZ & WB49-2-PRO Combo Package combines a premium heavy-duty tire changer and advanced computerized wheel balancer into one professional wheel service solution for high-volume tire shops and automotive repair facilities. Designed for modern wheel and tire applications, this package provides the equipment needed to efficiently service low-profile tires, alloy wheels, performance wheel packages, SUVs, and light trucks.

  The package includes the Atlas TC755EZ Tire Changer, featuring a tilt-back design with the advanced E-Z Assist Arm system for improved handling of difficult tire combinations, along with the Atlas WB49-2-PRO Wheel Balancer, which delivers premium balancing capability with advanced automatic wheel measurement and precision balancing technology. Together, these machines help improve technician workflow while supporting demanding daily commercial tire service operations.

  Ideal for busy shops upgrading equipment or building a modern service bay, the TC755EZ & WB49-2-PRO combo offers commercial-grade durability, advanced wheel service capability, and dependable performance for professional tire and wheel service environments.

• FEATURES AND BENEFITS

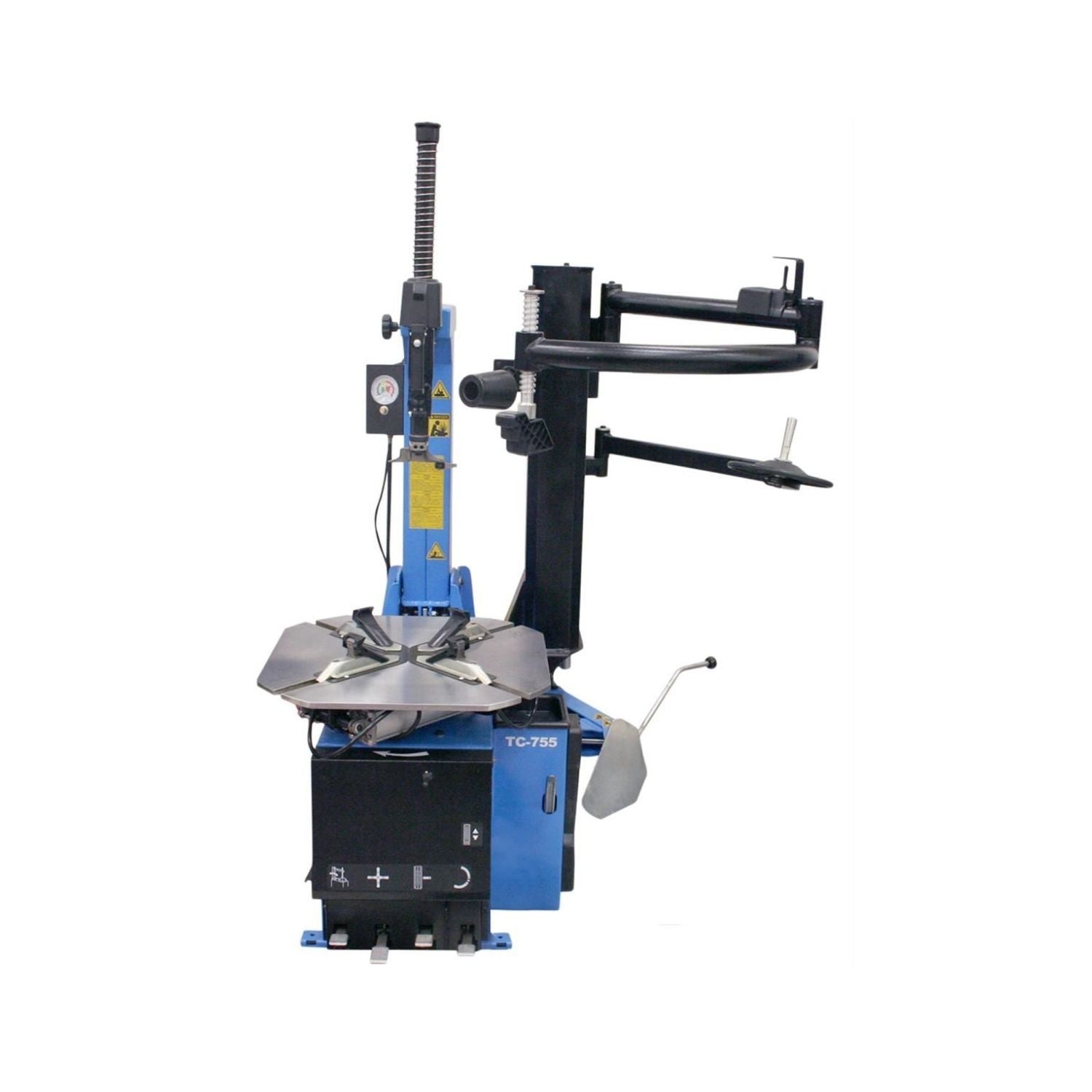

  Atlas® TC755EZ Tire Changer

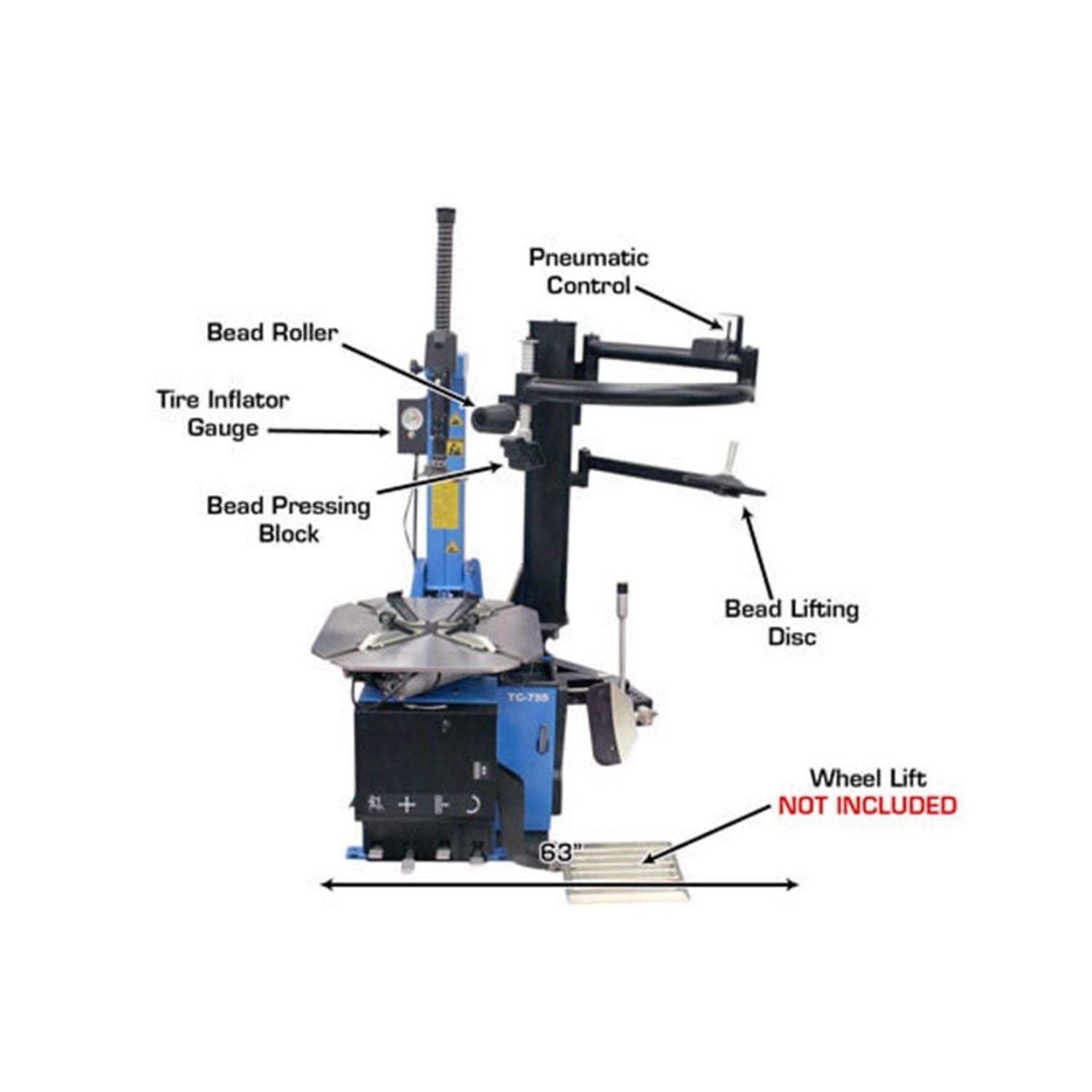

  • Tilt-Back Column Tire Changer
  • Rim-Clamp Style

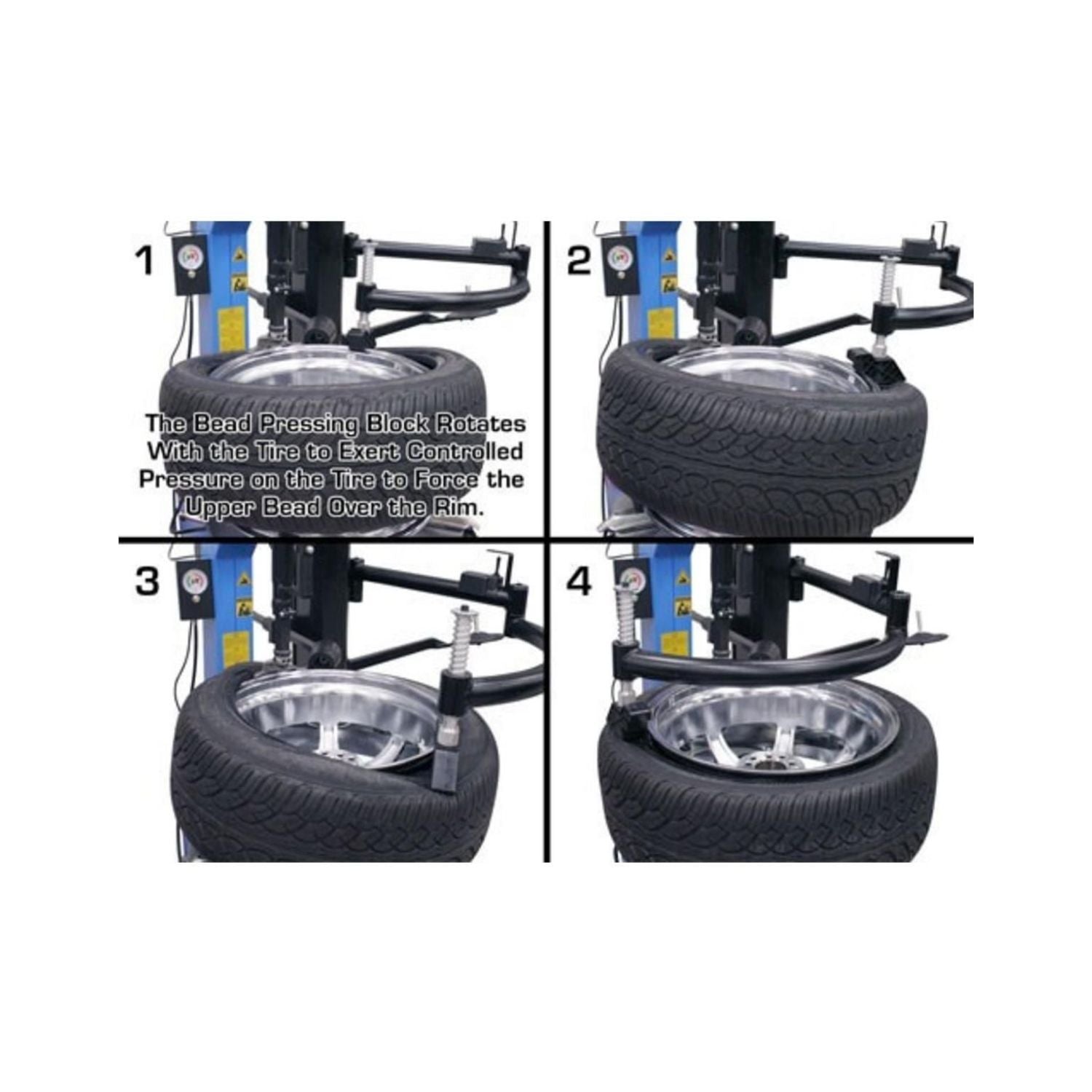

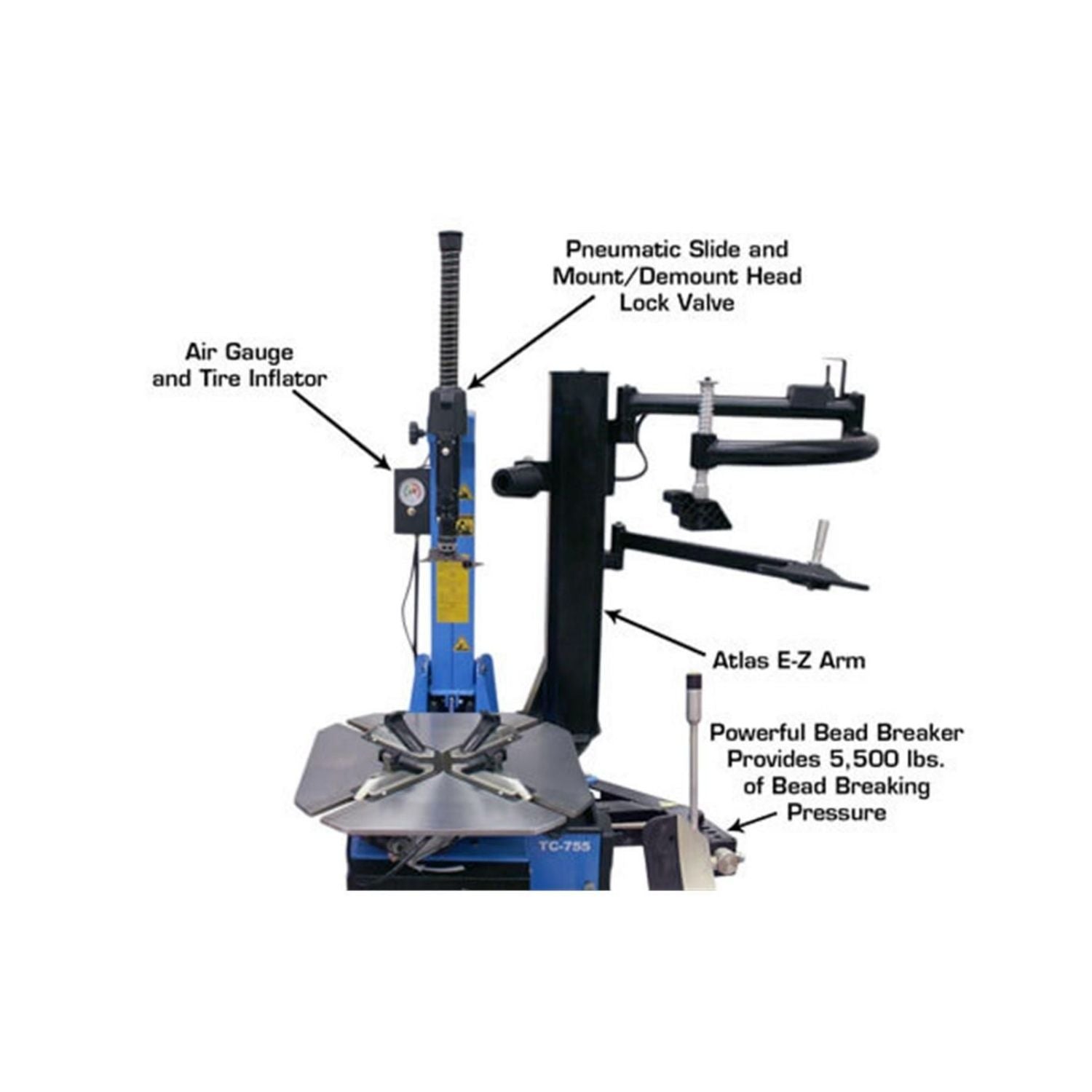

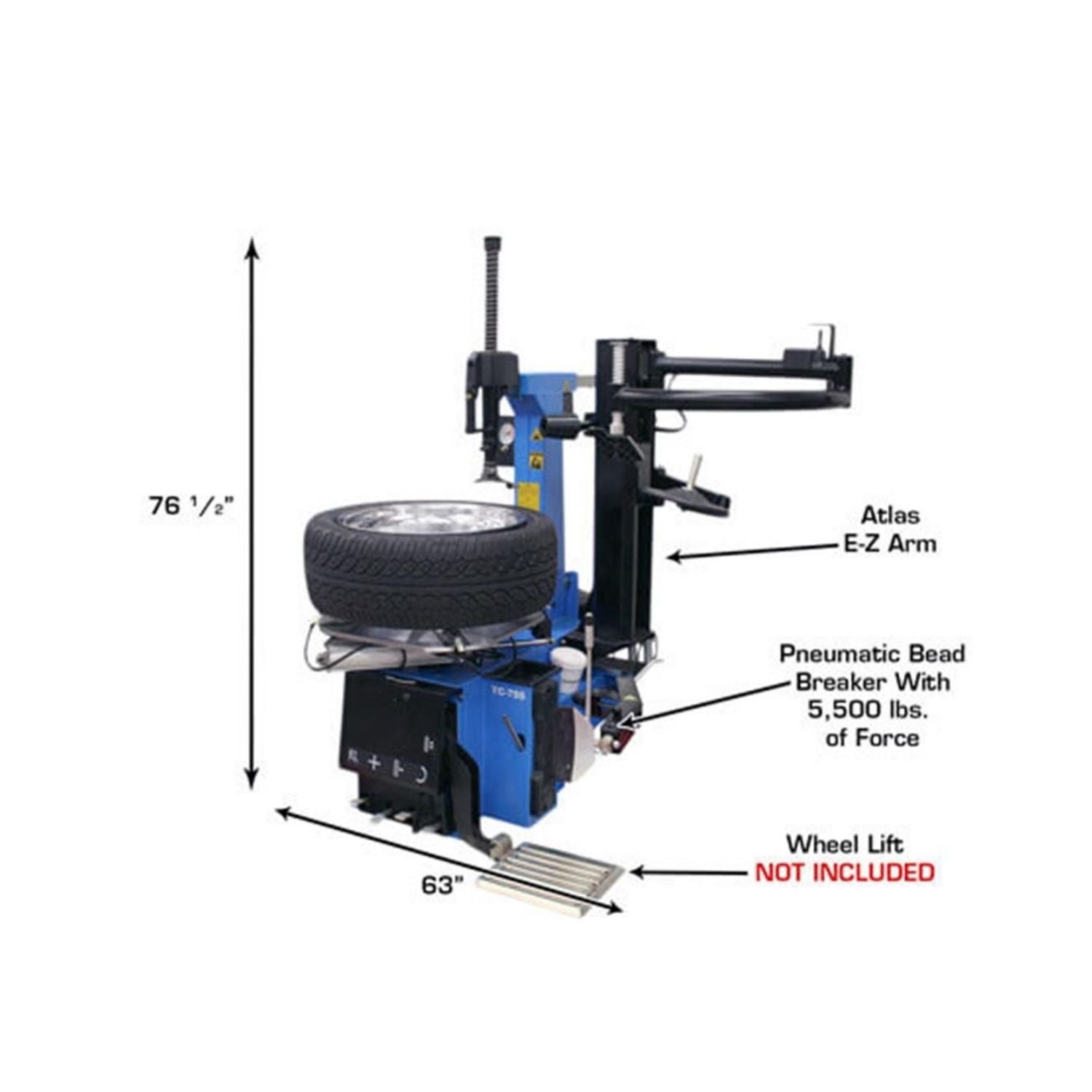

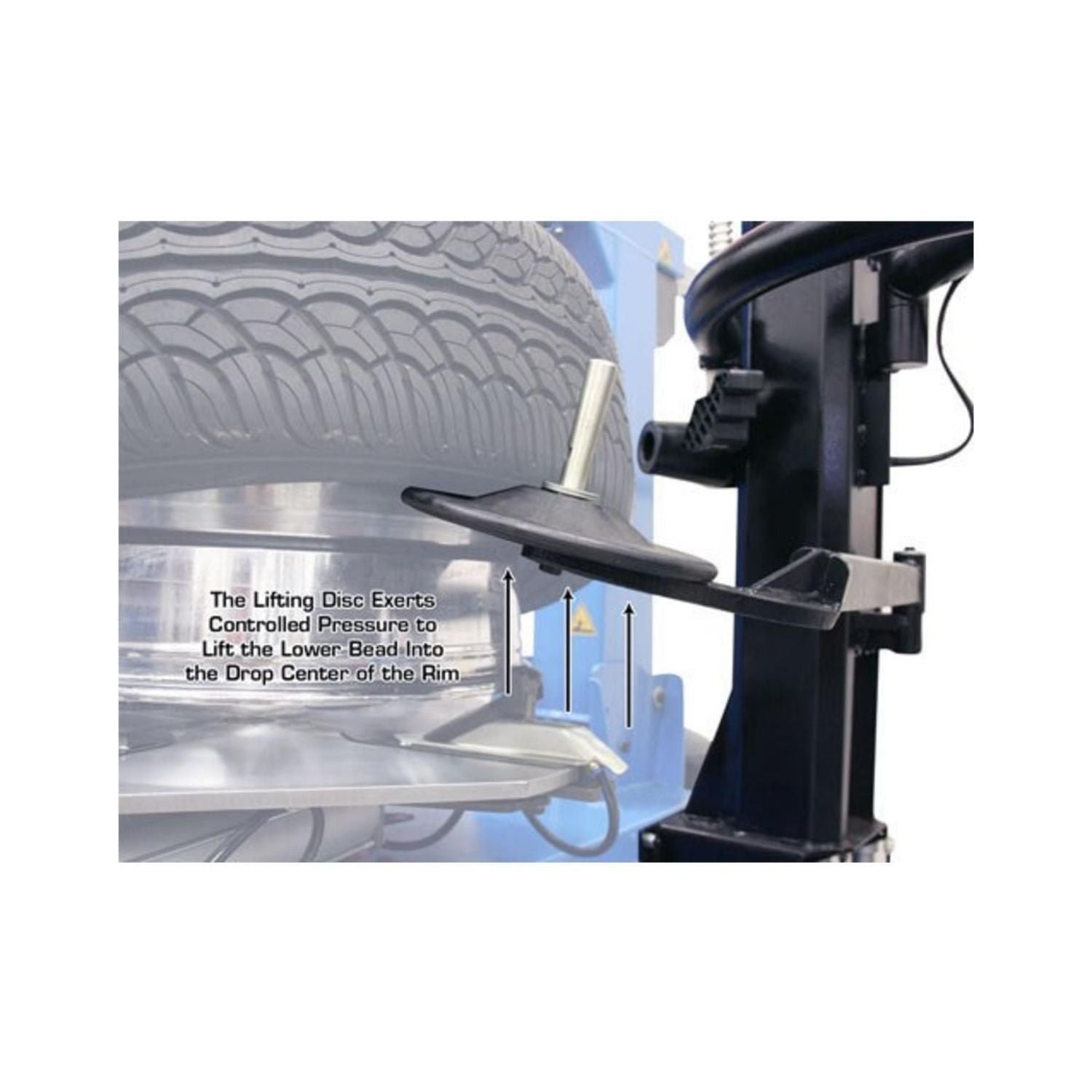

  • EZ Assist Arm Included
  • Extra-Large turntable, more clearance
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Button-Controlled Bead Breaker (operated at blade)
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included
  • Filter/Regulator/Lubricator Included
  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Built in "Beadblaster"

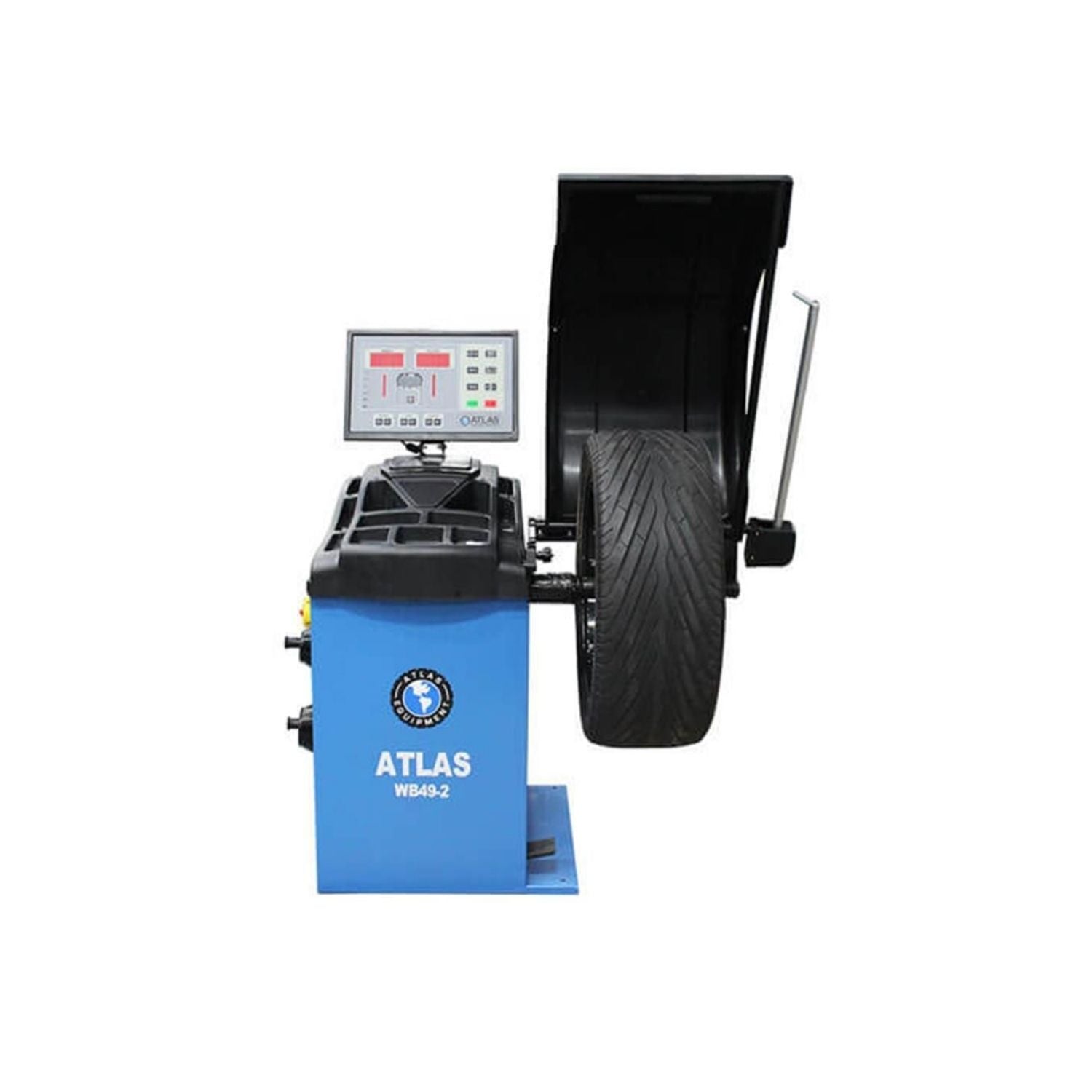

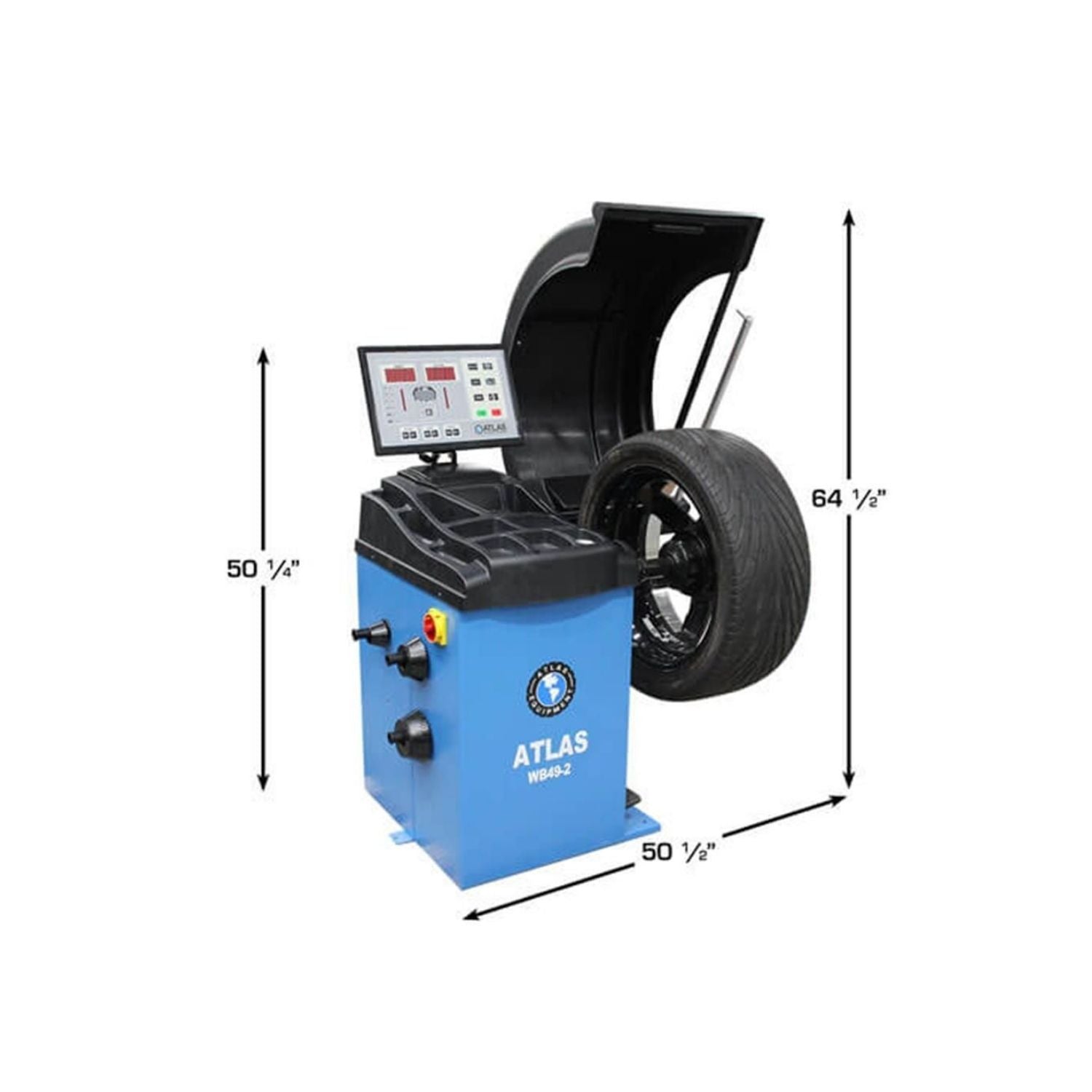

  Atlas® WB49-2-PRO Wheel Balancer

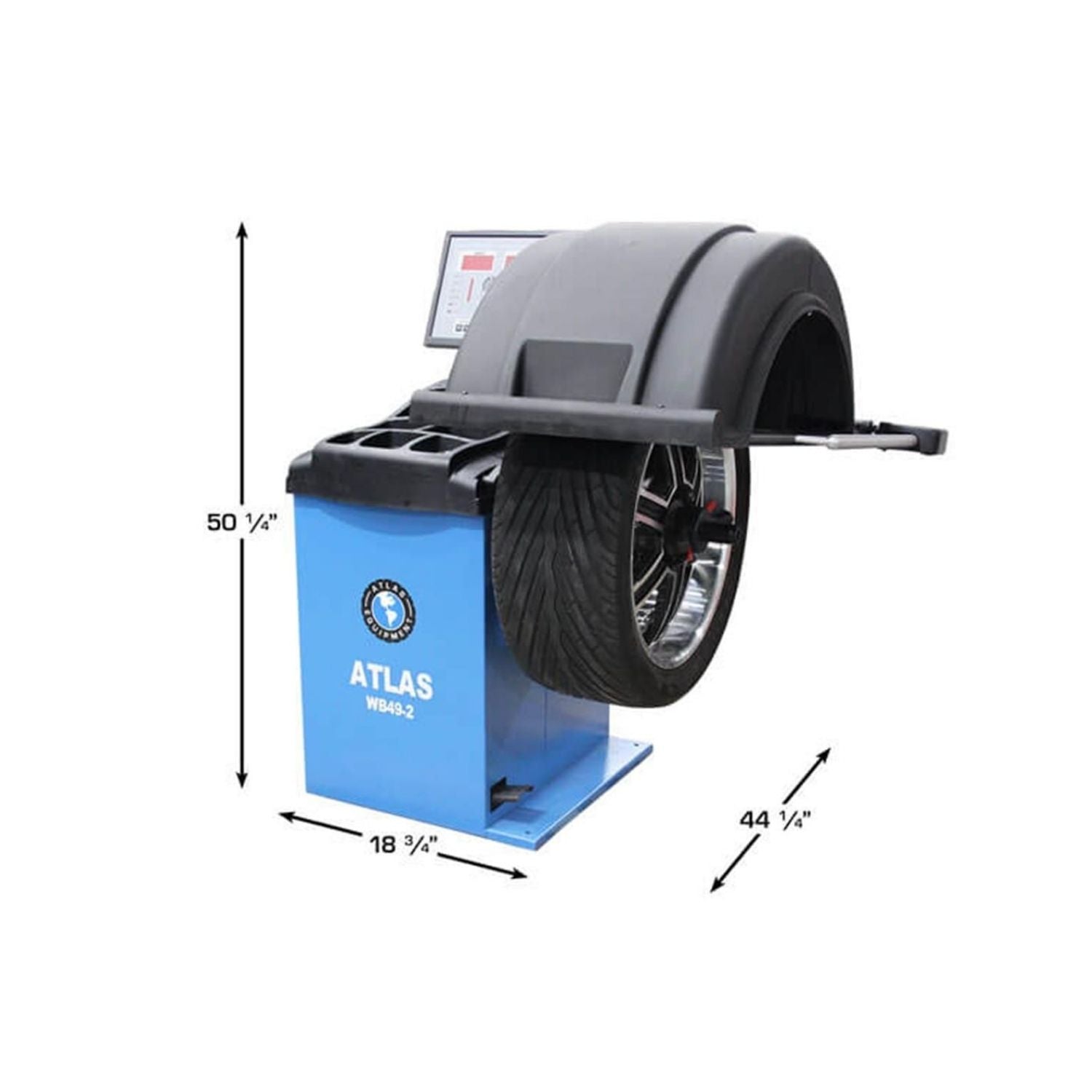

  • Computer Controlled Motorized Spin Balancer

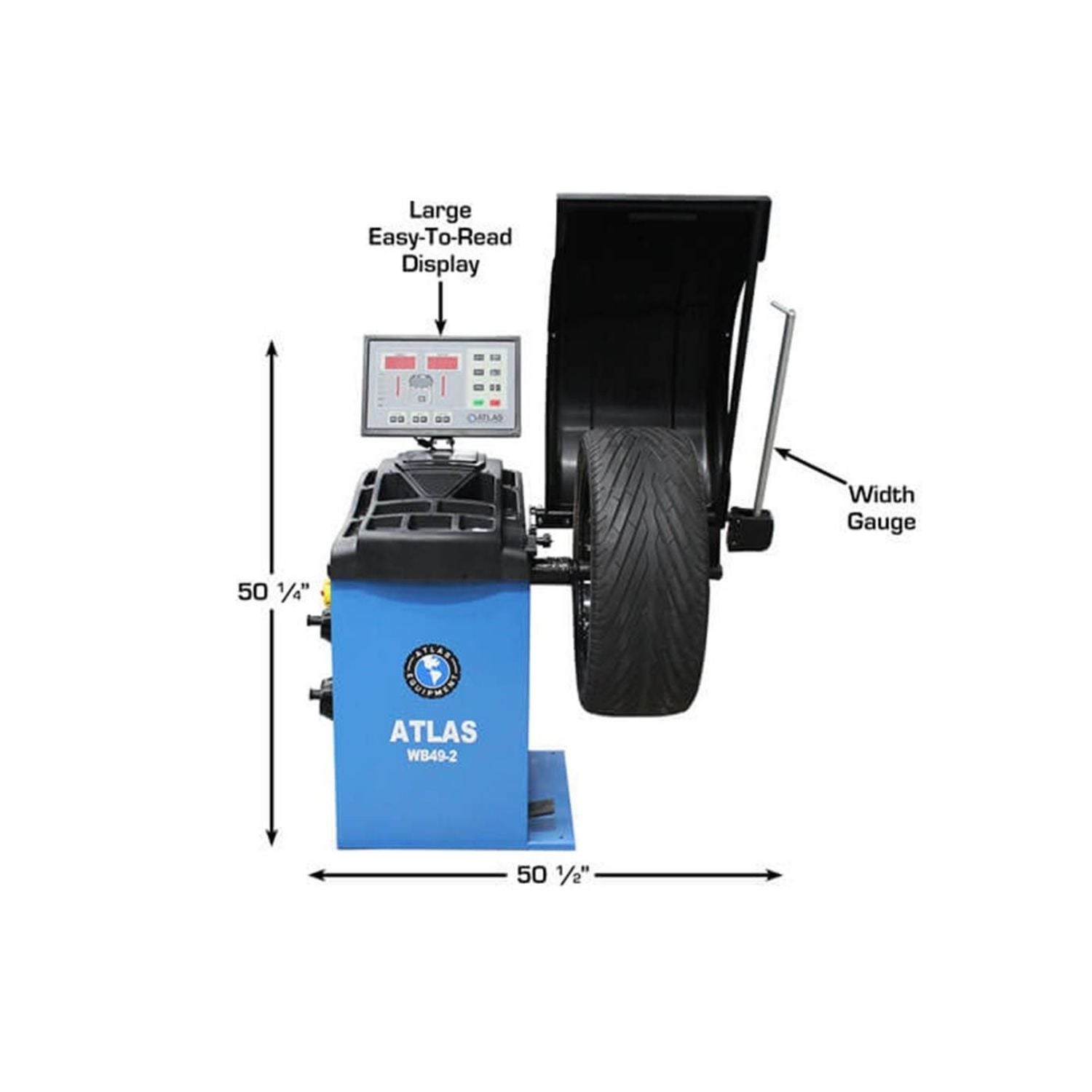

  • Raised, Easy to Read Display
  • Large Wheel Weight Tray

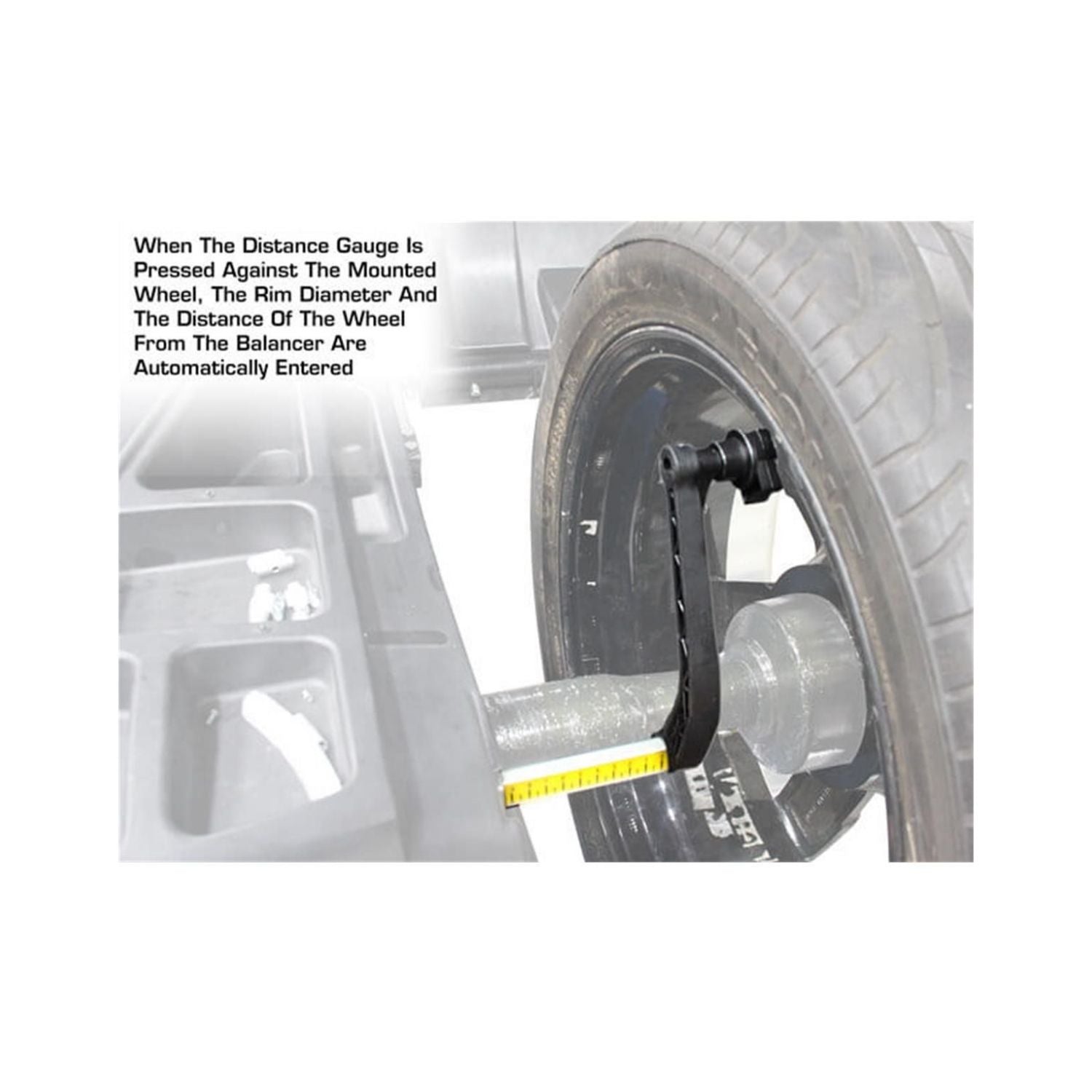

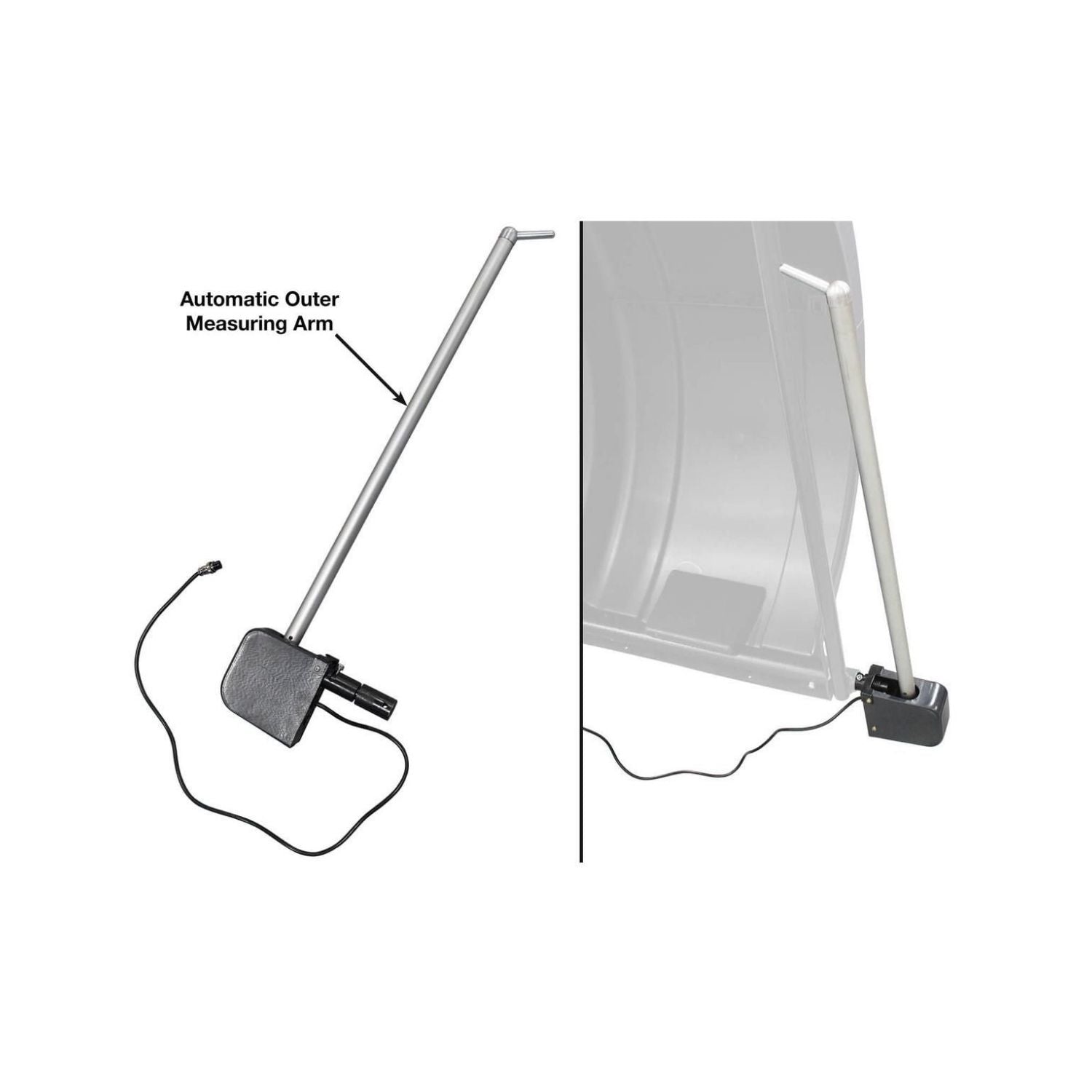

  • Automatic 3D Data Entry (Special Gauge for Width Measurment Included)
  • Split-Weight Function for hiding weights behind spokes
  • Automatic LED Light
  • Auto-Positioning
  • Automatic and pedal operated brake.
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-Diagnosing and Self-calibrating
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • No anchor-down installation needed
  • Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers


• SPECIFICATIONS

  Atlas® TC755EZ Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-COMBO4-FPD
  Dimensions:	80" L × 60" W × 46" H
  Weight:	1200 lbs
  UPC:	810524029063
  Country of Origin:	CHN

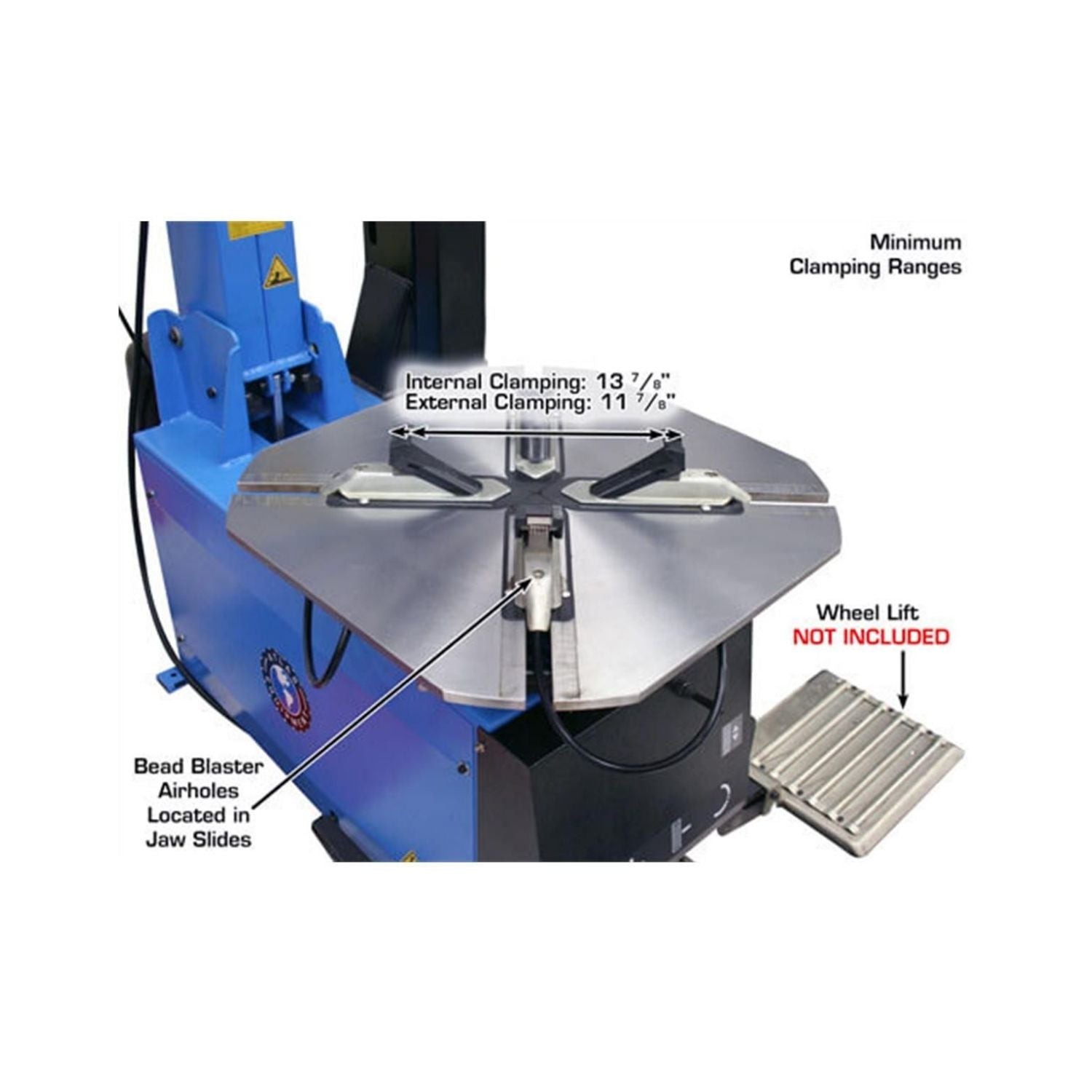

  External Locking Rim Dimensions:	11 7/8" to 27 7/8"
  Internal Locking Rim Dimensions:	13 7/8" to 29 7/8"
  Maximum Tire Diameter:	47"
  Maximum Wheel Width (Bead Breaker):	18"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.

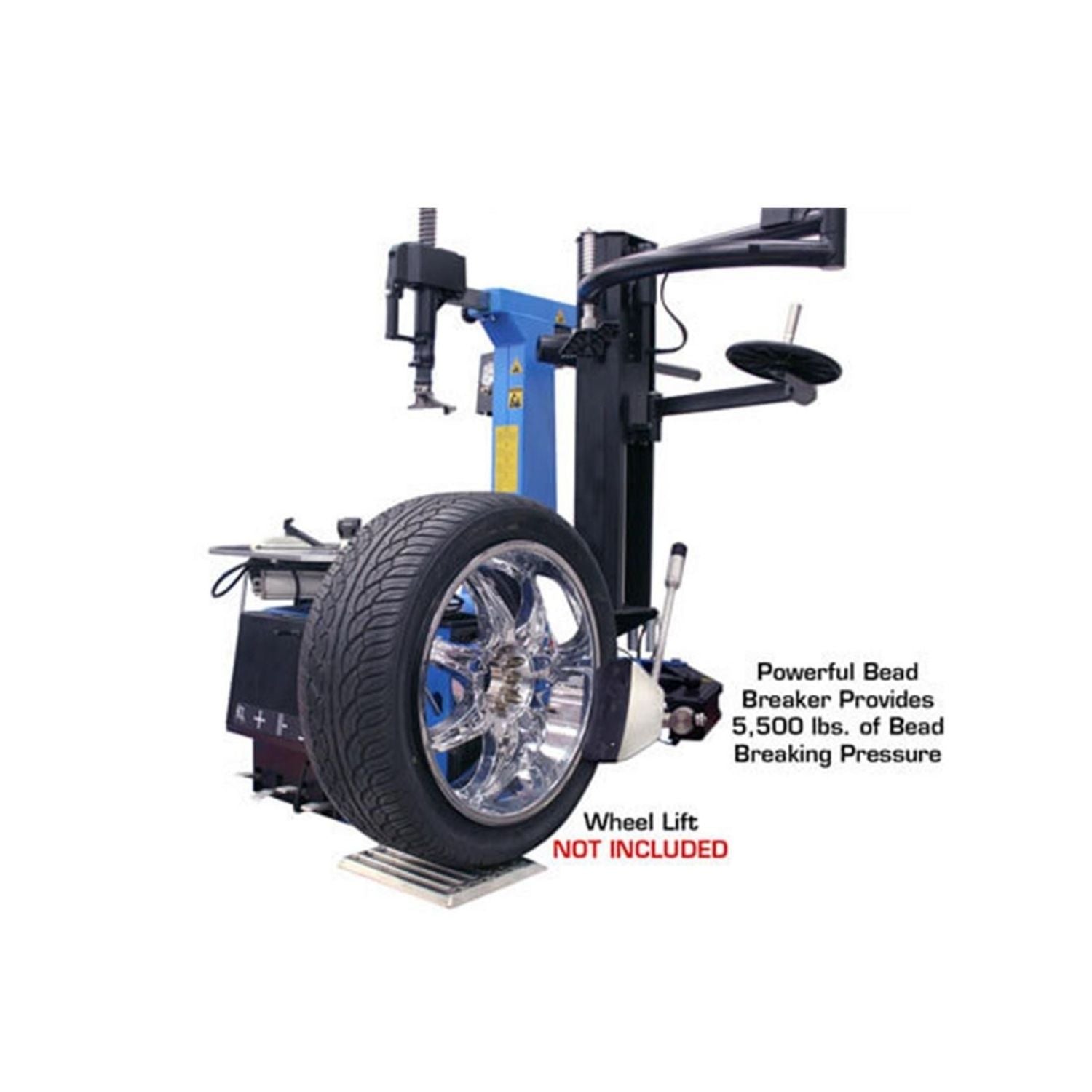

  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	700 lbs




  Atlas® WB49-2-PRO Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32" (Manual Data Entry May be Required over 23")
  Rim Width:	1 1/2" - 20"

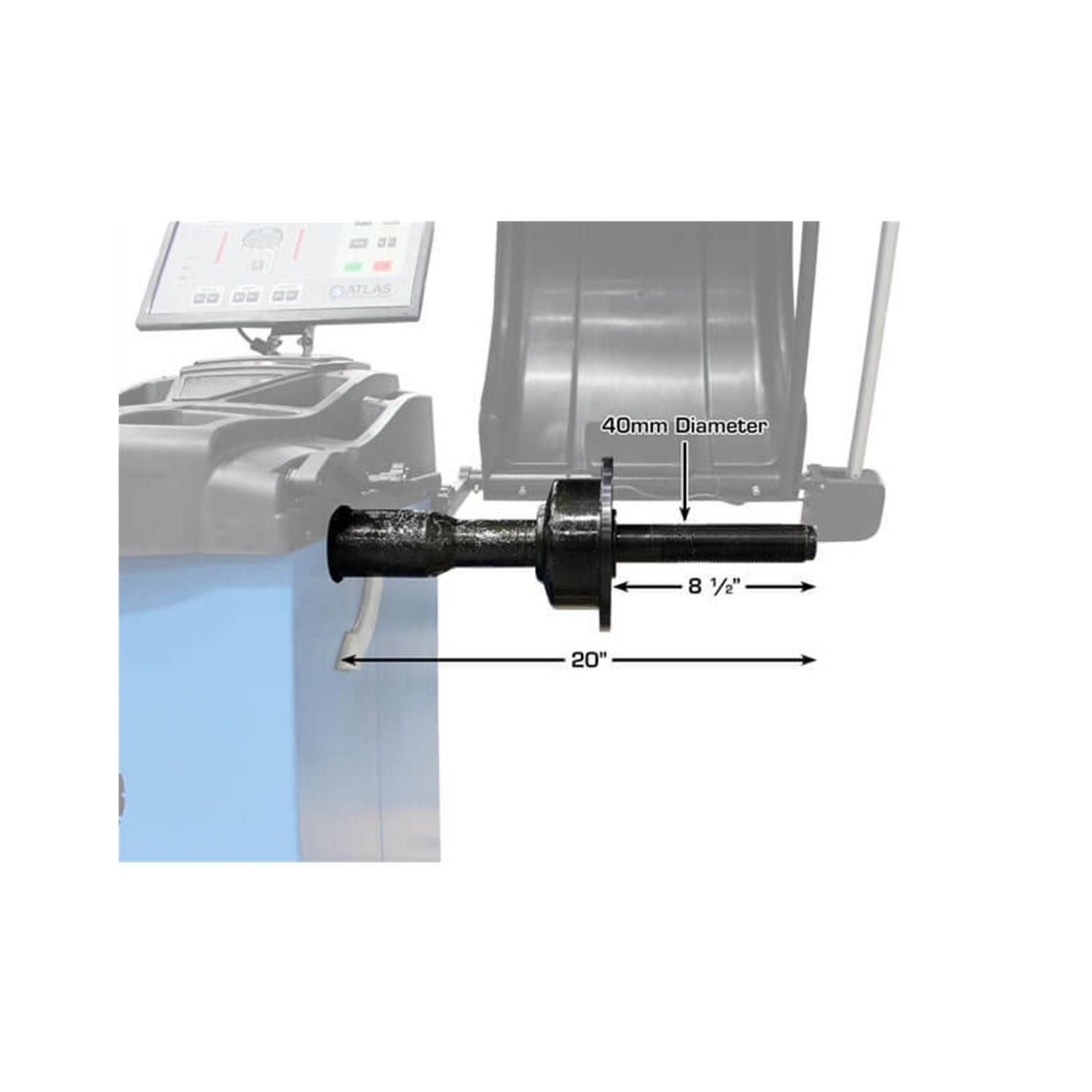

  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	Automatic 3D
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt
  Shipping Weight:	400 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
