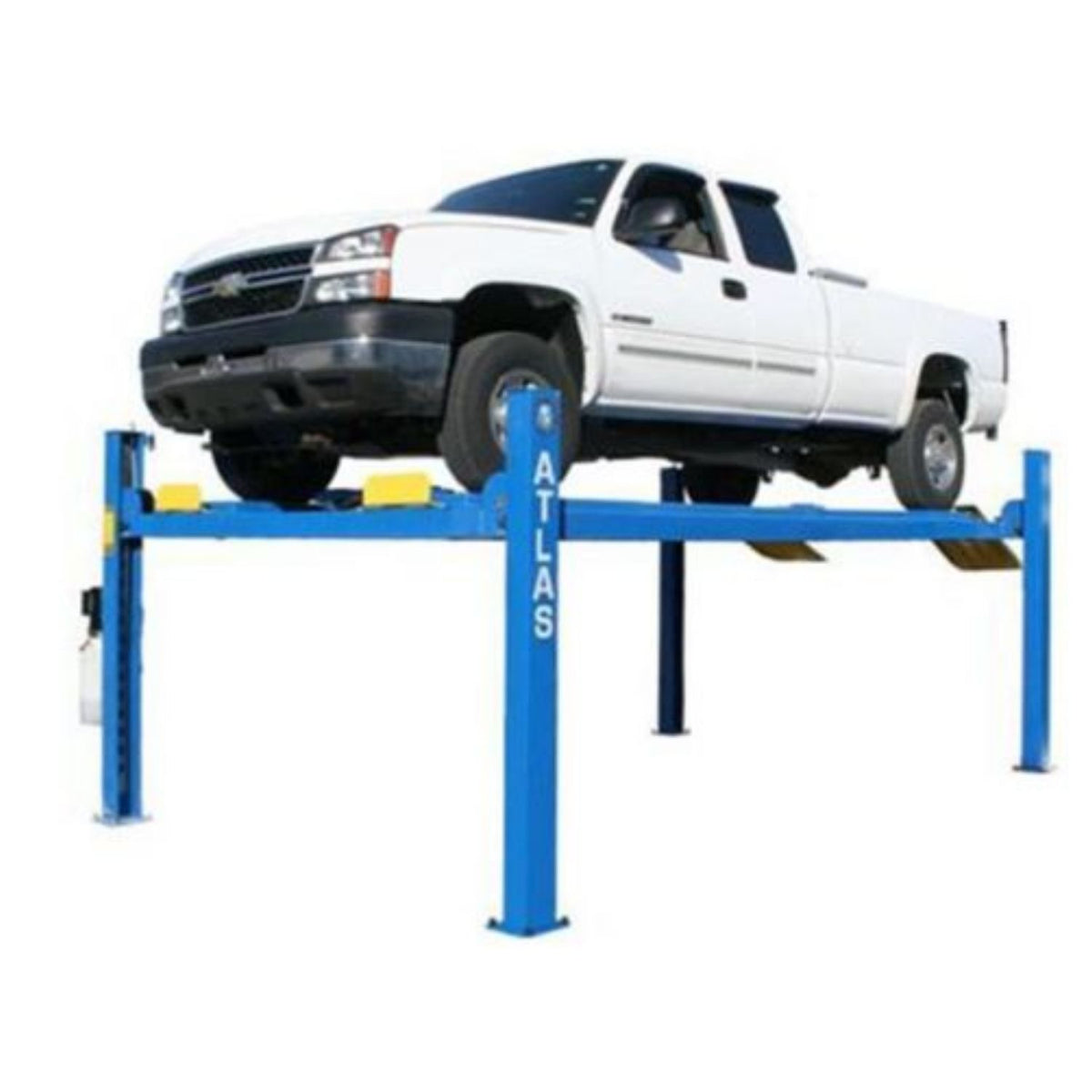

Atlas® 412 12,000 lb Heavy-Duty 4-Post Lift #ATEATTD-412-FPD

Atlas 412 — 12,000 lb Heavy-Duty 4-Post Service Lift

A four-post that can't take a beating isn't a service bay, it's an expensive shelf. The Atlas 412 is the heavy-duty service configuration of Atlas's 12,000 lb four-post platform: diamond-plated runways, an air-operated single-point lock release, a lock-ladder design with a double-lock safety system, and no alignment fixtures you'd be paying for and never using.

With 77 3/4 inches of rise and 70 1/4 inches of clearance under the runways, one bay gives a tech full underbody access on three-quarter and one-ton trucks — wheel service, brakes, exhaust, lube — without a second lift in the middle of the work.

Who the Atlas 412 Is Built For

• Heavy-truck general-service shops that never do alignment work — the 412 is the same 12,000 lb platform as the 412A minus the turntables and slip plates, which is money not spent on fixtures the shop won't use.
• Lube, tire, and brake bays servicing 3/4-ton and 1-ton pickups and work vans — 12,000 lbs of capacity with drive-on convenience and 70 1/4" of standing clearance underneath.
• Fleet bays with long-wheelbase vehicles — up to 185" maximum wheelbase and a 194 1/2" runway that swallows extended-cab and crew-cab trucks whole.
• Shops that want wheel service on the same lift — the runways carry tracks that accept the Atlas RJ6BK rolling bridge jack (sold separately), turning one bay into a two-service bay.
• Bays already verified for the install: 6" of 3,000 psi concrete, 220V single-phase on a 30 amp breaker, and 85–115 PSI shop air — the 412 uses all three, so none can be a surprise.

What the Atlas 412 Is NOT Built For

This is not the lift for alignment work — no turntables, no slip plates; that work belongs to the 412A. It is also not for aircraft, anything over 12,000 lbs, or a low ceiling: at full rise the runway tops out at 77 3/4", and the vehicle on top of it needs whatever headroom it came with.

Important sizing note: measure bay width (135 1/4" with motor), ceiling against the 89 3/4" columns plus vehicle height at full rise, and confirm wheelbase (185" max) and loaded weight before purchase.

What Makes the Atlas 412 Different

Built for daily HD service

Diamond-plated runways, a lock-ladder design, and a double-lock safety system — the parts that get leaned on, stood on, and cursed at all day.

• Diamond plated runways
• Double lock safety system
• Powder coat finish
• Steel approach ramps

Air-operated single-point lock release

One control, both locks — no walking column to column on every cycle. Requires 85–115 PSI external air, which the shop almost certainly already has.

Expand it instead of buying another lift

The runways carry tracks for the Atlas RJ6BK rolling bridge jack (sold separately), and drive-off ramps and runway extensions are available separately — the lift grows with the shop.

Best For

• General HD service on 3/4–1 ton trucks
• Lube / tire / brake bays
• Fleet service with long-wheelbase vehicles
• Adding RJ6BK bridge jack for wheel service

Not Ideal For

• Alignment work (buy the 412A)
• Vehicles over 12,000 lbs
• Low-ceiling bays

Atlas 412 vs Atlas 412A

Same platform, same footprint — the difference is whether your bay does alignment work. If it does, the 412A is the one.

Full Specifications - Atlas 412

Atlas® Automotive Equipment Warranty - Atlas 412

Atlas publishes a straightforward warranty on the 412, and it is handled through Alamo — the shop that sold you the lift, not a toll-free number.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
