Atlas 9,000 lb High-Rise Scissor Lift #ATEATTD-SLP9K-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

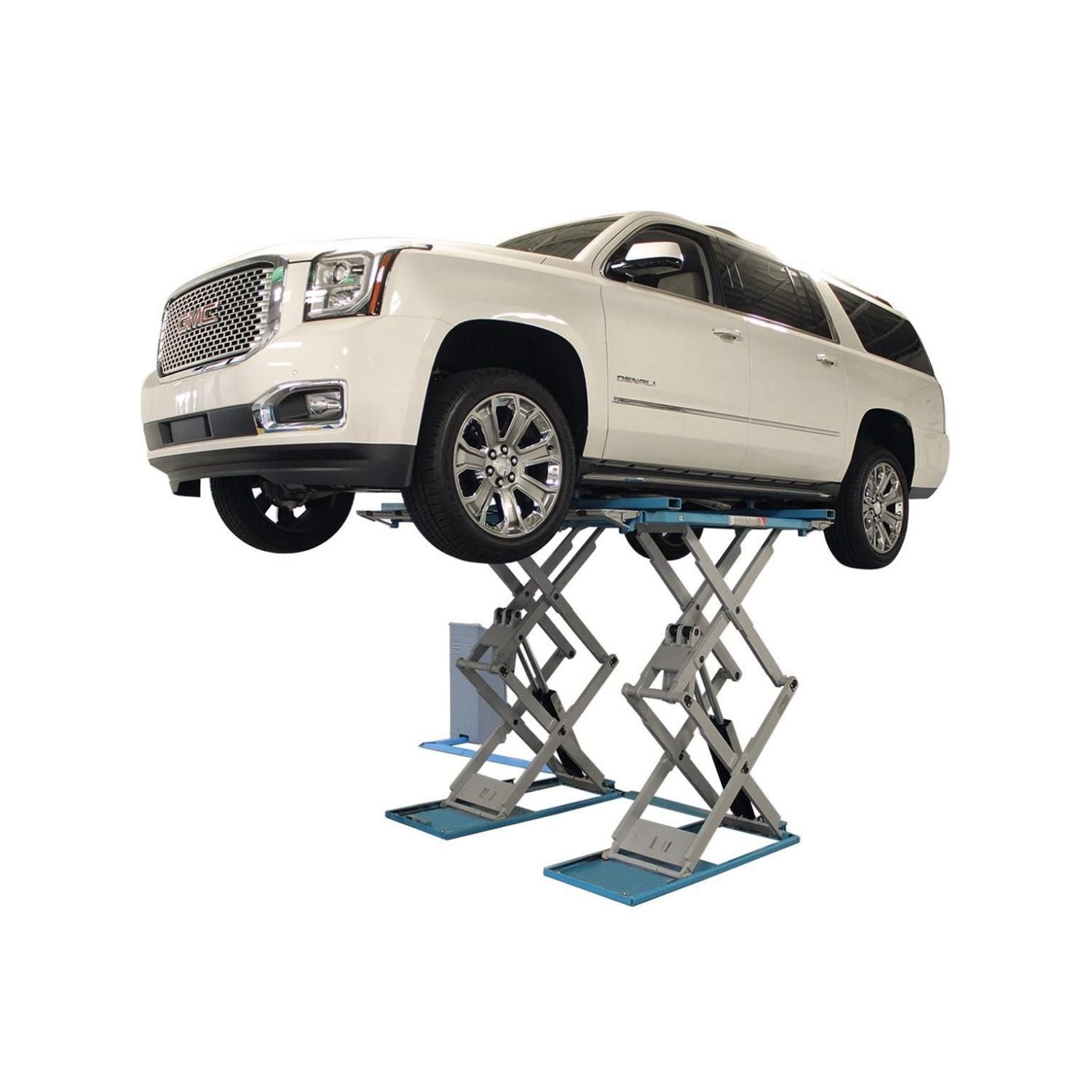

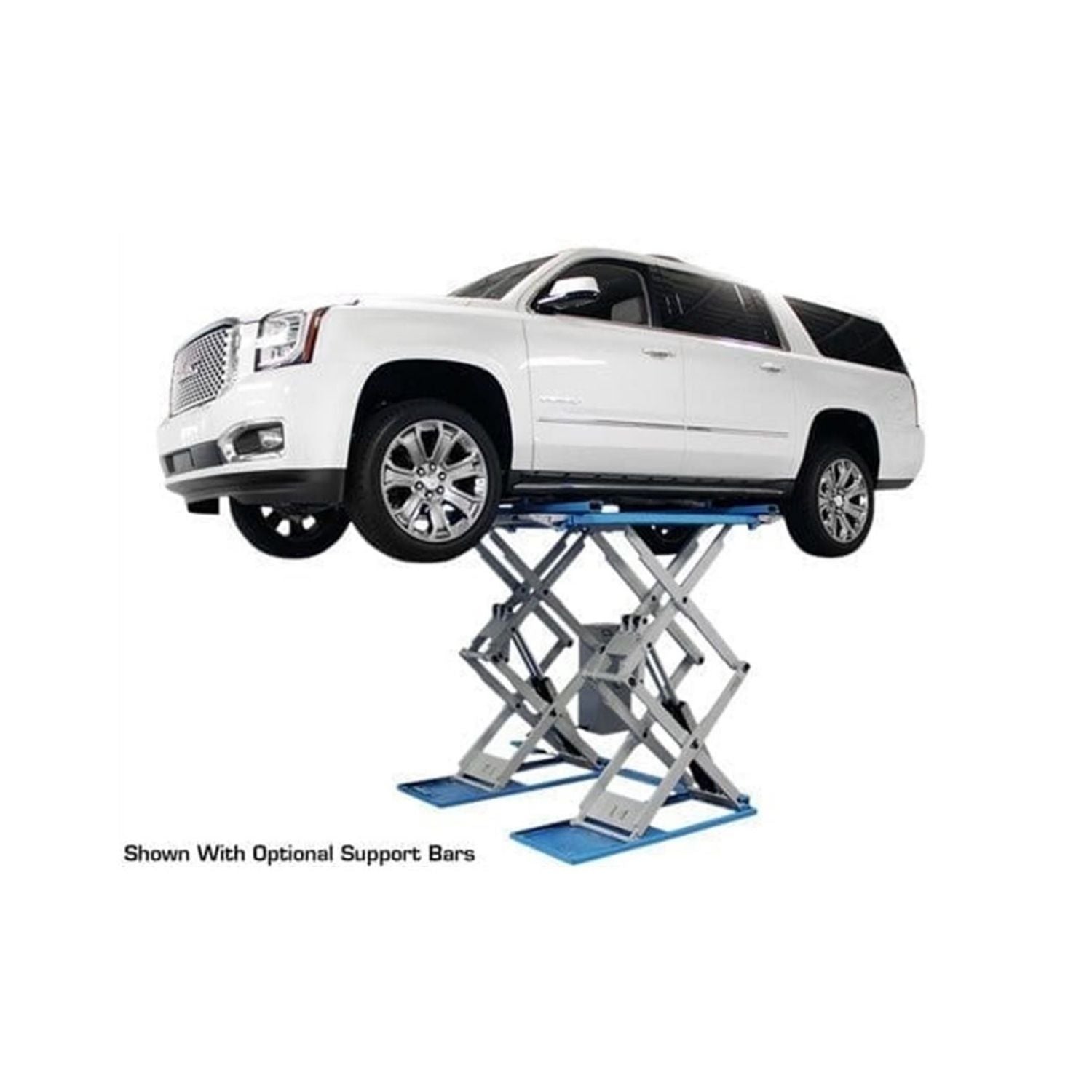

  The Atlas 9,000 lb High-Rise Scissor Lift is designed for full-height vehicle lifting in professional automotive service environments.

  With a 9,000 lb capacity, this lift is ideal for cars, SUVs, and light trucks. The high-rise scissor design provides full undercar access, making it suitable for a wide range of maintenance and repair tasks. Its compact footprint allows efficient use of shop space while delivering strong and stable lifting performance.

• FEATURES AND BENEFITS

  • 9,000 LB. Capacity
  • Commercial Grade
  • Full Rise Lift
  • Open Center Design for Easy Access
  • Adjustable width

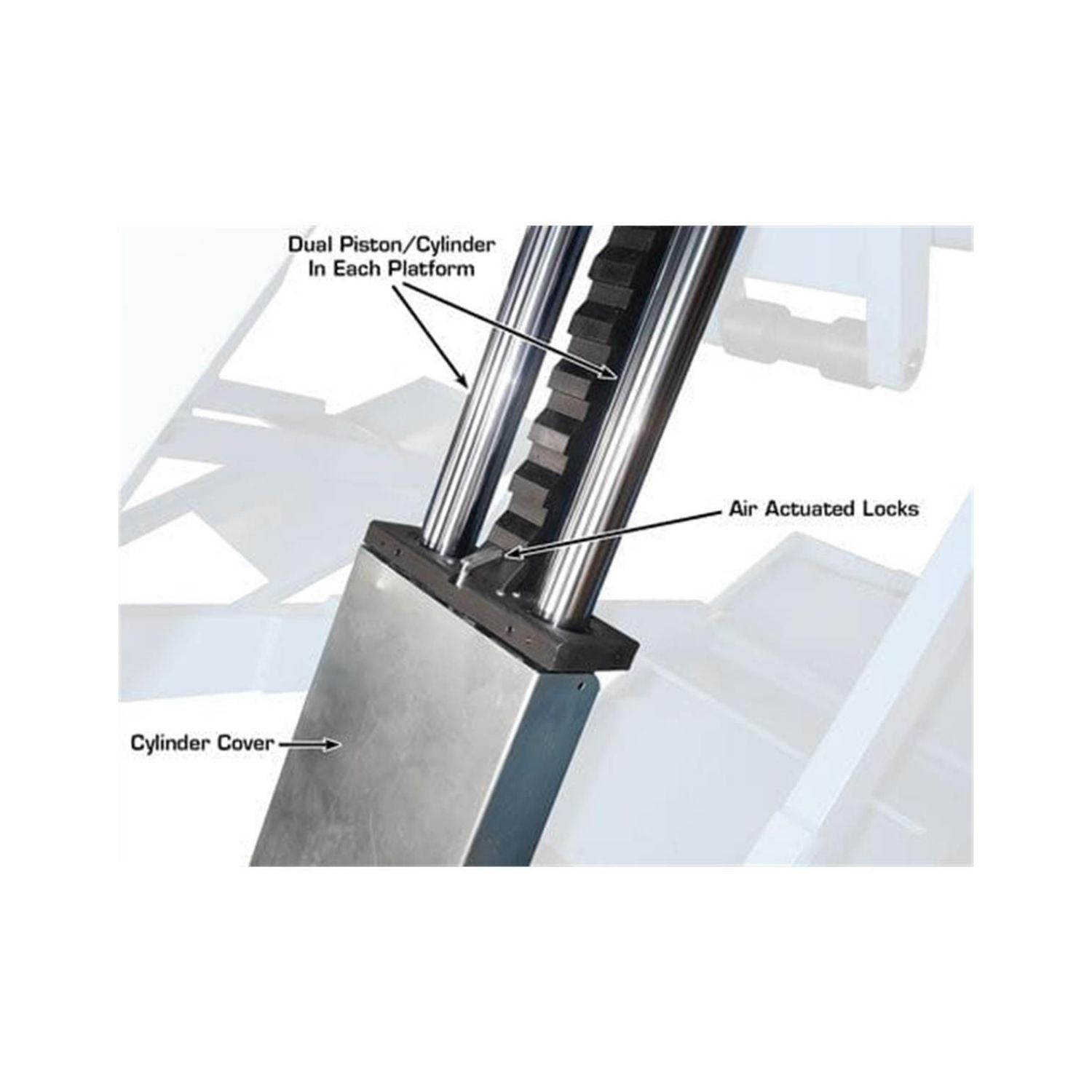

  • Air-Operated Single Point Lock Release (External Air Supply Required)
  • 10 Locking Positions
  • Locking Approach Ramps
  • Grease Zerk Fittings at each Hinge Point

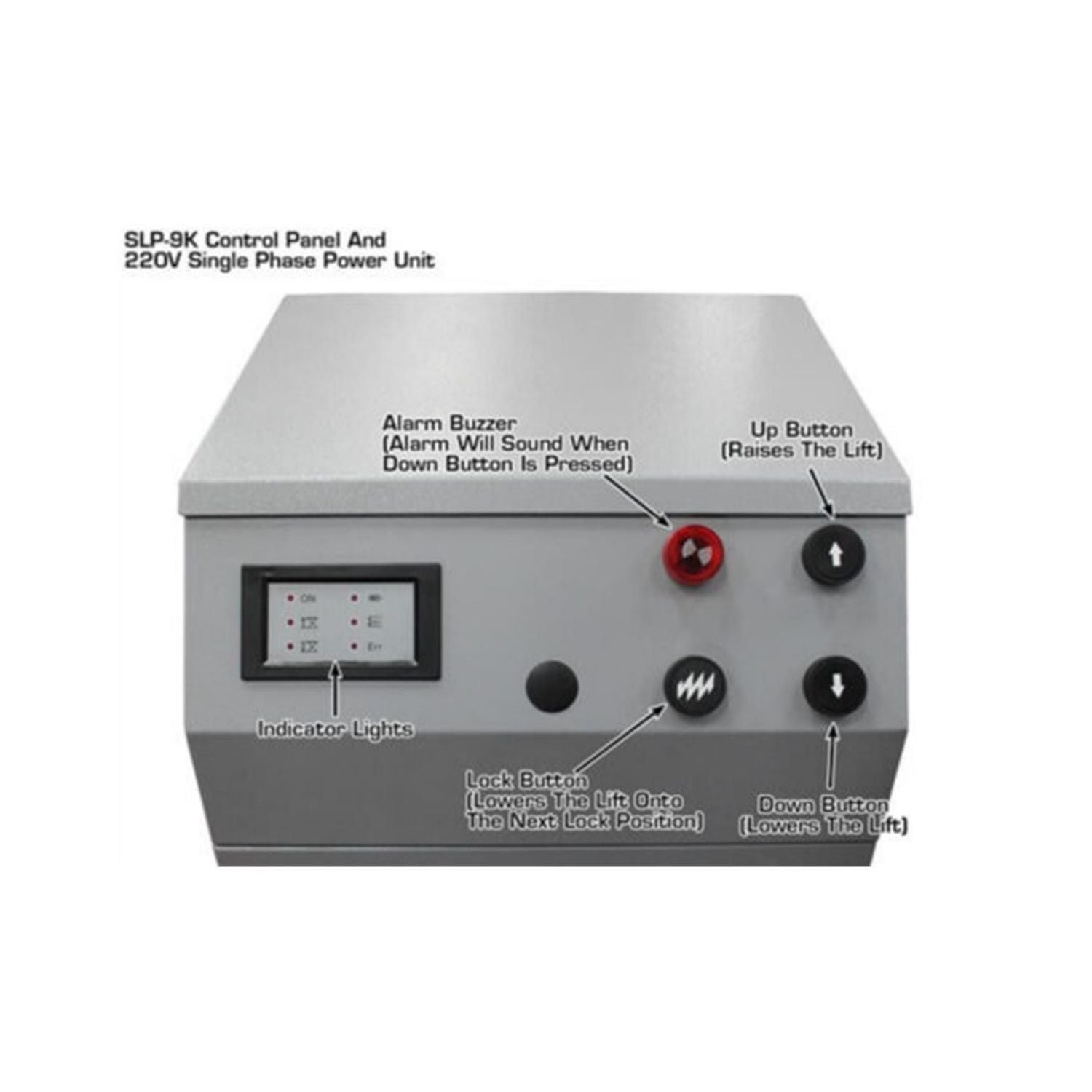

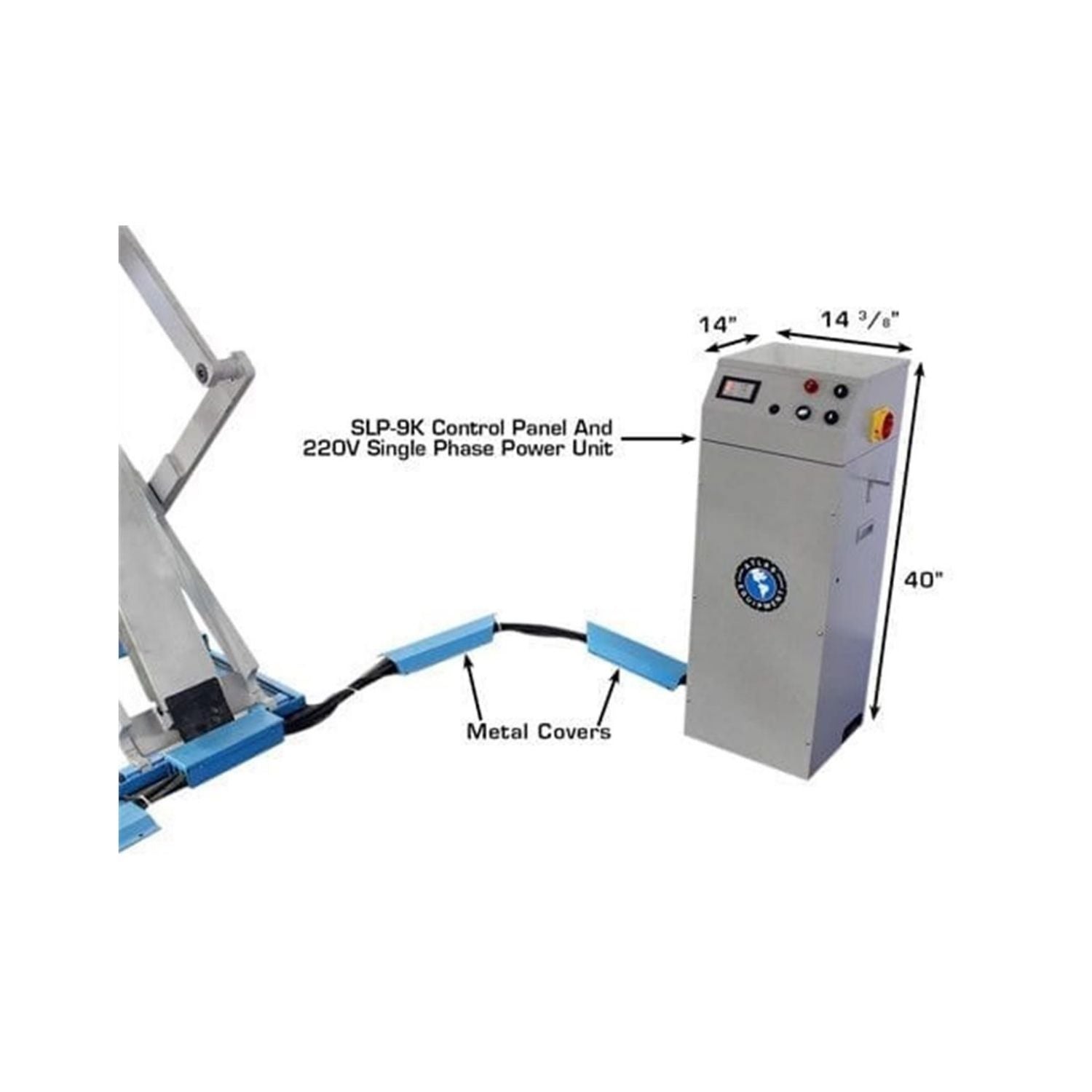

  • Separate Self-Contained Control Panel
  • CE Certified

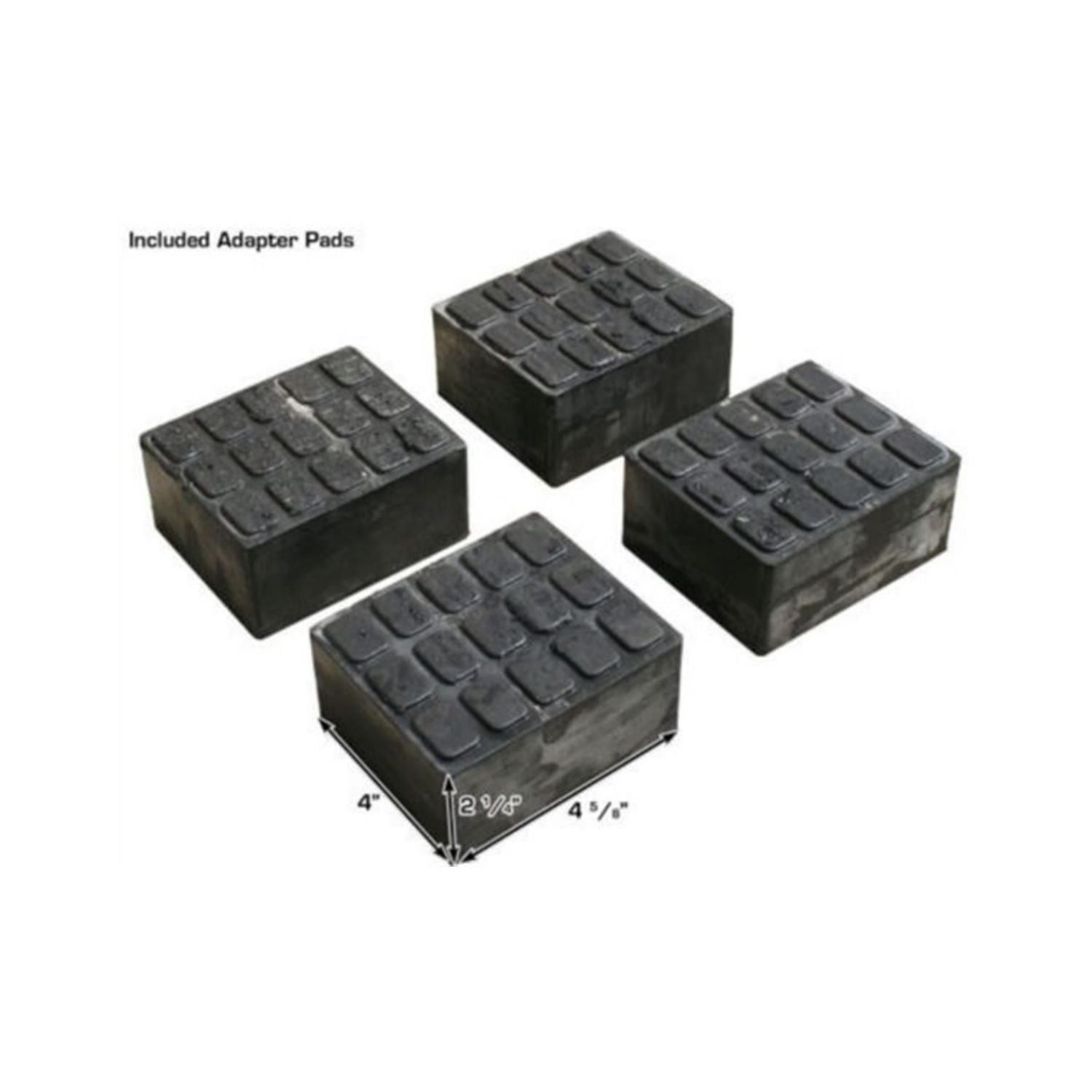

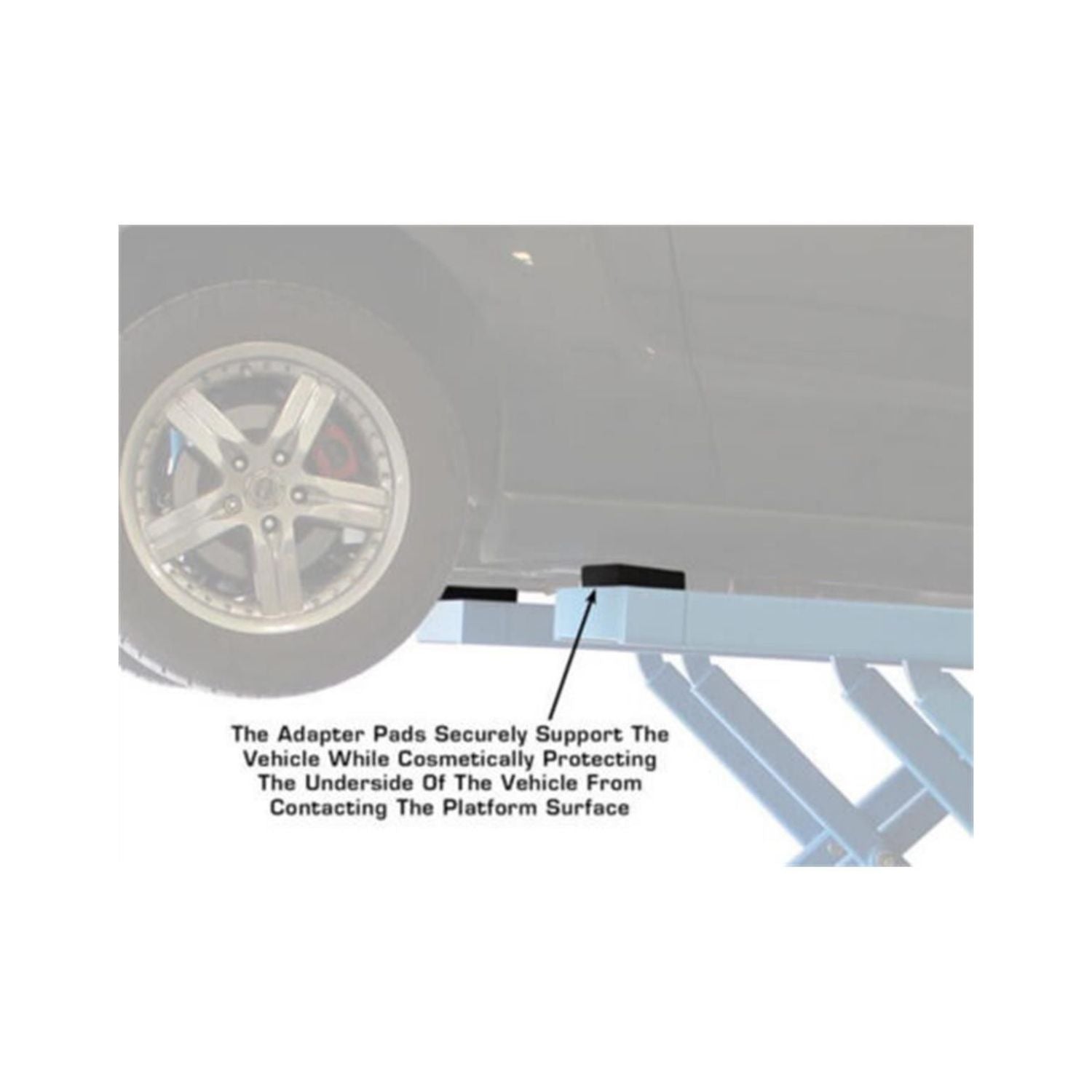

  • Heavy Duty Rubber Lifting Blocks Included
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)

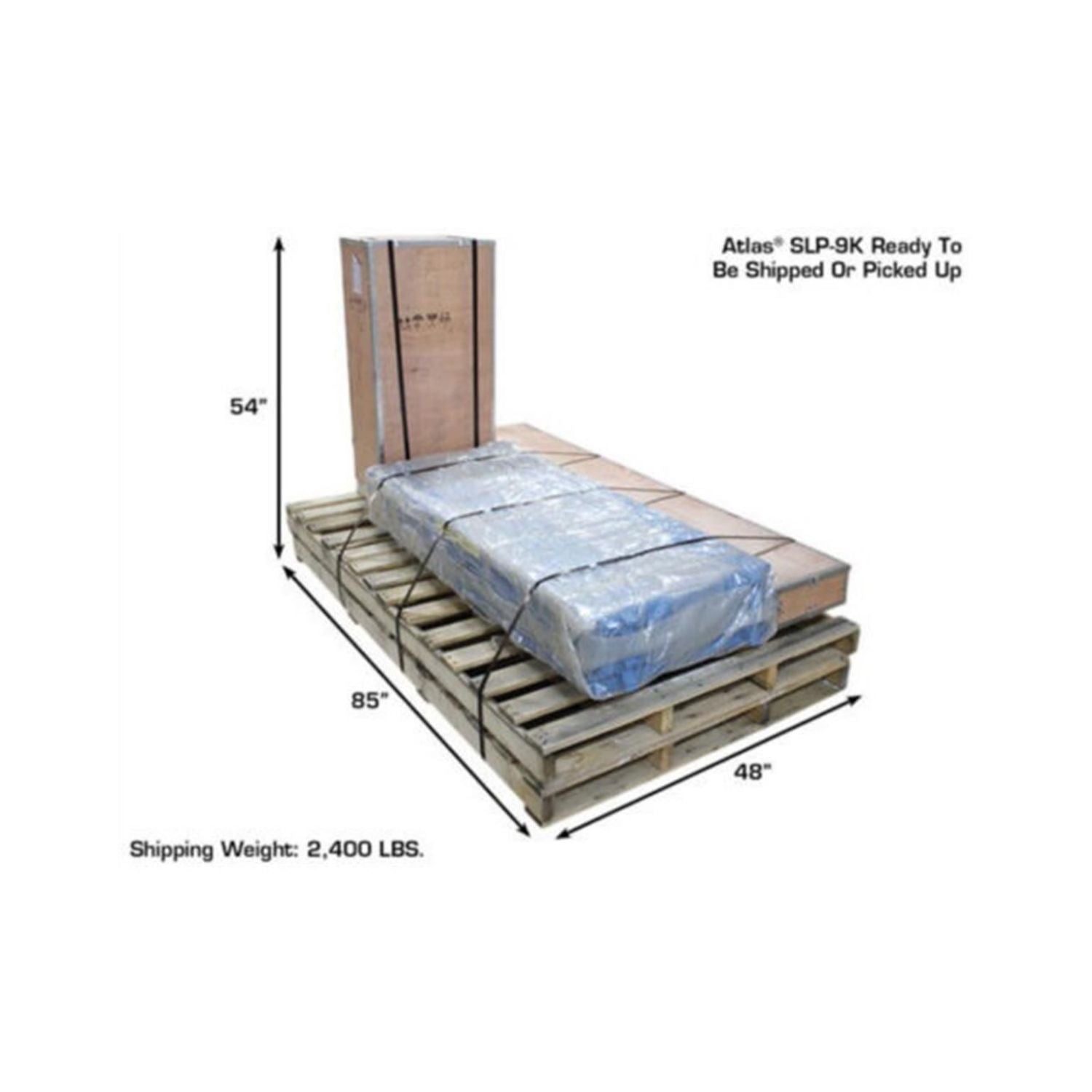

  • Shipping Weight: 2,400 lb.
  • 1 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-SLP9K-FPD
  Dimensions:	85" L × 54" W × 48" H
  UPC:	810524025812
  Country of Origin:	CHN
  Lifting Capacity:	9,000 lbs.

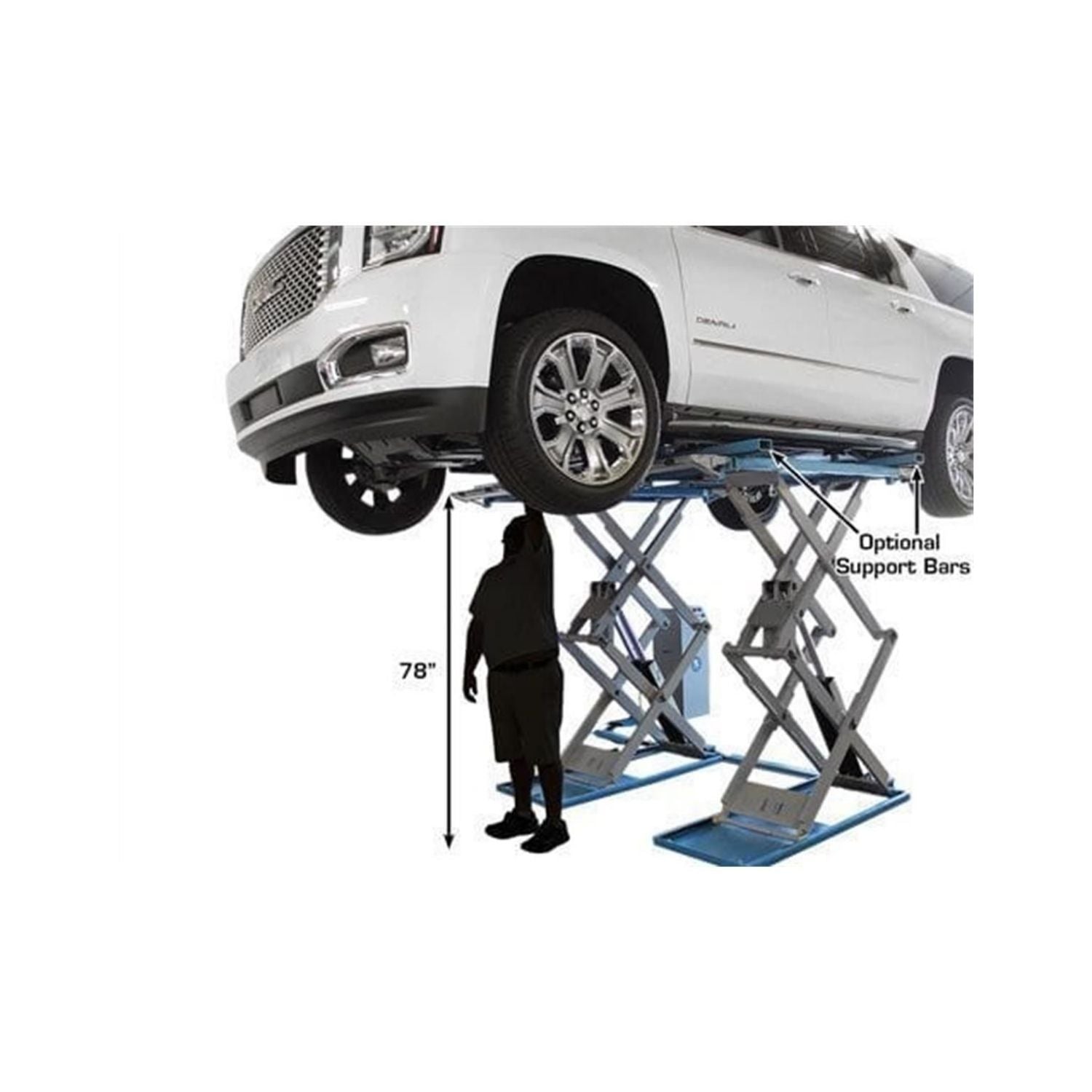

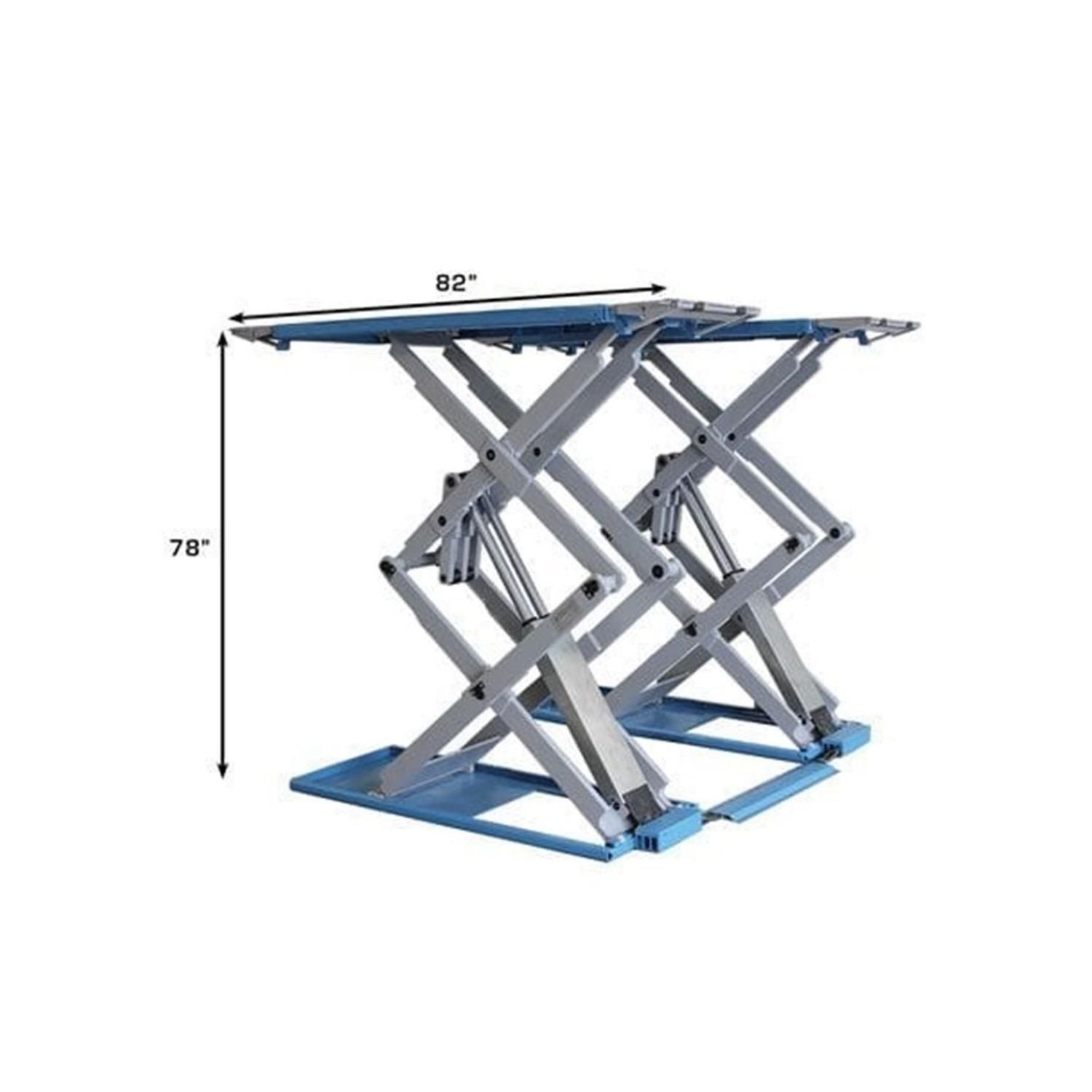

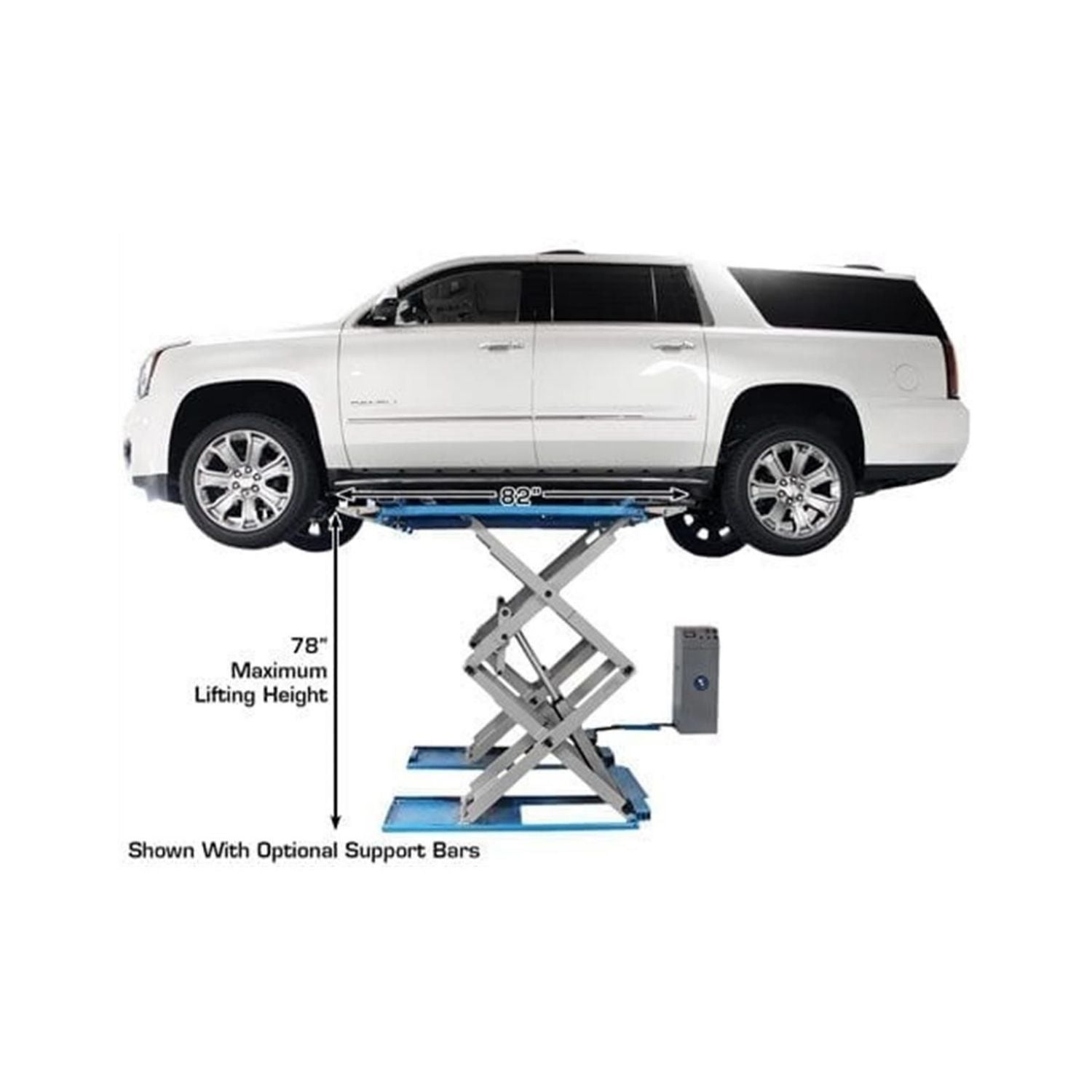

  Max Lifting Height:	78" (6' 6")
  Overall Length:	82" (6' 10")
  Max Overall Width:	82" (6' 10")

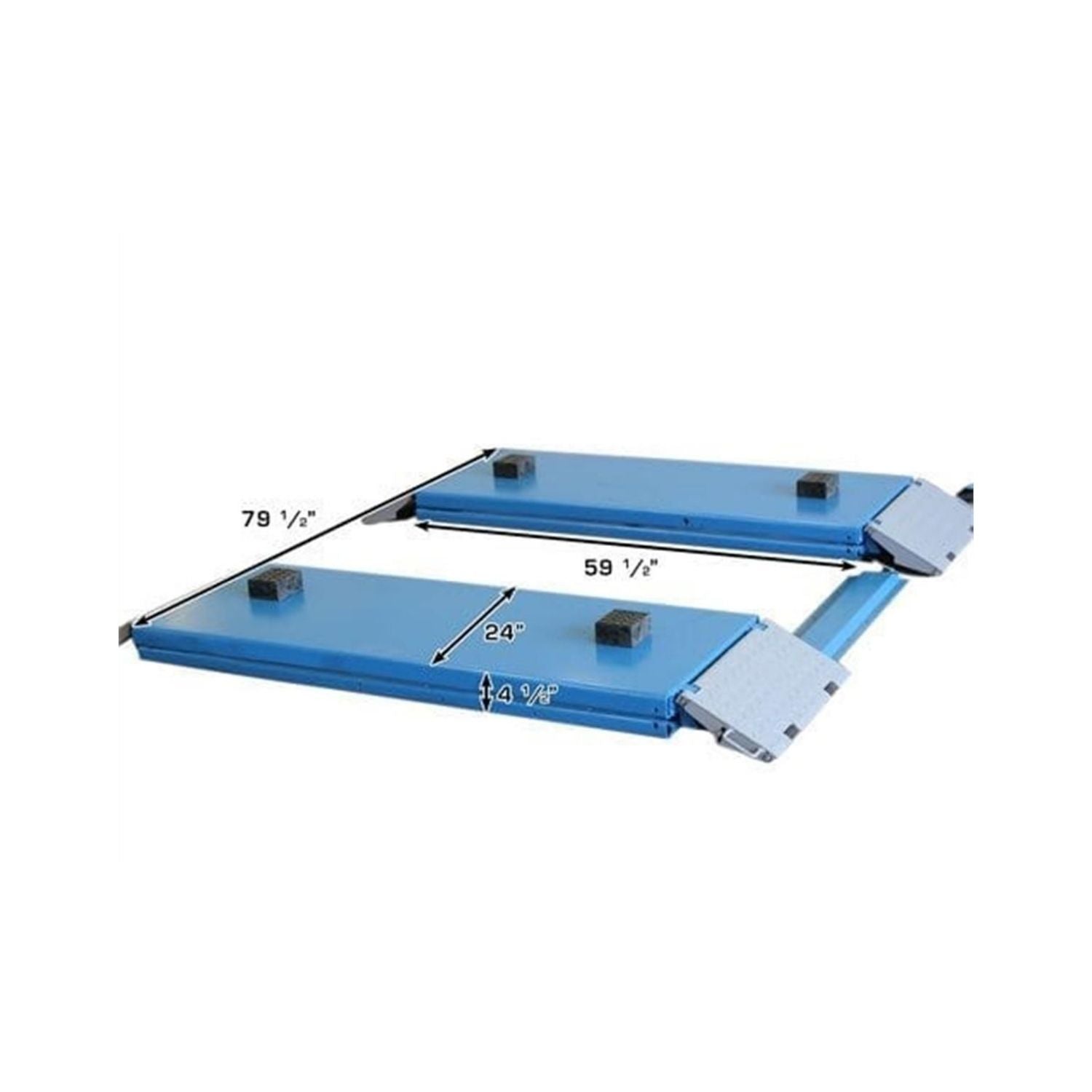

  Lift Platform:	59" x 24"
  Lowered Height:	4"

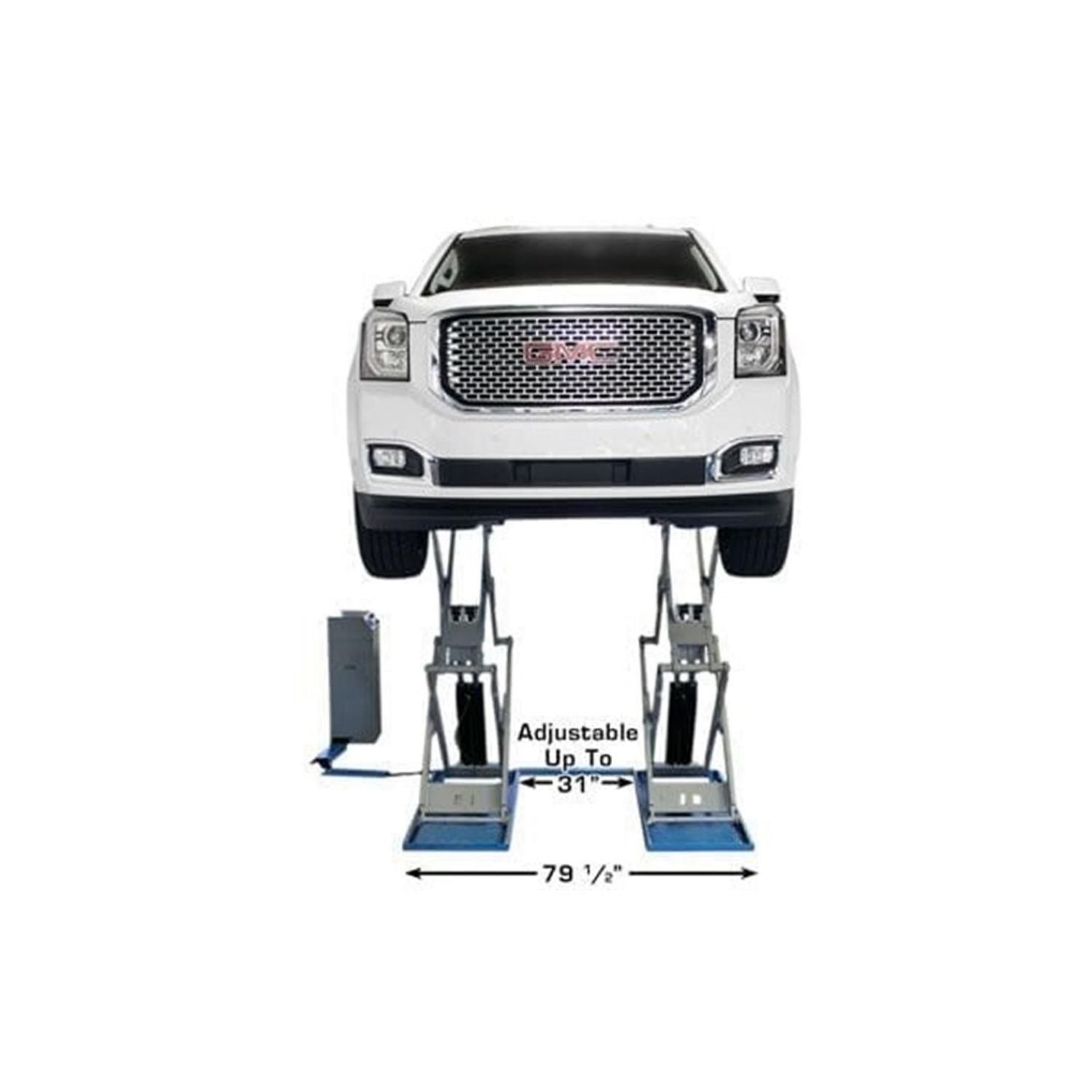

  Width Between Platforms:	Adjustable up to 31"
  Approach Ramps:	11" x 24"
  Air Requirement:	90-120 PSI
  Power Unit:	220 volt +/- 5% (209-231 volts) single (1) phase. A 30 amp breaker is required.
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  Shipping Weight:	2,400 lbs.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
