Atlas 9OHSC 2-Post Lift & Lawn Mower Adapter Combo #ATEATTD-9OHSC-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas 9OHSC and Lawn Mower Adapter Combo is a versatile lifting solution designed for both automotive service and small equipment maintenance.

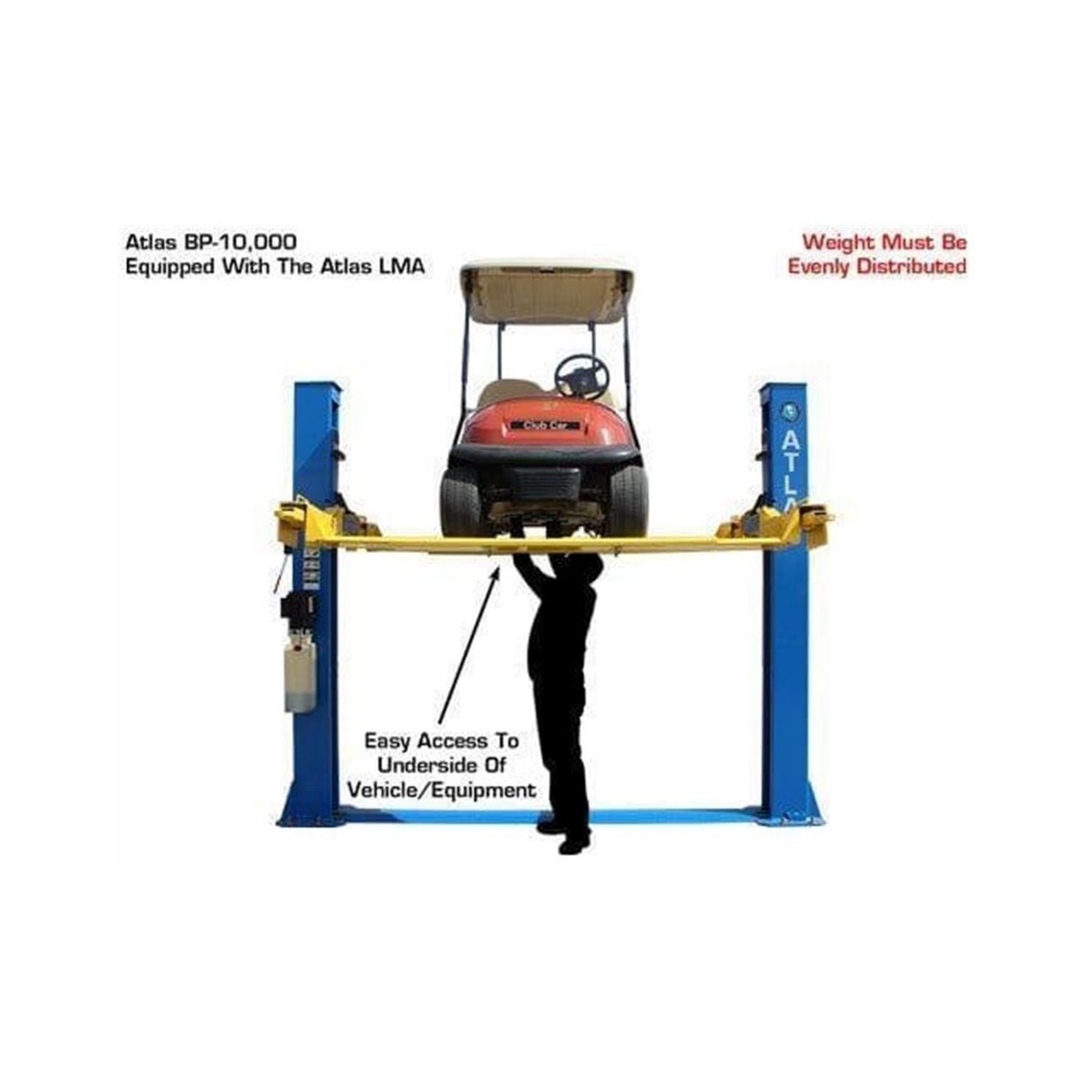

  This package includes the 9,000 lb capacity overhead 2-post lift paired with a lawn mower adapter, allowing technicians to safely lift and service lawn equipment in addition to standard vehicles. The combination expands shop capability by supporting a wider range of service applications.

• FEATURES AND BENEFITS

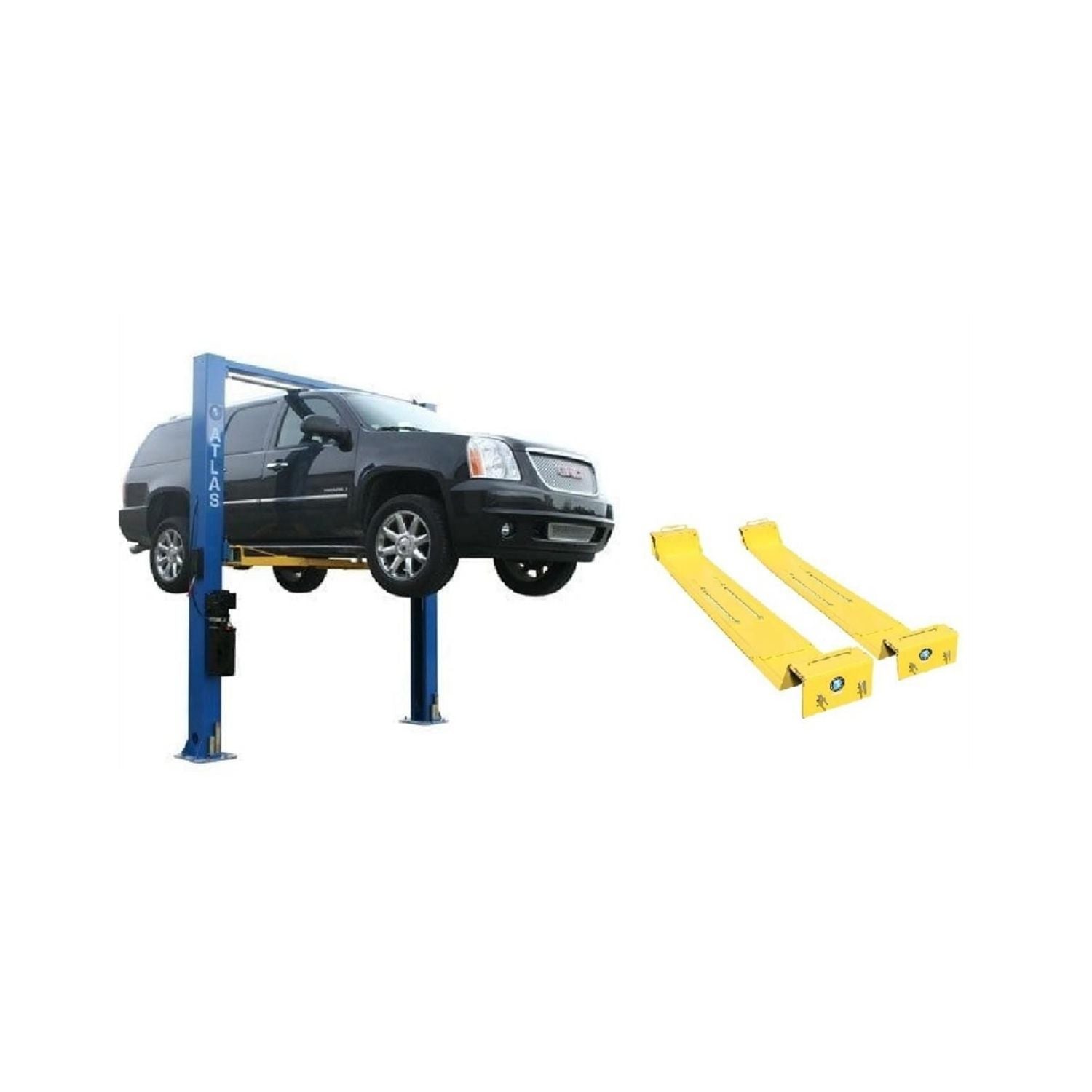

  • Combo includes 9OHSC 9,000 lb. capacity lift and Lawn Mower Adapter
  • Overhead, Open-Floor Lift
  • Single-Piece Column Design
  • Overall Height: 142? (11? 10?)

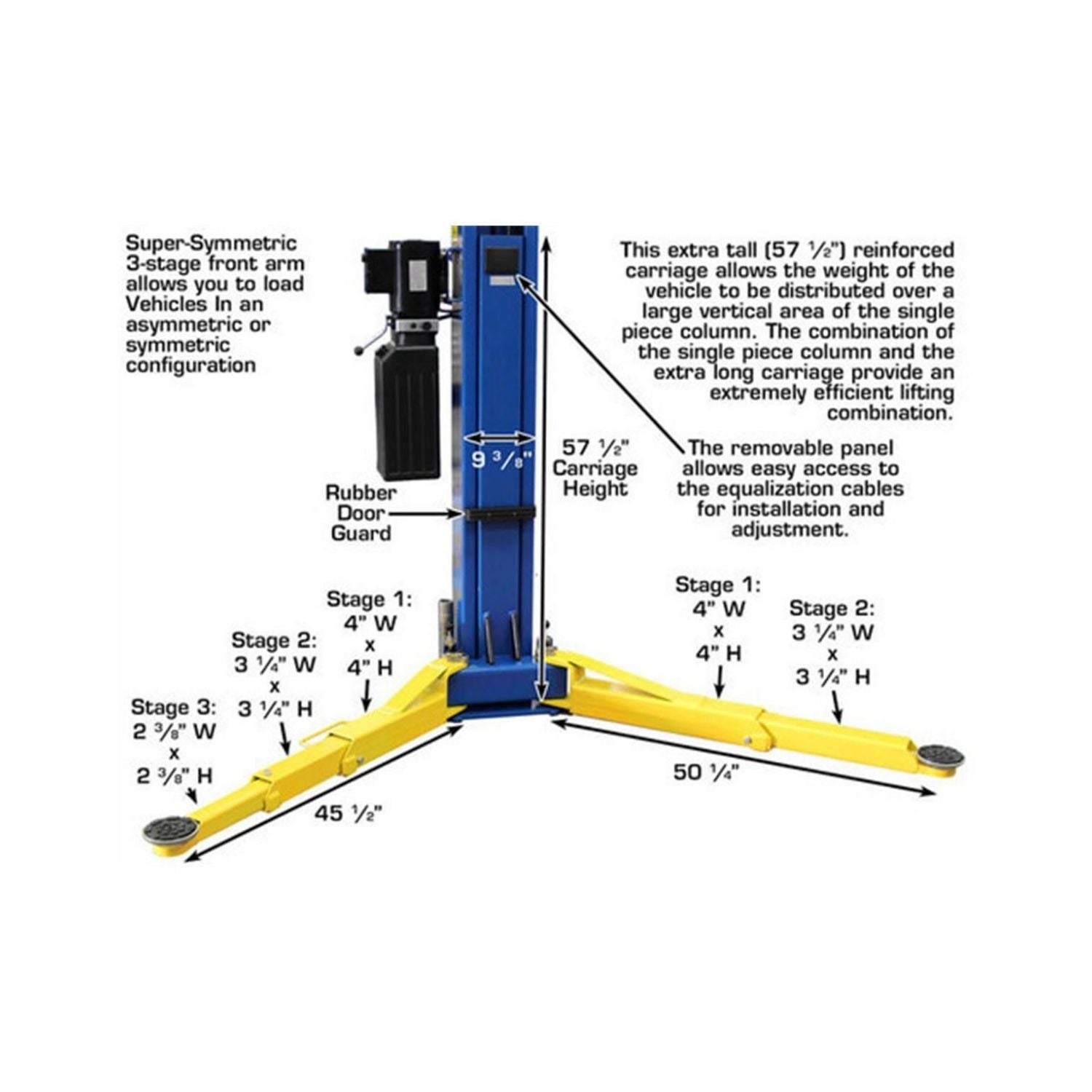

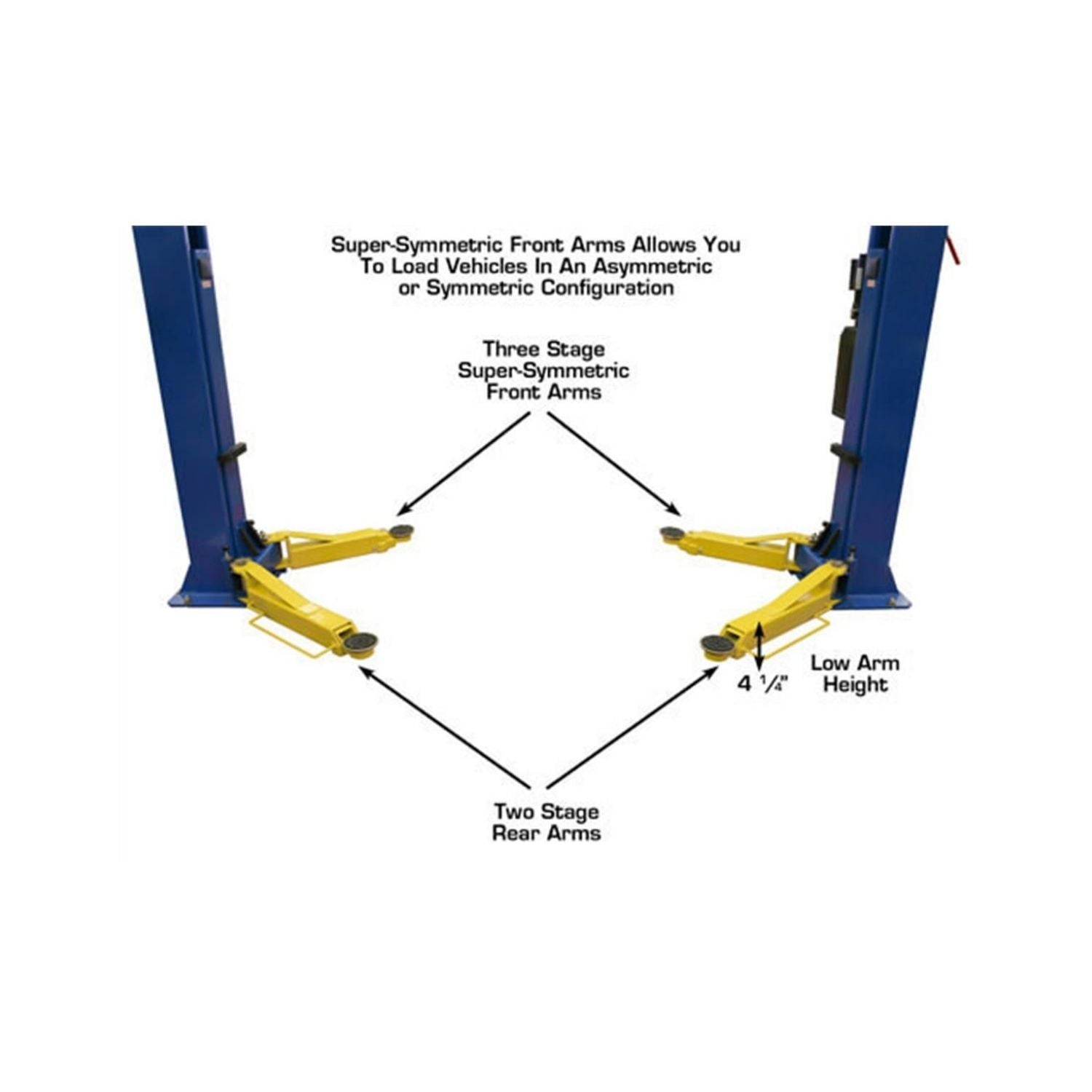

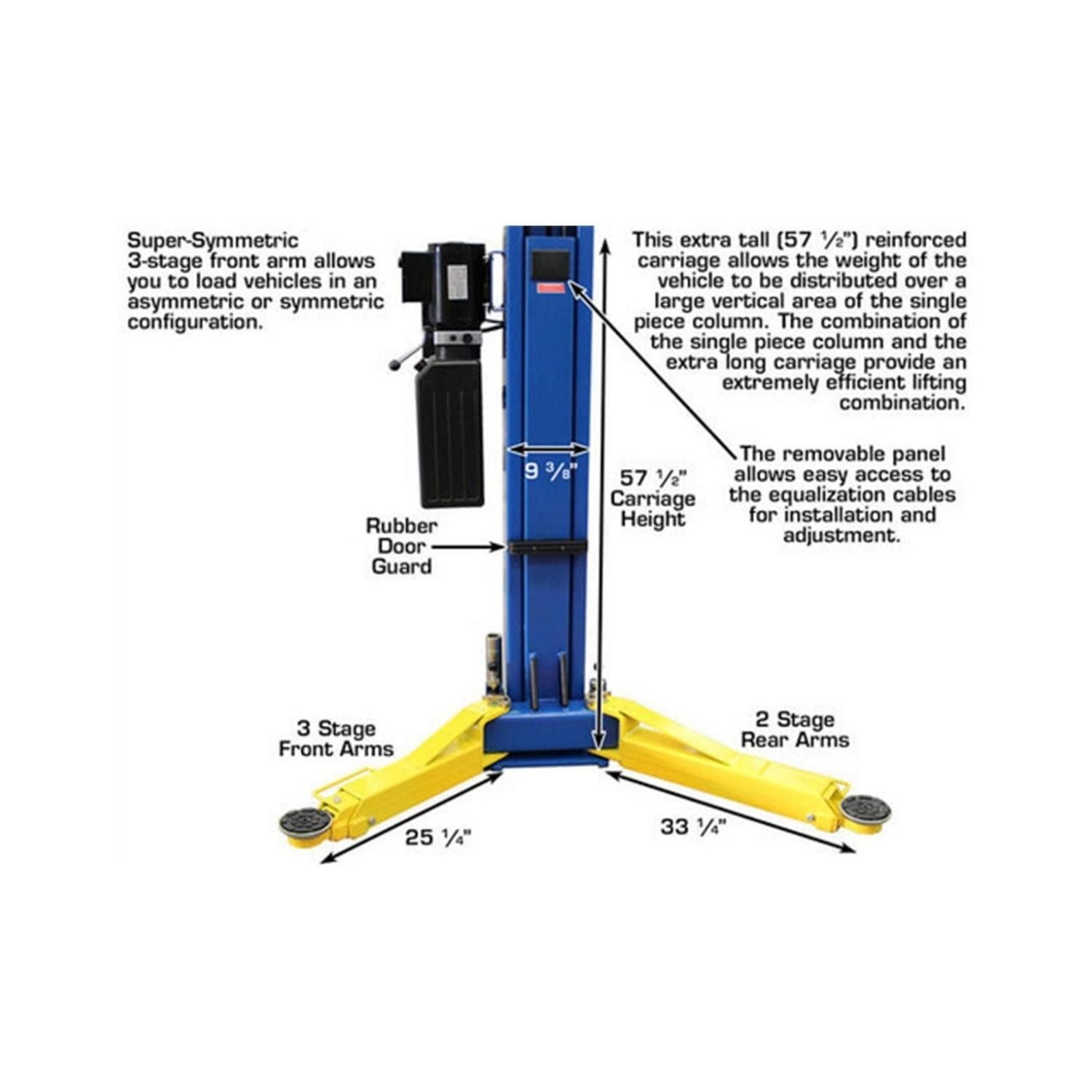

  • 3-Stage Front Arms/2-Stage Rear Arms

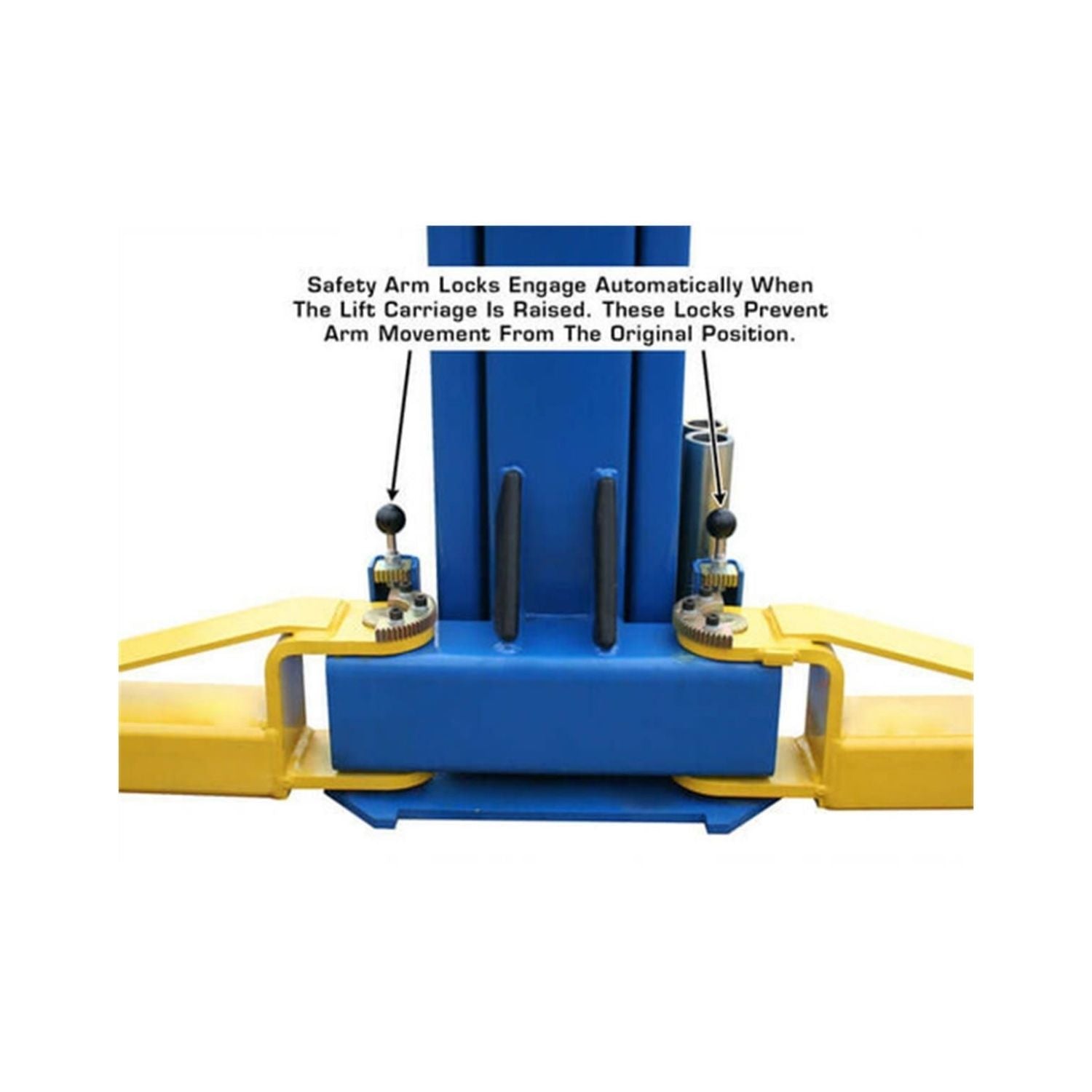

  • Automatic Arm Restraints

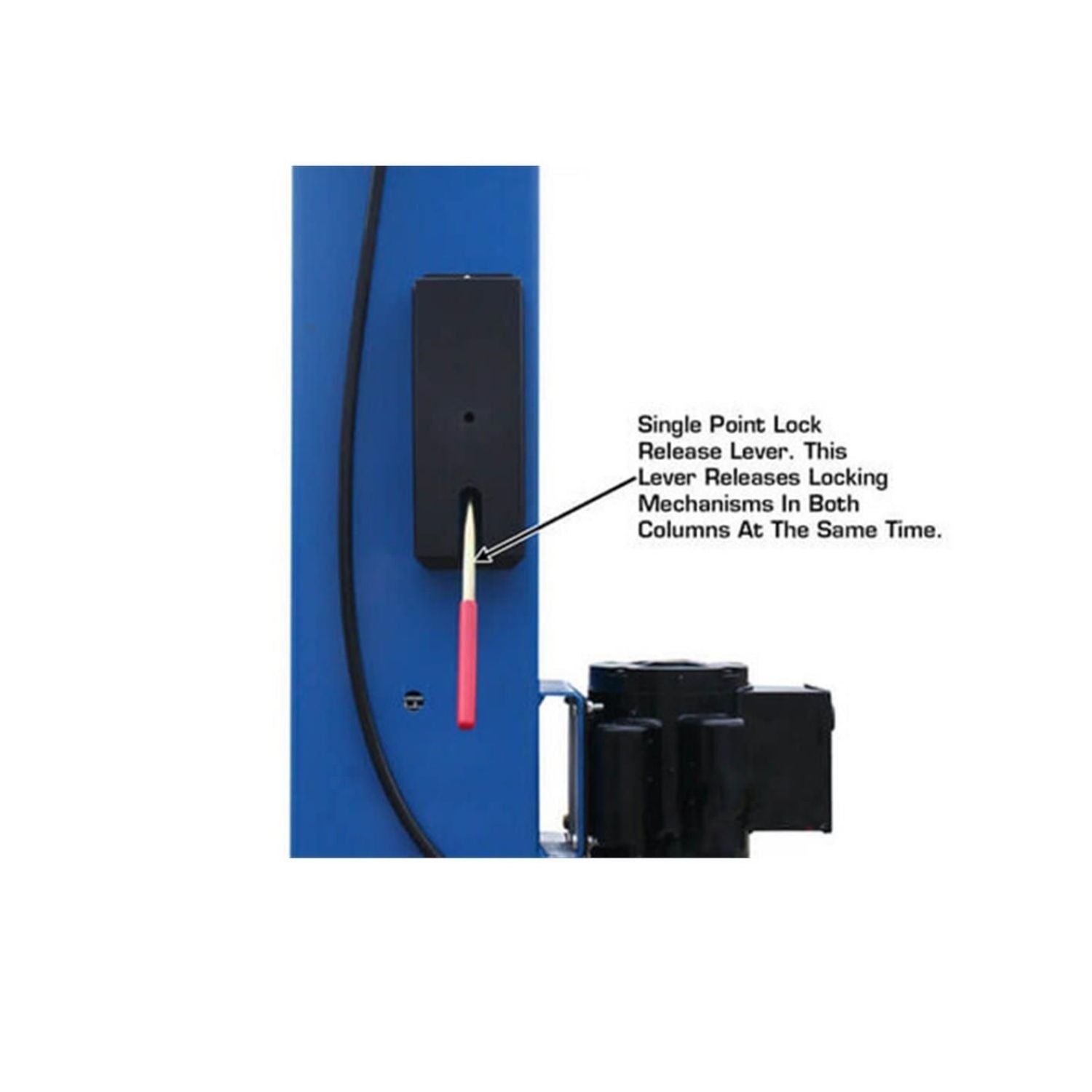

  • Single-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders

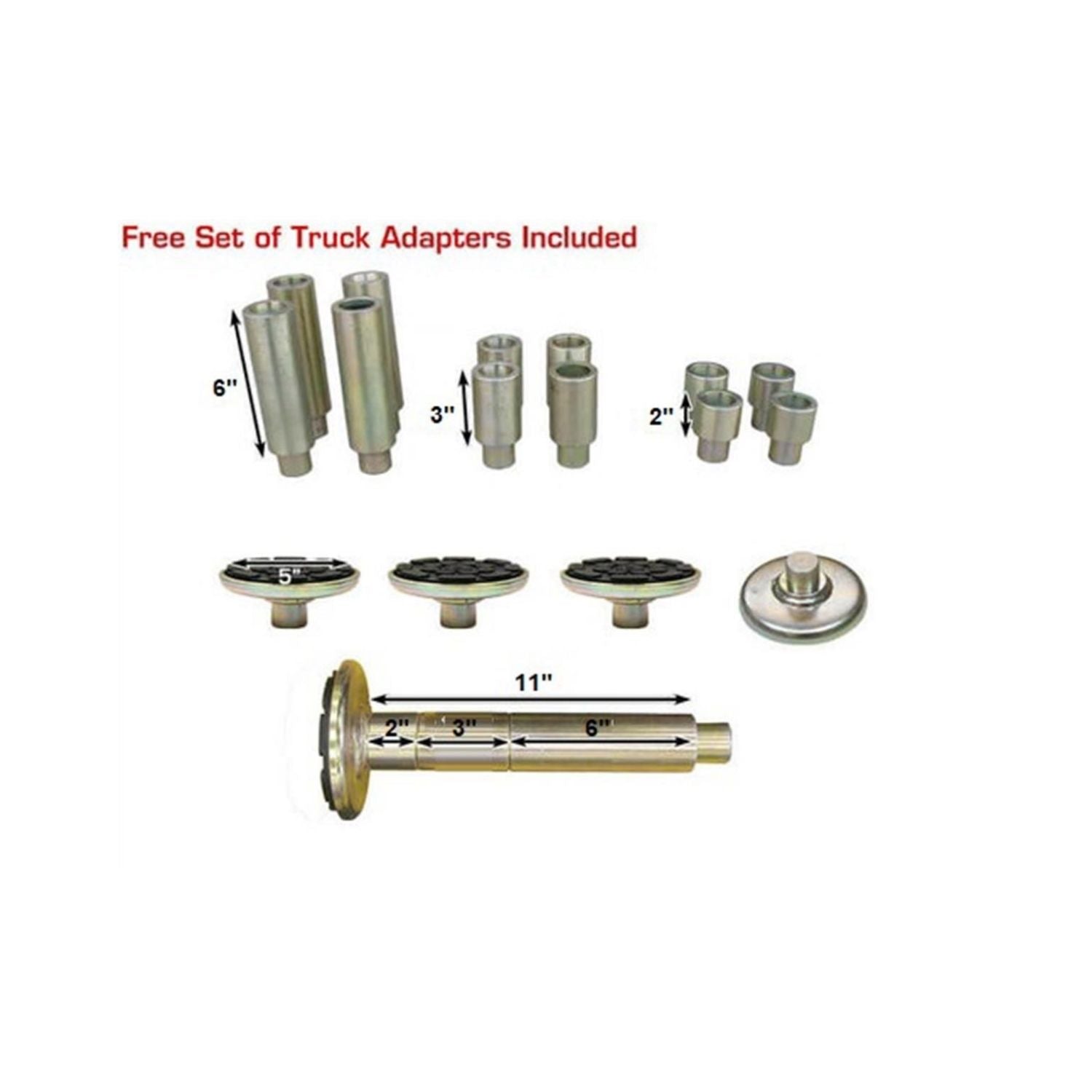

  • Free 12 Piece Truck Adapter Set
  • Mounting Hardware Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® ATTD-9OHSC-SS Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-9OHSC-COMBO
  Dimensions:	112" L × 48" W × 40" H
  UPC:	810524029018
  Country of Origin:	CHN
  Capacity:	9,000 LB.
  Overall Height:	142" (11' 10")
  Overall Floor Width:	133 1/2" (11' 1 1/2")
  Outside Column to Outside Column:	125 1/2" (10' 5 1/2")
  Maximum Lift Height (Without Adapters):	76 3/4"
  Maximum Lift Height (With Adapters):	87 3/4"
  Minimum Arm Height:	4"
  Inside Column:	109 1/2" (9' 1 1/2")
  Drive Thru:	100 1/2" (8' 4 1/2")

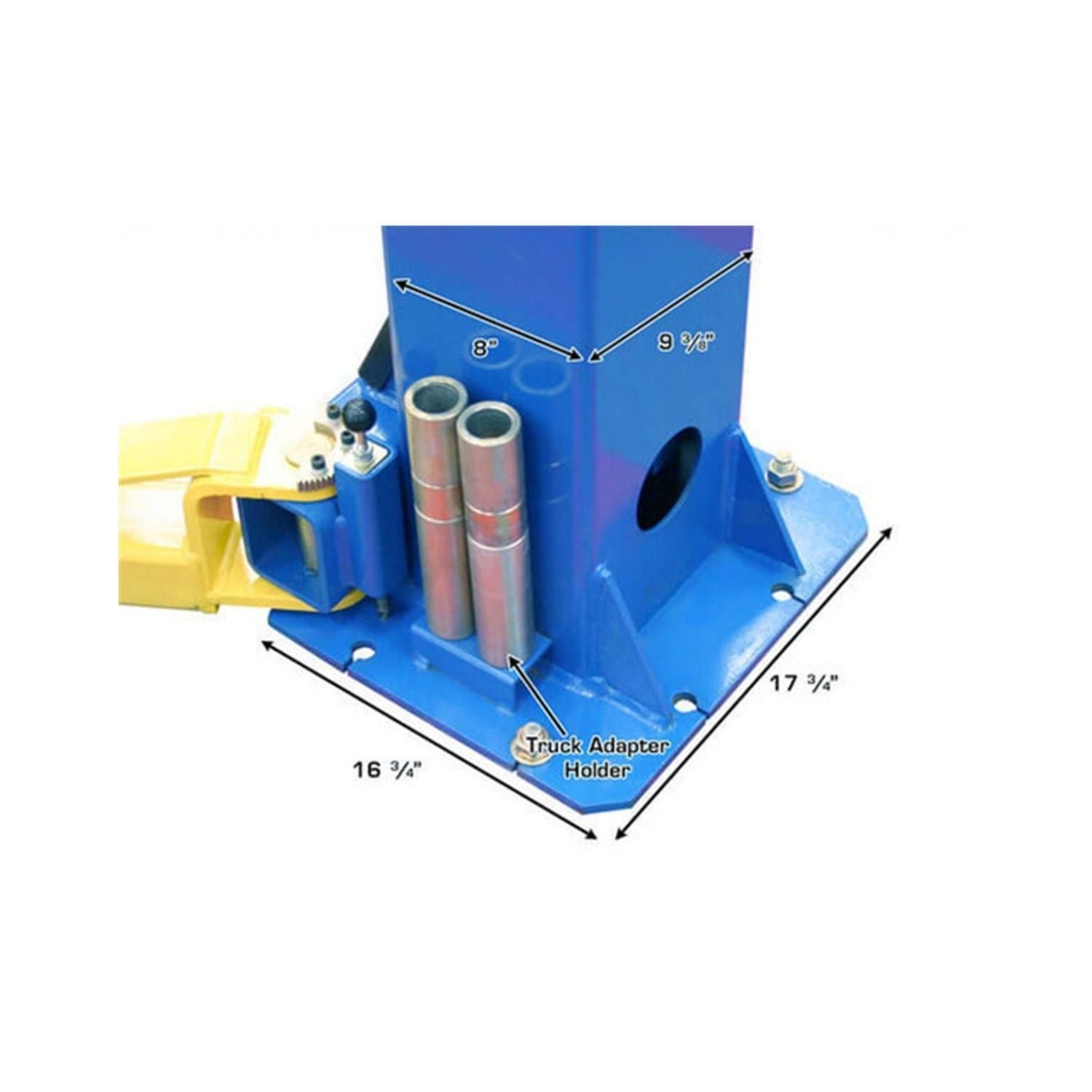

  Column Size:	8" x 9 3/8"
  Column Thickness of Steel:	5mm
  Base Of Lift:	16 3/4" x 17 3/4"
  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)

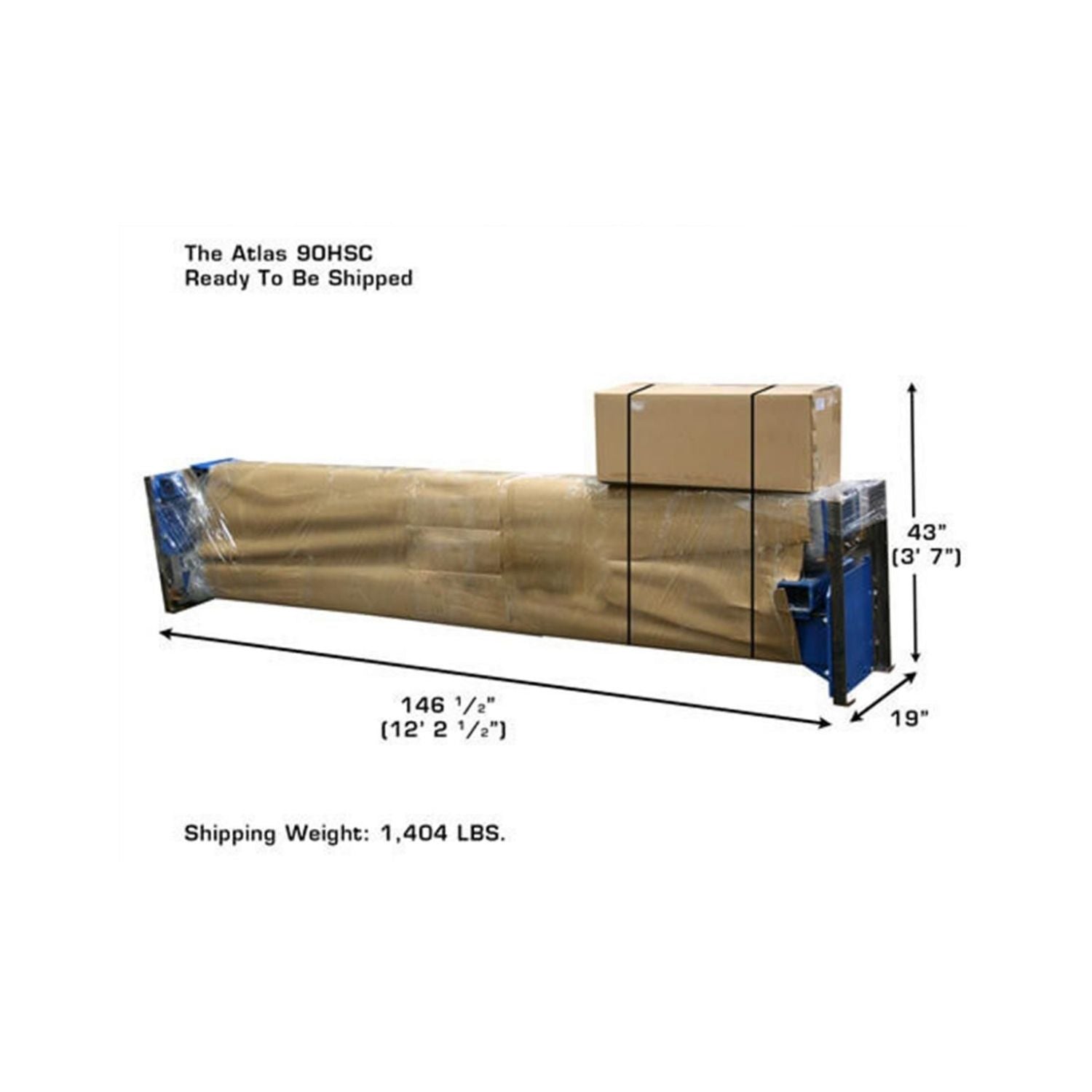

  Shipping Weight:	1,430 LBS.

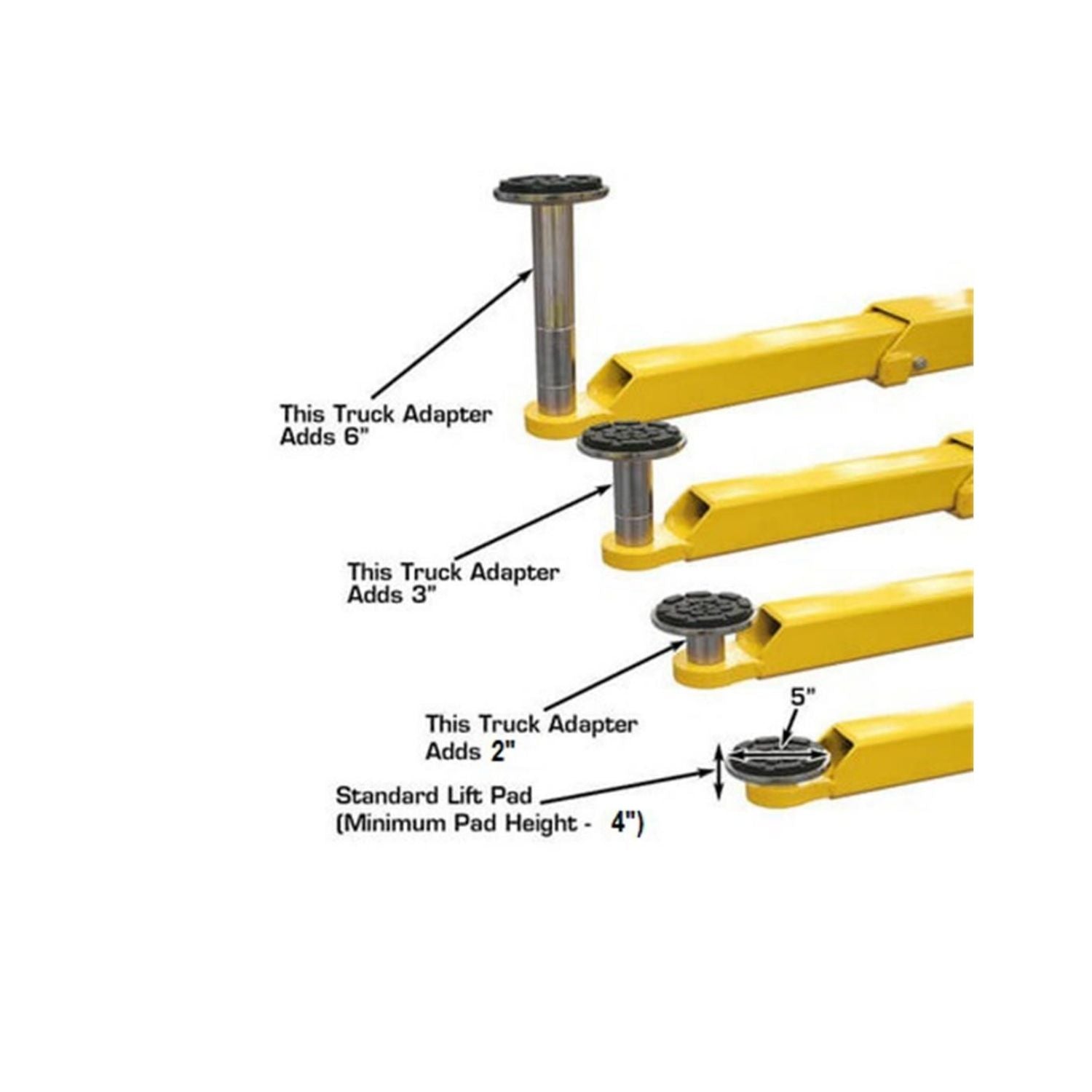

  Adapter Heights:	4 Each 2”, 3”, 6”
  Arm Hole/Adapter Peg Size:	1.5”
  Concrete Requirement:	Requires a minimum of 4" of concrete with a 3000 psi. rating

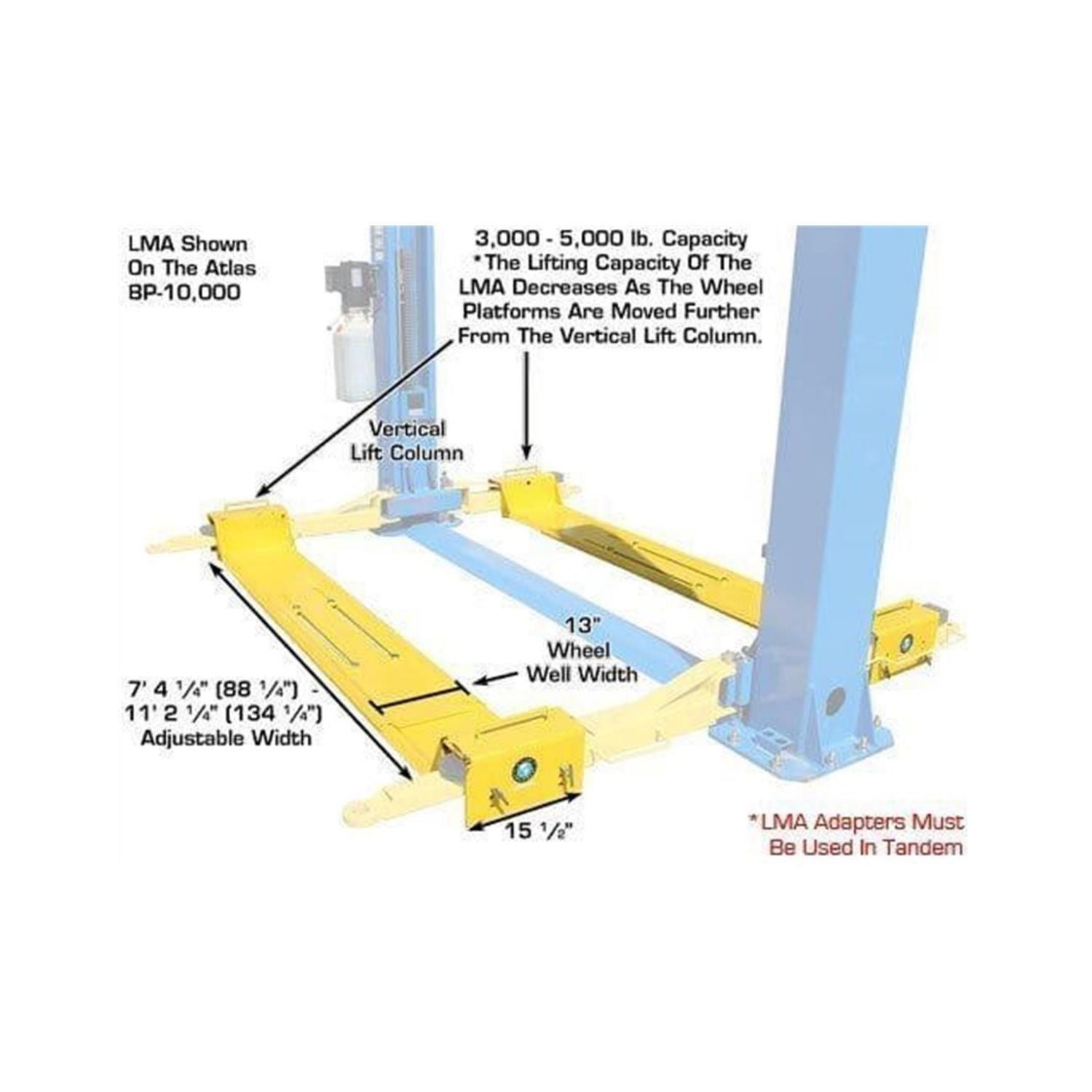

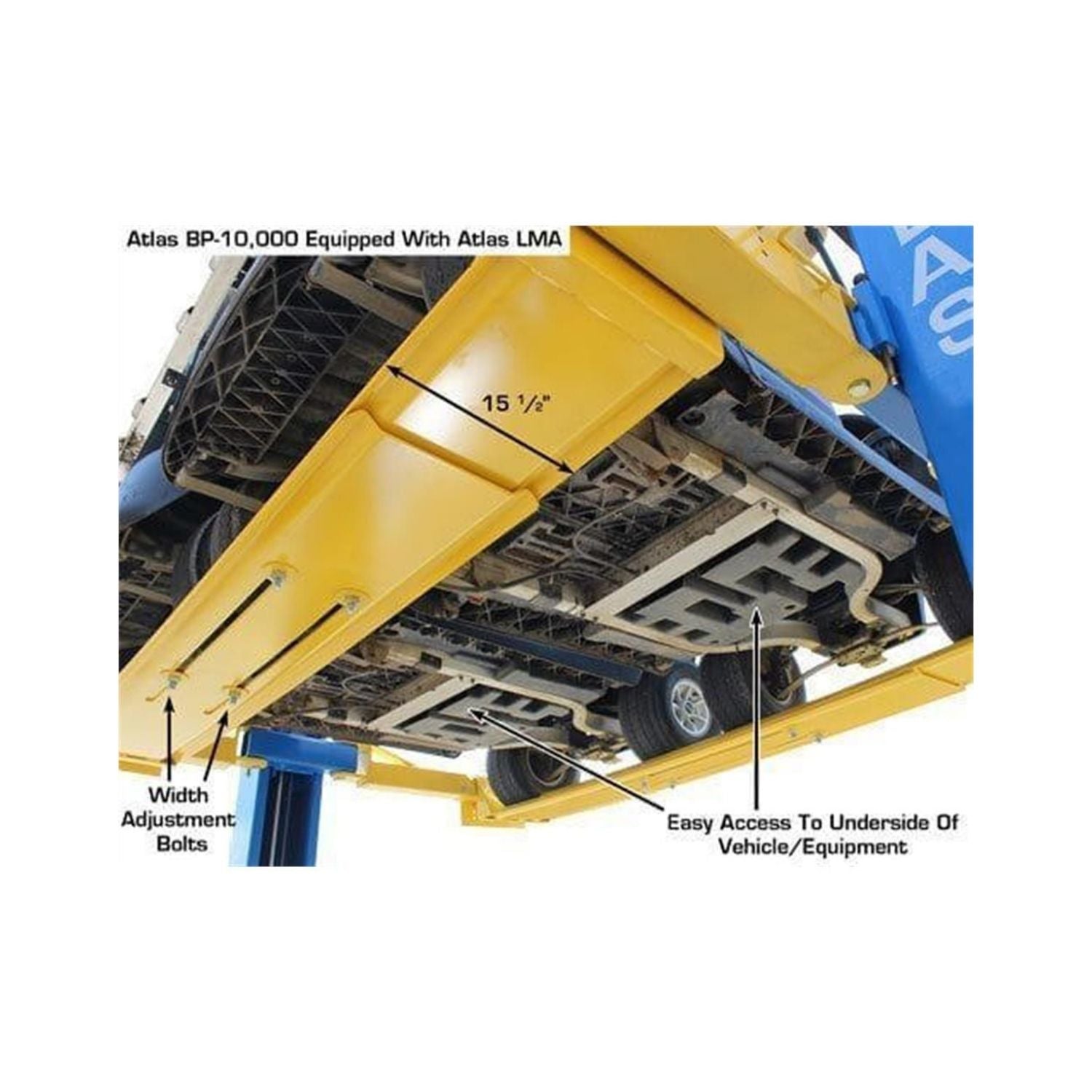

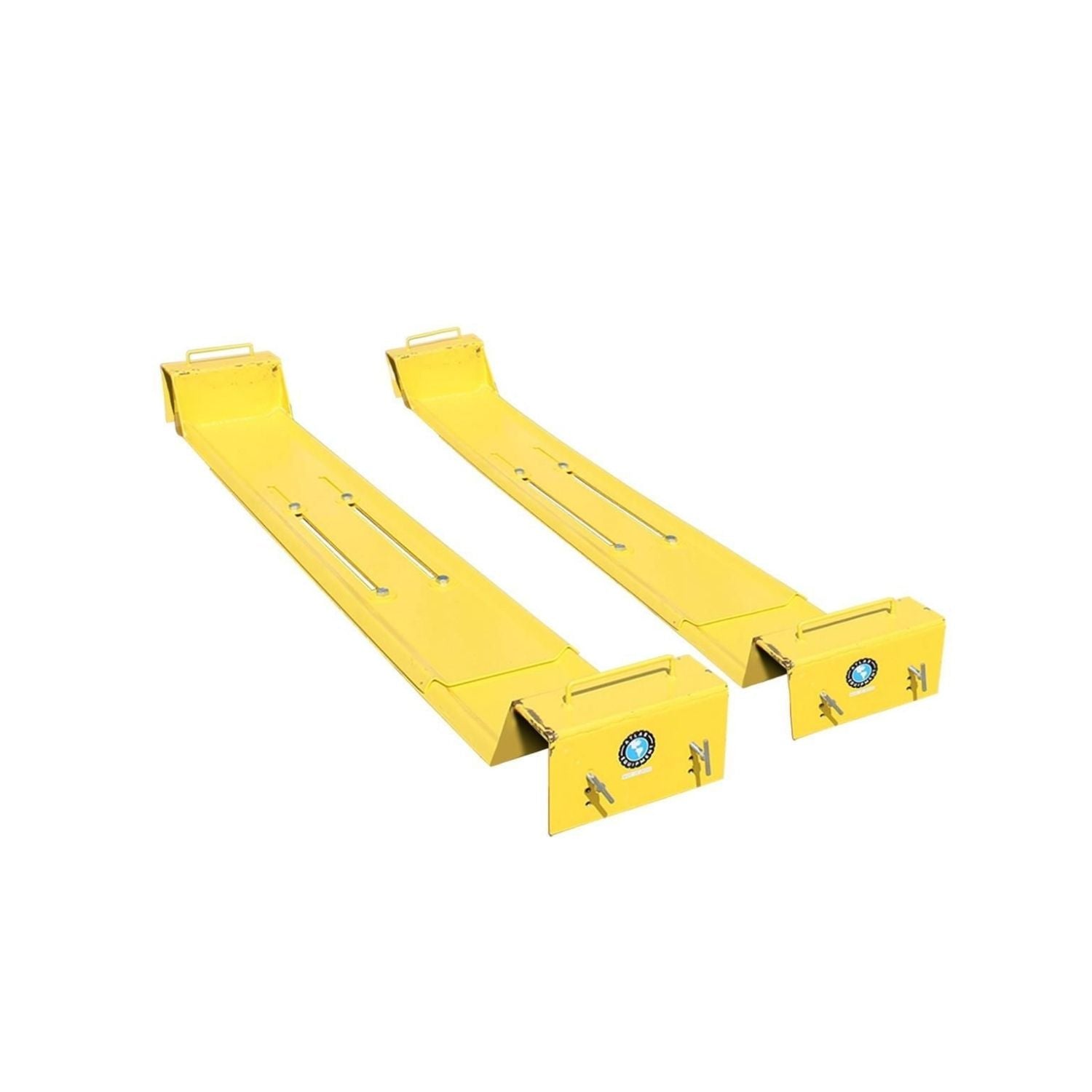

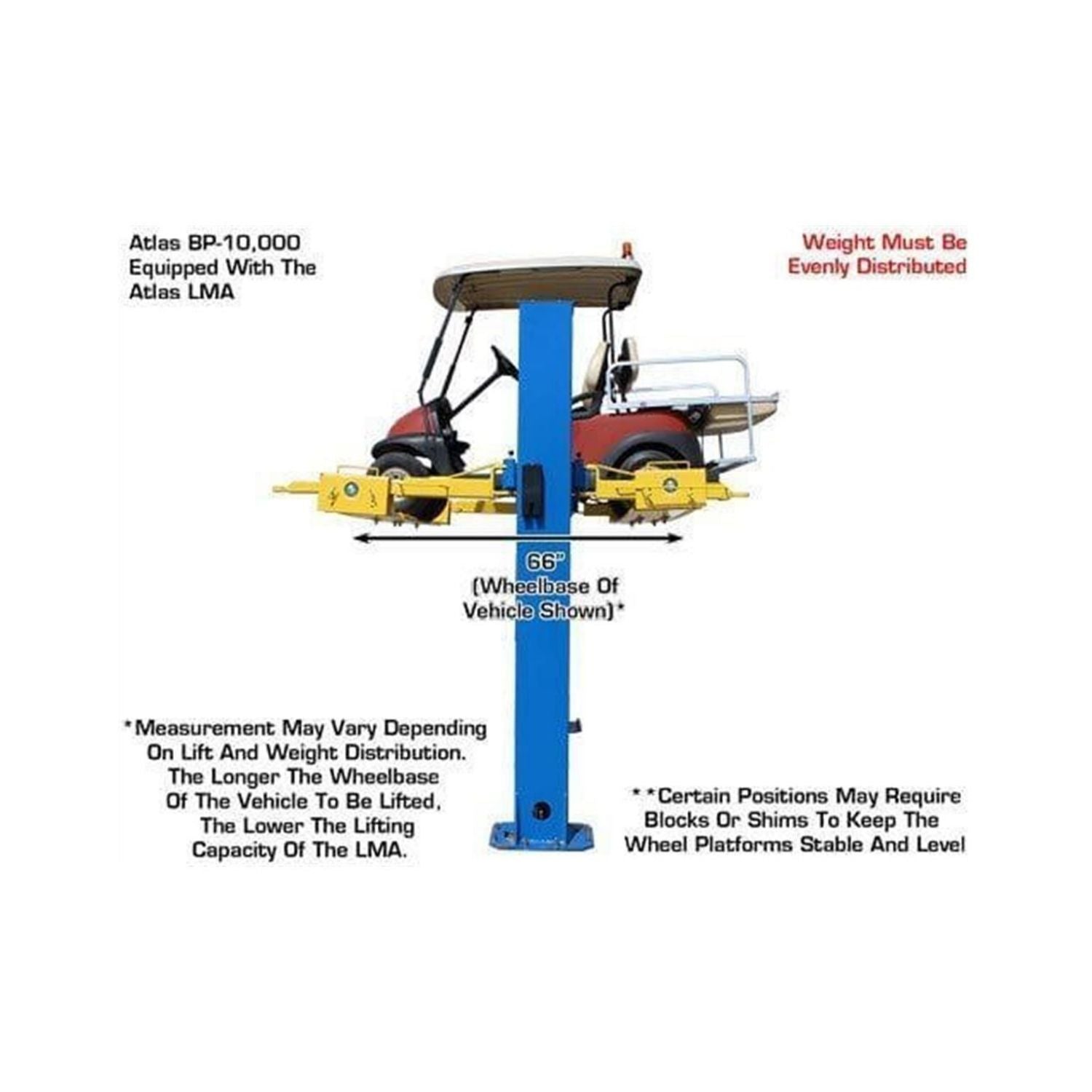

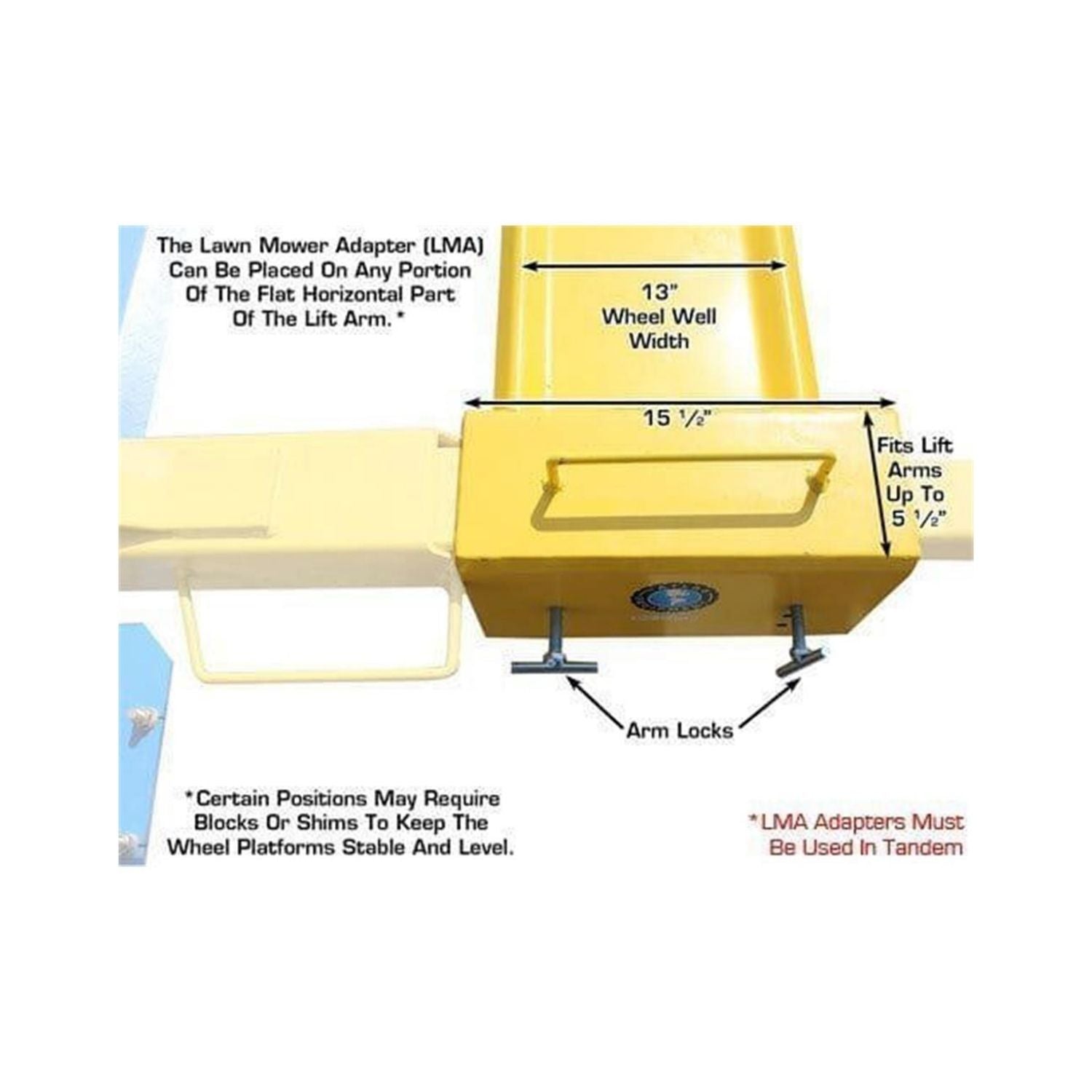

  Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

  Capacity:	Up to 5,000 lbs

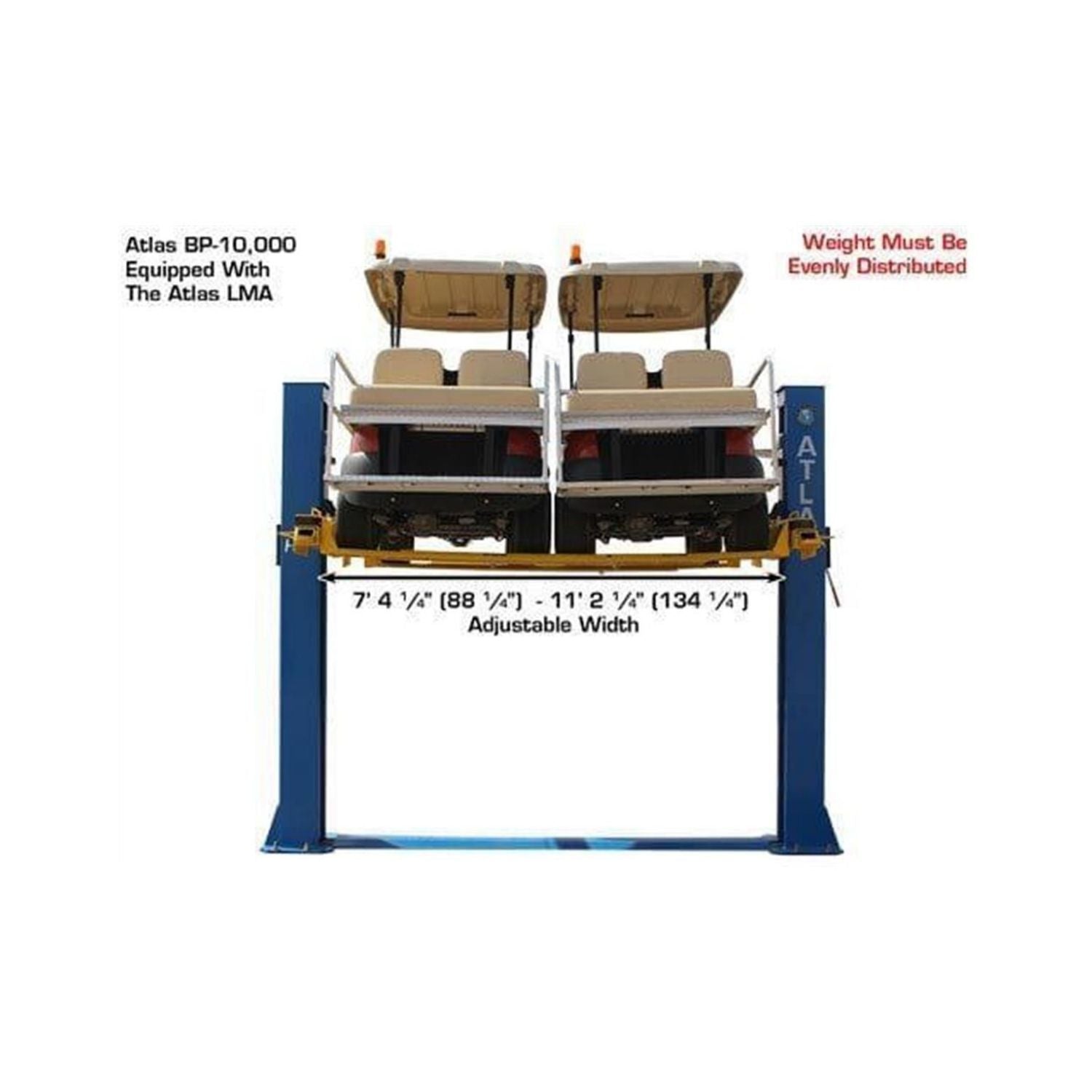

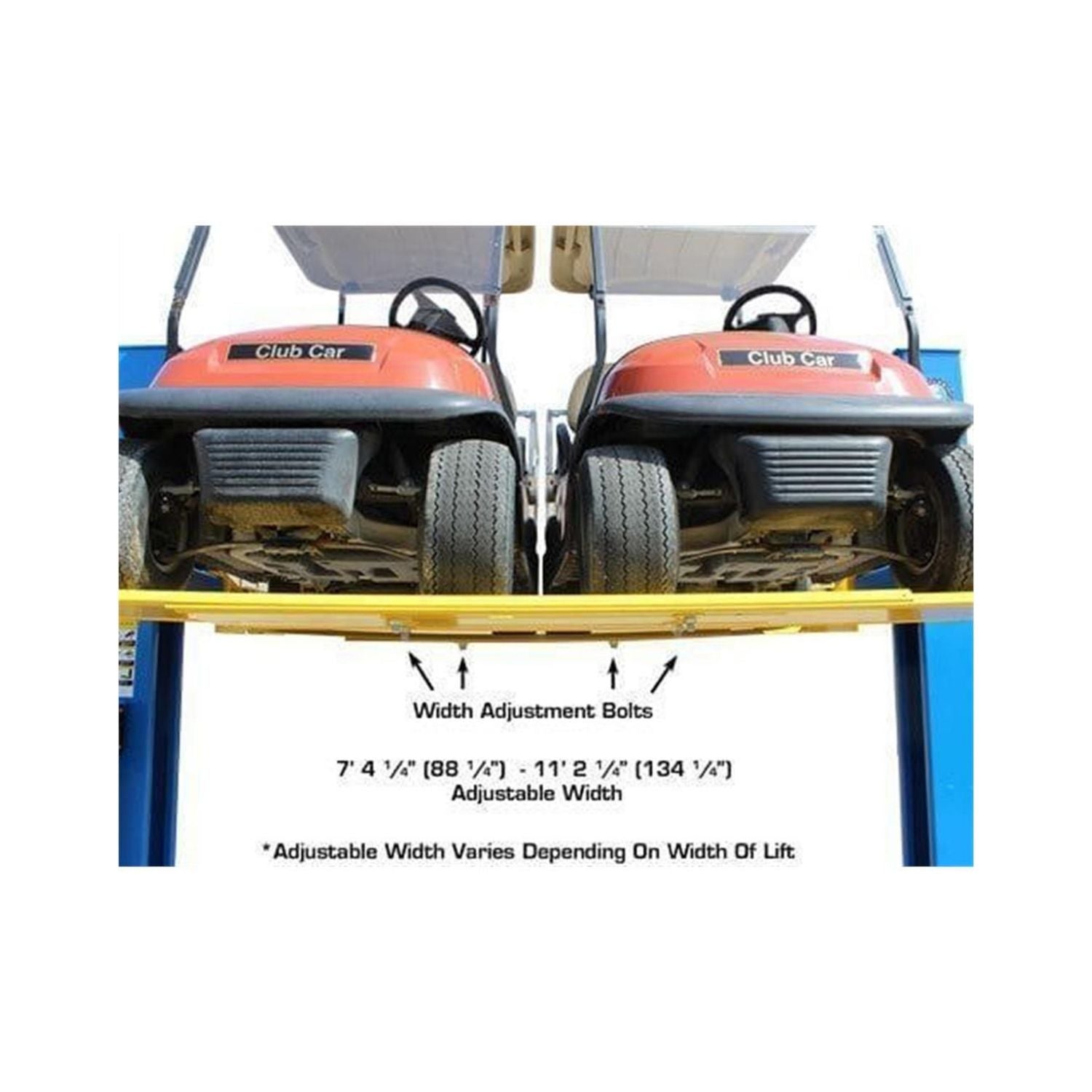

  Adjusts in Width:	8' to 11'
  Wheel Base:	32" to 90"
  Wheel Well Width:	12"
  Thickness of Steel:	3/16"

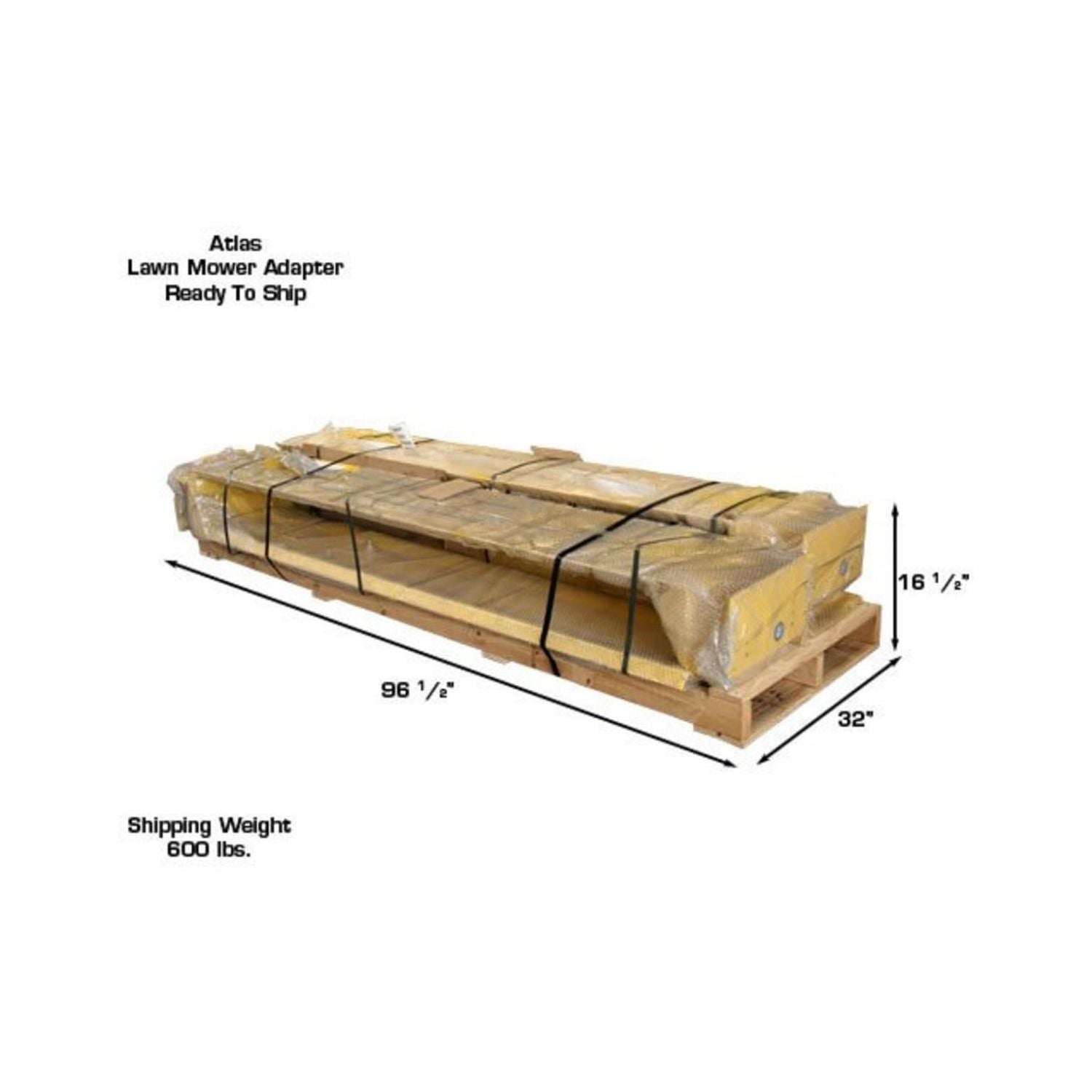

  Shipping Weight:	600 lbs.
  Compatibility:	Will fit lift arms up to 5 1/2" wide

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
