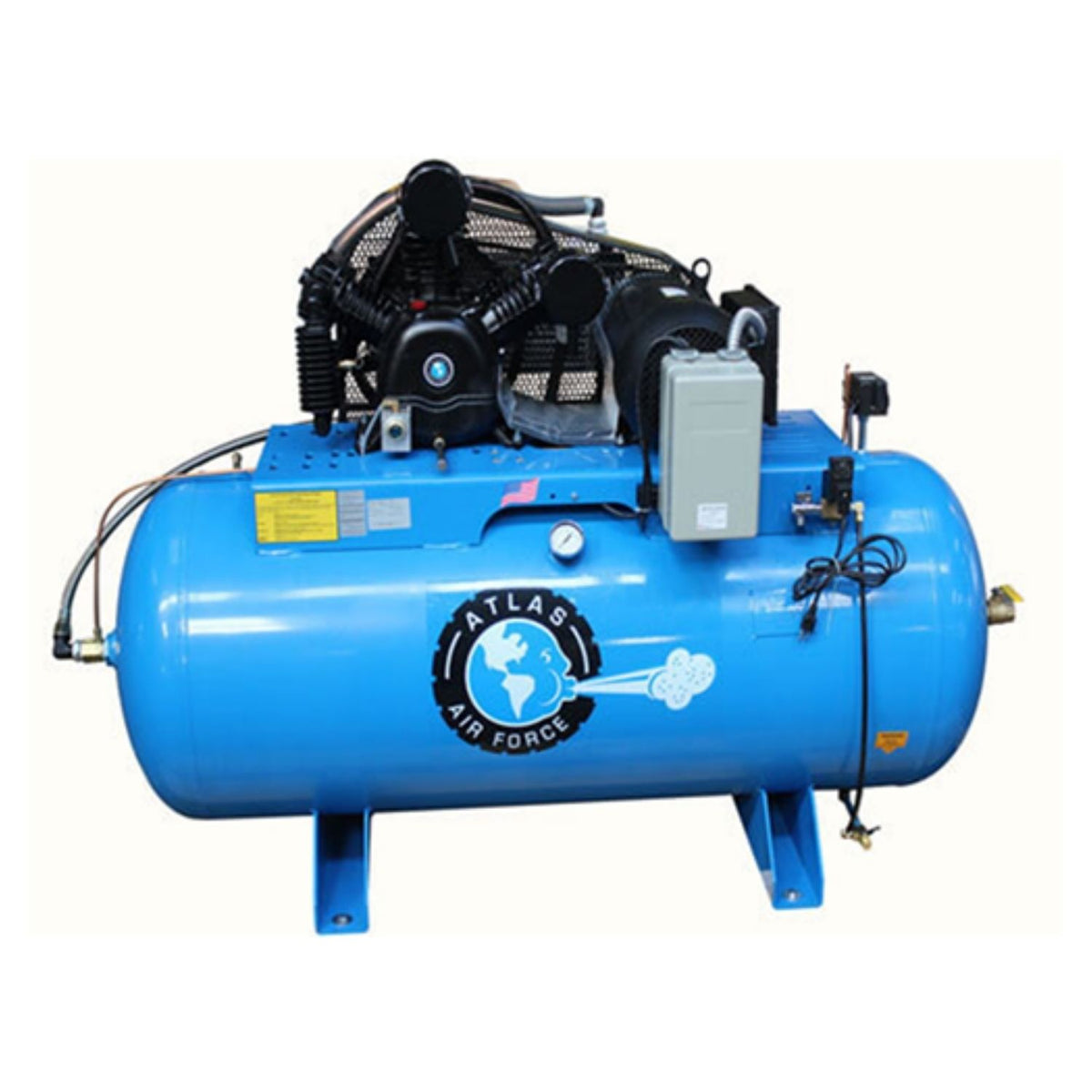

Atlas® AF9 Plus 7.5HP 120 Gal Compressor #ATEATAF9PLUS-17-120G-H

Atlas AF9 Plus — 7.5HP 120 Gallon Compressor (Earlier Generation)

A two-bay shop that needs 120-gallon tank reserve on a strict budget has two ways to get it: pay current-generation pricing, or buy the earlier-generation unit that already proved itself in the field. The Atlas AF9 Plus (AF9/17, 120-gallon horizontal) is that second path: 7.5 horsepower at 1725 RPM on 230VAC single-phase, delivering 24.8 CFM at 100 PSI into a tank 33% bigger than the 80-gallon class — same Plus Package protections, previous-generation price.

One honest note up front: this is the earlier generation of the 7.5HP line — the current model (MPAF9P-120H, also in stock) has live product-page specs and a published warranty. This page's specs come from the manufacturer's catalog documentation, and its model-specific warranty isn't published — confirm coverage at purchase.

Who the Atlas AF9 Plus Is Built For

• Two-bay shops buying on value — the earlier-generation 7.5HP line delivers the same tank class and Plus Package (low-oil shut-off, aftercooler, auto tank drain) at previous-generation pricing.
• Shops on 230VAC single-phase service (60Hz) — standard single-phase shop power on a 40-amp-class circuit.
• Buyers who want the big tank specifically — 120 gallons carries 33% more storage than the 80-gallon class, smoothing tool demand between pump cycles.
• Shops with height or layout constraints — the horizontal configuration also allows location in an overhead storage area per the manufacturer's catalog.
• Buyers comfortable with catalog-documented specs — the specs here are manufacturer-published (catalog documentation), but there is no live product page for this generation; we present it honestly.

What the Atlas AF9 Plus Is NOT Built For

This is not the current-generation 7.5HP — if you want the live-spec, published-warranty machine, the MPAF9P-120H is that unit (we stock both). It's also not for shops needing the 10HP class, and its CFM ratings use a different pressure basis than the current line, so don't compare them head-to-head without calling us.

Important sizing note: confirm 230VAC single-phase service, measure the floor for a horizontal 120-gallon tank, and note the rating basis (24.8 CFM @ 100 PSI) differs from the current line's basis before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.

What Makes the Atlas AF9 Plus Different

7.5HP on single-phase power

24.8 CFM delivered at 100 PSI (22.8 at 175) from a 7.5 HP motor at 1725 RPM, on 230VAC 1-phase 60Hz.

• 7.5 HP @ 1725 RPM
• 24.8 CFM @ 100 PSI
• 145–175 PSI range

Plus Package protections

Automatic low-oil shut-off, aftercooler, and automatic tank drain — the same protection kit as the current line, fitted from the factory.

The 120-gallon advantage

33% more stored air than the 80-gallon class — tools keep working through demand spikes, the pump cycles less, and the horizontal configuration opens placement options (including overhead).

Best For

• Value-driven two-bay shops
• 120-gal tank class
• 1-phase service
• Plus Package standard

Not Ideal For

• Buyers wanting current-gen specs/warranty (see MPAF9P-120H)
• 10HP-class demand
• 3-phase shops

AF9 Plus vs the current-generation MPAF9P-120H

Same tank, same protections, two generations — we stock both and will tell you honestly which fits the budget and the shop.

Full Specifications - Atlas AF9 Plus

Atlas® Automotive Equipment Warranty - Atlas AF9 Plus

This earlier-generation model does not publish a live model-specific warranty — confirm exact coverage at purchase. It routes through Alamo either way.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
