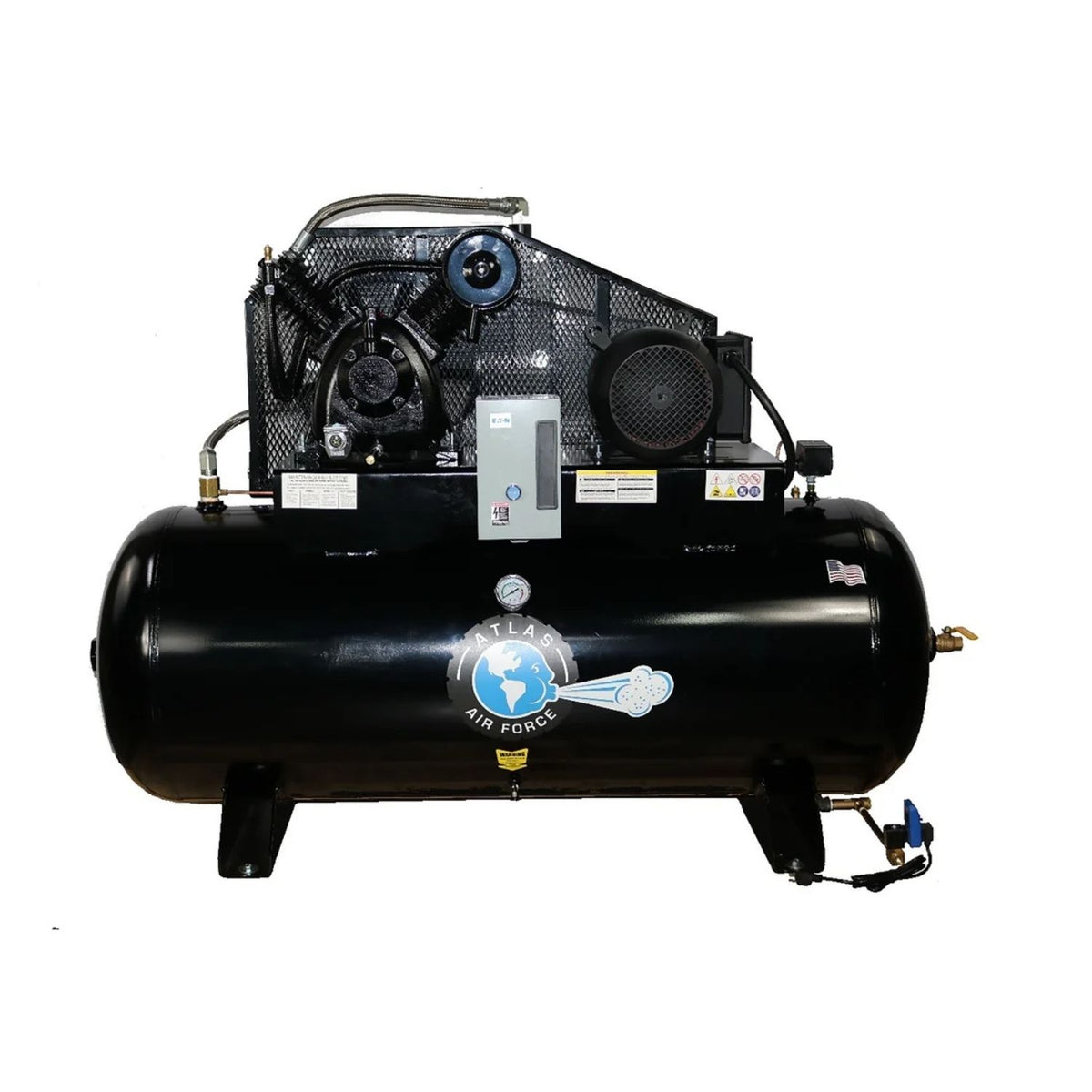

Atlas® Air Force 7.5HP 120 Gal Compressor Plus Pkg #ATEMPAF9P-120H

Atlas MPAF9P-120H — 7.5HP 120 Gallon Compressor with Plus Package

The 10HP class is the right compressor for a shop that's already big — but a two-bay repair shop, a tire shop, or a serious home-service operation doesn't need to buy its ceiling. The Atlas MPAF9P-120H is the honest step down: 7.5 horsepower at 1750 RPM on 220-volt single-phase (40-amp breaker), delivering 23 CFM at 90 PSI into a US-made 120-gallon tank.

It carries the full Plus Package — air-cooled aftercooler, automatic low-oil monitor/shut-off, automatic tank drain — plus a cast-iron V-cylinder two-stage pump with stainless reed valves, and it ships pre-filled with synthetic oil. This is the current generation of the 7.5HP line, with live manufacturer specs and a published warranty.

Who the Atlas MPAF9P-120H Is Built For

• Two-bay repair shops and tire shops — 23 CFM at 90 PSI covers impact wrenches, a tire machine, and a balancer without the pump running flat-out.
• Shops on single-phase power with a 40-amp circuit — this is the 120-gallon class that fits residential-adjacent panels where a 50-amp 10HP circuit won't go.
• Buyers who want the Plus Package standard — aftercooler, low-oil monitor/shut-off, and auto tank drain are factory equipment, and it ships with synthetic oil already in the pump.
• Buyers comparing the old-generation AF9 Plus — the MPAF9P-120H is the current 7.5HP line with live specs and a published warranty; the AF9 Plus (also in stock) is the earlier generation with different CFM ratings.
• Shops that want pump longevity — cast-iron V-cylinder two-stage pump, aluminum head, machined valve plate, stainless reed valves: the construction that survives daily cycling.

What the Atlas MPAF9P-120H Is NOT Built For

This is not for high-demand body shops or multi-bay operations — 23 CFM is a two-bay number, and starving a bigger shop means the pump never rests (see the AF10 class). It's not for hobbyists either; a 60-gallon single-stage covers the weekend shop at a fraction of the price.

Important sizing note: confirm the 220V single-phase 40-amp circuit, measure the floor (72" × 32" footprint, 52" tall), and tally continuous CFM demand before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.

What Makes the Atlas MPAF9P-120H Different

7.5HP on a 40-amp circuit

23 CFM at 90 PSI / 22 at 175, on 220V single-phase with a 40-amp breaker — the 120-gallon class for panels that can't feed 50 amps.

• 7.5 HP @ 1750 RPM
• 220V 1-phase, 40A breaker
• 23 CFM @ 90 / 22 @ 175 PSI

Plus Package standard

Air-cooled aftercooler, automatic low-oil monitor/shut-off, automatic tank drain — plus it ships pre-filled with 100% synthetic compressor oil.

Built to cycle daily

Cast-iron V-cylinder two-stage pump, aluminum head, machined cast-iron valve plate, stainless reed valves — pump internals that survive a working shop's rhythm.

Best For

• Two-bay repair / tire shops
• Single-phase 40A panels
• Plus Package standard
• Current-generation 7.5HP

Not Ideal For

• High-demand multi-bay shops (see AF10)
• Hobbyists (see AF3/AF4)
• 3-phase shops

Air Force line — the 7.5HP position

The CFM gap between 23 and 37 is the real decision — count your air tools honestly before choosing the 10HP class.

Full Specifications - Atlas MPAF9P-120H

Atlas® Automotive Equipment Warranty - Atlas MPAF9P-120H

Atlas backs the Air Force compressor line with a one-year parts-only limited warranty, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
