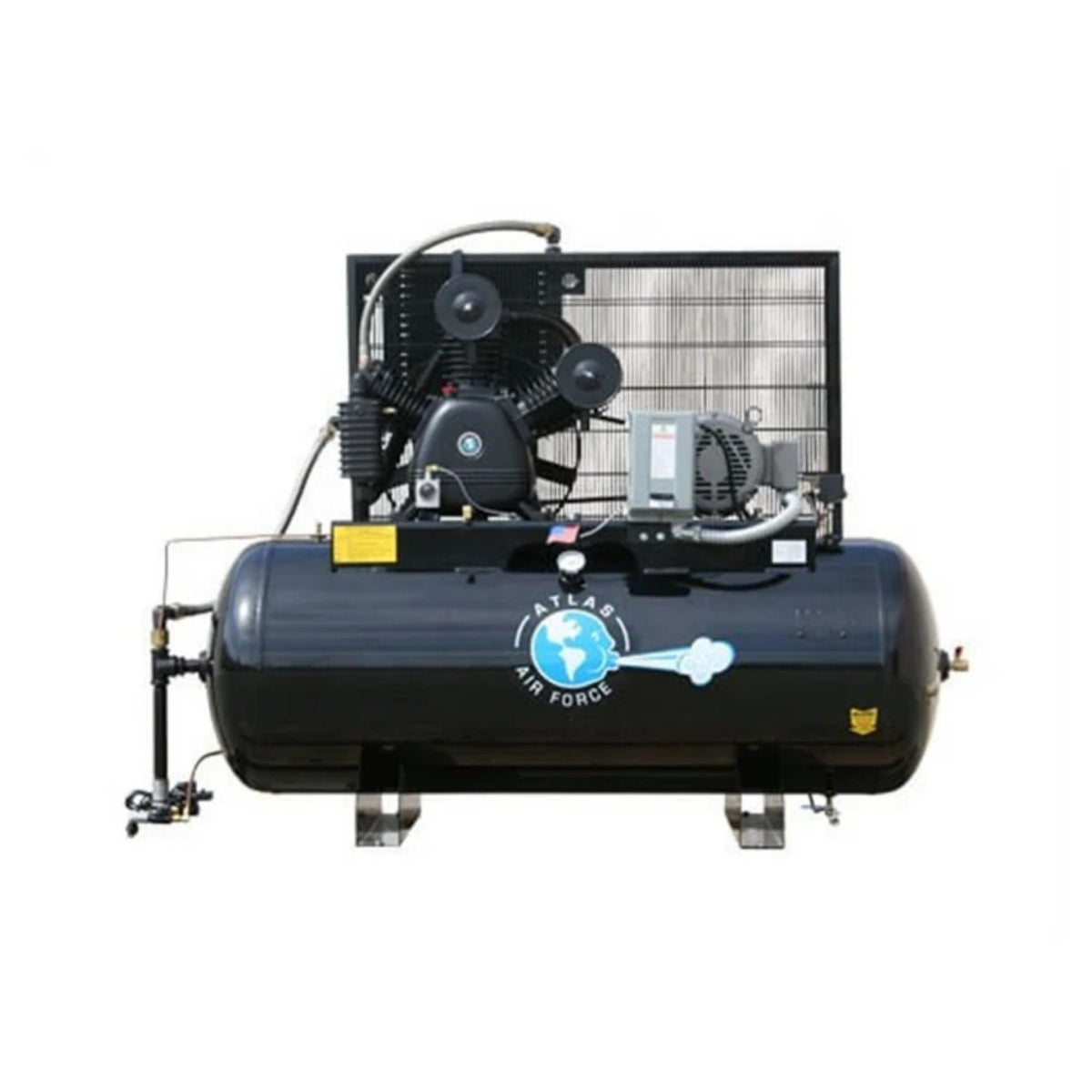

Atlas® Air Force 10HP 3-Phase 120 Gal Air Compressor #ATEATAF10P-3PH
Couldn't load pickup availability
| Motor | 10 HP, 3-Phase |
| Voltage | 230VAC 3PH, 60Hz |
| Delivered Air | 37 CFM @ 90 / 35 CFM @ 175 PSI |
| Pressure | 145–175 PSI |
| Tank | 120 gal, US-made, ASME |
| Warranty | 1 year parts (limited) |
Atlas Air Force AF10 Plus — 10HP 3-Phase 120 Gallon Compressor
A shop with three-phase power shouldn't buy single-phase equipment — three-phase motors run cooler, last longer, and don't fight their own panel. The Atlas Air Force AF10 Plus (3-Phase) is the same 10-horsepower, 120-gallon platform as the single-phase model, built for 230VAC three-phase service: 37 CFM at 90 PSI, the full Plus Package, and a low-RPM pump that keeps a working shop livable.
For shops weighing the AF-15, this is the honest middle: enough air for a busy multi-bay shop, at a motor size that doesn't demand the industrial CFM case to justify it.
Who the Atlas Air Force AF10 Plus (3-Phase) Is Built For
- Multi-bay shops with three-phase service — the 230VAC 3PH motor is the right electrical marriage for a panel that already has it, running cooler and steadier than a 1-phase motor worked at the edge.
- Shops needing the 37 CFM class without the AF-15's price and footprint — the same delivered air as the single-phase AF10, on the better motor for a 3-phase building.
- Buyers who want the Plus Package standard — aftercooler, low-oil shut-off, auto tank drain, magnetic starter: factory-fitted.
- Shops consolidating compressor noise and maintenance into one US-made 120-gallon ASME unit.
- Shops planning future growth toward the AF-15 class — the 3-phase infrastructure this unit uses scales up from here.
What the Atlas Air Force AF10 Plus (3-Phase) Is NOT Built For
This is not for single-phase buildings — the 1-phase AF10 exists for that panel, and buying 3-phase equipment you can't feed is wasted money. It's not for hobbyists (the 60-gallon single-stage class fits), and not for shops whose CFM demand genuinely needs the 15HP class.
Important sizing note: confirm 230VAC three-phase service with an electrician, measure the floor (72" × 32" footprint, 52" tall), and tally continuous CFM demand before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas Air Force AF10 Plus (3-Phase) Different
10 horsepower on three-phase power
37 CFM at 90 PSI / 35 at 175 on 230VAC 3PH — the cooler-running, longer-lived motor for shops that have the service.
- 10 HP, 230VAC 3PH 60Hz
- 37 CFM @ 90 / 35 @ 175 PSI
- 145–175 PSI range
Plus Package standard
Aftercooler, automatic low-oil shut-off, automatic tank drain, magnetic starter — factory-fitted.
US-made 120-gallon ASME tank
Horizontal steel tank, made in the USA — the reserve that keeps tool performance steady when the shop is busy.
Best For
- Multi-bay shops with 3-phase
- 37 CFM class demand
- Plus Package standard
- Future AF-15 scalability
Not Ideal For
- Single-phase buildings (see AF10 1PH)
- Hobbyists (see AF3/AF4)
- 15HP-class demand
Air Force line — the 10HP 3-phase position
| Model | Motor | Delivered Air | Phase |
|---|---|---|---|
| AF10 Plus 3PH (this page) | 10 HP | 37 CFM @ 90 / 35 @ 175 | 3-Phase |
| AF10 Plus 1PH | 10 HP | 37 CFM @ 90 / 35 @ 175 | 1-Phase |
| AF-15 Plus | 15 HP | 52 CFM @ 100 / 49 @ 175 | 3-Phase |
| MPAF9P-120H | 7.5 HP | 23 CFM @ 90 / 22 @ 175 | 1-Phase |
Same platform as the 1-phase AF10 — the panel decides which one comes home.
Full Specifications - Atlas Air Force AF10 Plus (3-Phase)
| Motor | 10 horsepower, three-phase, low RPM |
| Phase | Three Phase (3-Phase) |
| Voltage | 230VAC 3PH 60Hz |
| CFM at 90 PSI | 37 |
| CFM at 175 PSI | 35 |
| Operating pressure range | 145–175 PSI |
| Pump | 3-cylinder, 2-stage, belt-driven reciprocating, low RPM |
| Tank | 120-gallon horizontal steel tank, Made in USA, ASME |
| Plus Package | Aftercooler, low oil shut-off, automatic tank drain |
| Controls | Magnetic starter |
| Other | Finned inlet tube, compressor oil drain extension, heavy-duty belt guard, vibro-isolator pads |
| Air outlet | 1/2" NPT |
| Overall dimensions | 72" L x 32" W x 52" H |
| Shipping weight | Approx. 1,000 lbs |
⚠️ Installation Requirements
- Electrical: 230VAC three-phase, 60Hz — have an electrician confirm the service and breaker sizing
- Floor: level floor for the 72" × 32" × 52" horizontal unit, with service clearance
- Ventilation: give the pump fresh air — compressors heat a small room fast
- Vibro-isolator pads ship with the unit; set per the included manual
- Alamo delivers and installs shop air systems — we service what we sell
Atlas® Automotive Equipment Warranty - Atlas Air Force AF10 Plus (3-Phase)
Atlas backs the Air Force compressor line with a one-year parts-only limited warranty, handled through Alamo.
| Component | Coverage Term |
|---|---|
| Parts | 1 year (parts only, limited) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas Air Force AF10 Plus (3-Phase)
What's the difference between this and the 1-phase AF10?
Same compressor platform — 10HP, 37 CFM @ 90 PSI, 120-gallon US-made tank, Plus Package. The difference is the motor: 230VAC three-phase vs 220V single-phase. Your panel decides.
How much air does it make?
37 CFM at 90 PSI and 35 CFM at 175 PSI, in a 145–175 PSI operating band.
Should I just buy the AF-15 instead?
Only if the CFM math says so — the AF-15 adds 15 CFM and demands a genuinely industrial air demand to justify it. Many multi-bay shops never use what the AF10 makes.
What's in the Plus Package?
An aftercooler, automatic low-oil shut-off, automatic tank drain, and a magnetic starter — standard.
Why Buy the Atlas Air Force AF10 Plus (3-Phase) from Alamo Equipment & Service?
- We sell what fits. CFM math first, motor second: we'll confirm the AF10-3PH is right before you pay for capability the shop won't use.
- We install it. Three-phase wiring, placement, and air drops — one Alamo crew for the whole air system.
- We service it. Pumps, starters, drains — the compressor we sell is the one we service.
- Freight handled. ~1,000 lbs ships freight; we coordinate delivery.
- Expert comparison help. AF10 3PH vs 1PH vs AF-15 — honest electrical and CFM math, one call.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
