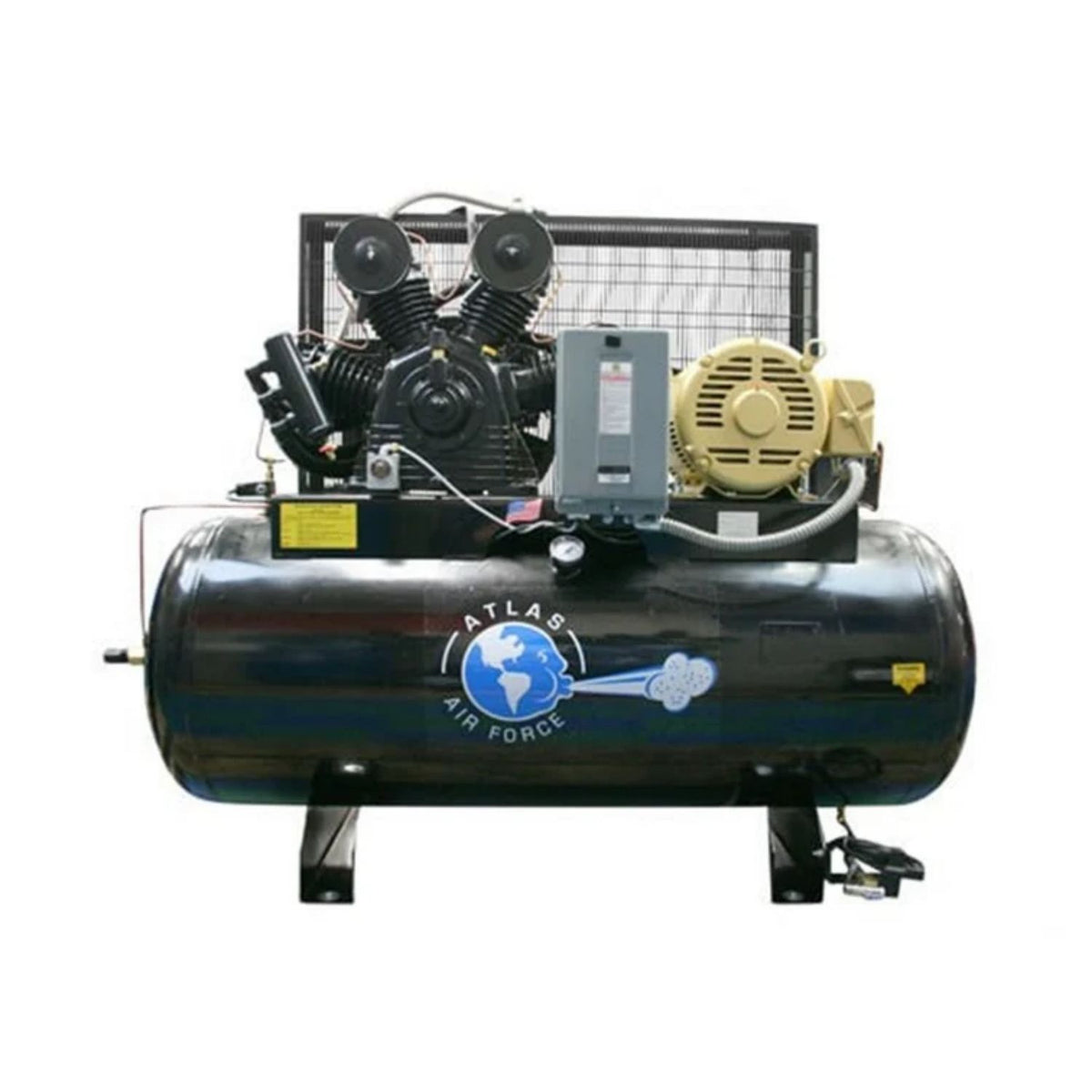

Atlas® Air Force 15HP 3-Phase 120 Gal Air Compressor #ATEATAF15PLUS

Atlas Air Force AF-15 Plus — 15HP 3-Phase 120 Gallon Compressor

A shop that runs a body department, three bays, and a paint booth all at once doesn't have an air problem — it has a CFM problem, and 10HP compressors lose that math. The Atlas Air Force AF-15 Plus is the industrial answer: 15 horsepower on three-phase power, delivering 52 CFM at 100 PSI (49 at 175) into a 120-gallon ASME tank, with the Plus Package bolted on from the factory.

The Plus Package is the part that keeps a big compressor alive: automatic low-oil shut-off, an aftercooler, an automatic tank drain, and a magnetic starter — plus a heavy-duty belt guard and vibro-isolator pads. It's the compressor for shops whose air demand has outgrown the 10HP class.

Who the Atlas Air Force AF-15 Plus Is Built For

• Industrial and body shops running multiple air tools continuously — 52 CFM at 100 PSI feeds a busy body-and-paint operation where a 10HP unit cycles itself to death.
• Shops with three-phase service — 230VAC 3PH is the AF-15's electrical home; the shop that already has 3-phase panels has the infrastructure this compressor wants.
• Operations adding a paint booth or media blasting — high continuous-CFM consumers that turn a small compressor's duty cycle into a maintenance schedule.
• Shops consolidating from two small compressors into one industrial unit — one 120-gallon tank, one maintenance schedule, one noise source.
• Buyers who want the Plus Package protections — low-oil shut-off, aftercooler, auto tank drain, and magnetic starter are standard here, not add-ons.

What the Atlas Air Force AF-15 Plus Is NOT Built For

This is not for shops without three-phase power — the AF-15 Plus runs on 230VAC 3-phase, and single-phase panels don't feed it. It's also not for light-duty shops whose demand fits a 7.5–10HP unit, and not for noise-sensitive shared spaces without a compressor room (15HP is a real machine).

Important sizing note: confirm three-phase service (230VAC 3PH), measure the floor area (horizontal configuration), and tally your shop's continuous CFM demand before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.

What Makes the Atlas Air Force AF-15 Plus Different

15 horsepower of three-phase capacity

The biggest motor in the Air Force line — 52 CFM delivered at 100 PSI, 49 at 175, across a 145–175 PSI operating range.

• 15 HP, 230VAC 3PH 60Hz
• 52 CFM @ 100 PSI / 49 CFM @ 175 PSI
• 145–175 PSI range

Plus Package standard

Automatic low-oil shut-off, aftercooler, automatic tank drain, and magnetic starter — the longevity kit, factory-fitted.

Built like it's meant to run all day

Heavy-duty extra-large three-cylinder two-stage pump, ASME-certified 120-gallon tank, metal belt guard, and vibro-isolator pads — the construction a full-duty-cycle shop depends on.

Best For

• Industrial / body shops
• High continuous CFM demand
• 3-phase equipped shops
• Multi-bay consolidation

Not Ideal For

• Shops without 3-phase power
• Light-duty shops (7.5–10HP class)
• Unvented shared spaces

Air Force line — where the AF-15 Plus sits

The AF-15 Plus is the ceiling of the line — step down to the 10HP or 7.5HP class when the CFM math says you can.

Full Specifications - Atlas Air Force AF-15 Plus

Atlas® Automotive Equipment Warranty - Atlas Air Force AF-15 Plus

This generation of the Air Force line does not publish a model-specific warranty on a live product page — confirm exact coverage at purchase. It routes through Alamo either way.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
