Atlas Air-Operated Wheel Lift #ATEATTC-WBAWL

Atlas WBAWL — Stationary Air-Operated Wheel Lift, 150 lb. Capacity

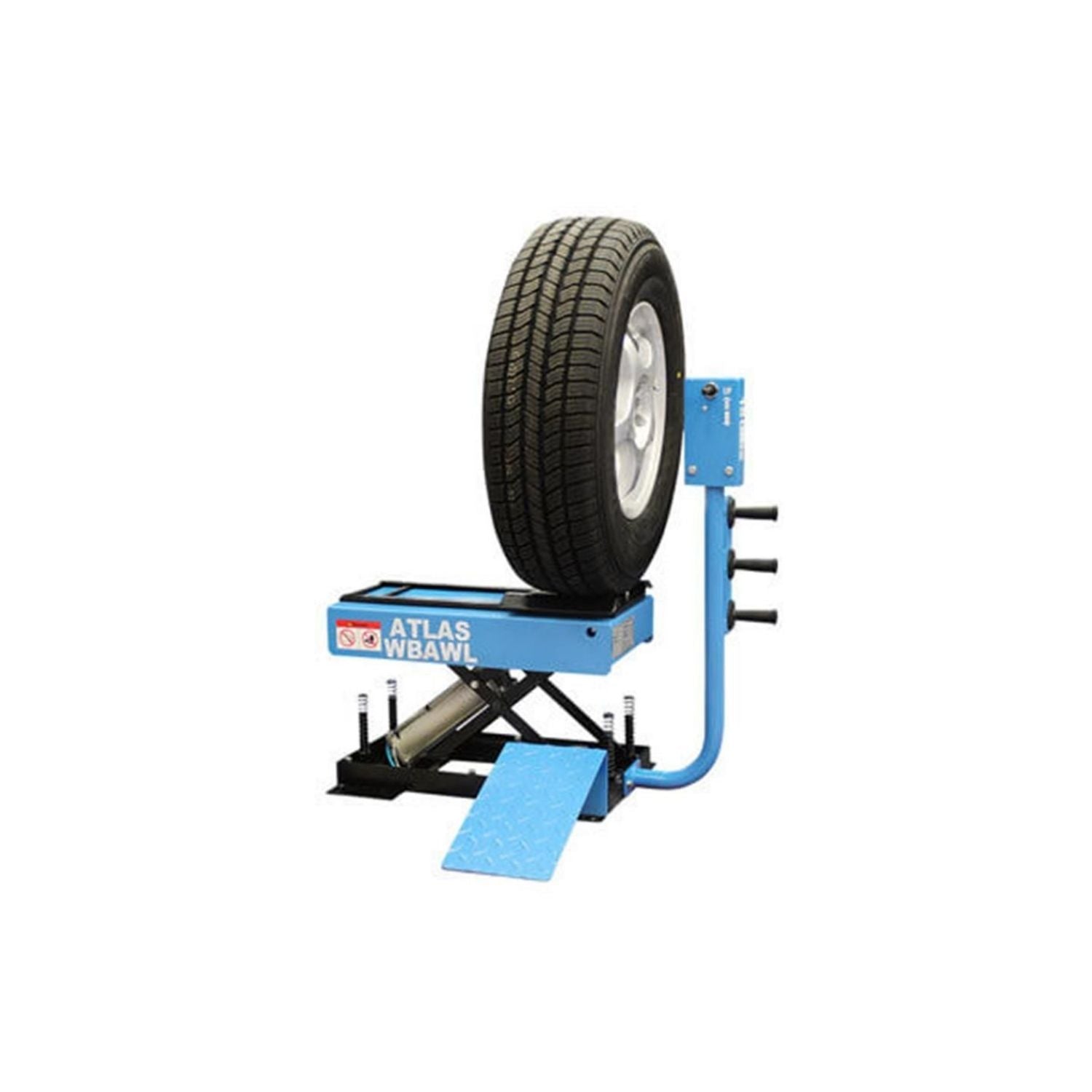

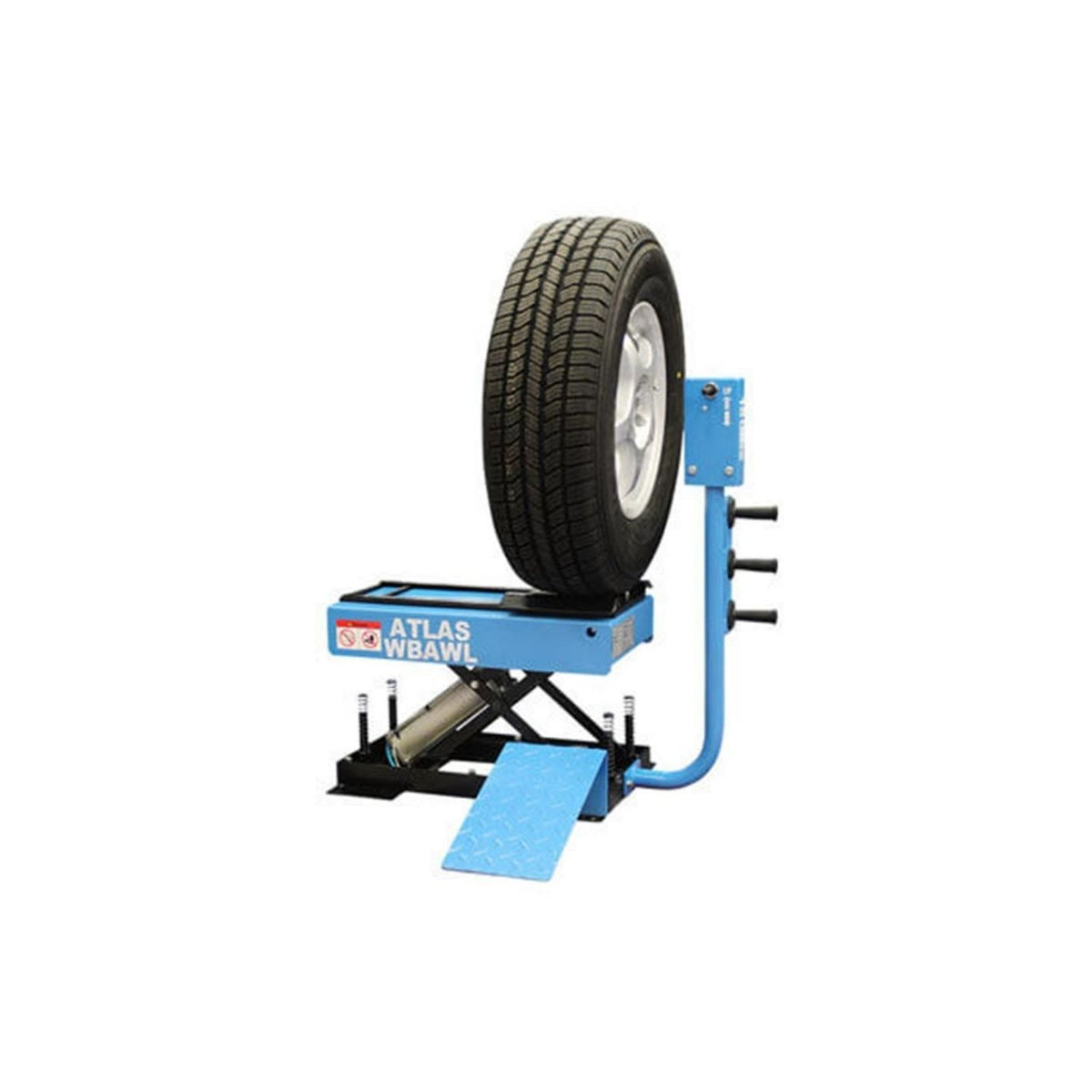

Mounting a heavy custom wheel onto a wheel balancer shaft by yourself is a two-hand job that only gives you one free hand — the other is holding 150 lbs of wheel and tire off the floor while you thread lug bolts or fight a universal adapter into place. The Atlas WBAWL solves that by rolling under most wheel balancers, raising the wheel to shaft height on a pneumatic platform, then sliding it straight onto the balancer without you ever supporting the full weight. Call Alamo at (844) 480-6059 and we will confirm it fits under your specific balancer before you buy.

Who the WBAWL Is Built For

• Tire and wheel shops running heavy custom wheels where lug-bolt-pattern mounting on the balancer shaft is a two-person job without a lift
• Shops that want one stationary lift positioned under the balancer permanently, rather than rolling a portable unit in and out for every job
• Techs who need both hands free to install universal lug adapters or quick-release nuts instead of one hand holding the wheel up
• Shops running a mix of wheel balancer brands and models — the WBAWL is built to fit under most stand-alone balancers regardless of brand
• Bays that already have a compressed air line run to the balancer station and want a simple pneumatic lift instead of a hydraulic or manual jack solution

What the WBAWL Is NOT Built For

• ❌ Wheel and tire assemblies over 150 lbs
• ❌ Shops without a compressed air line at the balancer station — the WBAWL is air-operated only

Still have questions about fit or capacity before you order? Call Alamo at (844) 480-6059 and we will walk through it with you.

What Makes the WBAWL Different

Built to Slide Under Most Wheel Balancers

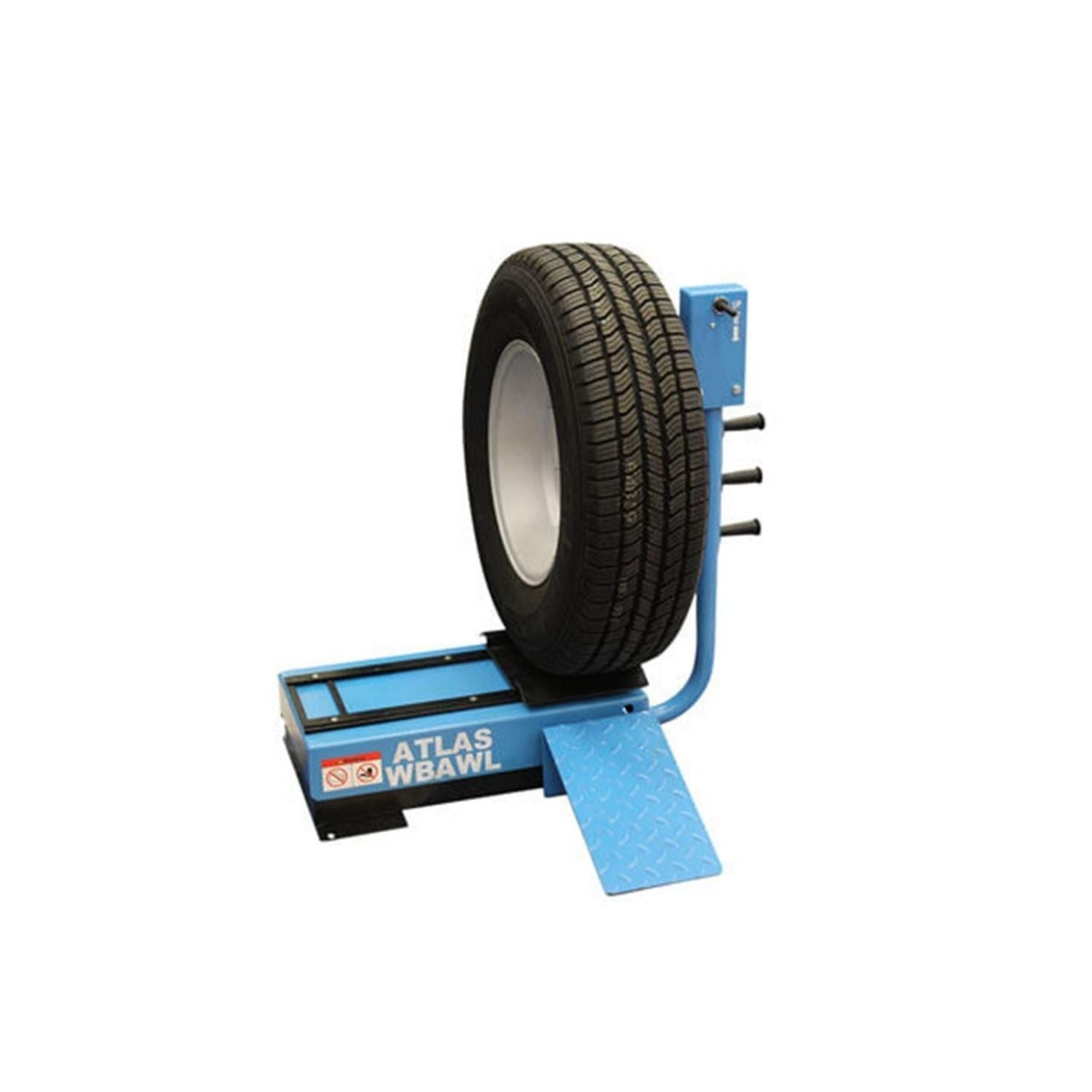

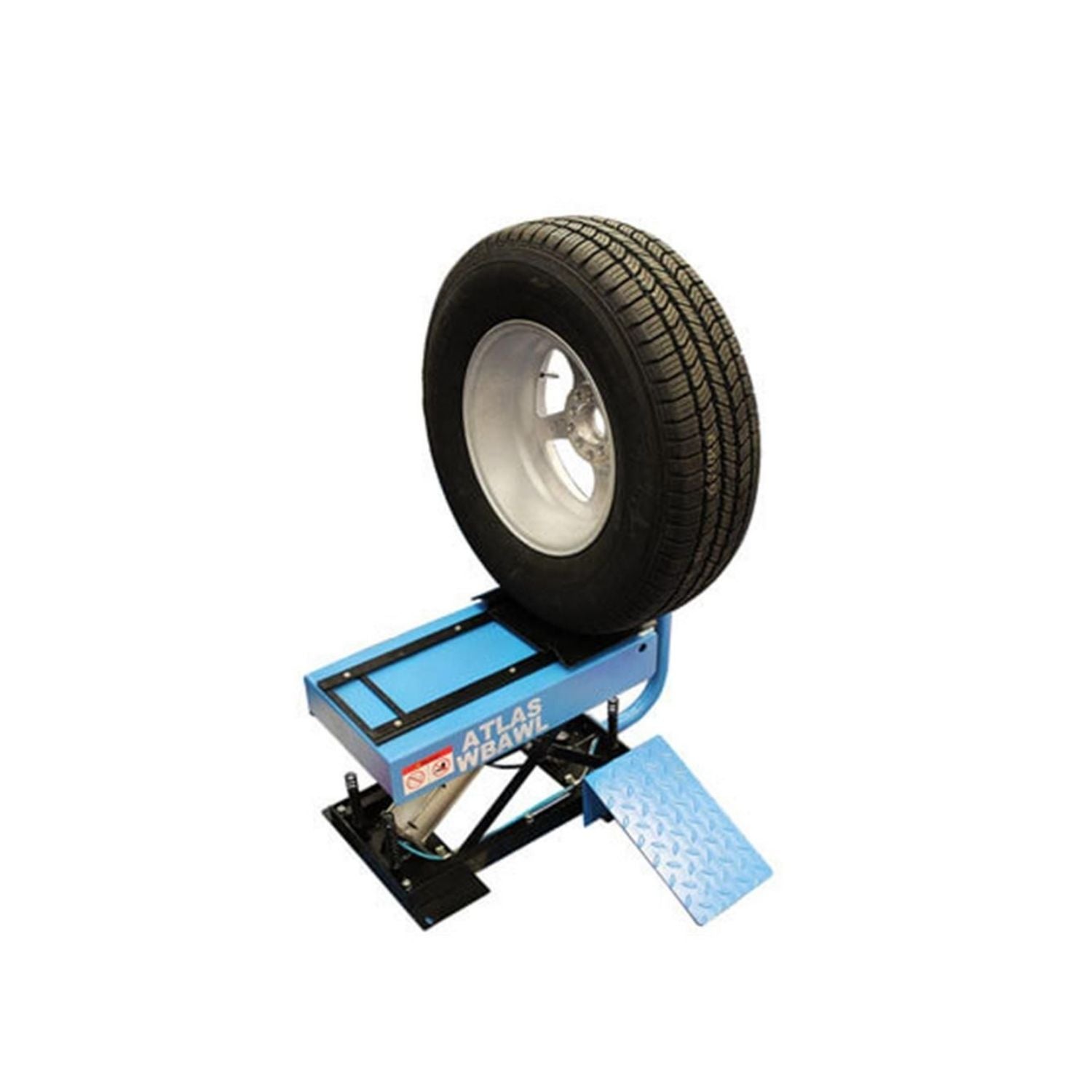

The WBAWL’s compact footprint is designed to fit under most stand-alone wheel balancers, so you are not locked into one brand or model. Roll the tire onto the lowered platform slide, raise it with a toggle switch, then slide it onto the balancer shaft at the correct mounting height every time.

Three Non-Mar Cone Hangers Keep Hardware Within Reach

The WBAWL includes three non-marring cone hangers built into the base, so your mounting cones and quick-release nut are stored right at the lift instead of scattered across the bench or lost on the floor.

Controlled Descent, Not a Sudden Drop

Four base-mounted detent springs give the platform a controlled descent leveling speed, and a base-mounted air regulator holds correct pressure to the pneumatic cylinder — so lowering a heavy wheel back down is a controlled motion, not a drop.

Air-Operated Means No Electrical Install

The WBAWL runs on 100 PSI shop air with an included air regulator and no electric motor to wire or breaker to size. If your balancer station already has an air drop, the WBAWL is ready to bolt in place the same day.

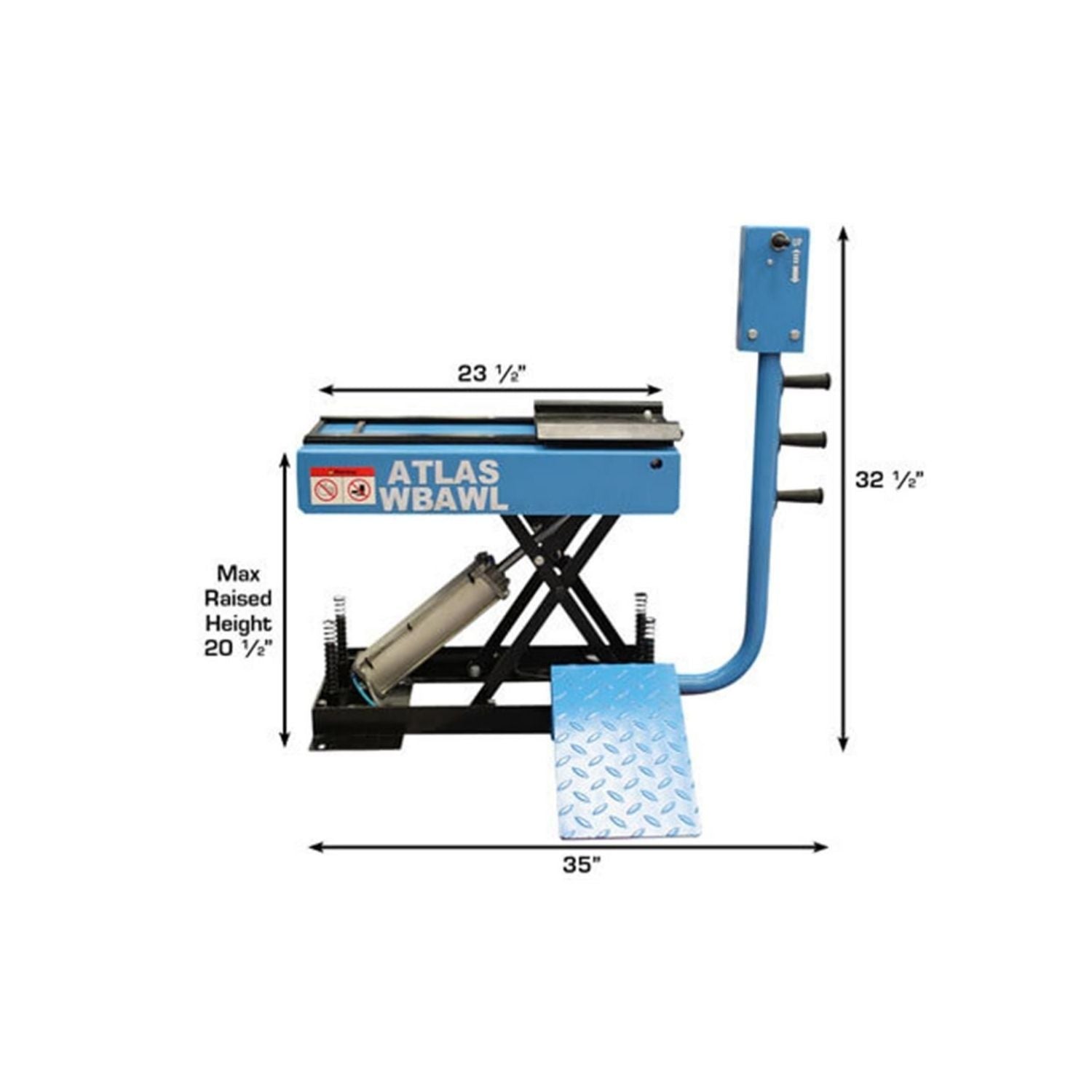

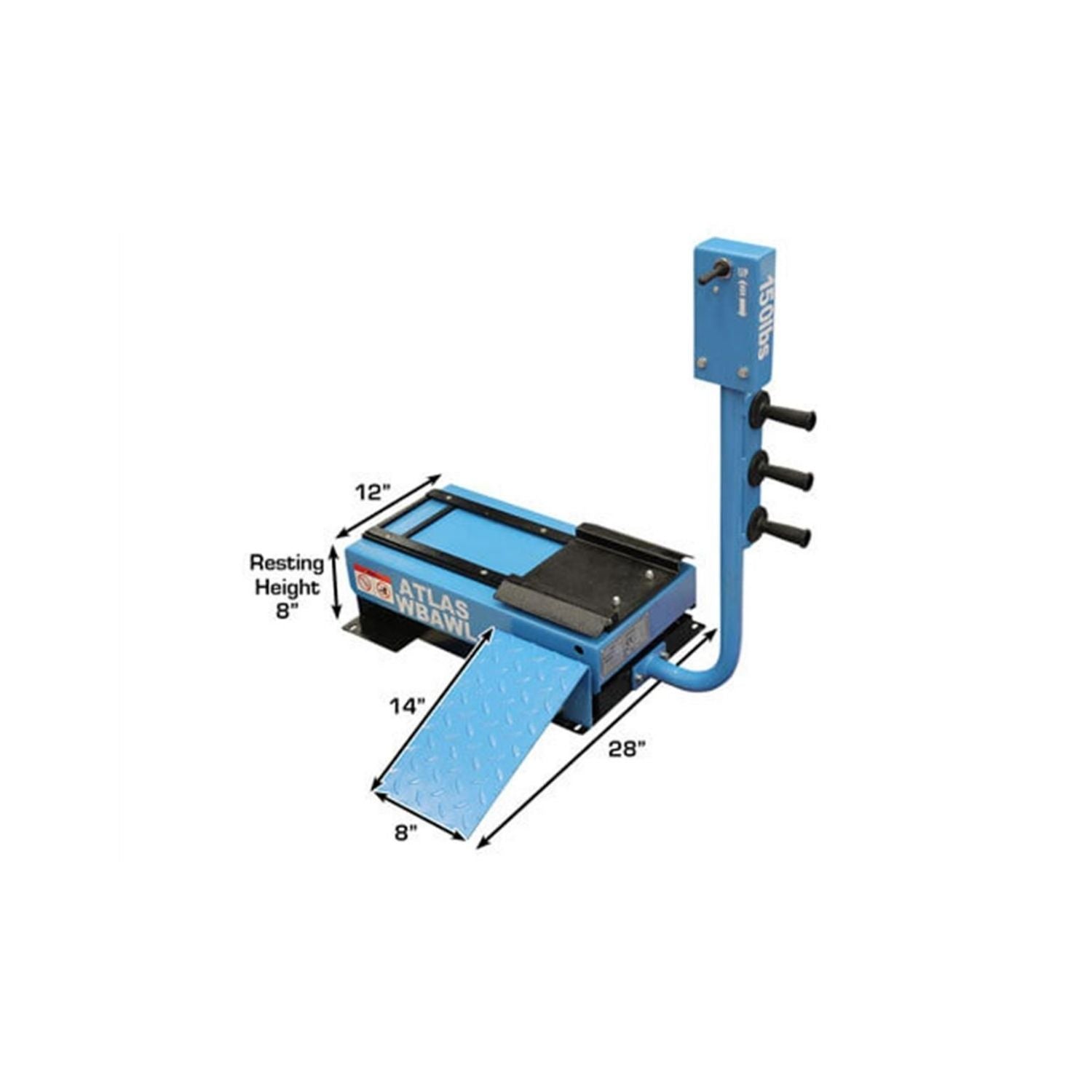

Full Specifications — Atlas WBAWL

Atlas Warranty — Atlas WBAWL

Call Alamo at (844) 480-6059 to confirm the current warranty term before you order.

Warranty administration runs through Alamo Equipment & Service either way — call (844) 480-6059 and we will verify the exact term and handle any claim directly, no manufacturer hotline required.
