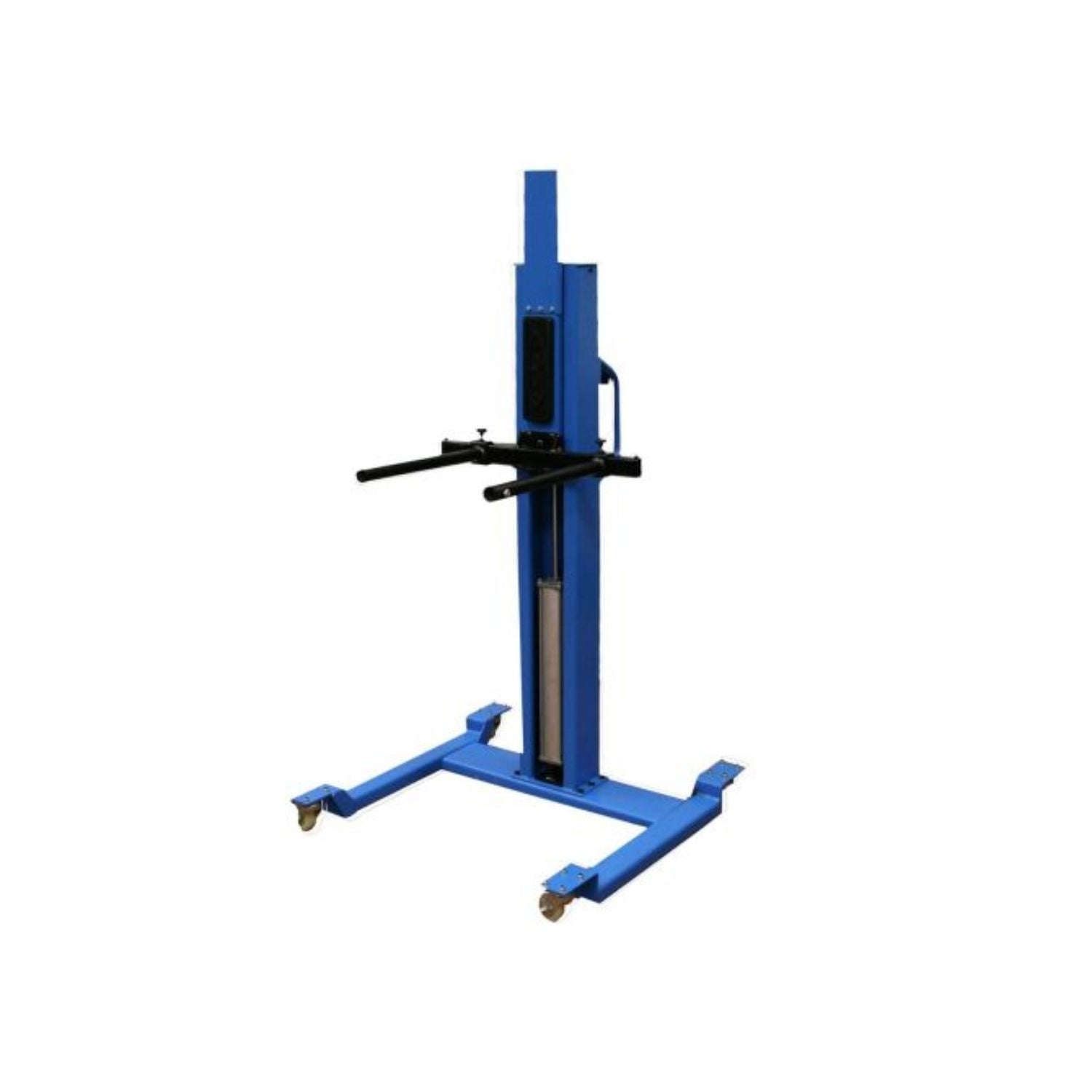

Atlas Portable Centered Pneumatic Wheel Lift #ATEATTC-AEZWL-FPD
Couldn't load pickup availability
Atlas Automotive Equipment Shipping
Equipment: Free shipping
Parts: Standard tiered rate
| Model / Part Number | ATEATTC-AEZWL-FPD |
| Capacity | 180 LBS |
| Lift Type | Portable centered pneumatic wheel lift, adjustable arms |
| Max Lifting Height | 39 1/8" |
| Required Air Pressure | 120 psi (see Full Specifications for a source note) |
| Warranty | 90-Day Parts Only |
⚠️ Setup Requirements
- Air supply: Requires an external compressed-air line — confirm exact regulator PSI with Alamo at (844) 480-6059.
- Floor space: Portable on 3" poly casters — rolls between stations, no fixed floor mounting required.
- Setup: Alamo can install and test this unit at your shop. Call (844) 480-6059 to schedule.
Atlas AEZWL — Portable Centered Pneumatic Wheel Lift, 180 lb. Capacity

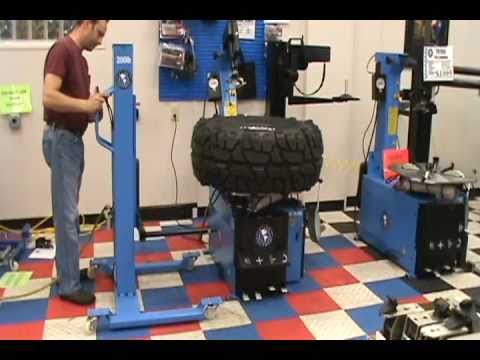

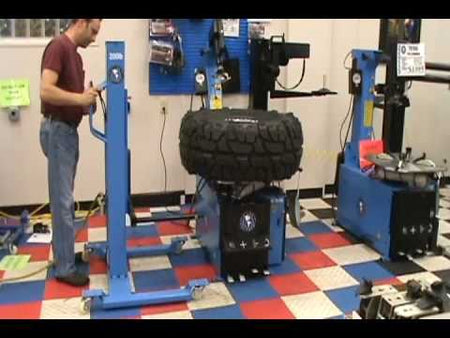

Bigger, heavier wheels mean more back strain and more risk of scratching an expensive rim every time you lift one onto a balancer shaft or tire changer turntable by hand.
The Atlas AEZWL solves that with a center-column pneumatic lift and arms that adjust in both width and length, so one lift handles a wide range of wheel diameters without you ever supporting the full weight yourself.
Who the AEZWL Is Built For
- Tire and wheel shops lifting a wide range of wheel diameters and widths onto balancer shafts or tire changer turntables
- Bays wanting one adjustable lift that covers multiple wheel sizes instead of a fixed-arm unit built for one size range
- Shops running expensive custom wheels where scratching a rim against a shaft or turntable edge is a real cost concern
- Techs who need a portable lift on casters they can roll between stations rather than a fixed, stationary unit
- Shops without an offset/roller-arm need — straight vertical lifting onto a center point is all that’s required
What the AEZWL Is NOT Built For
- ❌ Wheel and tire assemblies over 180 lbs
- ❌ Shops without a compressed air line — the AEZWL is air-operated only
Still have questions about fit or capacity before you order? Call Alamo at (844) 480-6059 and we will walk through it with you.
What Makes the AEZWL Different
Arms Adjust in Width AND Length
The AEZWL’s arms adjust from 17 1/2" to 33 1/4" in length and 9" to 22" in distance between arms — a huge range that lets one lift handle everything from compact car wheels to large truck wheels without swapping equipment.
Center-Column Design for Straight Vertical Lift
Unlike the offset AEZWL-2, the AEZWL uses a center-column design built for straight-up lifting onto a shaft or turntable center point — the simpler choice when your workflow doesn’t need roller-arm repositioning.
Portable on 3" Poly Casters
Four swivel casters make the AEZWL easy to move and position wherever it’s needed — roll it to the balancer for one job, then to the tire changer for the next.
Smooth Air Operation
Requires only 116–145 PSI shop air per Atlas’s own specification sheet (note: Atlas’s narrative description text also references this 116–145 PSI figure, while a separate spec-bullet line on the same page lists 120 psi — we’ve flagged this minor inconsistency on Atlas’s own page in our source records). Either way, no electric motor, no wiring, no breaker sizing.
- ✅ Tire and wheel shops handling a wide range of wheel diameters and widths
- ✅ Bays wanting one adjustable-arm lift instead of swapping fixed-size equipment
- ✅ Shops needing straight-up vertical lifting without offset roller-arm repositioning
- ❌ Wheel and tire assemblies over 180 lbs
- ❌ Shops without a compressed air line — the AEZWL is air-operated only
AEZWL (Centered) vs. Atlas AEZWL-2 (Off-Centered) — Which Portable Wheel Lift Fits Your Shop?
| Decision Point | AEZWL (Centered) | AEZWL-2 (Offset) |
|---|---|---|
| Capacity | 180 LBS | 180 LBS |
| Design | Center column, adjustable-width & length arms | Offset with roller arms for lug-bolt alignment |
| Best use | General-purpose lifting across a range of wheel sizes | Positioning wheels precisely onto a shaft or stud pattern |
| Air requirement | 120 psi (per spec bullet) | 116–145 psi |
Choose the AEZWL when your wheel just needs straight-up lifting across a range of sizes. Choose the AEZWL-2 when you need offset roller-arm positioning to line up lug bolts precisely. Call (844) 480-6059 and we will help you pick the right one for your workflow.
Full Specifications — Atlas AEZWL
| Model / Part Number | ATEATTC-AEZWL-FPD |
| Capacity | 180 LBS |
| Lift Type | Portable centered pneumatic wheel lift, adjustable arms |
| Max Lifting Height | 39 1/8" |
| Min Lifting Height | 4" |
| Arm Length (adjustable) | 17 1/2" – 33 1/4" |
| Distance Between Arms (adjustable) | 9" – 22" |
| Overall Height | 66 7/8" |
| Required Air Pressure | 120 psi |
| Mobility | 3" poly casters (portable) |
| Shipping Weight | 175 LBS |
Atlas Warranty — Atlas AEZWL
Atlas backs the AEZWL with a 90-Day Parts Only Warranty.
| Component | Coverage Term |
|---|---|
| All covered components (parts only) | 90 days |
| Labor / wear items | Not covered (parts-only warranty) |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — Atlas AEZWL
Is the Atlas AEZWL ALI certified?
ALI certification standards are written for automotive lifts that support a vehicle's full weight. The AEZWL is a pneumatic wheel-positioning accessory rated for 180 lbs, not an ALI-certifiable vehicle lift.
What is the AEZWL's warranty?
Atlas backs the AEZWL with a 90-Day Parts Only Warranty, per Atlas's own published specifications for this model.
Does the AEZWL need compressed air?
Yes — it's air-operated. Atlas's own product page lists 120 psi as the spec-sheet requirement, while separate narrative text on the same page references 116–145 psi; call (844) 480-6059 and we'll confirm the exact regulator setting for your unit.
What's the difference between the AEZWL and the AEZWL-2?
The AEZWL uses a center-column design with adjustable-width and adjustable-length arms for straight-up lifting; the AEZWL-2 has an offset design with roller arms for lining up lug bolts on an angle.
Why Buy the Atlas AEZWL from Alamo Equipment & Service?
- We confirm the fit first. Not sure if the centered AEZWL or the offset AEZWL-2 is right for your workflow? Call and we will walk through it.
- We service what we sell. If the AEZWL needs attention after install, call (844) 480-6059 — you are talking to the shop that installed it, not a manufacturer call center.
- Free shipping. The AEZWL ships free to all 48 contiguous states.
- Expert comparison help. Deciding between the centered AEZWL and the offset AEZWL-2? Call (844) 480-6059 — we will give you a straight answer based on what you actually service.
- Verified warranty terms. We confirmed the AEZWL's 90-Day Parts Only Warranty directly from Atlas's own documentation — no guessing on coverage.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
