Atlas Off-Centered Pneumatic Wheel Lift #ATEATTC-AEZWL-2-FPD
Couldn't load pickup availability
| Model / Part Number | ATEATTC-AEZWL-2-FPD |
| Capacity | 180 LBS |
| Lift Type | Portable offset pneumatic wheel lift with roller arms |

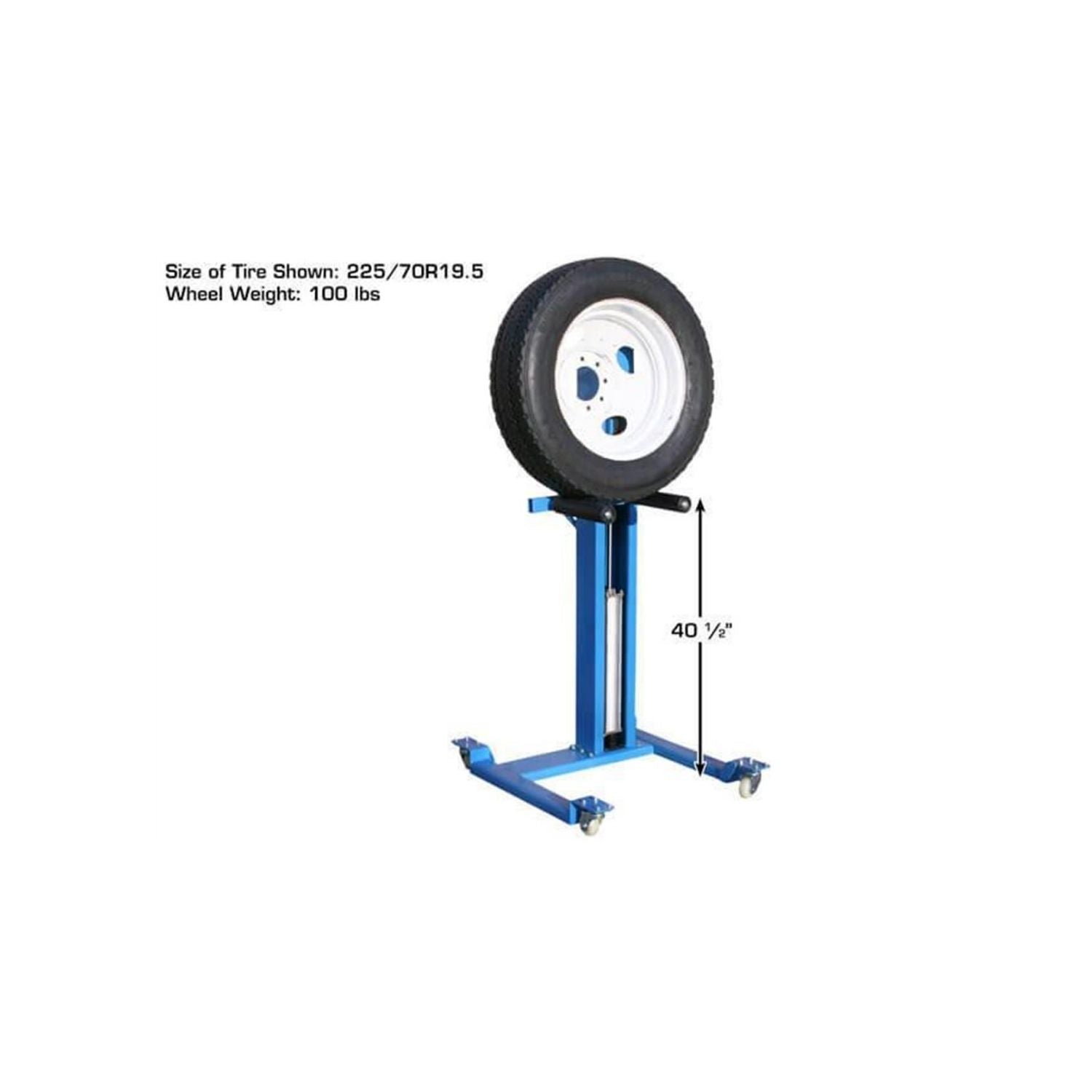

| Max Lifting Height | 40 1/2" |
| Required Air Pressure | 116–145 psi |
| Warranty | 90-Day Parts Only |
⚠️ Setup Requirements
- Air supply: Requires an external compressed-air line at 116–145 PSI.
- Floor space: Portable on 3" poly casters — rolls between stations, no fixed floor mounting required.
- Setup: Alamo can install and test this unit at your shop. Call (844) 480-6059 to schedule.

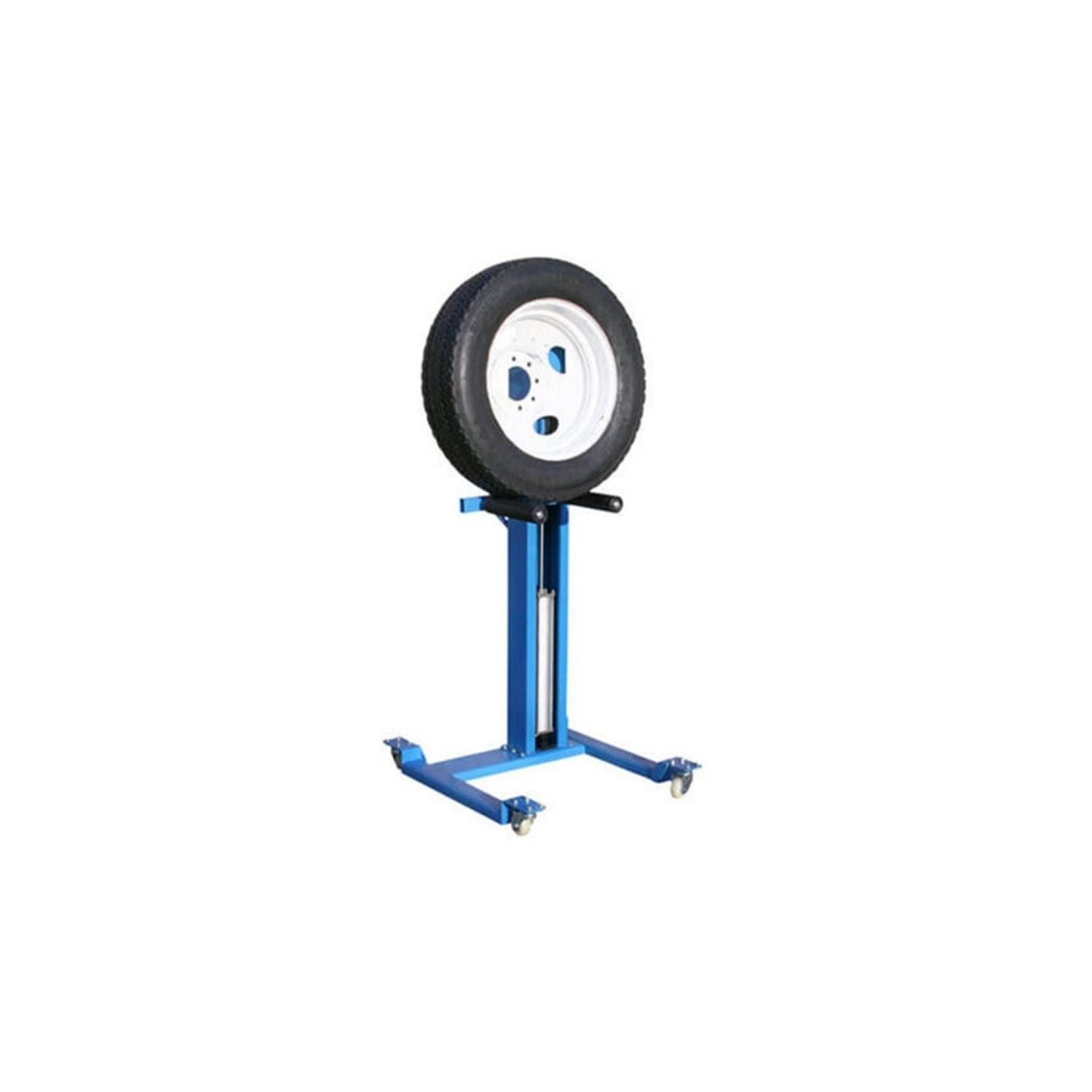

Atlas AEZWL-2 — Off-Centered Pneumatic Wheel Lift, 180 lb. Capacity
Lining up a heavy custom wheel with the lug bolt pattern on a balancer shaft or a tire changer turntable is where backs get thrown out and rims get scratched — especially when the wheel is off-center from where you are standing.
The Atlas AEZWL-2 solves that with an offset design and roller arms that let you roll and rotate the wheel into exact position after it is already lifted, instead of muscling the whole assembly sideways by hand.
Who the AEZWL-2 Is Built For
- Tire and wheel shops mounting heavier custom wheels onto a balancer shaft, tire changer turntable, or a car raised on a scissor or 2-post lift
- Shops where the wheel needs to be rolled and rotated into exact lug-bolt alignment after lifting — the offset roller arms make that a one-person job
- Bays running expensive custom wheels where scratching a rim against a balancer shaft or turntable edge is a real cost concern
- Shops that want a portable lift on casters they can roll between stations rather than a fixed, stationary unit
- Techs doing tire and wheel work on vehicles already raised on a 2-post or scissor lift, where the wheel still needs positioning support
What the AEZWL-2 Is NOT Built For
- ❌ Wheel and tire assemblies over 180 lbs
- ❌ Shops without a compressed air line — the AEZWL-2 is air-operated only
Still have questions about fit or capacity before you order? Call Alamo at (844) 480-6059 and we will walk through it with you.
What Makes the AEZWL-2 Different

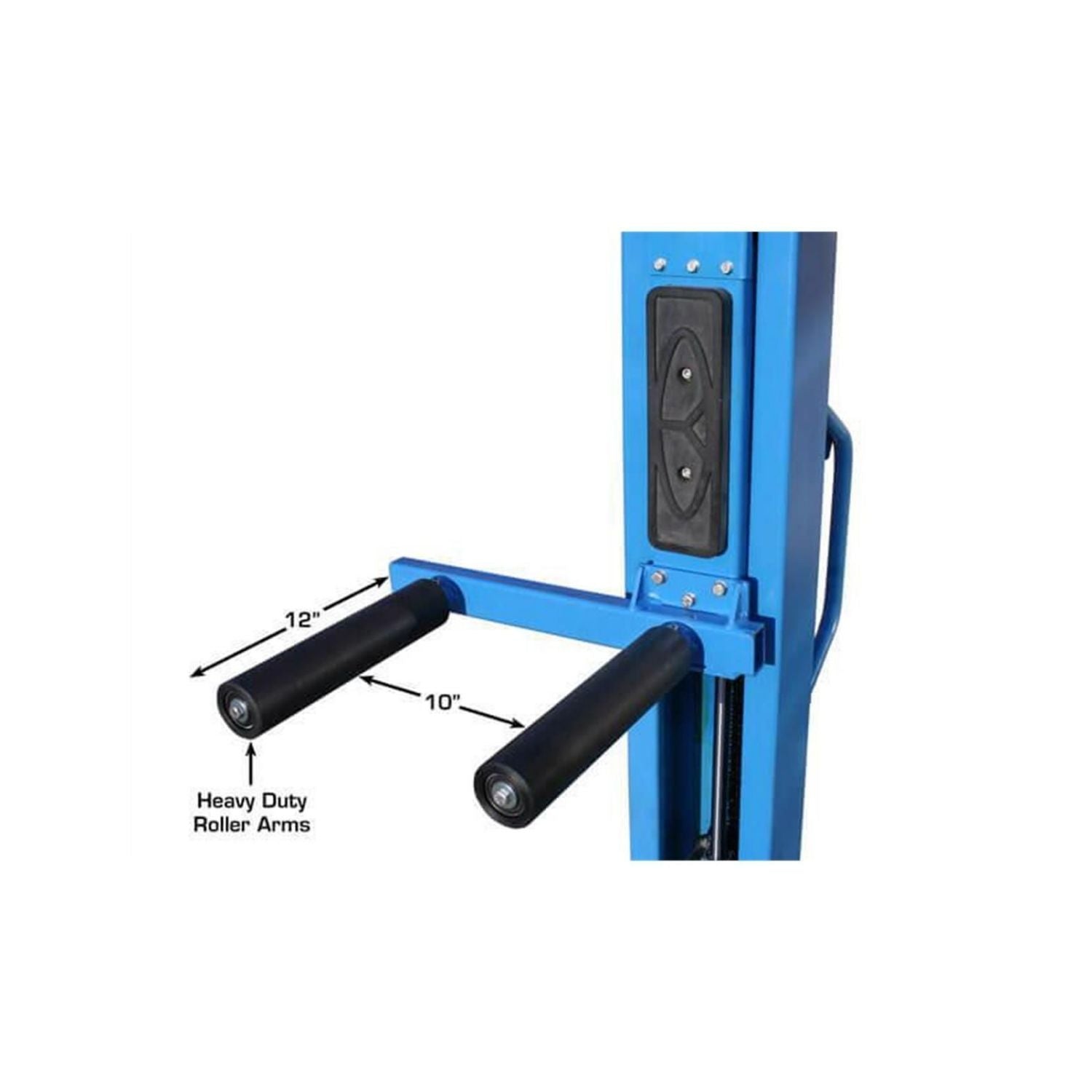

Offset Design With Roller Arms
Unlike a fixed center-column lift, the AEZWL-2’s offset design and roller arms let you roll and rotate the wheel into exact lug-bolt alignment after it is already lifted — no more shifting 180 lbs of wheel by hand to line it up.
180 lb. Capacity for Today’s Heavier Wheels
Modern wheel and tire assemblies keep getting bigger and heavier. The AEZWL-2 is rated to 180 lbs, giving you headroom over lighter-duty wheel lifts for large truck and custom wheel work.

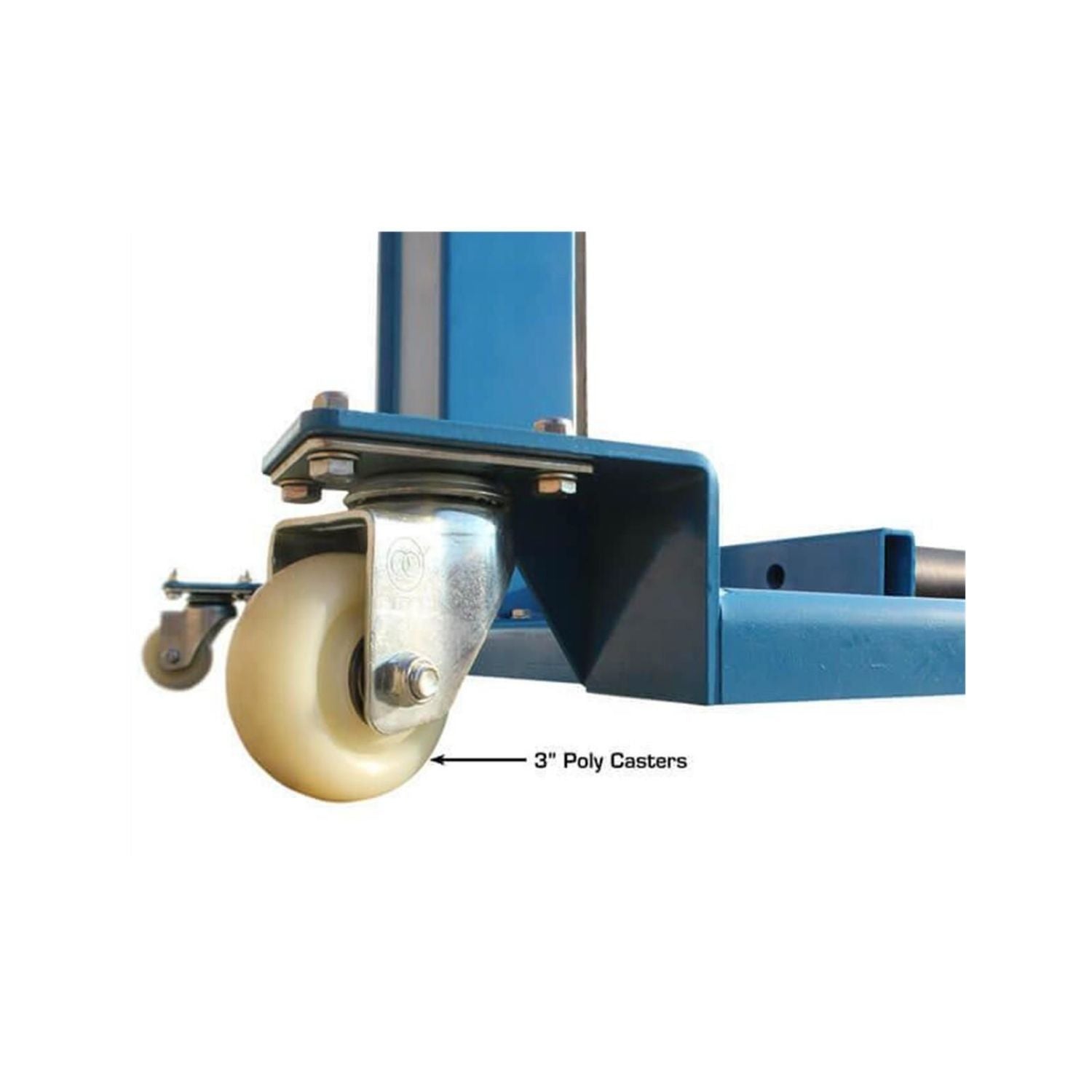

Portable on 3" Poly Casters
Four poly casters let you roll the AEZWL-2 between your balancer, tire changer, and lift bays instead of installing it permanently at one station — useful in shops running multiple wheel-service machines.

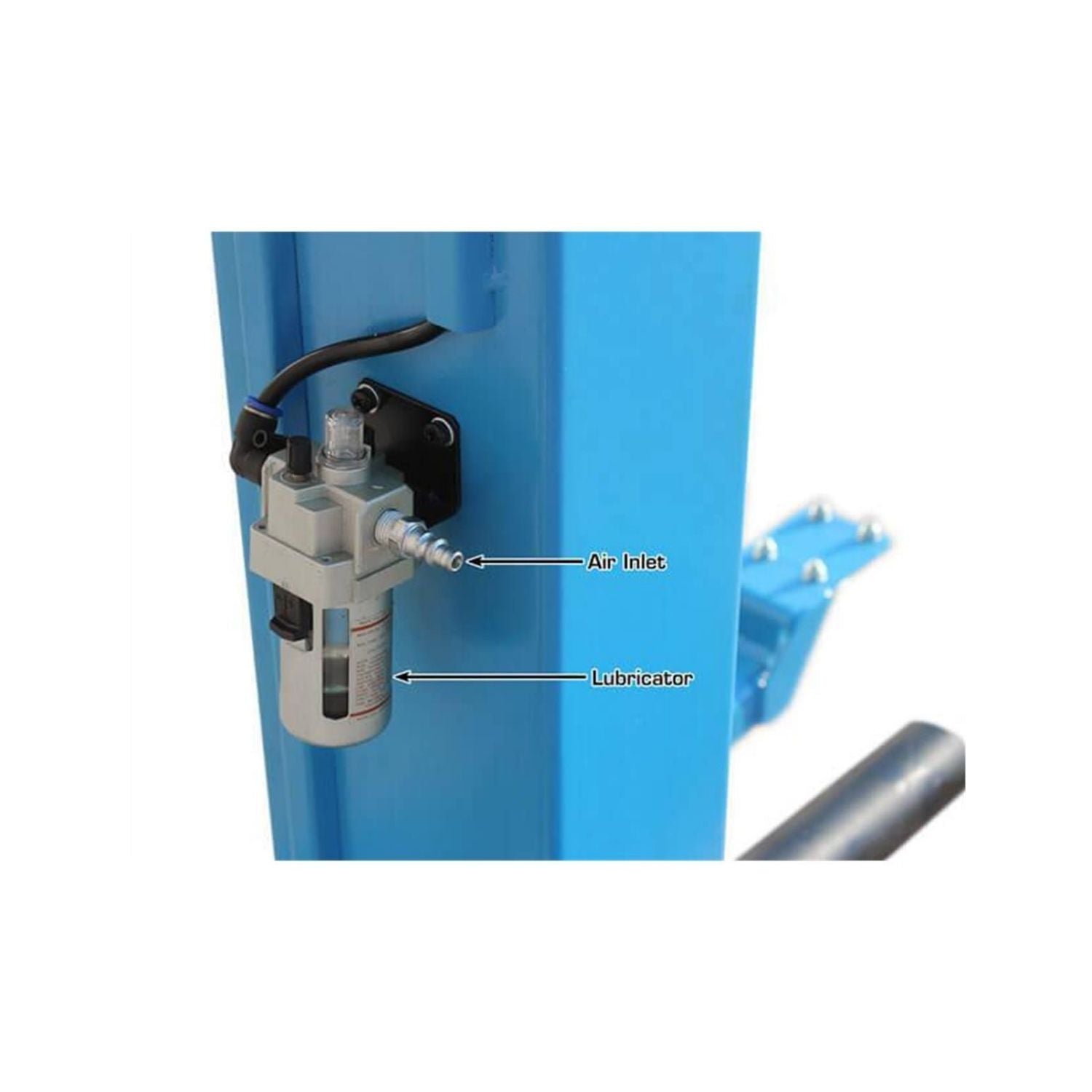

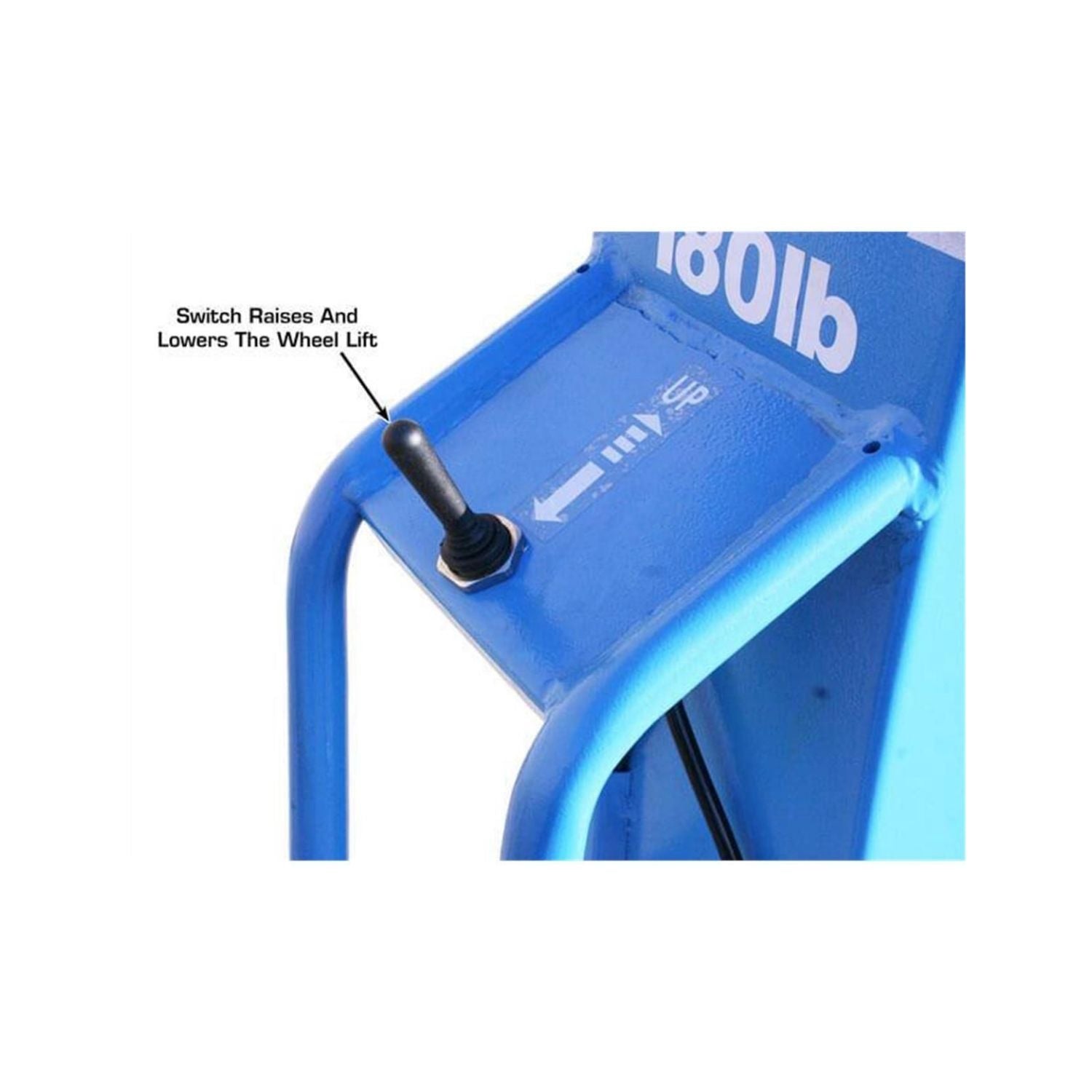

Air-Operated at 116–145 PSI
Smooth pneumatic operation requires only 116–145 PSI shop air — no electric motor, no wiring, no breaker to size. If your bay already has a compressed air drop, the AEZWL-2 is ready to roll into place the same day.
- ✅ Tire and wheel shops mounting heavier custom wheels onto balancers, turntables, or raised vehicles
- ✅ Shops needing roller-arm positioning to line up lug bolts without manual wheel shifting
- ✅ Bays wanting a portable lift that rolls between multiple wheel-service stations
- ❌ Wheel and tire assemblies over 180 lbs
- ❌ Shops without a compressed air line — the AEZWL-2 is air-operated only
AEZWL-2 (Off-Centered) vs. Atlas AEZWL (Centered) — Which Portable Wheel Lift Fits Your Shop?
| Decision Point | AEZWL-2 (Offset) | AEZWL (Centered) |
|---|---|---|
| Capacity | 180 LBS | 180 LBS |
| Design | Offset with roller arms for lug-bolt alignment | Center column, adjustable-width arms |
| Best use | Positioning wheels precisely onto a shaft or stud pattern | General-purpose lifting across a range of wheel sizes |
| Air requirement | 116–145 psi | 120 psi |
Choose the AEZWL-2 when you need roller-arm positioning to line up lug bolts on an offset wheel. Choose the AEZWL (centered) when your wheel just needs straight-up lifting without offset roller positioning. Call (844) 480-6059 and we will help you pick the right one for your workflow.

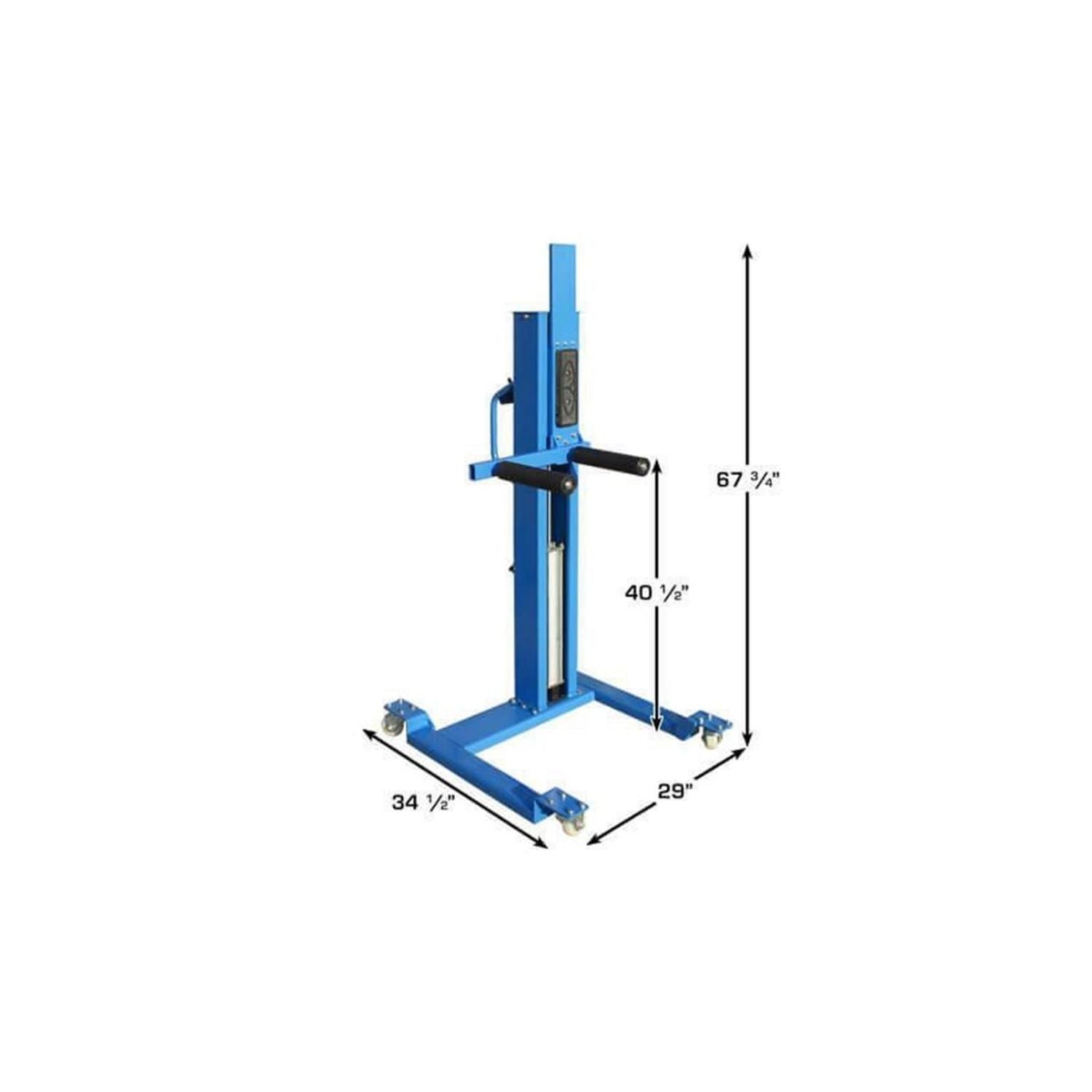

Full Specifications — Atlas AEZWL-2
| Model / Part Number | ATEATTC-AEZWL-2-FPD |
| Capacity | 180 LBS |
| Lift Type | Portable offset pneumatic wheel lift with roller arms |

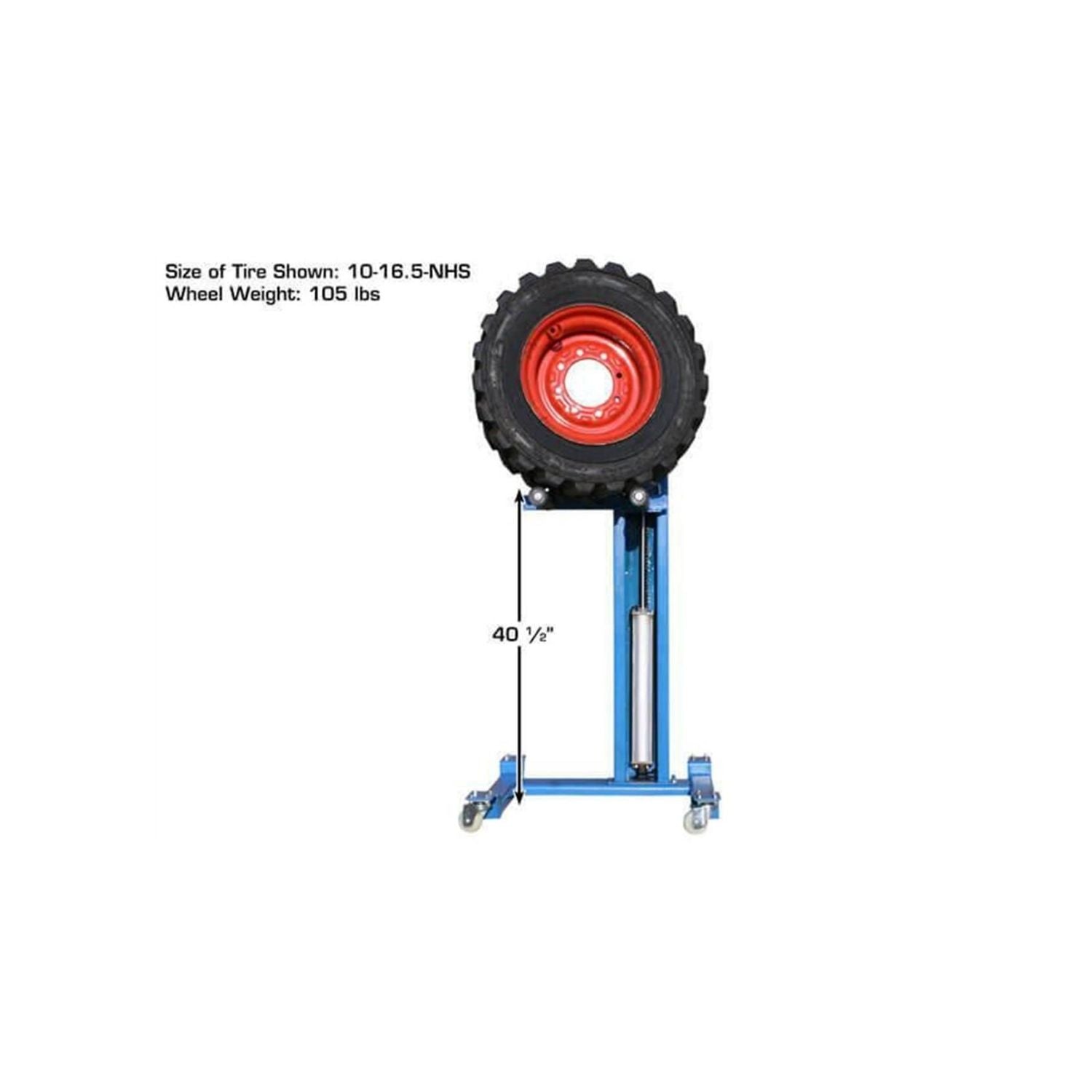

| Max Lifting Height | 40 1/2" |

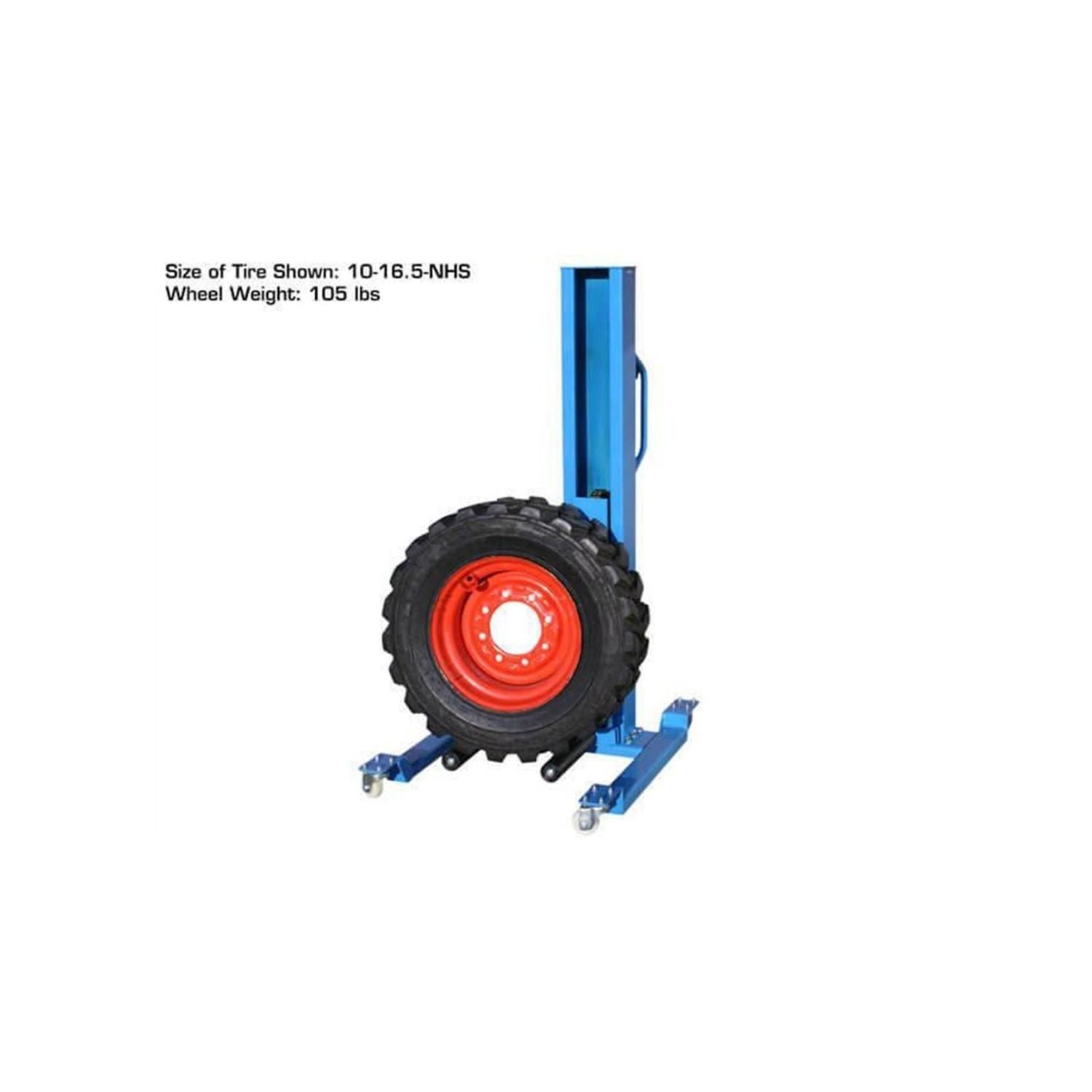

| Min Lifting Height | 5 1/2" |
| Arm Length | 12" |
| Distance Between Arms | 10" |

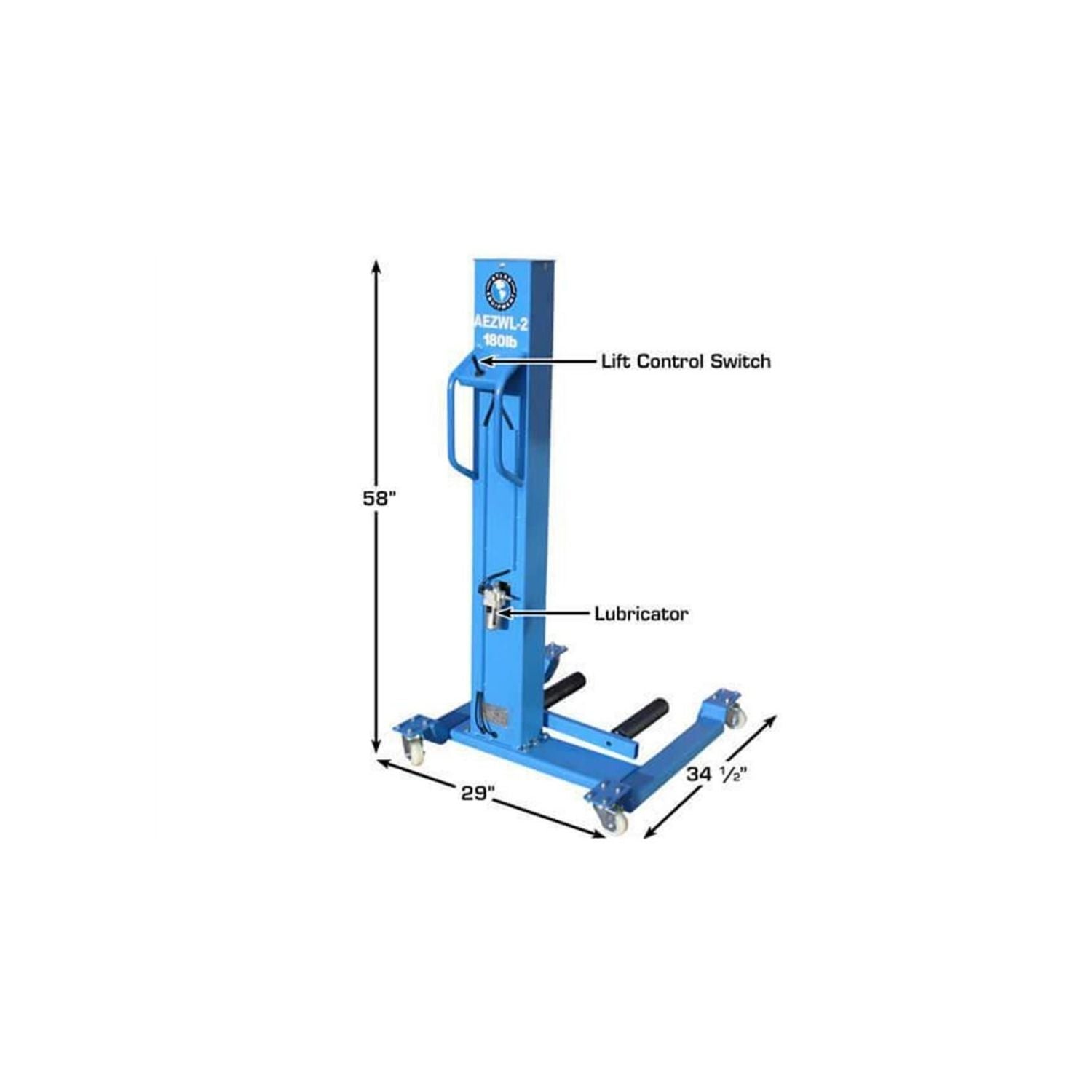

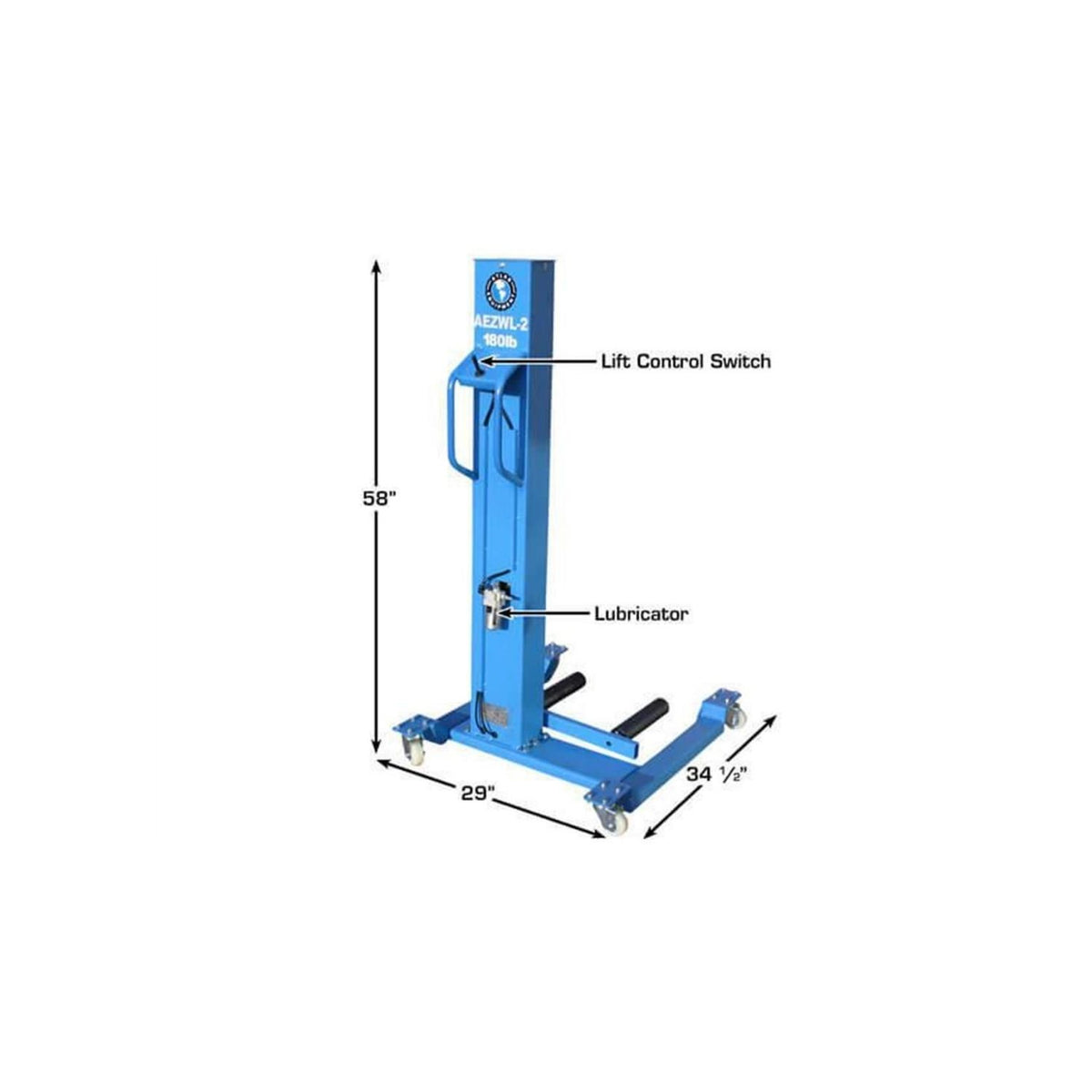

| Overall Height | 67 3/4" |
| Overall Width | 29" |
| Overall Depth | 34 1/2" |
| Required Air Pressure | 116–145 psi |
| Mobility | 3" poly casters (portable) |
| Shipping Weight | 175 LBS |
Atlas Warranty — Atlas AEZWL-2
Atlas backs the AEZWL-2 with a 90-Day Parts Only Warranty.
| Component | Coverage Term |
|---|---|
| All covered components (parts only) | 90 days |
| Labor / wear items | Not covered (parts-only warranty) |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — Atlas AEZWL-2
Is the Atlas AEZWL-2 ALI certified?
ALI certification standards are written for automotive lifts that support a vehicle's full weight. The AEZWL-2 is a pneumatic wheel-positioning accessory rated for 180 lbs, not an ALI-certifiable vehicle lift.
What is the AEZWL-2's warranty?
Atlas backs the AEZWL-2 with a 90-Day Parts Only Warranty, per Atlas's own published specifications for this model.
Does the AEZWL-2 need compressed air?
Yes — it's air-operated and requires 116–145 PSI shop air. There is no electric motor.
What's the difference between the AEZWL-2 and the AEZWL?
The AEZWL-2 has an offset design with roller arms for lining up lug bolts on an angle; the standard AEZWL uses a center-column design with adjustable arms for straight-up lifting.
Why Buy the Atlas AEZWL-2 from Alamo Equipment & Service?
- We confirm the fit first. Not sure if the offset design is what your shop needs versus the centered AEZWL? Call and we will walk through your workflow.
- We service what we sell. If the AEZWL-2 needs attention after install, call (844) 480-6059 — you are talking to the shop that installed it, not a manufacturer call center.
- Free shipping. The AEZWL-2 ships free to all 48 contiguous states.
- Expert comparison help. Deciding between the offset AEZWL-2 and the centered AEZWL? Call (844) 480-6059 — we will give you a straight answer based on what you actually service.
- Verified warranty terms. We confirmed the AEZWL-2's 90-Day Parts Only Warranty directly from Atlas's own documentation — no guessing on coverage.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
