Atlas APEX 8,000 lb Certified 4-Post Hobbyist Lift #ATEATTD-APEX8-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

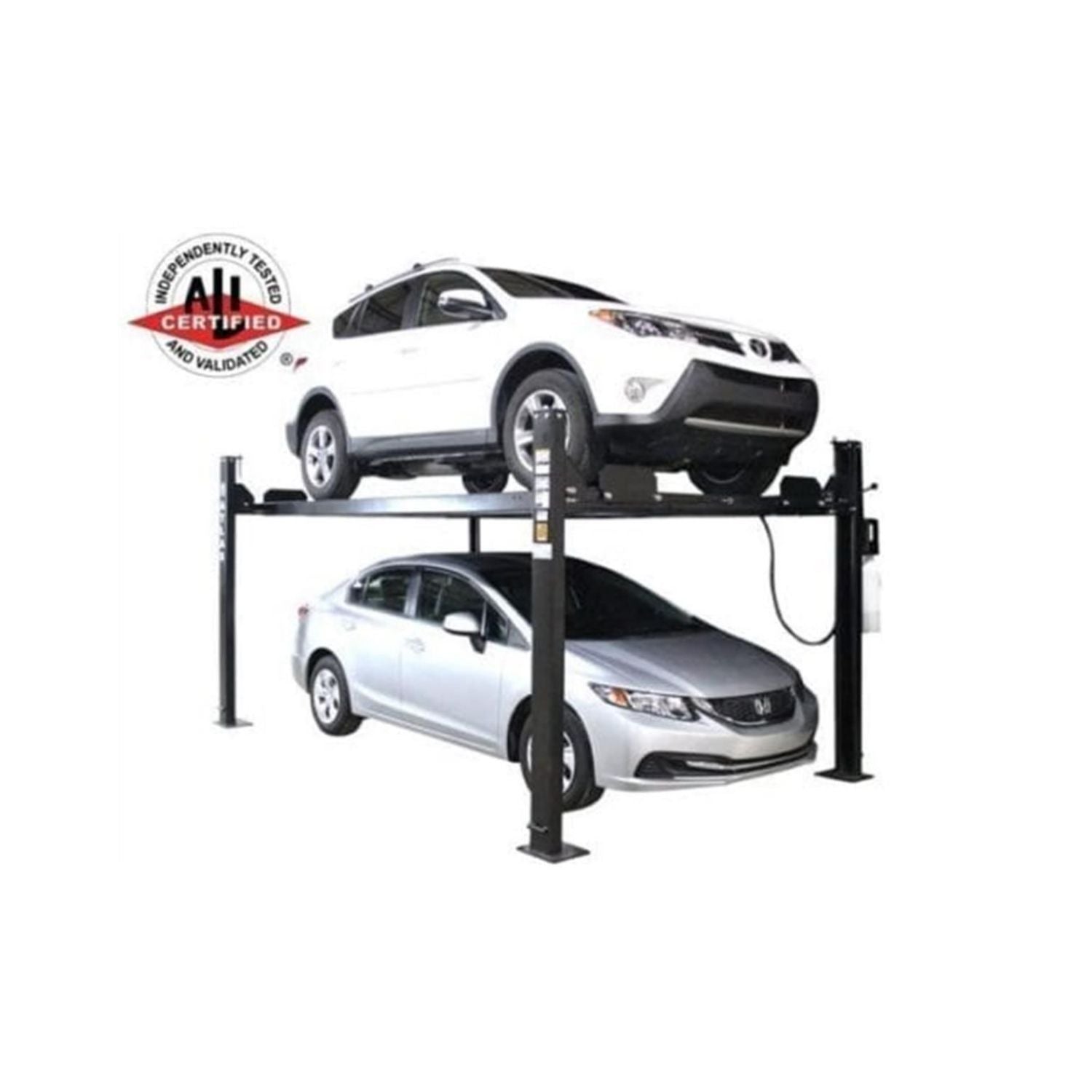

  The Atlas APEX Certified 8,000 lb 4-Post Hobbyist Lift is designed for home garages and light-duty service applications requiring enhanced safety and quality standards.

  As part of the APEX certified line, this lift meets higher certification requirements, providing added confidence for users. With an 8,000 lb capacity, it is ideal for cars, SUVs, and light trucks, while the 4-post design offers excellent stability for both vehicle storage and service work.

• FEATURES AND BENEFITS

  • ALI Certified Lift

  • Free Standing/Portable Design
  • Powder Coat Finish
  • Single Point Lock Release
  • Lock Ladder Design
  • Double Lock Safety System
  • Steel Approach Ramps Included
  • Wheel Stops Included
  • Two Wheel Chocks Included
  • Caster Kit with Polyurethane wheels Included
  • Anchor Bolts Optional (Sold Separately)
  • Perfect for Storage or Working on Vehicles
  • 110volt Electric Operation (Requires 30amp Breaker)
  • Shipping Weight: 2,000 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-APEX8-FPD
  Dimensions:	171" L × 23" W × 21" H
  UPC:	810524028653
  Country of Origin:	CHN
  Capacity:	8,000 lb.

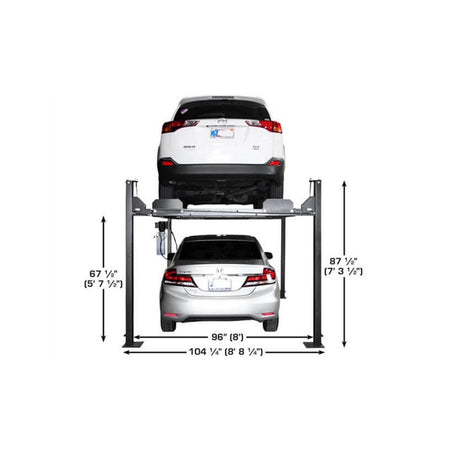

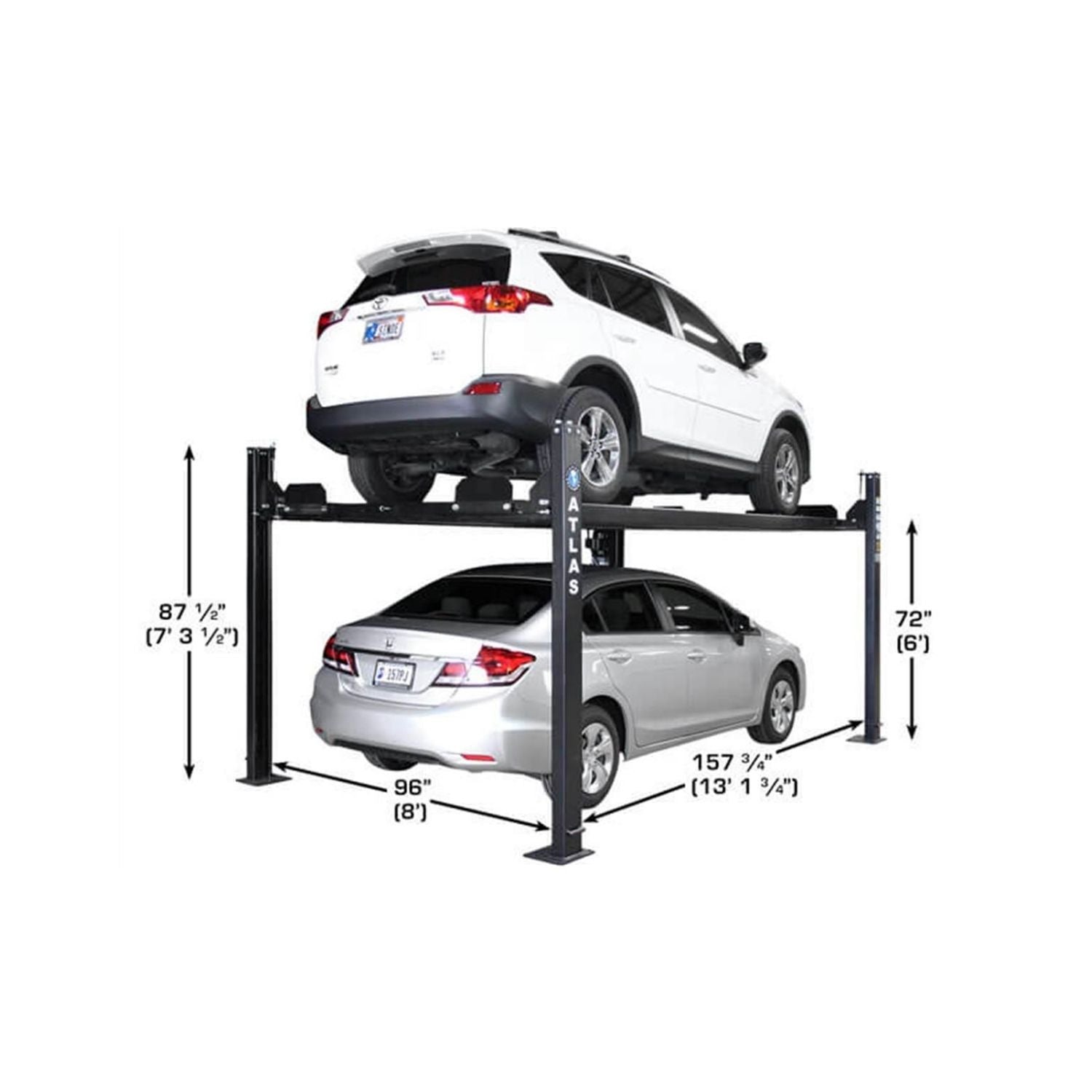

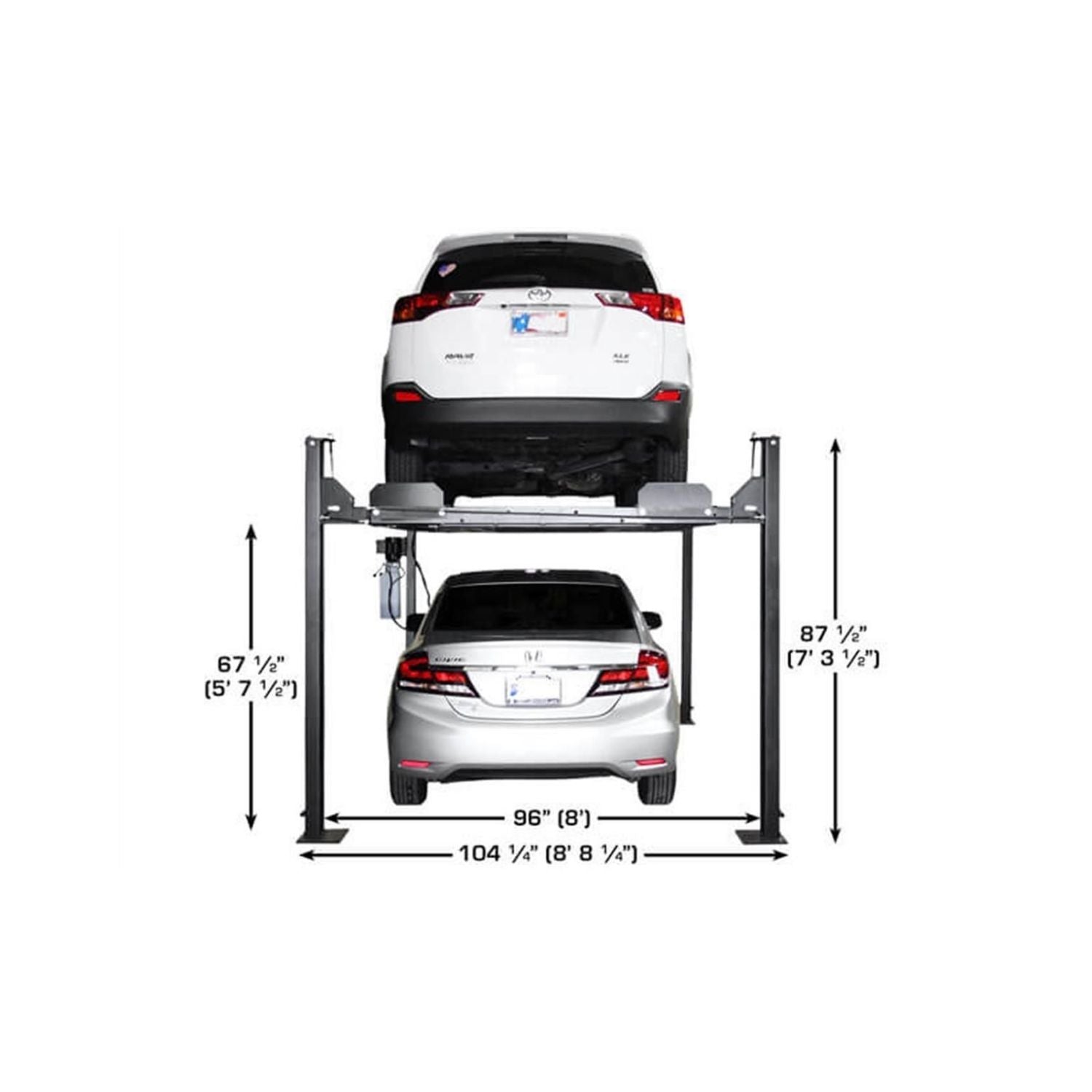

  Lifting Height To Top of Runway:	72" (6')
  Clearance Under Runways:	67" (5' 7")
  Height of Columns (Including Nuts):	86 5/8" (7' 2 5/8")
  Overall Width (Without Motor or Casters):	104" (8' 8")
  Overall Width (With Motor):	114" (9' 6")

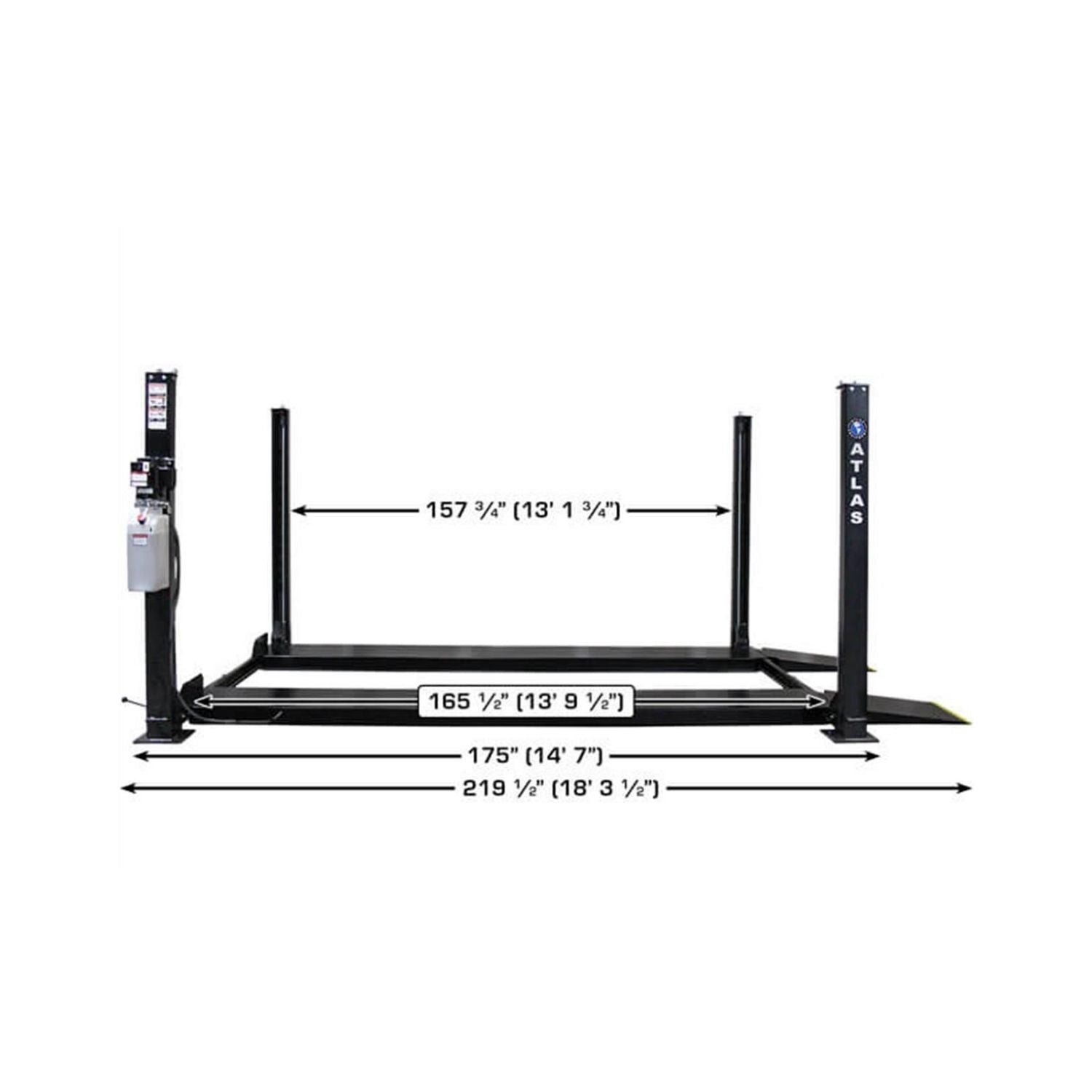

  Overall Length without Approach Ramps (Including Lock Release Bar):	186 1/2" (15' 6 1/2")
  Overall Length with Approach Ramps:	207 5/6" (17' 3 5/6")
  Approach Ramps:	37 1/2" (3' 1 1/2")
  Runway Width:	18 2/3"
  Runway Rail Width:	2 1/2"
  Runway Length:	169 1/2" (14' 1 1/2")
  Runway Thickness:	4 1/3"

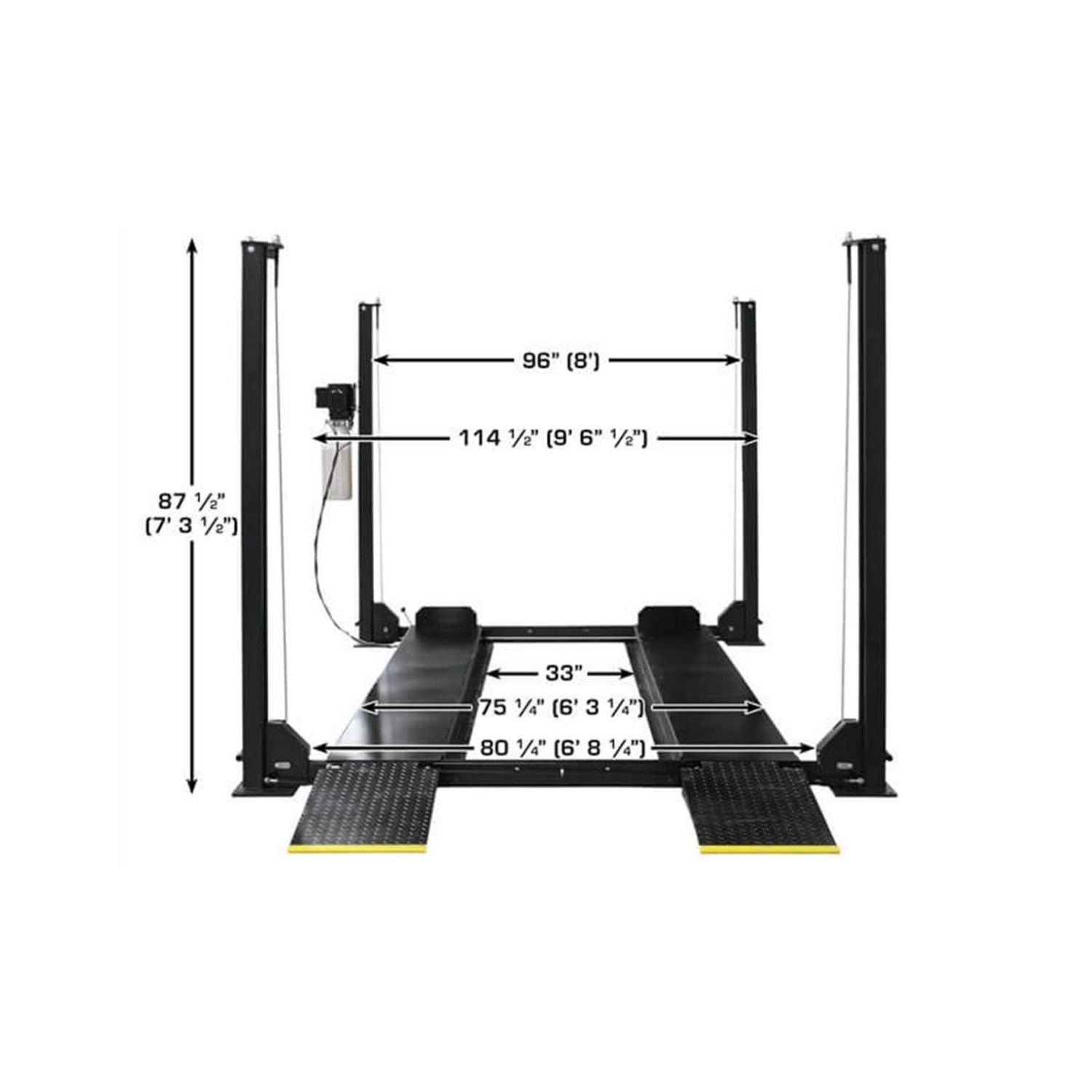

  Width Between Runways:	38" (3' 2")
  Width Between Runway Rails:	33" (2' 9")
  Outside Runway to Outside Runway:	75 1/4" (6' 3 1/4")
  Clearance Between Columns:	94" (7' 10")

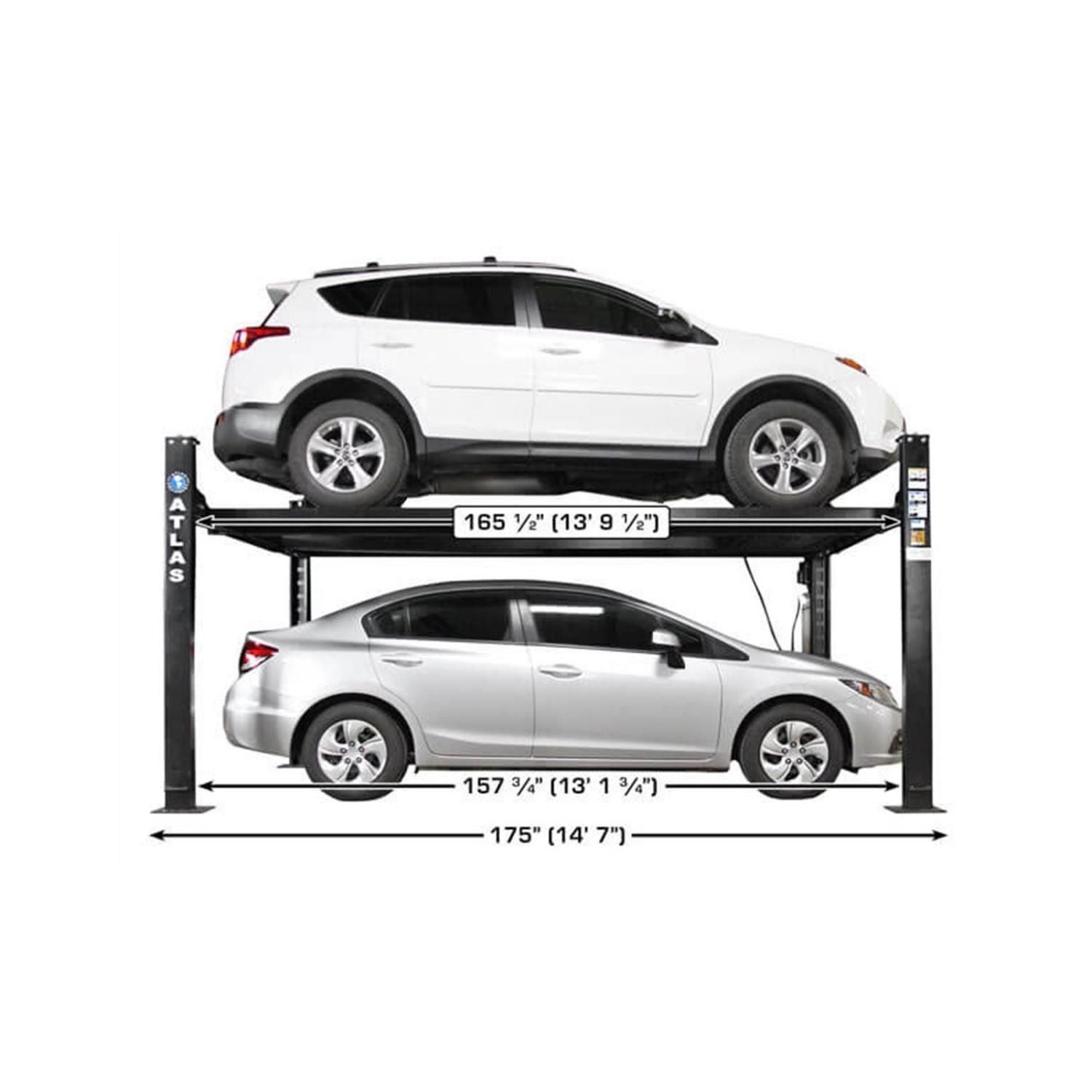

  Length Between Columns:	157 1/3" (13' 1 1/3")
  Maximum Wheel Base:	154" (12' 9")
  Drive Thru (Outside of tire to outside of tire):	80 1/4" (6' 8 1/4")
  Motor/Electrical Requirement:	110 Volt, 30 AMP BREAKER REQUIRED
  Shipping Weight:	2,000 lb.

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
