Atlas® BP8000 2-Post Lift & Lawn Mower Adapter Combo #ATEATTD-BP8-COMBO-FPD
Couldn't load pickup availability
Atlas Automotive Equipment Shipping
Equipment: Free shipping
Parts: Standard tiered rate
| Model / Part Number | ATEATTD-BP8-COMBO |
| Combo Includes | 1x BP8000 2-Post Baseplate Lift (8,000 lbs) + 1x Lawn Mower Adapter (up to 5,000 lbs) |
| Lift Capacity | 8,000 lbs |
| Overall Height | 108" (9') |
| Bay Width | 132" (11') overall width |
| Warranty | 2-Yr Structural / 2-Yr Hydraulic / 1-Yr Power Unit / 90-Day Wear (Lift) |
- 4" reinforced slab at 3,000 PSI minimum
- 6" preferred for production bays
- Must be fully cured before anchor installation
- 220V single-phase, 30A breaker required
- Have an electrician run a drop to the bay before install day
- Plan for 108" (9') overall height
- Floor width 132" (11') overall width
- Measure to lowest obstruction, not peak

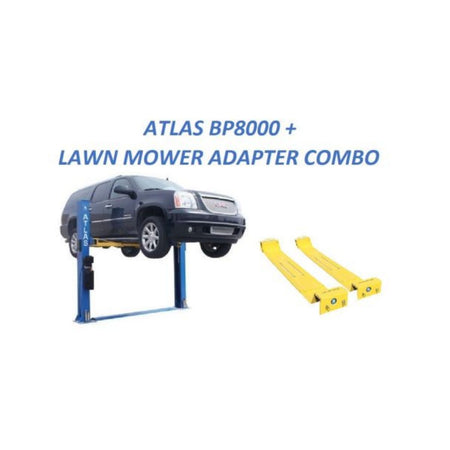

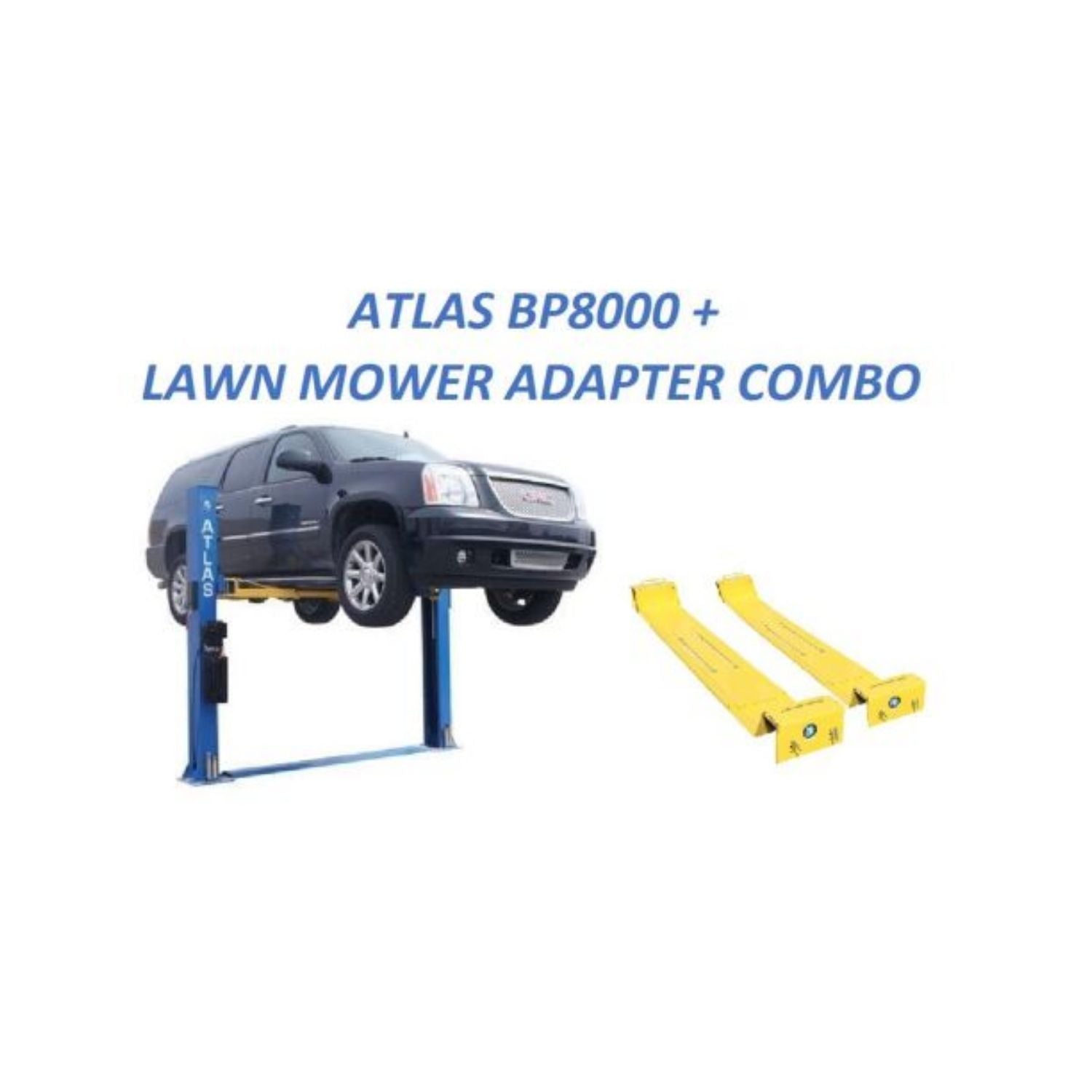

Atlas® BP8000 2-Post Lift & Lawn Mower Adapter Combo #ATEATTD-BP8-COMBO
Servicing a personal vehicle and lawn equipment out of the same garage usually means owning two separate pieces of lifting equipment. The Atlas® BP8000 Combo pairs an 8,000 lb baseplate 2-post lift with a Lawn Mower Adapter, so both jobs run through one machine.
The lift runs on 220V single-phase power with a 30-amp breaker and needs a minimum 4" reinforced concrete slab rated to 3,000 PSI. A note on this listing specifically: Atlas®'s own product data for this exact combo SKU is thinner than some of our other lift-and-adapter combos — call Alamo at (844) 480-6059 and we'll confirm any spec you need before you order, rather than guessing.
Who the BP8000 Combo Is Built For
- ✅ A homeowner with a lower garage ceiling who needs the baseplate design's low-clearance fit but doesn't want to give up the ability to service lawn equipment on the same lift
- ✅ Someone who's been meaning to buy a Lawn Mower Adapter separately and realized bundling it with the lift purchase saves money over buying both on their own
- ✅ A buyer who values the Double Safety Lock System as a real backup, not just a bullet point, given the tradeoffs a low-ceiling baseplate design already makes
- ✅ Someone comfortable calling Alamo directly for spec confirmation, since this particular combo's own product listing is thinner on documented detail than some of the others in this line
- ✅ A hobbyist replacing an aging 2-post lift who wants to add lawn-equipment service capability at the same time, rather than treating it as a future, separate purchase
What the BP8000 Combo Is NOT Built For
- ❌ Commercial shops needing certified or higher-capacity lifting — this is a hobbyist-grade, non-certified lift
- ❌ Shops wanting a fully clear floor — the baseplate design runs a plate across the floor between columns
- ❌ Buyers who need exact dimensional specs on the Lawn Mower Adapter confirmed before ordering — this combo's own product listing does not itemize adapter dimensions (see note in Full Specifications)
What Makes the BP8000 Combo Different

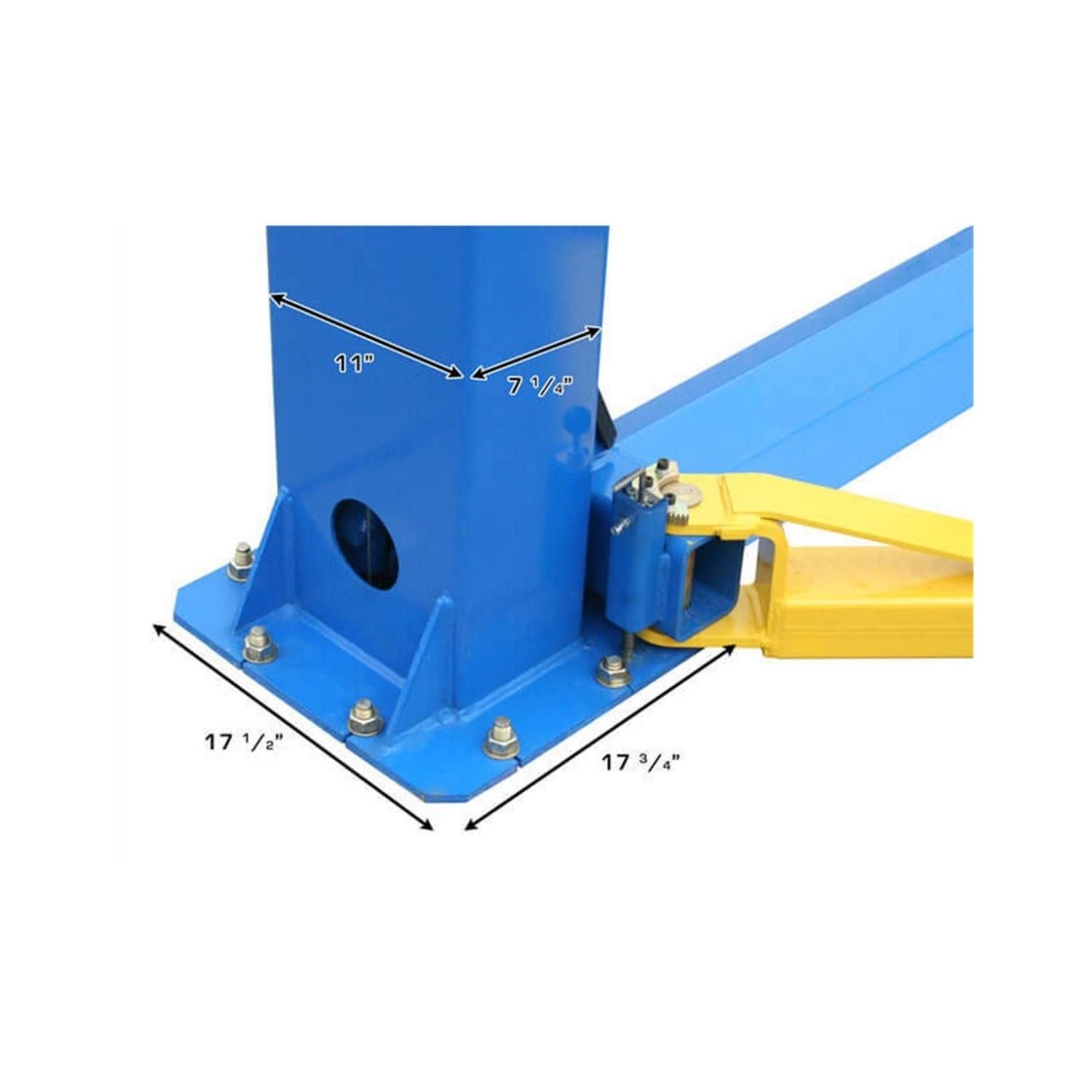

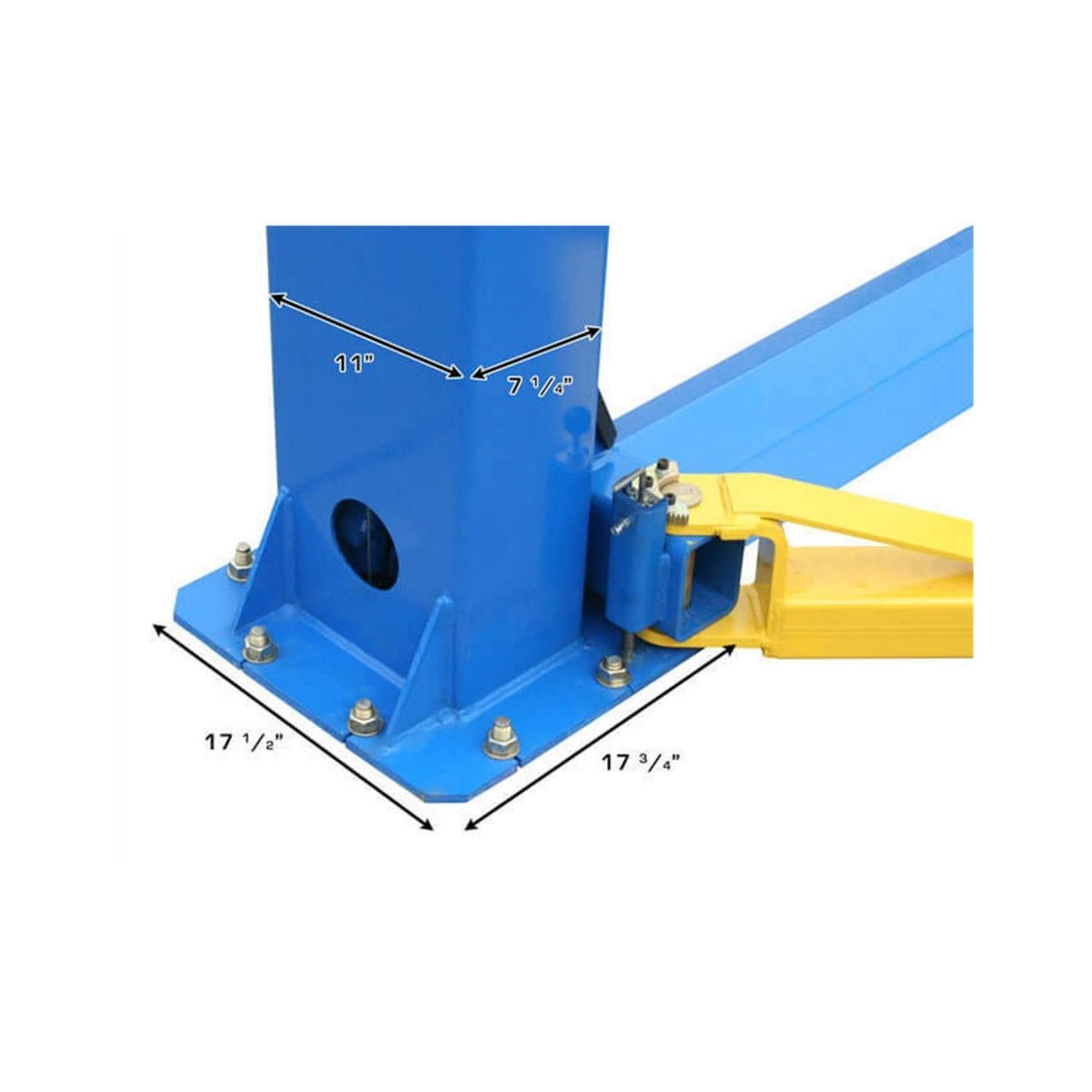

Baseplate, Open-Top Style Lift
The baseplate design routes the equalization system across the floor rather than overhead.

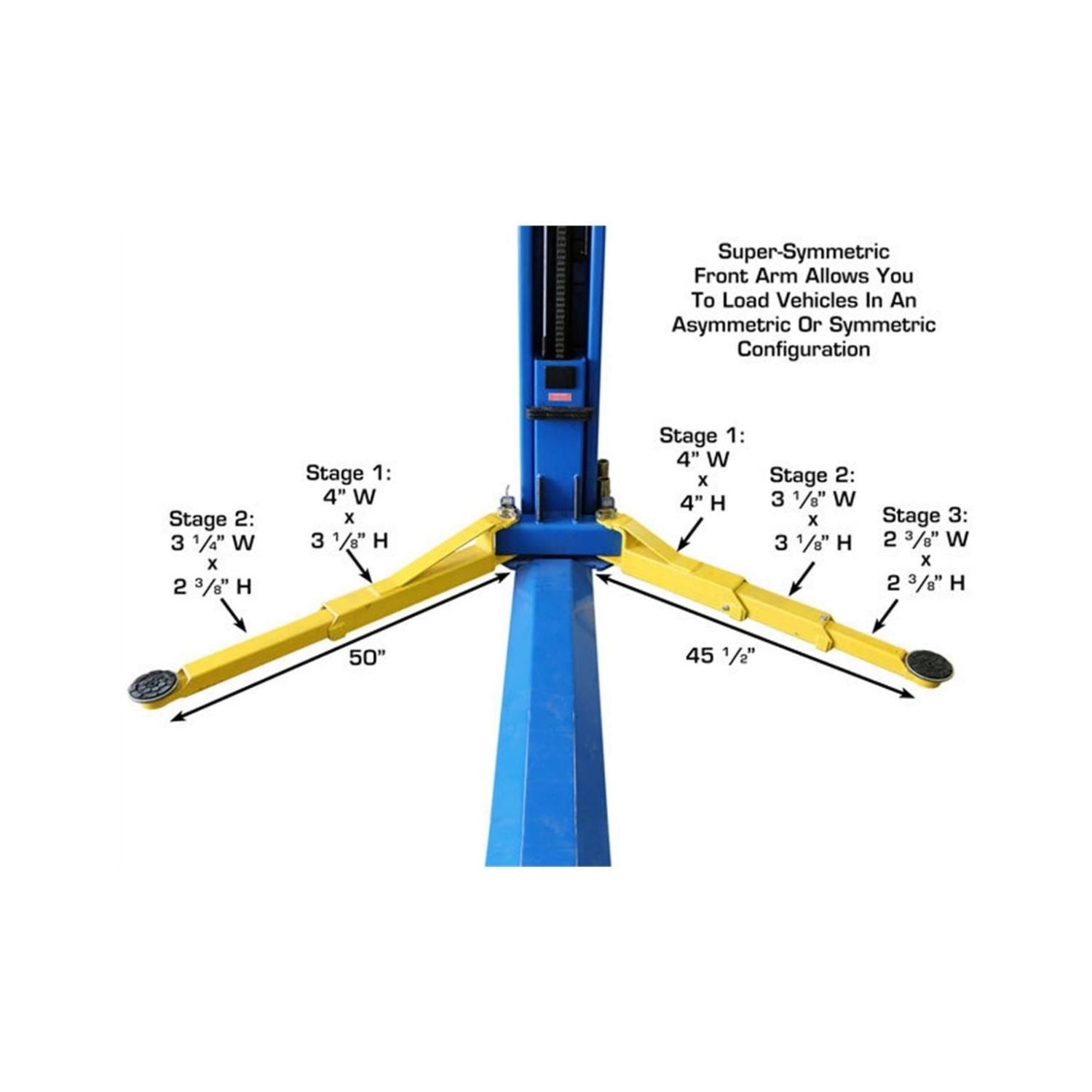

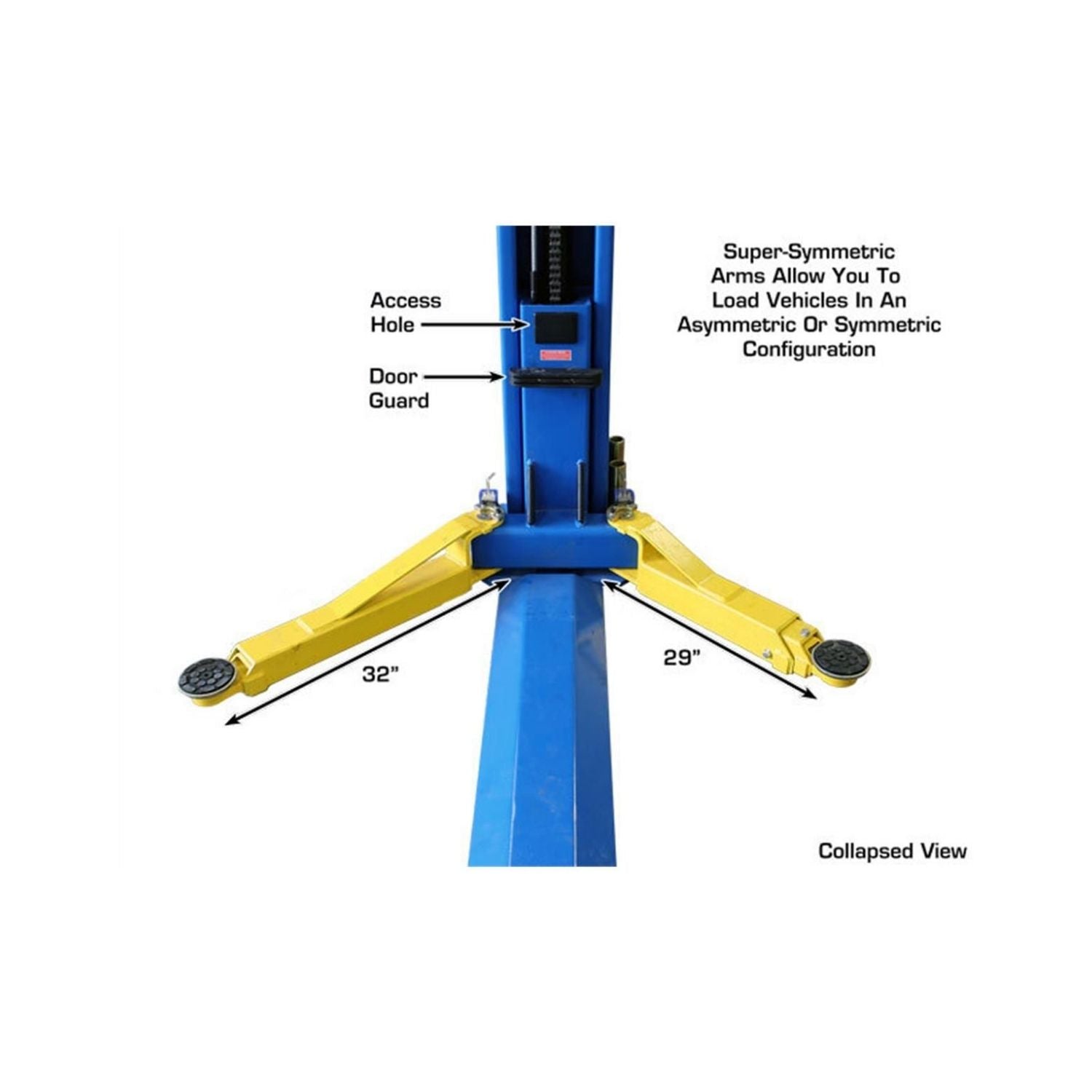

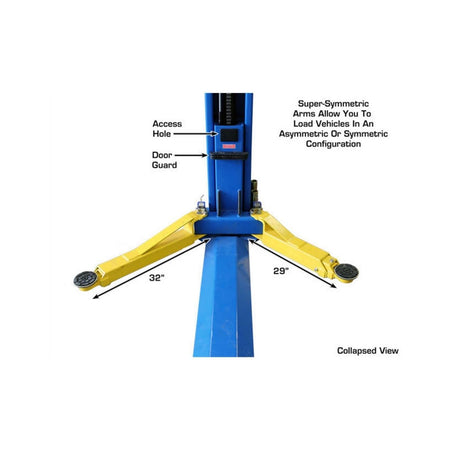

3-Stage Front Arms / 2-Stage Rear Arms
Multi-stage arm design gives flexible reach for different vehicle wheelbases.

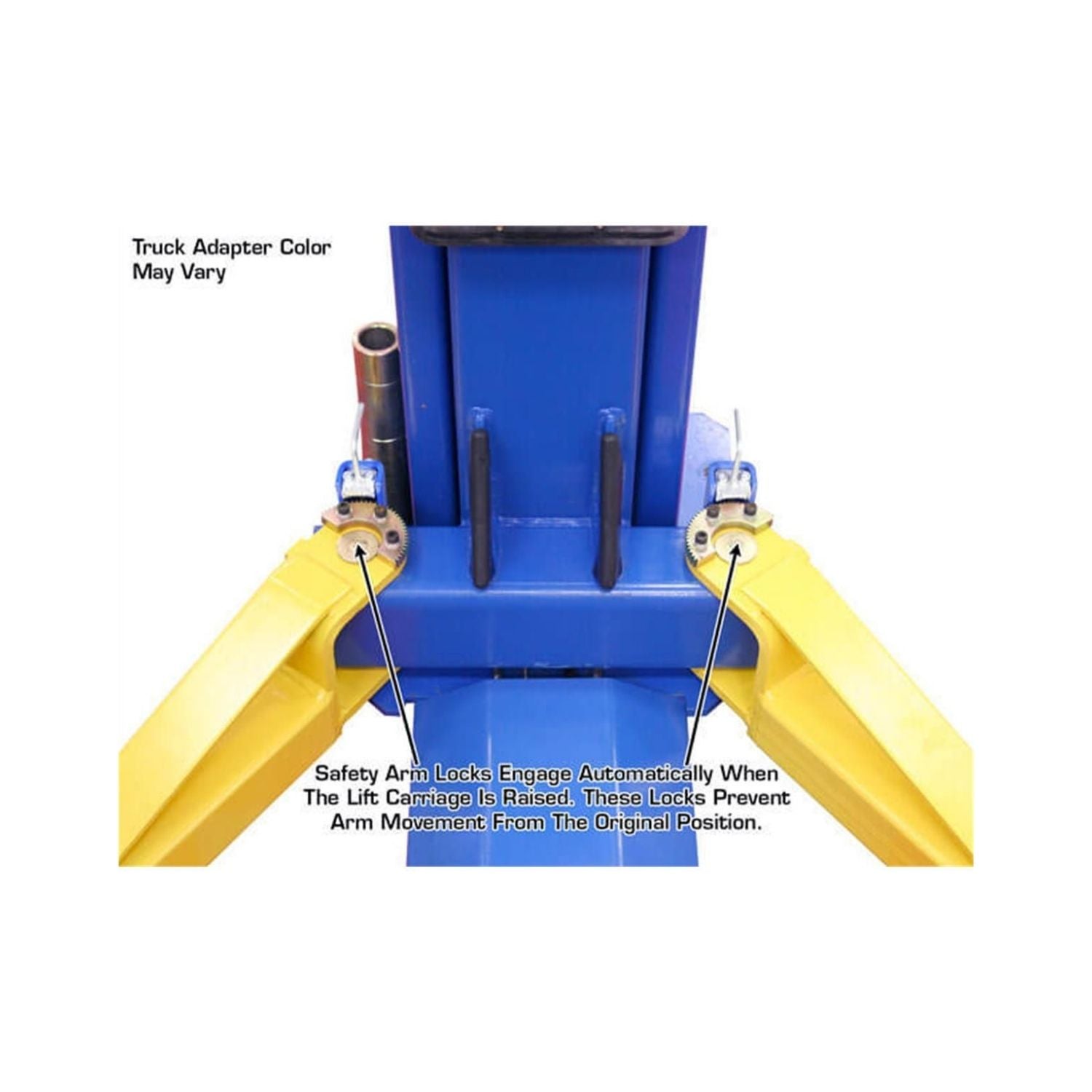

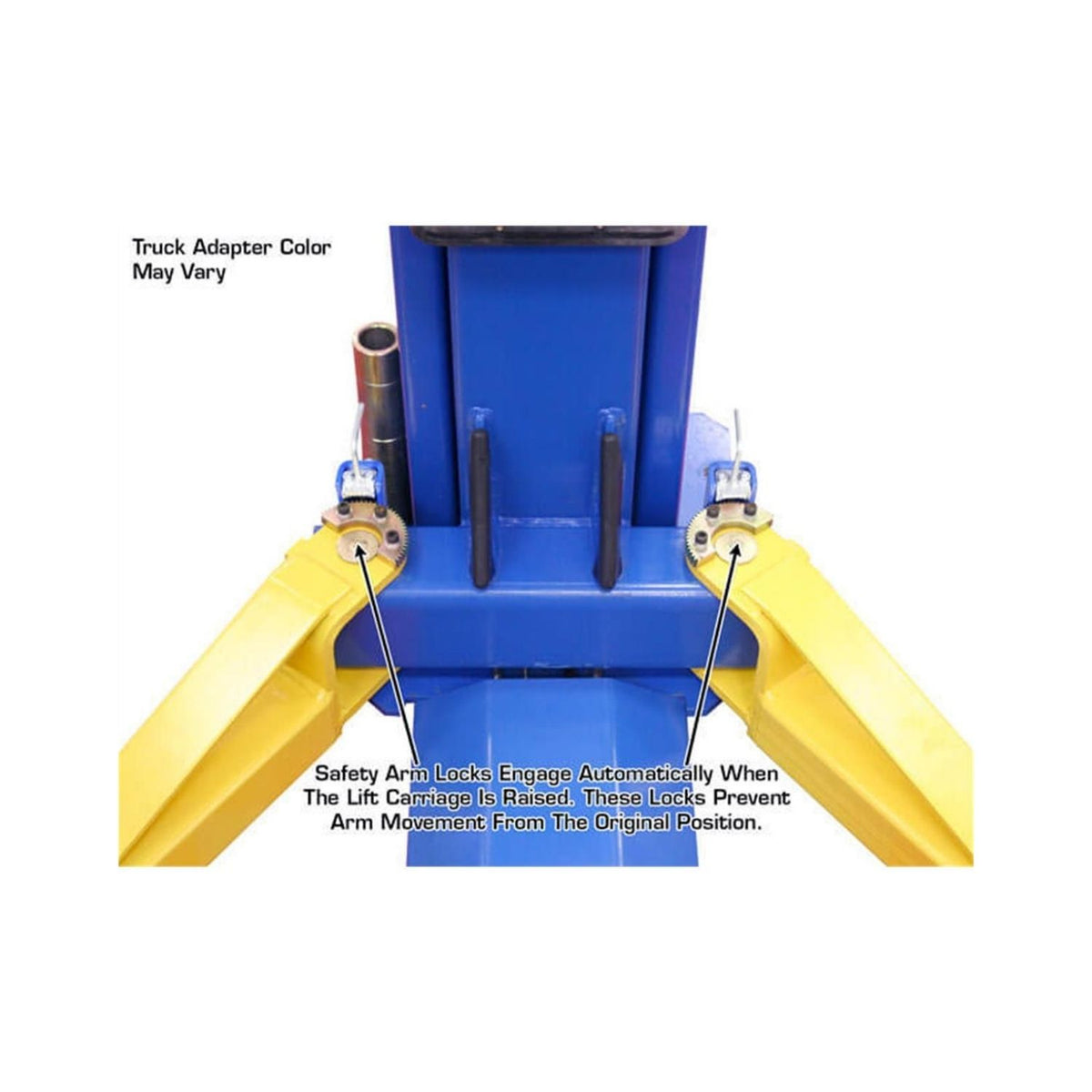

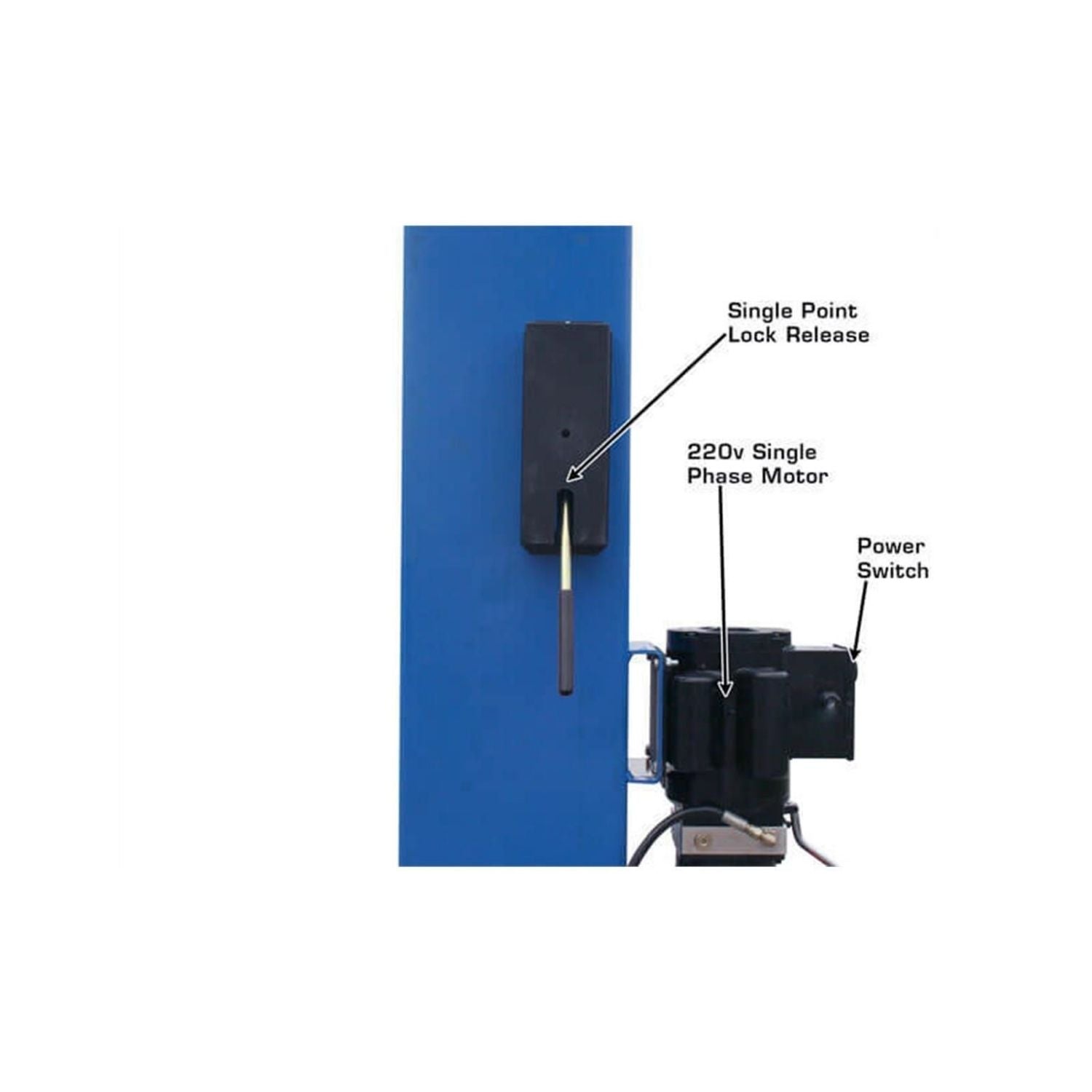

Automatic Arm Restraints & Single-Point Lock Release
Safety systems engage automatically as the lift rises, with one release point for controlled lowering.
Double Safety Lock System
A secondary lock system backs up the primary mechanical locks.

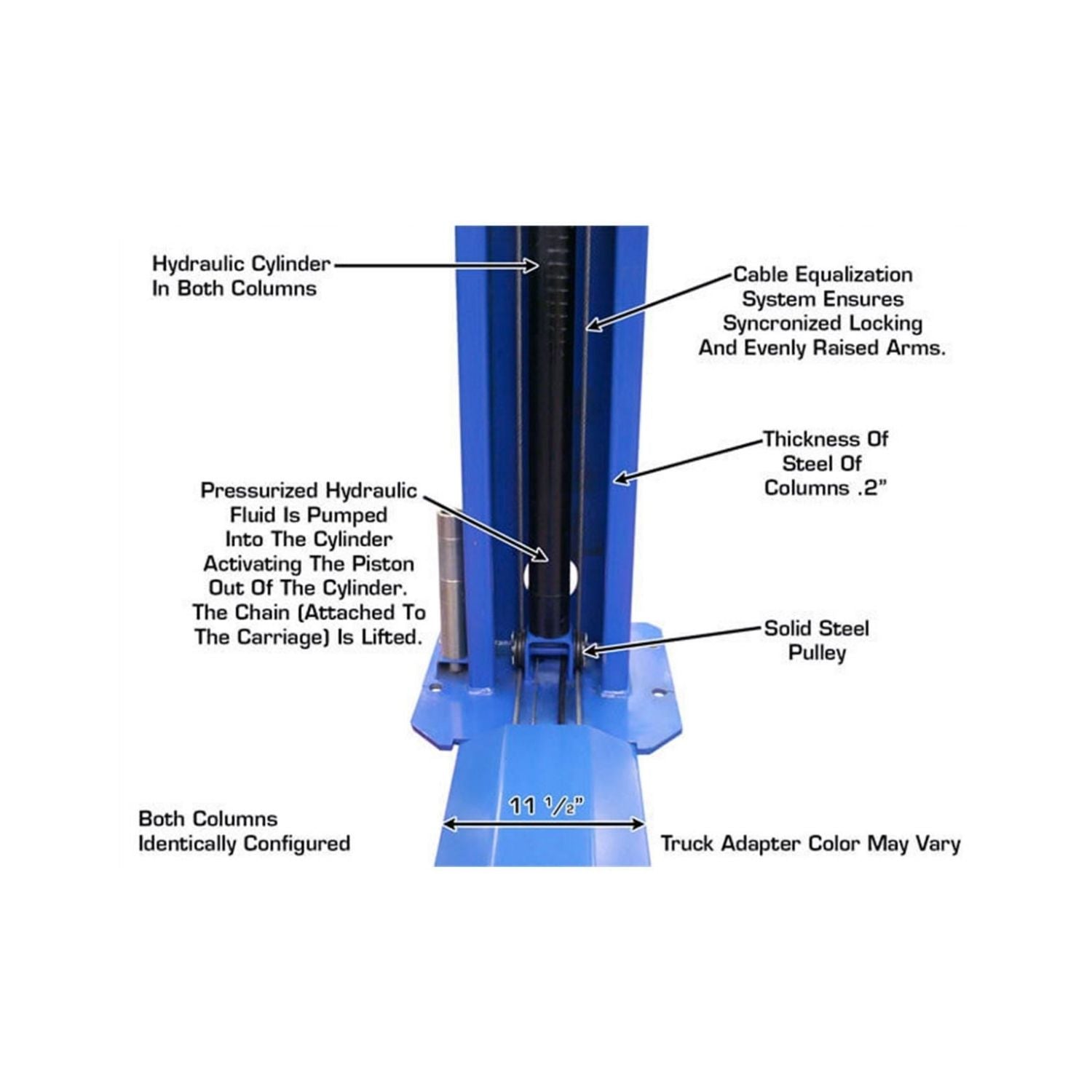

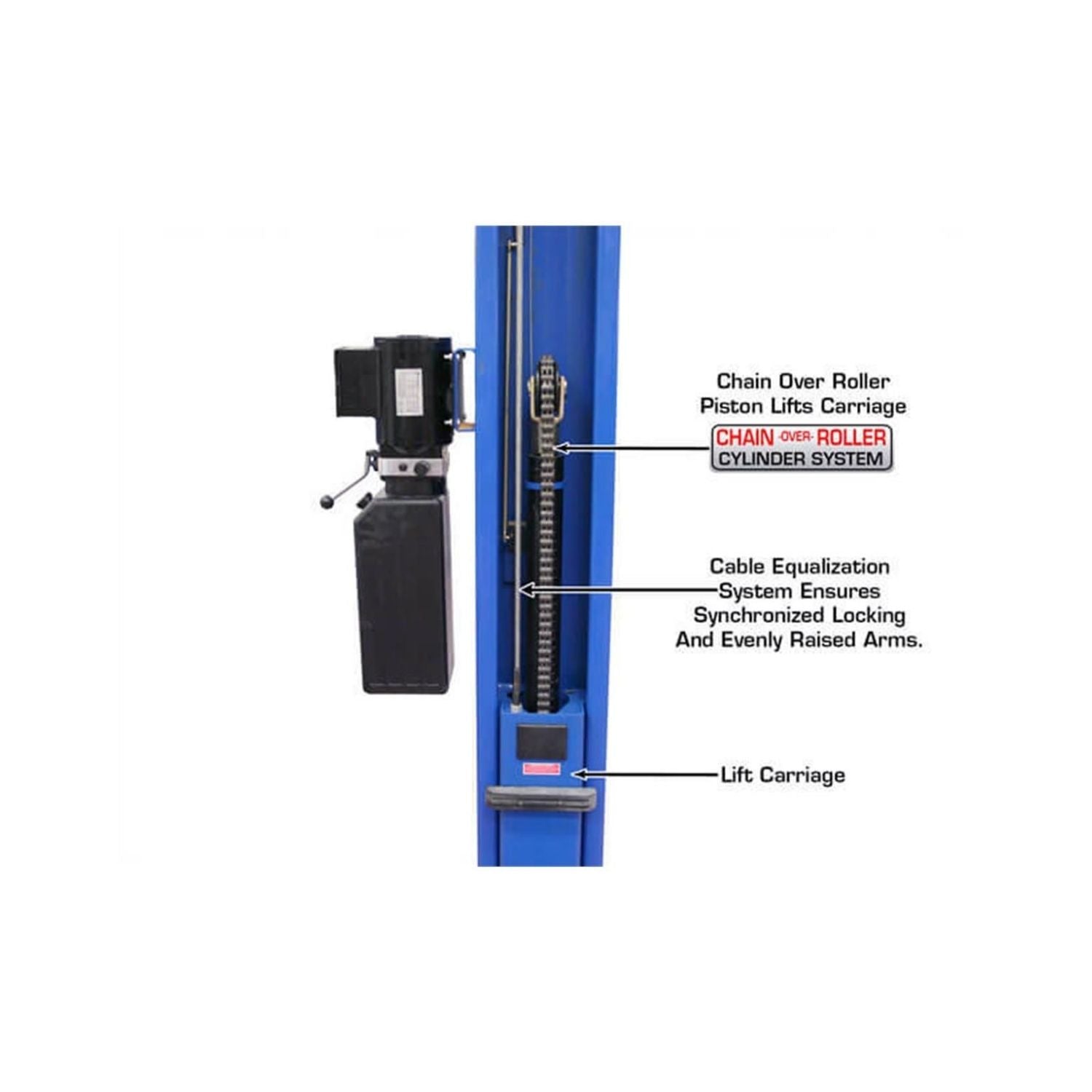

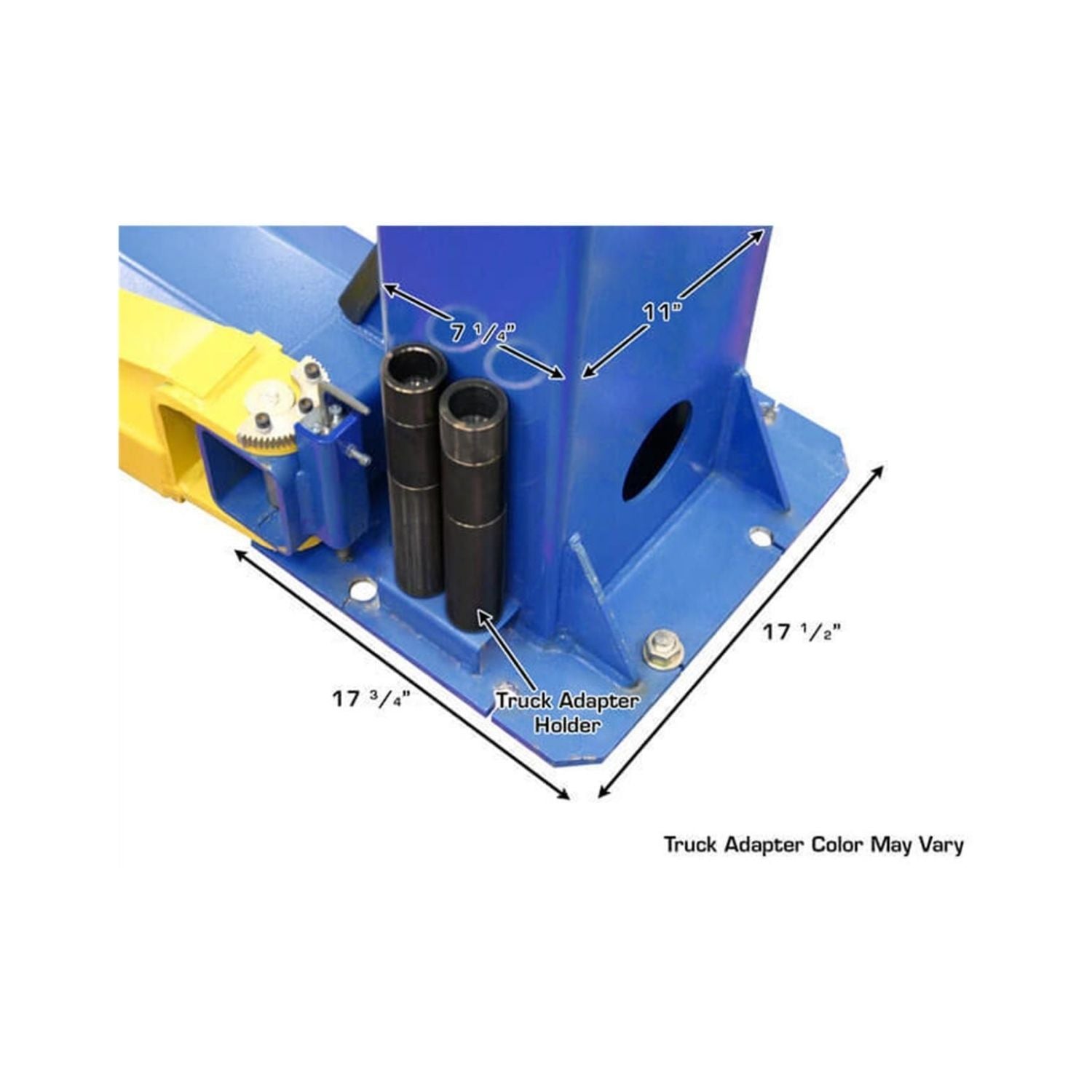

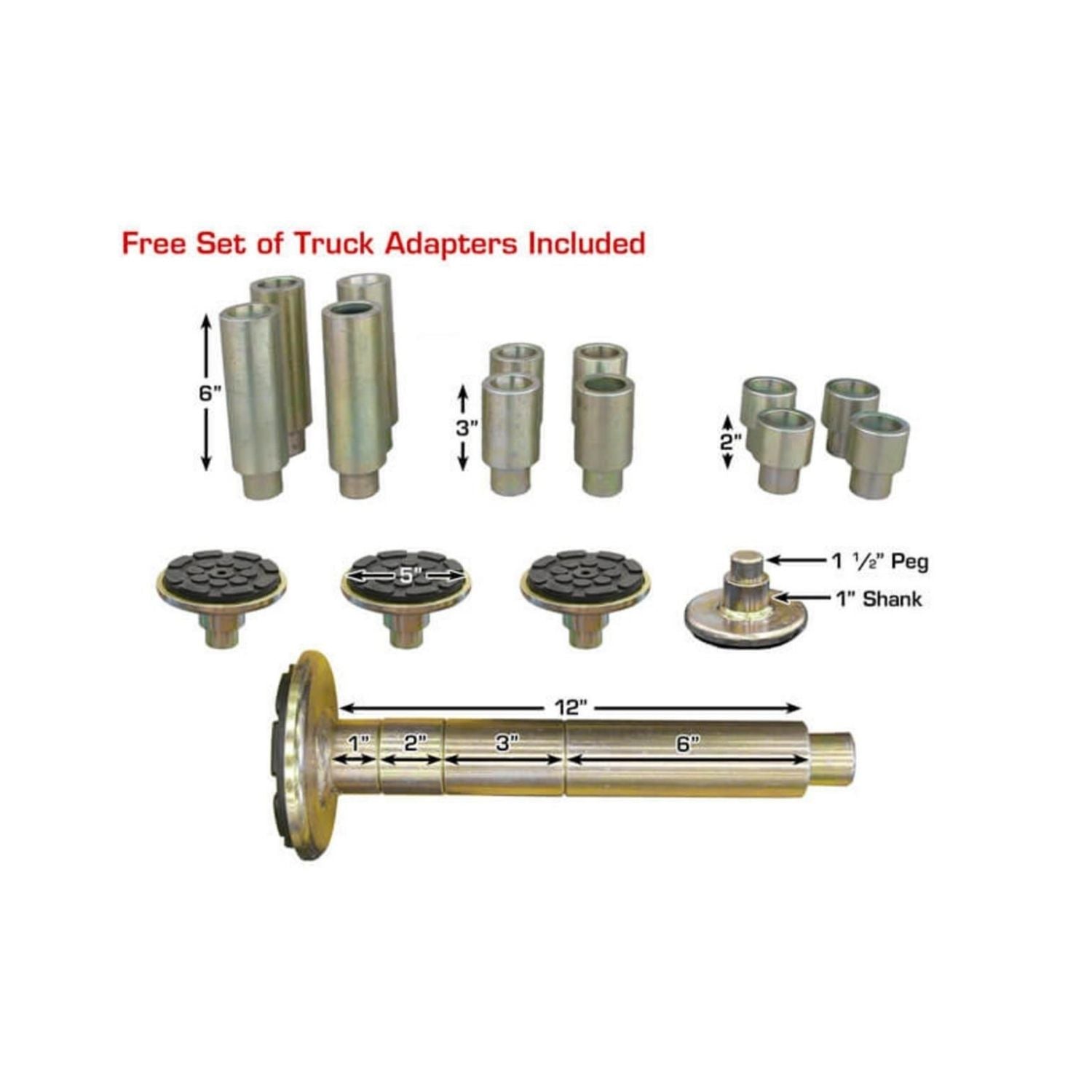

Dual Hydraulic Chain-Drive Cylinders & Free 12-Piece Truck Adapter Set
Chain-drive cylinders provide synchronized lifting, and a 12-piece truck adapter set ships free with the lift.
- ✅ Lower-ceiling garages needing the baseplate design's tight clearance
- ✅ Buyers who want lift and adapter bundled instead of two purchases
- ✅ Owners who value the Double Safety Lock as a real backup, not a bullet point
- ❌ Commercial or certified-lift needs — this is hobbyist-grade
- ❌ Shops wanting a fully clear floor — the baseplate runs across it
- ❌ Buyers needing exact adapter dimensions confirmed pre-order without a call
Buy the Combo vs. Buy Separately
| Line Item | Price |
|---|---|
| BP8000 2-Post Baseplate Lift (8,000 lbs) — standalone | $3,599.00 |
| Atlas® Lawnmower Adapter — standalone | $2,649.00 |
| Lift + adapter bought separately, total | $6,248.00 |
| BP8000 Combo — this listing | $5,899.00 |
Buying the BP8000 lift and Lawn Mower Adapter separately runs $6,248.00 versus $5,899.00 for this combo — a savings of roughly $349.00, plus one purchase instead of two. Call (844) 480-6059 and we will confirm current pricing before you order.
Full Specifications — BP8000 Combo
BP8000 2-Post Baseplate Lift Specifications
| Model / Part Number | ATEATTD-BP8-COMBO |
| Brand | Atlas® Automotive Equipment |
| UPC | 810524029001 |
| Country of Origin | China |
| Capacity | 8,000 lbs |
| Overall Height | 108" (9') |
| Overall Width | 132" (11') |
| Drive-Thru Clearance | 99" (8' 3") |
| Rise Height | 75.5" without adapters / 86.5" with adapters |

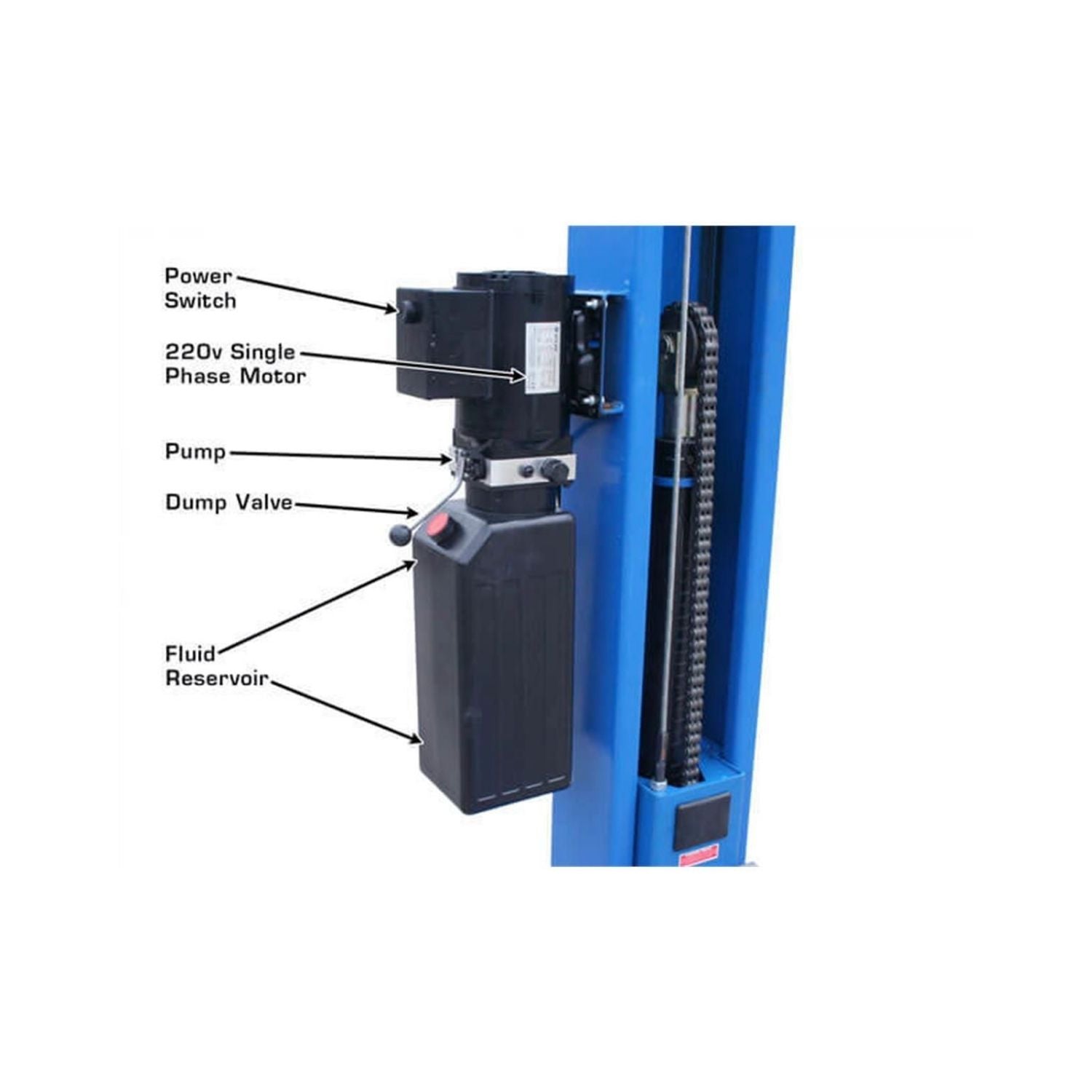

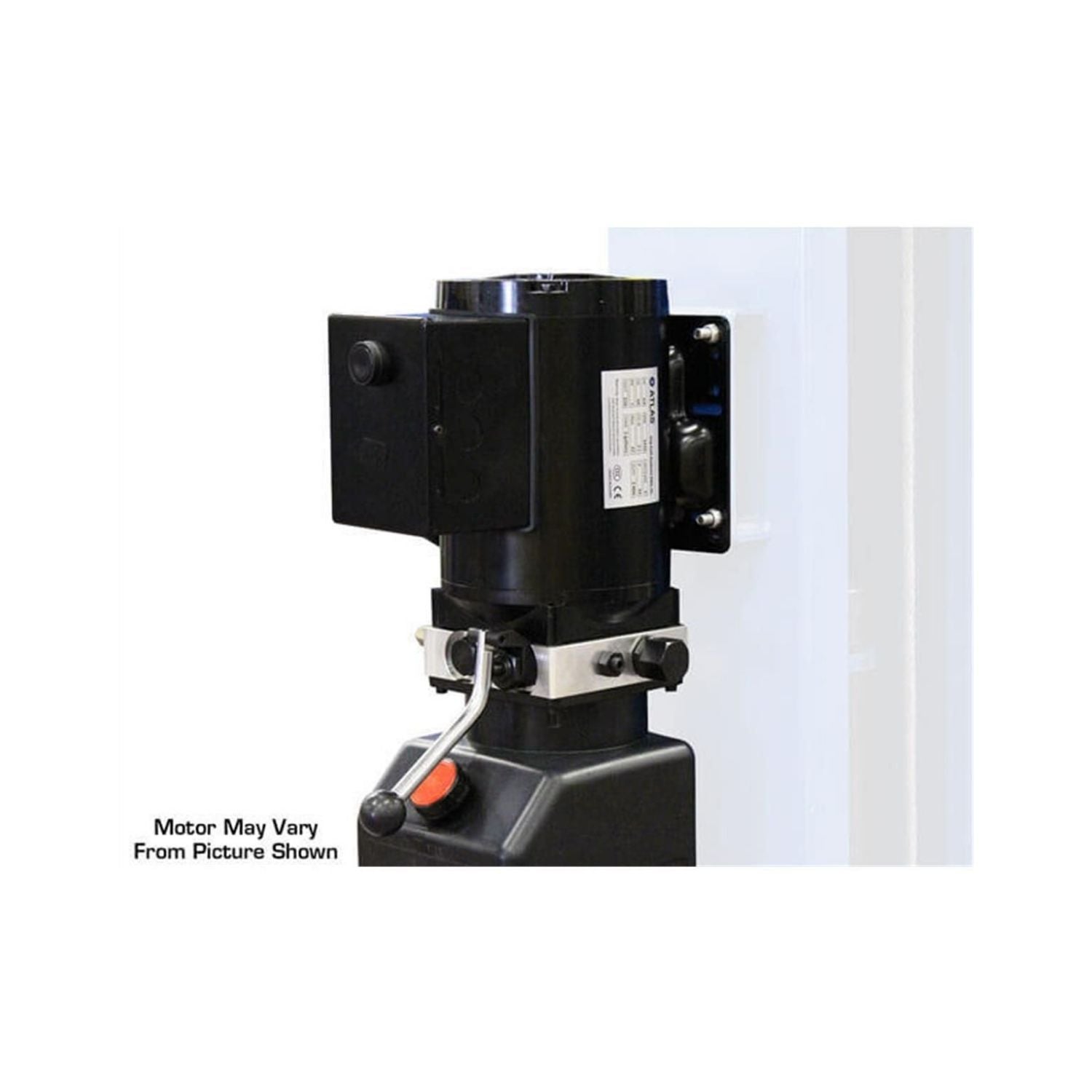

| Motor / Electrical | 220V single-phase, 30A breaker required |
| Concrete Requirement | 4" reinforced slab at 3,000 PSI minimum |
| Design Note | Baseplate, open-top style; 3-stage front arms / 2-stage rear arms |

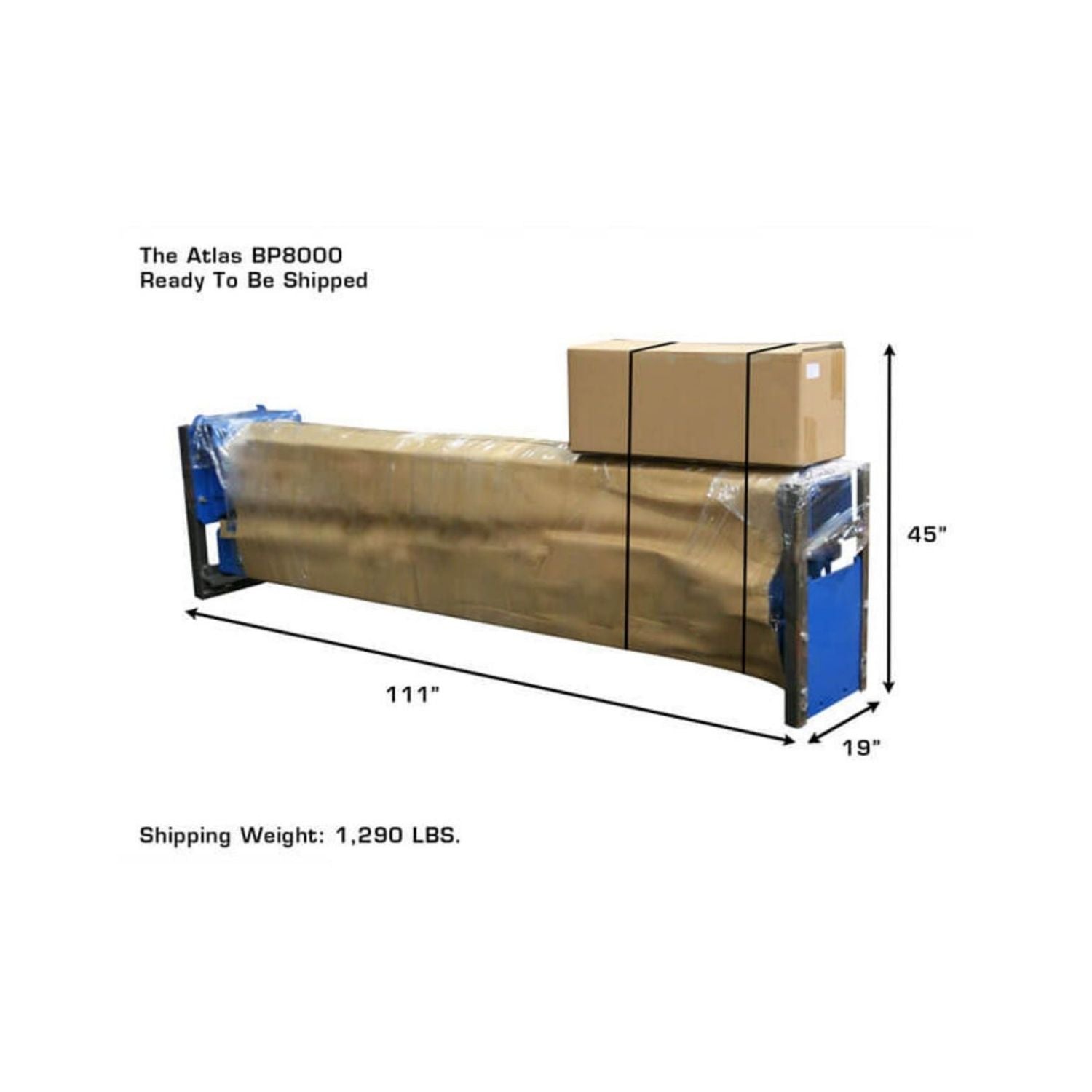

| Combo Shipping Dimensions | 112" L × 48" W × 45" H |
| Combo Shipping Weight | 1,900 lbs |
Lawn Mower Adapter — Note on Available Specs
| Adapter Included | Atlas® Lawn Mower Adapter (LMA) |
| Capacity Class (typical Atlas® LMA) | Up to 5,000 lbs — see note below |
⚠️ Installation Requirements
- Ceiling/lift height: Plan for 108" (9') overall height; measure to the lowest obstruction.
- Electrical: 220V single-phase, 30A breaker required; consult an electrician for exact breaker sizing.
- Concrete: 4" reinforced slab at 3,000 PSI minimum; fully cured before anchoring.
- Bay width: Confirm 132" (11') overall width floor width clearance; measure before ordering.
- Hydraulic oil: See Atlas® spec sheet for hydraulic oil requirement (not restated in this combo's own source listing).
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Atlas® Warranty — BP8000 Combo
Atlas® backs the BP8000 lift with its full 2-year structural / 2-year hydraulic / 1-year power unit / 90-day wear warranty, and the bundled Lawn Mower Adapter under this combo's coverage.
| Component | Coverage Term |
|---|---|
| Structural welds & frame (lift) | 2 years |
| Hydraulic system (lift) | 2 years |
| Power unit / electrical (lift) | 1 year |
| Wear items — lift & jack (pads, hoses, seals) | 90 days |
Warranty service is coordinated through Alamo Equipment & Service — call (844) 480-6059 with any warranty question, and we handle it directly instead of routing you to a manufacturer hotline.
Coverage is subject to Atlas® warranty terms, conditions, and requirements.
Frequently Asked Questions — Atlas® BP8000 2-Post Lift & Lawn Mower Adapter Combo
Why Buy the BP8000 Combo from Alamo Equipment & Service?
- Save versus buying separately. This combo runs about $349.00 less than buying the standalone BP8000 lift and Lawn Mower Adapter individually.
- We fill in the gaps this listing doesn't. This exact combo's own product data is thinner than some of our other lift-and-adapter combos — call us and we'll confirm any spec you need before you order, honestly, not guessed.
- We deliver and set it up. Our team sizes the BP8000 Combo to your bay and handles the physical install.
- We help you pick the right unit. At 8,000 lbs lift capacity and $5,899.00, we'll confirm the BP8000 Combo genuinely matches your needs before you buy.
- We ship it free. Delivered to your shop, no hidden freight fees.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
