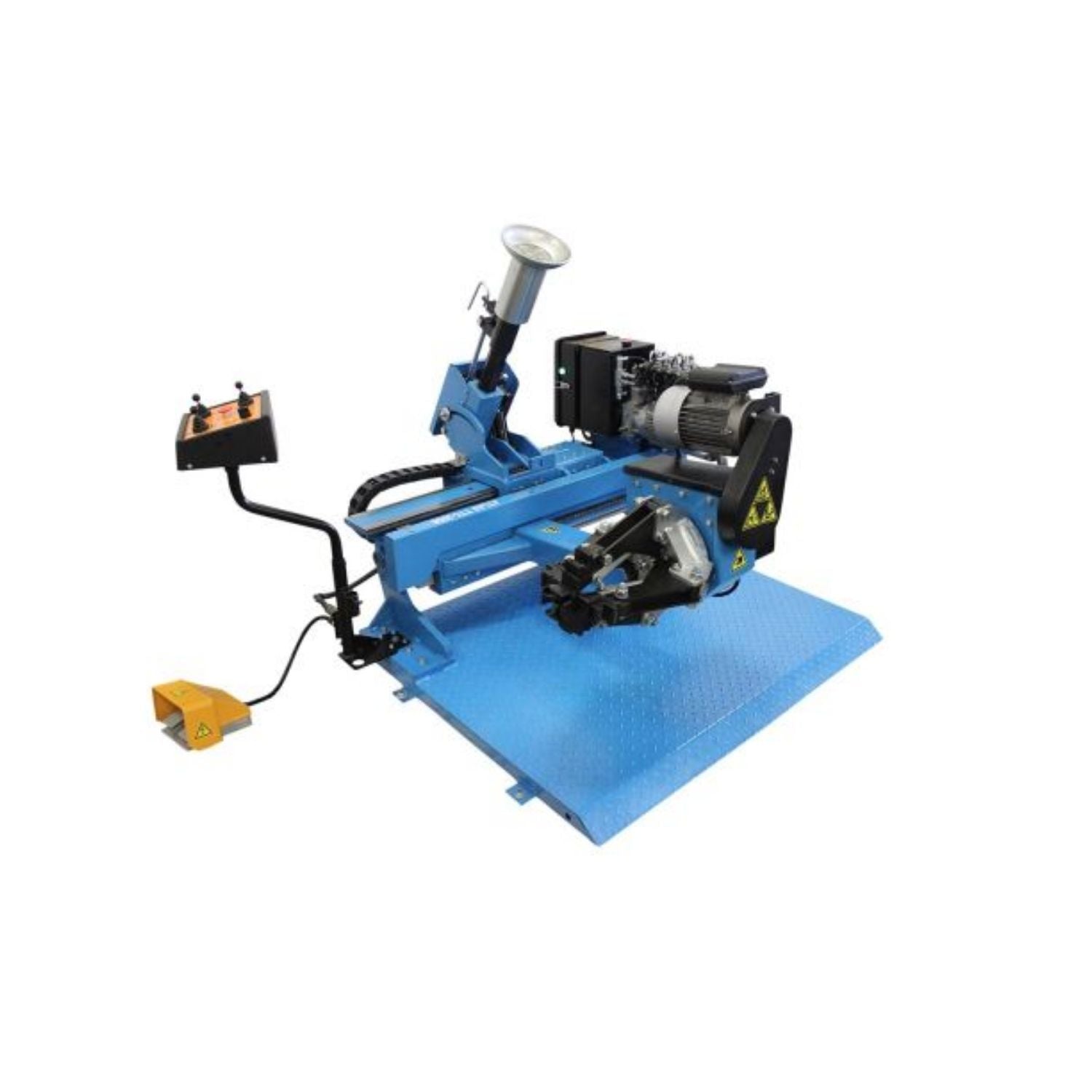

Atlas® TTC305A Automated Truck Tire Changer #ATEATTC305A-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas® TTC305A Automated Truck Tire Changer is a high-performance solution designed for efficient servicing of heavy-duty truck, bus, and commercial vehicle tires.
Featuring automated operation, this machine reduces manual effort while improving precision and consistency during tire mounting and demounting. It is ideal for high-volume service environments where speed, safety, and reliability are critical.
Built for durability and advanced functionality, the TTC305A enhances productivity while delivering professional-grade performance for demanding tire service applications.
-
FEATURES AND BENEFITS
- Fully Automatic Truck Tire Changer
- Handles rims from 8" to 26" and tire diameters in excess of 55"
- Accommodates tires with a max width of up to 30 1/2"
- Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
- Bead Breaker
- Interchangeable Mount/Demount and Roller Heads
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Mounted Control Unit w/ additional Foot Pedal Controls
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATEATTC305A-FPD Dimensions: 63" L × 61" W × 41" H UPC: 810524027014 Country of Origin: CHN Rim Clamping Range: 13" - 26" Minimum Clamping Size W/ Alloy Adapters: 8" Max Wheel Weight: 838 lbs. Max Tire Diameter: 55" Max Tire Width: 30 1/2" (2' 6 1/2") Clamping Power: 6,600 lbs. Operating Pressure: 0-1885 PSI Acoustic Pressure: <70dBA Bead Breaker Force: 3990 lbs. Tool Arm Positioning: Automatic Tool Head Positioning: Automatic Construction: Single Piece Frame w/ Solid Floor Plate Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required Shipping Weight: 1,490 lb. -
DOCUMENTS
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
