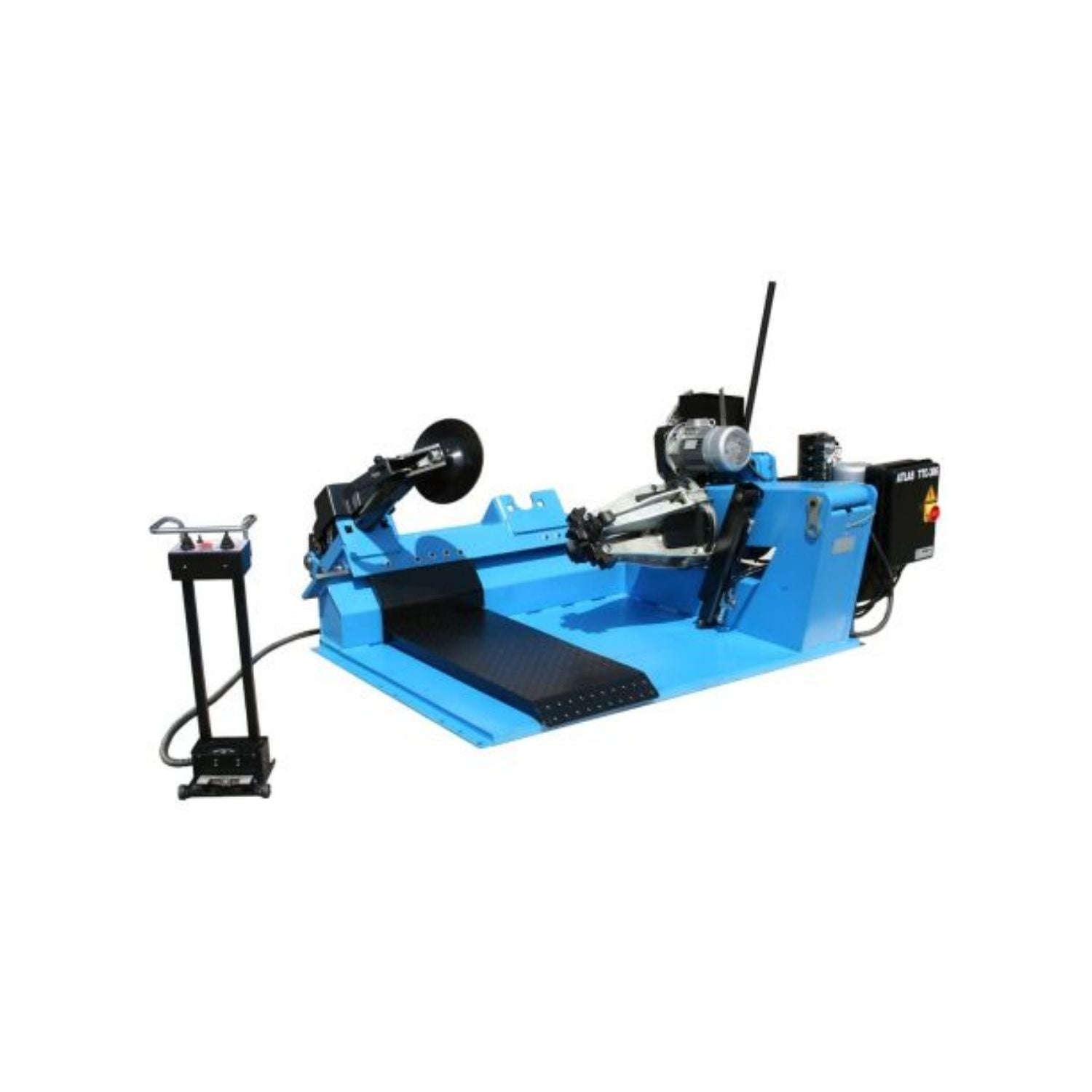

Atlas® TTC306 Deluxe Automated Truck Tire Changer 3-Phase #ATEATTC306-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

  The Atlas TTC306 Deluxe Automated Truck Tire Changer (3-Phase) is a premium heavy-duty solution designed for high-volume commercial tire service operations.

  This advanced machine features automated functionality to reduce manual effort while delivering precise and consistent tire mounting and demounting. Built for handling large truck, bus, and commercial vehicle tires, it offers enhanced control and efficiency in demanding shop environments.

  With its 3-phase power configuration, the TTC306 is ideal for facilities requiring maximum performance, durability, and productivity in heavy-duty tire service applications.

• FEATURES AND BENEFITS

  • Deluxe Automated Truck Tire Changer
  • 220 VOLT 3 PHASE ELECTRIC
  • 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions
  • Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
  • Handles rims from 14" to 56" and tire diameters in excess of 97"
  • Accommodates tires with a max width of up to 53"
  • Bead Breaker
  • Mount/Demount Head
  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions
  • Wired Mobile Control Unit (Wireless Control Optional)
  • Heavy Duty Tire Tool Included
  • Rim Clamps for Steel and Alloy Wheels Included
  • Alloy Rim Adapter Set w/ Plastic Inserts Included
  • Clamping Extensions Included
  • 1 Year Parts Only Warranty


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTC306-FPD
  Dimensions:	90" L × 76" W × 44" H
  UPC:	810524027007
  Country of Origin:	CHN
  Rim Clamping Range:	14" - 46"
  Max Clamping Size W/ Extensions:	56"
  Max Wheel Weight:	3,968 lbs.
  Max Tire Diameter:	98" (8' 2")
  Max Tire Width:	42" (3' 6")
  Clamping Power:	13,173 lbs.
  Operating Pressure:	0-1885 PSI
  Acoustic Pressure:	<70dBA
  Bead Breaker Force:	5930 lbs.
  Tool Arm Positioning:	Automatic
  Tool Head Positioning:	Automatic
  Construction:	Single Piece Frame w/ Solid Floor Plate
  Hydraulic Motor Power:	3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
  Chuck Motor Power:	3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
  Shipping Weight:	2,260 lbs.

• DOCUMENTS

  • Atlas TTC306 Truck Tire Changer Manual
  • Atlas TTC306 Parts List

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
