Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-2
Couldn't load pickup availability
| Lifting Capacity | 12,000 lbs. |
| Arms | 3-Stage Front & Rear |
| Rise Height | 84.75" |
| Overall Height | 15’ 8” or 15’ 2 |
| Overall Width | Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" |
| Drive-Thru Clearance | Standard - 8' 7.5" | +6" - 9' 1.5" | +12" - 9' 7.5" |
| Speed of Rise | 63s |
| Ceiling Height Required | 15’ 9” or 15’ 3” |
| ALI/ETL Certified | Yes |
| Shipping | Free shipping to 48 contiguous states |
- Verify slab thickness and condition
- Check seams, slope, cracks, and anchor zones
- Confirm requirements before installation day
- Confirm electrical
- Dedicated circuit recommended
- Have an electrician confirm final service
- 15’ 9” or 15’ 3” listed requirement
- Measure lights, doors, ducts, and beams
- Confirm vehicle raised height before ordering

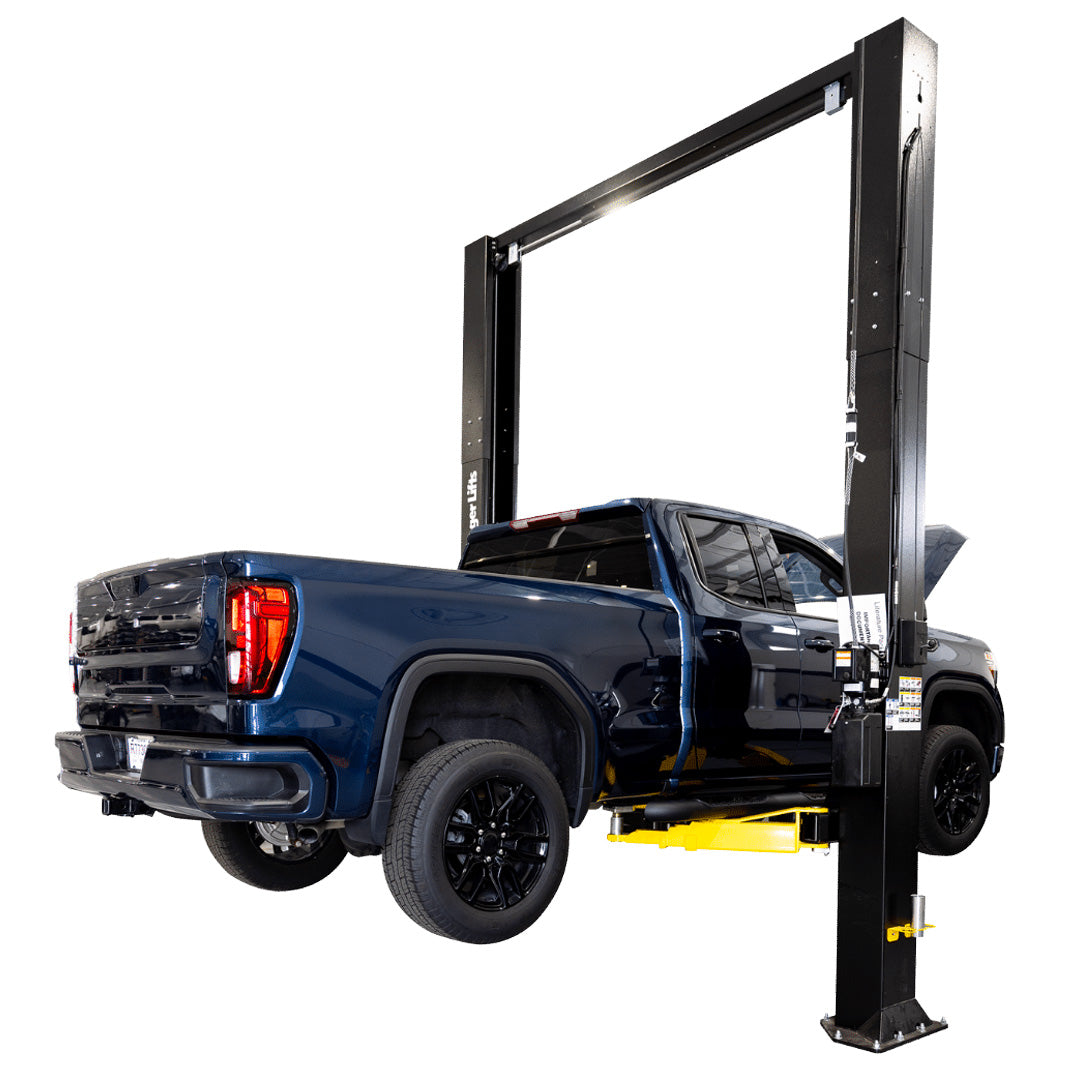

Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-2
The Challenger CL12A-2 is the tallest member of the 12,000 lb CL12A family, configured with 2-foot column extensions (15'8"/15'2" column). It delivers maximum overhead clearance for the largest vehicles, with the same 12,000 lb capacity, 84.75" rise, symmetric 3-stage arms, and adjustable width as the rest of the family. Choose it when you have a tall shop and lift oversized vehicles that need extra raised clearance.
Who the CL12A-2 Is Built For
- Shops matching the 12,000 lbs rating - a good fit when your vehicle mix stays within the published capacity.
- Service bays that need a two-post footprint - verify the width, ceiling, and drive-through clearance before ordering.
- Buyers who want Alamo install support - one team for sizing, delivery, installation, and service.
- Teams comparing nearby lift models - this page keeps the comparison inside Alamo's catalog.
What the CL12A-2 Is NOT Built For
This is not the right choice when your vehicle weights exceed 12,000 lbs, your slab or ceiling has not been verified, or your workflow needs a different arm/platform setup. If you are close on any spec, compare it with Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-1 or call Alamo at (844) 480-6059.
What Makes the CL12A-2 Different
two-post Configuration
The CL12A-2 is listed with a two-post setup and 3-stage front & rear. That matters because arm style, spotting approach, and column spacing determine how quickly the bay can move from one vehicle to the next.
- Use the published capacity and arm/platform details as the first decision filter.
- Confirm the lift points and vehicle mix your techs see most often.
- Ask Alamo to compare it against nearby models if the workflow is mixed.
- Keep the install team involved before the bay is committed.
Bay Planning Numbers
The key measurements are 15’ 9” or 15’ 3” ceiling requirement, Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" overall width, and Standard - 8' 7.5" | +6" - 9' 1.5" | +12" - 9' 7.5" drive-through clearance. These should be checked against doors, lights, air lines, drains, and any overhead obstruction.
Capacity and Vehicle Mix
The 12,000 lbs rating is the hard ceiling for the lift, not a target to exceed. If you regularly service loaded work trucks, vans, or fleet vehicles, call Alamo before ordering so we can confirm the safer match.
Electrical and Install Coordination
The published electrical line is Confirm electrical. Have a licensed electrician confirm the circuit and final local requirements before installation day.
Service After the Sale
Alamo installs and services the lifts we sell, so the same team that helps size the CL12A-2 can support the equipment after it is in the bay.
- Bays that match the published Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" width
- Vehicles within the 12,000 lbs rating
- Shops that want Alamo installation and service support
- Buyers comparing Challenger two-post lift options
- Unverified slabs or unknown concrete condition
- Vehicles above the rated capacity
- Bays with low obstructions that have not been measured
- Shops needing a different arm/platform workflow
CL12A-2 vs. Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-1 - Which Lift Is Right for Your Shop?
| Feature | CL12A-2 | Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-1 |
|---|---|---|
| Capacity | 12,000 lbs | 12,000 lbs |
| Column height | 15' 2" or 15' 8" (+2' extensions) | 13' 8" or 14' 2" (+1' extensions) |
| Ceiling requirement | 15' 9" or 16' 3" | 14' 3" or 14' 9" |
| Rise height | 84.75" | 84.75" |
| Workflow | Symmetric | Symmetric |
| Best use case | Tallest 12K bay — +2' column for the largest vehicles and highest clearance. | Mid-height 12K bay — choose +1' when you don't need the extra foot. |
Both paths stay inside Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – CL12A-2
| Lifting Capacity | 12,000 lbs. |
| Arms | 3-Stage Front & Rear |
| Rise Height | 84.75" |
| Overall Height | 15’ 8” or 15’ 2 |
| Overall Width | Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" |
| Drive-Thru Clearance | Standard - 8' 7.5" | +6" - 9' 1.5" | +12" - 9' 7.5" |
| Speed of Rise | 63s |
| Ceiling Height Required | 15’ 9” or 15’ 3” |
| ALI/ETL Certified | Yes |
| Shipping | Free shipping to 48 contiguous states |
Installation Requirements
- Ceiling height: 15’ 9” or 15’ 3” listed requirement; measure to the lowest obstruction, not the peak.
- Electrical: Confirm electrical; confirm breaker, disconnect, and drop location with an electrician.
- Concrete: Verify slab condition and anchor zones before the lift is delivered.
- Bay width: Confirm Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" overall width and Standard - 8' 7.5" | +6" - 9' 1.5" | +12" - 9' 7.5" drive-through clearance.
- Surface anchoring: Lift must be anchored per manufacturer specification.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Challenger Lifts Warranty – CL12A-2
Challenger Lifts backs the CL12A-2 with manufacturer warranty coverage. Alamo helps route service and support after the sale so the shop is not left chasing a distant parts desk.
| Component | Coverage Term |
|---|---|
| Structural parts | 5 years (structural) |
| Functional parts | 2 years parts |
| Labor | 1 year labor |
| Wear items (pads, rubber) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service. When you buy from us, you call (844) 480-6059 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
Frequently Asked Questions - CL12A-2
Why Buy the CL12A-2 from Alamo Equipment & Service?
- We install it. Alamo can anchor, wire, and set up the CL12A-2 instead of leaving you to coordinate contractors.
- We service it. If the lift needs attention after install, call the same equipment team at (844) 480-6059.
- We size it with you. The CL12A-2 lists 12,000 lbs capacity and Standard - 11' 10" | +6" - 12' 4" | +12" - 12' 10" overall width, so bay planning matters.
- Free shipping. This lift ships free to the 48 contiguous states.
- Expert comparison help. If Challenger 12,000 lb Heavy-Duty 2-Post Lift #CL12A-1 is a better fit, Alamo will tell you before you buy.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Free shipping: Orders ship free to the 48 contiguous states.
Real lift support: Alamo can help with model selection, bay fit, installation planning, maintenance, inspections, and service after the sale.
Commercial shop focus: This is not a generic pallet drop. You are buying from a team that works with automotive shop equipment every day.
Questions before you order? Call (844) 480-6059
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
