FS-Curtis CC1.5 60G Duplex 1.5HP(2) Climate Control Air Comp #CC1.5-D
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CC1.5 Duplex |
| Horsepower | 1.5 HP (x2, Duplex) |
| Tank | 60 Gallon Horizontal ASME |
| Airflow | 3.5 CFM (x2) @ 80 PSI |
| Pressure Range | 80 PSI |
| Warranty | 12 months |

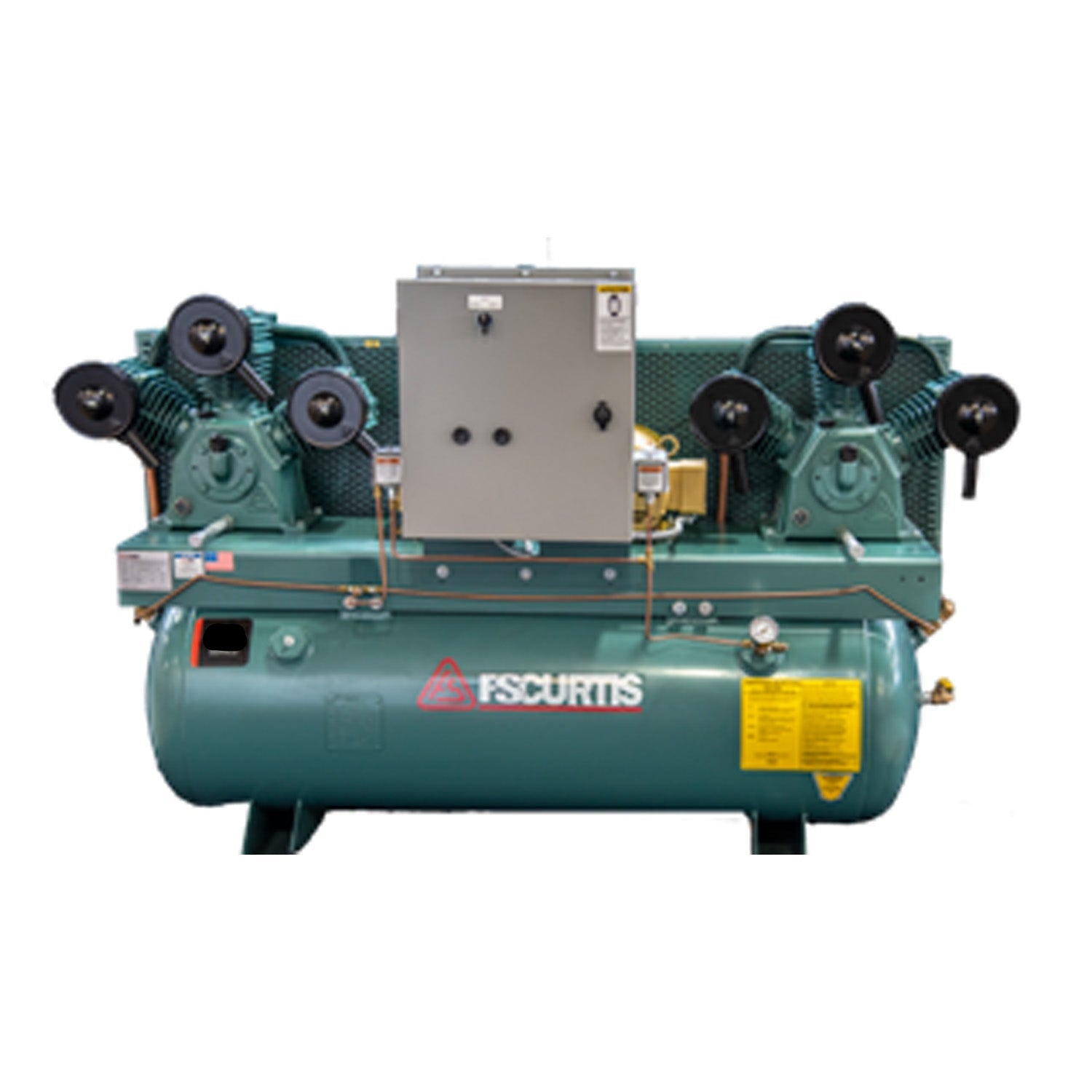

FS-Curtis CC1.5-D — 1.5 HP (x2, Duplex) Air Compressor
A mid-size hospital wing or multi-tenant office building has too many pneumatic zones riding on one air supply to risk a single-pump failure taking every thermostat offline at once during a maintenance call.
The FS-Curtis CC1.5-D is a duplex, climate control compressor rated for 1.5 HP (x2, Duplex) with a 60 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the CC1.5-D Is Built For
- ✅ A mid-size hospital wing, multi-tenant office building, or critical facility with enough pneumatic zones that a single-pump failure would affect many rooms at once
- ✅ A facility engineer who's had a simplex unit fail and needed to service it live while zones lost proper temperature control in the meantime
- ✅ A building with more pneumatic devices than the CC.75-D duplex can reliably support, needing the extra CFM headroom of the 1.5 HP tier with redundancy
- ✅ A facility manager standardizing on FS-Curtis's duplex Climate Control tier for uptime-critical, mid-size mechanical rooms
- ✅ An operation planning facility growth that wants the redundancy and capacity headroom built in now
What the CC1.5-D Is NOT Built For
- ❌ Smaller buildings where a simplex CC1.5-H or the smaller CC.75-D already covers the pneumatic-control load
- ❌ Automotive or general repair shops — this line is for controls/instrumentation air, not shop-air tools
- ❌ Budget-conscious buyers — duplex costs meaningfully more than simplex at the same HP
What Makes the CC1.5-D Different
Single-Stage Pump, Built for Continuous Duty
The FS-Curtis CC1.5-D uses an ES10 (x2) pump — a reliable single-stage design sized for the steady, low-pressure control-air demand of pneumatic thermostats and actuators, built to run continuously without the wear a smaller hobby-grade pump would see under the same duty cycle.
CFM & Pressure Output
Delivers 3.5 CFM (x2) @ 80 PSI and holds pressure up to 80 PSI, enough headroom to supply reliable air to pneumatic thermostats, damper actuators, and control instrumentation without the tank running dry.
Power Requirements
Single or Three-Phase, 115V/230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Built-in pump redundancy
- Mid-size critical facilities
- Higher CFM with uptime insurance
- Smaller buildings
- Budget-first buyers
CC1.5-D vs. FS-Curtis CC1.5-H (1.5 HP, Simplex) — Which Compressor Is Right for Your Shop?
| Decision Point | CC1.5-D | FS-Curtis CC1.5-H (1.5 HP, Simplex) |
|---|---|---|
| Horsepower / Tank | 1.5 HP x2 / 60 Gal Horizontal | 1.5 HP / 30 Gal Horizontal |
| CFM @ 80 PSI | 3.5 CFM x2 (7 CFM combined) | 3.5 CFM |
| Redundancy | Duplex — two independent pumps, built-in backup | Simplex — single pump, no built-in redundancy |
| Best fit | Facilities needing uptime insurance for pneumatic controls | Smaller buildings where redundancy isn't required |
Choose the CC1.5-D when the pneumatic control system across a larger facility can't tolerate downtime. Choose the CC1.5-H for a simpler, lower-cost setup if redundancy isn't a hard requirement. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CC1.5-D
| Model / Part Number | CC1.5 Duplex |
| Horsepower | 1.5 HP (x2, Duplex) |
| Pump | ES10 (x2) |
| Configuration | Duplex, Climate Control |
| Tank | 60 Gallon Horizontal ASME |
| Airflow | 3.5 CFM (x2) @ 80 PSI |
| Pressure Range | 80 PSI |
| Motor / Electrical | Single or Three-Phase, 115V/230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/115V (FCC11S01D6S-A1F1XX) 1/60/230V (FCC11S01D6S-A2F1XX) Three Phase: 3/60/200V (FCC11S01D6S-A9F1XX) 3/60/230V (FCC11S01D6S-A3F1XX) 3/60/460V (FCC11S01D6S-A4F1XX) |
| Overall Dimensions | 23" L x 46" W x 46" H |
| Shipping Weight | 470 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 115V/230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 23" L x 46" W x 46" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 470 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CC1.5-D
FS-Curtis backs the CC1.5-D with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis CC1.5-D
Why Buy the CC1.5-D from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 1.5 HP (x2, Duplex), a 60 gallon horizontal ASME tank, 3.5 CFM (x2) @ 80 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the CC1.5-D or the FS-Curtis CC1.5-H (1.5 HP, Simplex) is the better fit? We’ll walk you through it.
