FS-Curtis CT10 120G Horizontal 10HP Two-Stage Simplex Air Comp #CT10-H
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | CT10 Simplex 2-Stage |
| Horsepower | 10 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 29.7 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |

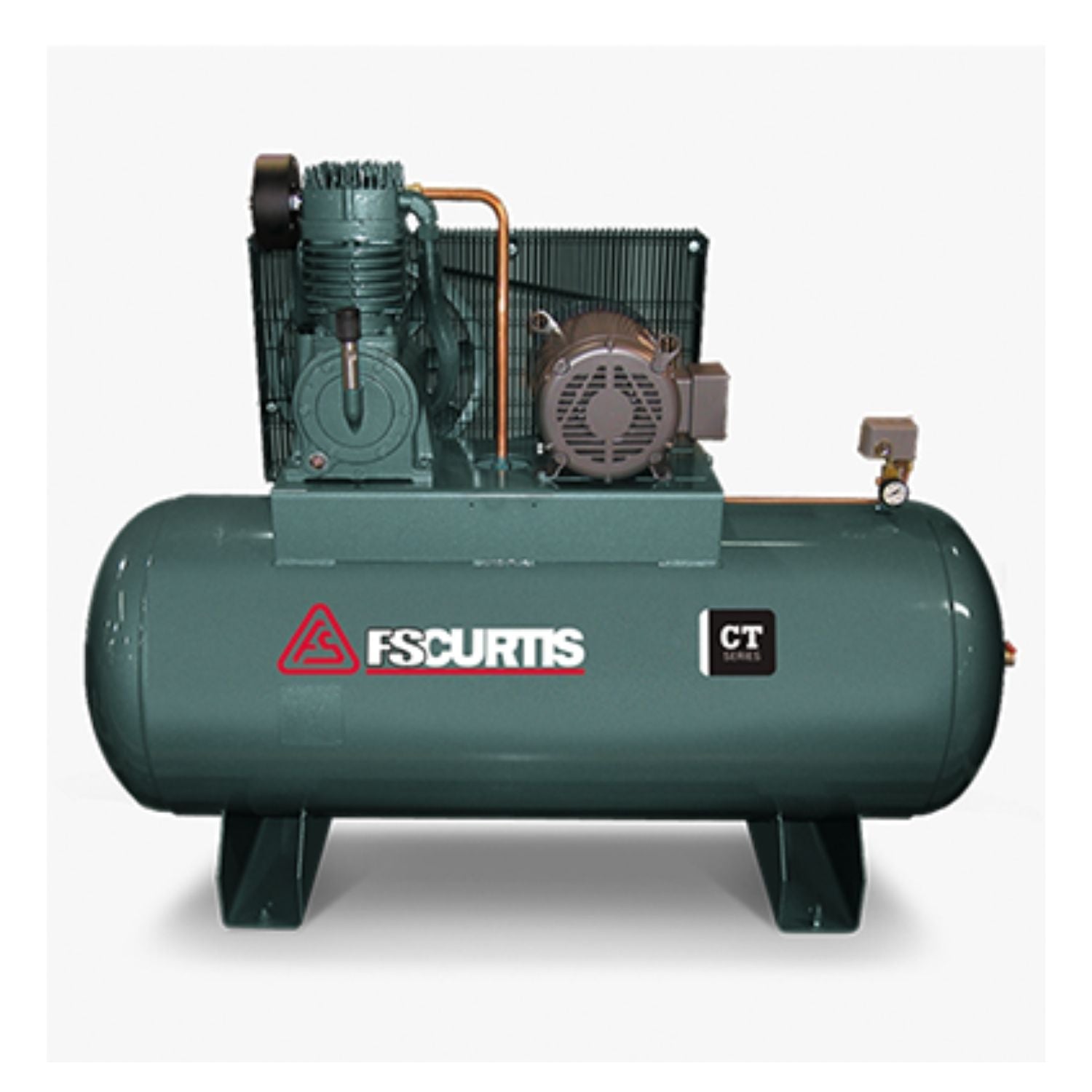

FS-Curtis CT10-H — 10 HP Air Compressor
A shop with 575V three-phase service that's outgrown 7.5 HP output gets a genuine step up on the CT platform — a horizontal, low-clearance tank at 10 HP with a voltage option the CA10 line doesn't offer.
The FS-Curtis CT10-H is a two-stage reciprocating compressor rated for 10 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the CT10-H Is Built For
- ✅ A shop with 575V three-phase electrical service that's outgrown 7.5 HP output and needs 10 HP headroom — the CA10 line doesn't offer 575V
- ✅ A shop with limited overhead clearance wanting 10 HP output in a low-profile horizontal tank
- ✅ Multi-bay commercial shops running several air tools simultaneously that need genuine 10 HP continuous output
- ✅ A shop standardizing on FS-Curtis's CT line for its distinct C75 pump platform and broader voltage range
- ✅ An owner who's watched a smaller unit's tank run dry faster than it recovers on busy days and wants to eliminate that bottleneck
What the CT10-H Is NOT Built For
- ❌ Home garages or single-bay use — a 5 or 7.5 HP unit is more cost-effective for lighter demand
- ❌ Shops needing built-in redundancy — no duplex CT10 configuration exists; consider a duplex CA10 unit instead
- ❌ Buyers wanting factory auto-drain/dryer accessories standard — not available in this configuration
What Makes the CT10-H Different
Commercial 2-Stage Pump
The CT10-H uses a C75, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 29.7 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase, 230V/460V/575V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 575V three-phase available
- 10 HP in a low-clearance tank
- Multi-bay continuous demand
- Home garages / occasional use
- Shops needing duplex redundancy
CT10-H vs. FS-Curtis CA10-H (10 HP, CA Line) — Which Compressor Is Right for Your Shop?
| Decision Point | CT10-H | FS-Curtis CA10-H (10 HP, CA Line) |
|---|---|---|
| Horsepower / Tank | 10 HP / 120 Gal Horizontal | 10 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 29.7 CFM | 34.2 CFM |
| Voltage options | Three-Phase 200-208V/230V/460V/575V | Three-Phase 200-208V/230V/460V (no 575V) |
| Best fit | Shops with 575V three-phase service available | Shops wanting the highest CFM at this HP tier |
Choose the CT10-H specifically if your shop runs 575V three-phase power. Choose the CA10-H if your electrical service is standard 200-460V and you want slightly higher CFM output (34.2 vs. 29.7) at the same HP. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — CT10-H
| Model / Part Number | CT10 Simplex 2-Stage |
| Horsepower | 10 HP |
| Pump | C75, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 29.7 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase, 230V/460V/575V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FCT10C75H1S-A9L1XX) |
| Overall Dimensions | 74" L x 25" W x 53" H |
| Shipping Weight | 833 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase, 230V/460V/575V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 74" L x 25" W x 53" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 833 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — CT10-H
FS-Curtis backs the CT10-H with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
