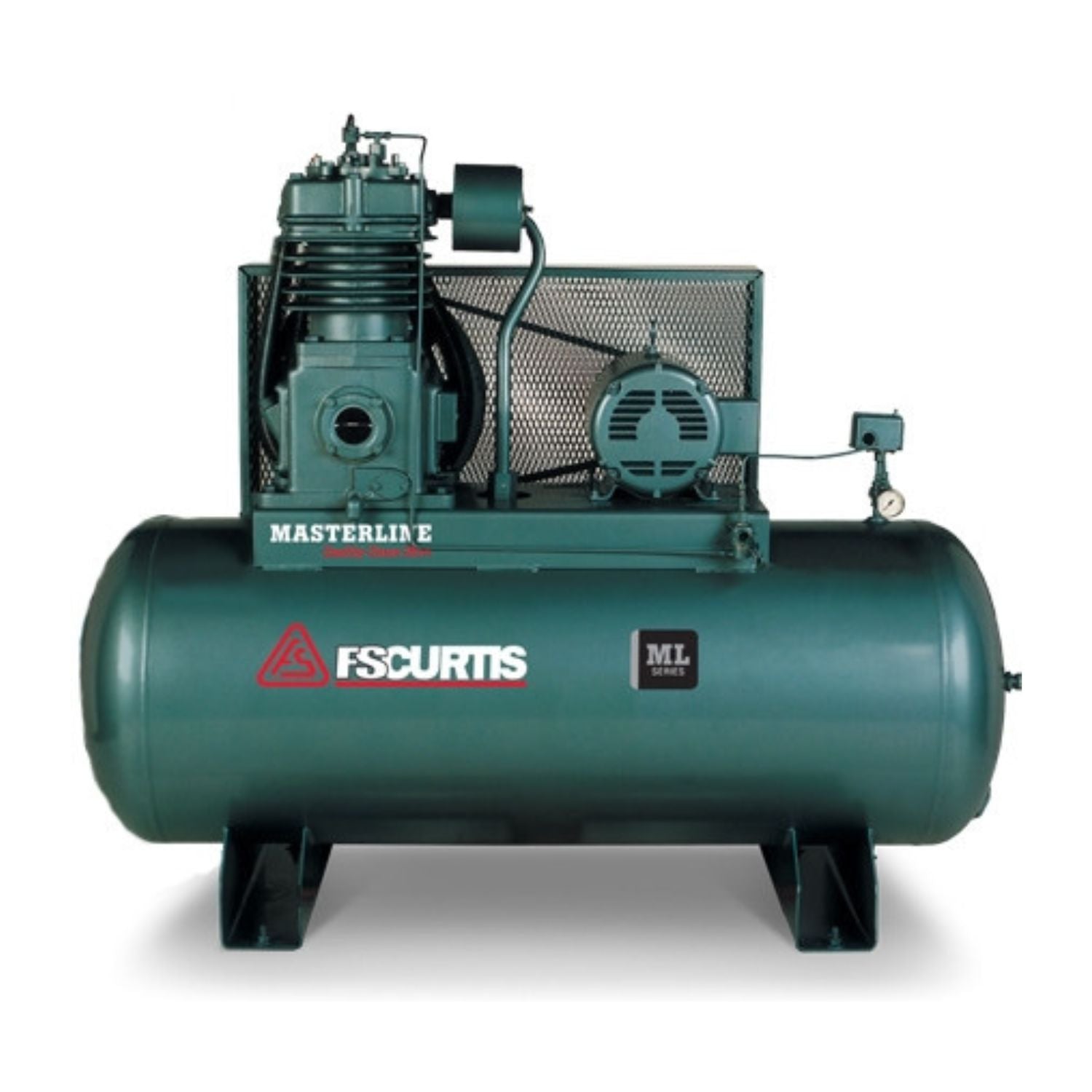

FS-Curtis ML15 120G Horizontal 15HP Simplex Tank Electric Air Compressor #ML15-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML15-SH |
| Horsepower | 15 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 49.5 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML15-SH — 15 HP Air Compressor
A shop that needs the ML Series' 15 HP output but has an existing dryer or filtration system in place doesn't need to pay for factory Ultra Pack accessories duplicating what's already installed.
The FS-Curtis ML15-SH is a two-stage reciprocating compressor rated for 15 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML15-SH Is Built For
- ✅ A commercial shop that's outgrown a 10 HP unit and needs 15 HP output, but doesn't need the Ultra Pack accessories yet
- ✅ An operation with an existing air dryer or filtration system already installed that doesn't need factory-bundled accessories duplicating in-place equipment
- ✅ A shop wanting the lower entry price of a base configuration with the option to add accessories later if demand changes
- ✅ A facility running several bays simultaneously needing sustained ~50 CFM output without paying for extras it won't use
- ✅ A shop standardizing on FS-Curtis's ML Series for parts and service commonality, starting with the base 15 HP tier
What the ML15-SH Is NOT Built For
- ❌ Shops whose demand is fully covered by a 10 HP unit — the ML10 line saves real money if 40 CFM is enough
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML15-HUP) adds those, this base unit doesn't
- ❌ Shops needing single-phase power — this series is three-phase only
What Makes the ML15-SH Different
Commercial 2-Stage Pump
The ML15-SH uses a D97, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 49.5 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 49.5 CFM at 15 HP
- Lower entry price, no bundled accessories
- Multi-bay commercial shops
- Shops fully covered by 10 HP
- Single-phase-only electrical
ML15-SH vs. FS-Curtis ML10-SH (10 HP, 120 Gal Horizontal) — Which Compressor Is Right for Your Shop?
| Decision Point | ML15-SH | FS-Curtis ML10-SH (10 HP, 120 Gal Horizontal) |
|---|---|---|
| Horsepower / Tank | 15 HP / 120 Gal Horizontal | 10 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 49.5 CFM | 39.8 CFM |
| Included accessories | Standard configuration, no bundled accessories | Standard configuration, no bundled accessories |
| Best fit | Shops needing more CFM headroom at the same tank size | Shops whose demand is fully covered at 10 HP |
Choose the ML15-SH when 10 HP output is no longer enough for your shop's demand. Choose the ML10-SH if 40 CFM covers your actual draw — it costs meaningfully less. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML15-SH
| Model / Part Number | ML15-SH |
| Horsepower | 15 HP |
| Pump | D97, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 49.5 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML15D97H1S-A9L1XX) |
| Overall Dimensions | 72" L x 28" W x 58" H |
| Shipping Weight | 1075 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 72" L x 28" W x 58" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 1075 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML15-SH
FS-Curtis backs the ML15-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML15-SH
Why Buy the ML15-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 15 HP, a 120 gallon horizontal ASME tank, 49.5 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML15-SH or the FS-Curtis ML10-SH (10 HP, 120 Gal Horizontal) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
